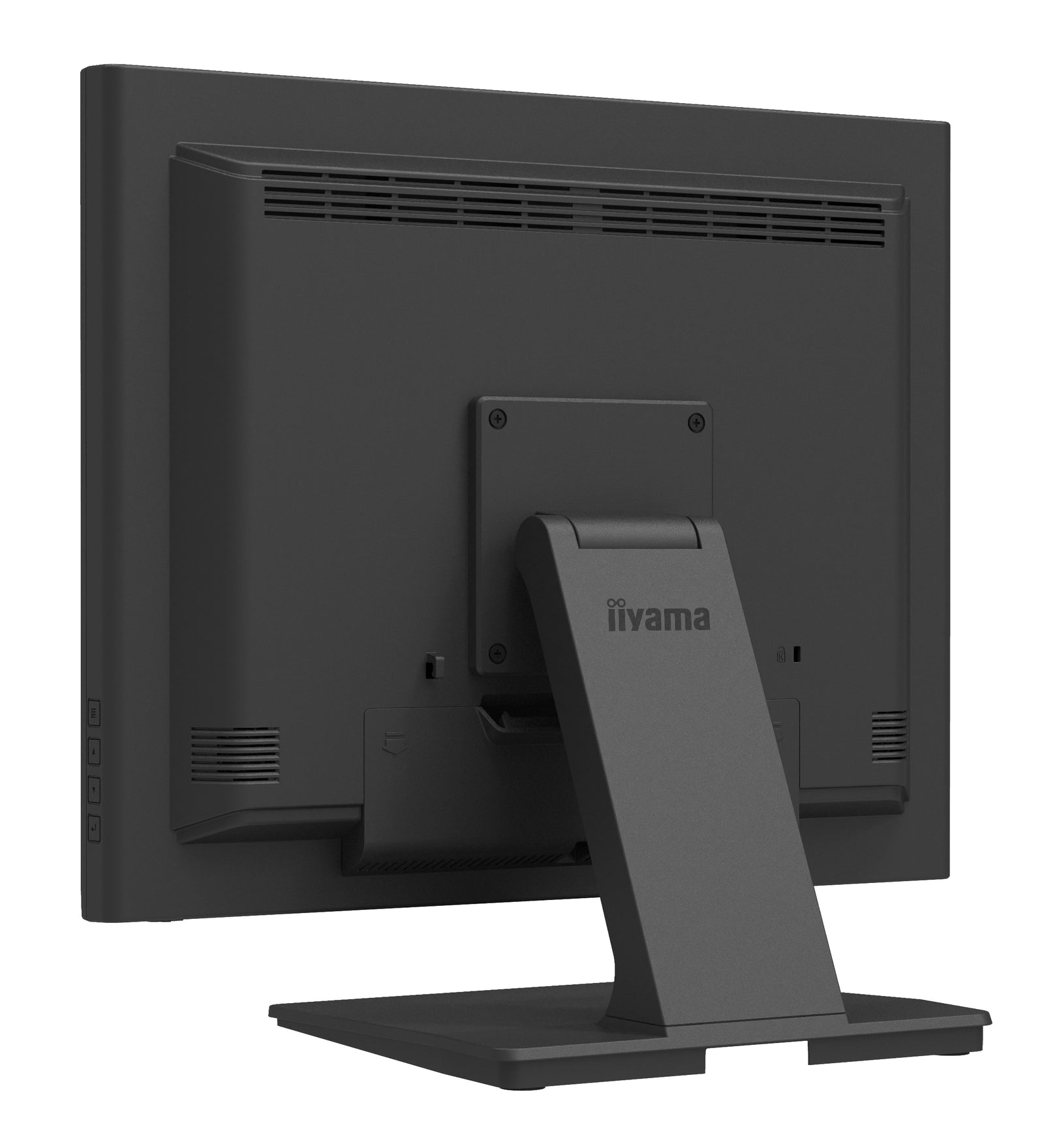

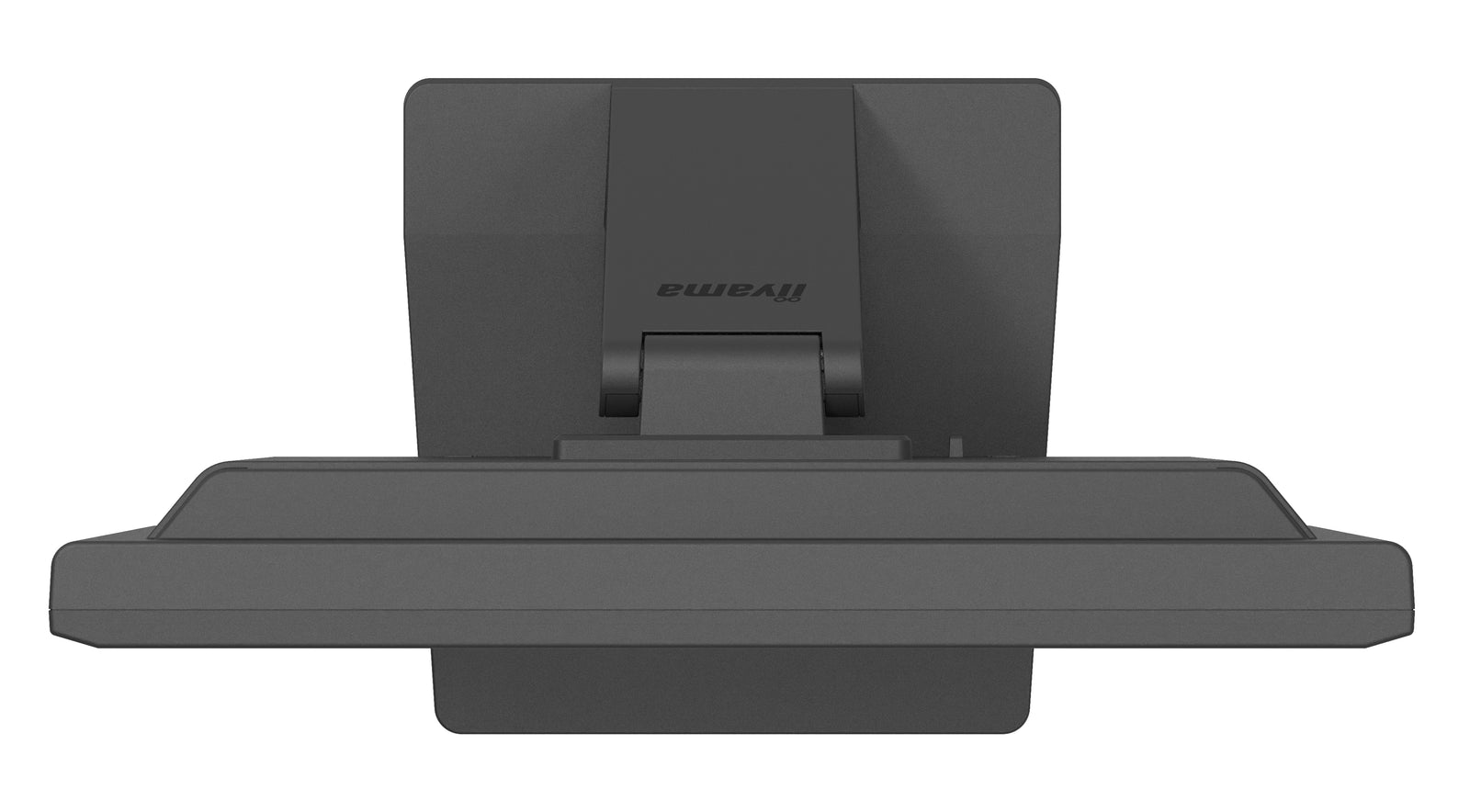

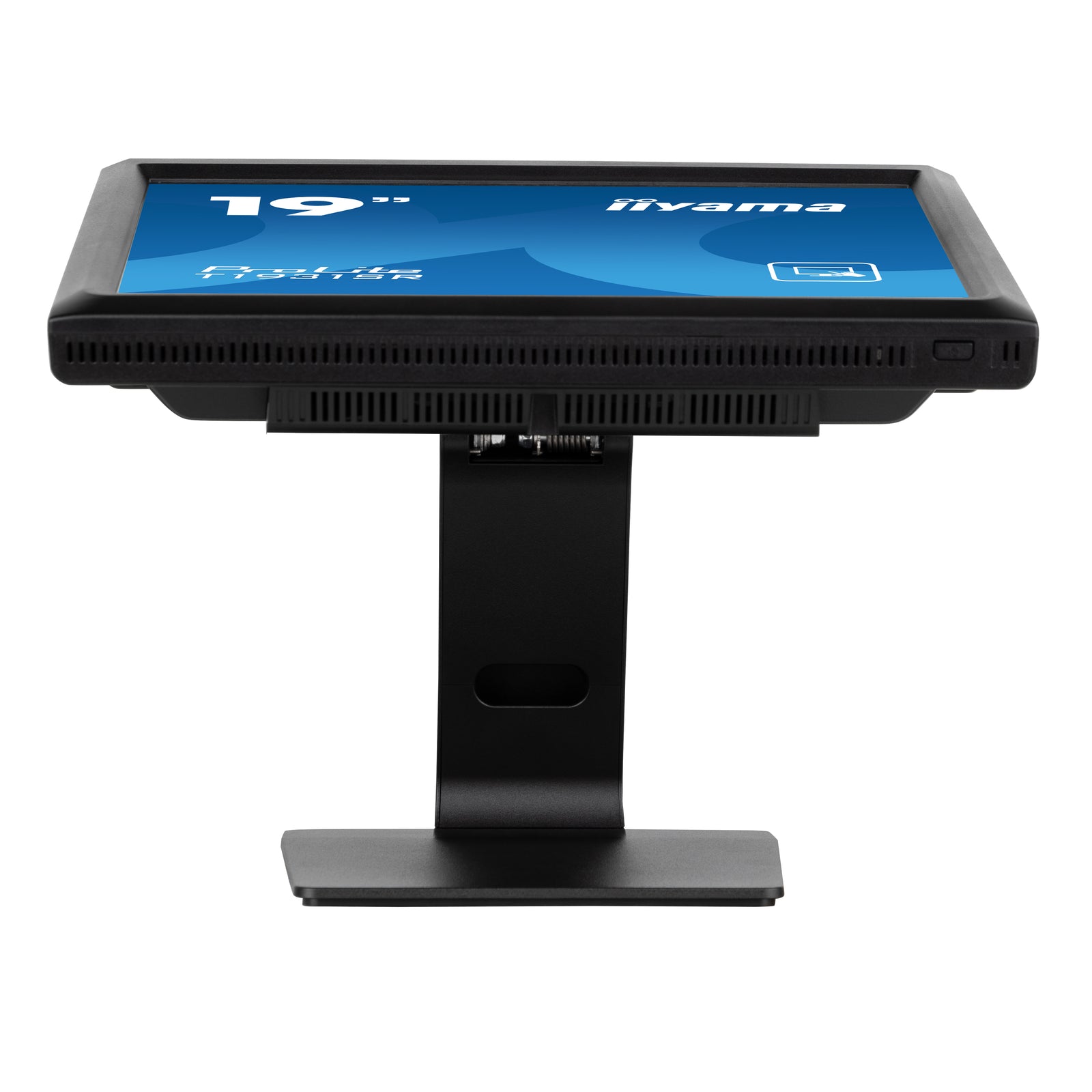

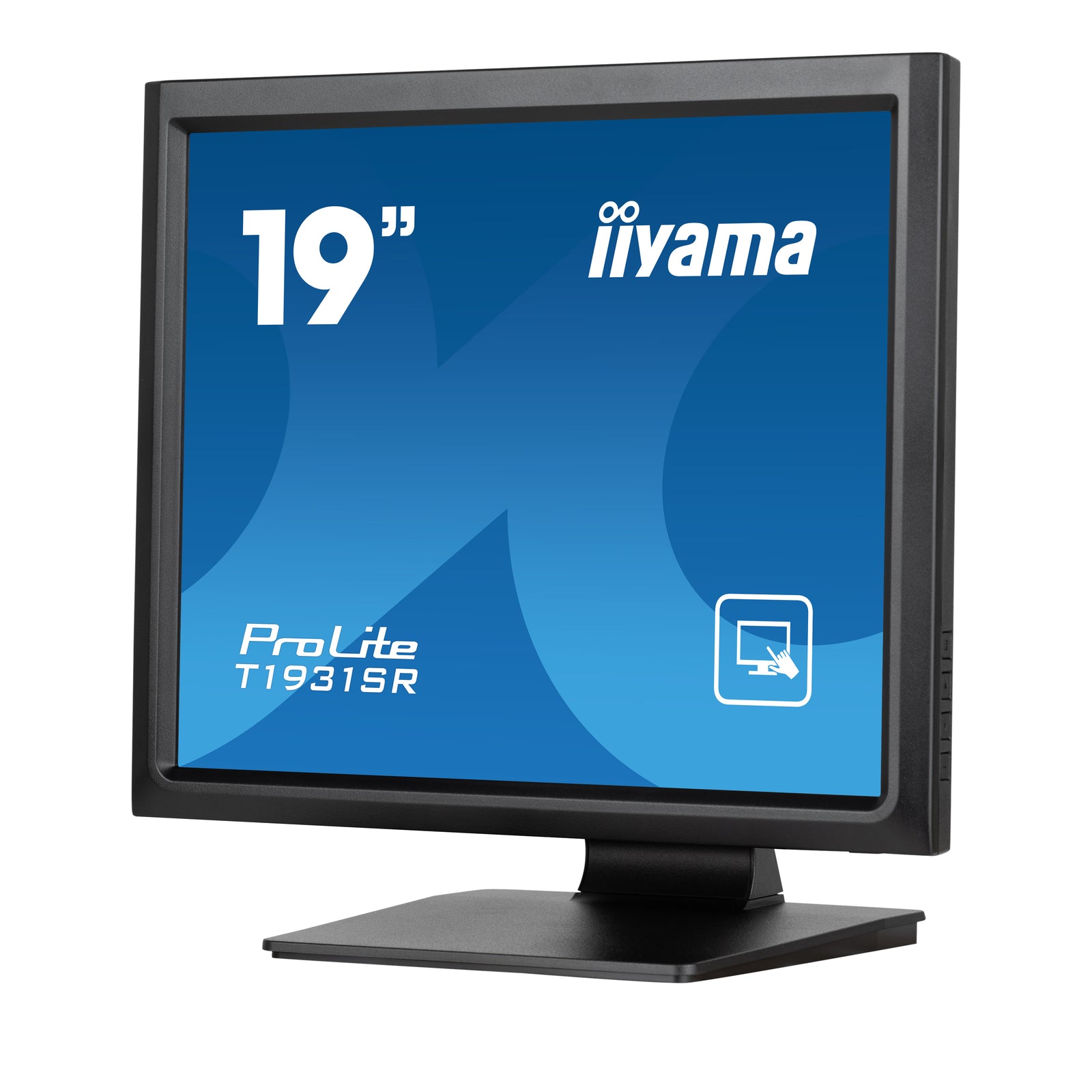

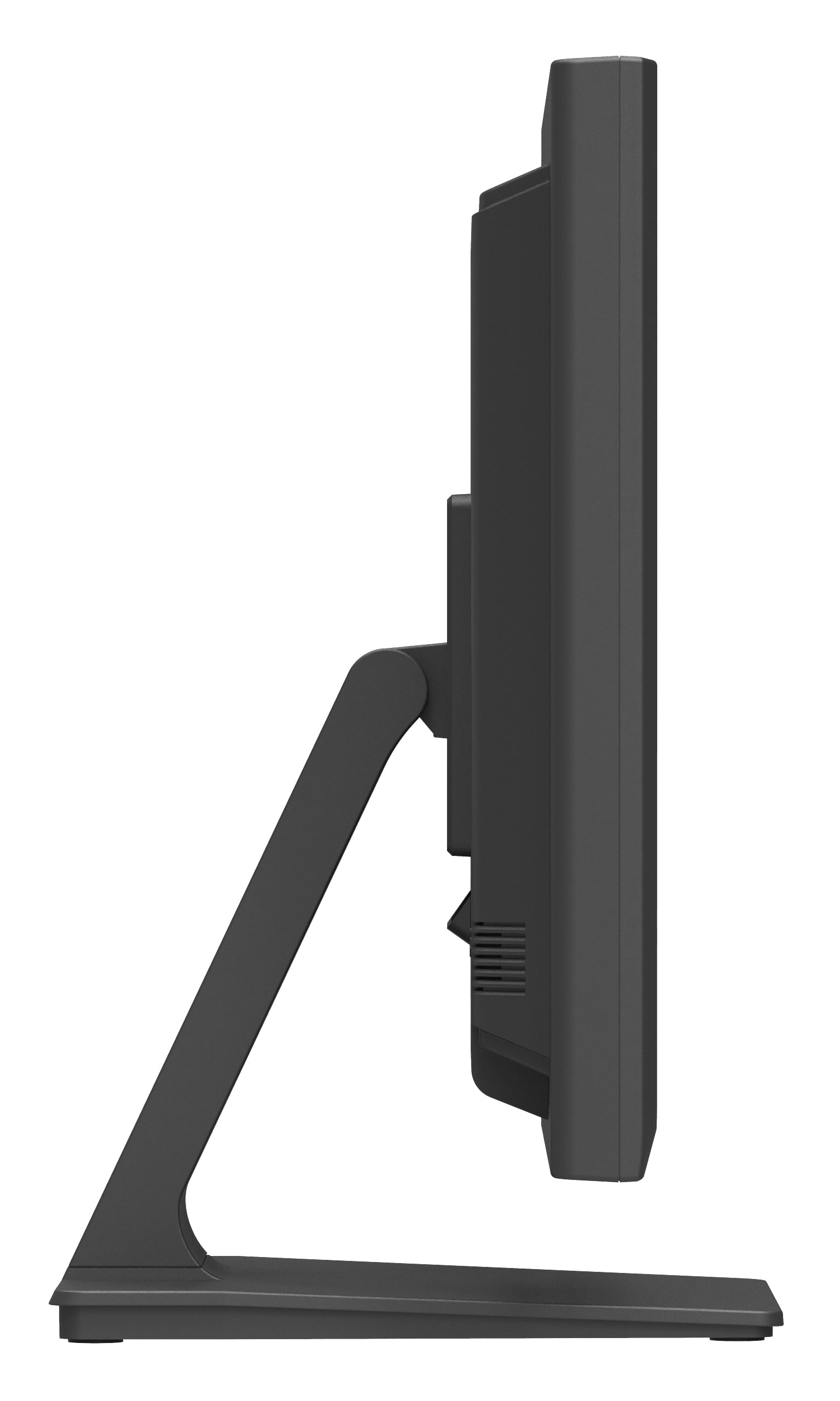

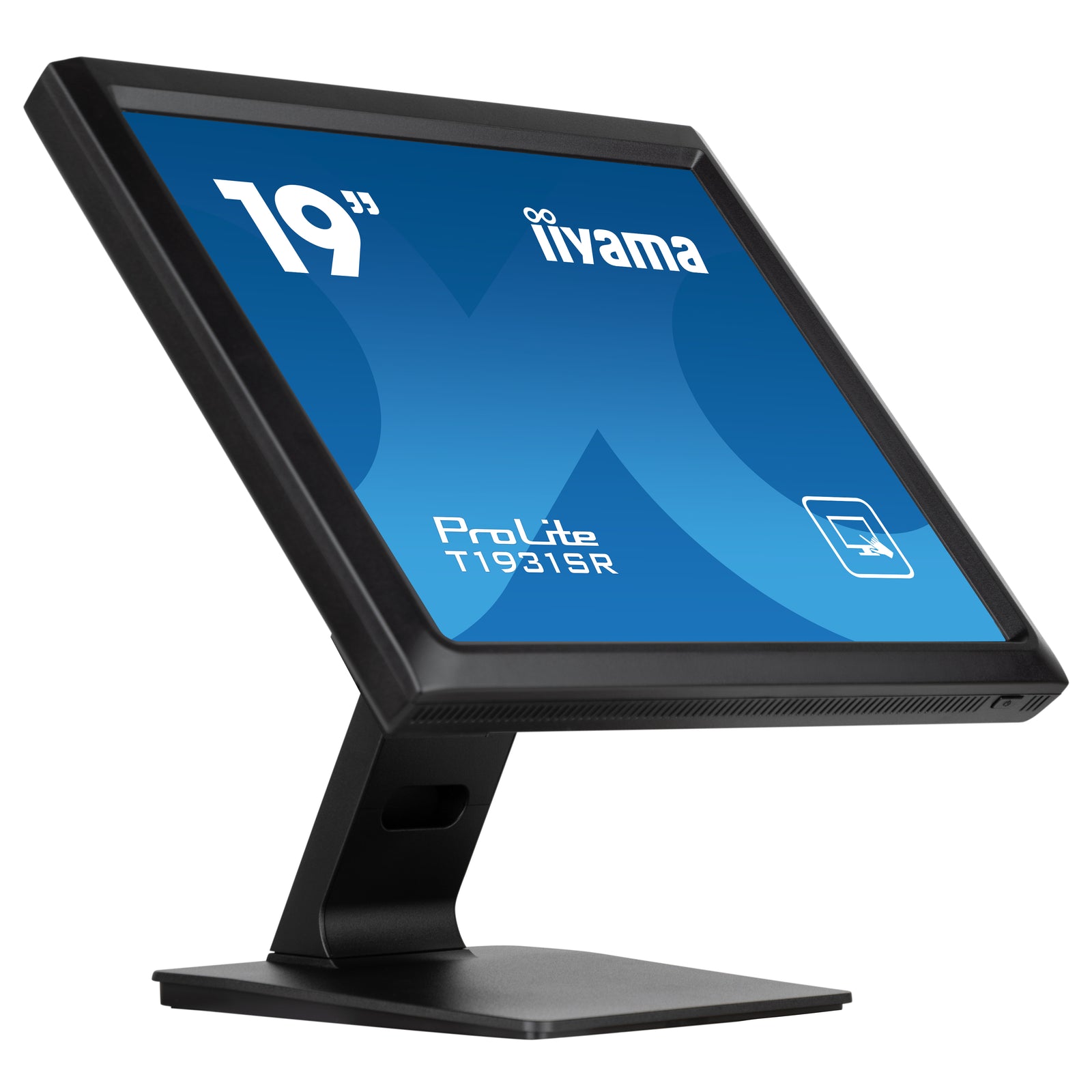

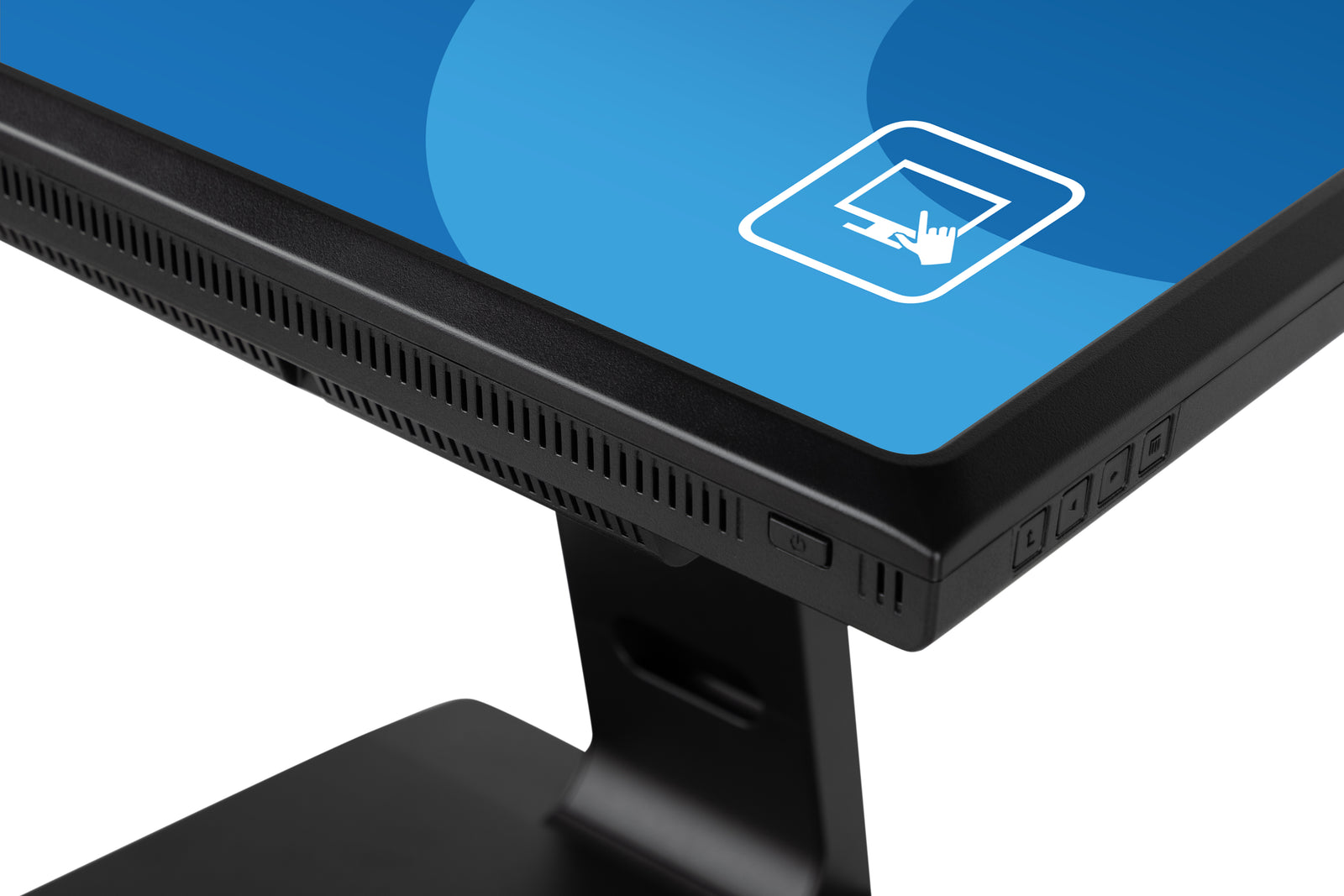

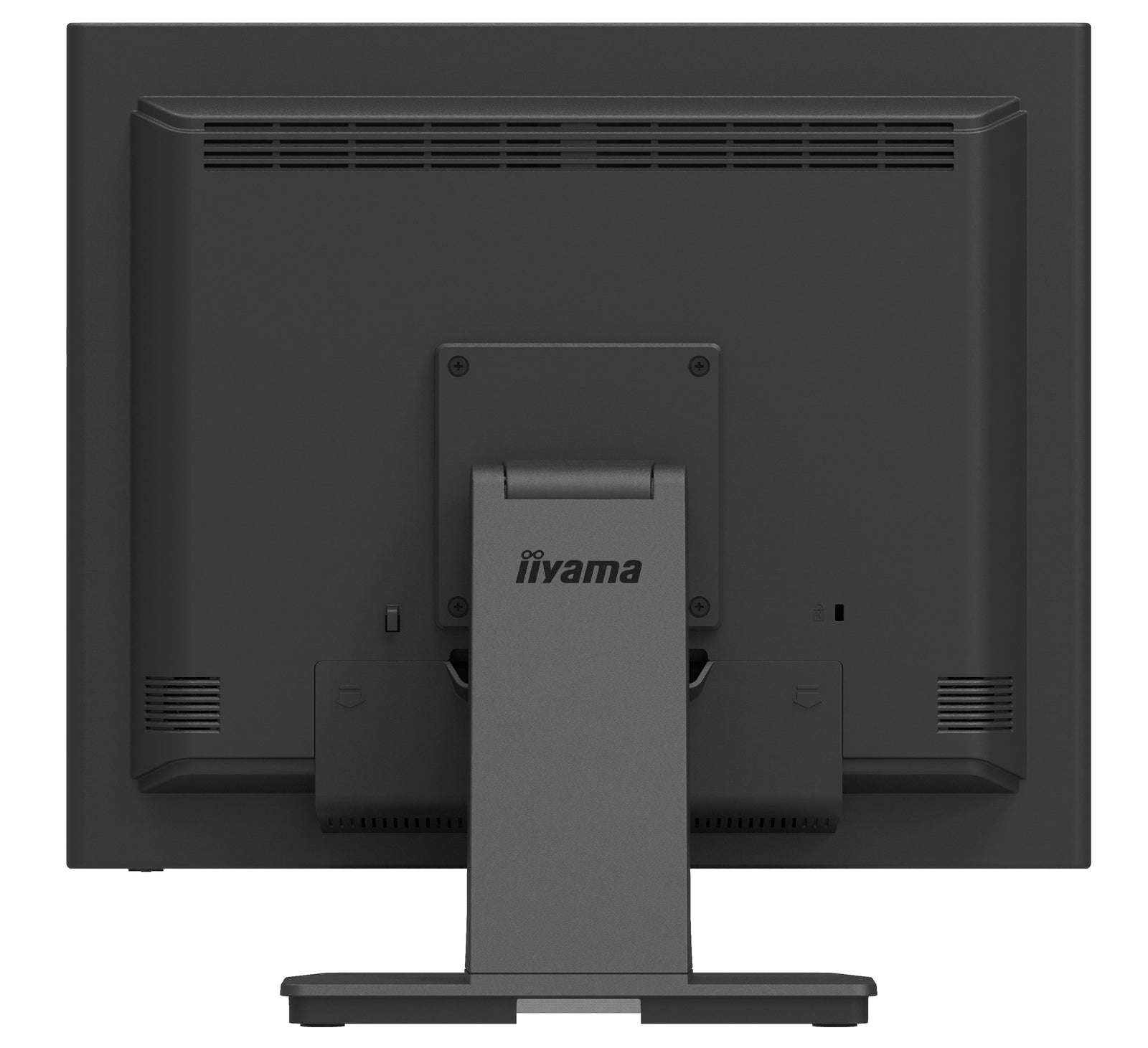

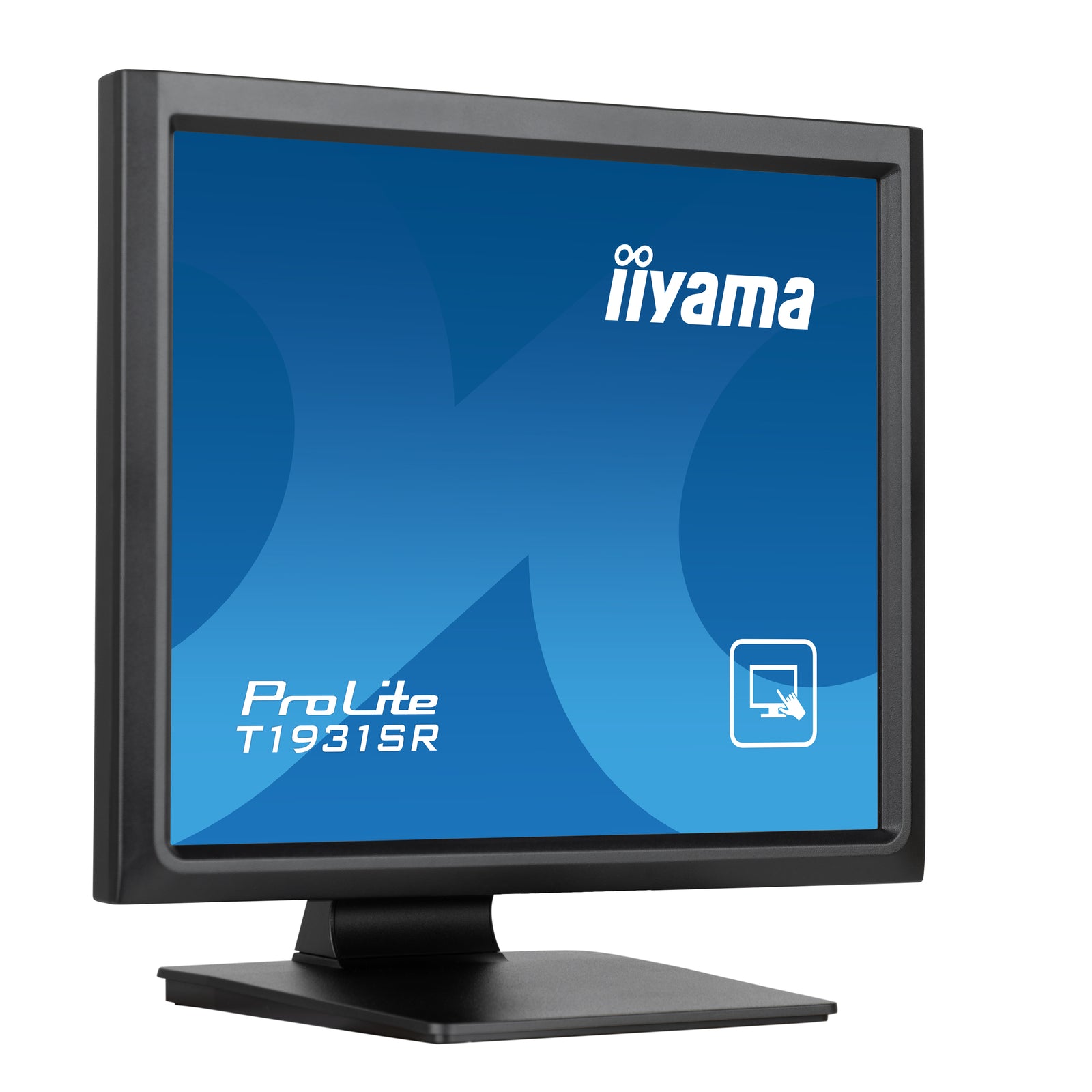

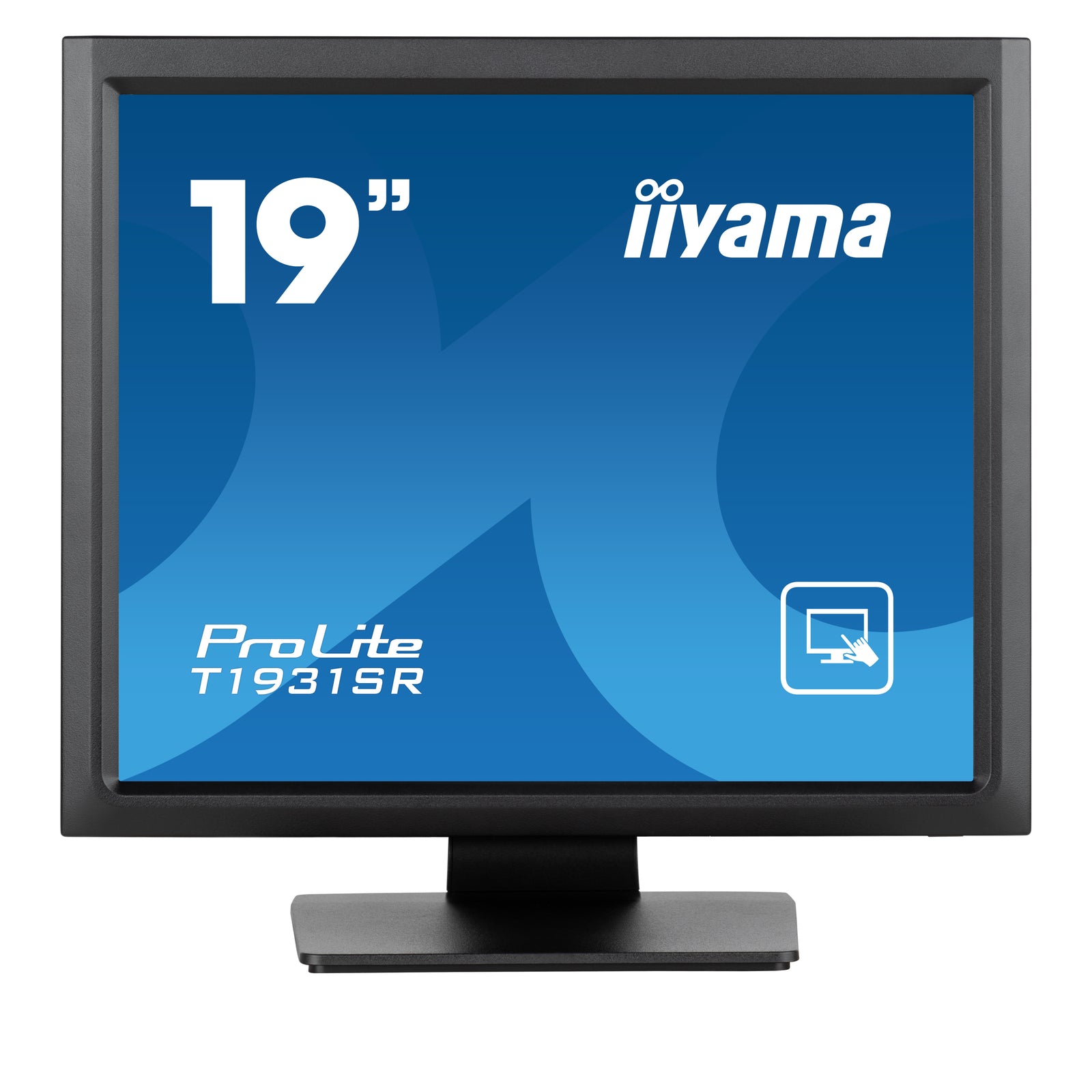

iiyama ProLite T1931SR-B1S 19" IPS Touchscreen Monitor

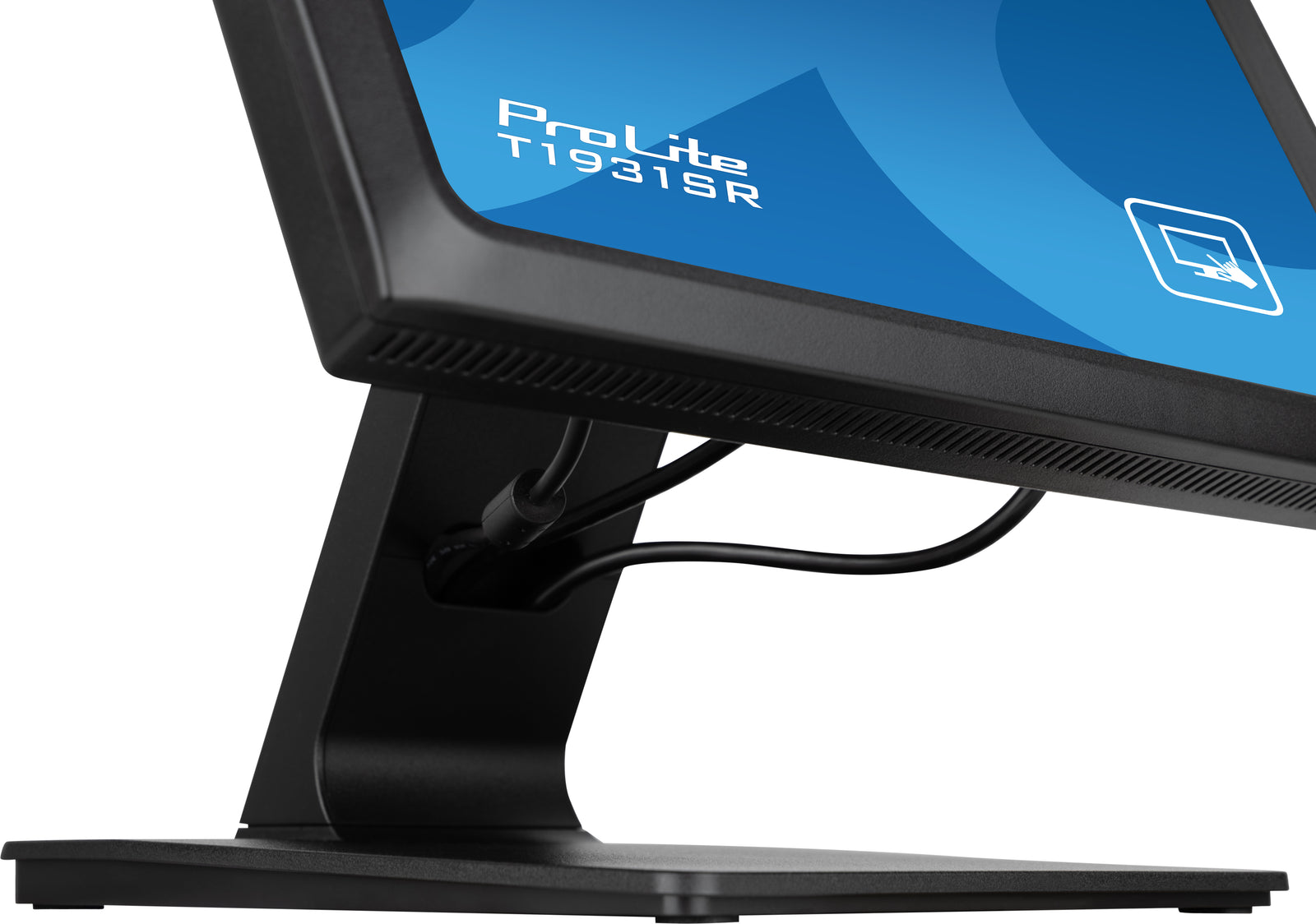

The T1931SR-B1S is based on 5-wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality and performance are certainly not compromised. The display includes both analogue (VGA) and digital inputs (HDMI and DisplayPort) with touchscreen connectivity via USB offering great flexibility. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The T1931SR-B1S can be used in a variety of environments, especially recommended for shops, restaurants and industrial purposes.

TOUCH TECHNOLOGY - RESISTIVE
5-wire resistive touchscreens are very durable and can be used in a variety of environments. They are especially recommended for shops, restaurants and industrial purposes.

IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.

SPEAKERS
This LED monitor is equipped with two stereo speakers.

VESA
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.

DISPLAY CHARACTERISTICS
Diagonal	19", 48cm
Panel	IPS
Native resolution	1280 x 1024 (1.3 megapixel)
Aspect ratio	5:4
Panel brightness	250 cd/m²
Brightness	200 cd/m² with touch
Light transmittance	80%
Static contrast	1000:1 with touch
Response time (BTB)	14ms
Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support	16.7 million
Horizontal Sync	31.5 - 80kHz
Viewable area W x H	374.8 x 299.8mm, 14.7 x 11.8"
Pixel pitch	0.293mm
Bezel colour and finish	black, matte

TOUCH
Touch technology	serial resistive
Touch points	1
Touch method	stylus, finger, glove
Touch interface	USB
Supported operating systems	Windows, Linux

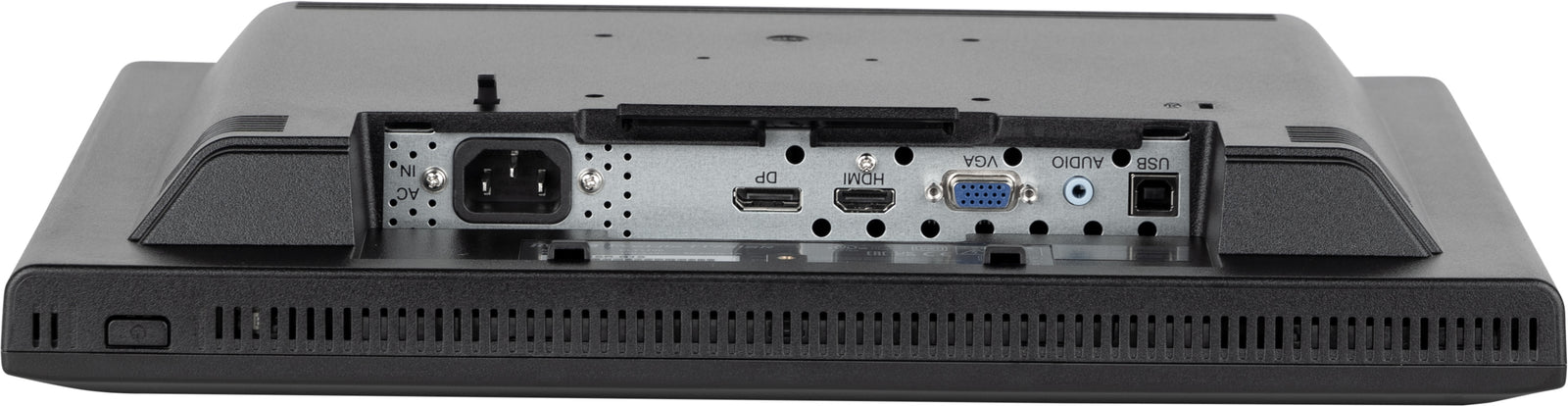

INTERFACES / CONNECTORS / CONTROLS
Analog signal input	VGA x1
Digital signal input	HDMI x1, DisplayPort x1
Audio output	Speakers 2 x 1W
HDCP	Yes

FEATURES
Water and dust protection	IP54 (front)
OSD key lock	Yes

GENERAL
OSD languages	EN, DE, FR, ES, IT, CN, JP
Control buttons	Menu, Scroll up/Brightness, Scroll down/Mute, Select, Power
User controls	Contrast, Brightness, Lock mode (Power, OSD), Auto adjust, OSD, H. position, V. position, H-size, Fine, OSD H. position, OSD V. position, OSD timeout, Reset, Input select, OSD language, Colour temperature, Volume, Mute
Convenience	Kensington-lock™ prepared
Plug&Play	DDC2B

MECHANICAL

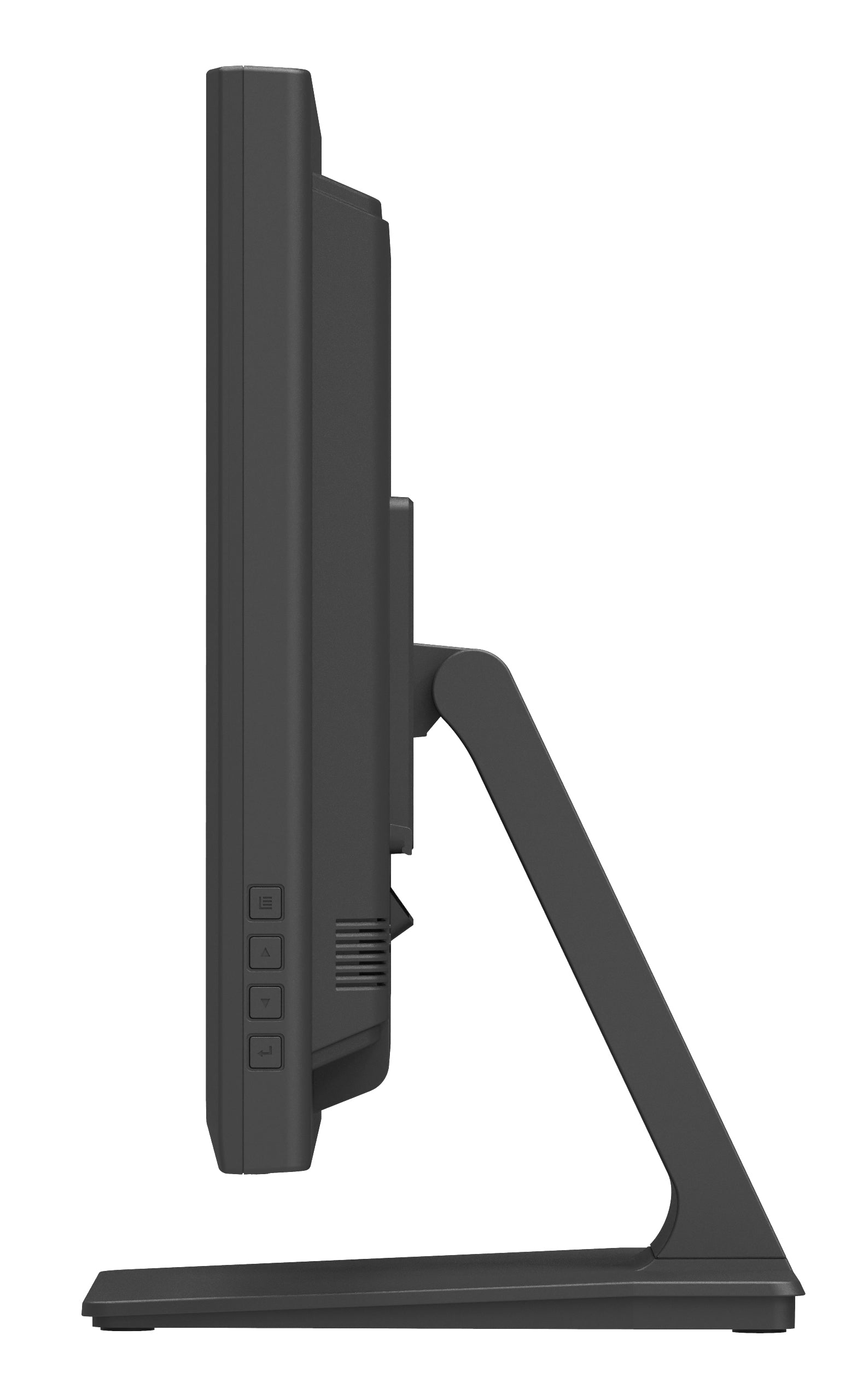

Tilt angle	90° up; 5° down

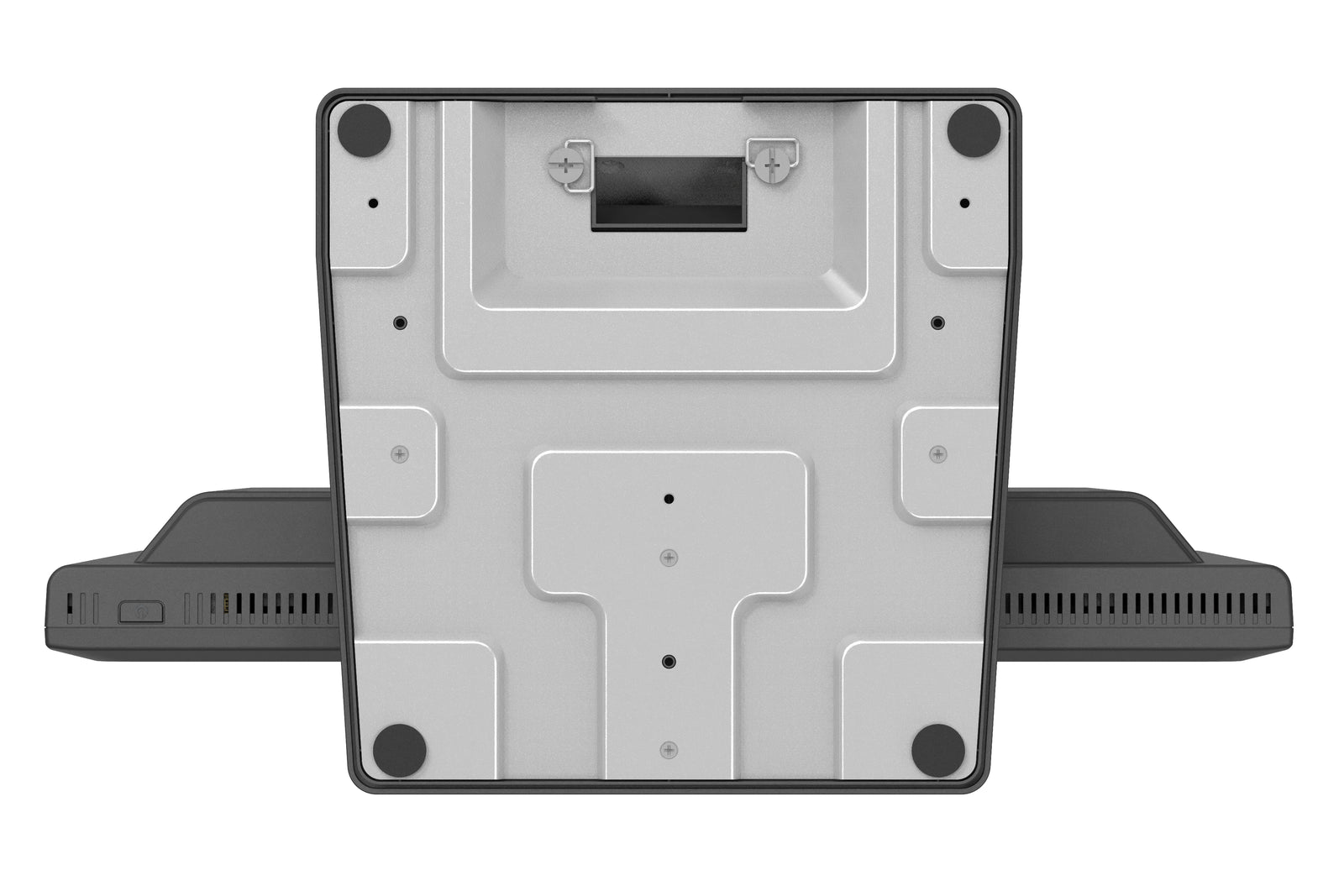

VESA mounting	100 x 100mm
Cable management system	Yes

ACCESSORIES INCLUDED
Cables	Power, USB, HDMI, Audio, DP
Guides	Quick start guide, Safety guide
Cable cover	Yes

POWER MANAGEMENT
Power supply unit	Internal
Power supply	AC 100 - 240V, 50/60Hz
Power usage	20W typical, 1.5W standby, 0.3W off mode

SUSTAINABILITY
Regulations	CE, EAC, RoHS support, ErP, WEEE, cULus, VCCI, REACH, UKCA
Energy efficiency class	E
REACH SVHC	Above 0.1%: Lead

DIMENSIONS / WEIGHT
Product dimensions W x H x D	432 x 431.5 x 239.5mm
Box dimensions W x H x D	530 x 495 x 190mm
Weight (without box)	6kg
Weight (with box)	8kg

EAN code
EAN code	4948570122172
