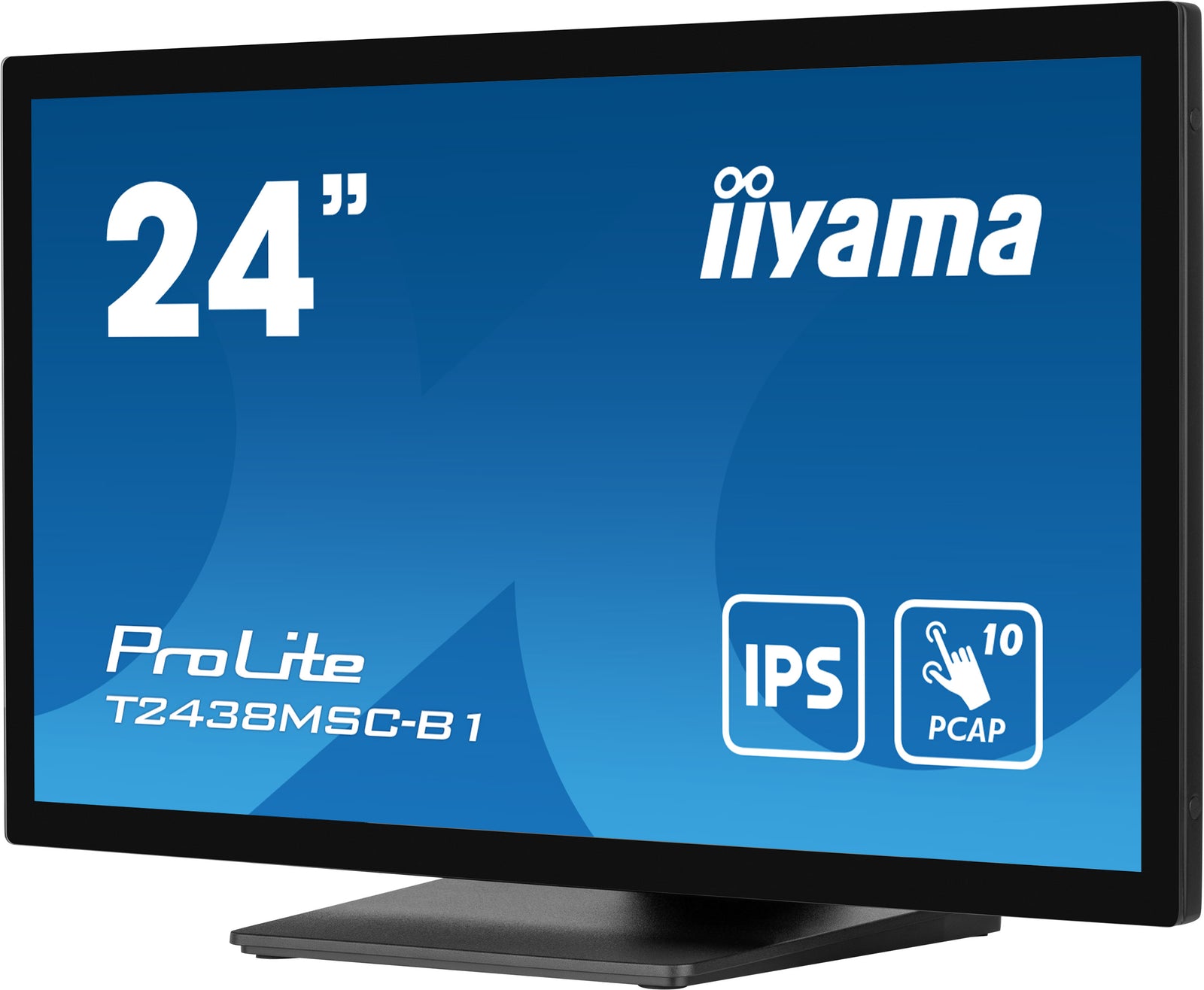

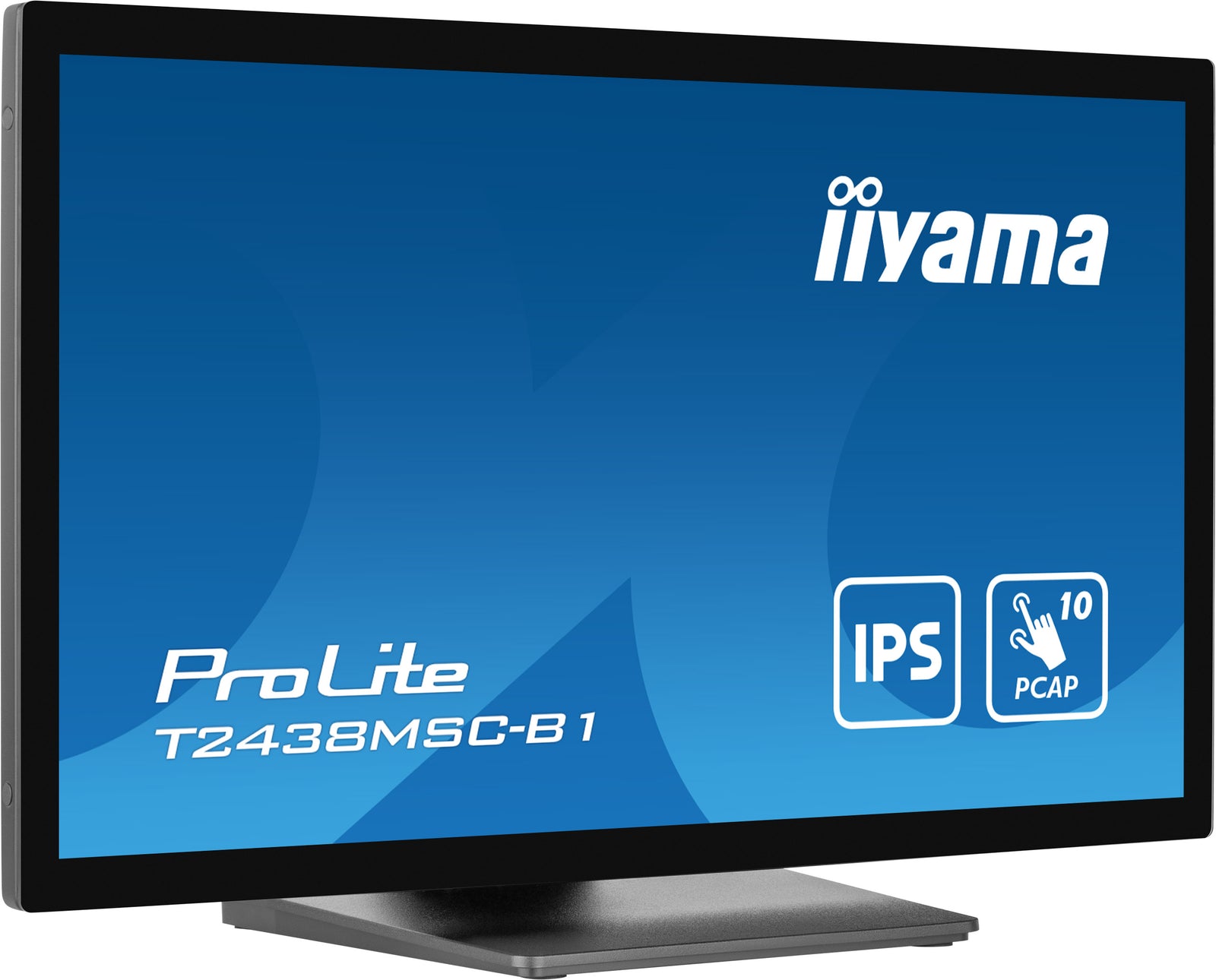

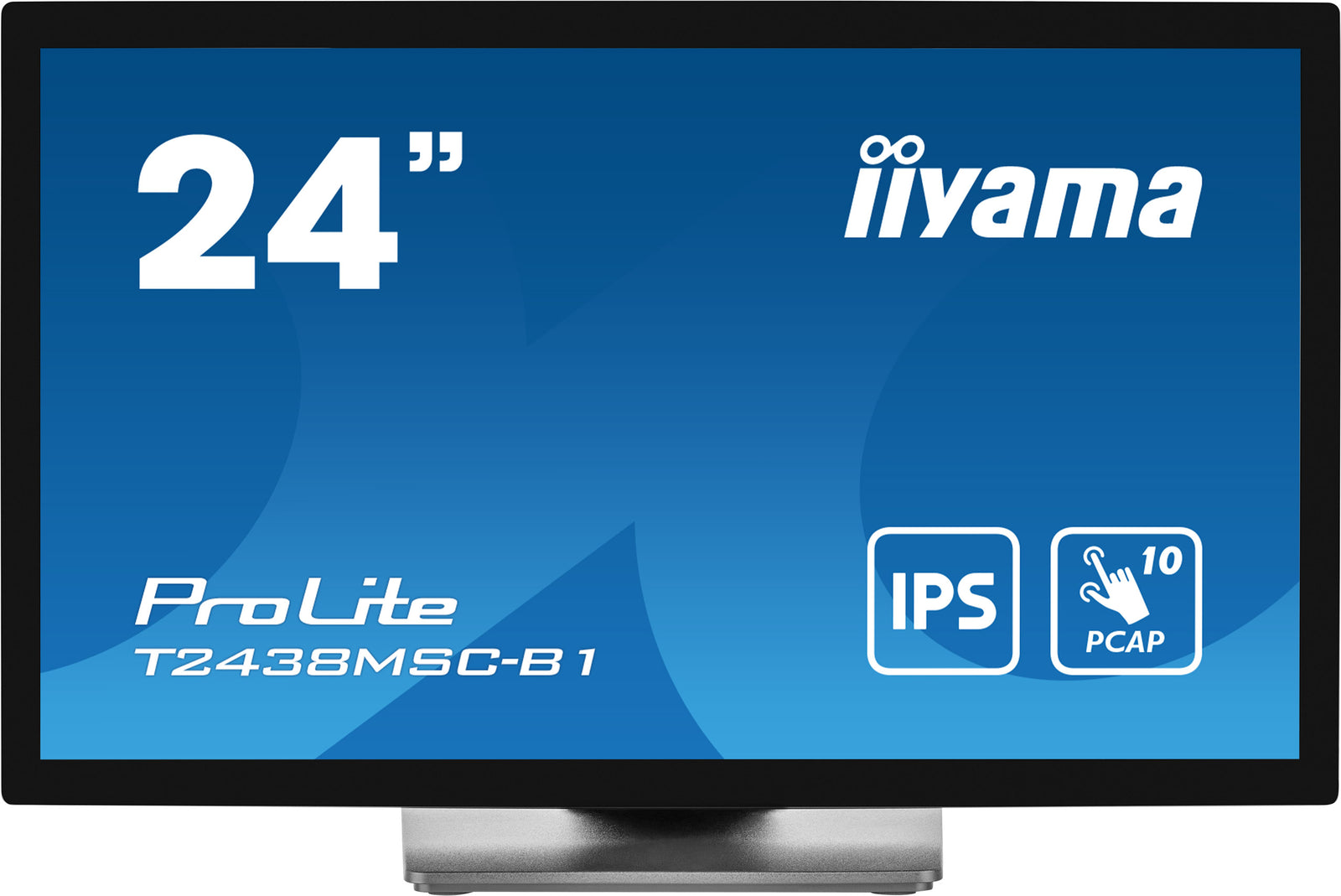

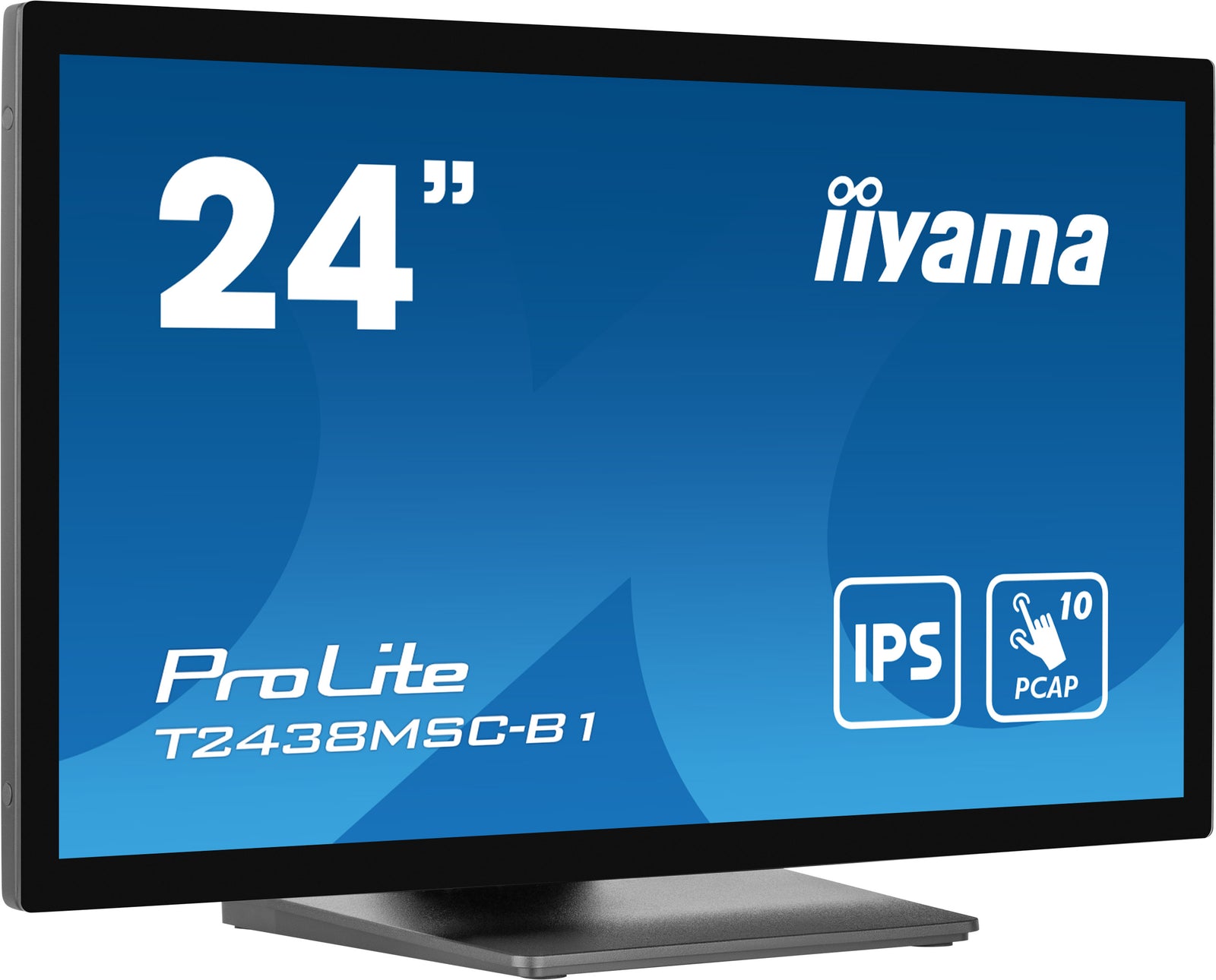

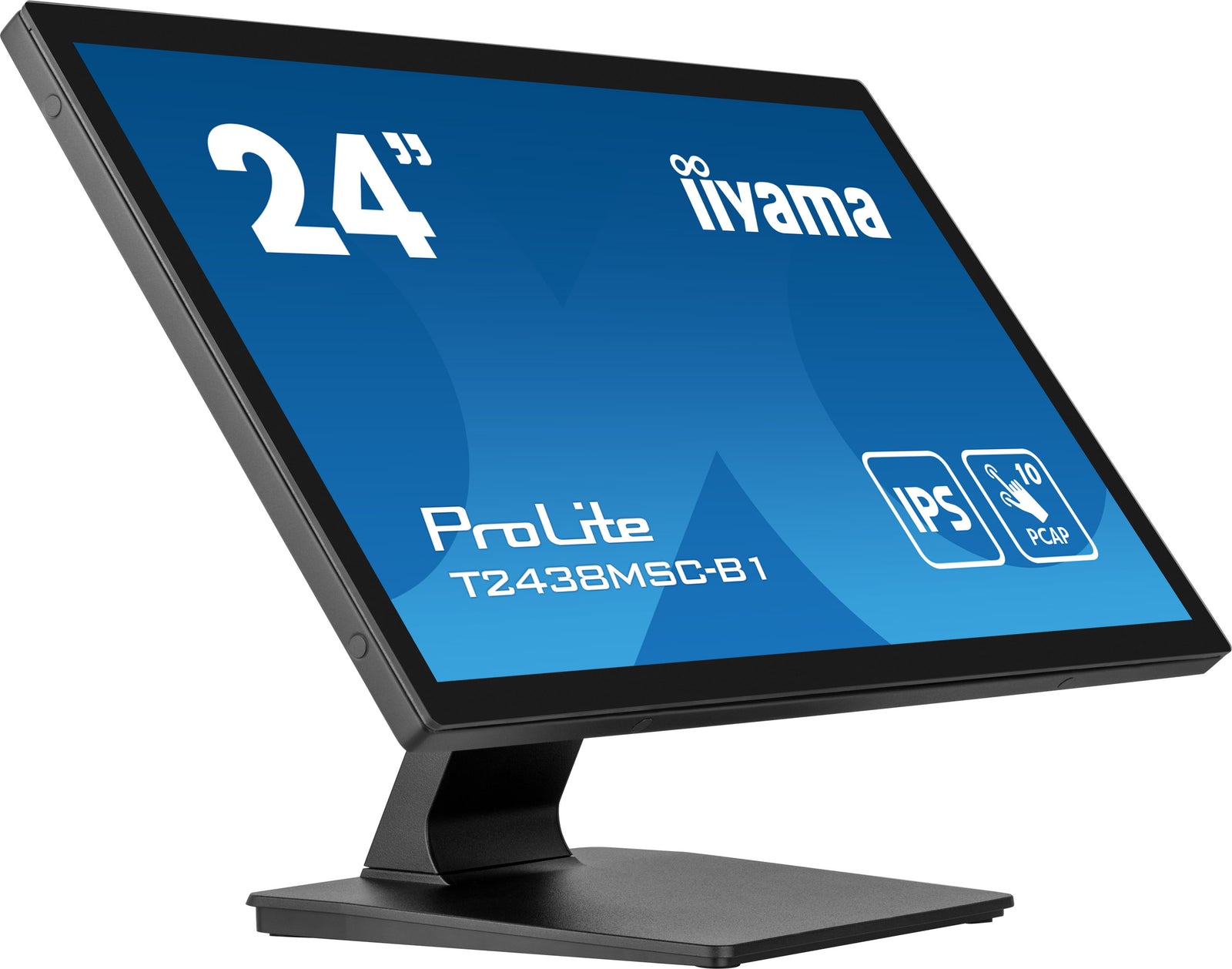

iiyama ProLite T2438MSC-B1 24" PCAP 10pt Touchscreen Monitor

The Full HD (1920x1080) monitor ProLite T2438MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water.

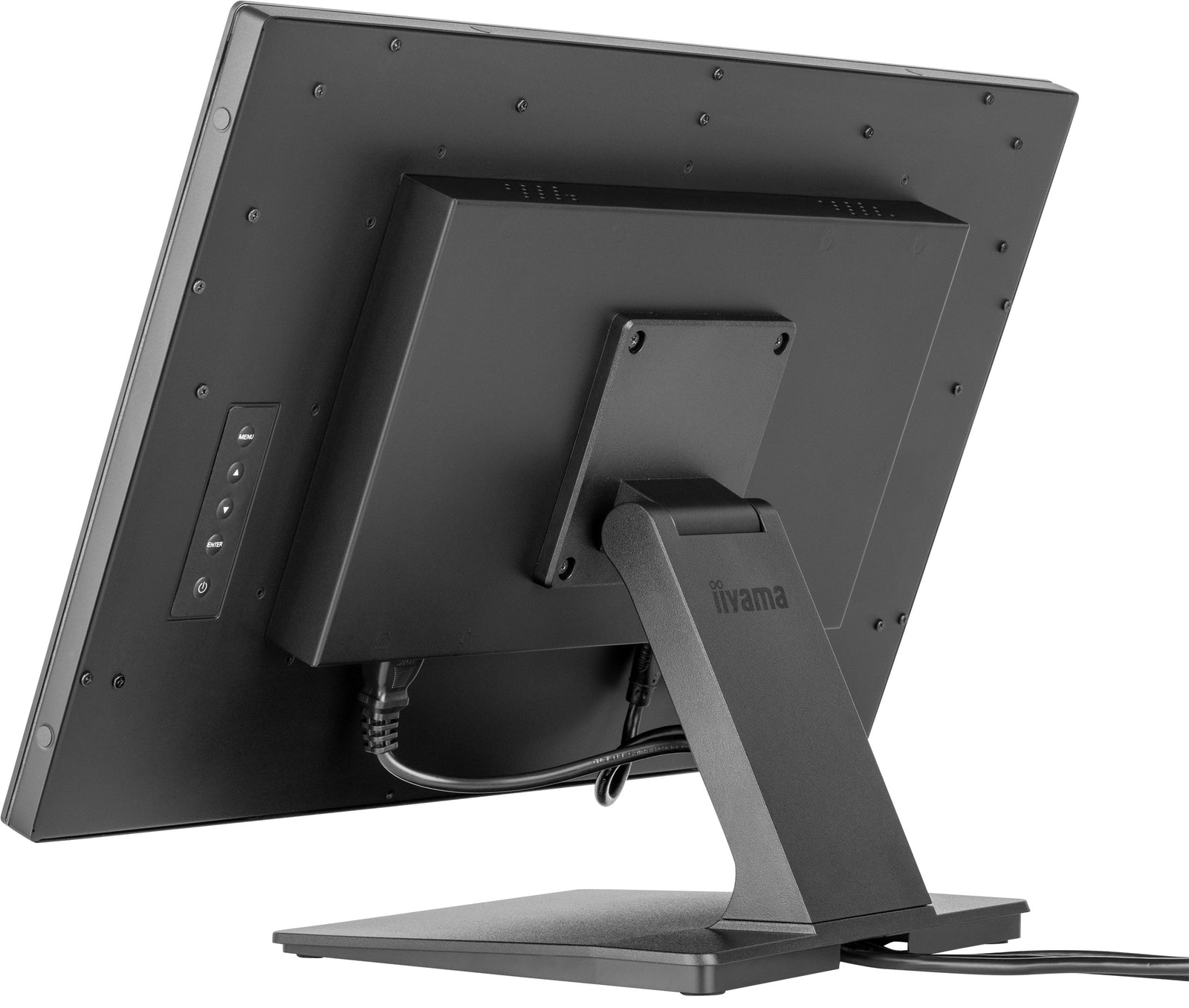

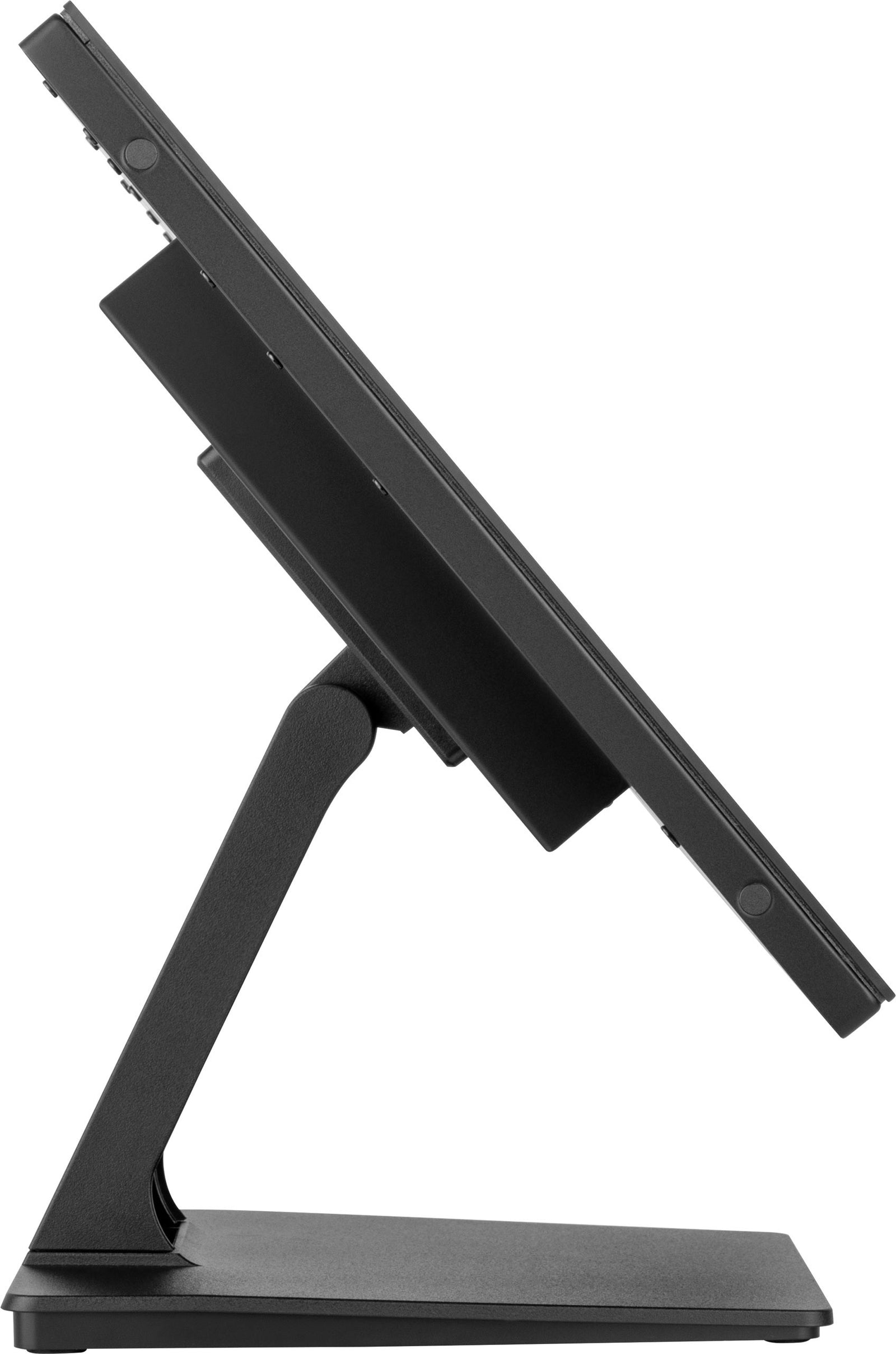

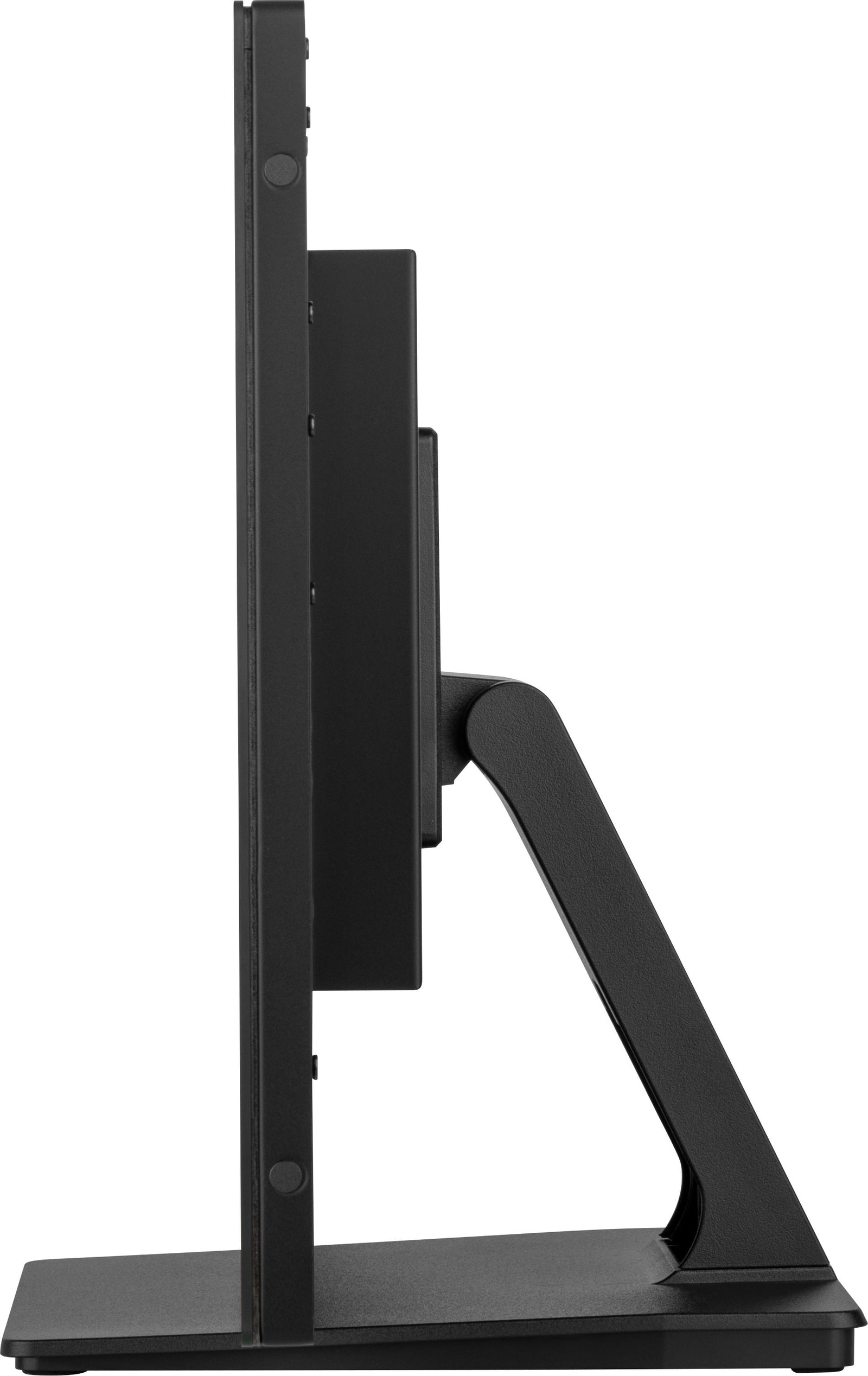

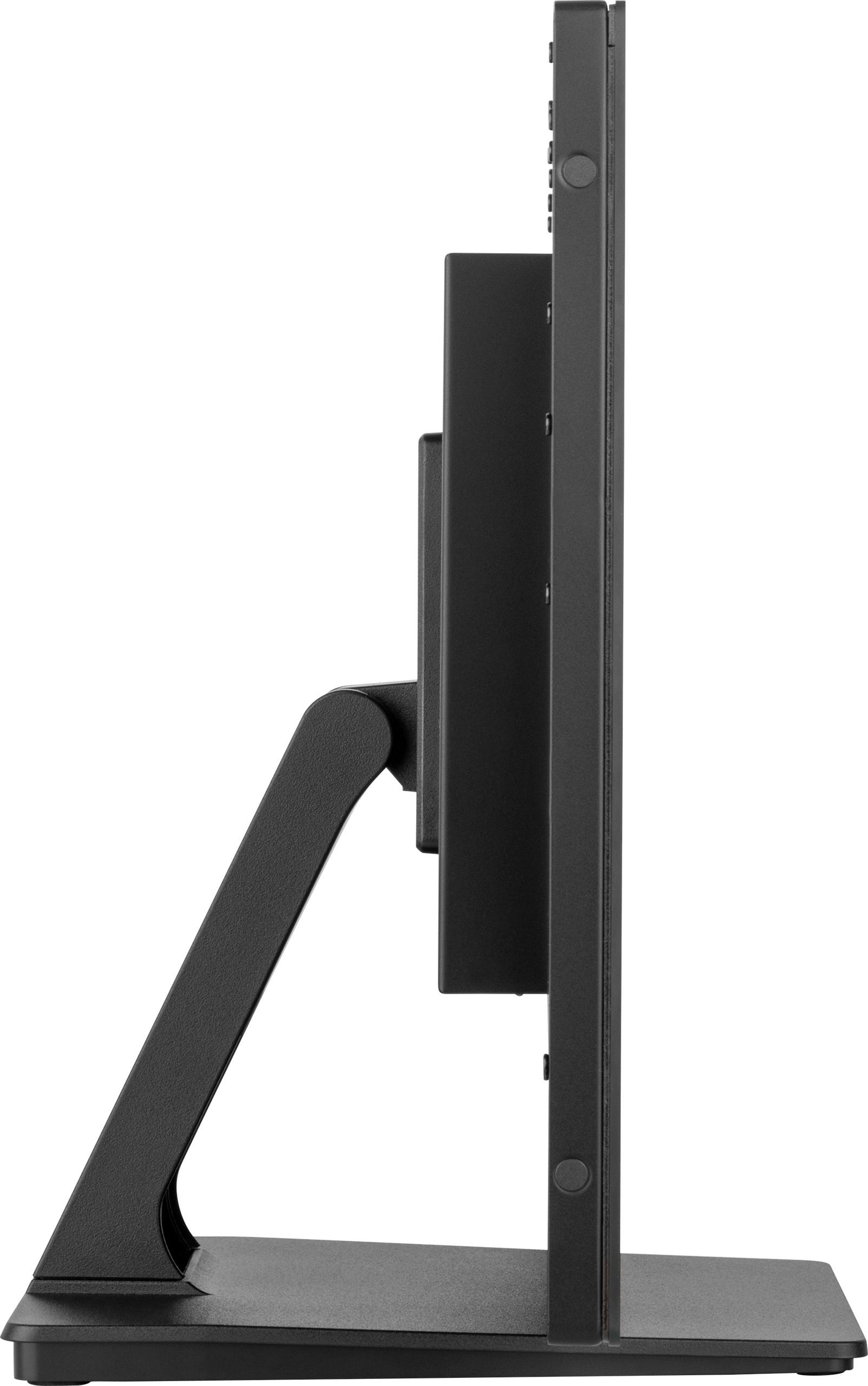

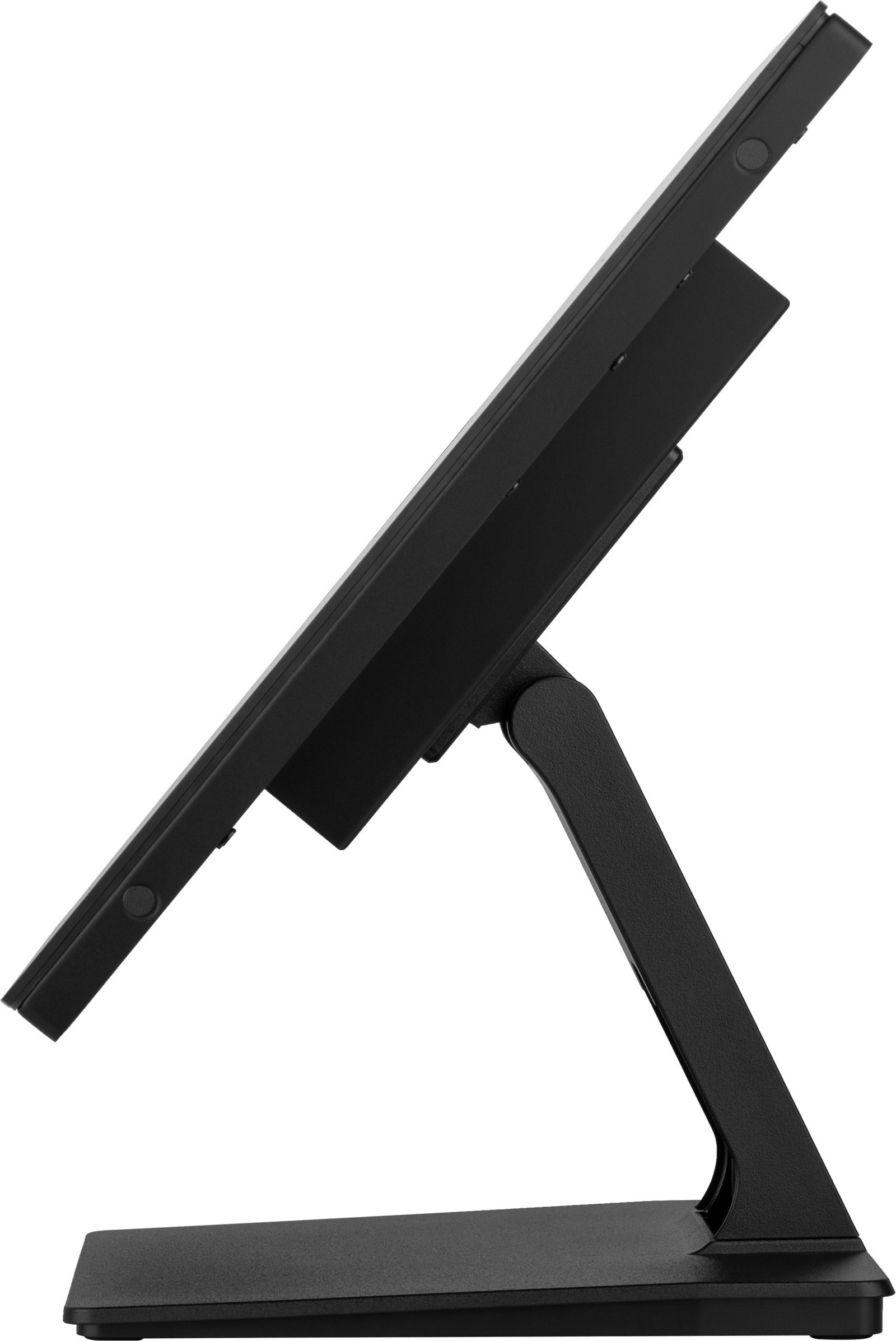

The flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The ProLite T2438MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for interactive signage, instore retail, POS and interactive presentations.

OPTICAL BONDED PCAP
The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.

IPS TECHNOLOGY
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.

SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

SPEAKERS
This LED monitor is equipped with two stereo speakers.

DISPLAY CHARACTERISTICS

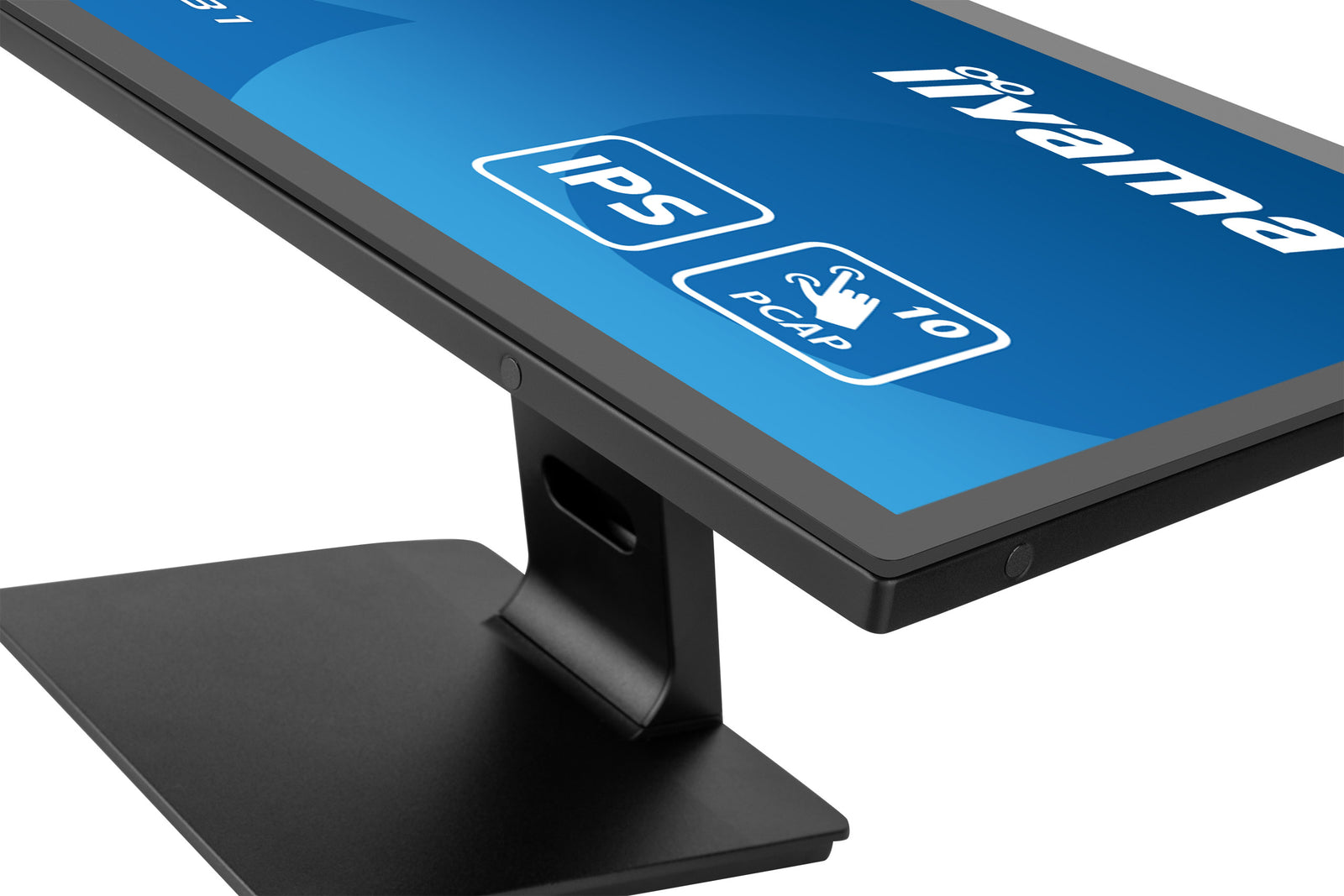

Design	Edge to edge glass
Diagonal	23.8", 60.5cm
Panel	IPS
Native resolution	1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio	16:9
Panel brightness	600 cd/m² (525 cd/m² with touch)
Light transmittance	87%
Static contrast	1000:1
Response time (GTG)	5ms
Viewing zone	Horizontal/Vertical: 178°/178°, Right/Left: 89°/89°, Up/Down: 89°/89°
Colour support	16.7 million
Horizontal Sync	30 - 83kHz
Viewable area W x H	527 x 296.5mm, 20.7 x 11.7"
Bezel width (sides, top, bottom)	17.25mm, 20.3mm, 20.3mm
Pixel pitch	0.275mm
Bezel colour and finish	Black, matte
TOUCH
Touch technology	Bonded PCAP
Touch points	10 (HID, only with supported OS)
Touch method	Stylus, finger, glove
Touch interface	USB
Supported operating systems	Windows, Linux

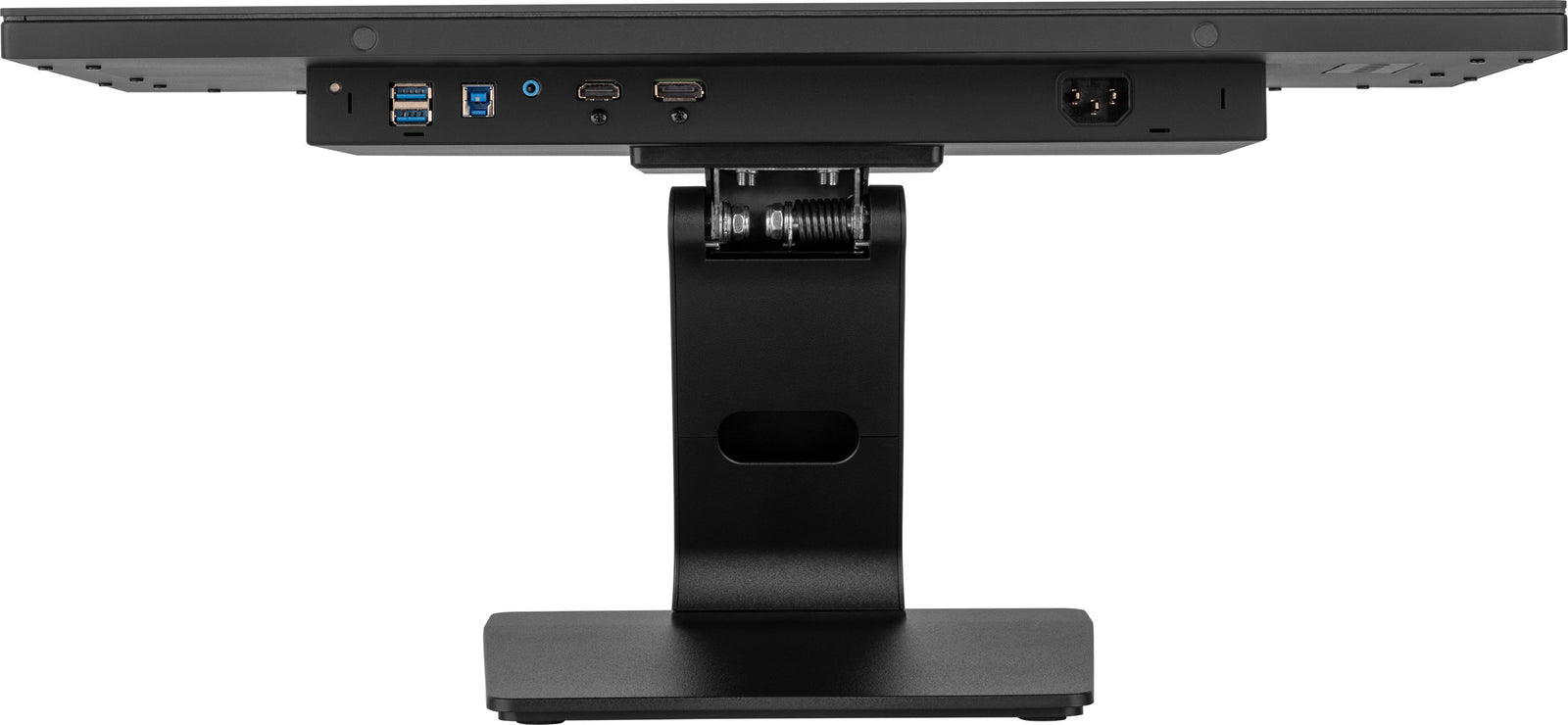

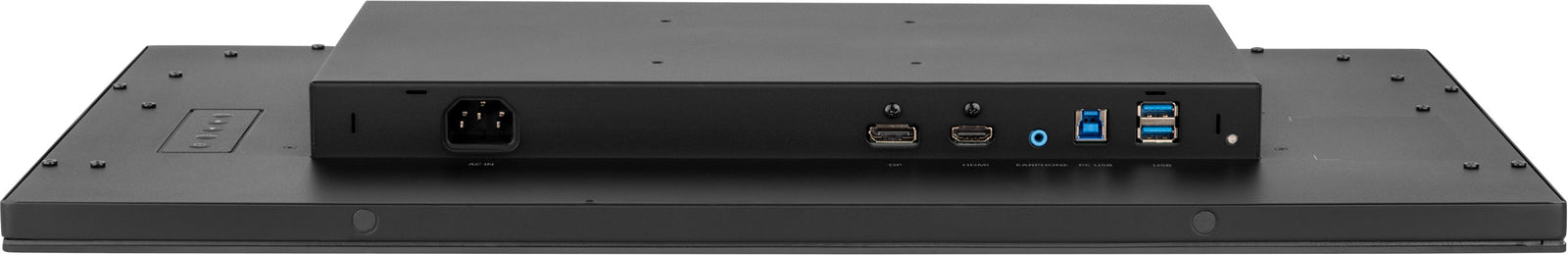

INTERFACES / CONNECTORS / CONTROLS
Digital signal input	HDMI x1, DisplayPort x1
Audio output	Speakers 2 x 2W
HDCP	Yes
USB HUB	x2 (USB3.2 Gen 1 (5Gbps, 5V, 900mA))
FEATURES
Extra	Optical bonding PCAP, metal housing, anti-fingerprint coating, waterproof Touch function
Glass thickness	3.6mm
Glass hardness	7H
60950 Ball drop test	Yes
Water and dust protection	IP1X (front)
Housing (bezel)	Metal
OSD key lock	Yes
GENERAL
OSD languages	EN, DE, FR, CN, RU, JP, NL, PL

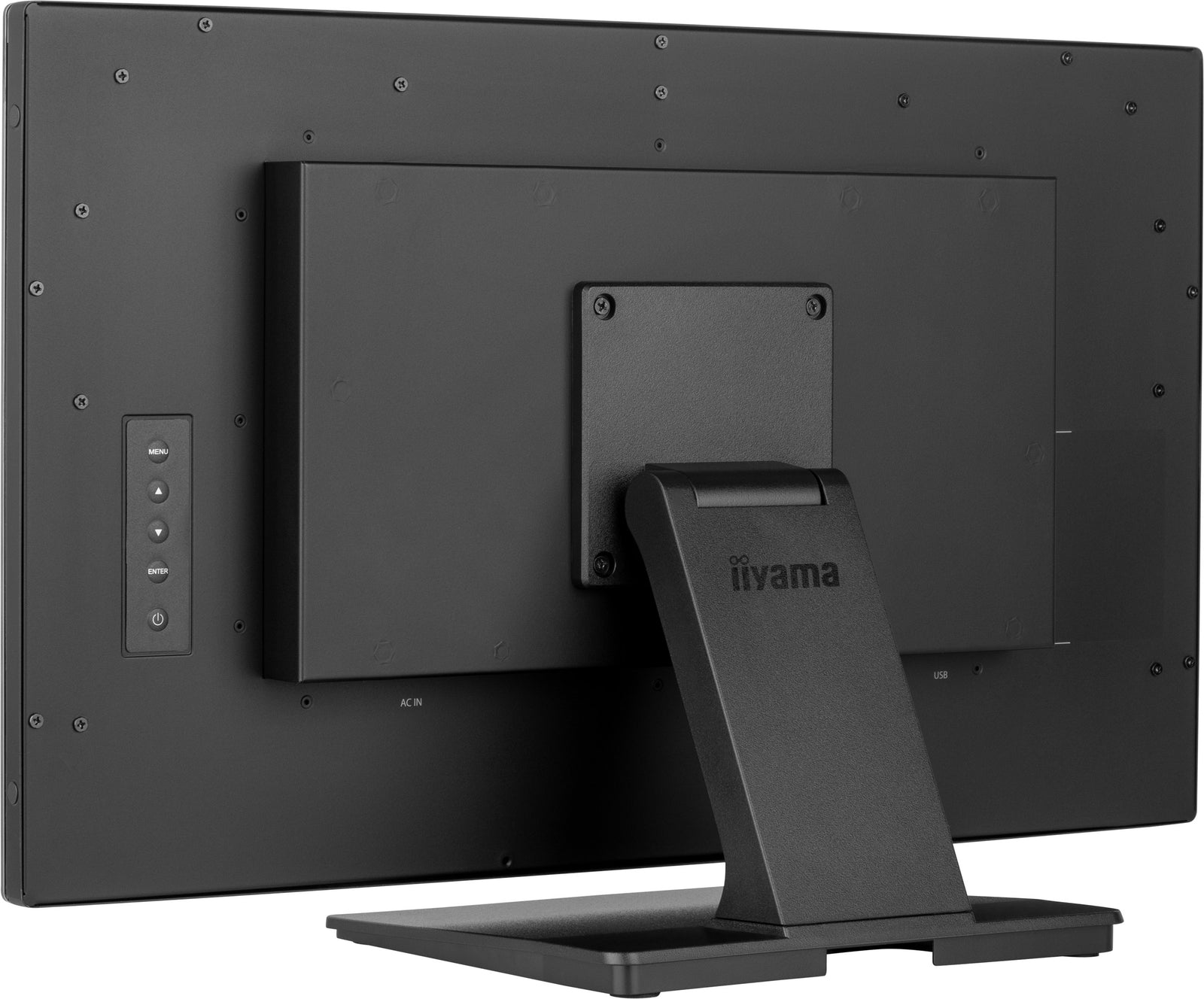

Control buttons	Menu, Scroll up/Eco, Scroll down/Volume, Enter/Input select, Power
Blue light reducer	Yes
Plug & Play	DDC2B
MECHANICAL

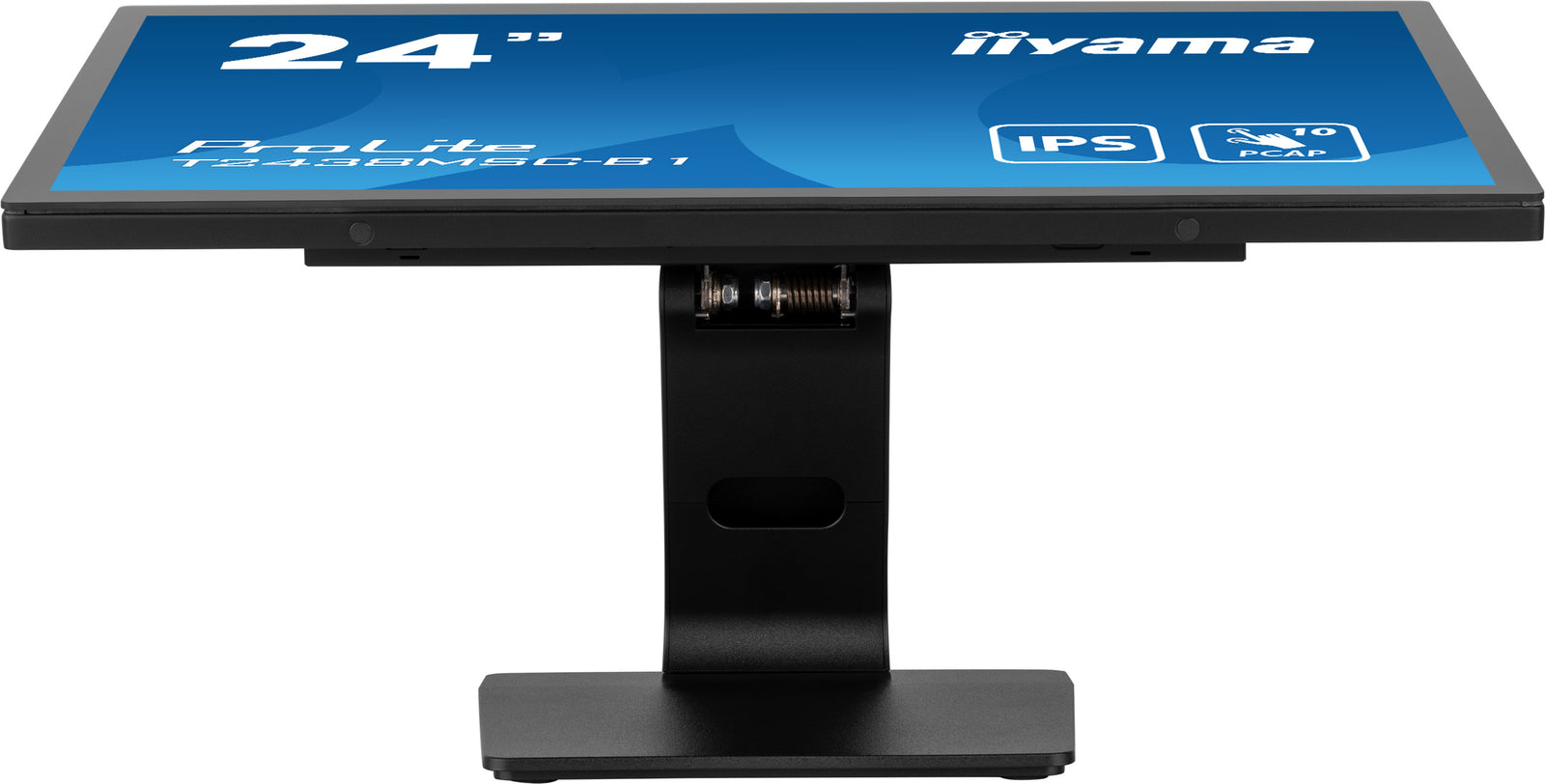

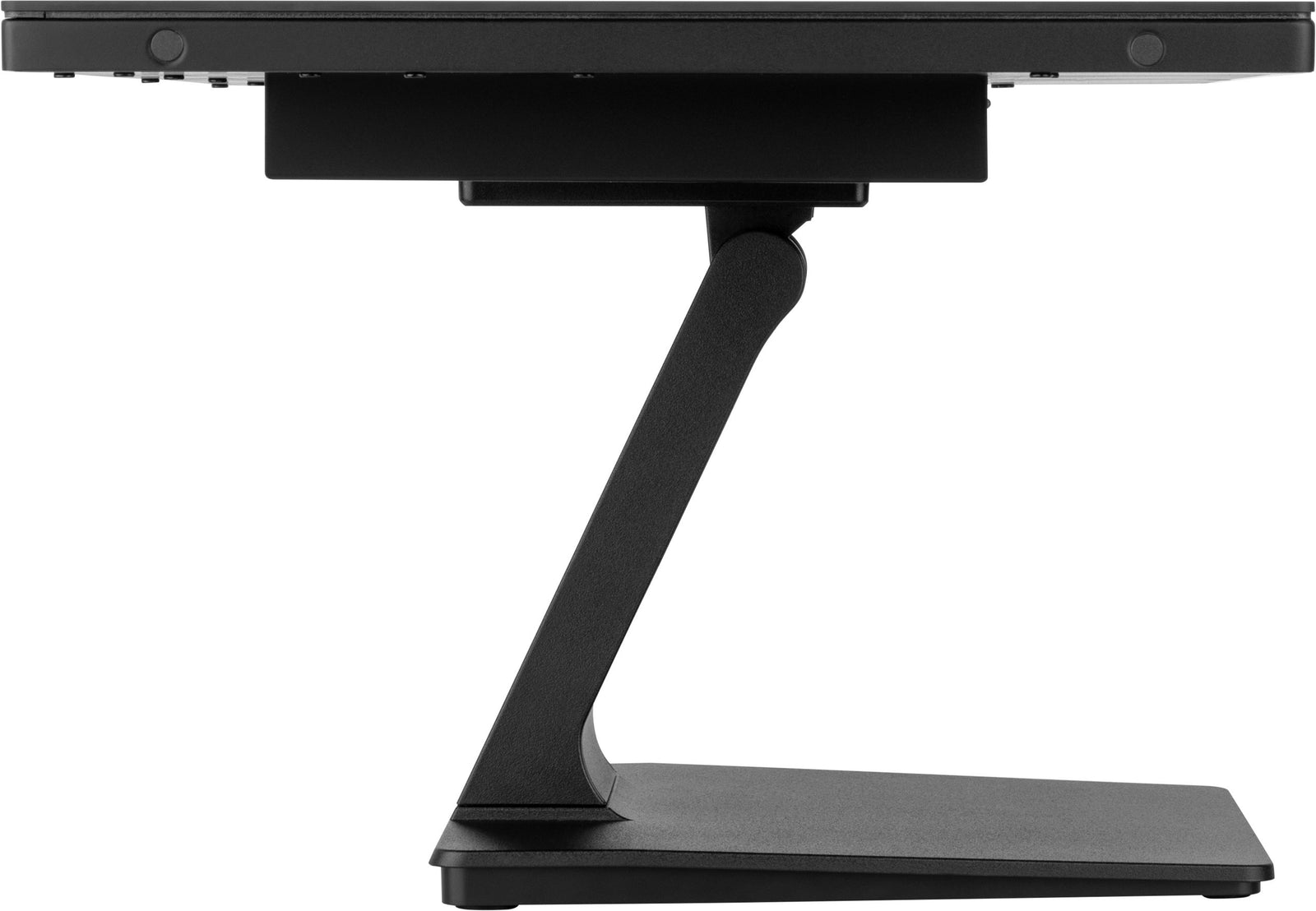

Orientation	Landscape, portrait, face-up
Fanless design	Yes

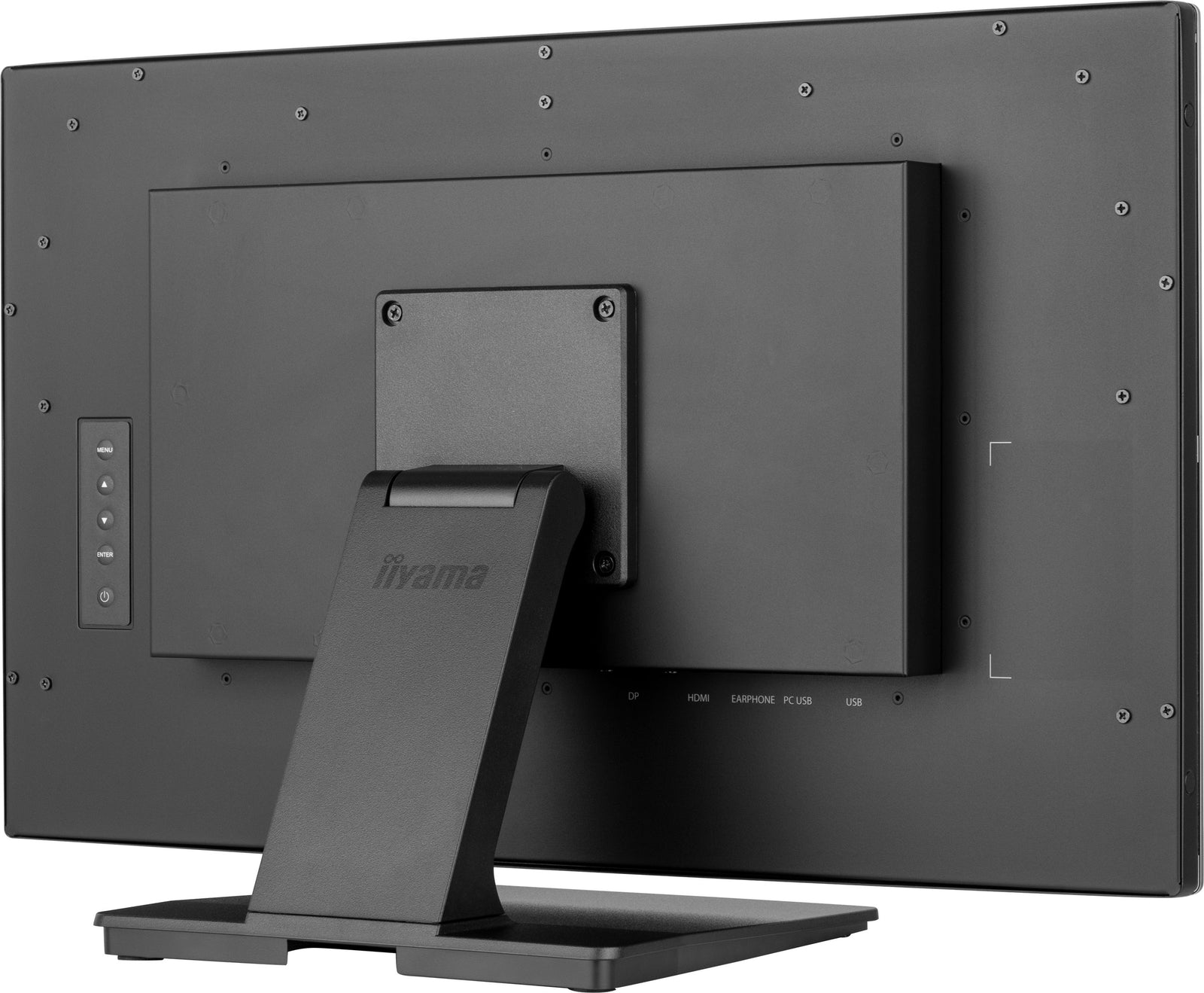

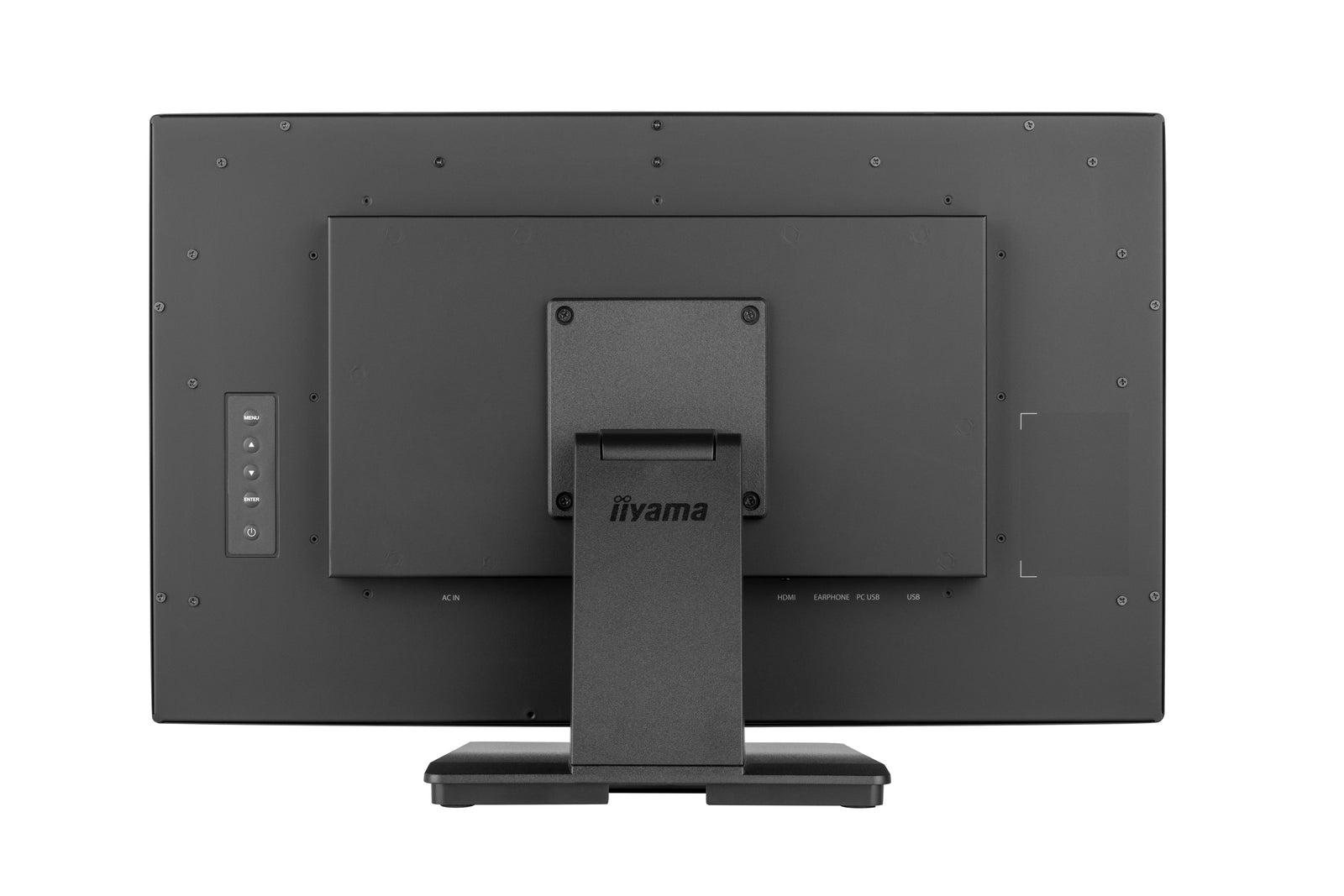

VESA mounting	100 x 100mm
ACCESSORIES INCLUDED
Cables	Power, USB, HDMI
Guides	Quick start guide, safety guide
Cable cover	Yes
POWER MANAGEMENT
Power supply unit	Internal
Power supply	AC 100 - 240V, 50/60Hz
Power usage	22W typical, 1.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations	CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class	E
REACH SVHC	Above 0.1%: Lead
DIMENSIONS / WEIGHT
Product dimensions W x H x D	561.5 x 366 x 239.5mm
Box dimensions W x H x D	650 x 430 x 155mm
Weight (without box)	8.2kg
Weight (with box)	10kg
EAN code	4948570122905

Warranty	Product	Cover
Visioncare	Desktop LCD products (Monitors) (17" - 43")	3 years on-site UK warranty. (Upgrades to 5 years available)
Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download

HOW TO ACTIVATE YOUR WARRANTY

There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

Step one - Check that all connections have been properly made.

Step two - Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

Step three - If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.

Step four - Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

Step five - Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

Step six - Please ensure your product is clean and presentable before packaging it in the original box for collection.

* Proof of purchase may be required

ON-SITE SWAP OUT
