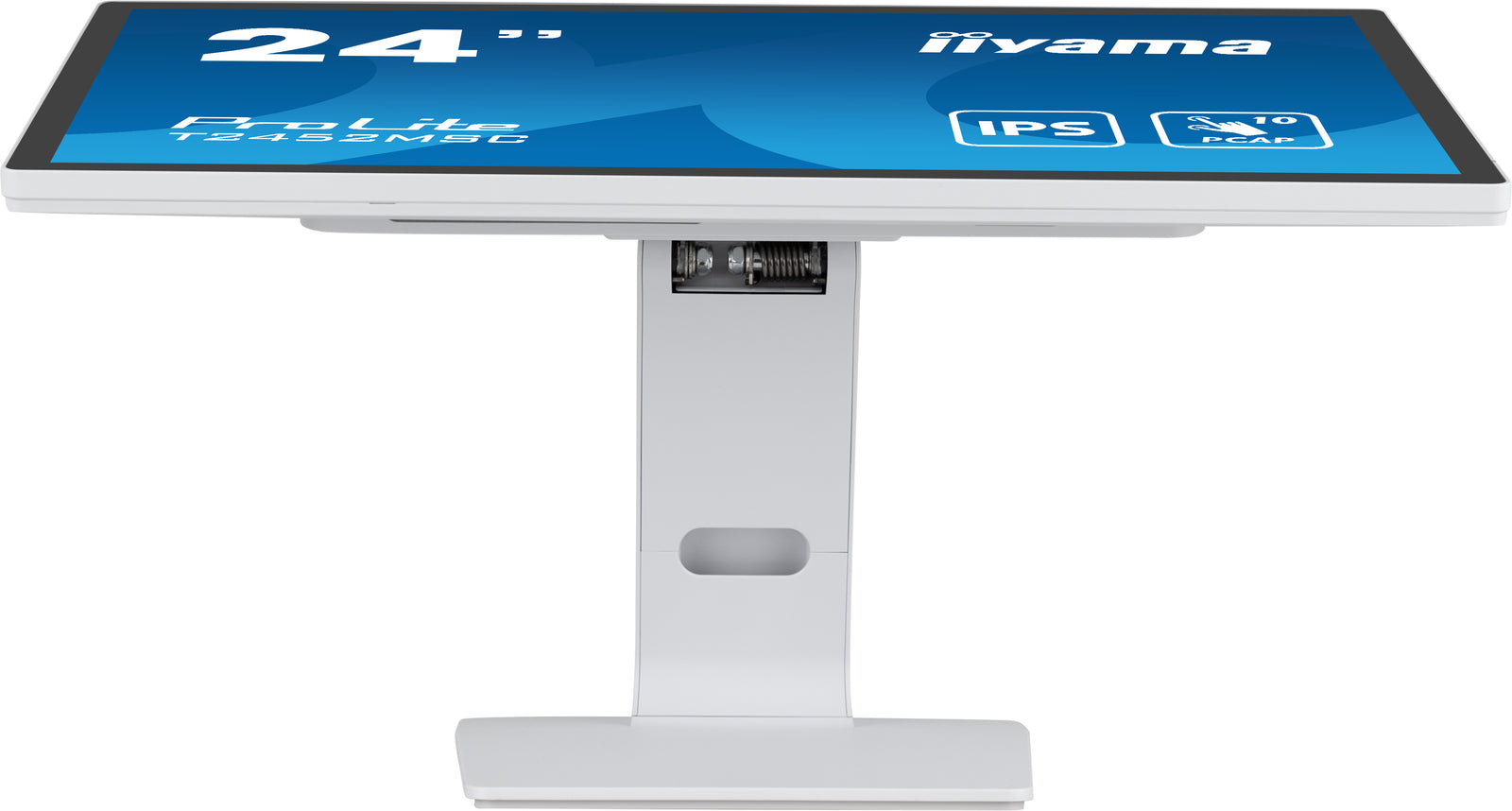

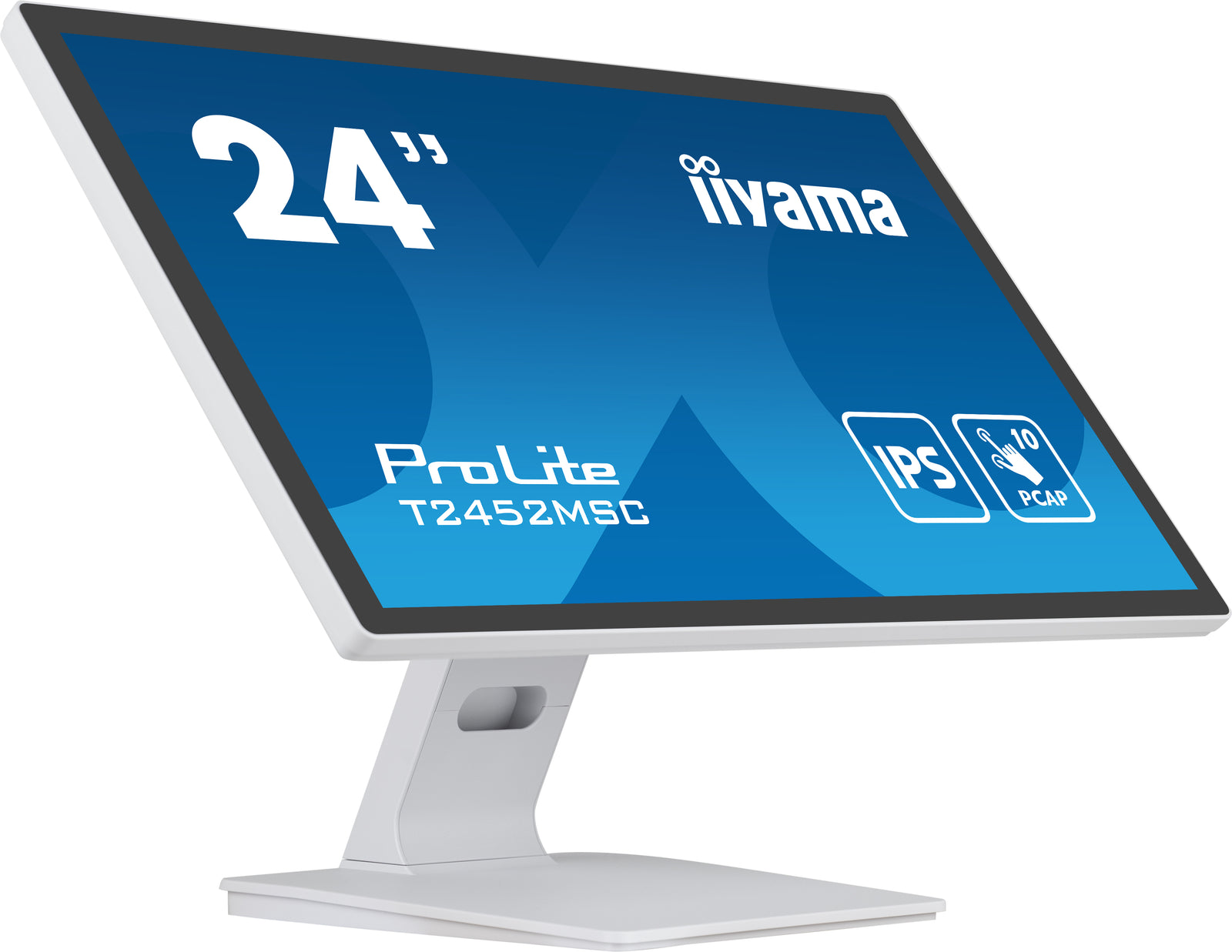

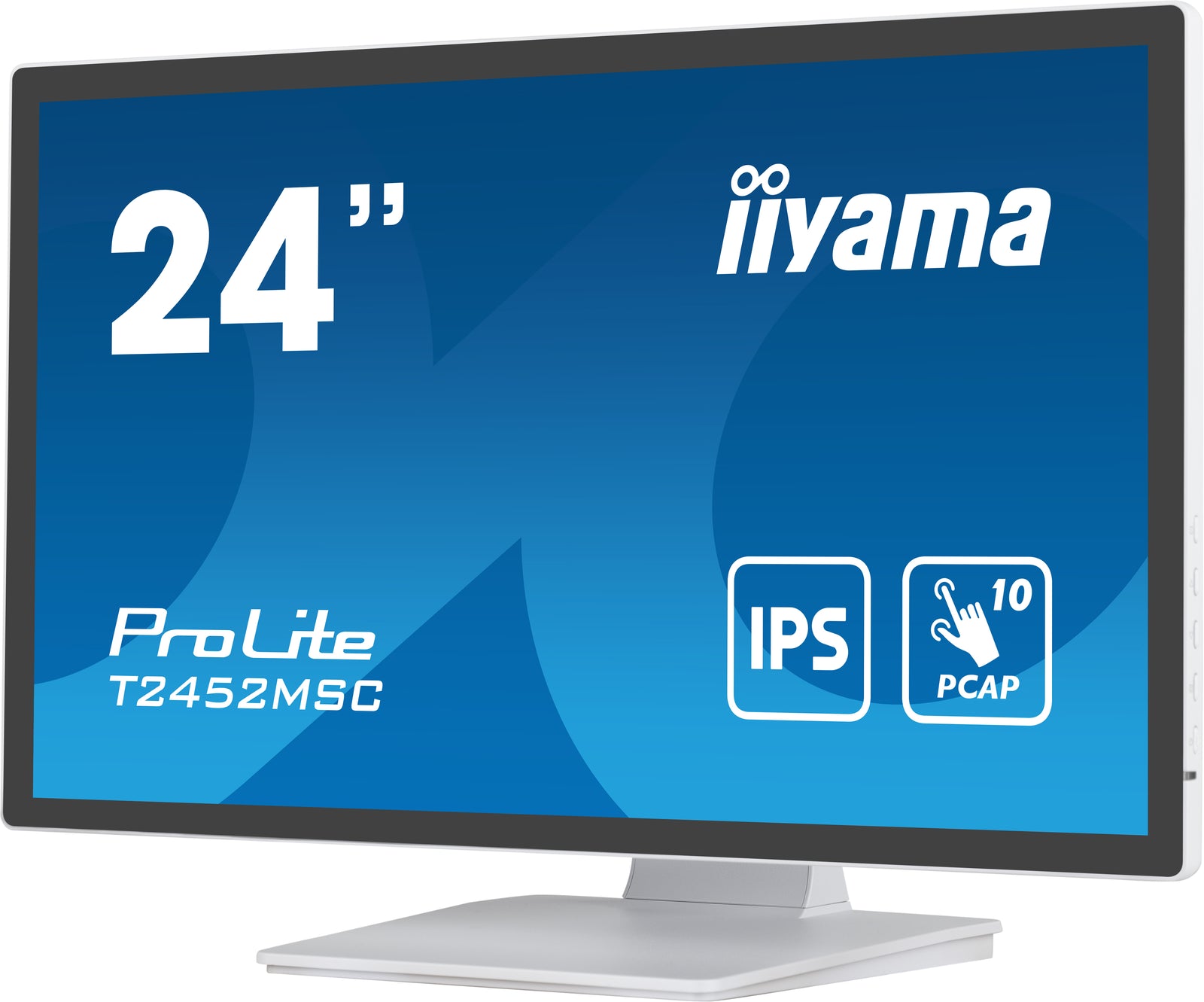

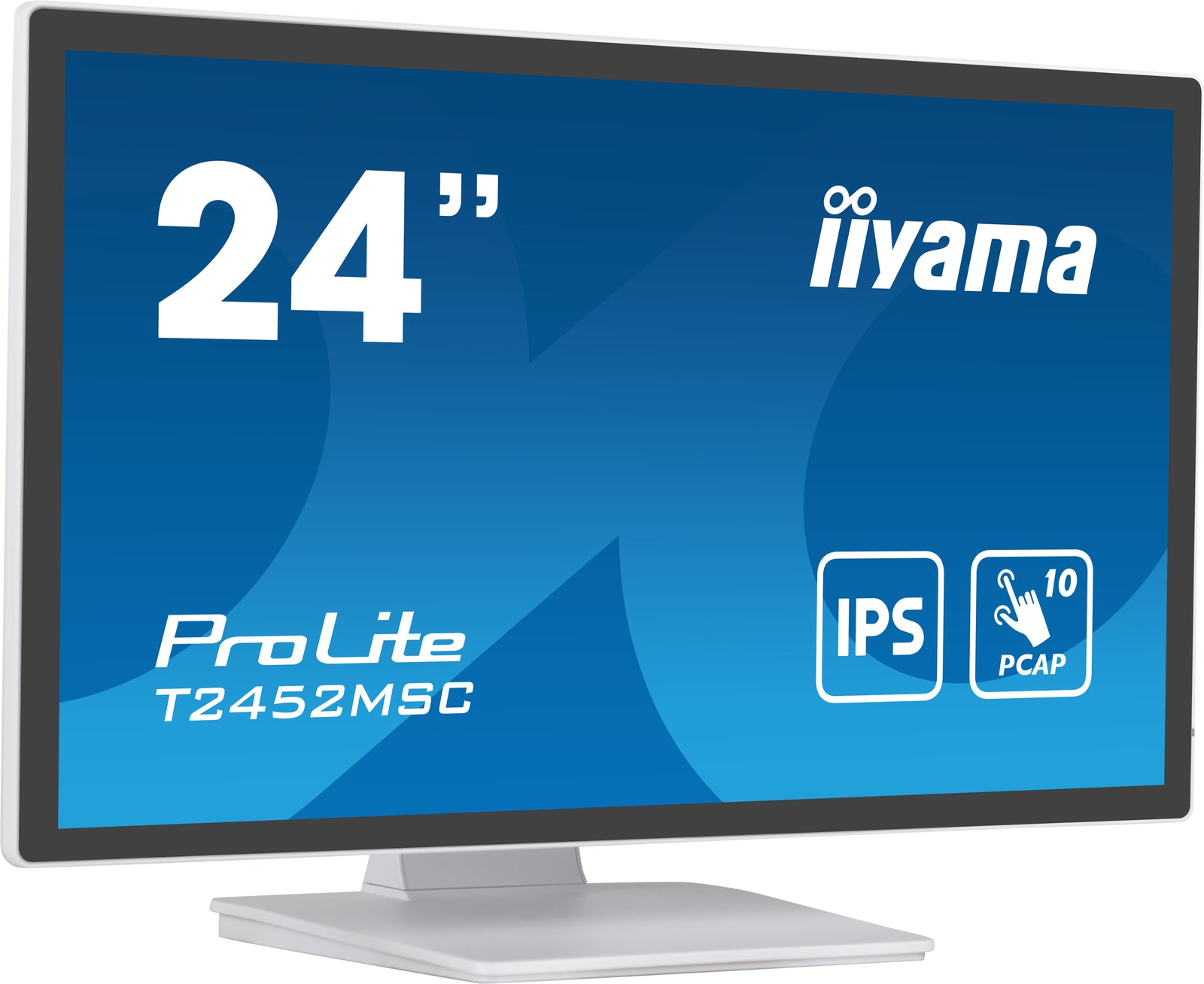

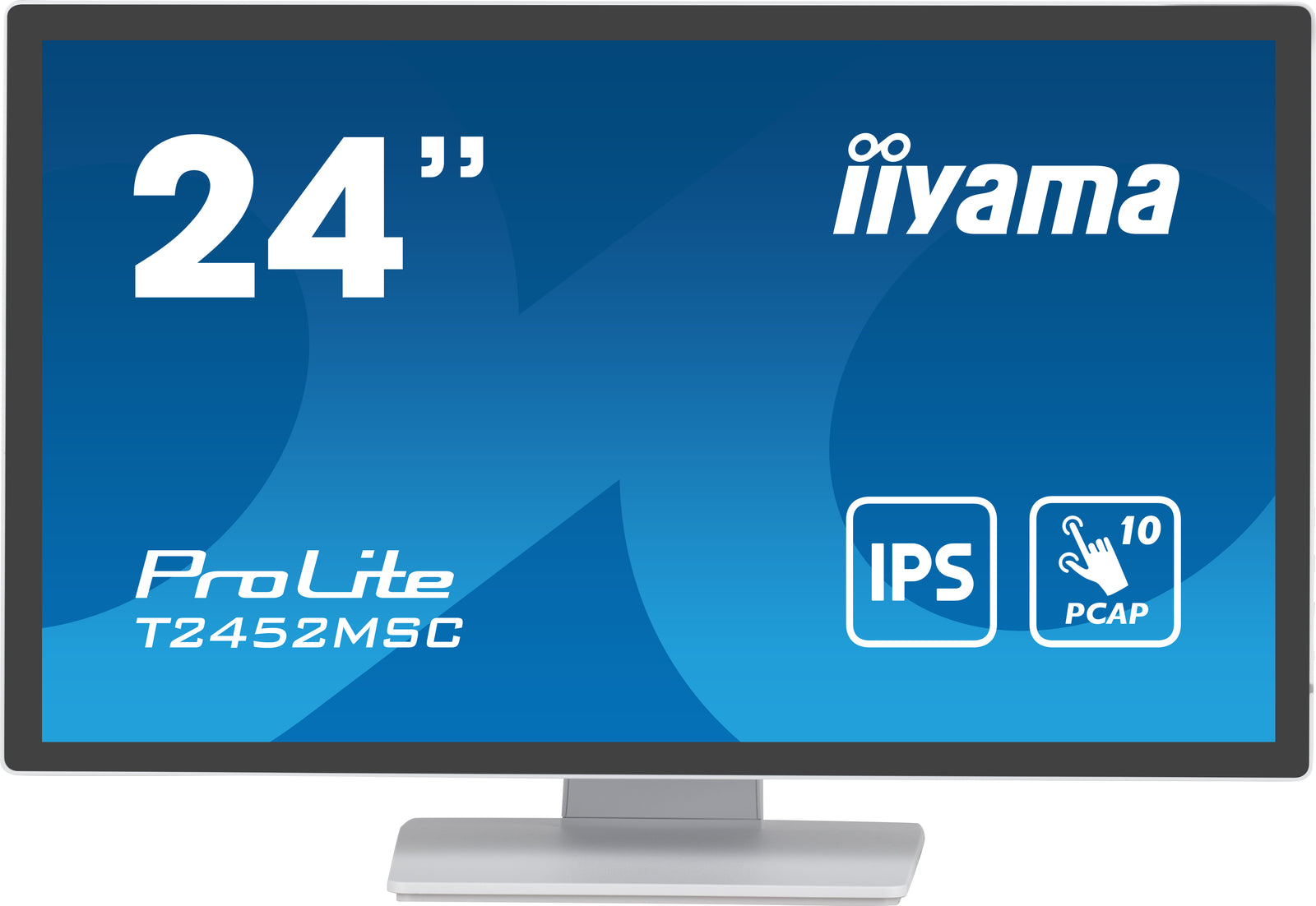

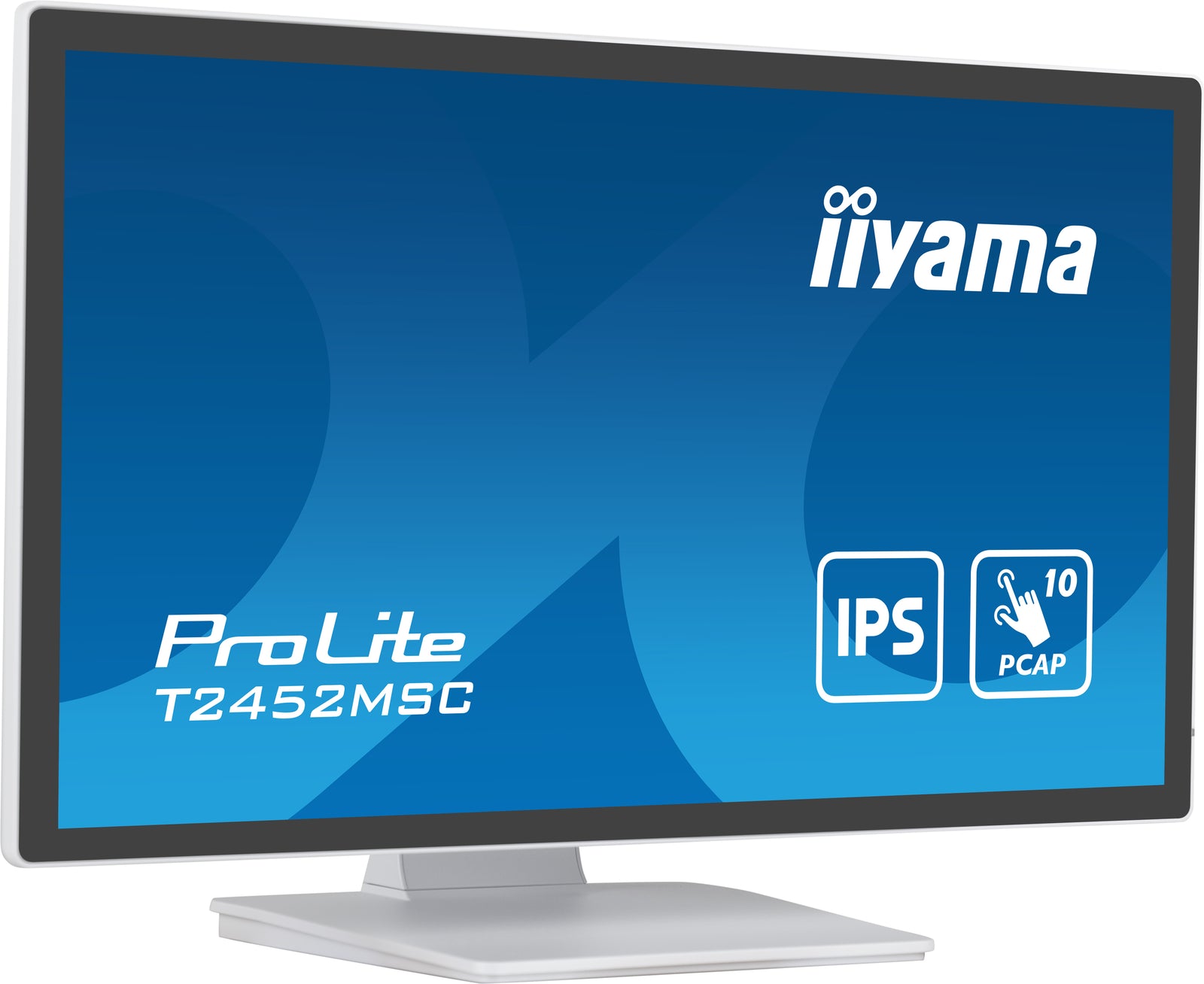

iiyama ProLite T2452MSC-W1 24" PCAP 10pt 60Hz Touchscreen Monitor

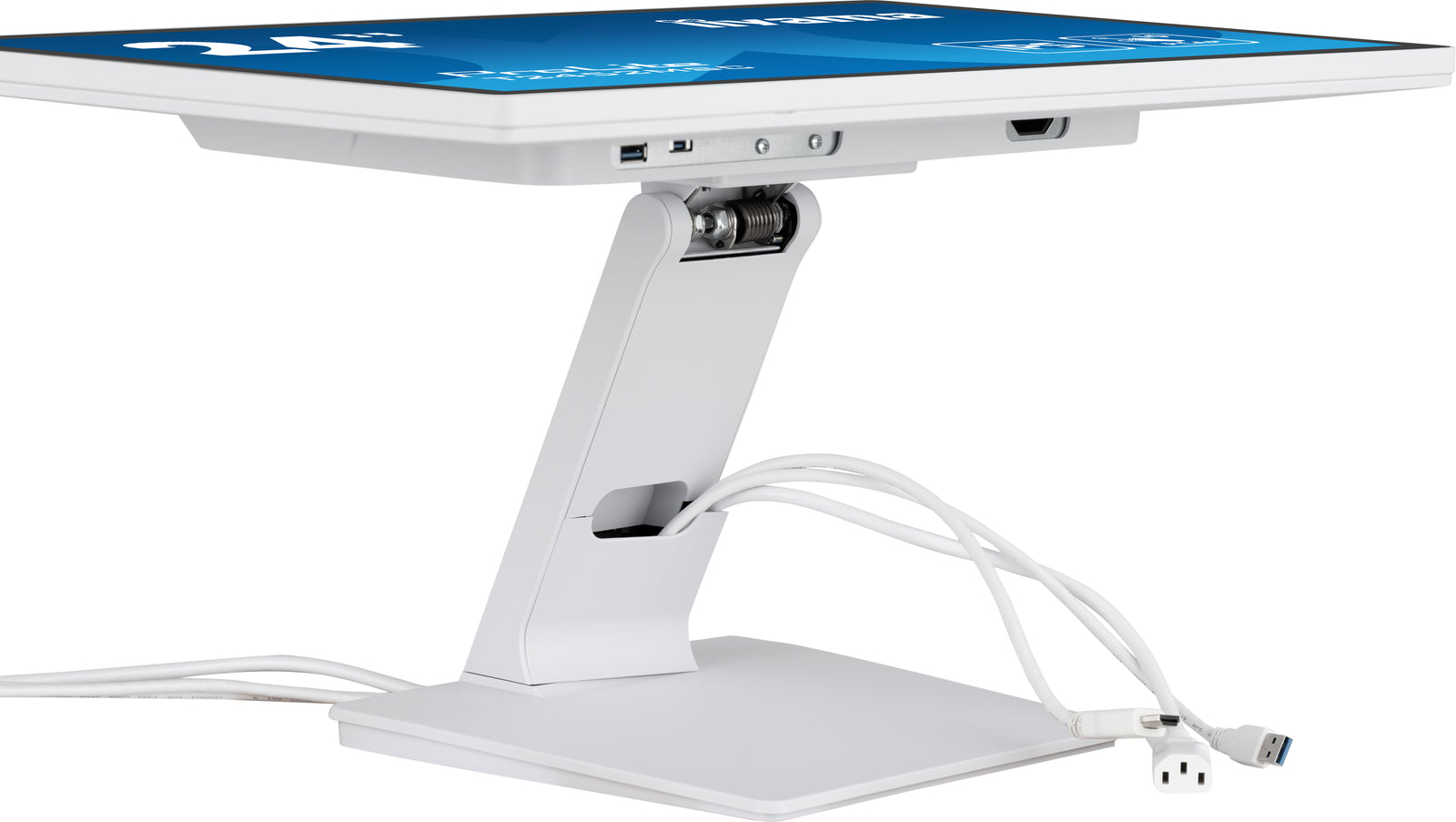

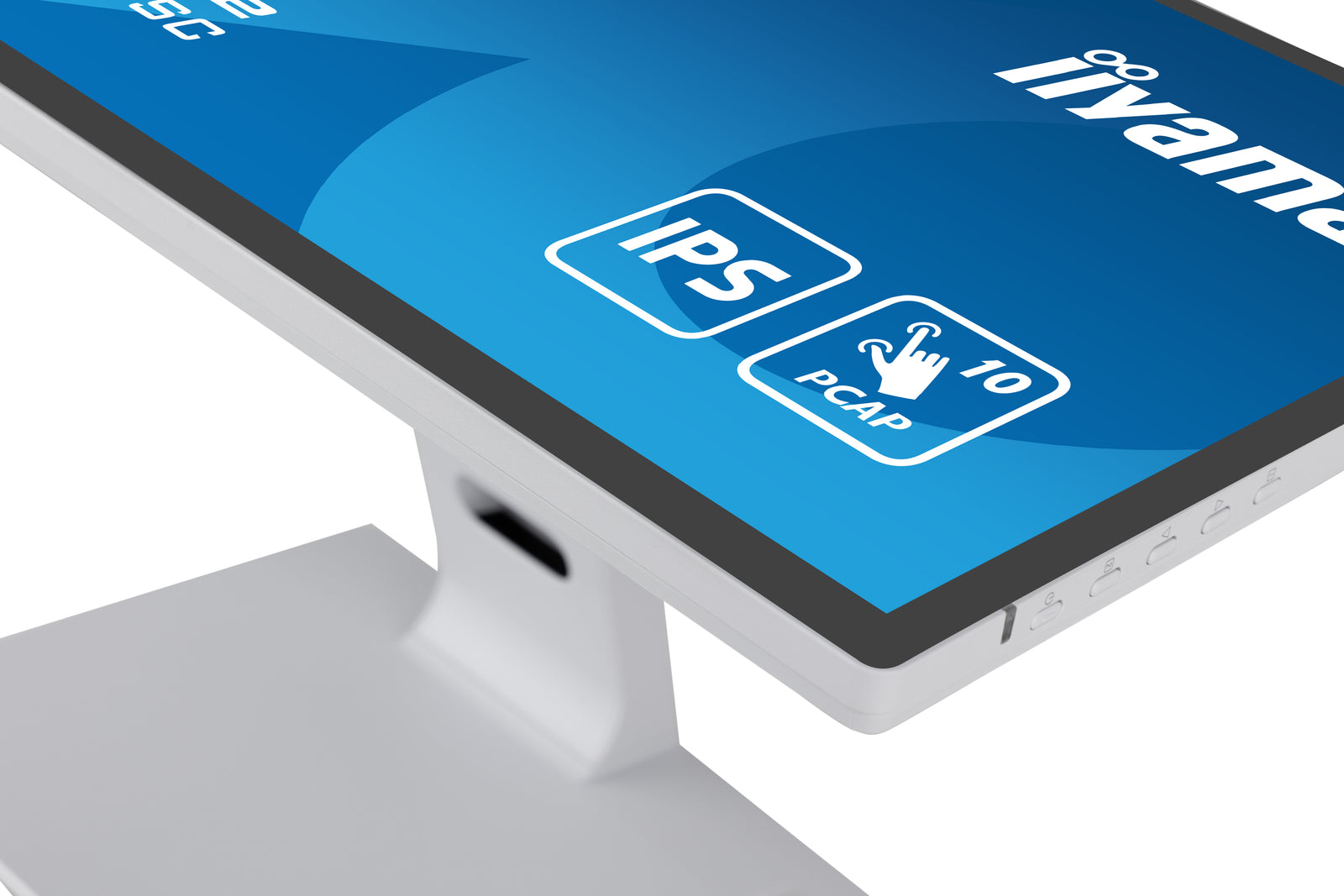

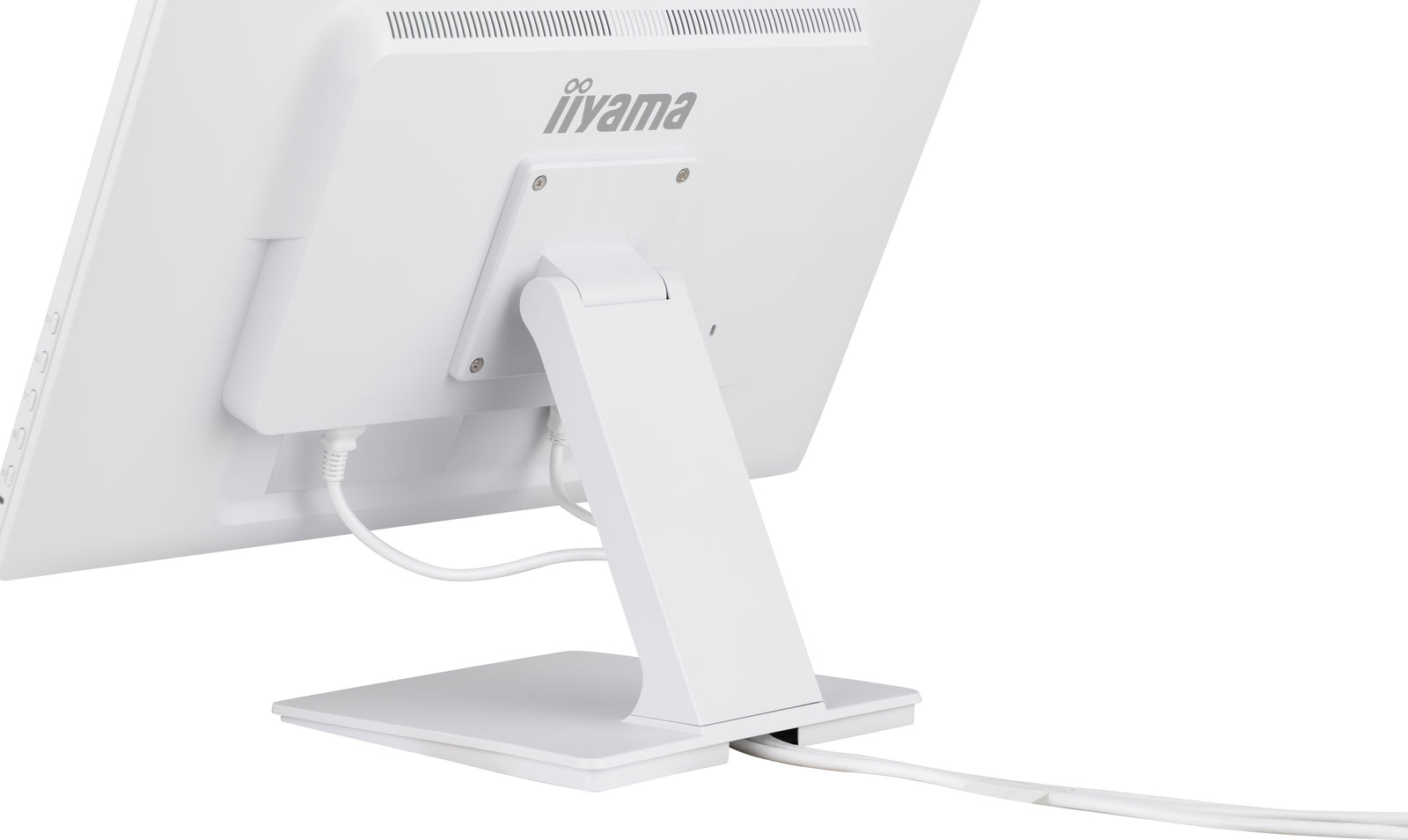

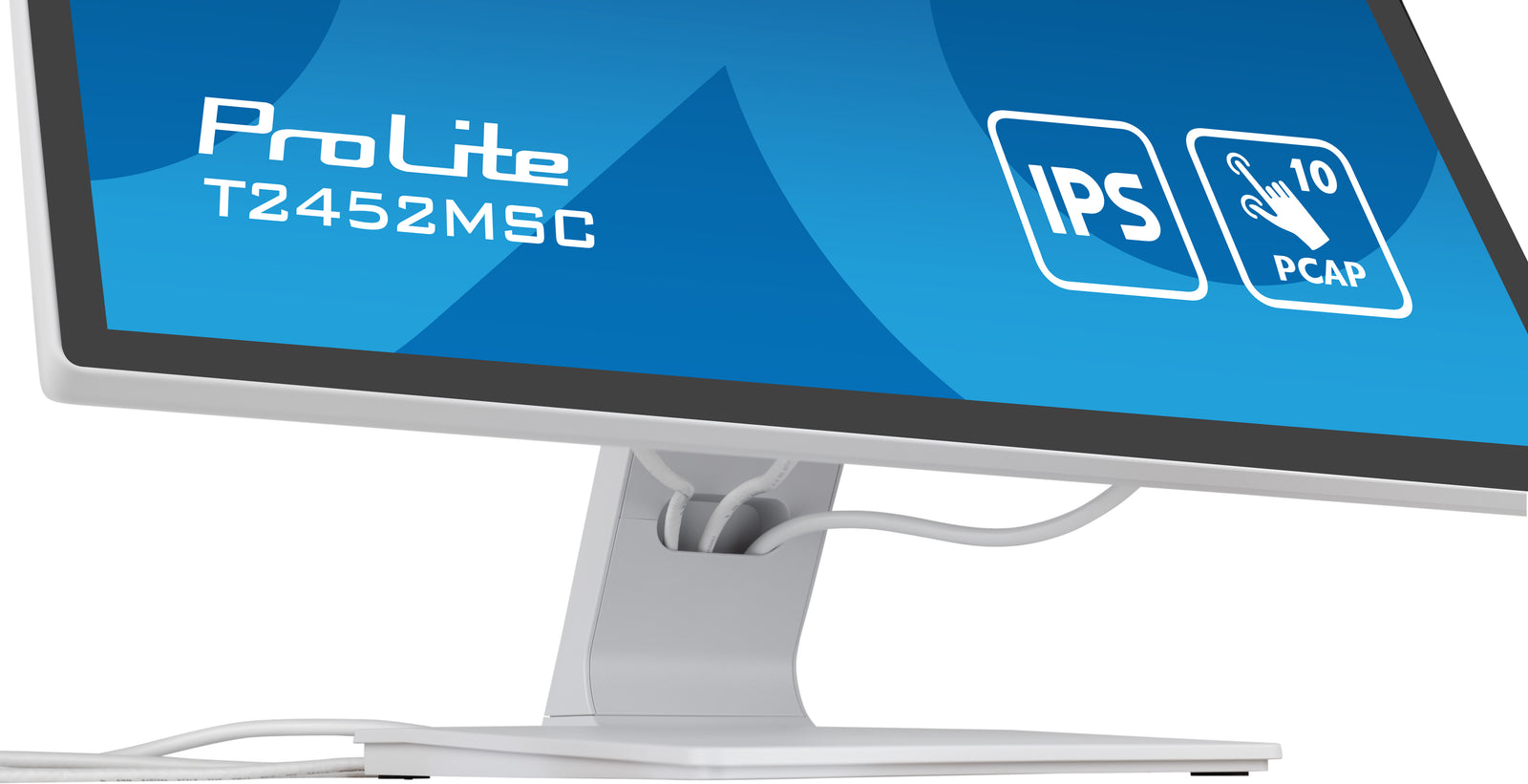

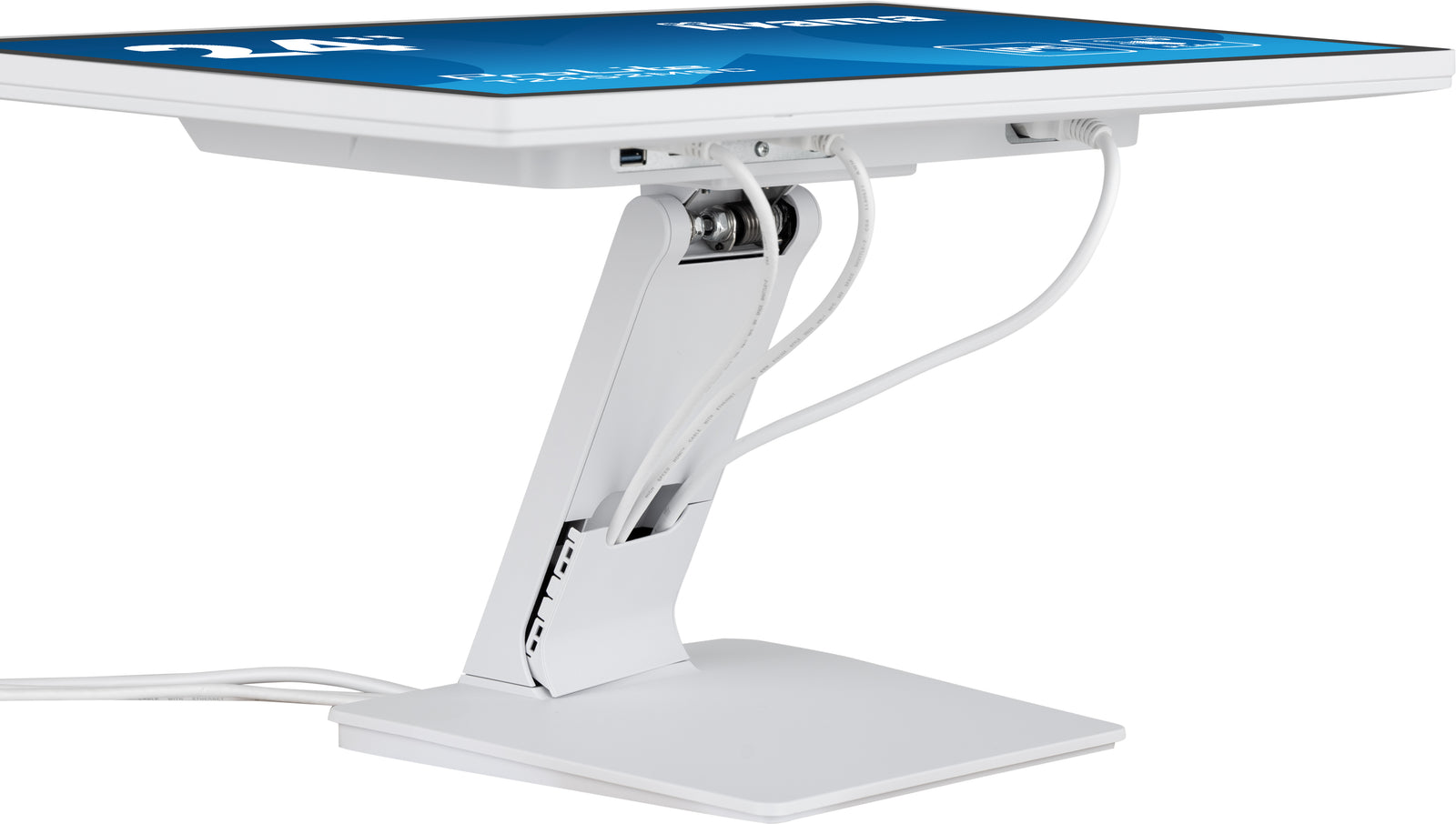

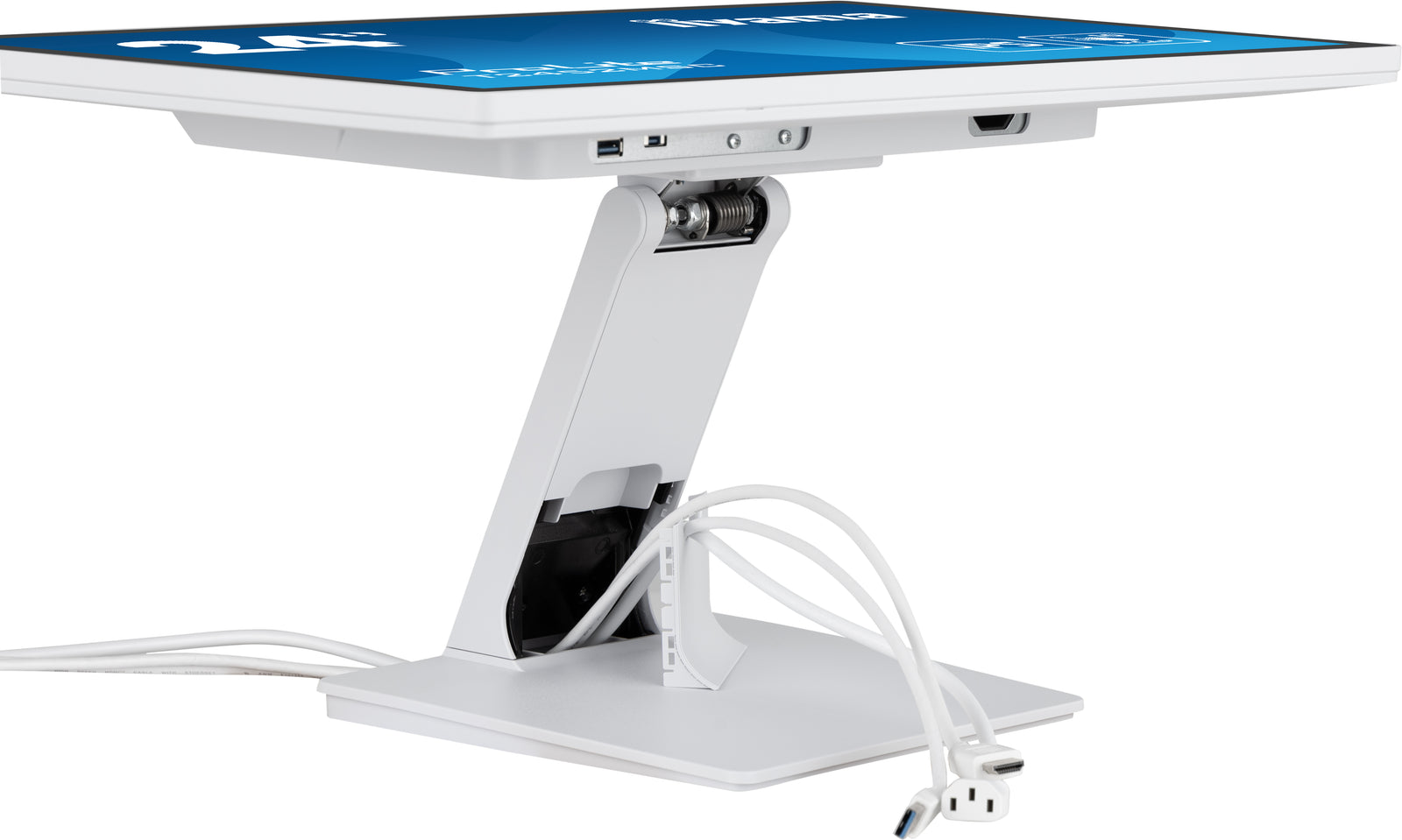

With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2452MSC-W1 delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition, the edge-to-edge glass and ultra slim design creates an eye-catching finish. The ProLite T2452MSC-W1 is the ideal solution for interactive signage, instore retail, POS and interactive presentations.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
ANTI-FINGERPRINT COATING
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
-
| DISPLAY CHARACTERISTICS |
|
| Design |
Edge to edge glass |
| Diagonal |
23.8", 60.5cm |
| Panel |
IPS |
| Native resolution |
1920 x 1080 @60Hz |
| Aspect ratio |
16:9 |
| Panel brightness |
400 cd/m² |
| Brightness (with touch) |
360 cd/m² |
| Light transmittance |
90% |
| Static contrast |
1000:1 |
| Response time (BTB) |
14ms |
| Viewing zone |
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support |
16.7 million (8bit) |
| Horizontal Sync |
30 - 83kHz |
| Viewable area W x H |
527 x 296.5mm, 20.7 x 11.7" |
| Pixel pitch |
0.274mm |
| Bezel colour and finish |
White |
| TOUCH |
|
| Touch technology |
Projective capacitive |
| Touch points |
10 |
| Touch accuracy |
±2mm |
| Touch method |
Stylus, finger, glove (latex) |
| Touch interface |
USB |
| Palm rejection |
Yes |

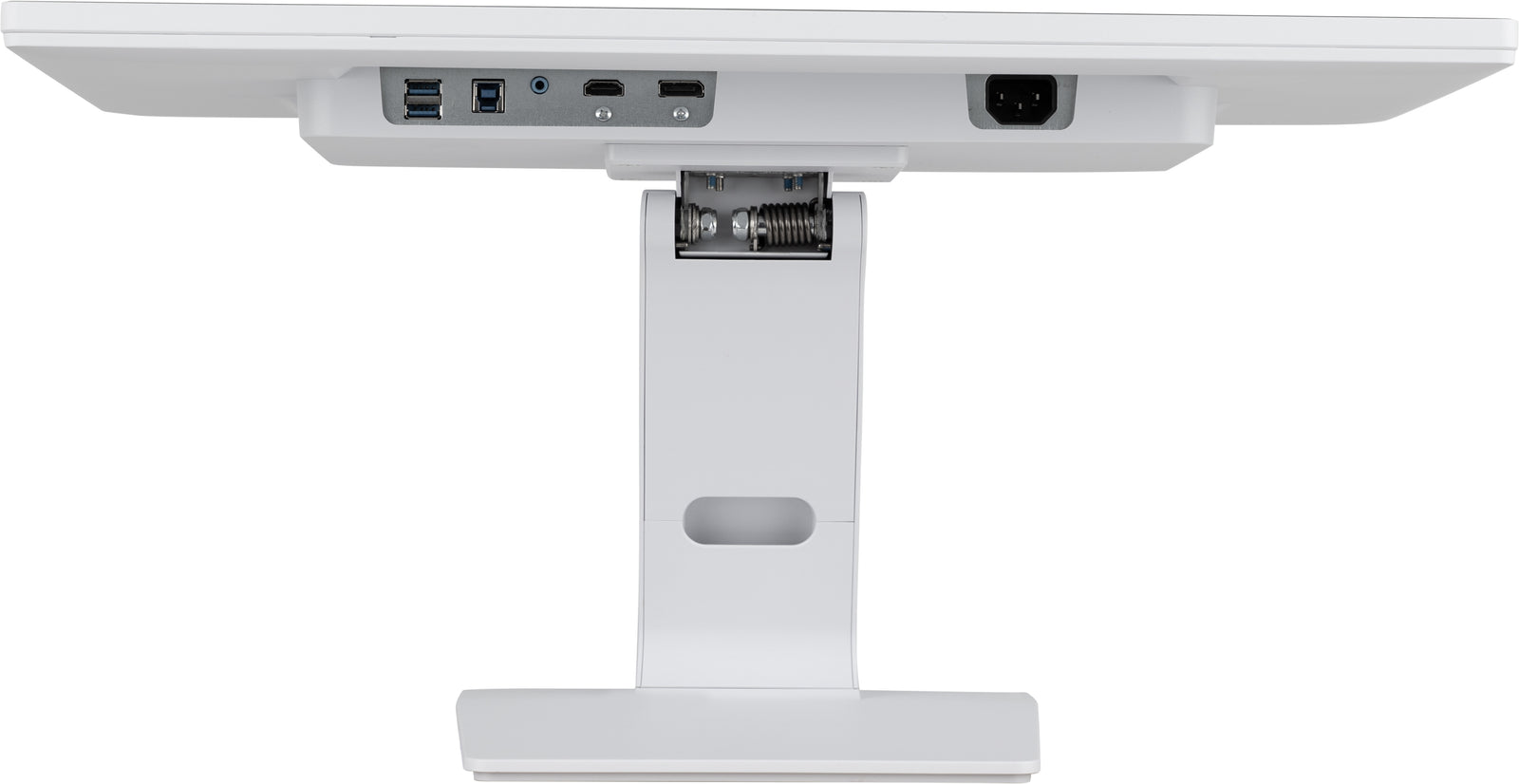

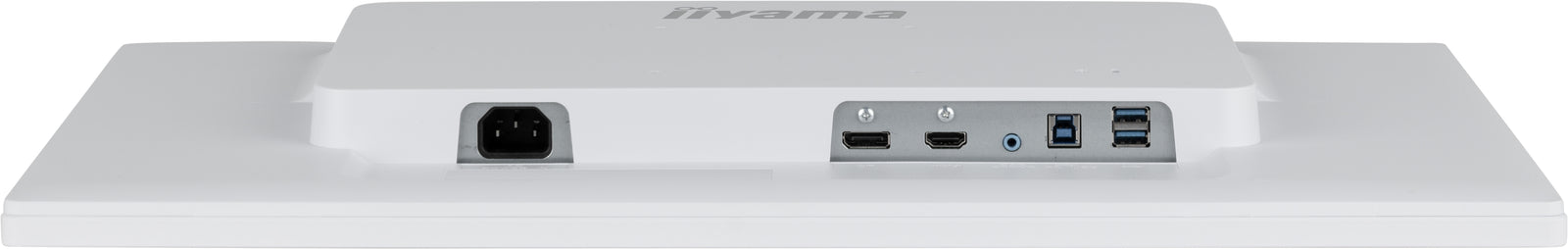

| INTERFACES / CONNECTORS / CONTROLS |
|
| Digital signal input |
HDMI x1 |
|
DisplayPort x1 |
| Audio output |
Mini jack x1 |
| Speakers |
2 x 1W |
| USB HUB |
x2 (v.3.2 (Gen 1, 5Gbit)) |
| FEATURES |
|
| Extra |
Anti-fingerprint coating |
| Glass hardness |
7H |
| OSD key lock |
Yes |
| GENERAL |
|
| OSD languages |
EN, DE, FR, ES, IT, PT, RU, JP, NL, PL |
| Control buttons |
Menu, scroll up / ECO, scroll down / volume, select / input, power |
| MECHANICAL |
|

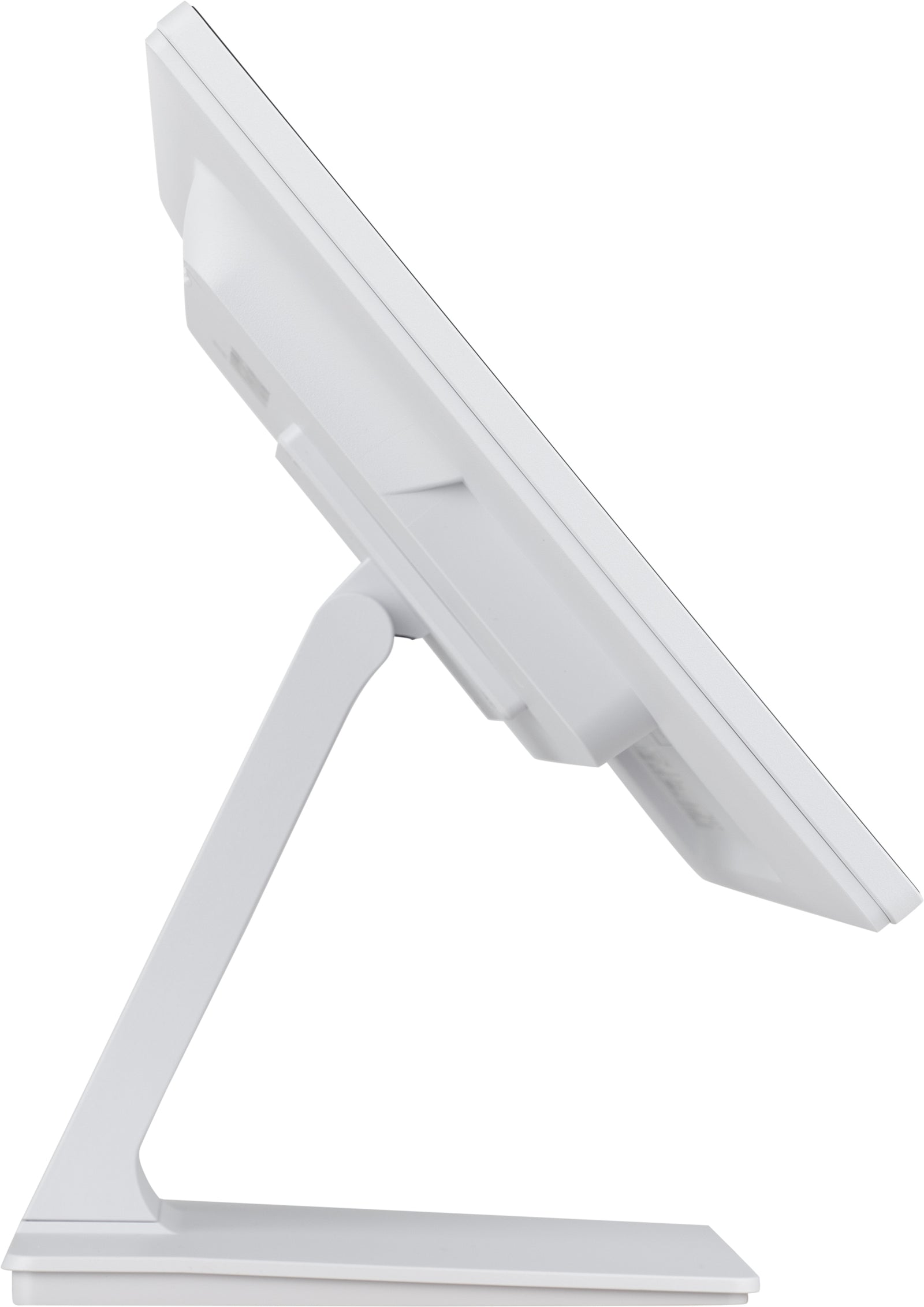

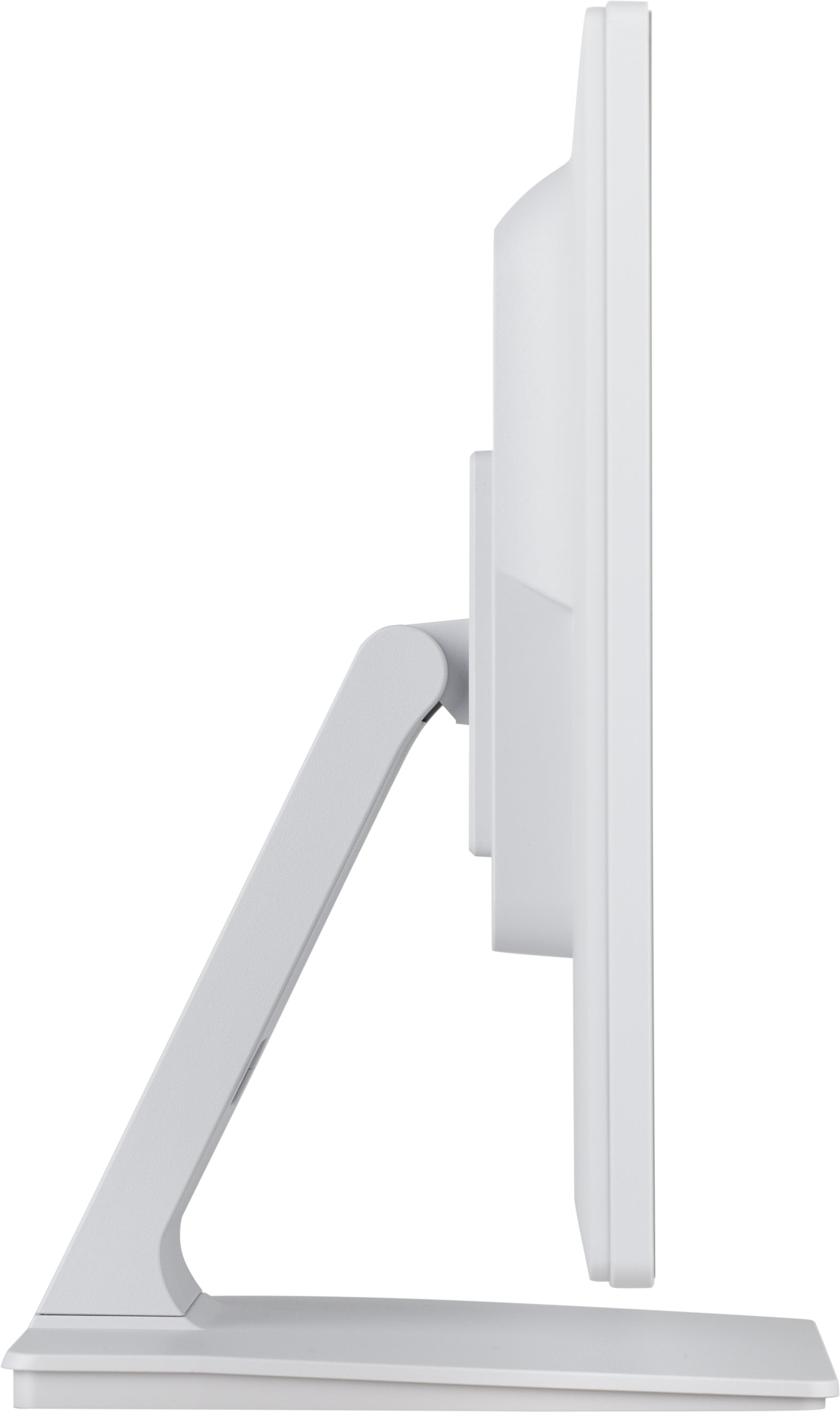

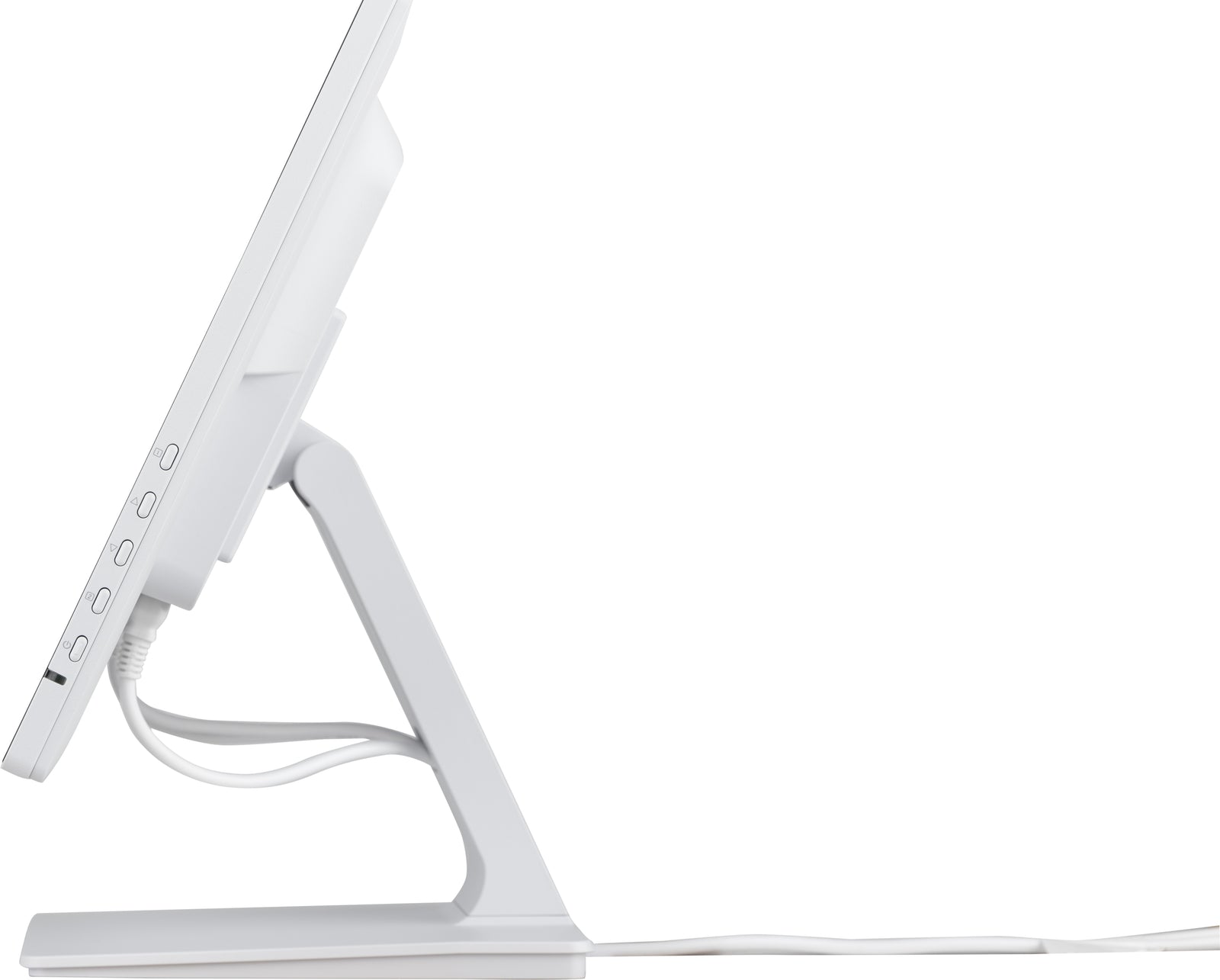

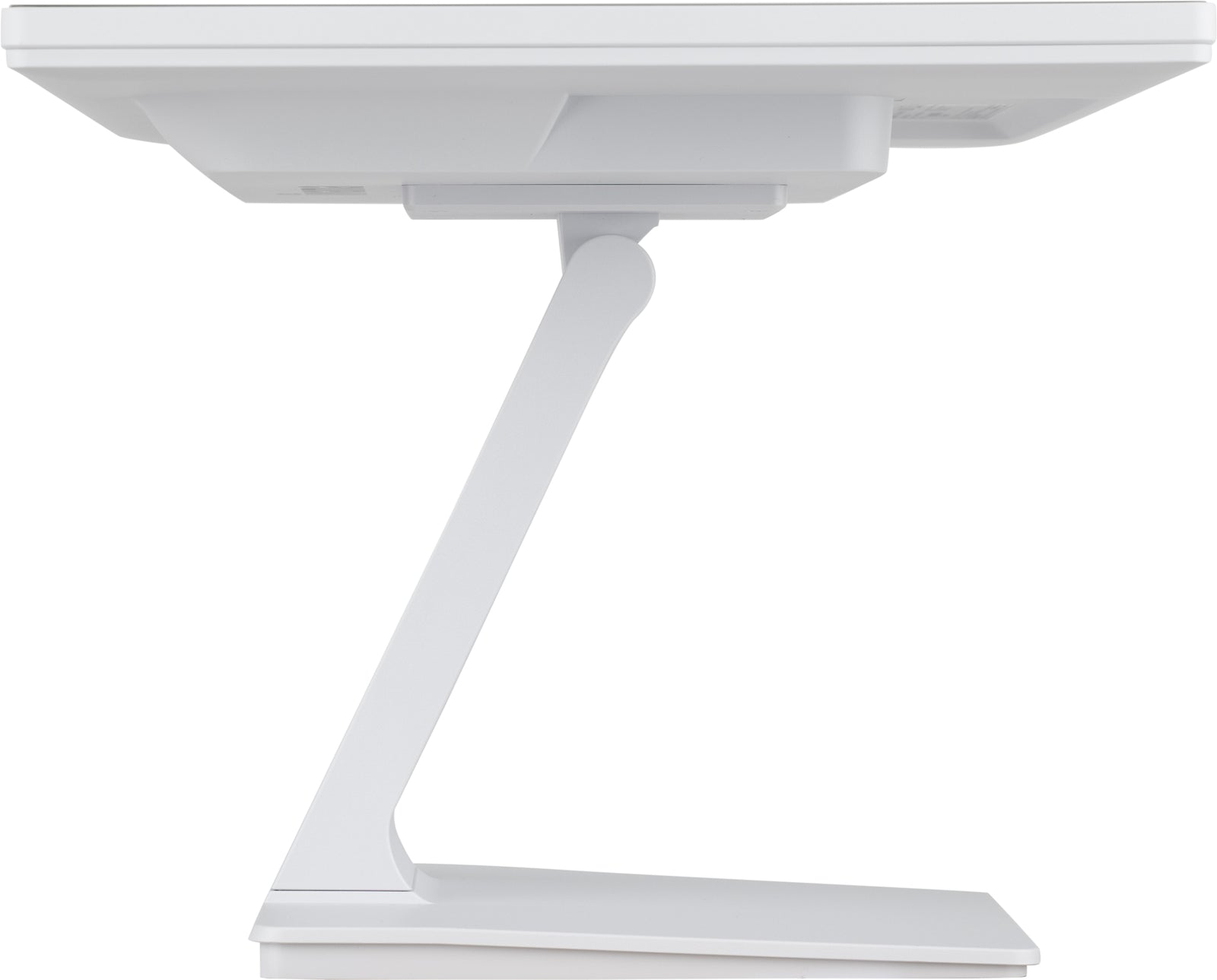

| Tilt angle |
90° up; 5° down |

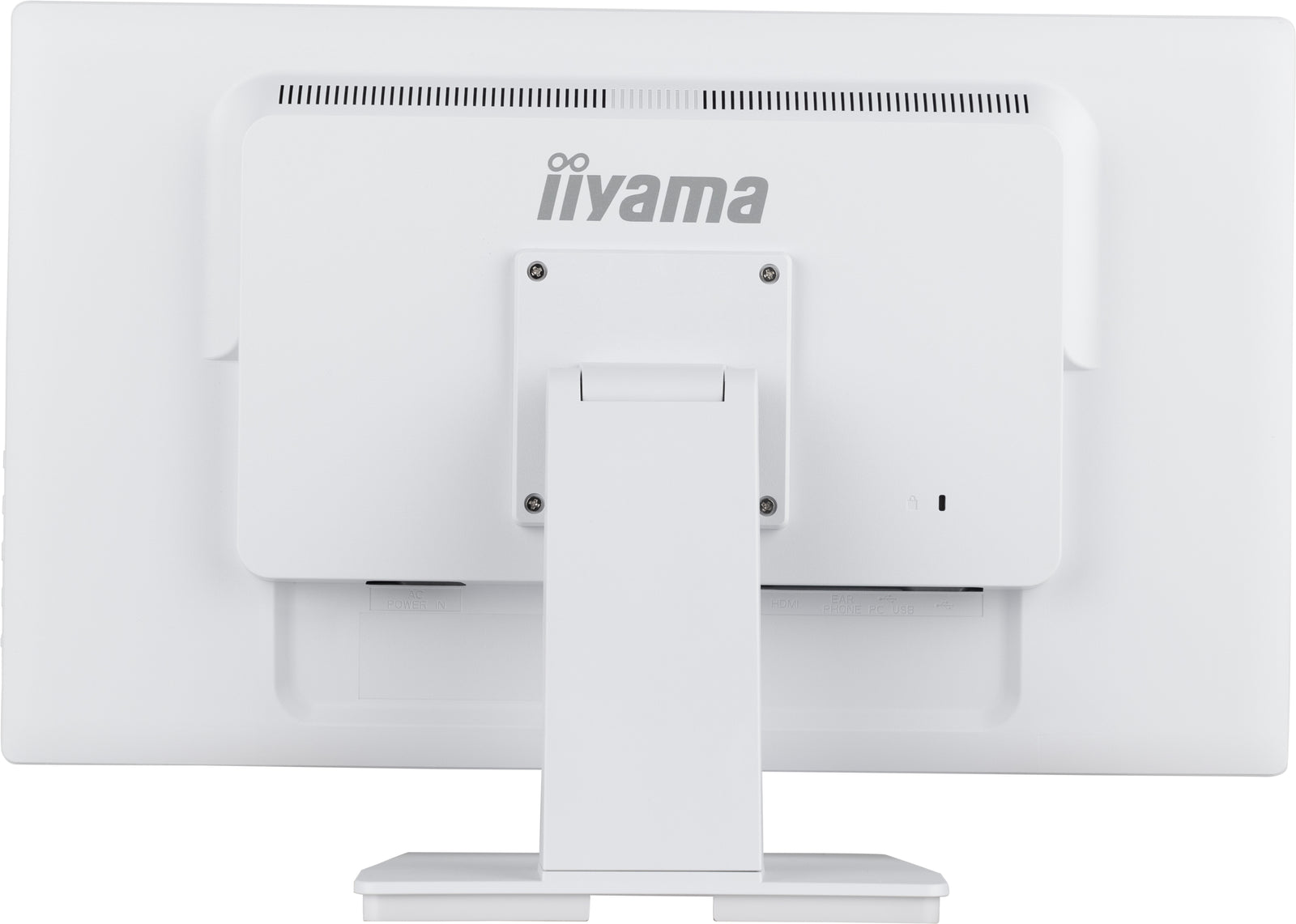

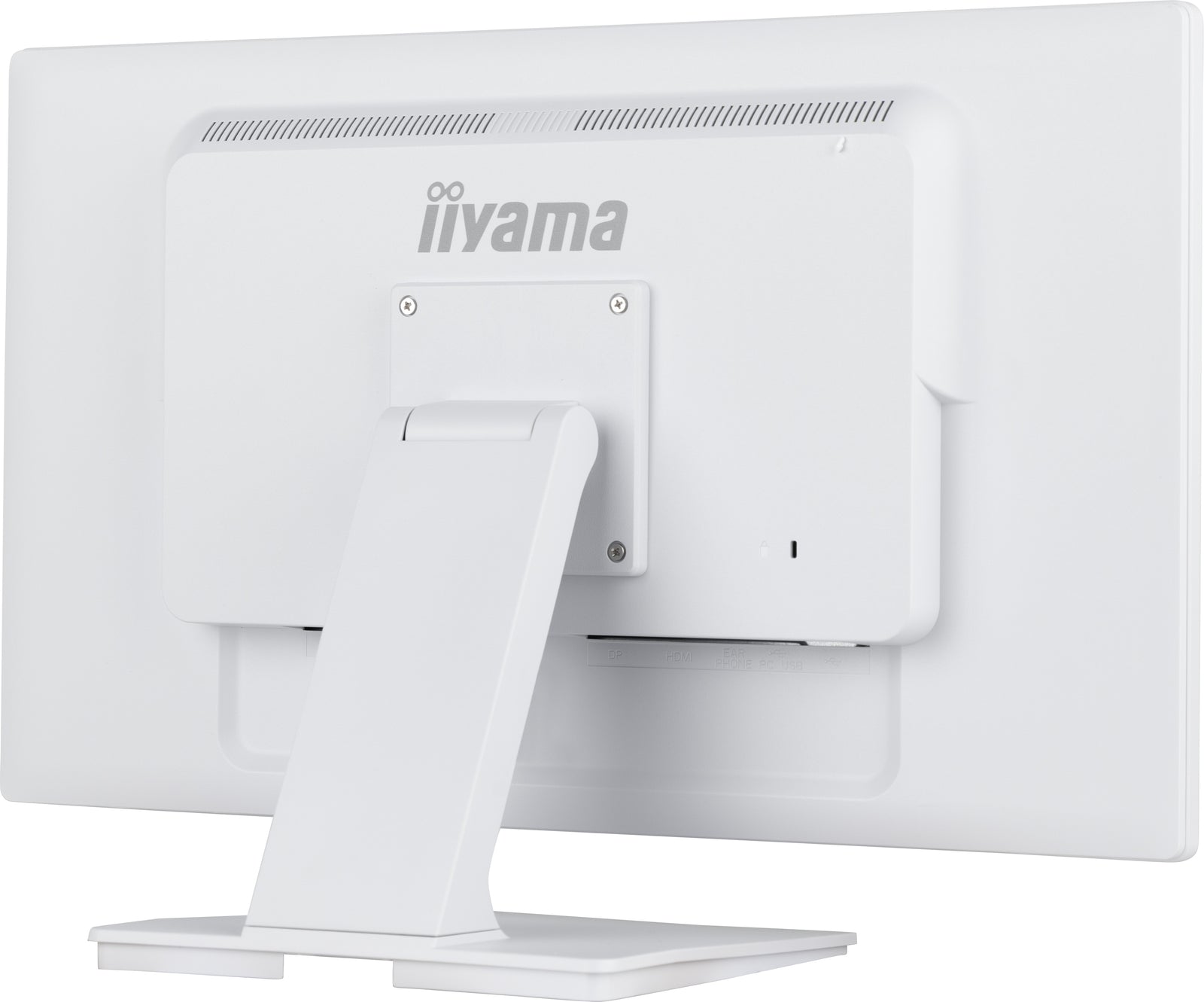

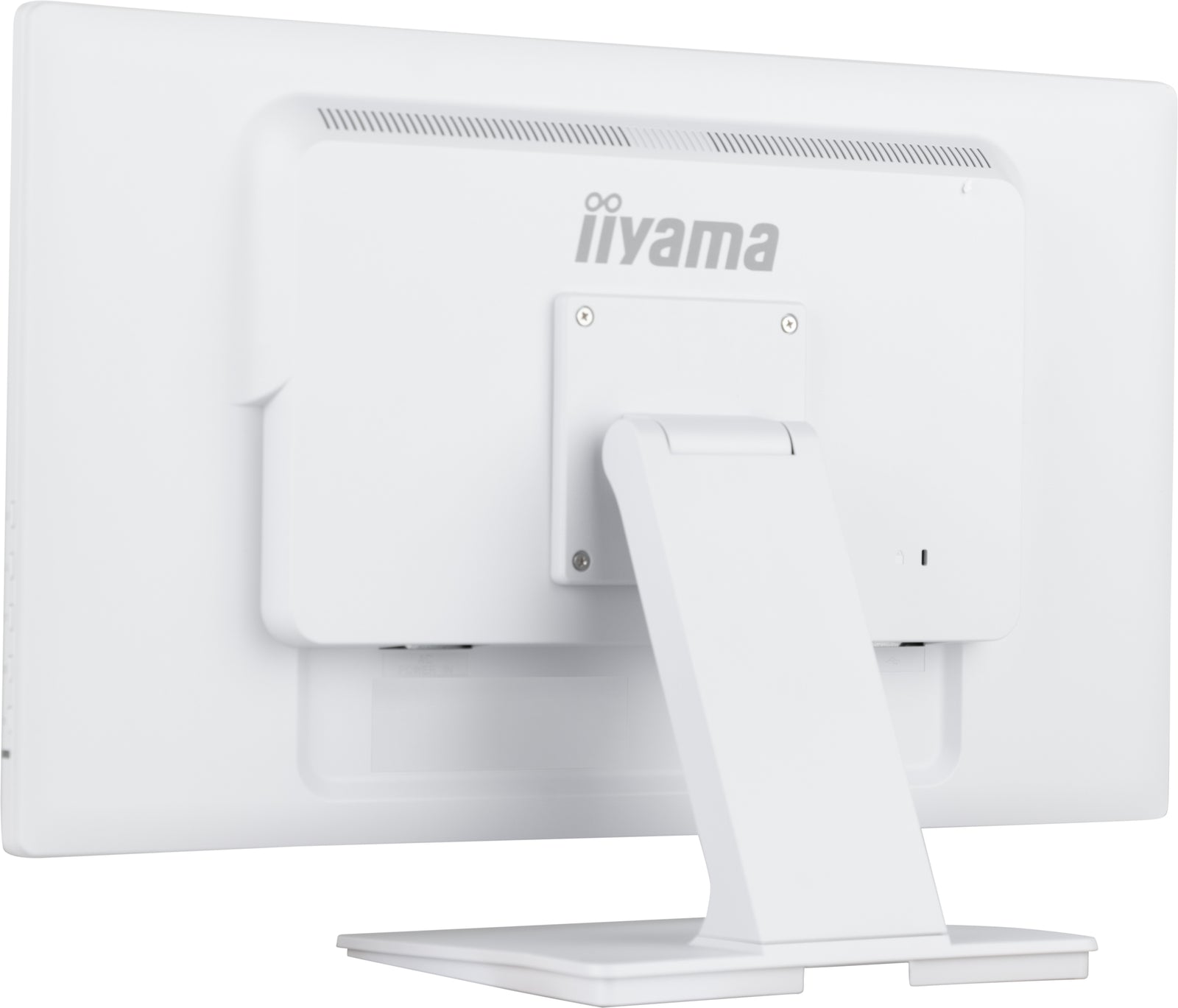

| VESA mounting |
100 x 100mm |
| MTBF |
50000 hours (excluding backlight) |
| ACCESSORIES INCLUDED |
|

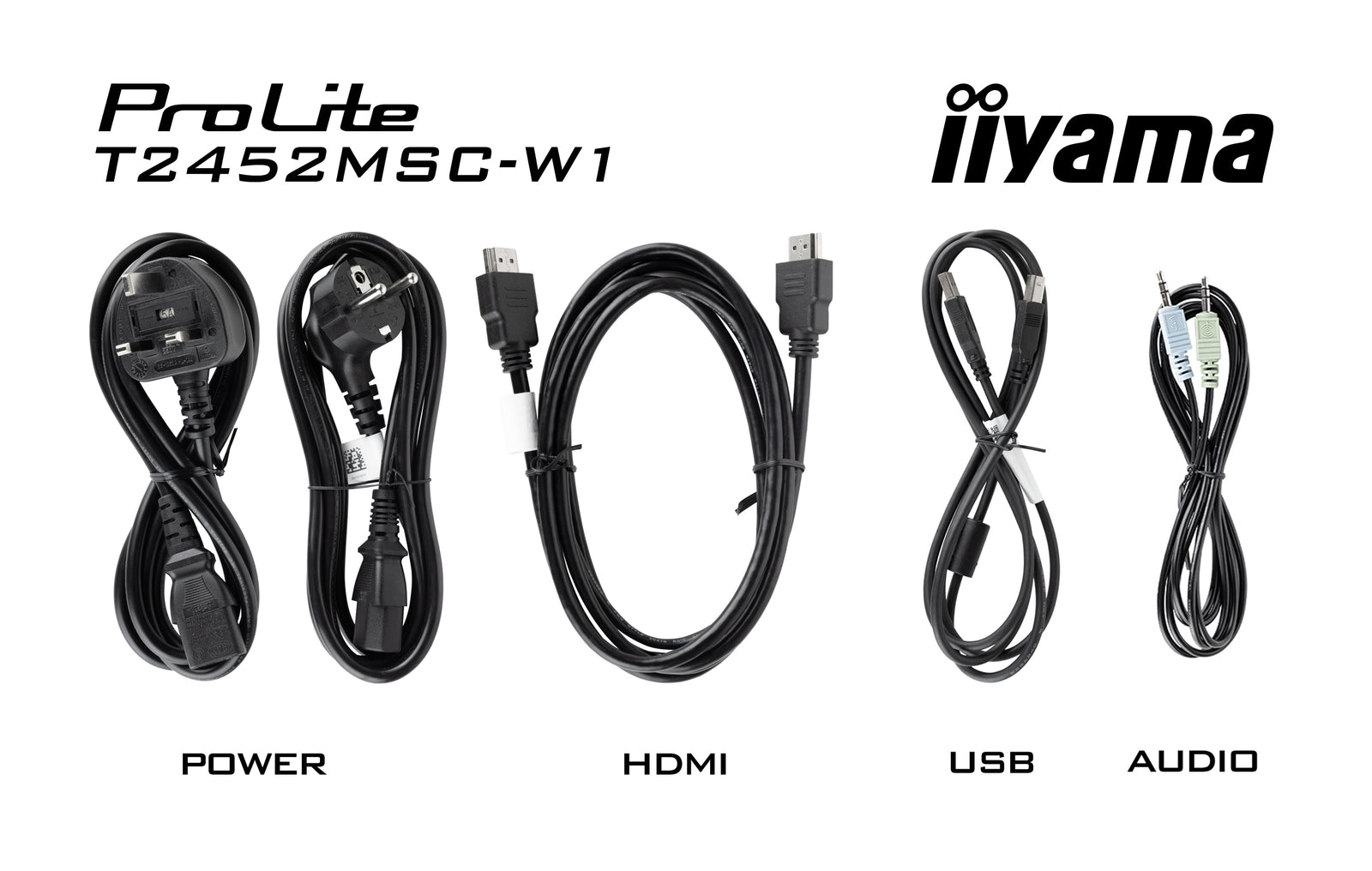

| Cables |
Power, USB, HDMI |
| Guides |
Quick start guide, safety guide |
| POWER MANAGEMENT |
|
| Power supply unit |
Internal |
| Power supply |
AC 100 - 240V, 50/60Hz |
| Power usage |
18W typical, 1.5W standby, 0.3W off mode |
| SUSTAINABILITY |
|
| Regulations |
CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class |
E |
| REACH SVHC |
Above 0.1%: Lead |
| DIMENSIONS / WEIGHT |
|
| Product dimensions W x H x D |
567 x 385 x 253.5mm |
| Weight (without box) |
5.6kg |
| EAN code |
4948570122066 |
-
| Warranty |
Product |
Cover |
| Visioncare |
Desktop LCD products (Monitors) (17" - 43")
|
3 years on-site UK warranty. (Upgrades to 5 years available)
|
Touchcare
|
LCD touchscreen products |
3 years repair and return. (Upgrades to on-site & 5 years available)
|
| LFD |
Large Format Displays Standard Warranty
|
3 years collect and return (Upgrade to swap, installation & 5 years available) Download
|
