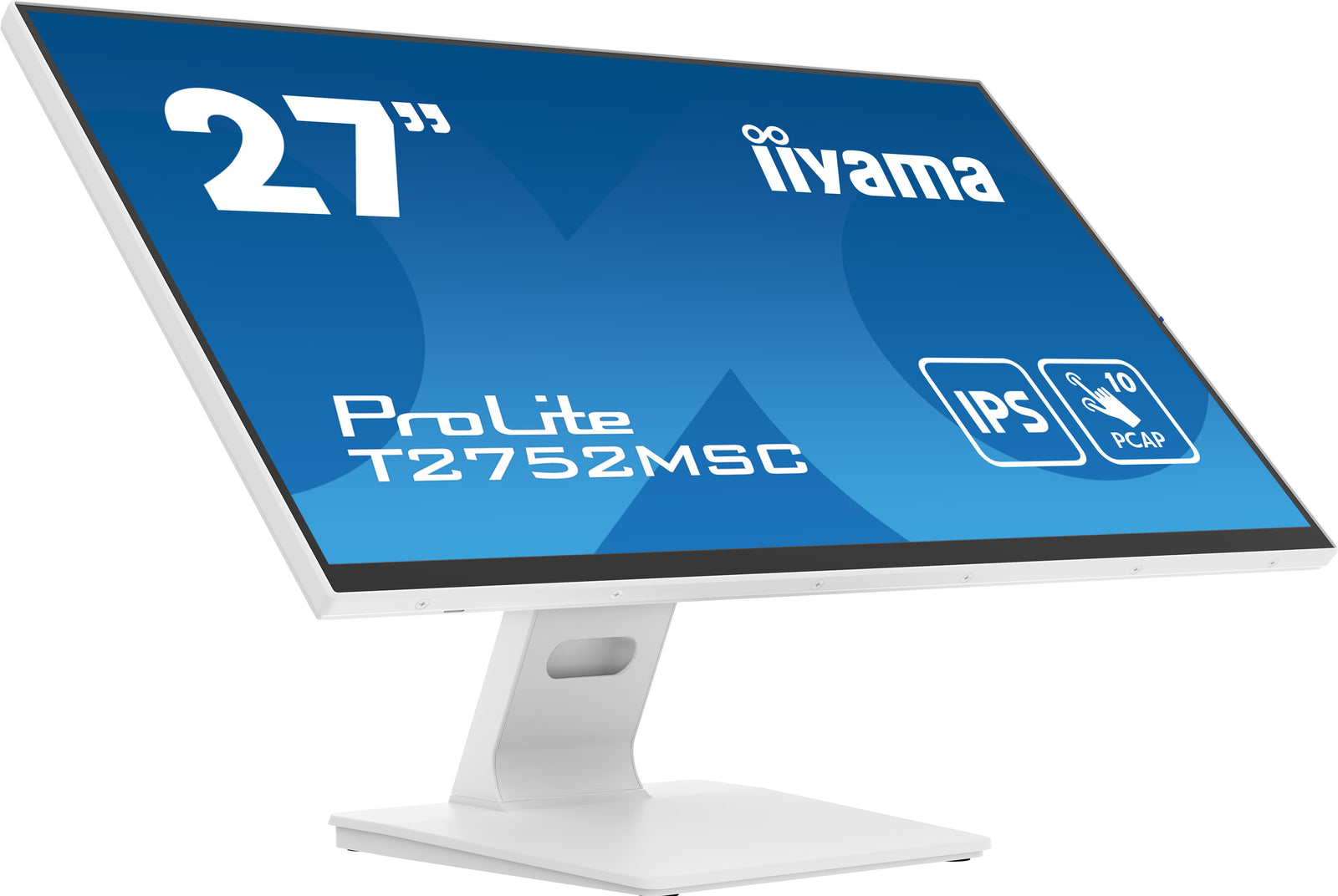

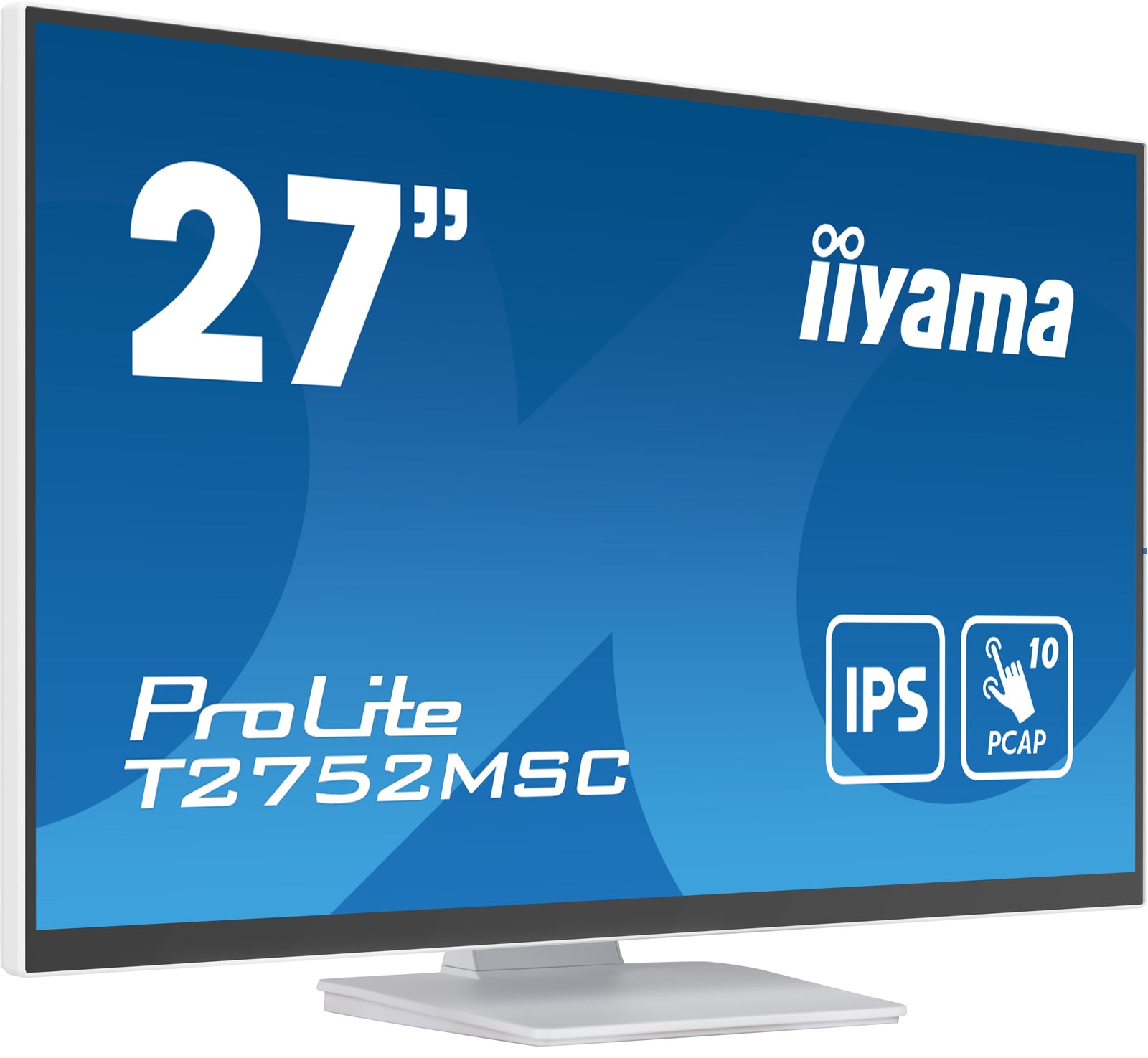

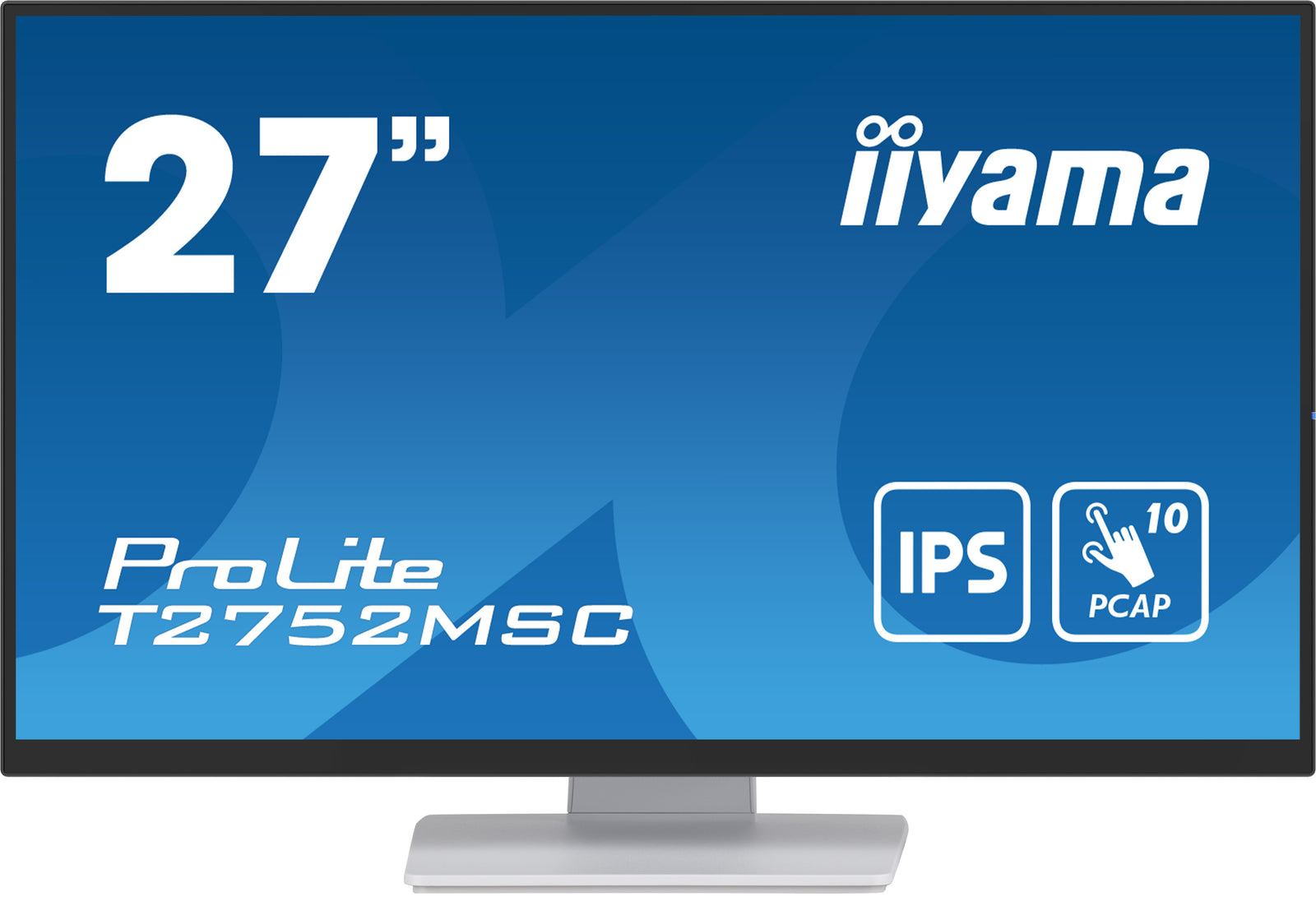

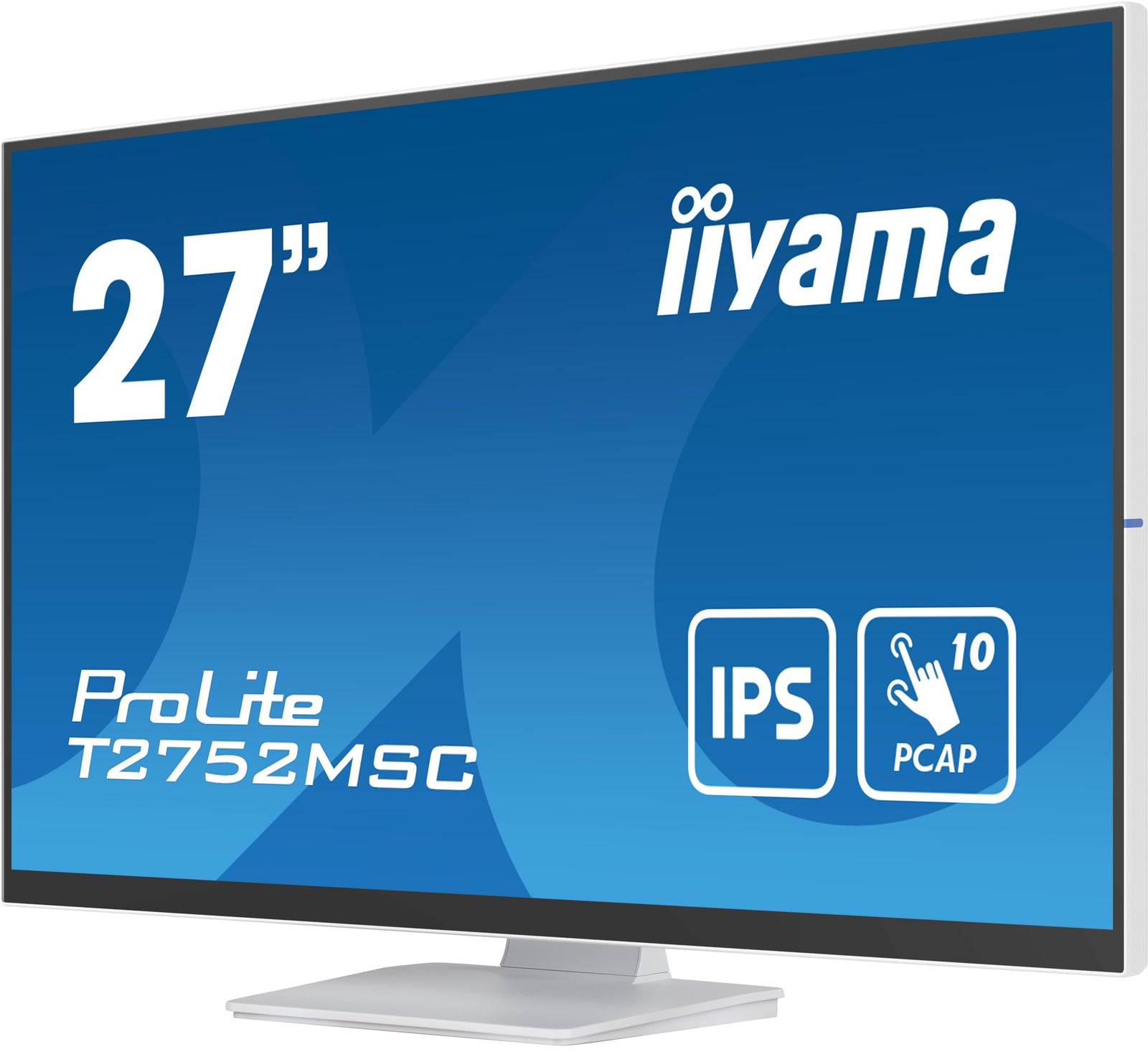

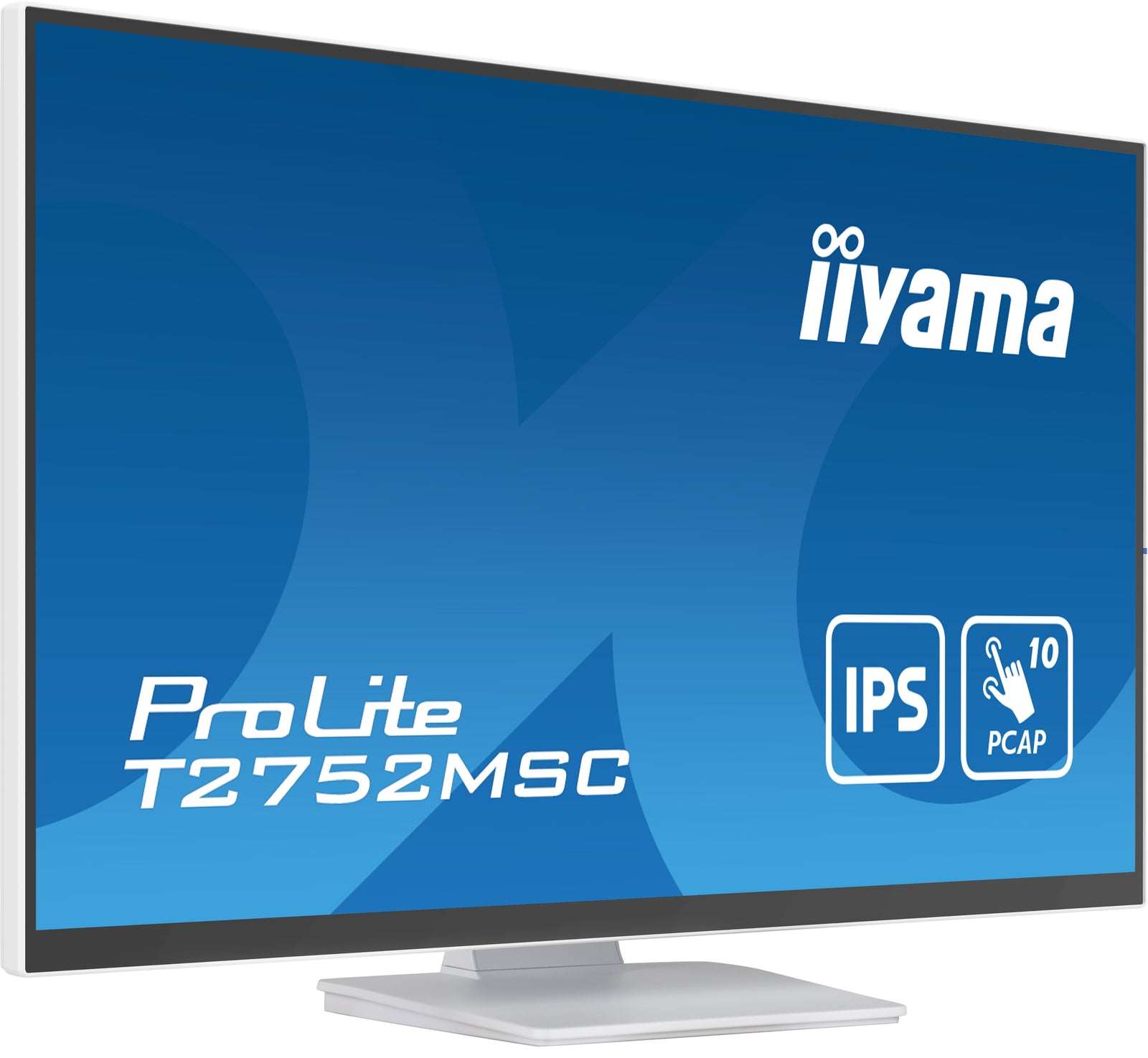

iiyama ProLite T2752MSC-W1 27" 60Hz IPS 10Pt PCAP Touchscreen Monitor
OPTICAL BONDED PCAP
The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.
IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
ANTI-FINGERPRINT COATING
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
-
| DISPLAY CHARACTERISTICS |
|
| Design |
Edge to edge glass |
| Diagonal |
27", 68.6cm |
| Panel |
IPS |
| Native resolution |
1920 x 1080 @60Hz |
| Aspect ratio |
16:9 |
| Panel brightness |
400 cd/m² |
| Brightness |
360 cd/m² with touch |
| Light transmittance |
90% |
| Static contrast |
1000:1 |
| Response time (GTG) |
5ms |
| Viewing zone |
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support |
16.7mln 8bit |
| Horizontal Sync |
30 - 83kHz |
| Viewable area W x H |
598 x 336mm, 23.5 x 13.2" |
| Pixel pitch |
0.311mm |
| Bezel colour and finish |
black, matte |
| TOUCH |
|
| Touch technology |
projective capacitive |
| Touch points |
10 (HID, only with supported OS) |
| Touch accuracy |
+- 2mm |
| Touch method |
stylus, finger, glove (latex) |
| Touch interface |
USB |
| Supported operating systems |
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Palm rejection |
yes |

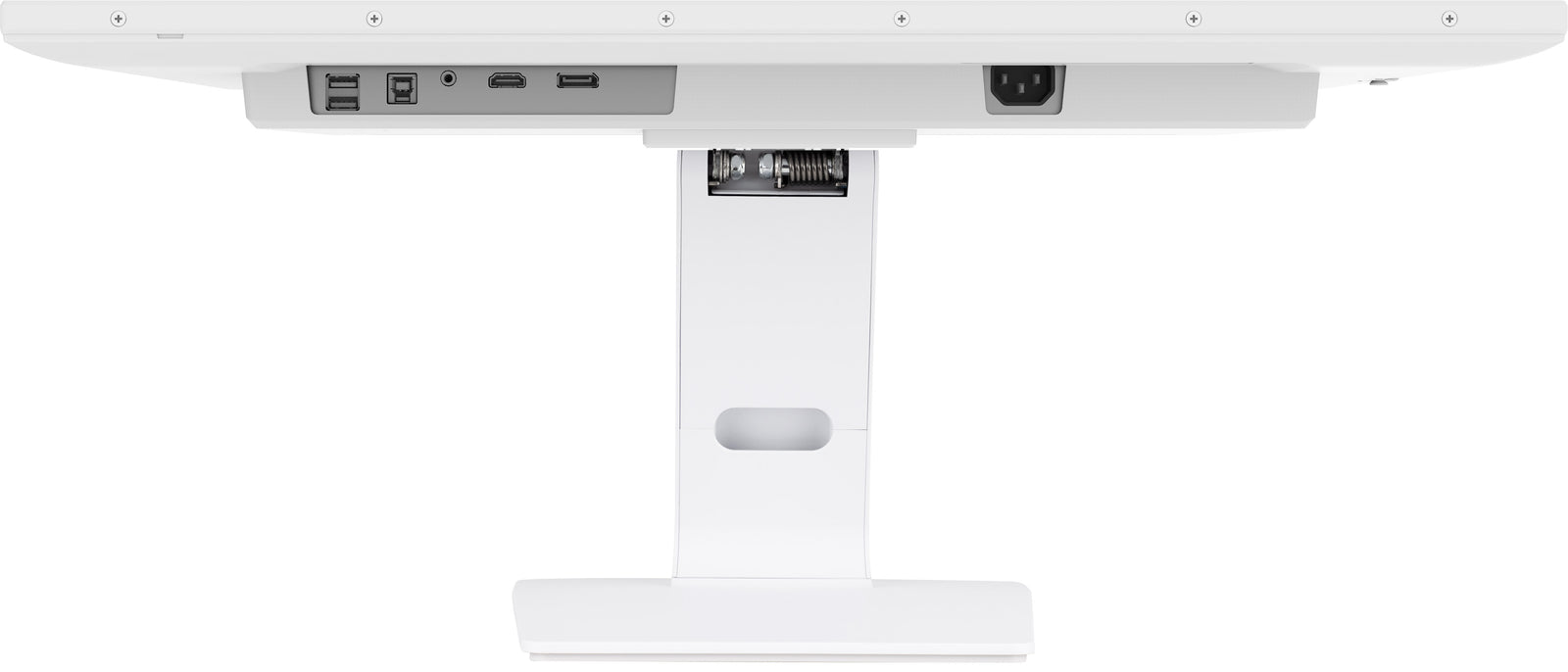

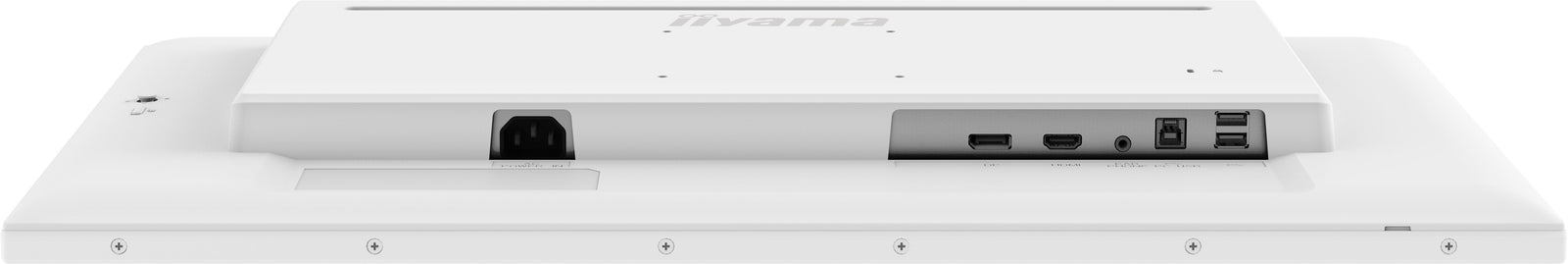

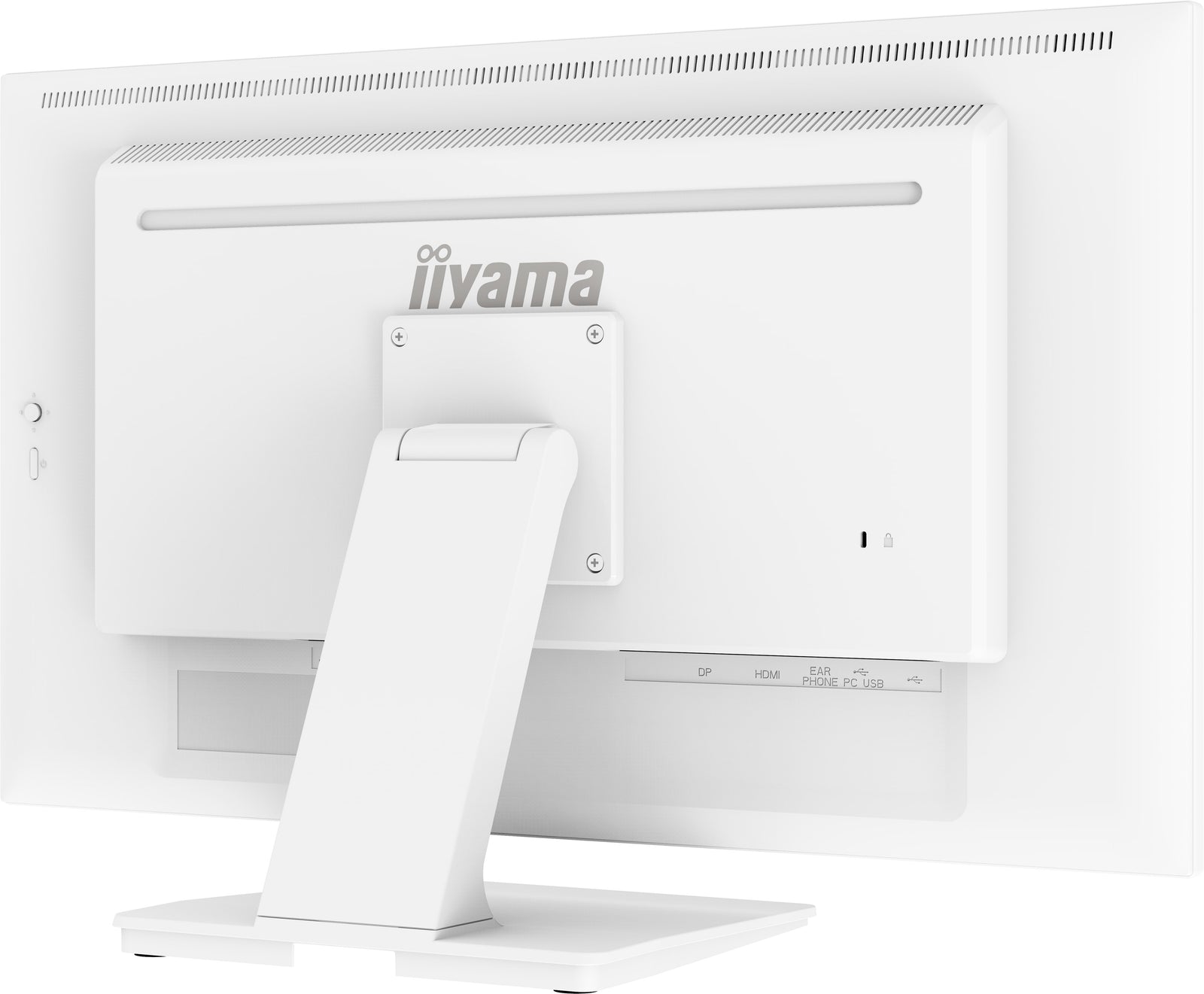

| INTERFACES / CONNECTORS / CONTROLS |
|
| Digital signal input |
HDMI x1 |
|
DisplayPort x1 |
| Audio output |
Mini jack x1 |
| Speakers |
2 x 1W |
| HDCP |
yes |
| USB HUB |
x2 (v.3.2 (Gen 1, 5Gbit)) |
| FEATURES |
|
| Extra |
anti-fingerprint coating |
| Glass hardness |
7H |
| OSD key lock |
yes |
| GENERAL |
|
| OSD languages |
EN, DE, FR, ES, IT, PT, RU, JP, NL, PL |
| Control buttons |
Press/enter, right/volume, left/eco/exit, up/signal select, down, power |
| User controls |
Picture adjust (brightness, contrast, i-Style Color, adv. contrast, ECO, OverDrive, X-Res technology), color settings (gamma, RGB range, color temp.), image settings (video mode adjust, blue light reducer, sharp and soft), OSD (horizontal pos., vertical pos., OSD time, OSD background, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch) |
| Convenience |
Kensington-lock™ prepared |
| Blue light reducer |
yes |
| Flicker free |
yes |
| Plug&Play |
DDC2B |

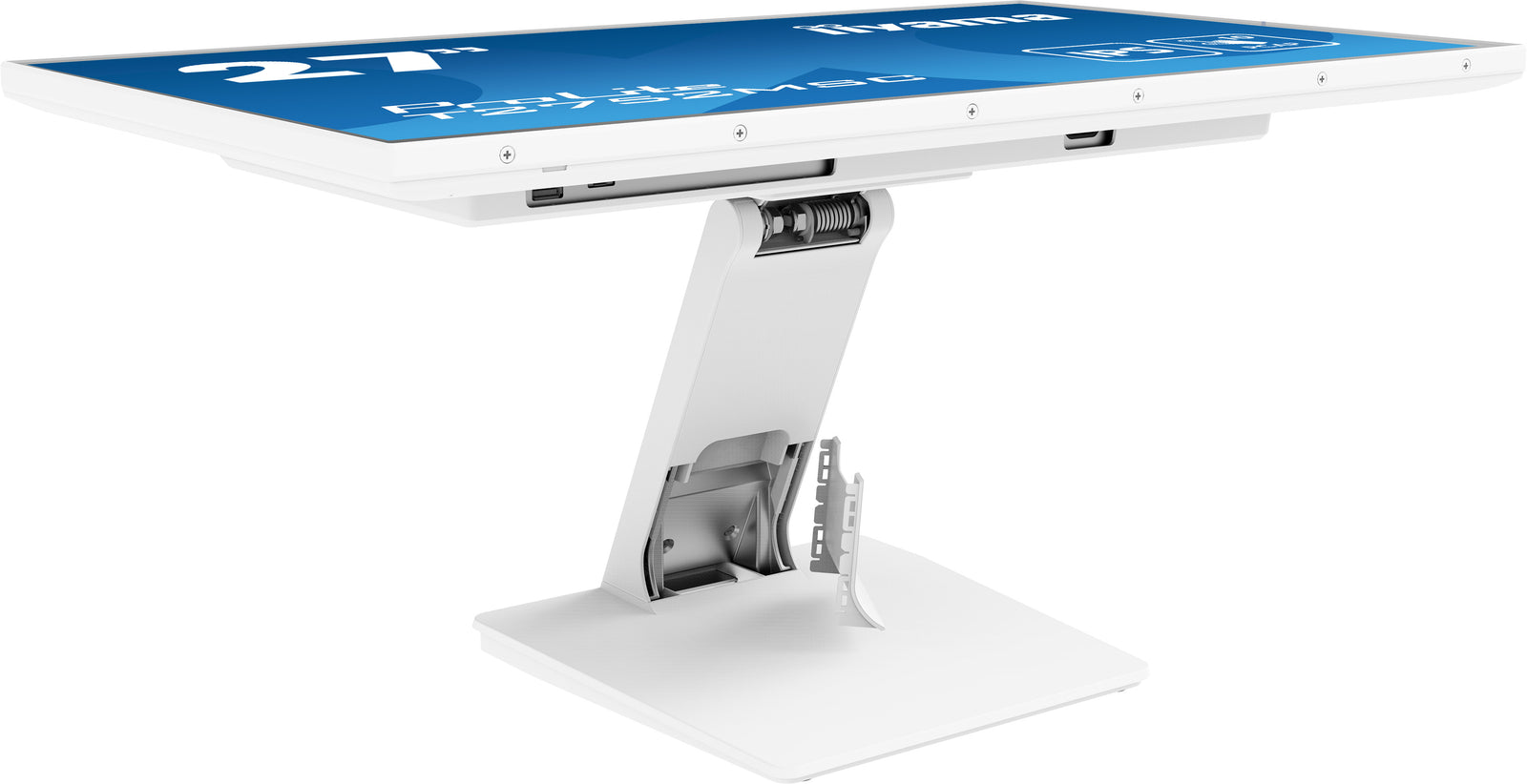

| MECHANICAL |
|

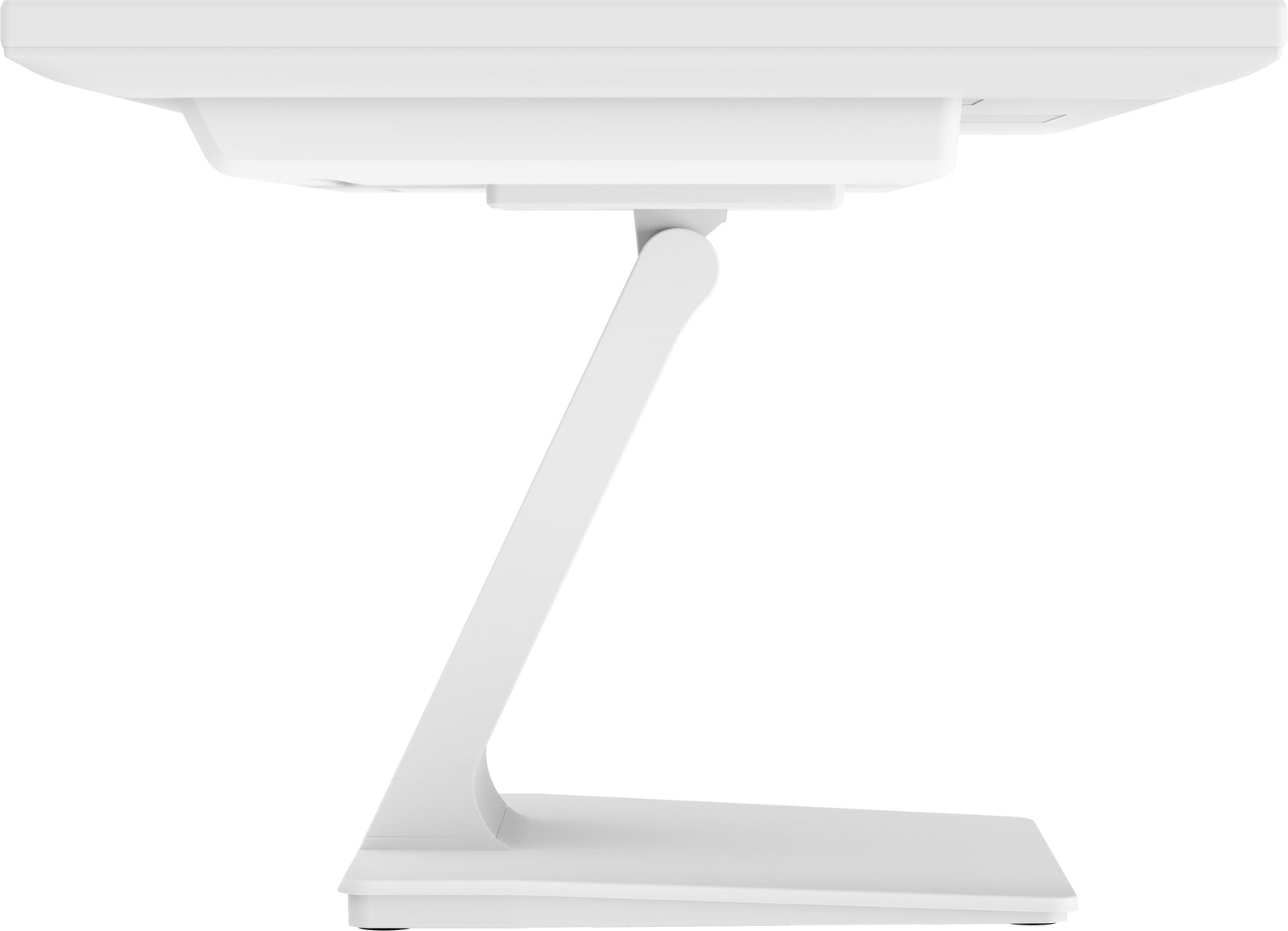

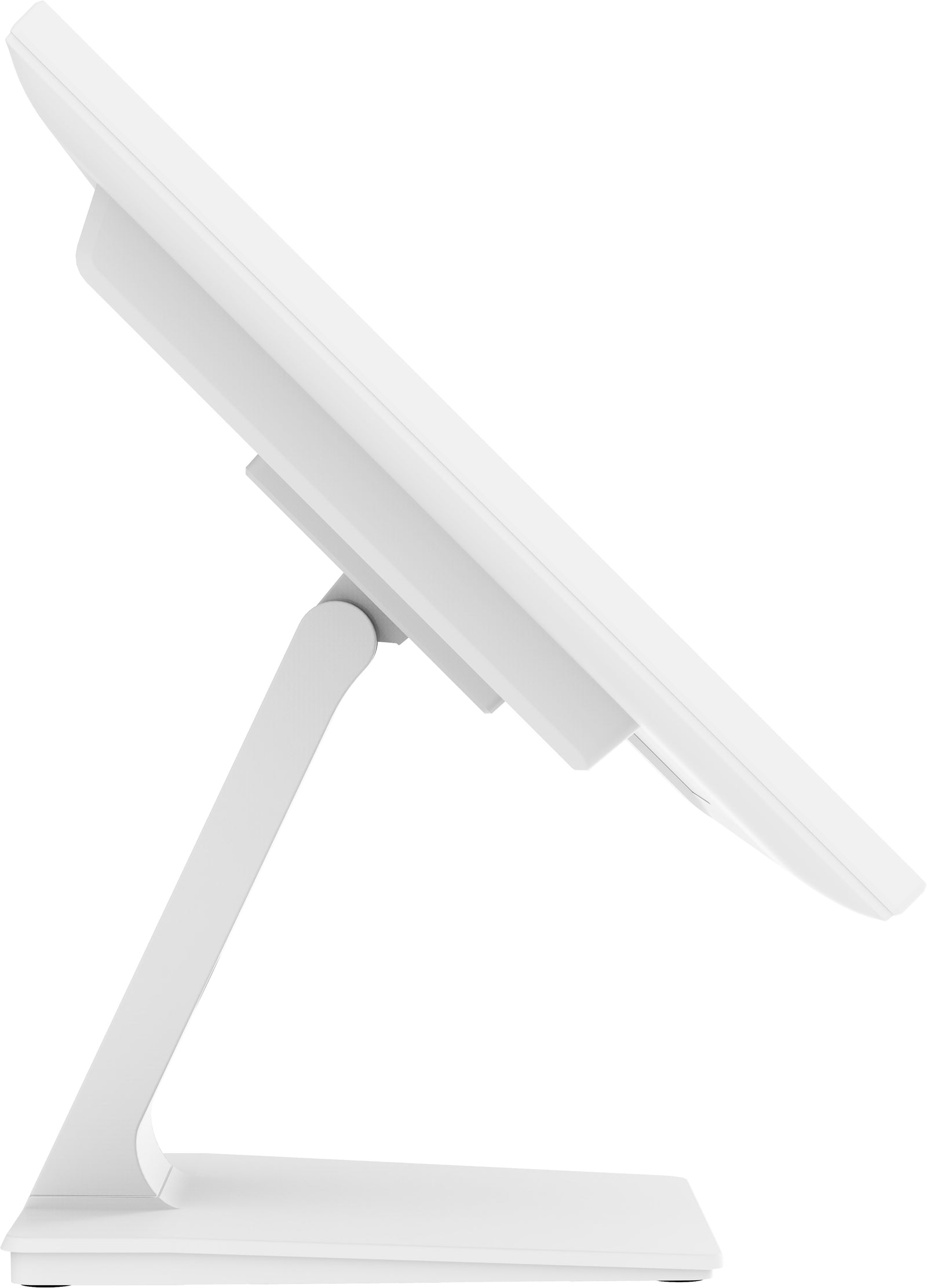

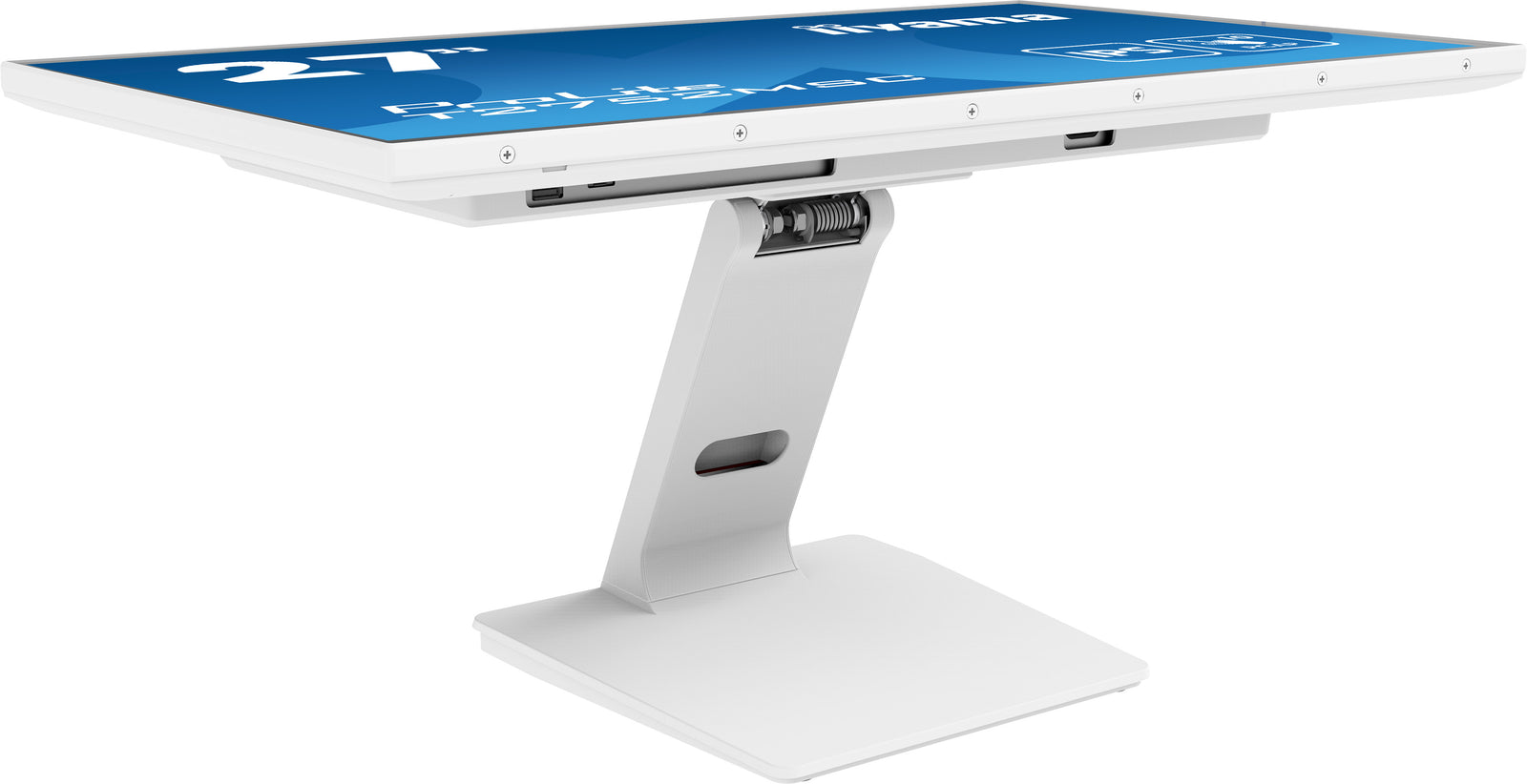

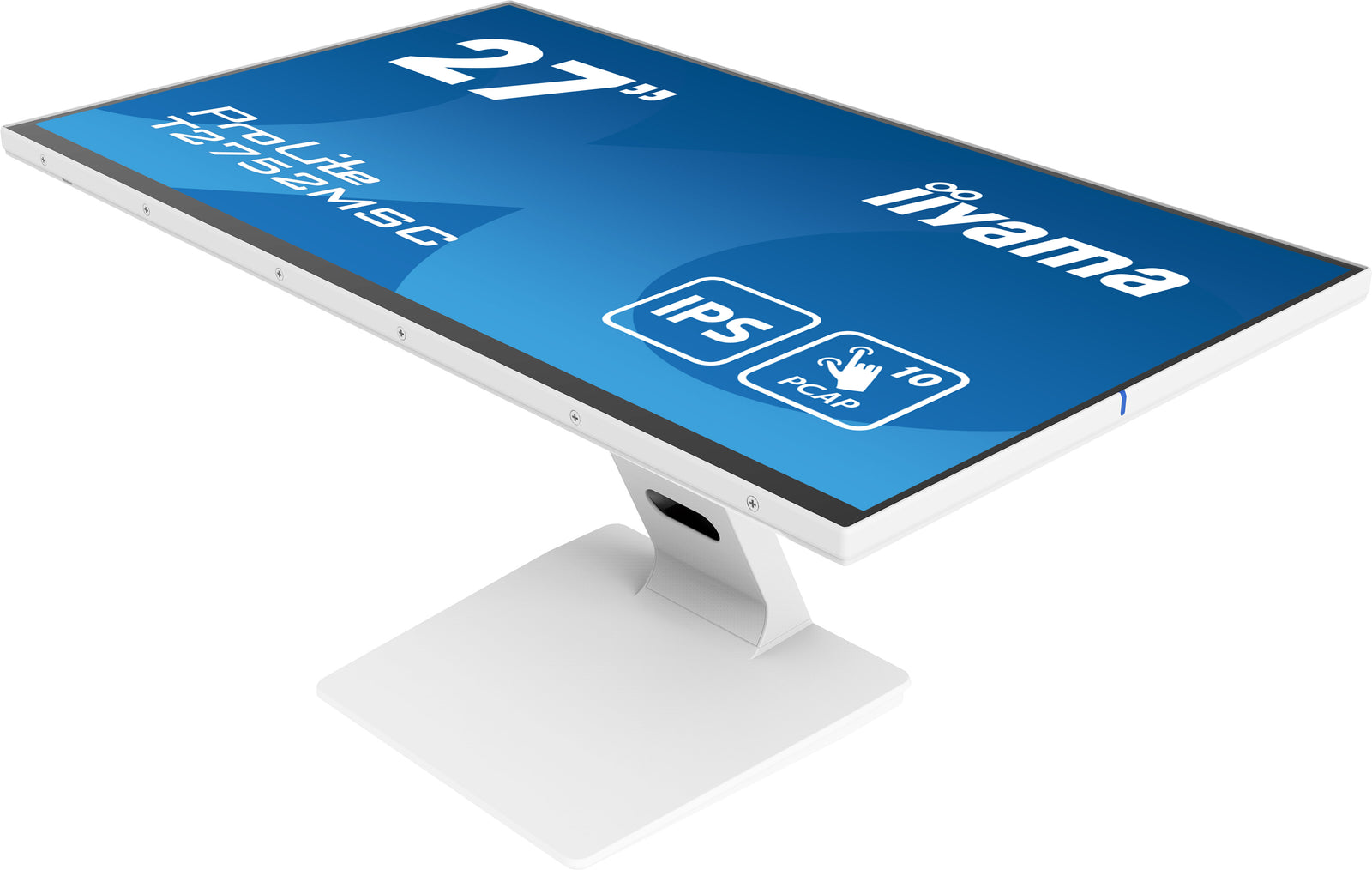

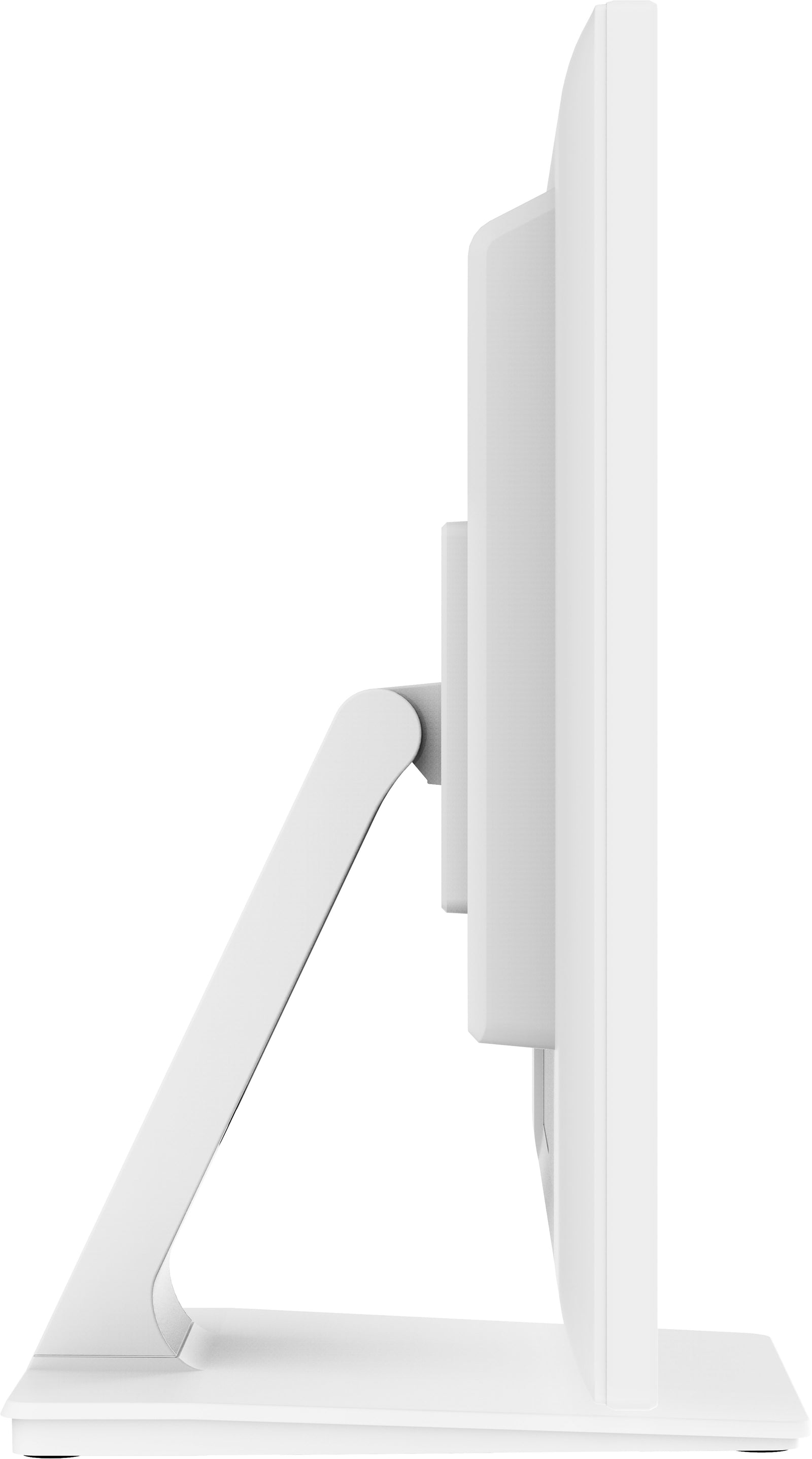

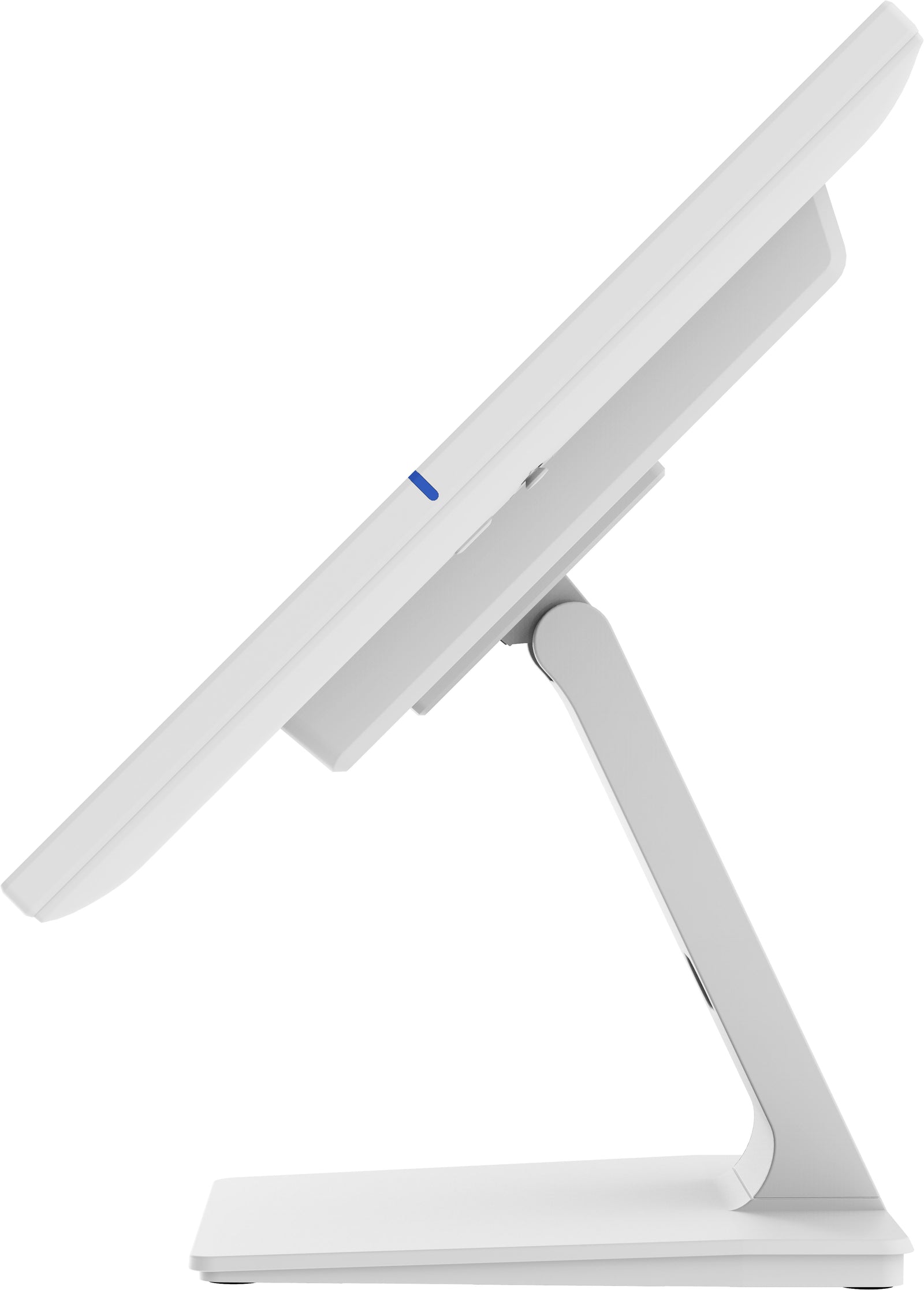

| Tilt angle |
90° up; 5° down |

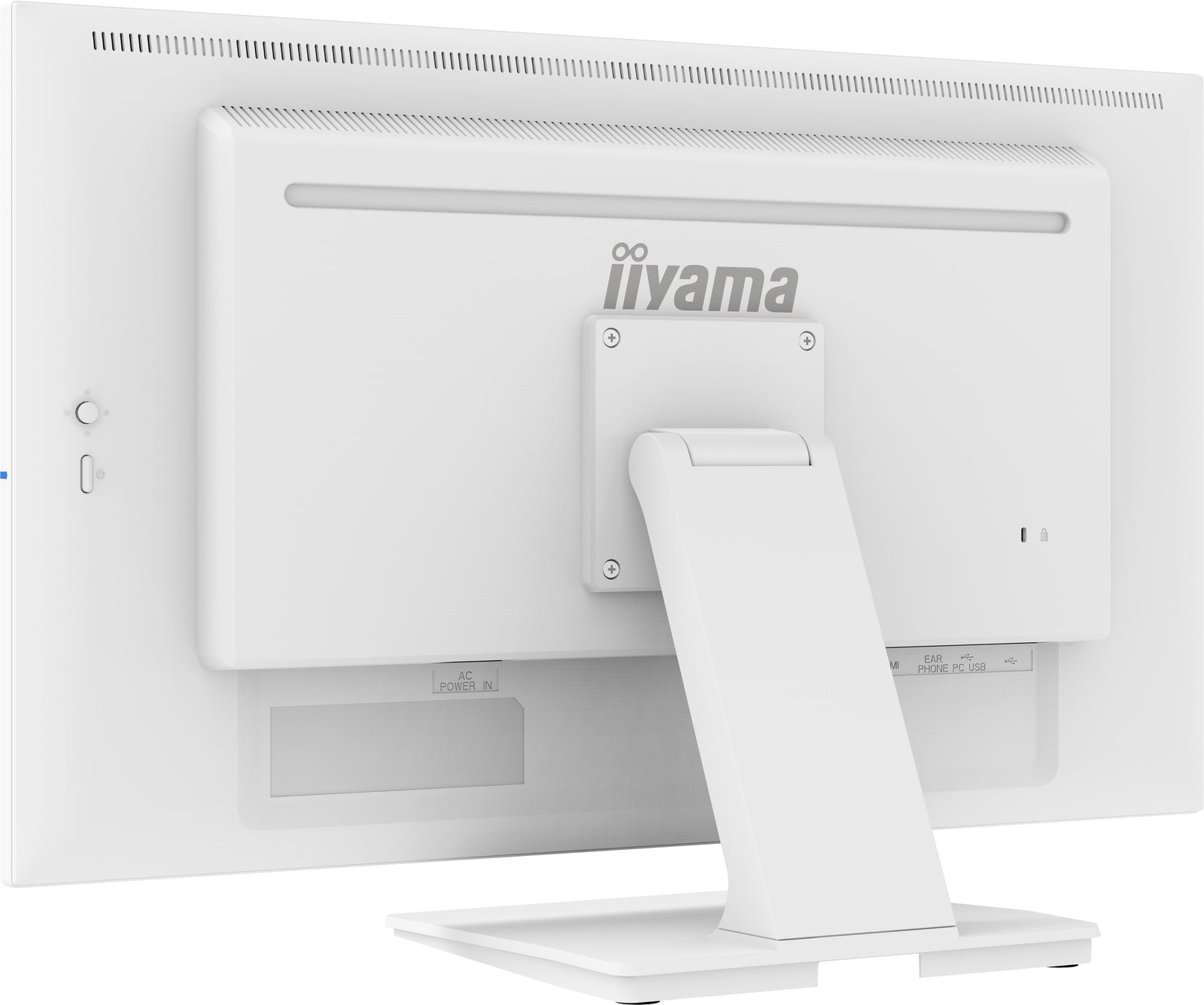

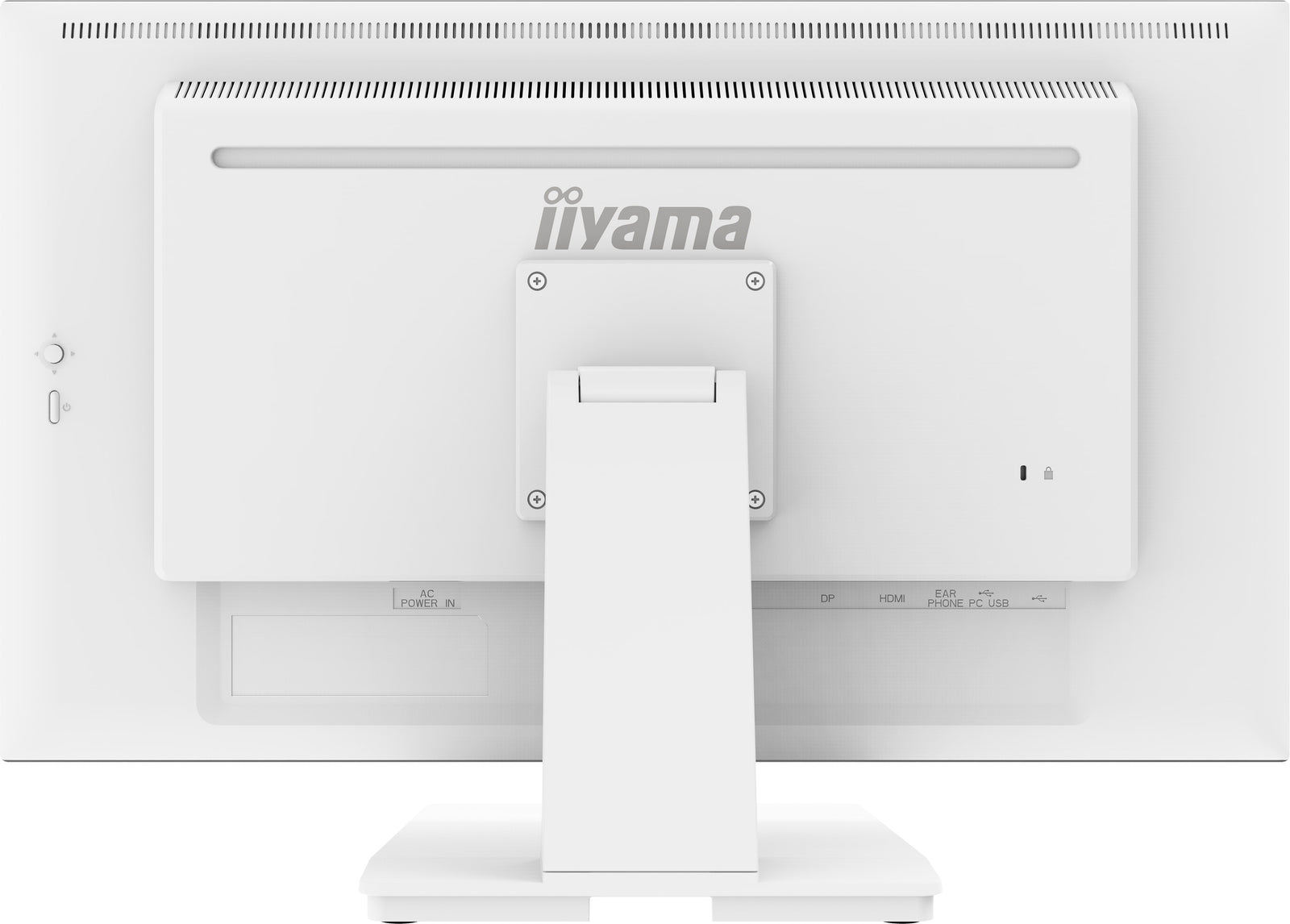

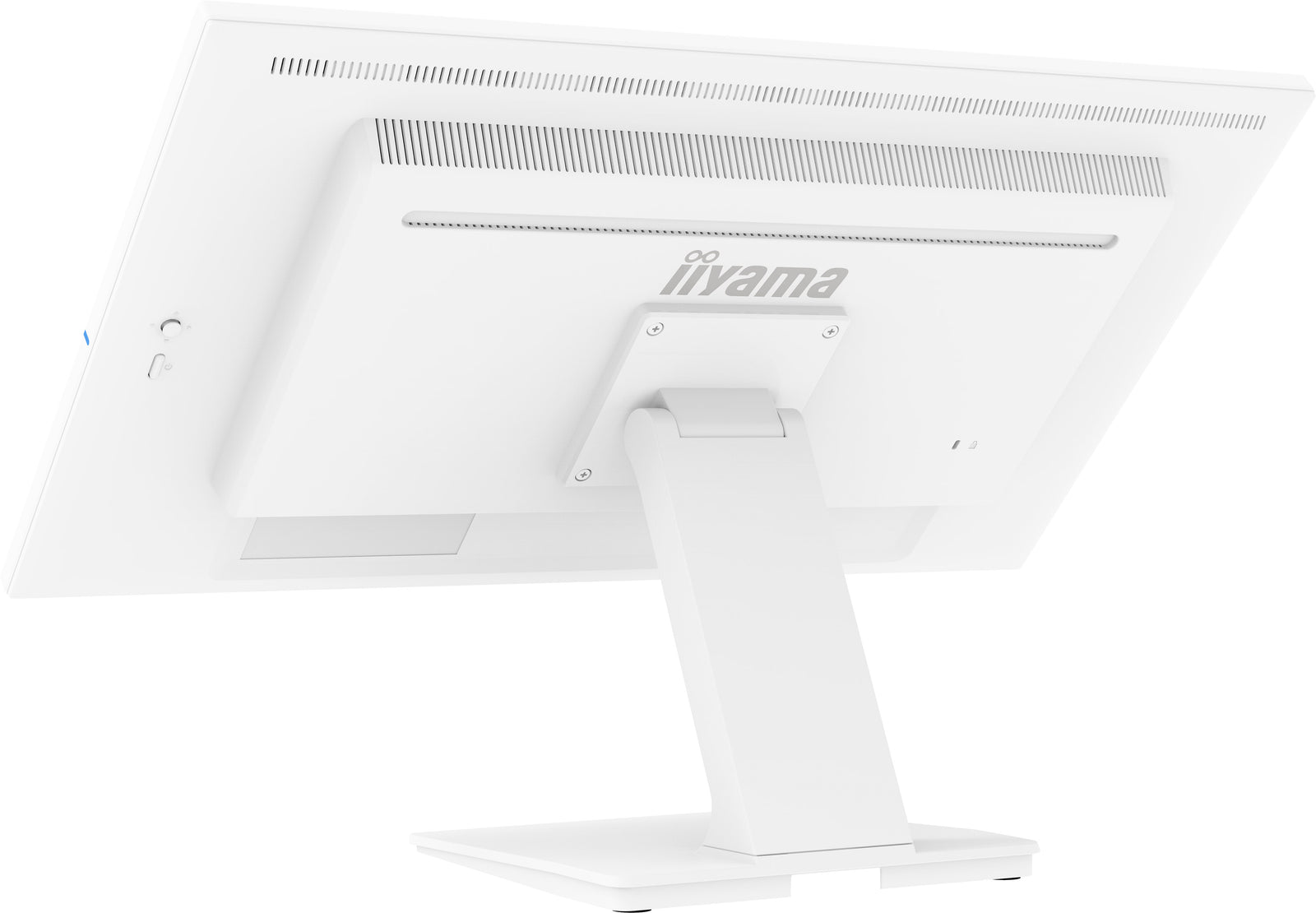

| VESA mounting |
100 x 100mm |
| ACCESSORIES INCLUDED |
|

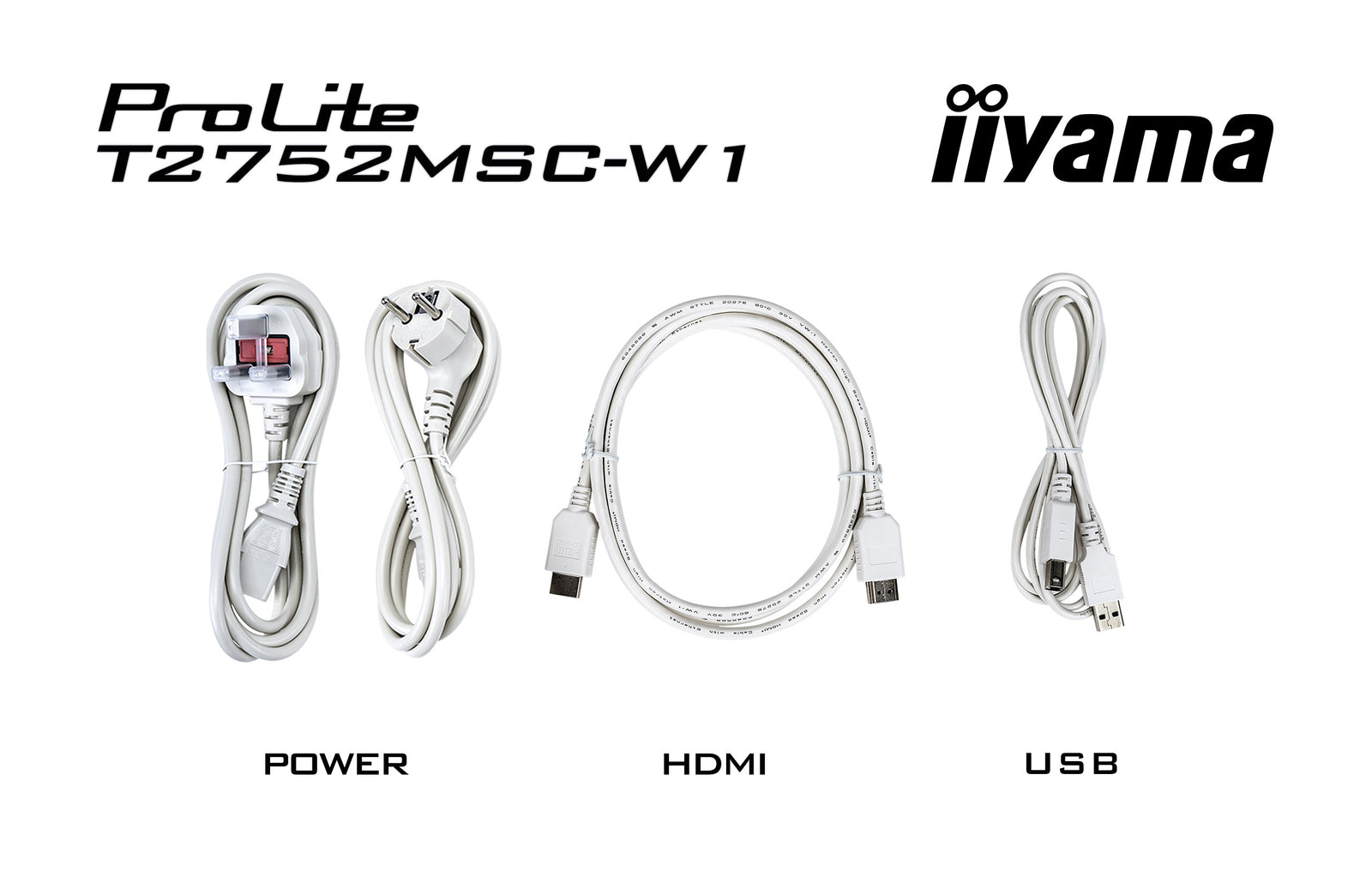

| Cables |
power, USB, HDMI |
| Guides |
quick start guide, safety guide |
| POWER MANAGEMENT |
|
| Power supply unit |
internal |
| Power supply |
AC 100 - 240V, 50/60Hz |
| Power usage |
30W typical, 1.5W stand by, 0.3W off mode |
| SUSTAINABILITY |
|
| Regulations |
CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class |
E |
| DIMENSIONS / WEIGHT |
|
| Product dimensions W x H x D |
614 x 403 x 239.5mm |
| Weight (without box) |
6.7kg |
| EAN code |
4948570123001 |
-
