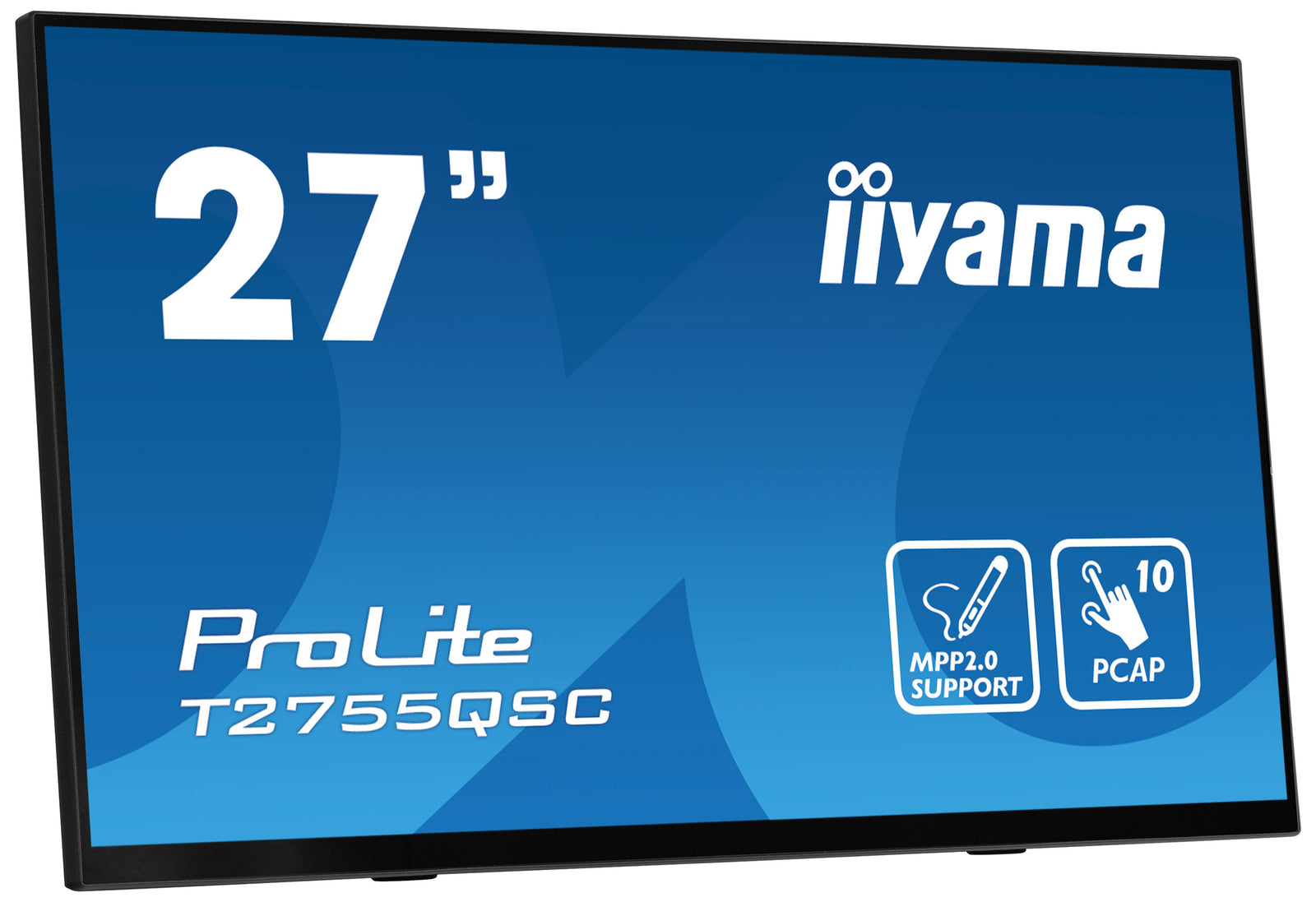

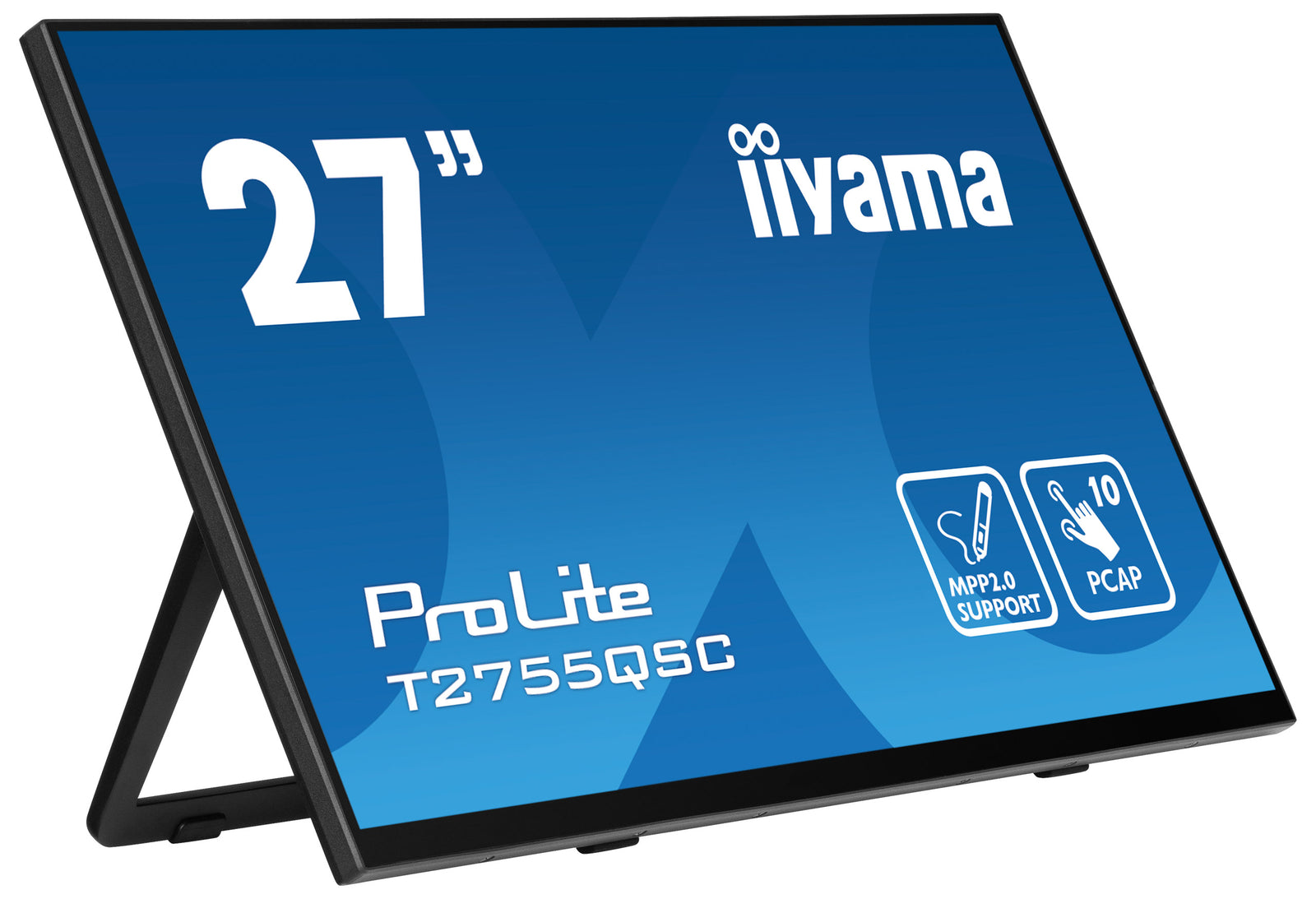

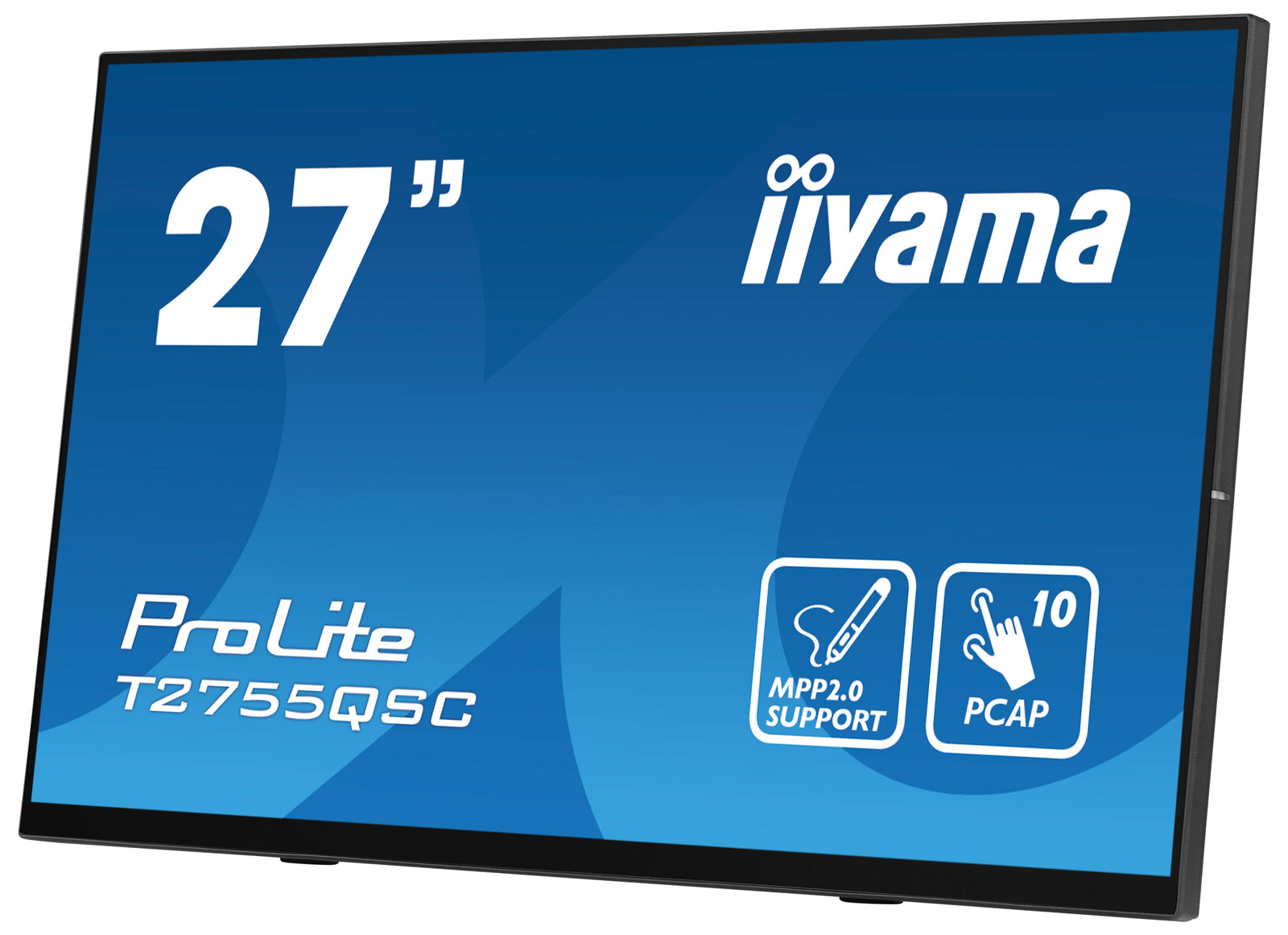

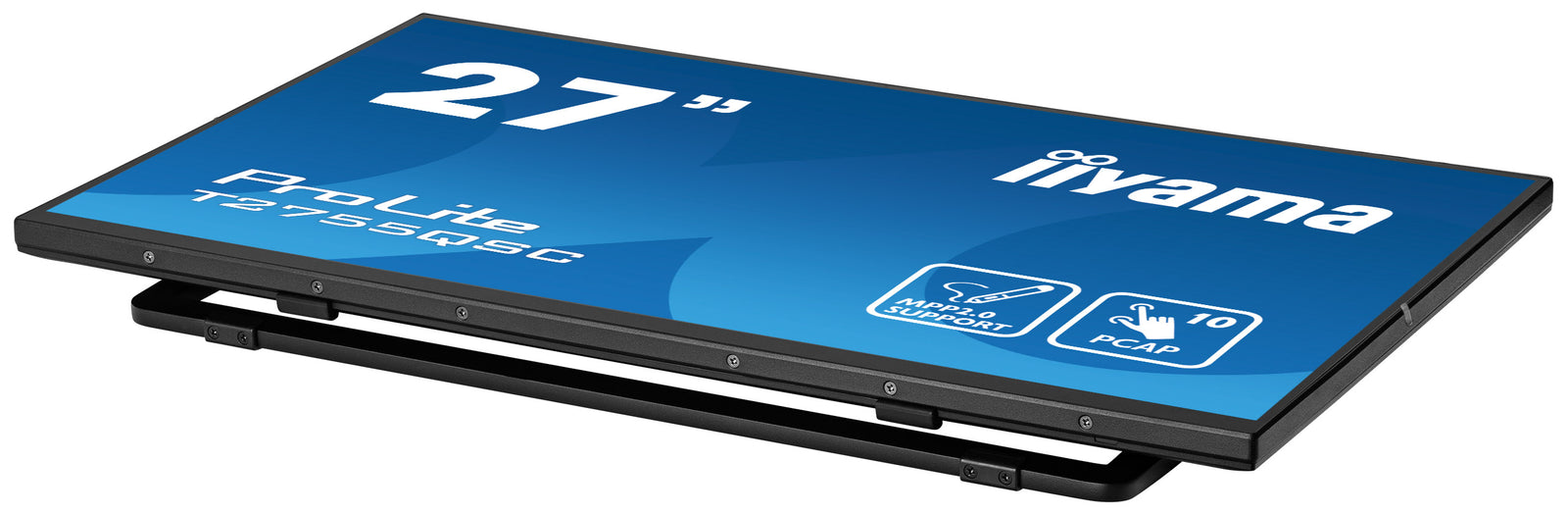

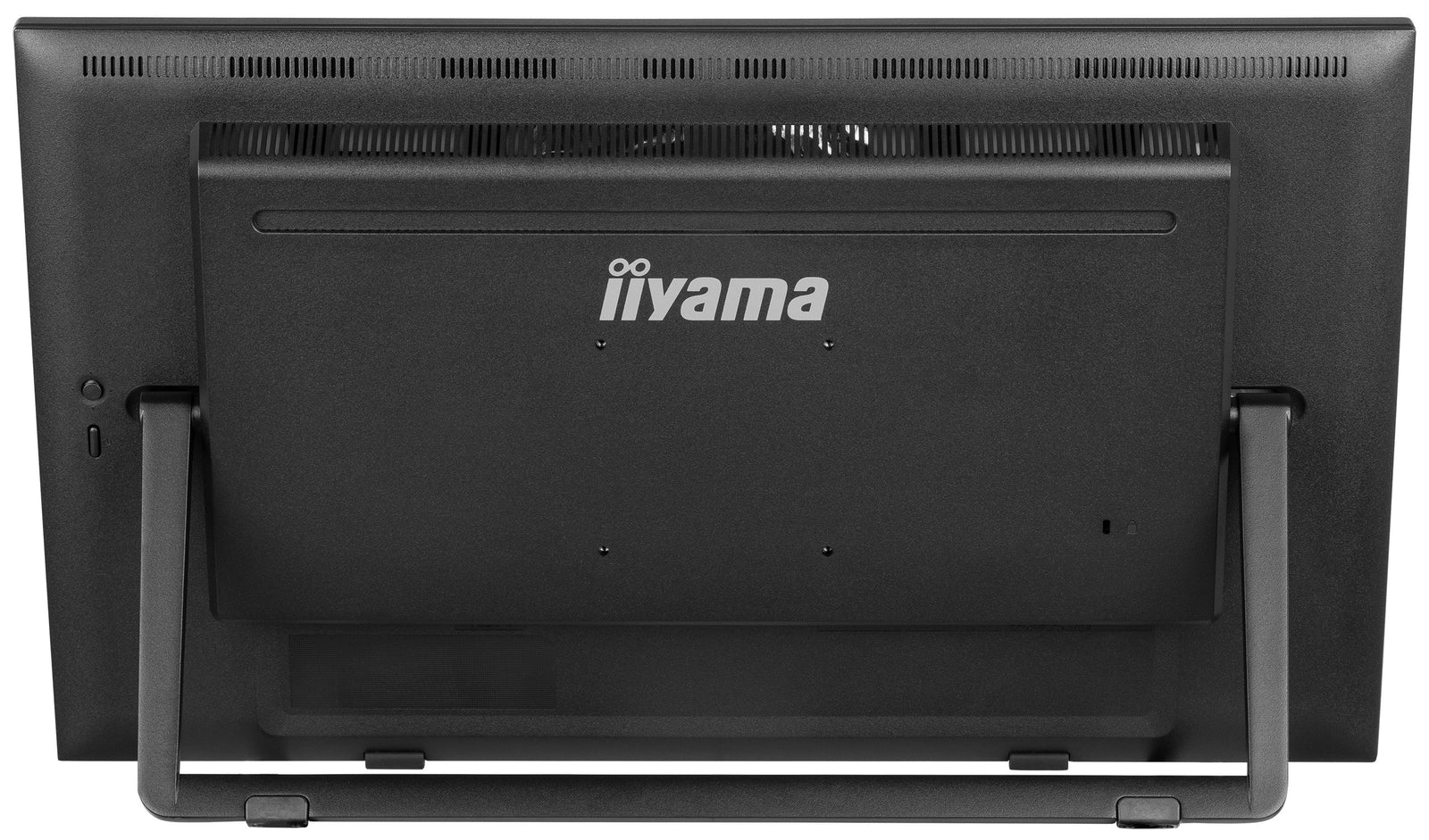

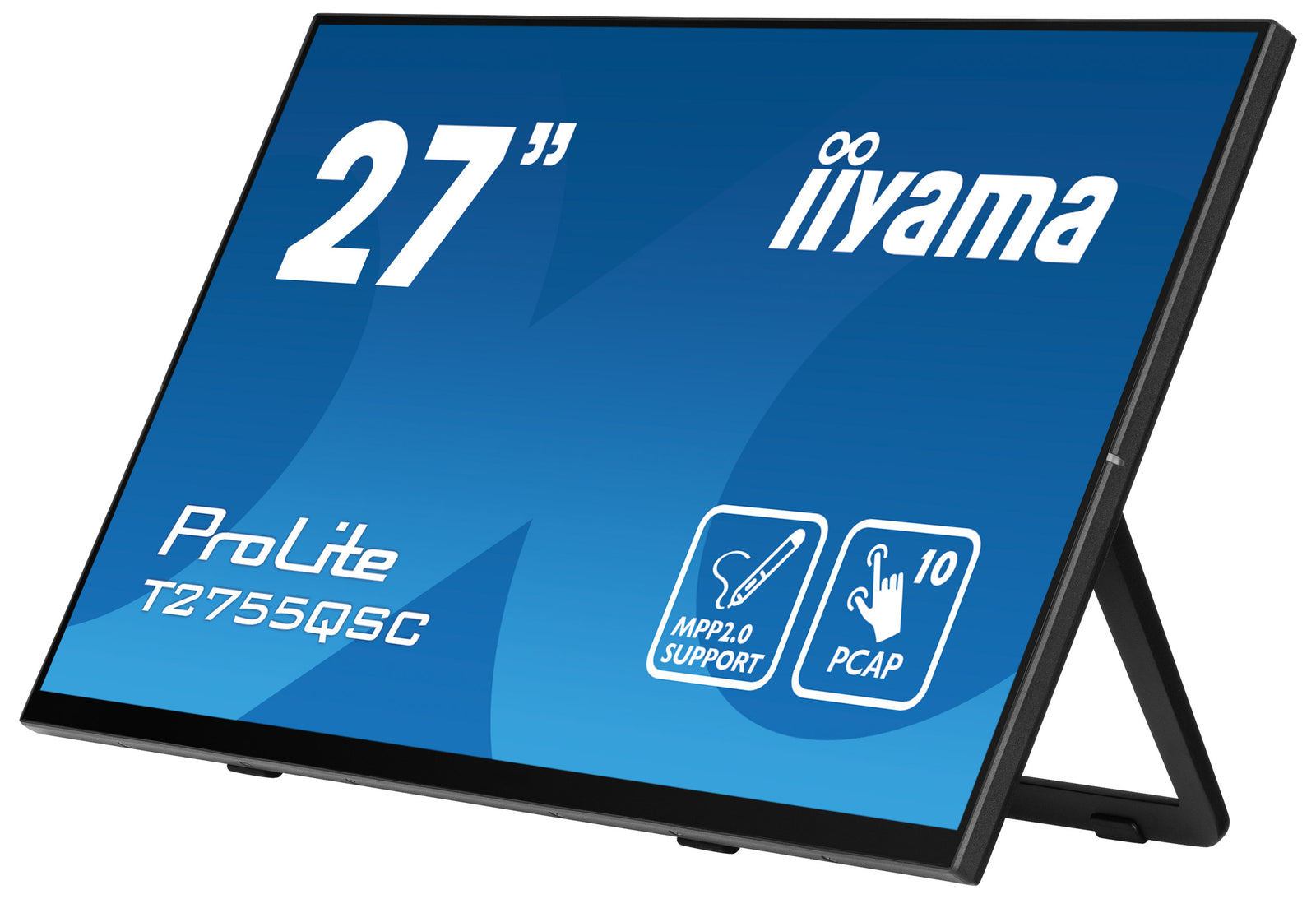

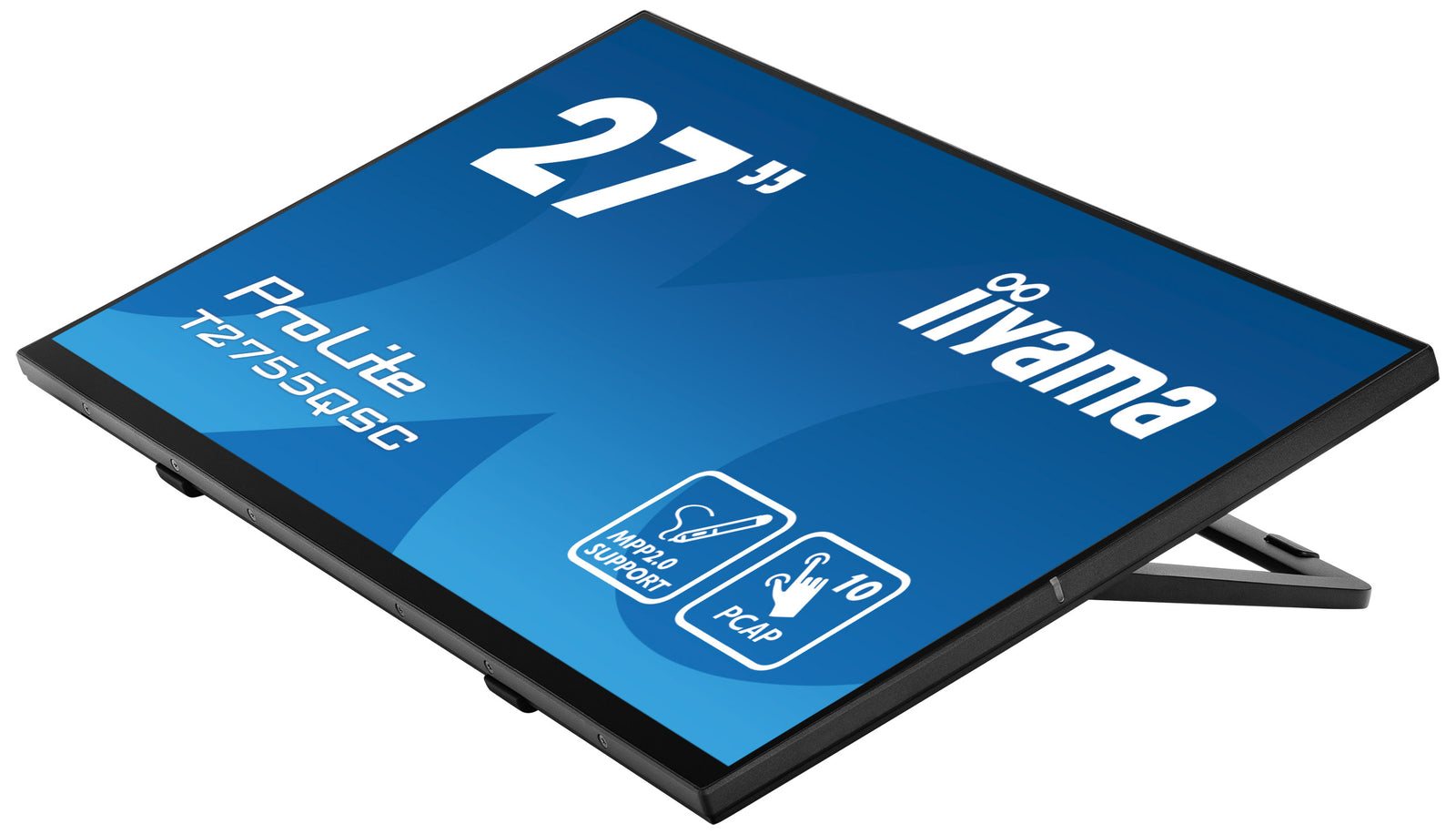

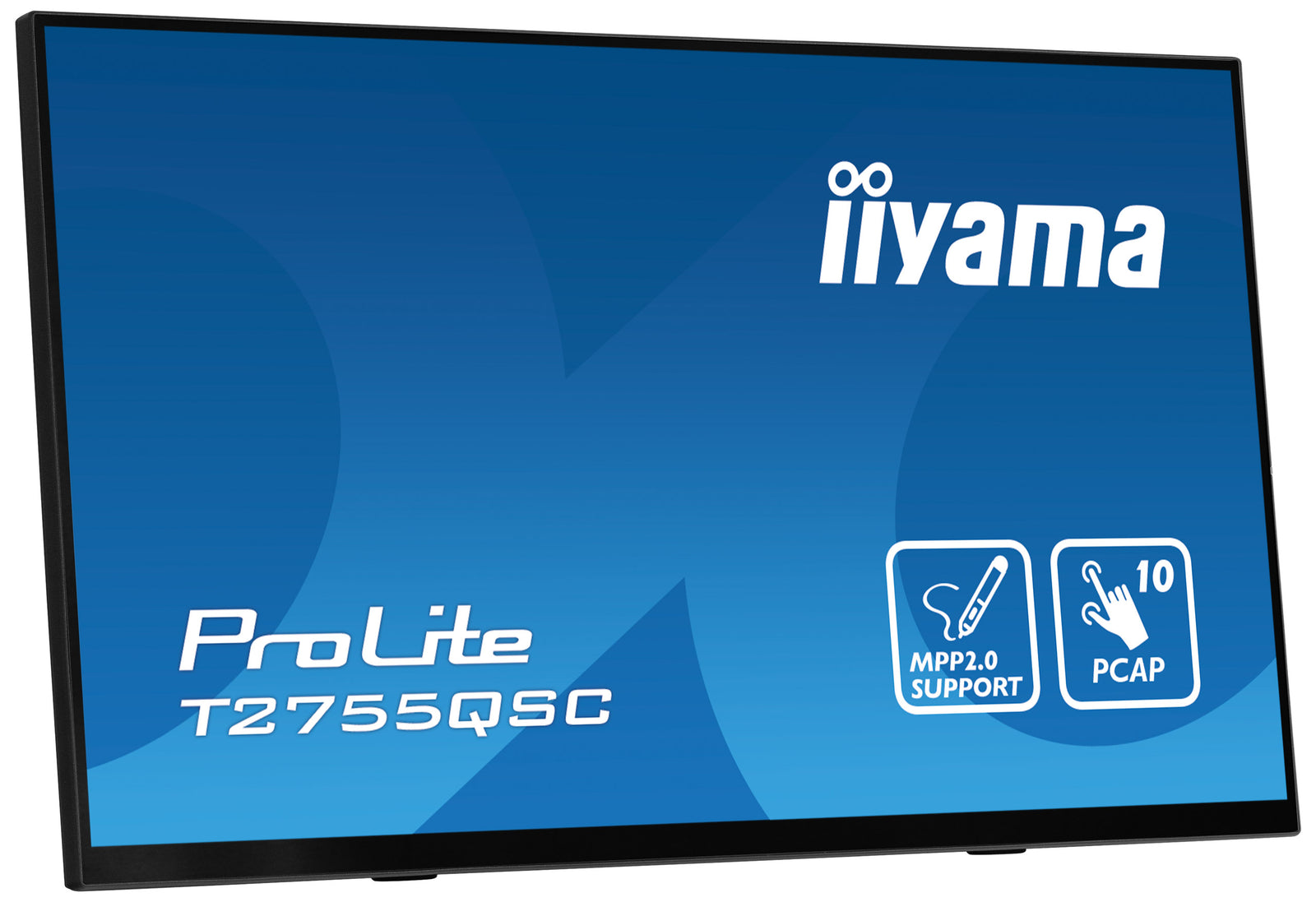

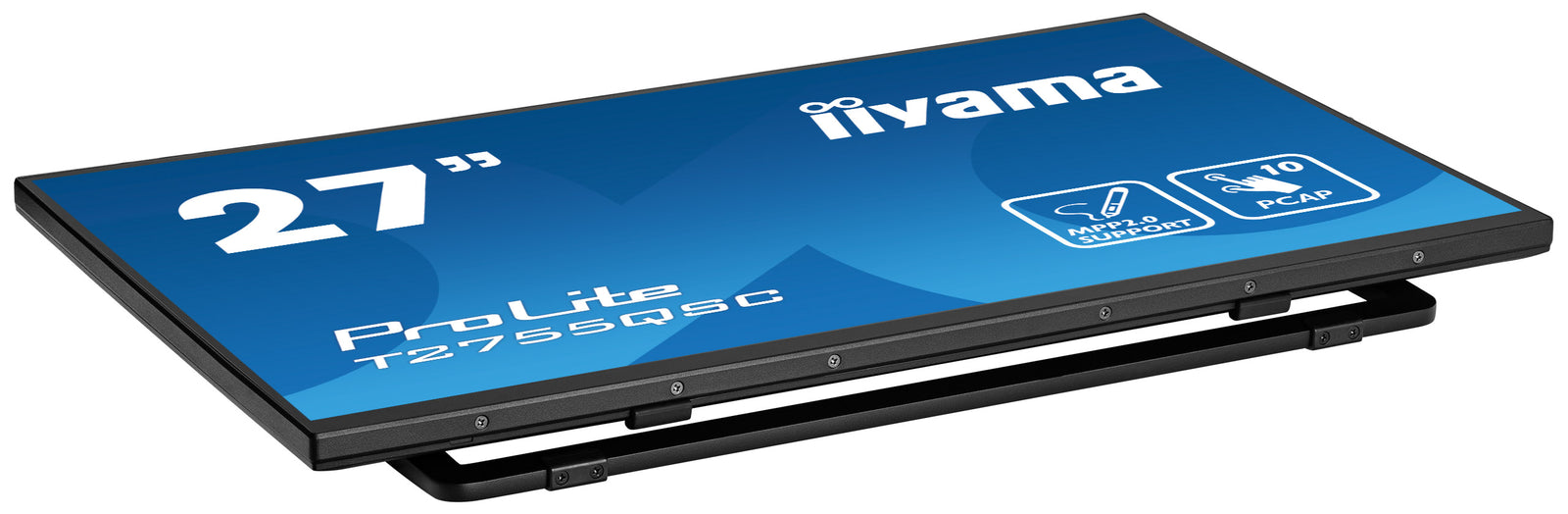

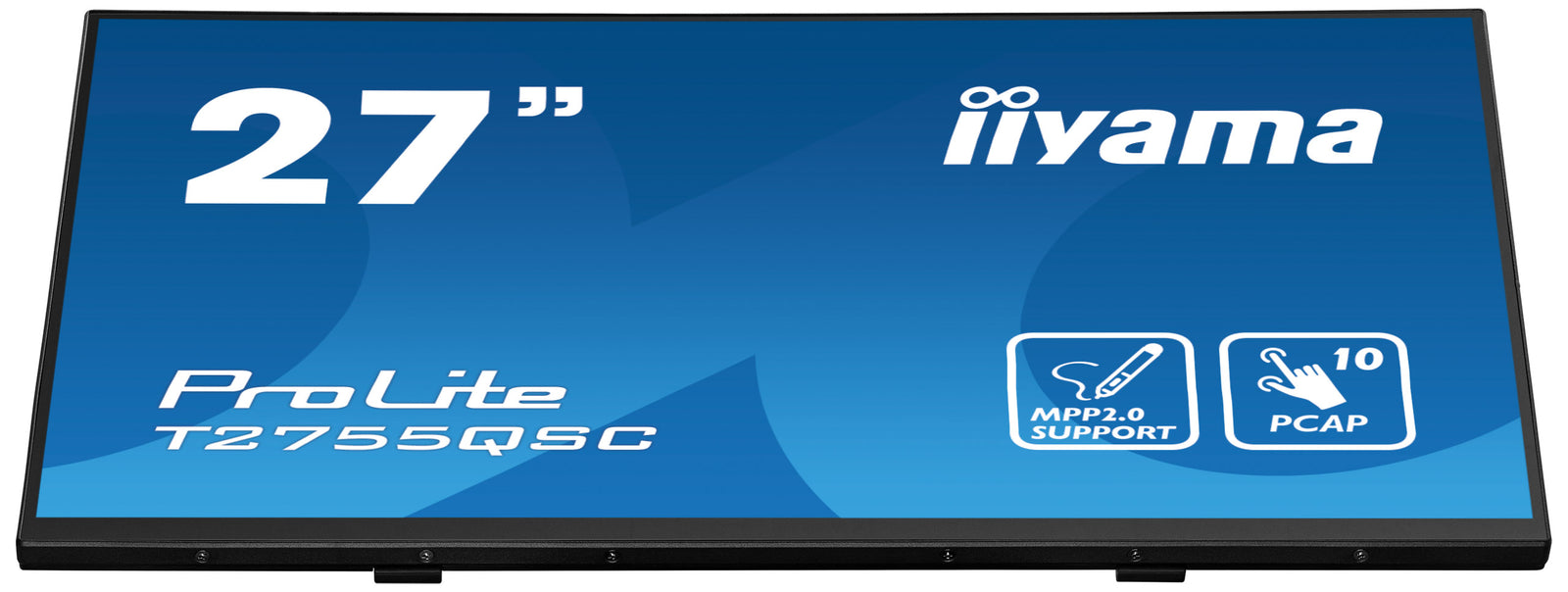

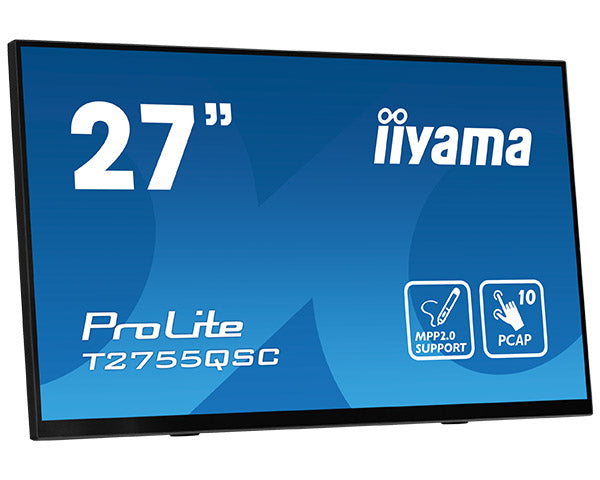

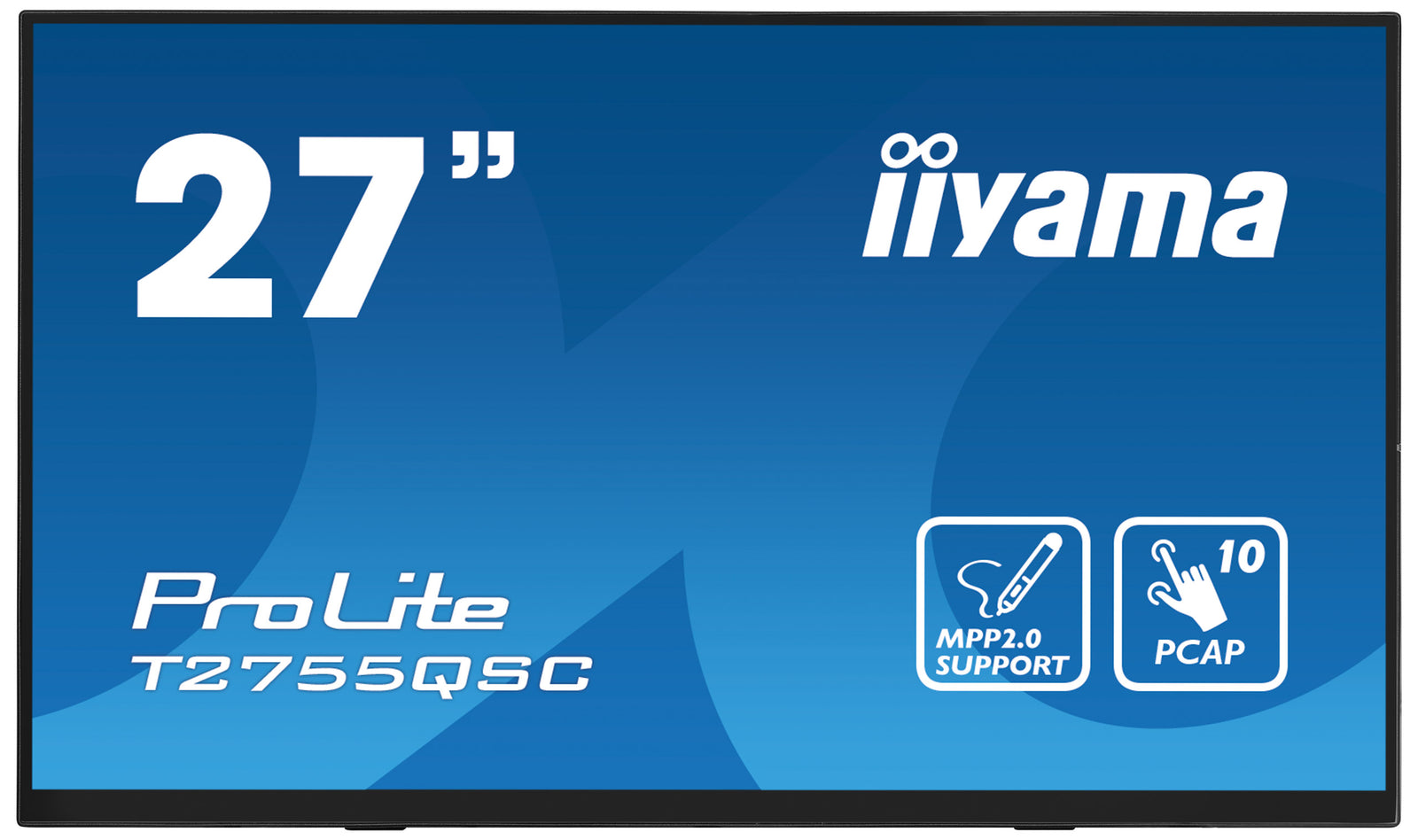

iiyama ProLite T2755QSC-B1 27" 75Hz 5ms IPS QHD 10pt Touchscreen Monitor

The ProLite T2755QSC with its WQHD (2560x1440) resolution and IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A special anti-fingerprint coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust and fingerprints.

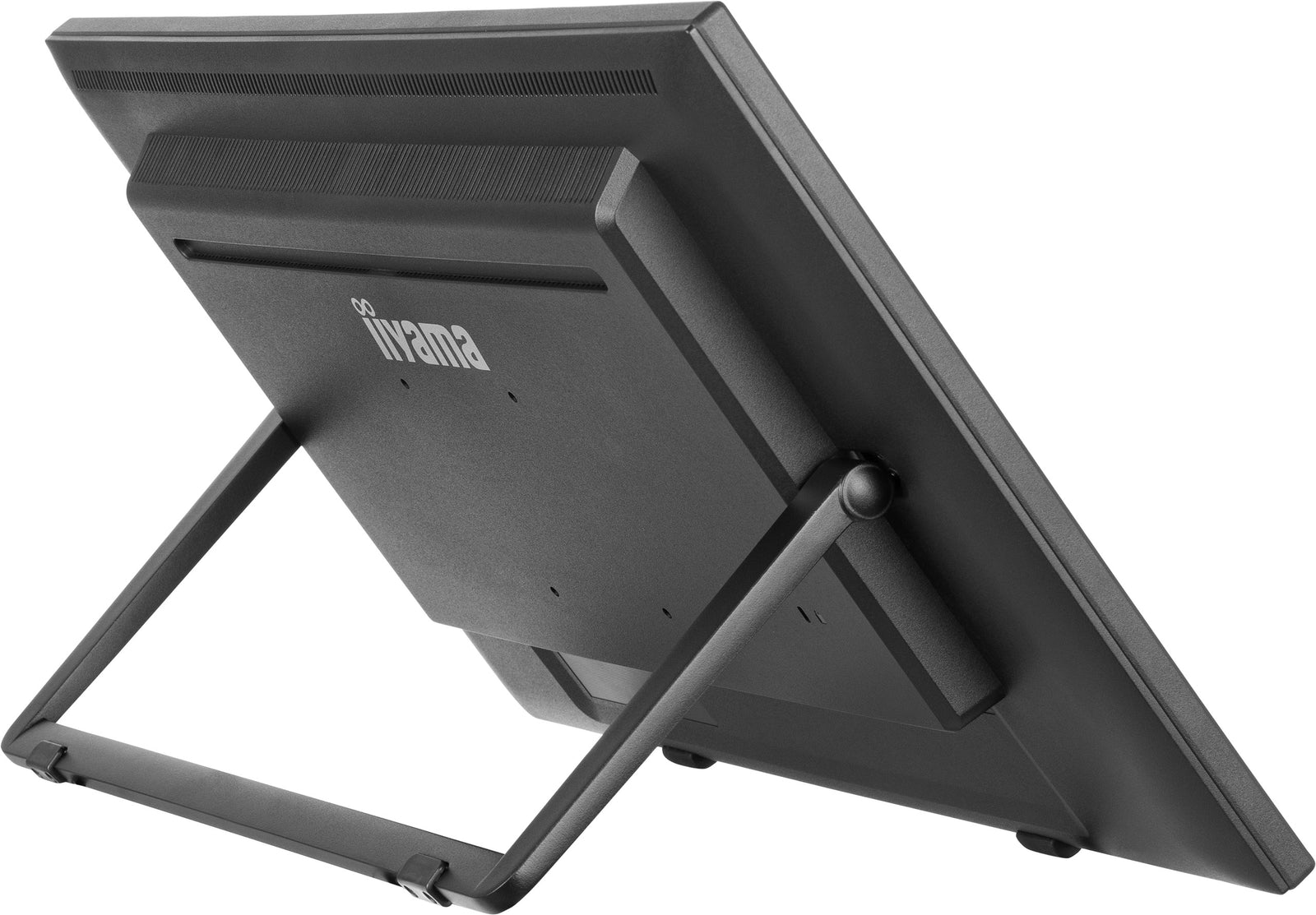

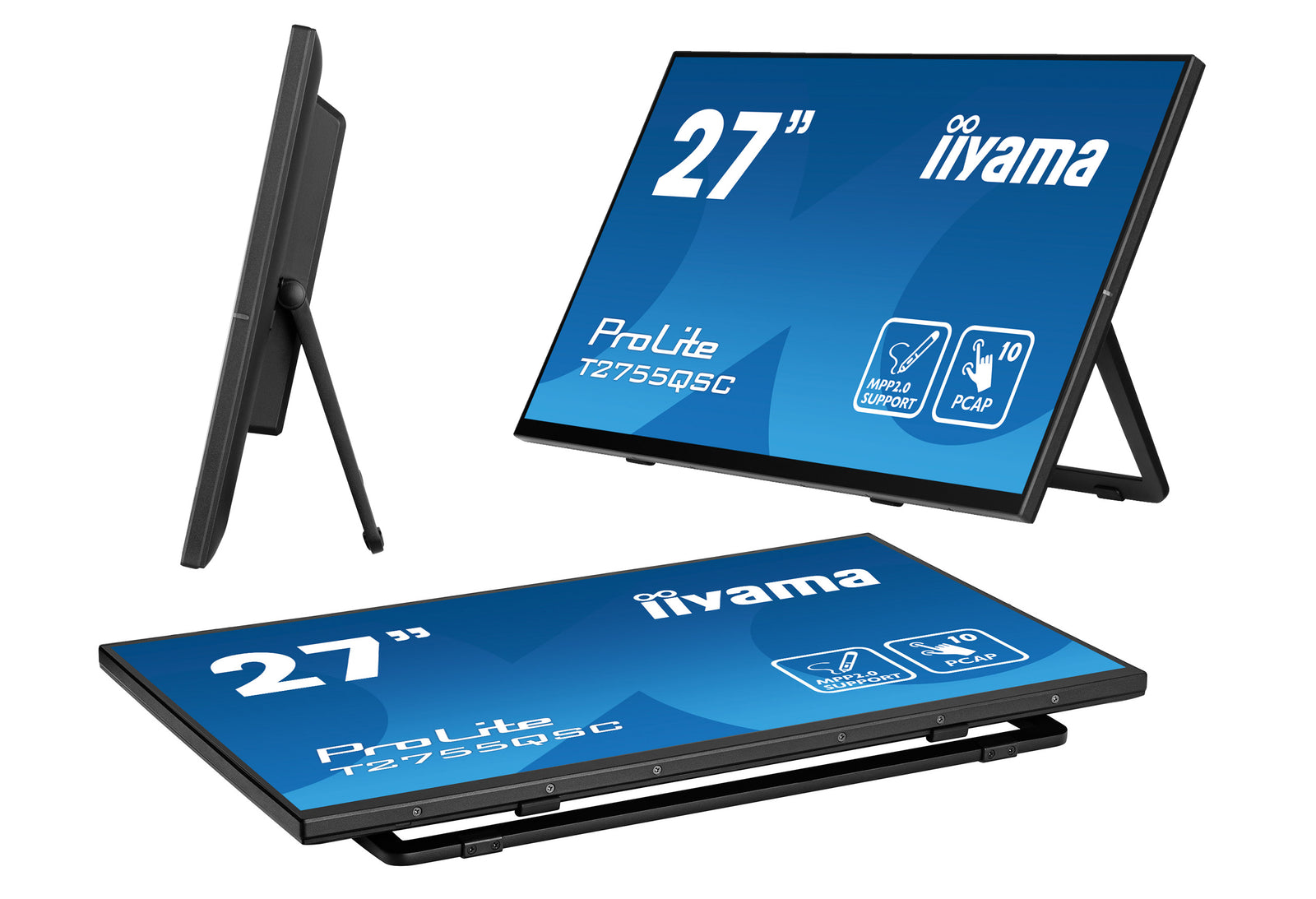

The monitor supports MPP2.0 (Microsoft Pen Protocol) technology, which is used in digital pens and styluses for use with compatible devices. The pen or stylus can interact with the ProLite T2755QSC, allowing users to write, draw, and navigate on the screen. It is very precise and supports tilt functionality, meaning the users can adjust the thickness and angle of their lines by tilting the pen, providing a more natural and intuitive writing and drawing experience. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. A perfect choice for a vast array of creative applications.

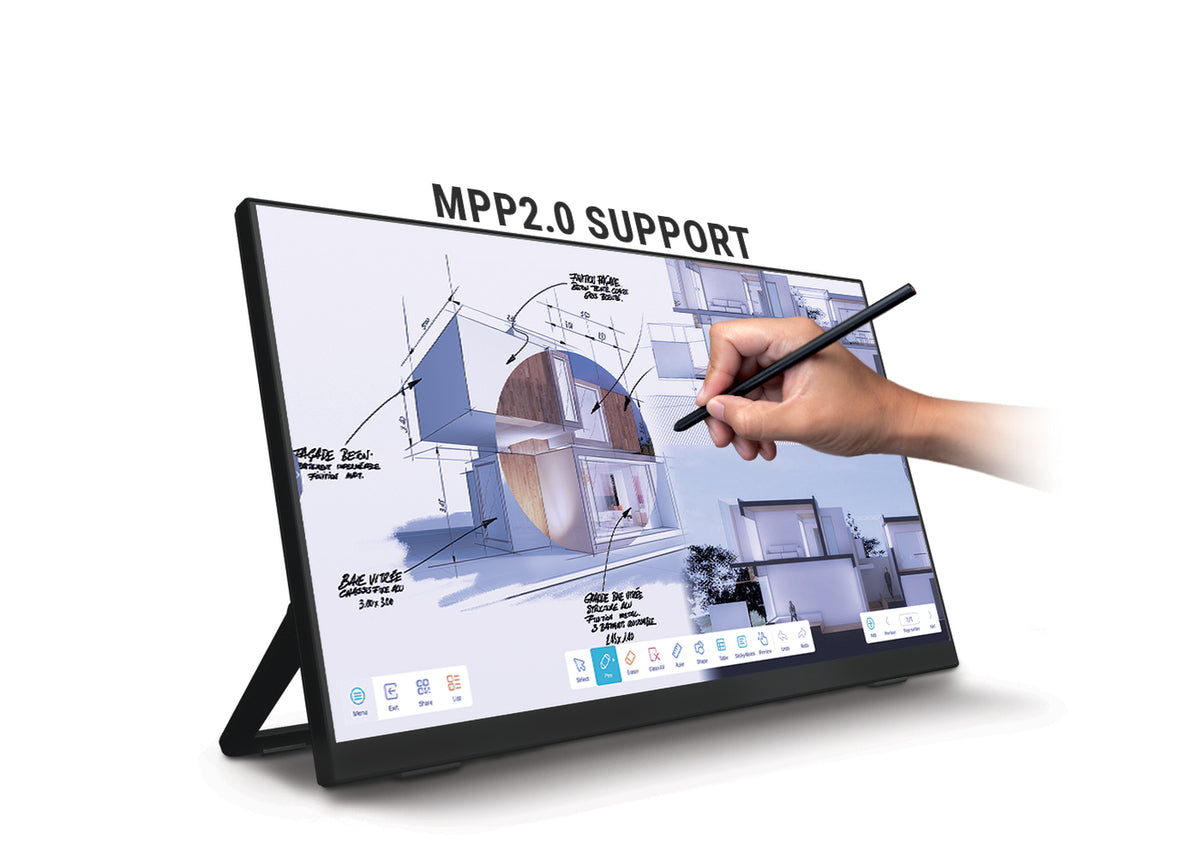

MPP2.0 Support
Microsoft Pen Protocol (MPP) is a technology used in digital pens and styluses for use with compatible devices. The protocol enables the pen or stylus to interact with the device, allowing users to write, draw, and navigate on the screen. The 2.0 version is more responsive to the user's touch giving a more precise control when writing or drawing on the screen. It also supports tilt functionality, which allows the pen to detect the angle at which it is held, meaning the users can adjust the thickness and angle of their lines by tilting the pen, providing a more natural and intuitive writing and drawing experience.

Optical bonded PCAP
The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.

IPS Technology
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

QHD
With true QHD 2560 x 1440p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen, i.e. over 76% more in comparison to a 1920 x 1080 monitor.

Scratch resistance
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

Category	Details
Display Characteristics
Design	Edge to edge glass
Diagonal	27", 68.4cm
Panel	IPS
Native Resolution	2560 x 1440 @75Hz (3.7 megapixel QHD)
Aspect Ratio	16:9
Panel Brightness	400 cd/m²
Brightness (with touch)	360 cd/m²
Light Transmittance	90%
Static Contrast	1000:1
Response Time (GTG)	5ms
Viewing Zone	Horizontal/Vertical: 178°/178°; Right/Left: 89°/89°; Up/Down: 89°/89°
Colour Support	16.7mln 8bit
Horizontal Sync	30 - 100kHz
Viewable Area (W x H)	597 x 336mm, 23.5 x 13.2"
Pixel Pitch	0.233mm
Bezel Colour & Finish	Black, matte
Touch
Touch Technology	Bonded PCAP
Touch Points	10 (HID, only with supported OS)
Touch Accuracy	+- 2mm
Touch Method	Stylus, finger, glove (latex)
Touch Interface	USB
Supported OS	Windows, Linux
Palm Rejection	Yes

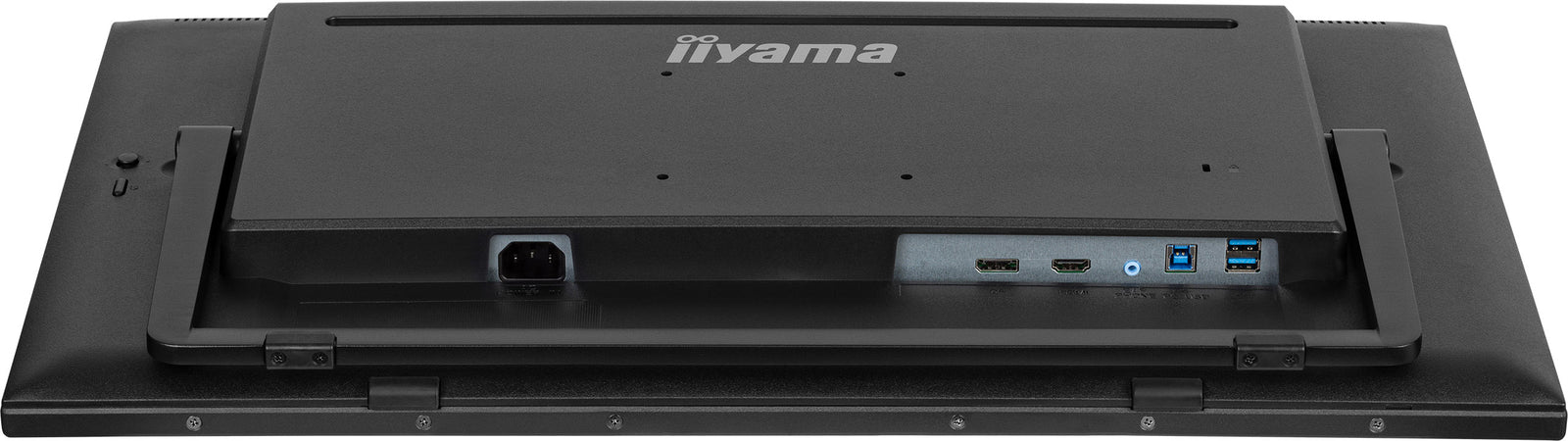

Interfaces / Connectors / Controls
Digital Signal Input	HDMI x1, DisplayPort x1
Audio Output	Mini jack x1
Speakers	2 x 1W
HDCP	Yes
USB HUB	x2 (3.2 Gen 1 (5Gbps, DC5V, 900mA))
Features
Extra	Anti-fingerprint coating, MPP2.0
Glass Hardness	7H
OSD Key Lock	Yes
General
OSD Languages	EN, DE, FR, ES, IT, PT, RU, JP, NL, PL
Control Buttons	Press/Enter, Right/Volume, Left/Eco/Exit, Up/Signal Select, Down, Power
User Controls	Picture adjust, colour settings, image settings, OSD, extra settings
Convenience	Kensington-lock™ prepared
Blue Light Reducer	Yes
Flicker Free	Yes
Plug&Play	DDC2B
Mechanical
Tilt Angle	15° up; 70° down
VESA Mounting	100 x 100mm
MTBF	50,000 hours (excluding backlight)
Accessories Included
Cables	Power, USB, HDMI
Guides	Quick start guide, safety guide
Other	Spiral tube
Power Management
Power Supply Unit	Internal
Power Supply	AC 100 - 240V, 50/60Hz
Power Usage	35W typical, 1.5W stand by, 0.3W off mode
Sustainability
Regulations	CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA, cTUVus
Energy Efficiency Class	D
REACH SVHC	Above 0.1%: Lead
Dimensions / Weight
Product Dimensions (W x H x D)	614 x 364.5 x 49mm
Box Dimensions (W x H x D)	710 x 460 x 130mm
Weight (Without Box)	5.8kg
Weight (With Box)	7.3kg
EAN Code	4948570122981
