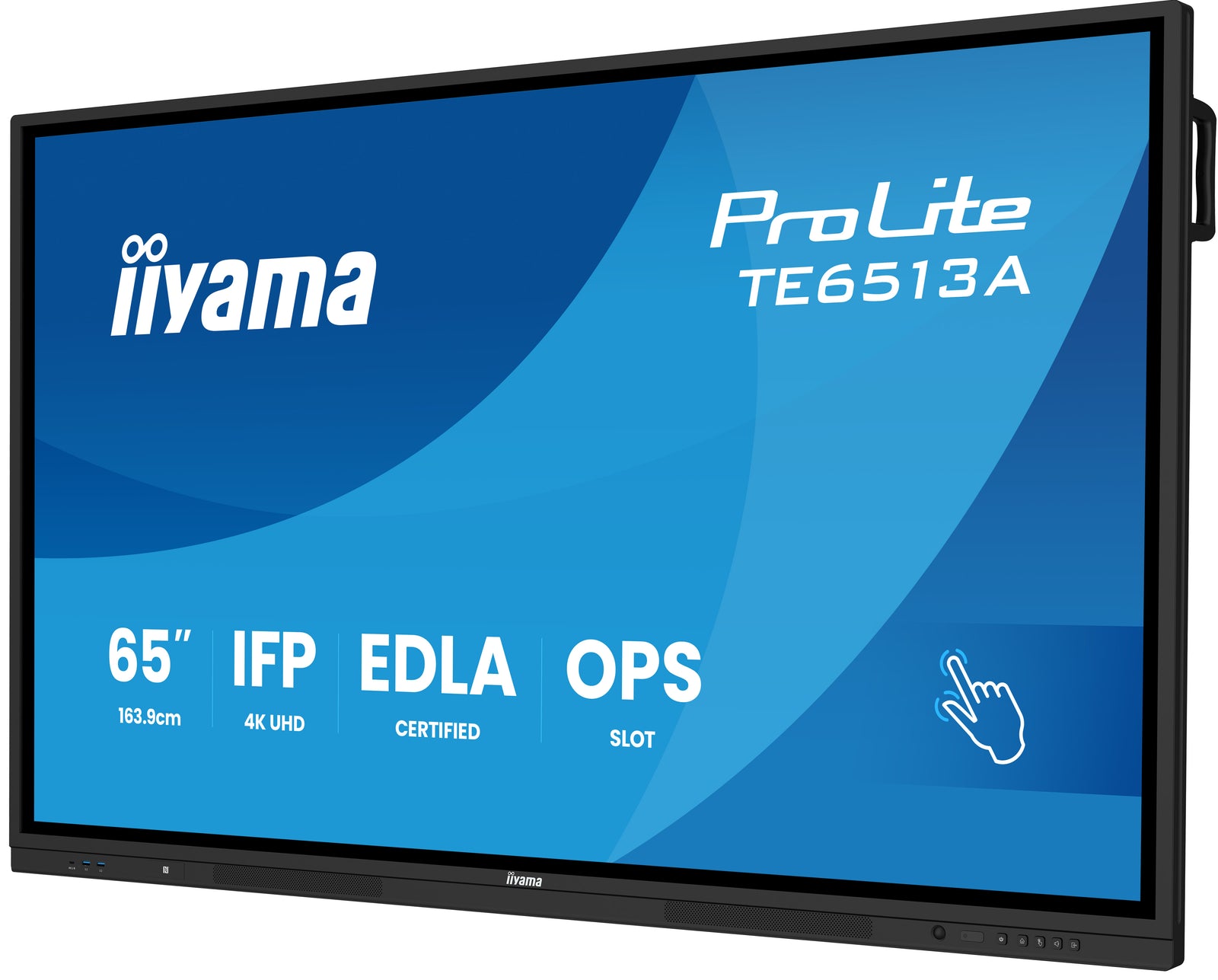

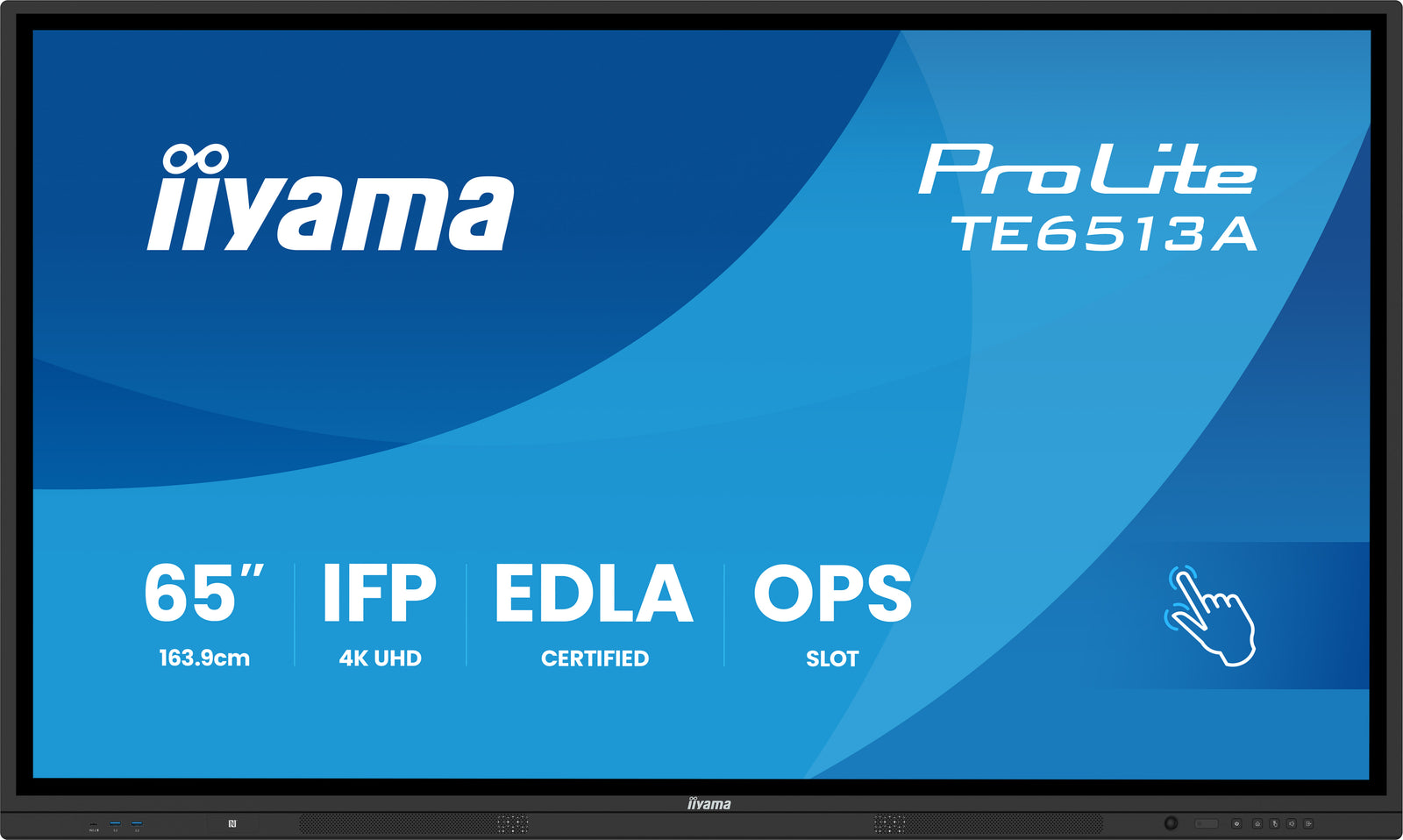

DISPLAY CHARACTERISTICS |
|
Design |
Thin bezel |
Diagonal |
64.5", 163.9cm |
Panel |
IPS |
Touch Glass |
Anti-Glare glass with Anti-Gloss treatment, Anti-Bacterial coating, Ultra Smooth writing, Zero Bonding |
Native Resolution |
3840 x 2160 (8.3 megapixel 4K UHD) |
Aspect Ratio |
16:9 |
Panel Brightness |
450 cd/m² |
Light Transmittance |
88% |
Static Contrast |
1200:1 |
Response Time (GTG) |
8ms |
Viewing Zone |
Horizontal/Vertical: 178°/178°, Right/Left: 89°/89°, Up/Down: 89°/89° |
Colour Support |
1.07B 10bit (8bit + Hi-FRC) (NTSC 72%) |
Horizontal Sync |
30 - 135kHz |
Viewable Area W x H |
1428.5 x 803.5mm, 56.2 x 31.6" |
Pixel Pitch |
0.372mm |
Bezel Colour and Finish |
Black, matte |
TOUCH |
|
Touch Technology |
PureTouch-IR⁺ |
Touch Points |
40, 10pt writing (HID, only with supported OS, 32pt Touch with Android) |
Scan Rate |
200Hz |
Touch Accuracy |
±1mm |
Touch Method |
Stylus, finger, glove (Passive pen, Opaque objects) |
Touch Interface |
USB |
Supported Operating Systems |
All iiyama monitors are Plug & Play and compatible with Windows and Linux |
Palm Rejection |
Yes |

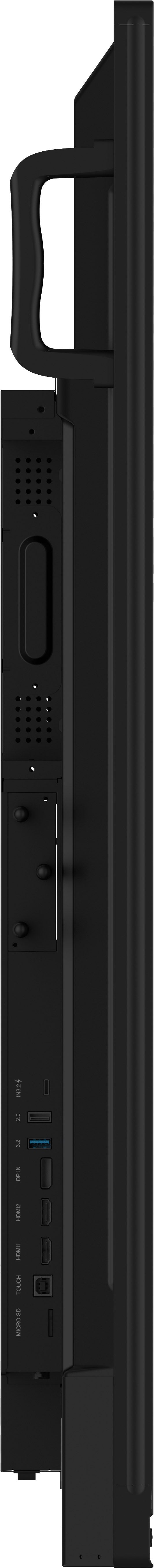

INTERFACES / CONNECTORS / CONTROLS |
|
Digital Signal Input |
HDMI x2 (2.0, max. 3840x2160 @60Hz, YUV444, ARC on HDMI #1), DisplayPort x1 (1.2, max. 3840x2160 @60Hz), USB-C x2 (3.2 Gen 1, 5Gbit) |
Audio Input |
Mini jack x1 (Microphone) |
Monitor Control Input |
RS-232c x1 |
Digital Signal Output |
HDMI x1 (2.0, max. 3840x2160 @60Hz, YUV444/RGB444, MSD) |
Audio Output |
S/PDIF (Optical) x1, Mini jack x1 (Headphone) |
Speakers |
2 x 20W (Front facing + 20W Subwoofer) |
Monitor Control Output |
OPS Slot x1 (Intel OPS 80pin) |
HDCP |
2.3 |
USB Ports |
x5 (media playback / peripherals / storage – front: 2x 3.2 Gen 1, 5Gbit, 1x USB-C 3.2, 5Gbit, 100W PD; side: 1x 3.2 Gen 1, 5Gbit, 1x USB-C 3.2) |
RJ45 (LAN) |
x2 (IN/OUT, Auto switch for PC & Android, 1000MB) |
FEATURES |
|
Integrated Software |
iiWare 21E (Android 14 OS) featuring Google EDLA, iiControl (DMS), WhiteBoard, web browser, file manager, cloud drives and iiShare for wireless connection |
WiFi |
Yes (WiFi-6, Bluetooth 5.0) |
Hardware |
CPU: Quad-core A73*4 (1.4GHz), GPU: G52 MC1, RAM: 8GB, ROM: 128GB |
Extra |
Ambient light Sensor, NFC Reader, PIR Motion Sensor, Slot for optional OPS PC, 4x Touch pen (anti-bacterial coating) |
Kiosk Mode |
Yes |
Max. Non-Stop Operating Time |
18/7 |
Media Playback |
Yes |
Glass Thickness |
3.2mm |
Glass Hardness |
7H |
Housing (Bezel) |
Metal |
OSD Key Lock |
Yes |
GENERAL |
|
OSD Languages |
EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB |
Control Buttons |
Power, Home, Touch-freeze, Volume, Input (source) |
User Controls |
General settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings, etc. |
Blue Light Reducer |
Yes |
Flicker Free |
Yes |
Plug&Play |
DDC2B |
Warranty |
5 years (check website for details) |
MECHANICAL |
|
Orientation |
Landscape |
Fanless Design |
Yes |

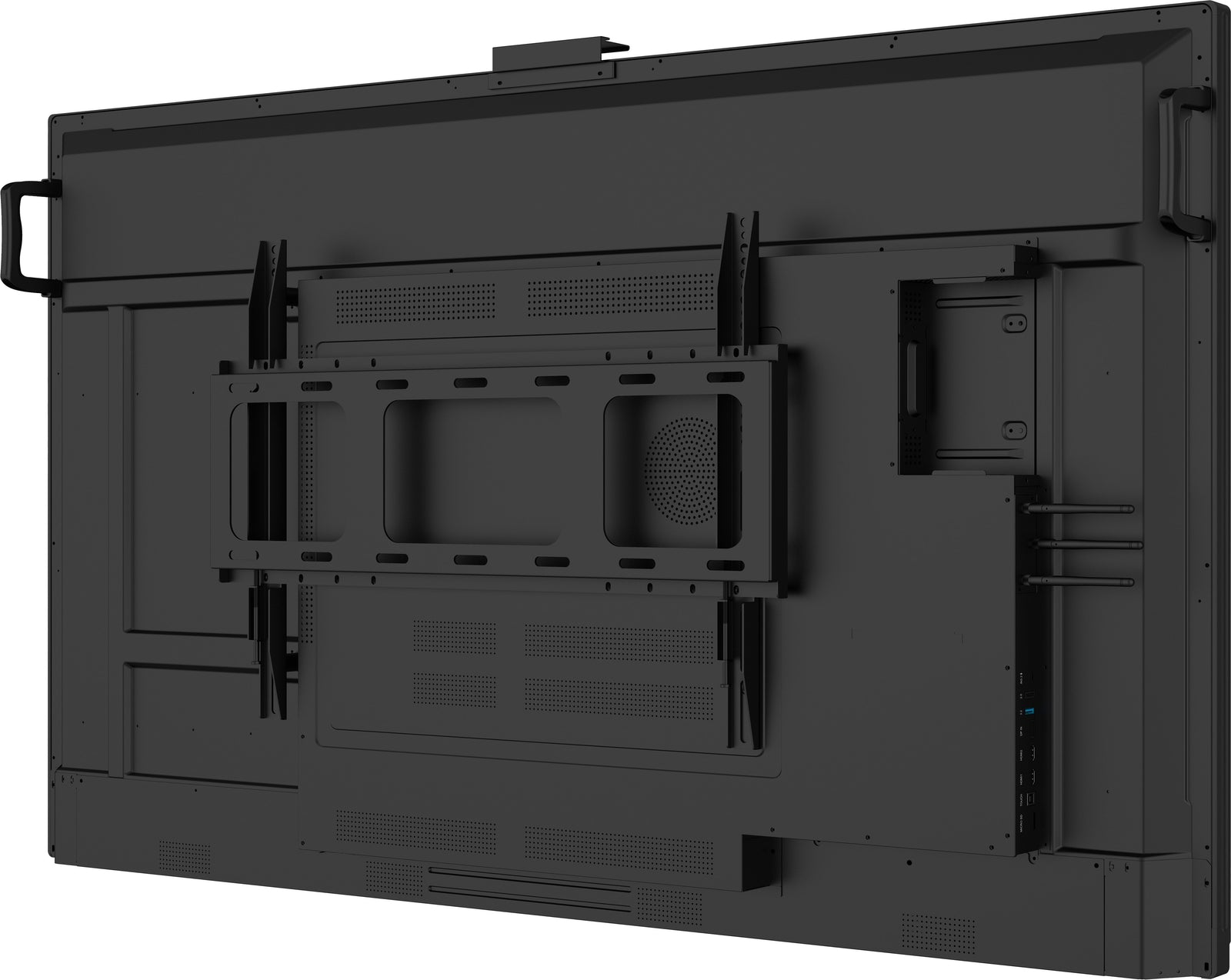

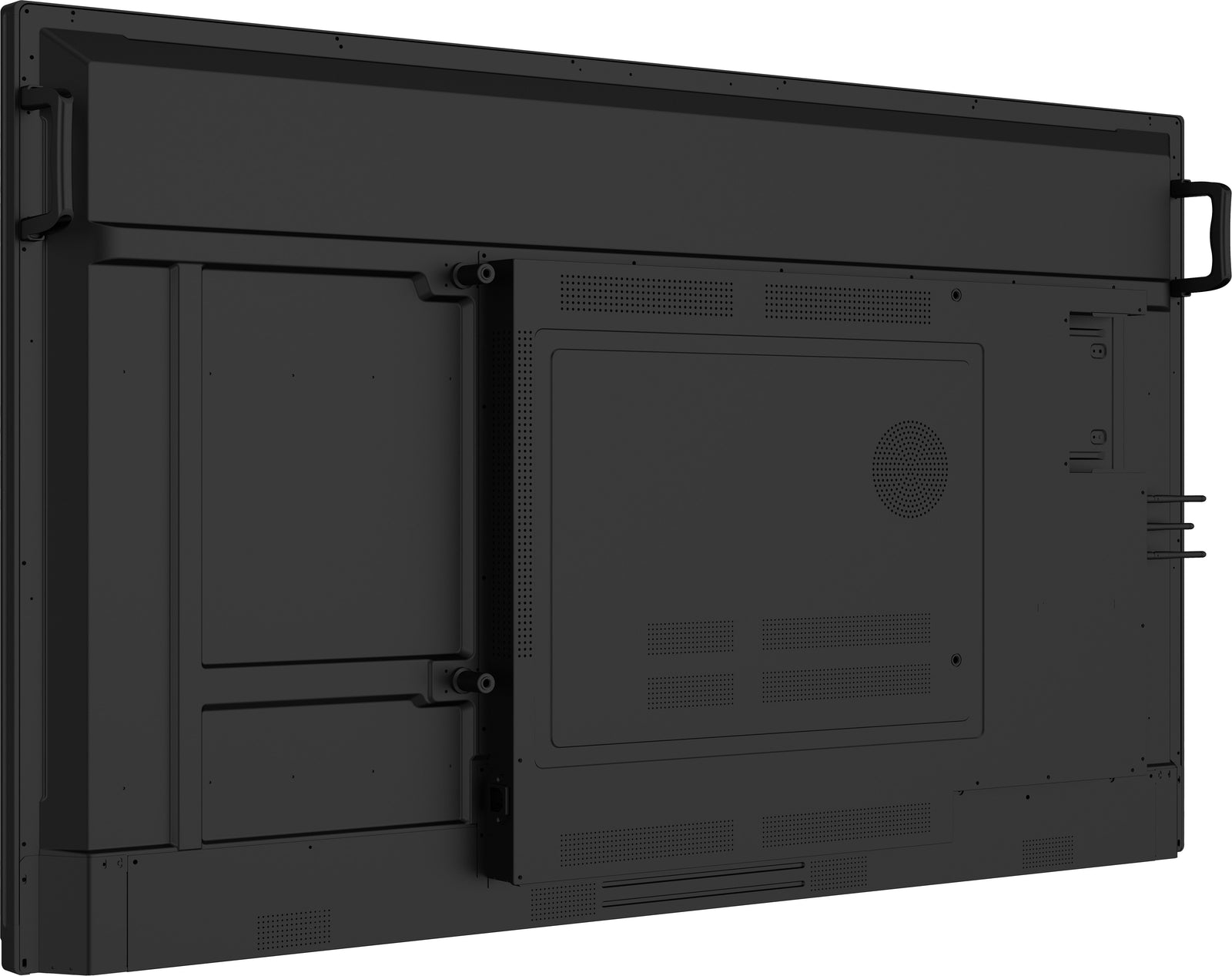

VESA Mounting |
600 x 400mm |
Operation Temperature Range |
0°C - 40°C |
Storage Temperature Range |
-20°C - 60°C |
MTBF |
50,000 hours (excluding backlight) |
ACCESSORIES INCLUDED |
|
Cables |
Power (EU 3m, UK 3m), USB (3m), HDMI (3m) |

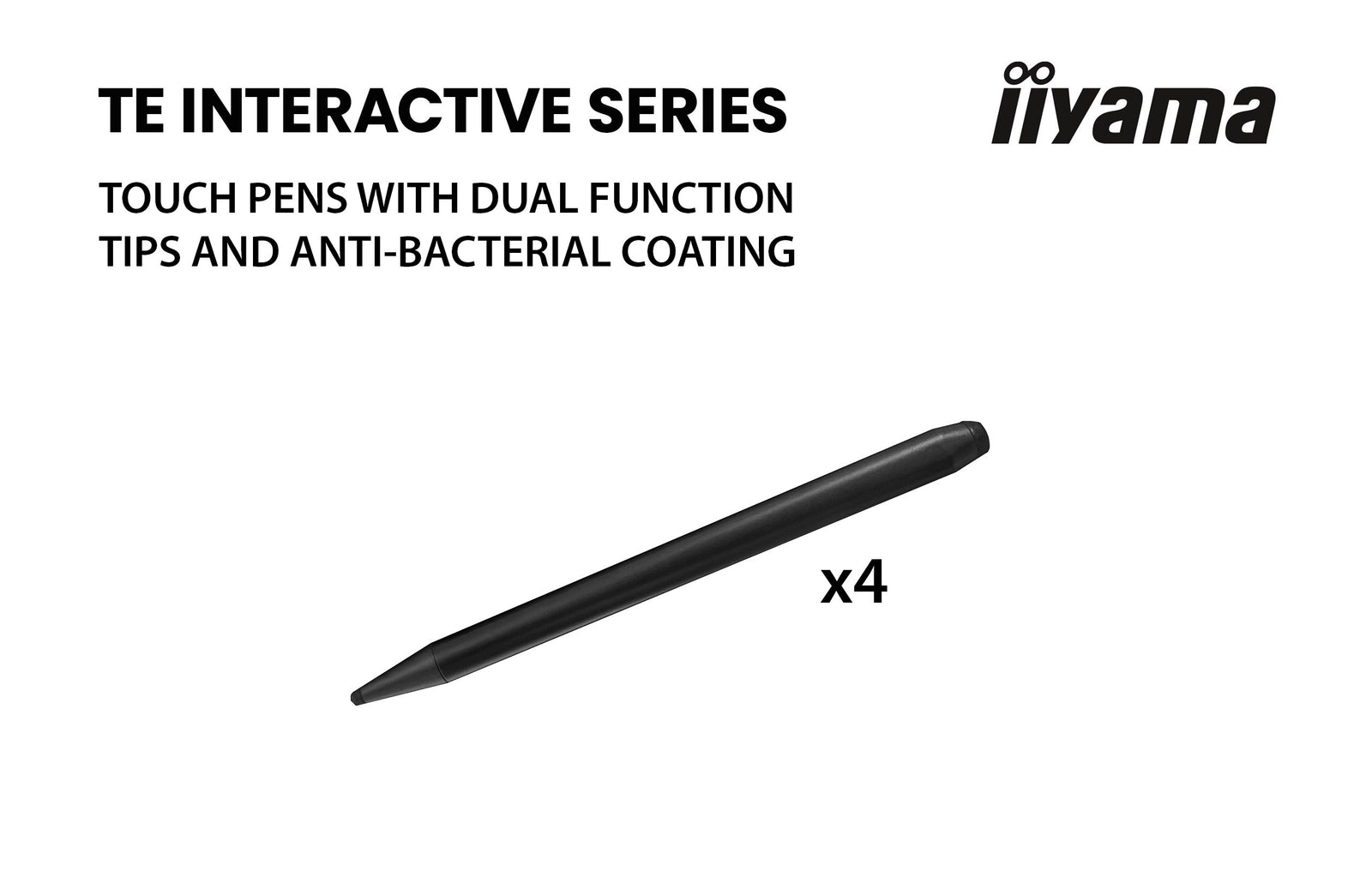

Touch Pen |
x4 (Dual function tips, anti-bacterial coating) |
Guides |
Quick start guide, safety guide |
Other |

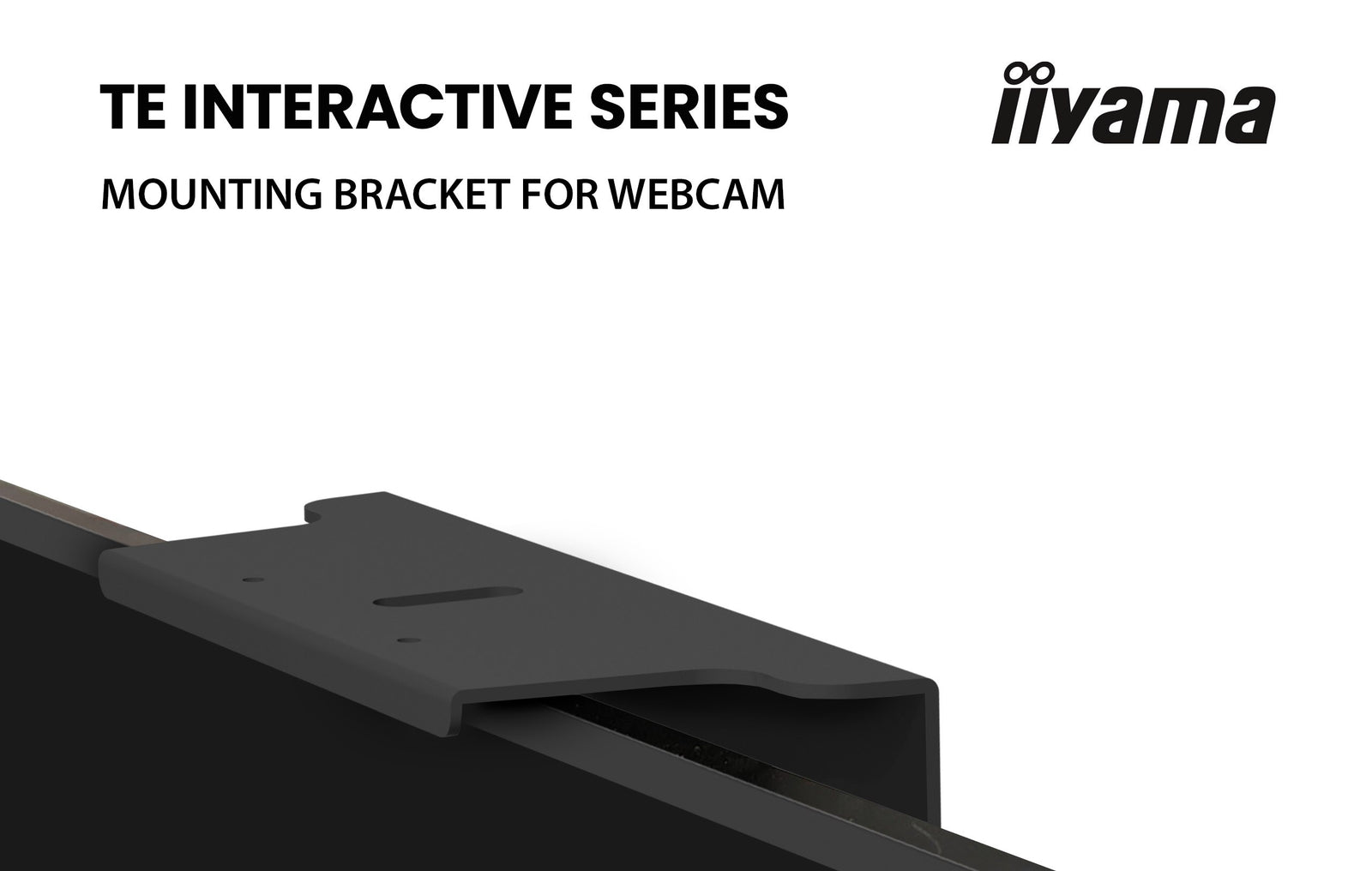

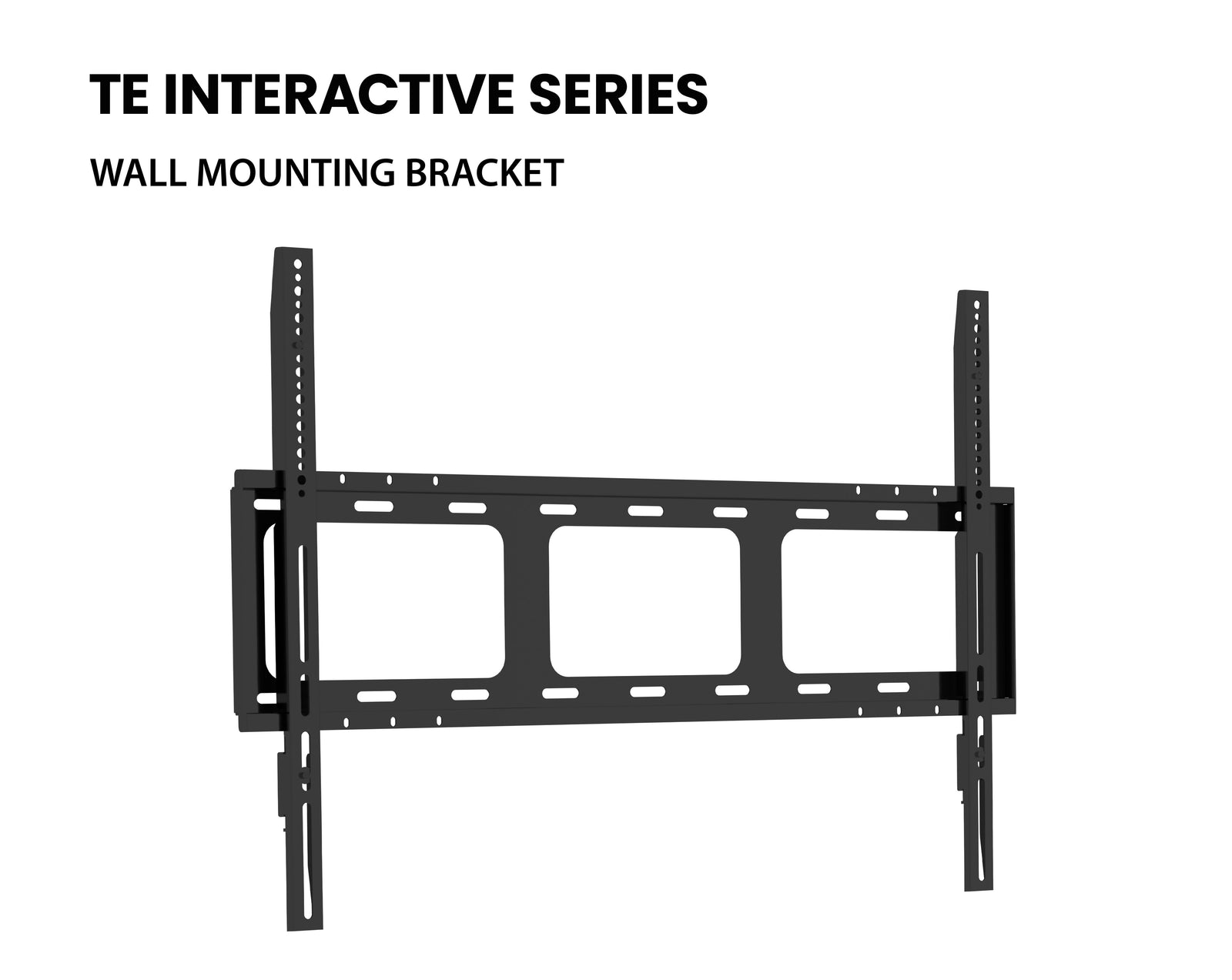

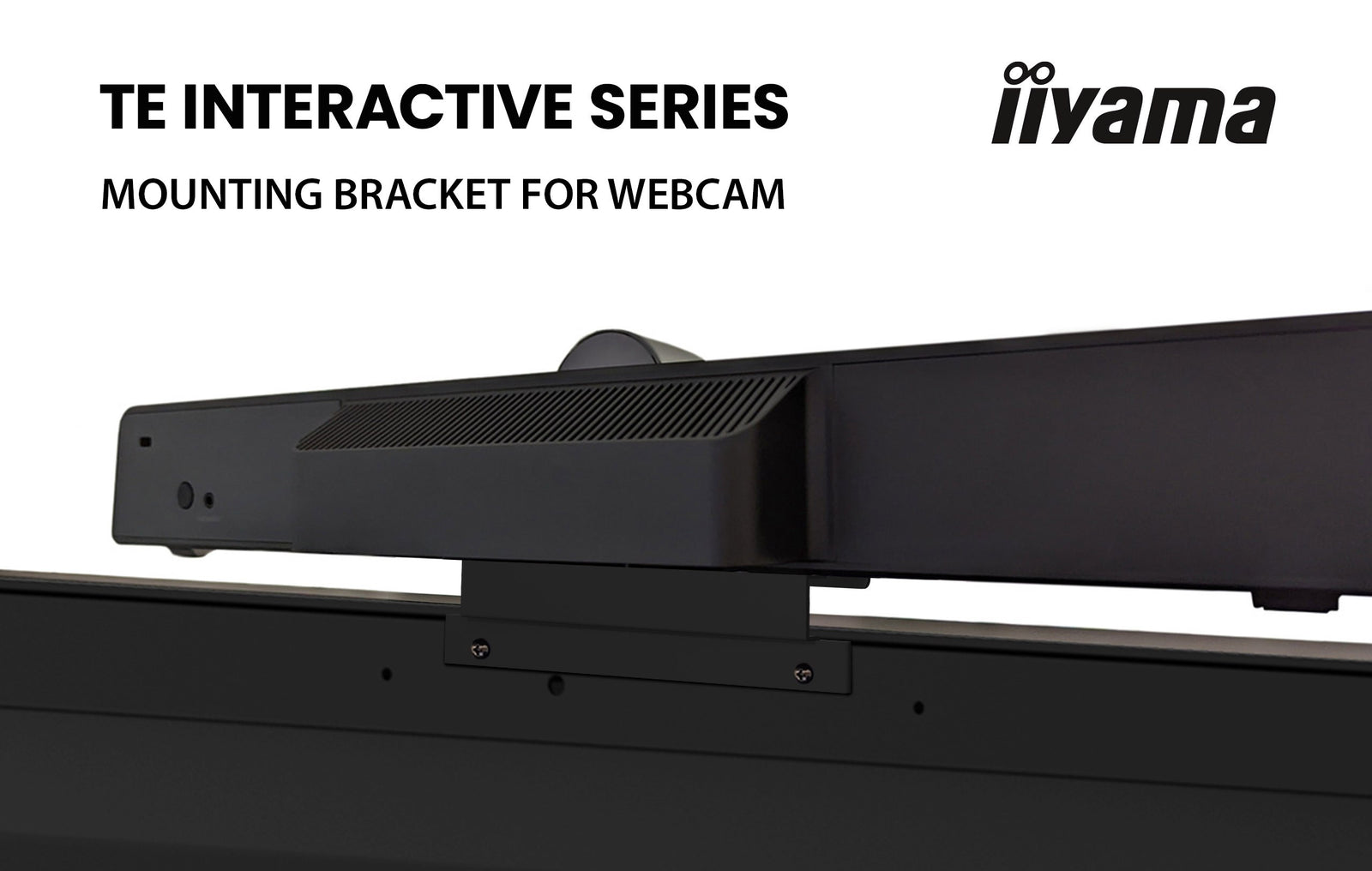

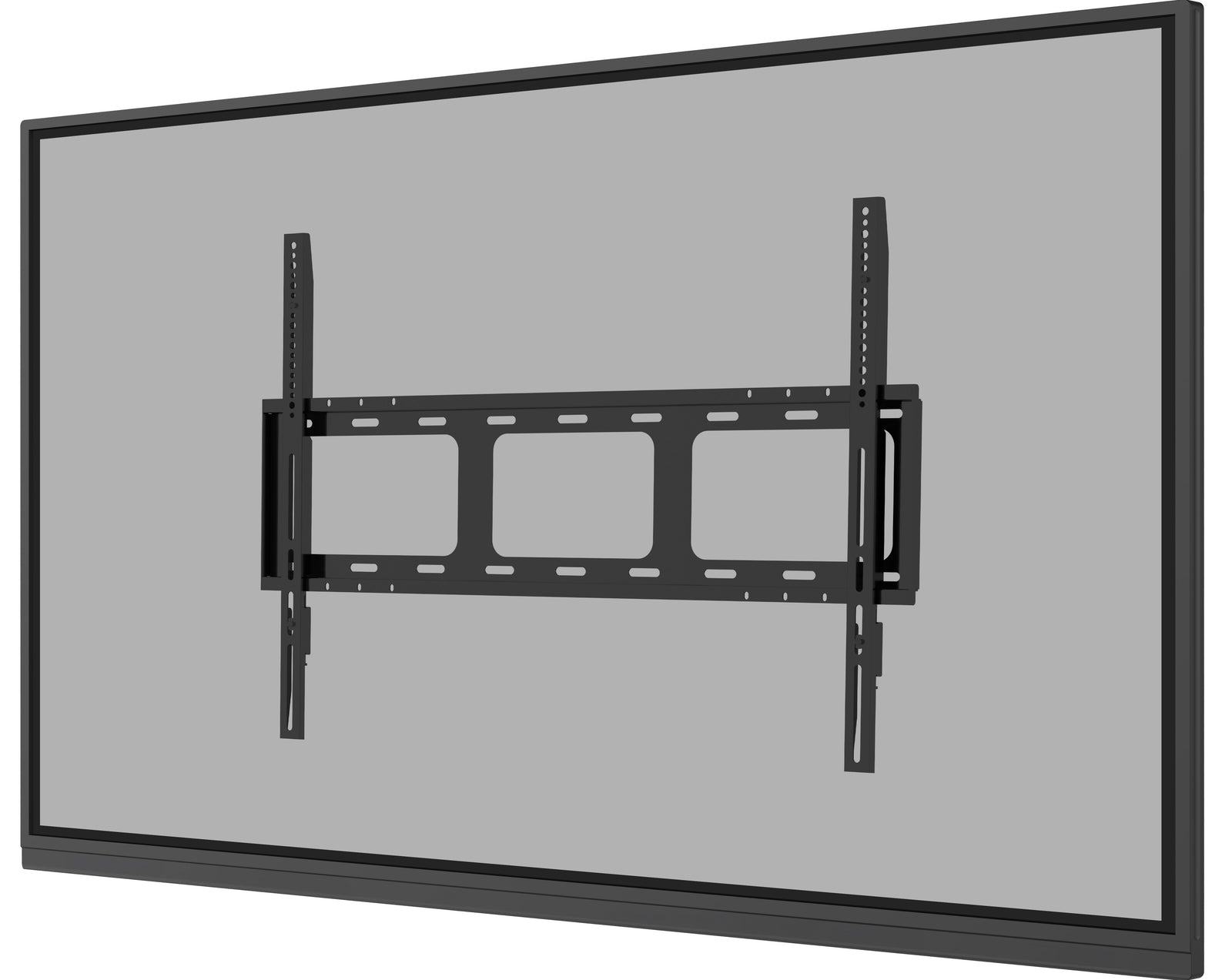

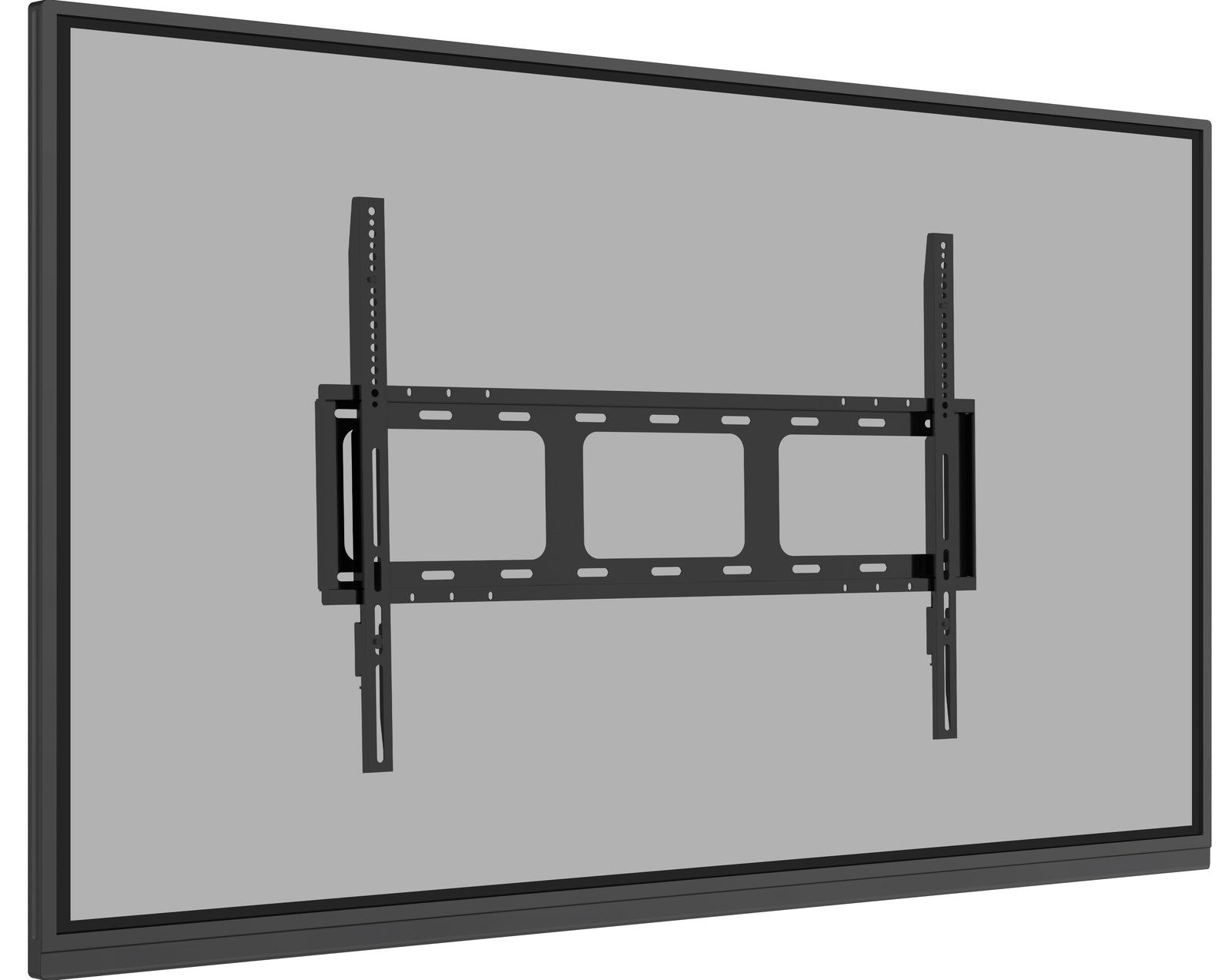

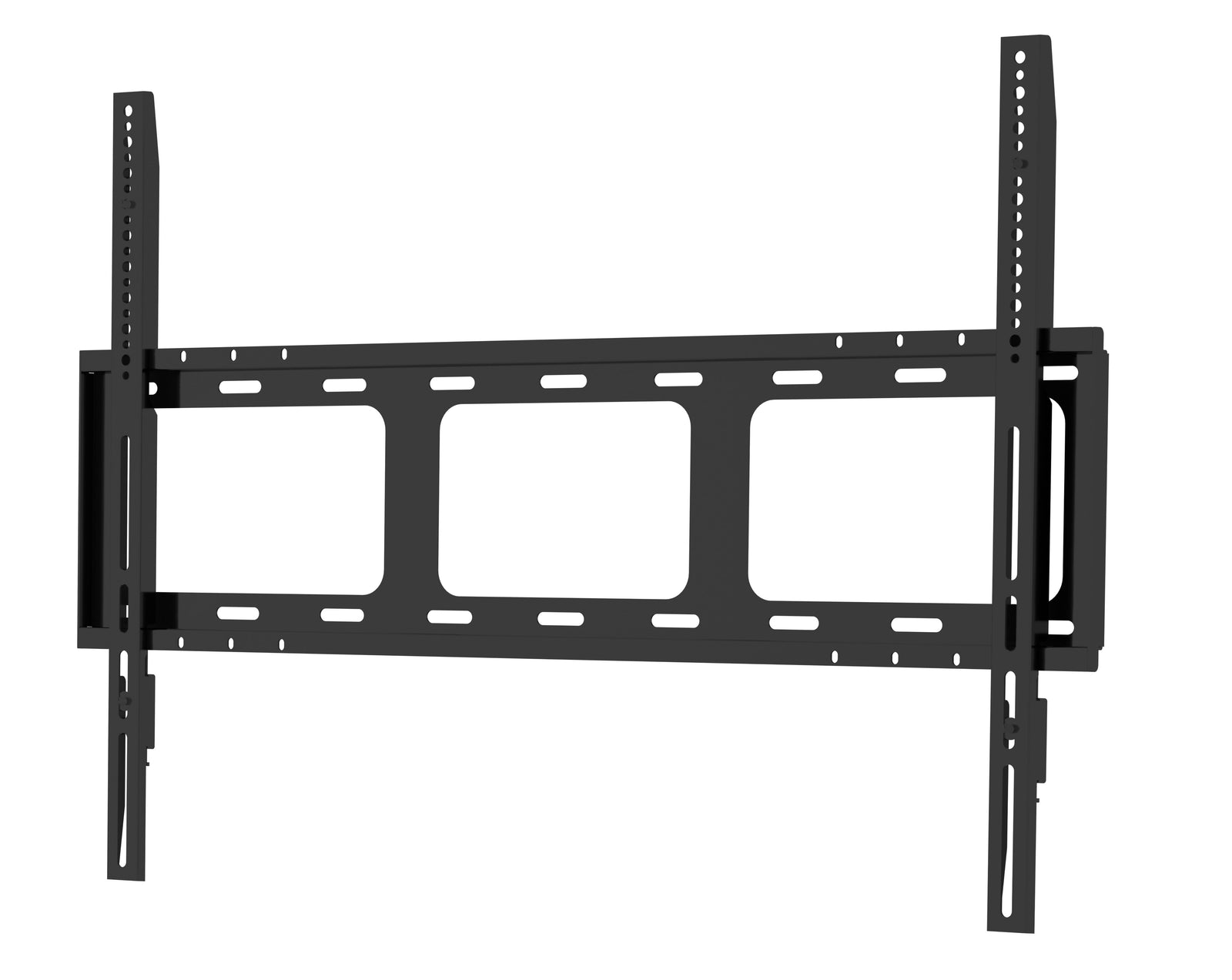

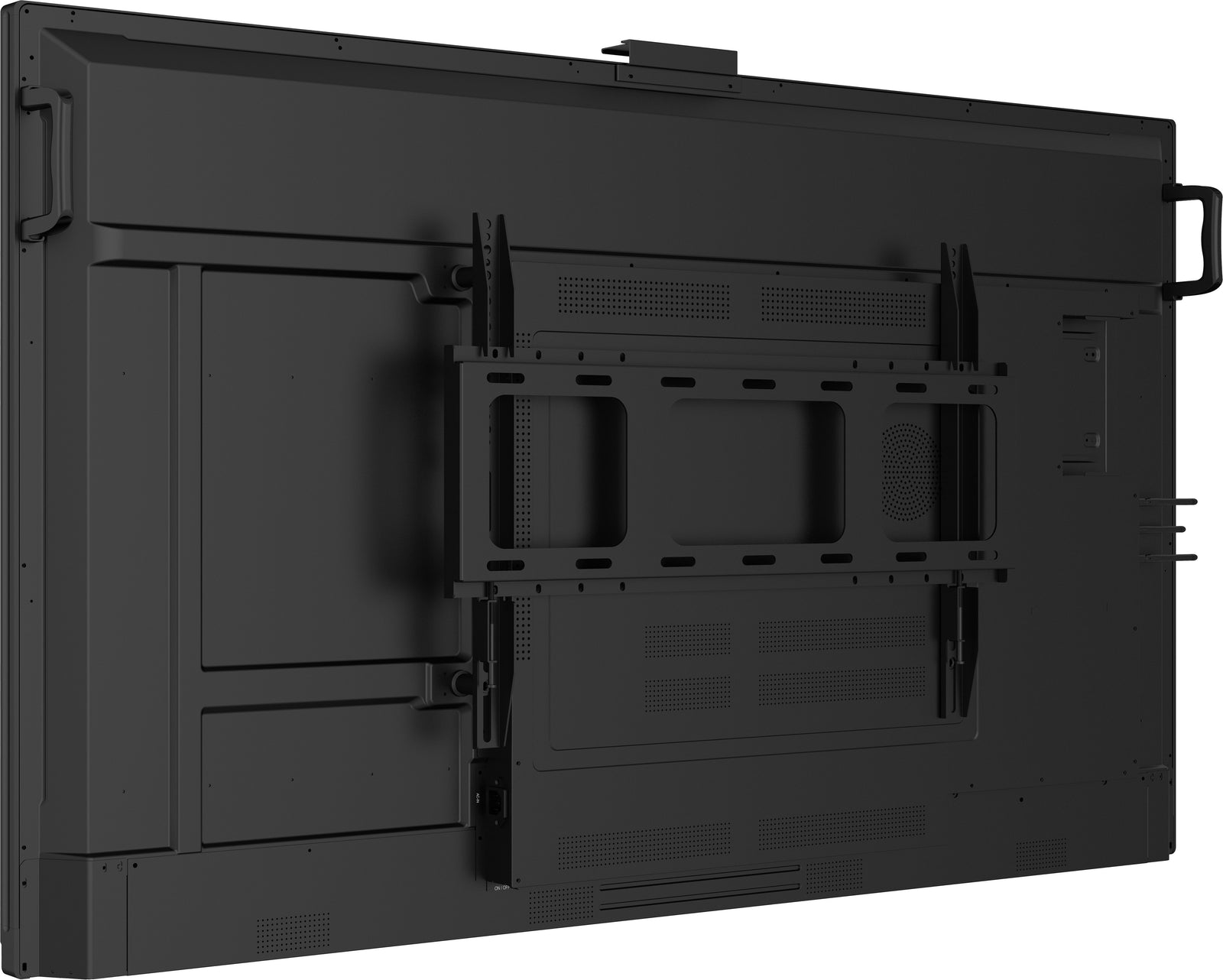

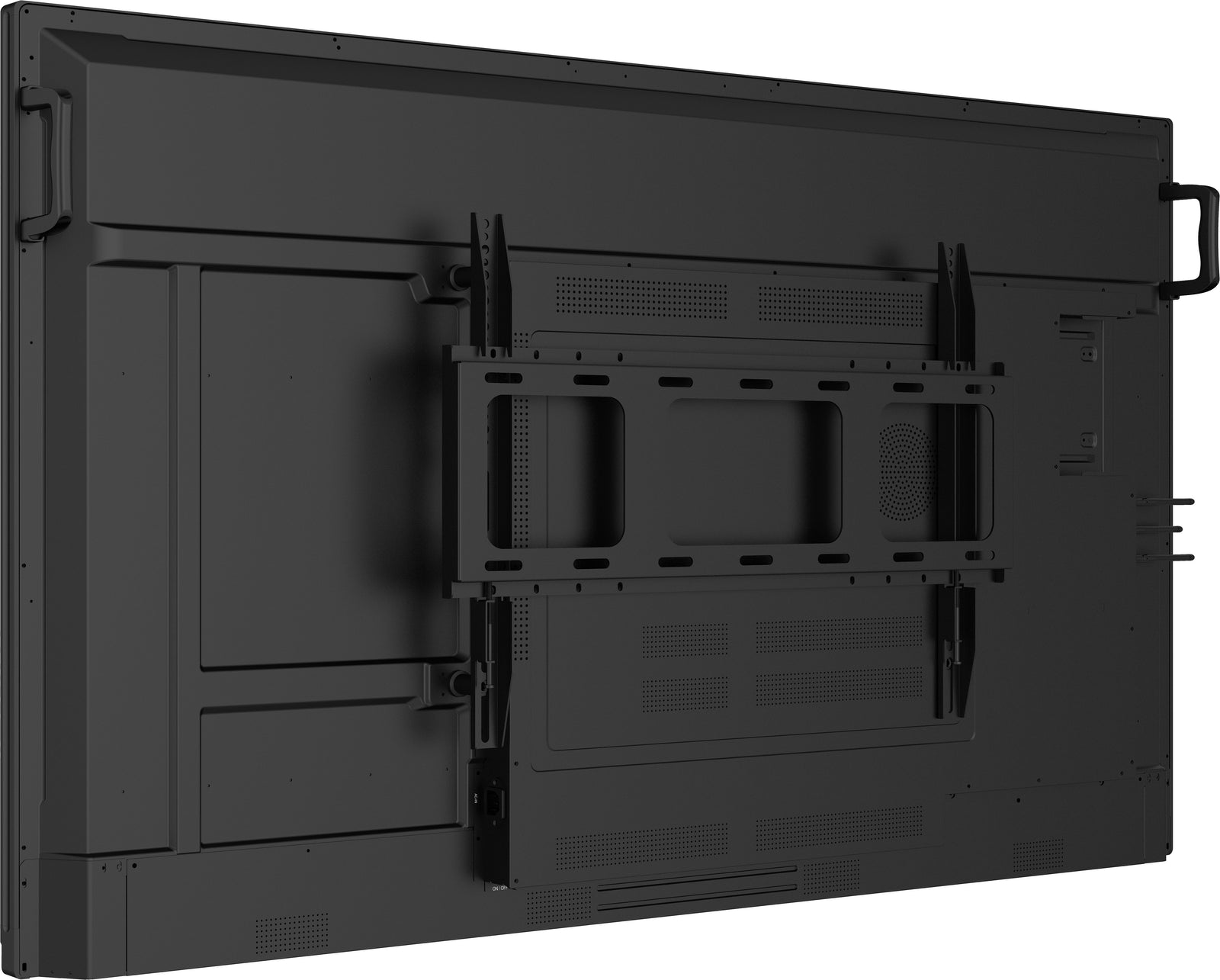

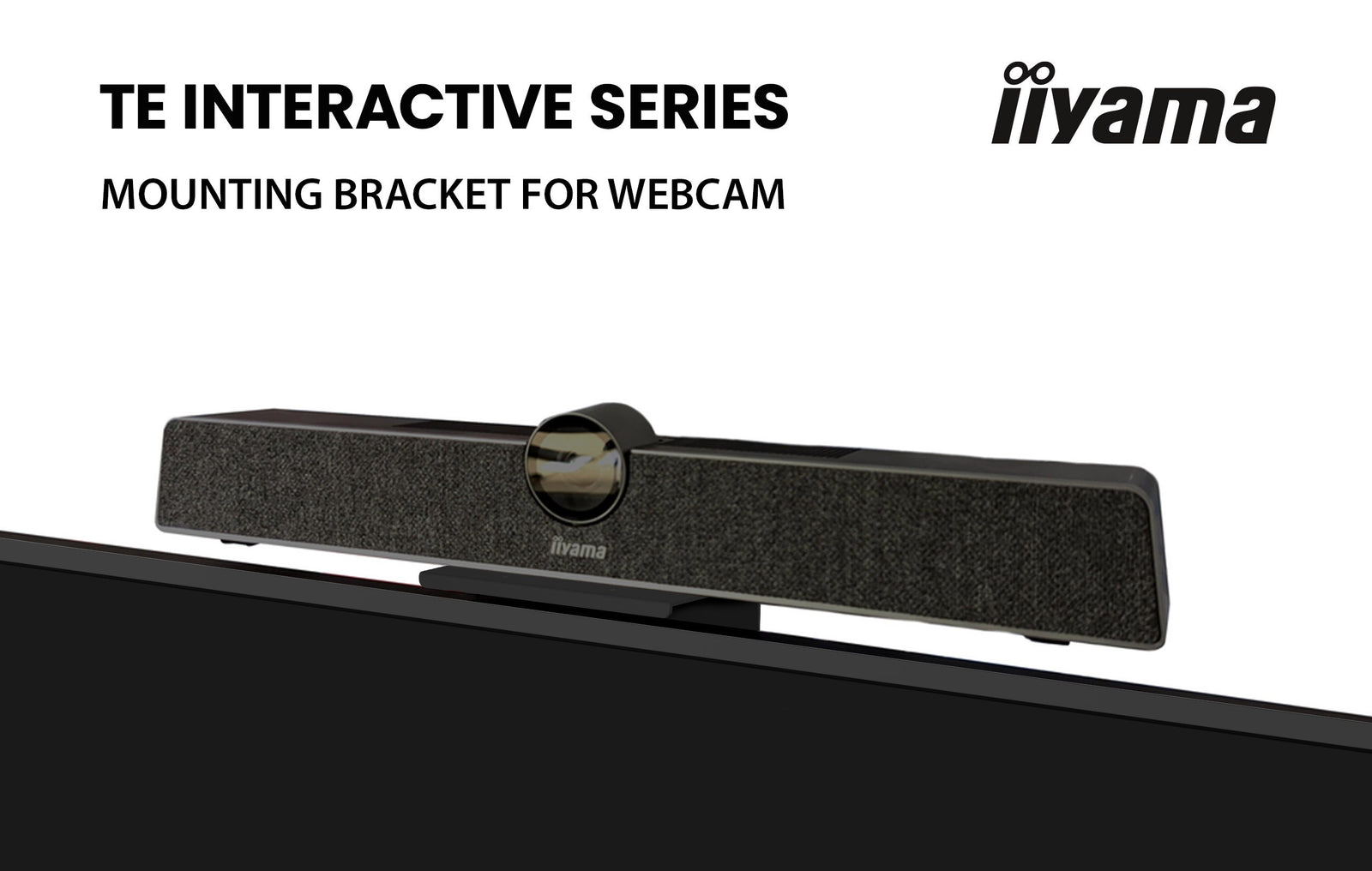

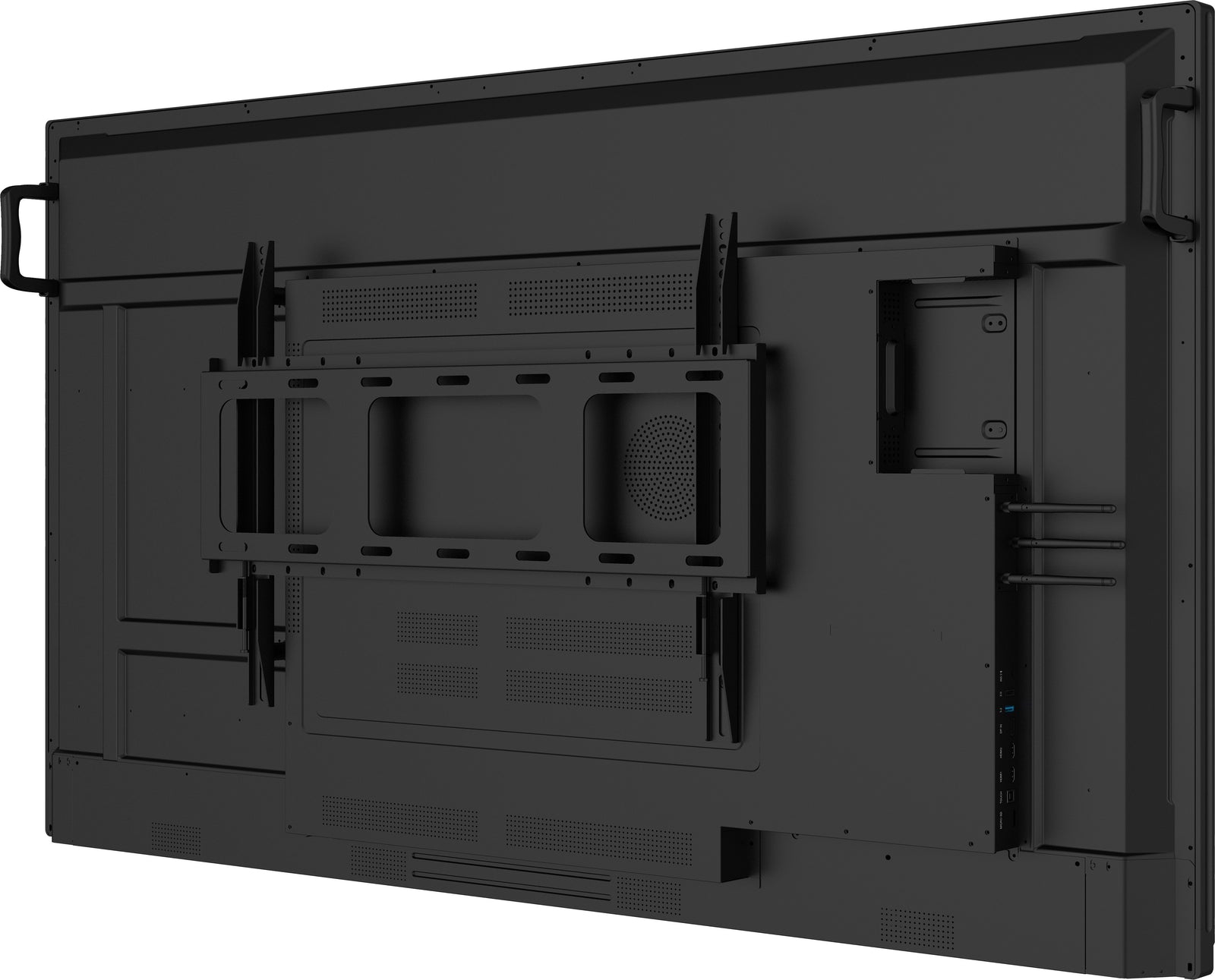

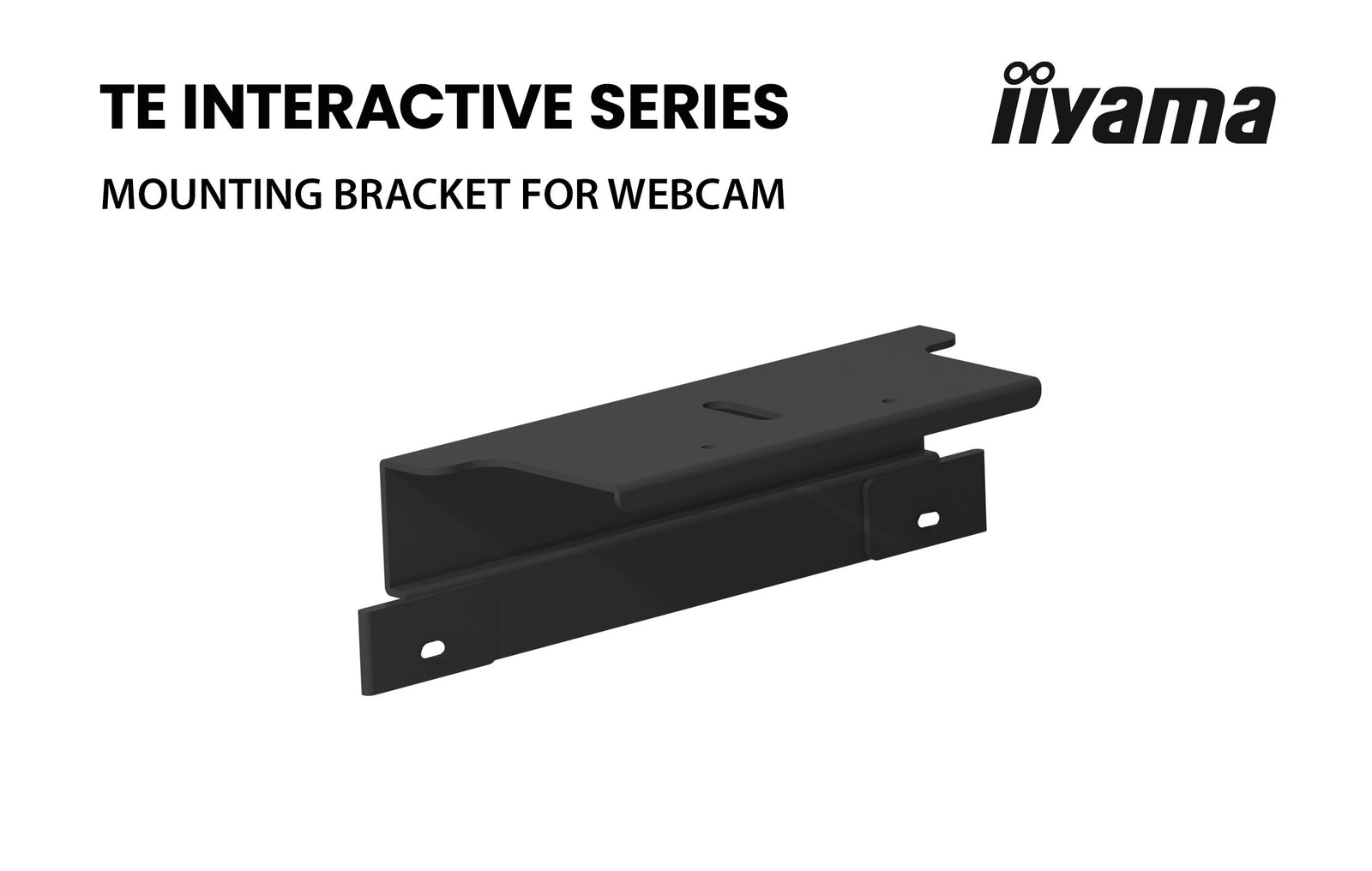

Wall Mounting Bracket (VESA 600x400), Webcam Mounting Bracket |
Remote Control |
Yes (batteries included) |
POWER MANAGEMENT |
|
Power Supply Unit |
Internal |
Power Supply |
AC 100 - 240V, 50/60Hz |
Power Usage |
182W typical, 0.5W standby, 0.3W off mode |
SUSTAINABILITY |
|
Regulations |
CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, EPEAT, REACH (RoHS) |
REACH SVHC |
Above 0.1%: Lead |
DIMENSIONS / WEIGHT |
|
Product Dimensions W x H x D |
1489 x 891.5 x 87mm |
Box Dimensions W x H x D |
1640 x 1010 x 185mm |
Weight (Without Box) |
39.4kg |
Weight (With Box) |
48.5kg |
EAN Code |
4948570124800 |
