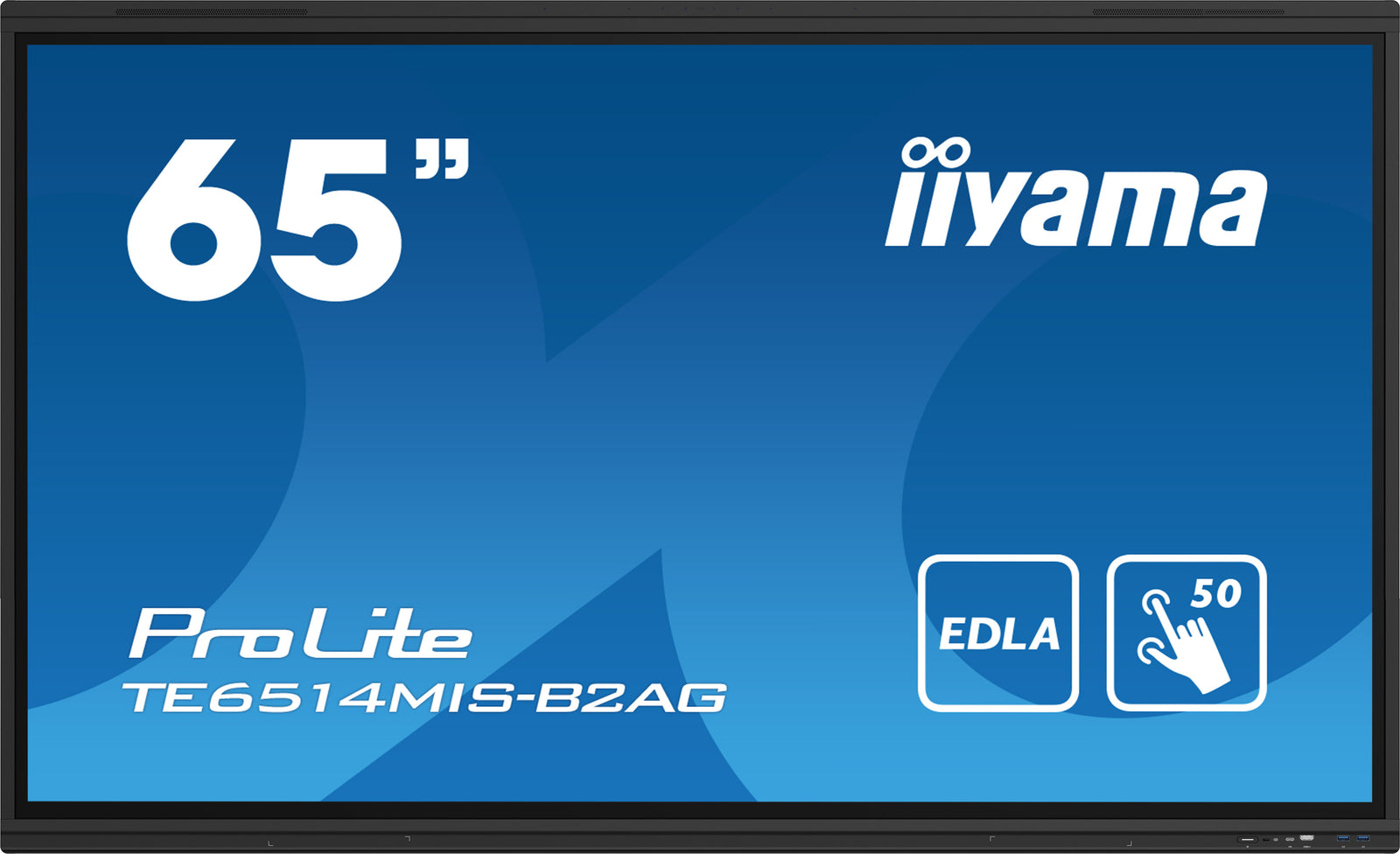

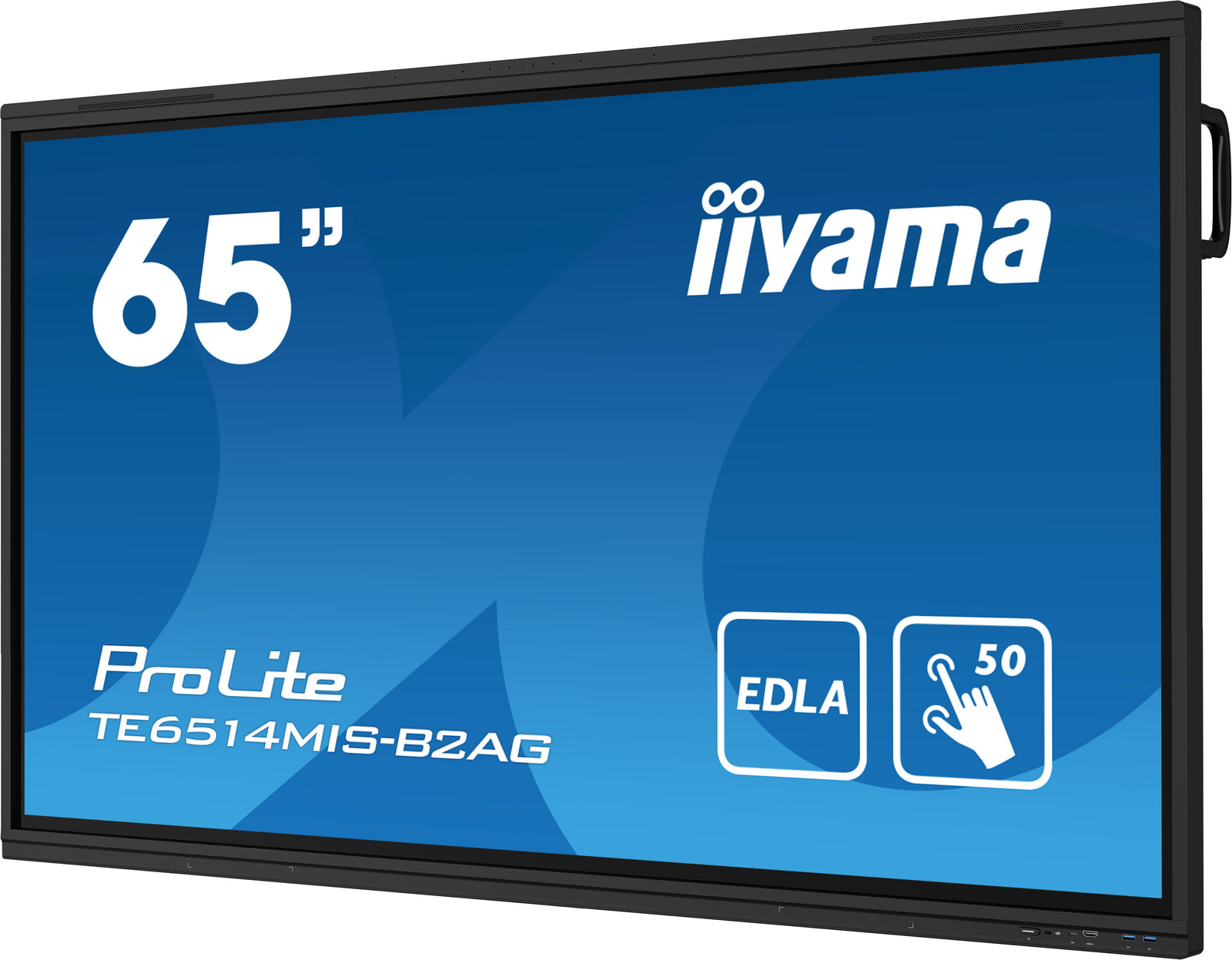

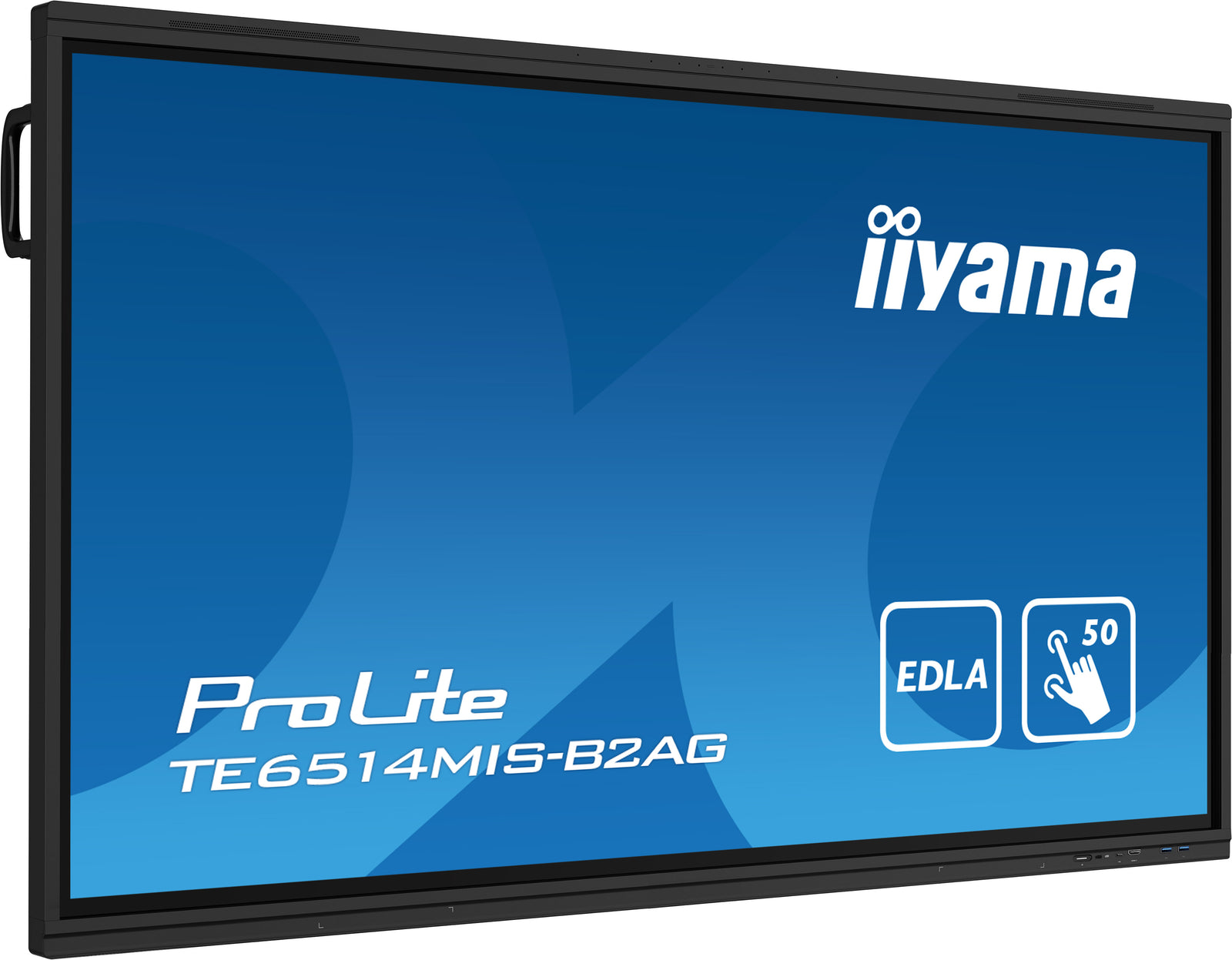

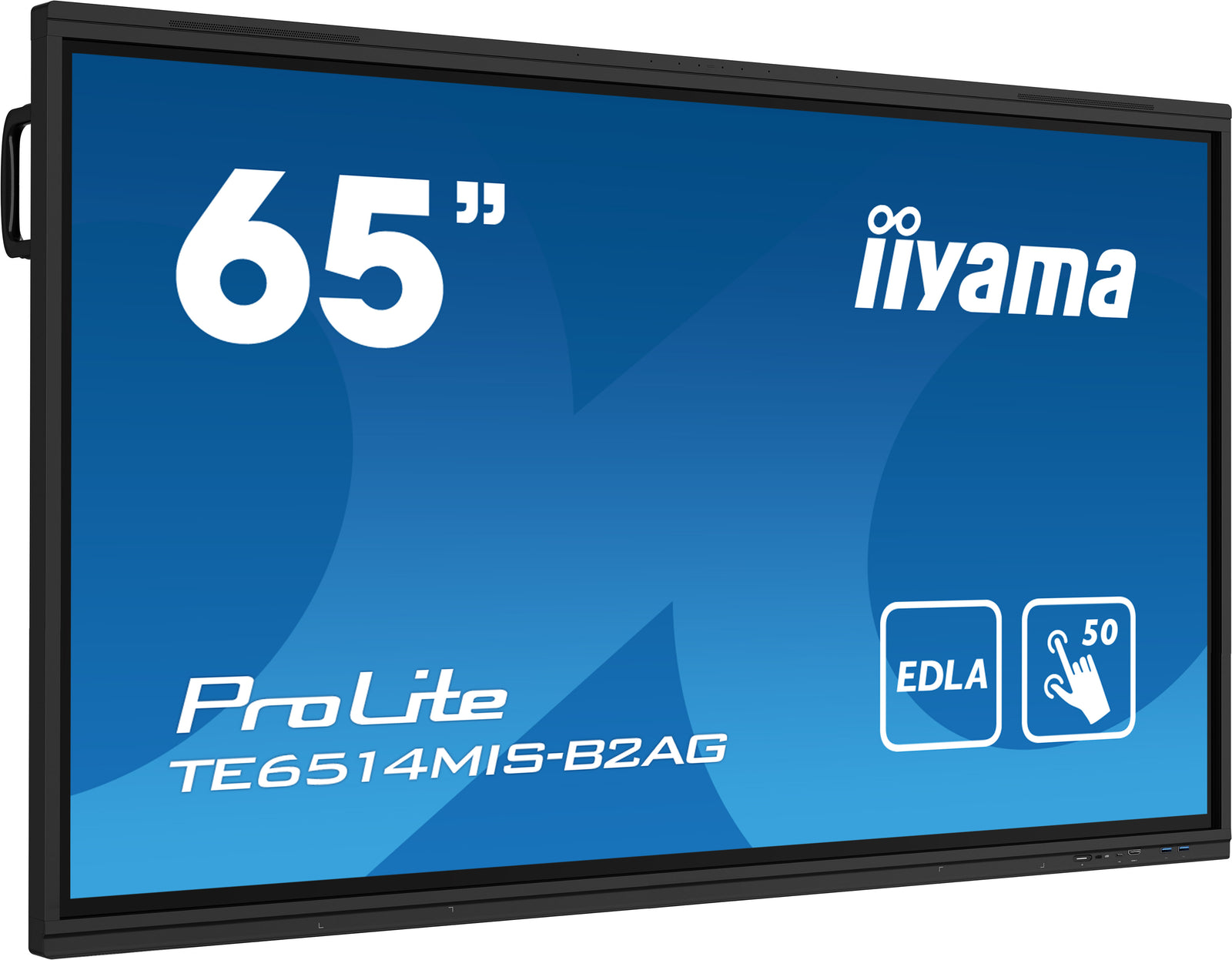

iiyama ProLite TE6514MIS-B2AG 65" Google EDLA Certified 4K UHD Interactive Display
The TE6514MIS-B2AG is a visionary 4K UHD Google EDLA Certified interactive display that sets a new standard for ingenuity and performance. Crafted with precision, it features a Zero Airgap LCD screen that eradicates parallax, alongside the accurate PureTouch-IR+ with Palm Rejection, ensuring seamless interaction. Powered by iiWare 12E with Android 13 and equipped with WiFi connectivity, it effortlessly integrates into your ecosystem, supported by the iiyama (DMS) Device management platform.
Experience unparalleled wireless sharing capabilities with the intuitive iiyama Share and EShare app, facilitating seamless brainstorming and effective collaboration within your enterprise or educational institution.
With its innovative 4K Interface and customizable User Profiles, the TE6514MIS-B2AG offers a personalized experience, granting easy access to bespoke applications and Cloud Drives. Adapted to thrive in bustling hybrid environments, it becomes a tailored solution for diverse user needs, revolutionizing collaboration, communication, and engagement.
Transforming modern workplaces, educational realms, and dynamic meeting spaces, this display emerges as an essential cornerstone, nurturing progress and connectivity beyond boundaries.
Google EDLA Certified
Google Enterprise Device License Agreement allows Google apps, accounts, files, and collaborative tools to be easily accessed directly from the Google EDLA certified iiyama displays, offering seamless integration with the Google ecosystem and the entire Microsoft 365 suite for enhanced user experience, productivity, and collaboration in all environments, especially the education and enterprise sectors alike.
PURETOUCH-IR+
The state-of-the-art PureTouch-IR+ technology ensures accurate and precise touch responses, enabling effortless interaction and annotation.
iiyama DMS
iiyama DMS provides organizations with a convenient and fast unified management solution for terminal equipment, builds an efficient and real-time equipment management system, helps digitize the campus/office estate environment and makes device management ultra convenient. iiyama DMS is committed to maintaining compliance with GDPR.
iiWare 12E
Empower your presentations with iiWare 12E, featuring Note, Browser, Cloud Drive via an intuitive and user-friendly software that allows you to effortlessly manage, customize, and access various applications with ease.
iiyama Share
Connect up to 9 devices and easily share, stream and edit content from your device to your interactive display and vice versa, back to your laptop, tablet or phone. iiyama Share supports AirPlay, Chromecast and Miracast.
Built-in speakers & microphone
The high quality built-in 8 Array Microphone and Dual Directional Speakers support conferencing configurations with ultra clear sound and 8m voice pick-up.
USB-C Connection
Delivers the latest in video, audio and Touch signal, all through one port and even charges your device with 100W power delivery.
| Category | Specifications |
|---|---|
| DISPLAY CHARACTERISTICS | |
| Design | Thin bezel |
| Diagonal | 65", 163.9cm |
| Panel | VA, haze 25% |
| Touch Glass | Anti-Gloss treatment, Anti-Glare glass, Matt polished surface, Ultra smooth writing, Zero Air-Gap |
| Native Resolution | 3840 x 2160 (8.3 megapixel 4K UHD) |
| Aspect Ratio | 16:9 |
| Brightness | 450 cd/m² (max.) |
| Light Transmittance | 92% |
| Static Contrast | 4000:1 |
| Dynamic Contrast | 5000:1 |
| Response Time (GTG) | 6.5ms |
| Viewing Zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour Support | 1.07B 10bit (8bit + Hi-FRC) (NTSC 72%) |
| Horizontal Sync | 30 - 135kHz |
| Viewable Area W x H | 1428 x 804mm, 56.3 x 31.7" |
| Bezel Width | 16.5mm (sides, top), 41mm (bottom) |
| Pixel Pitch | 0.372mm |
| Bezel Colour and Finish | black, matte |
| TOUCH | |
| Touch Technology | PureTouch-IR⁺ |
| Touch Points | 50, 10pt writing, 40pt Touch with Android |
| Touch Accuracy | +- 1mm |
| Touch Method | stylus, finger, glove |
| Touch Interface | USB |
| Palm Rejection | yes |

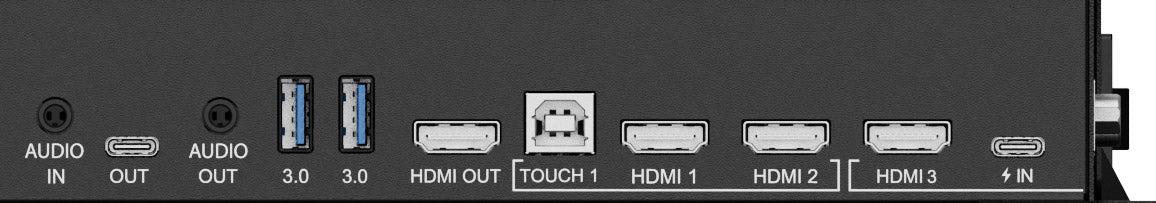

| INTERFACES / CONNECTORS / CONTROLS | |
| Digital Signal Input | HDMI x4, DisplayPort x1, USB-C x2 |
| Audio Input | Mini jack x1 |
| Monitor Control Input | RS-232c x1 |
| RJ45 (LAN) | x1 (LAN Control) |
| IR | x1 |
| Digital Signal Output | HDMI x1, USB-C x1 |
| Audio Output | S/PDIF (Optical) x1, Mini jack x1 |
| Speakers | 2 x 18W (Up), 2 x 8W (Front) |
| HDCP | HDMI: 2.3 + 1.4, DP: 2.3 + 1.3, USB-C: 2.3 + 1.3 |
| USB Ports | x6 |
| FEATURES | |
| Integrated Software | iiWare 12E (Android 13 OS) featuring various apps and connectivity solutions |
| WiFi | WiFi 6 Module OWM002 - Dual WiFi Bandwidth: 2.4GHz/5GHz, Bluetooth Support: 2.1+EDR/ 3.0/ 4.x/ 5.0 |
| Hardware | CPU: A764+A554(2.4GHz), GPU: Mali G610 MC4, RAM: 8GB, ROM: 64GB |
| Kiosk Mode | yes |
| Max. Non-stop Operating Time | 24/7 |
| Glass Thickness | 3mm |
| Glass Hardness | 7H |
| Housing (Bezel) | metal |
| OSD Key Lock | yes |
| GENERAL | |
| OSD Languages | Multiple languages supported |
| Control Buttons | Power button, indicators, sensors, USB-C Connector |
| User Controls | Comprehensive settings for display, audio, screen, and applications |
| Plug&Play | DDC2B |
| Warranty | 5 years |
| MECHANICAL | |
| Orientation | landscape |
| Fanless Design | yes |

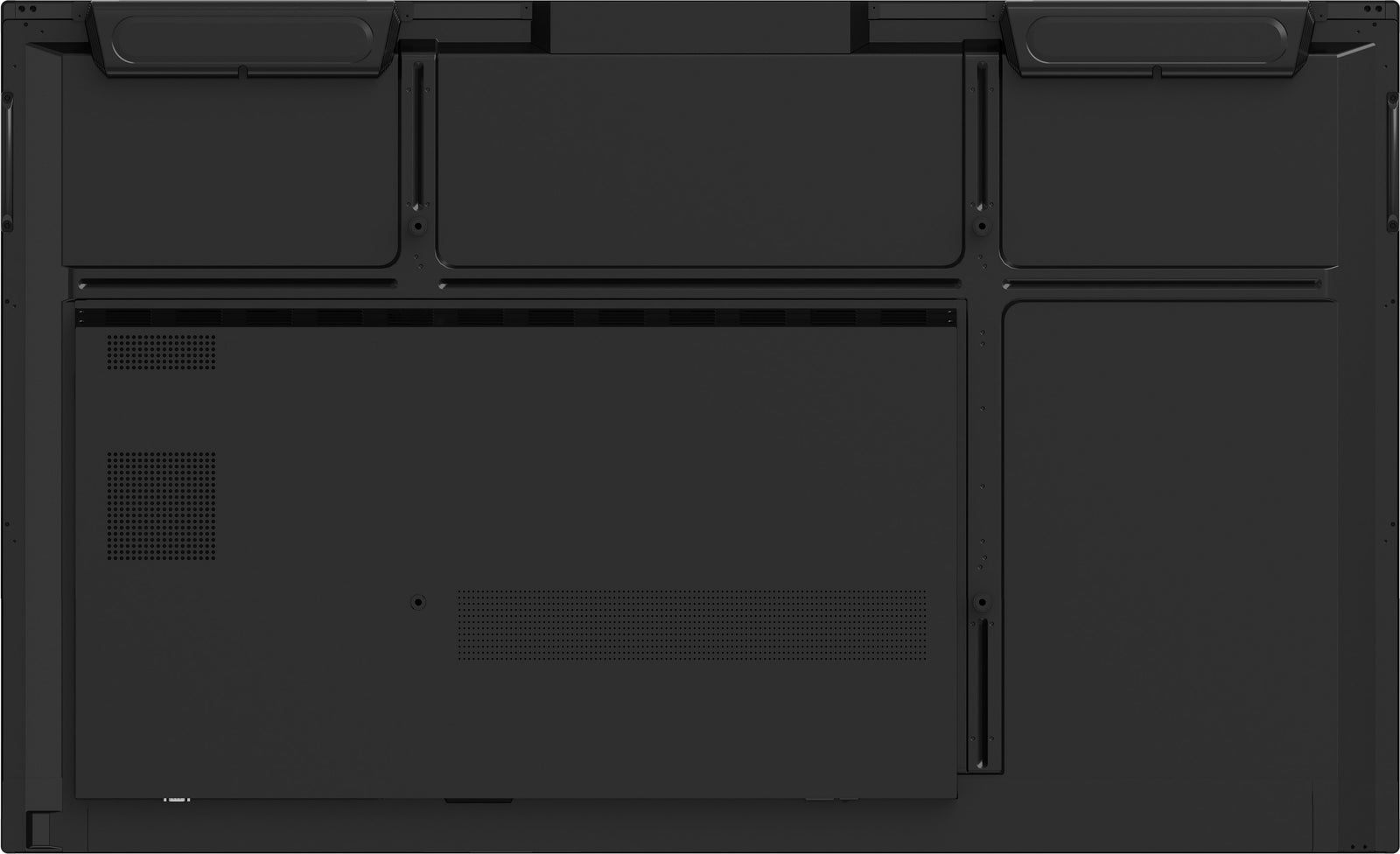

| VESA Mounting | 600 x 400mm |
| Operation Temperature Range | 0°C - 40°C |
| Storage Temperature Range | -20°C - 60°C |
| MTBF | 50.000 hours (excluding backlight) |

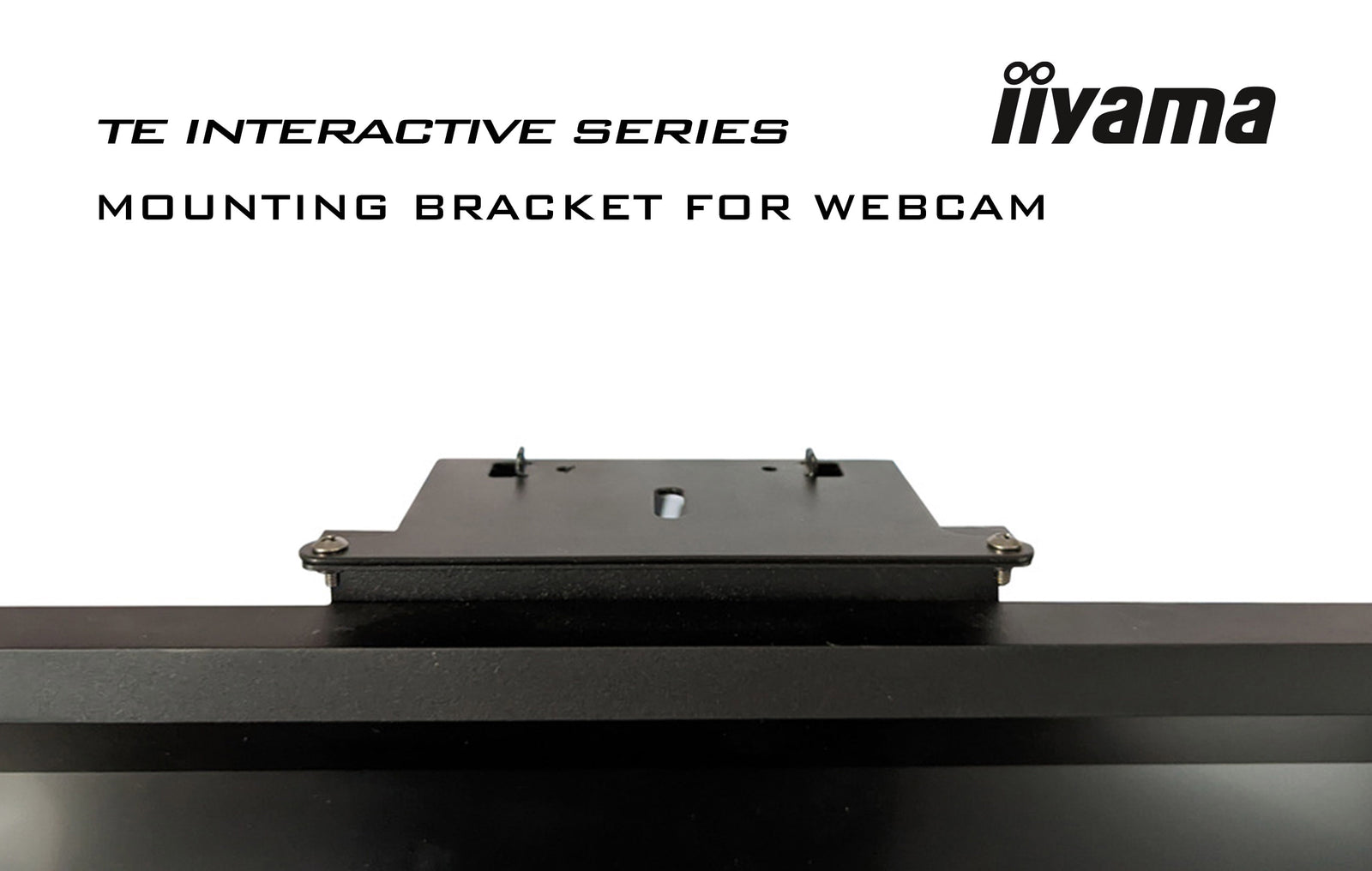

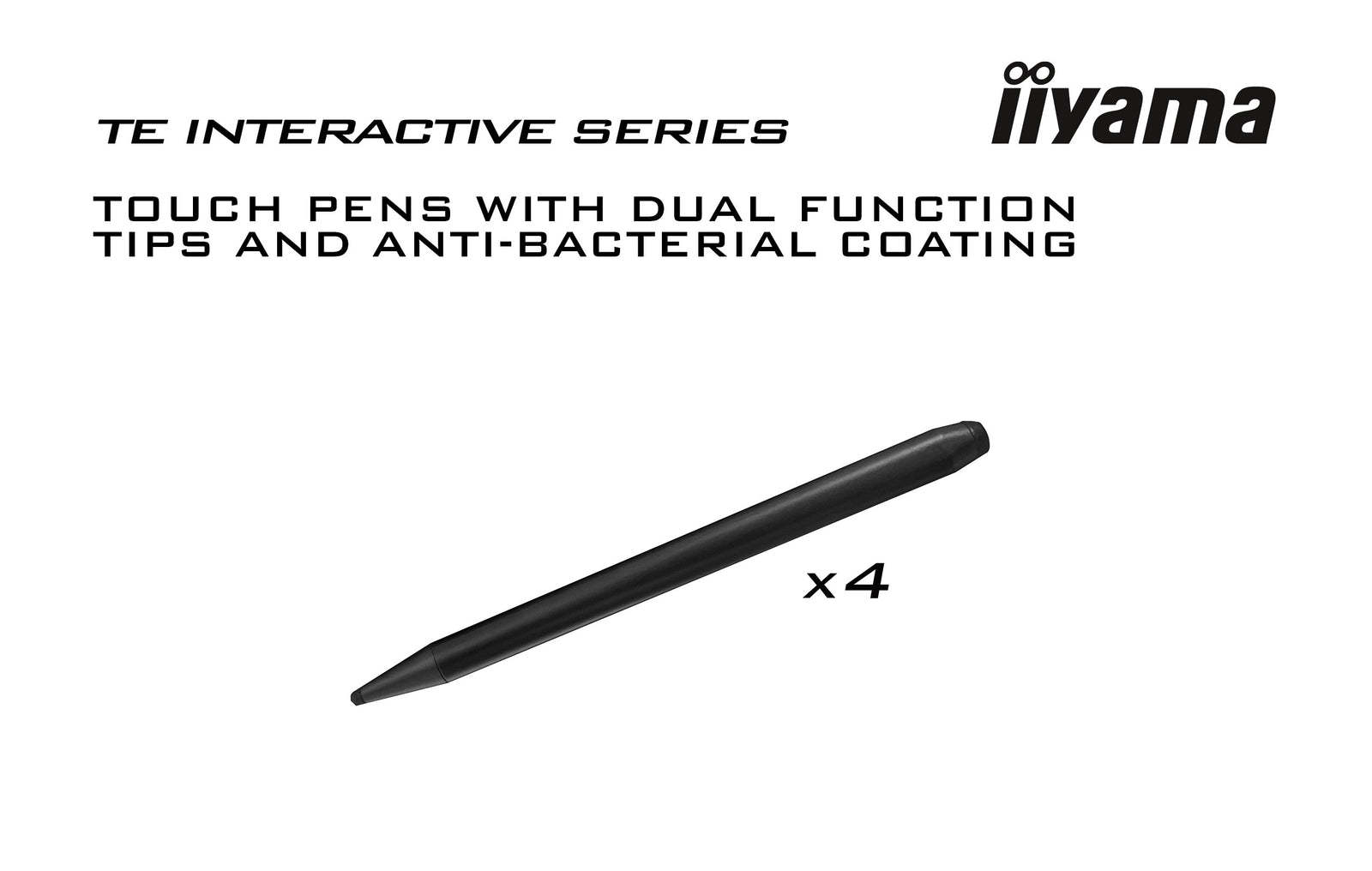

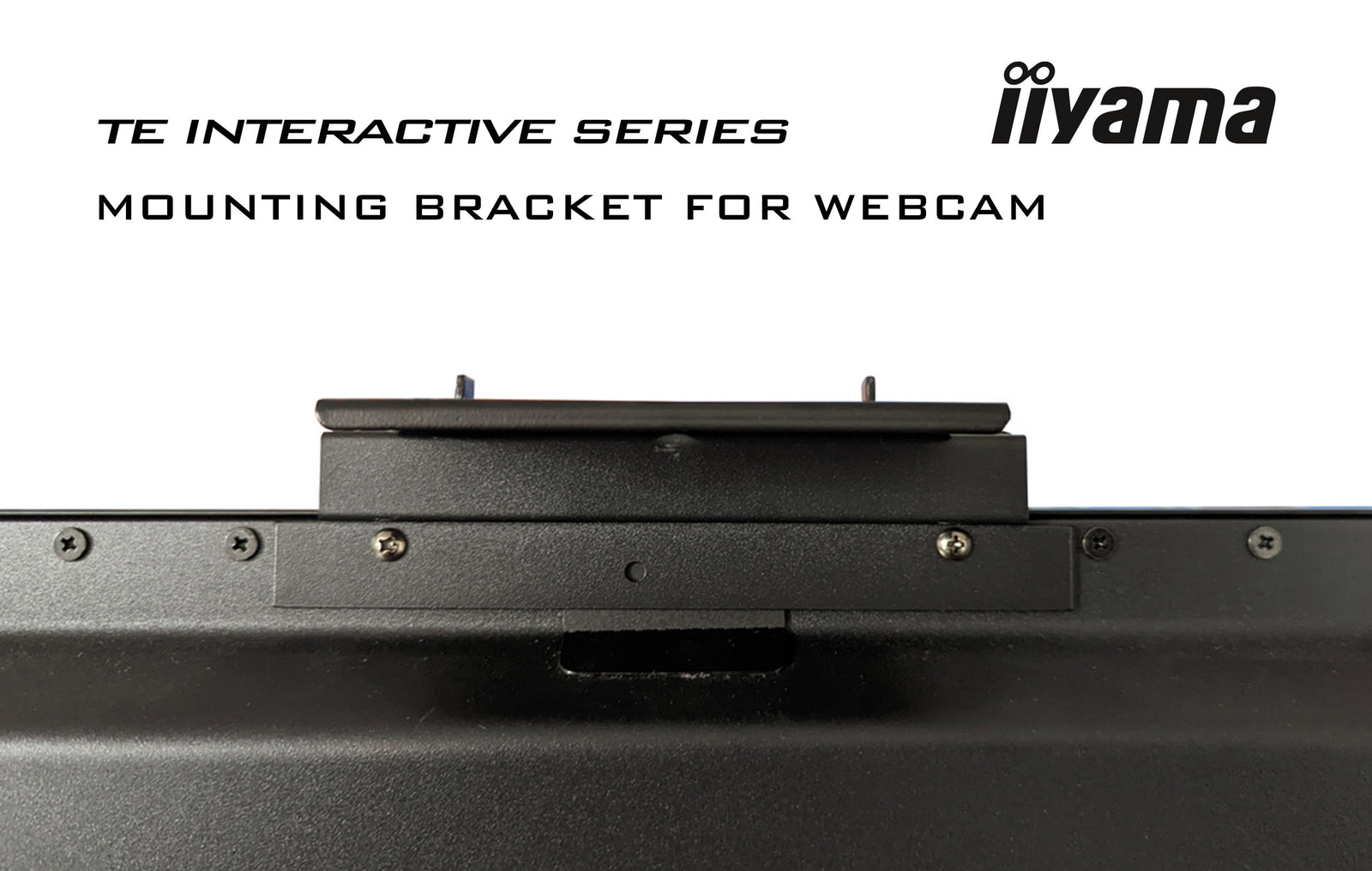

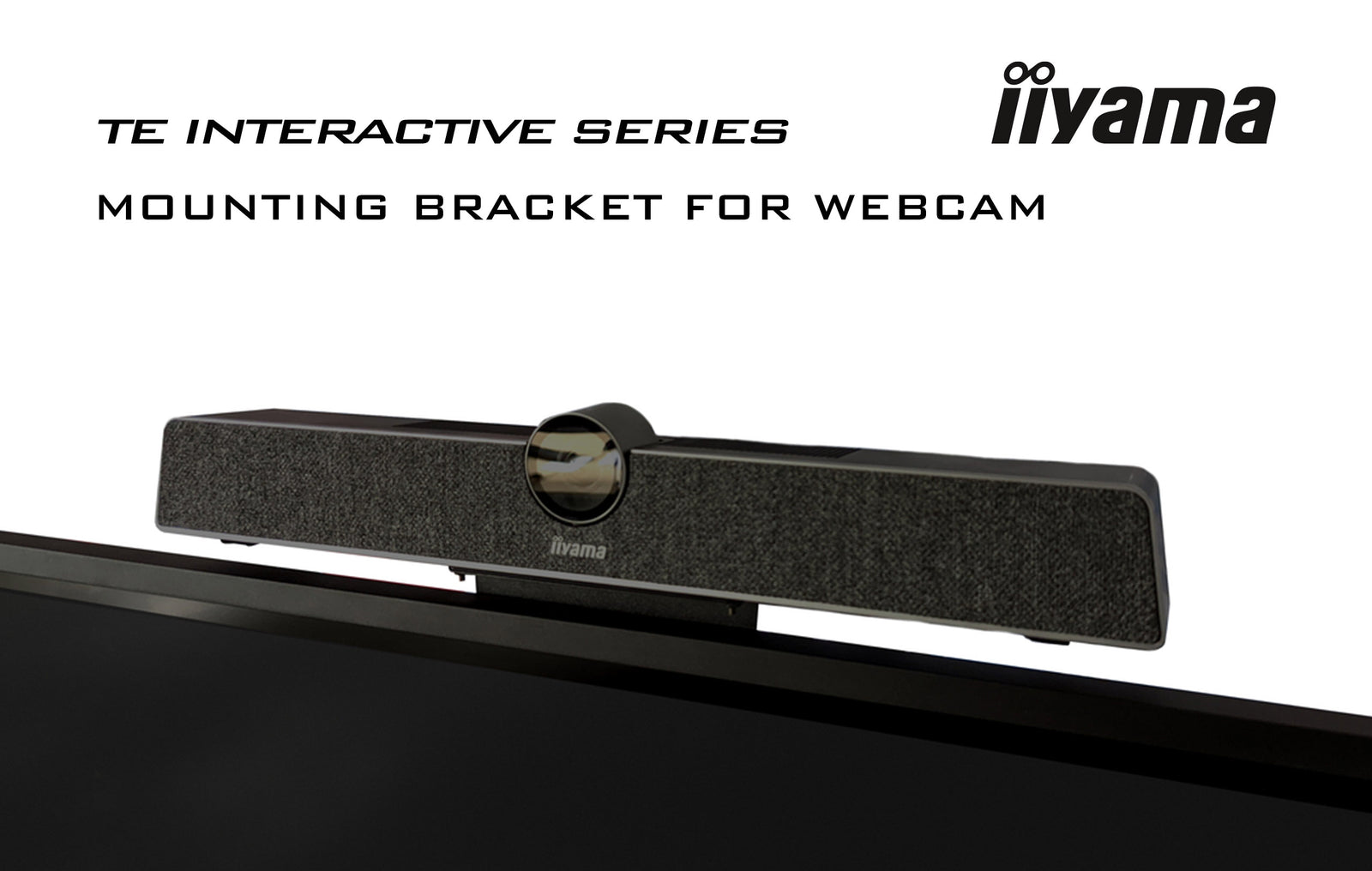

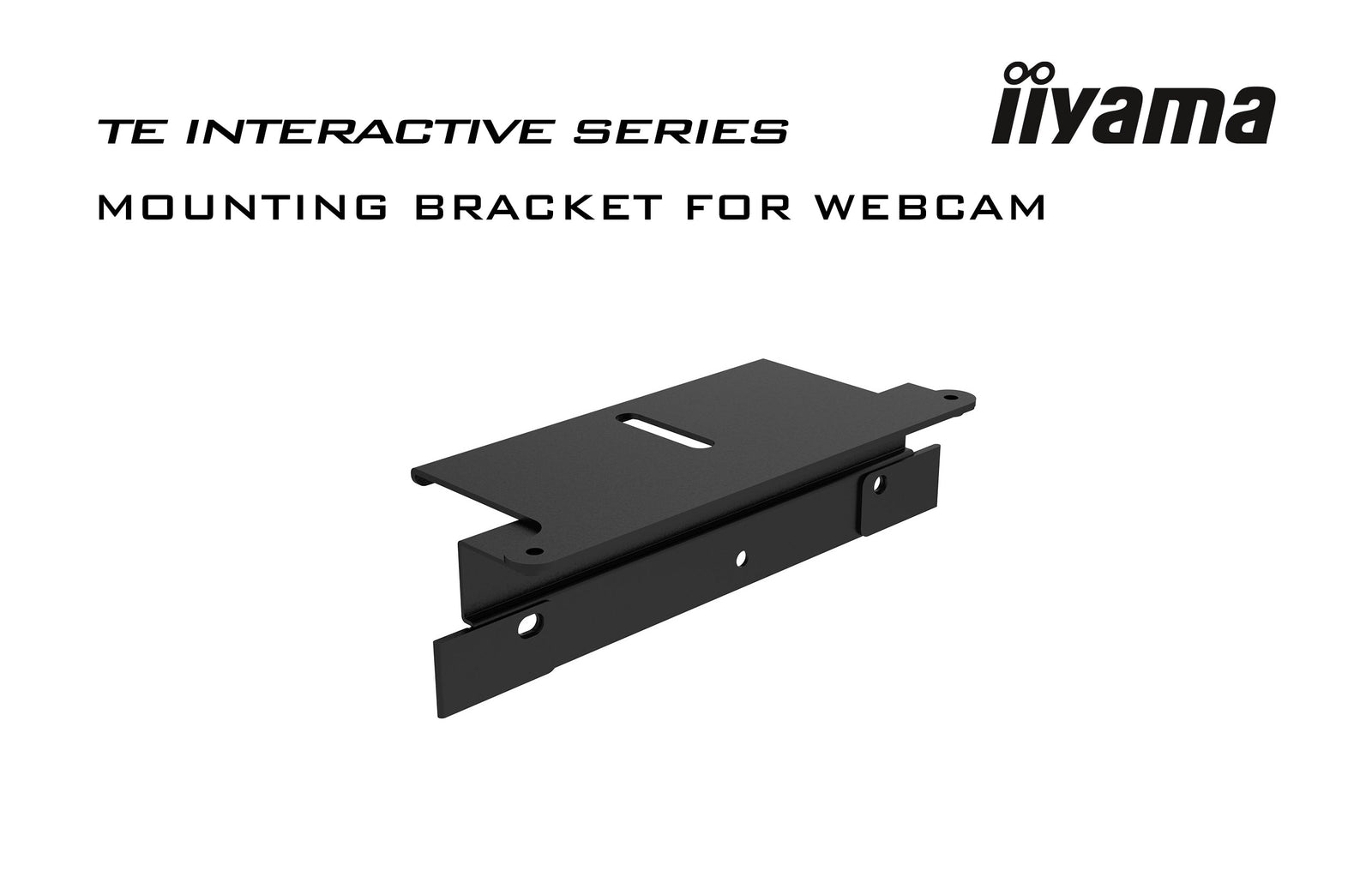

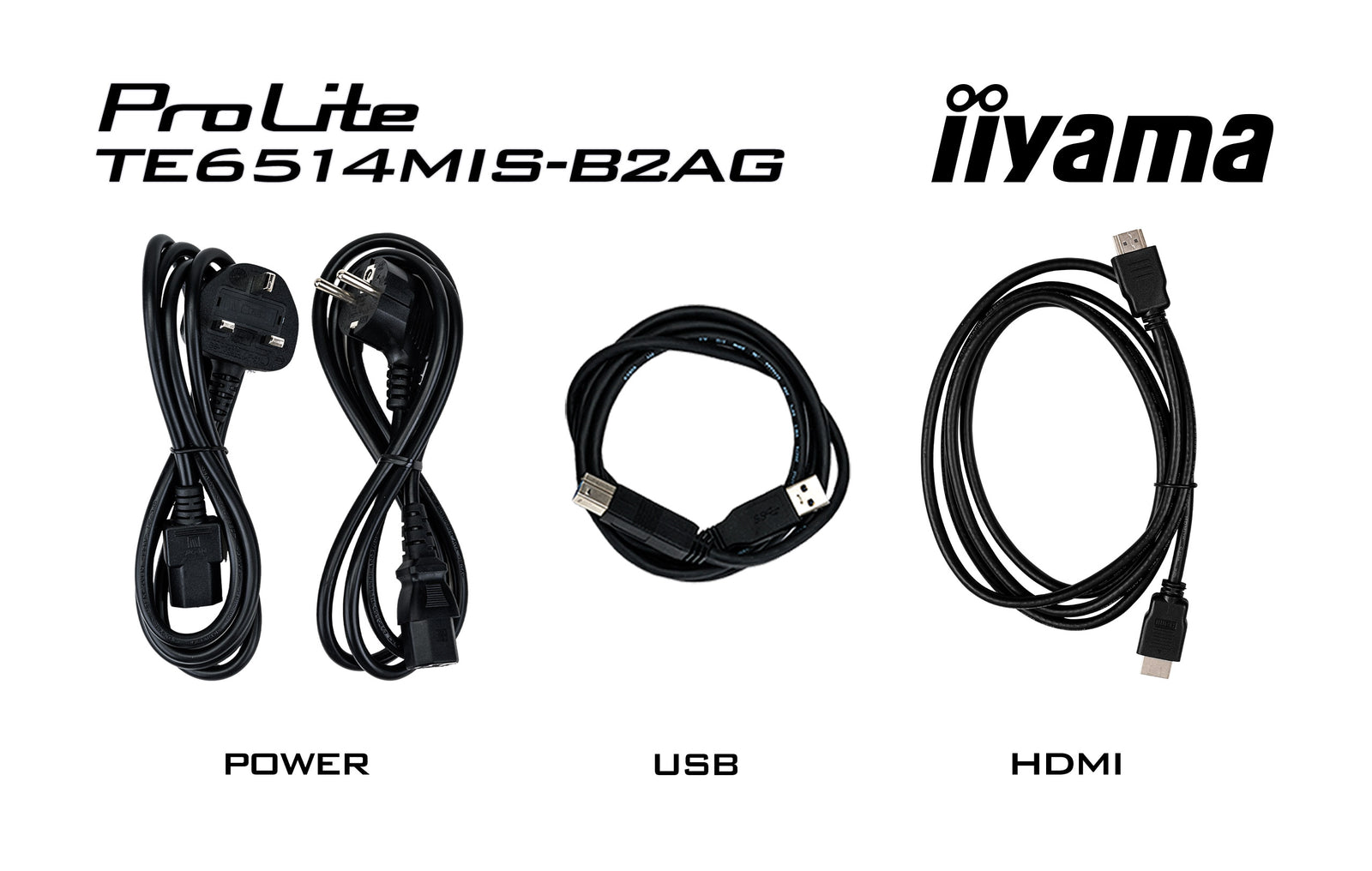

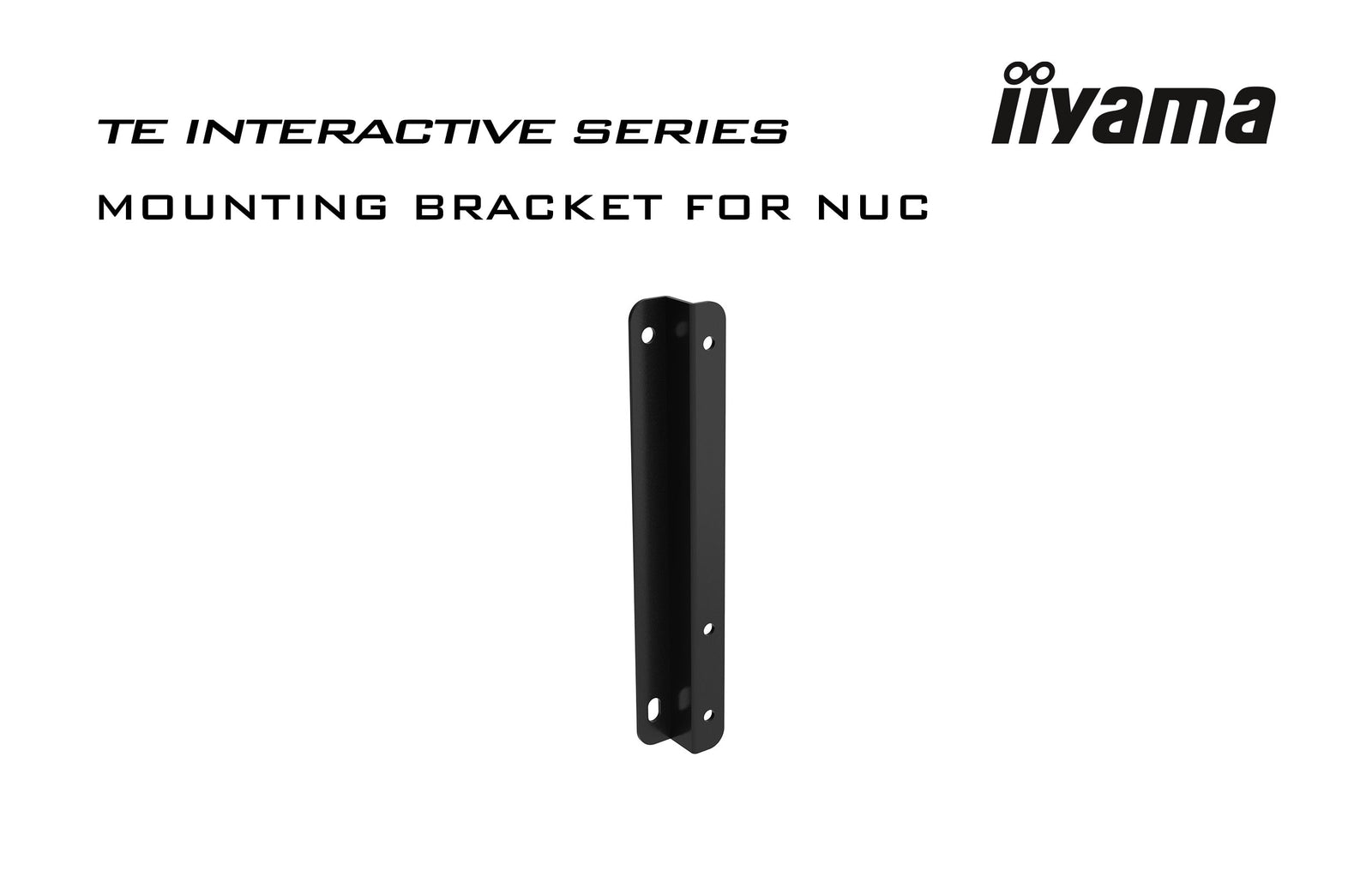

| ACCESSORIES INCLUDED | Power cable, USB cable, HDMI cable, touch pens, guides, WiFi module, mounting brackets, remote control |
| POWER MANAGEMENT | Internal power supply, AC 100 - 240V, 50/60Hz, 150W typical usage, 0.5W stand by, 0.3W off mode |
| SUSTAINABILITY | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, Lead SVHC |
| DIMENSIONS / WEIGHT | Product: 1488 x 908 x 86mm, Box: 1628 x 1005 x 208mm, Weight without box: 39kg, Weight with box: 48.3kg |
| EAN Code | 4948570124022 |
| COMPATIBLE ACCESSORIES | OPS PC Slot |
