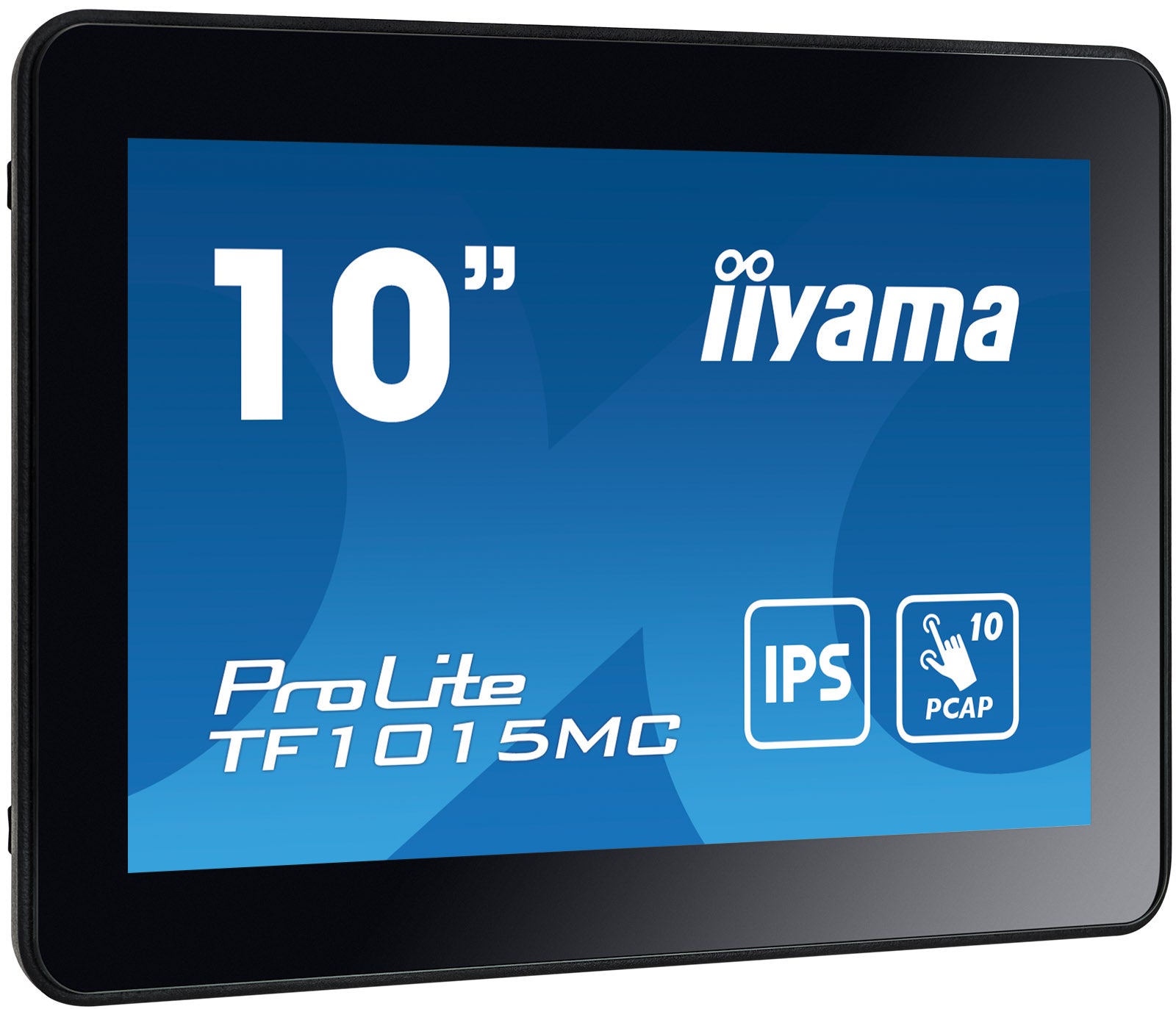

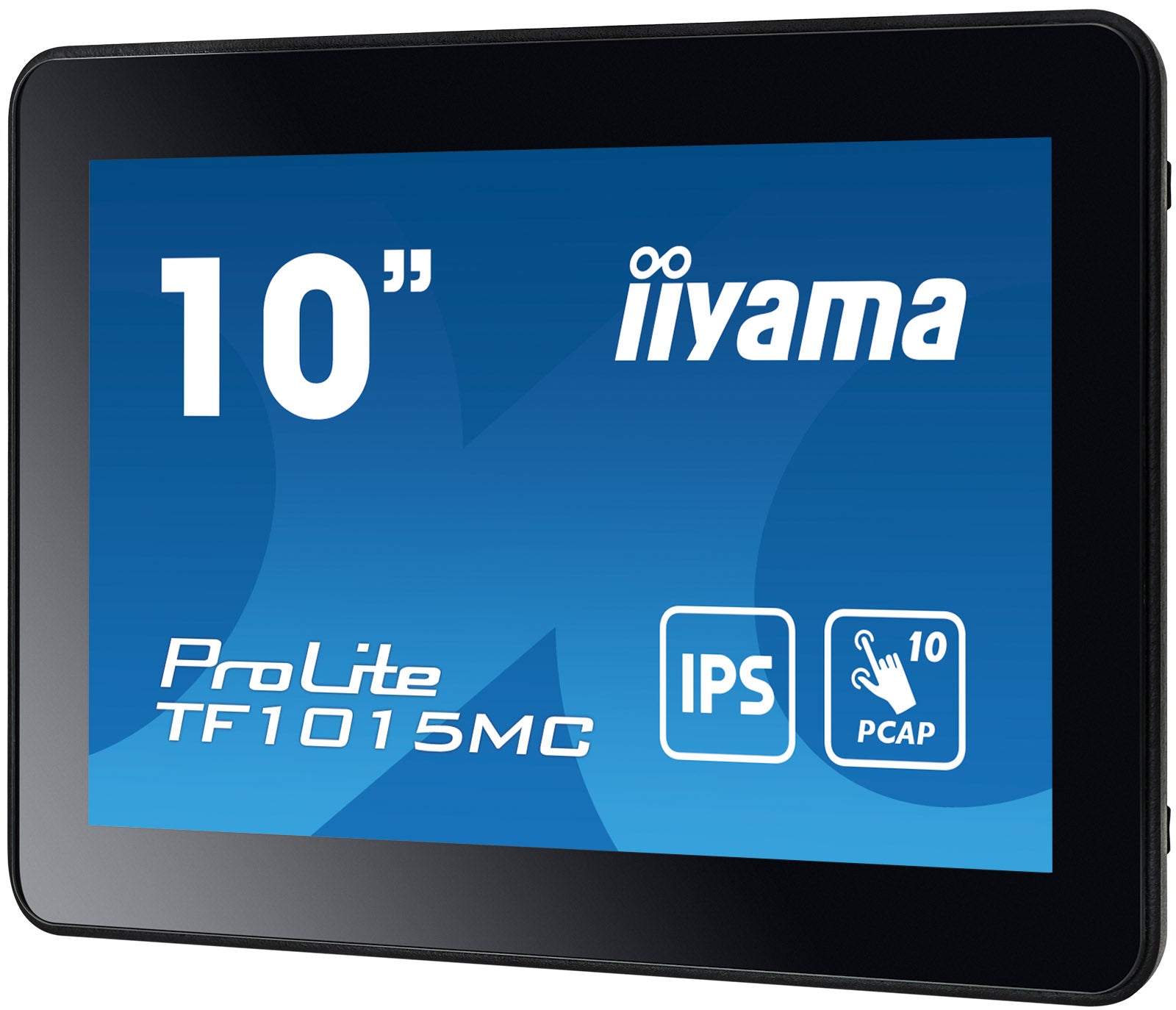

iiyama ProLite TF1015MC-B3 10.1" Open Frame PCAP 10 Point Touch Screen

SKU: TF1015MC-B3
Part Number: TF1015MC-B3
Condition: Brand New
Purchase Orders Accepted
Save £13.62 Save £13.62

£269.48 (Excl. VAT)

Current price - £323.38 (Inc. VAT)
£269.48 - £269.48
Current price- - £323.38
Availability:
16 in stock

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • iiyama ProLite TF1015MC-B3 10.1" Open Frame PCAP 10 Point Touch Screen

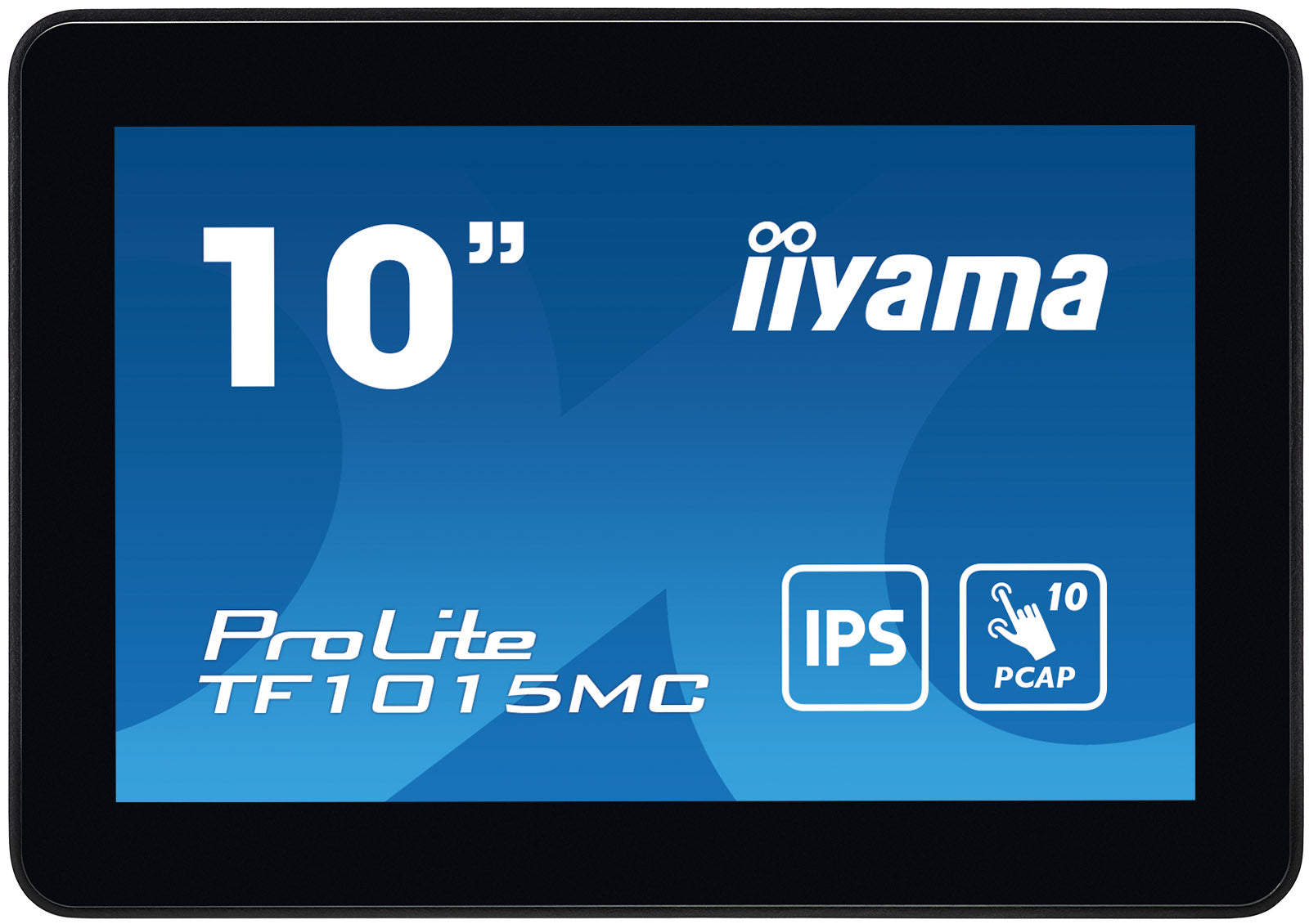

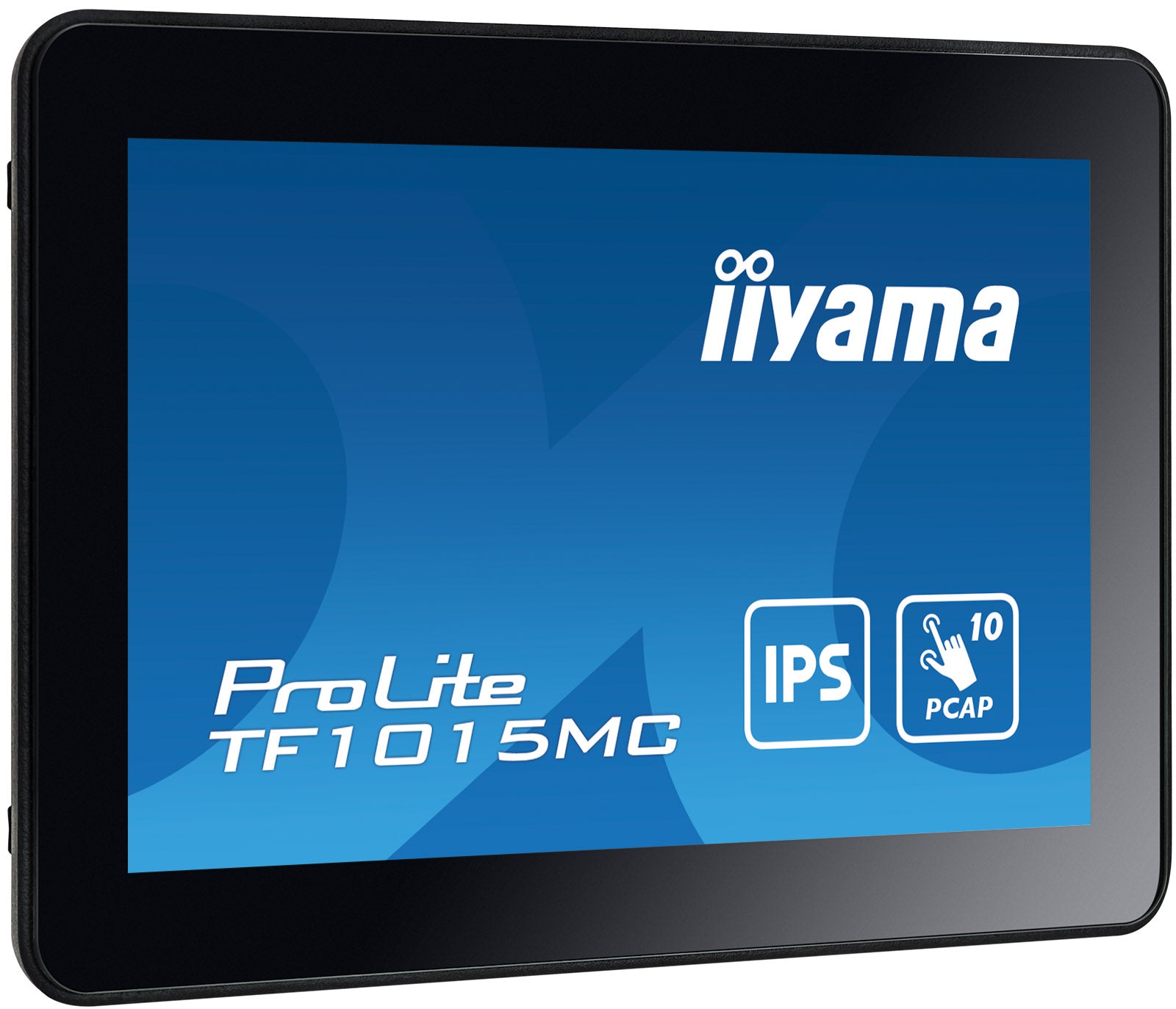

    The ProLite TF1015MC (10.1 inch) uses PCAP touch technology and is built into an eye catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1015MC can be equipped with optional external mounting brackets (OMK2-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.


    Touch Through-Glass

    This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.


    Foam Seal

    A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.

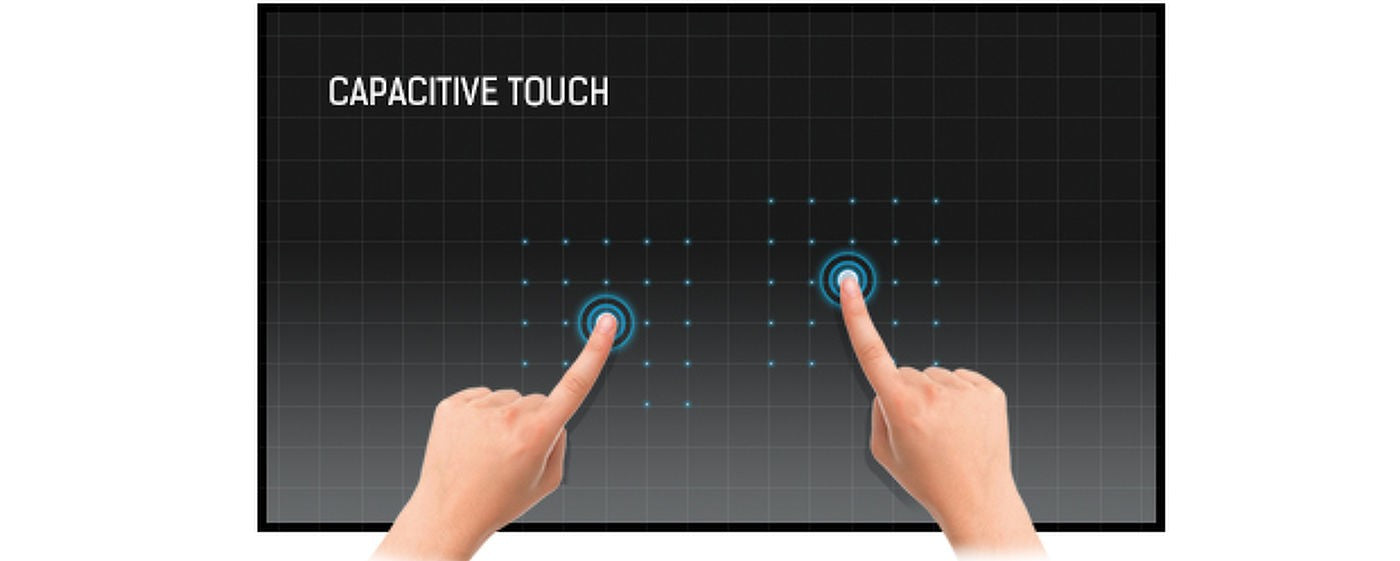

    Touch technology - Capacitive

    This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.


    Anti-fingerprint coating

    This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.

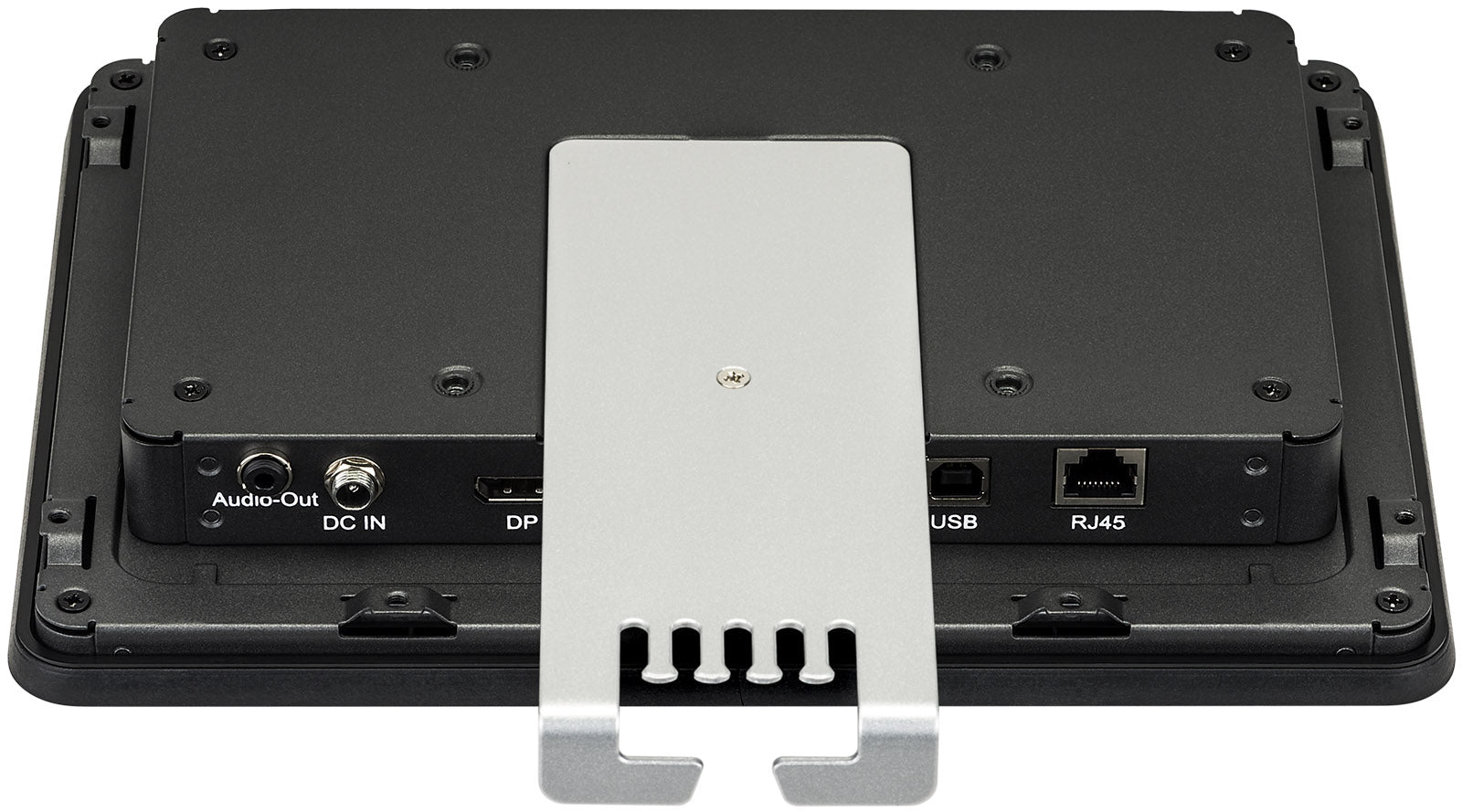

    Open frame brackets

    This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.

  • Category Details
    Design Open Frame
    Diagonal 10.1", 25.7cm
    Panel IPS
    Native Resolution 1280 x 800 (1 megapixel)
    Aspect Ratio 16:10
    Panel Brightness 500 cd/m²
    Brightness with Touch 425 cd/m²
    Light Transmittance 85%
    Static Contrast 800:1
    Response Time (BTB) 29ms
    Viewing Zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
    Colour Support 16.7mln
    Horizontal Sync 30 - 49.7kHz
    Viewable Area W x H 216.96 x 135.6mm, 8.5 x 5.3"
    Pixel Pitch 0.1695mm
    Bezel Colour and Finish black
    Touch Technology projective capacitive
    Touch Points 10 (HID, only with supported OS)
    Touch Method stylus, finger, glove (latex)
    Touch Interface USB
    Supported Operating Systems Compatible with Windows and Linux
    Through-Glass 6mm
    Palm Rejection yes

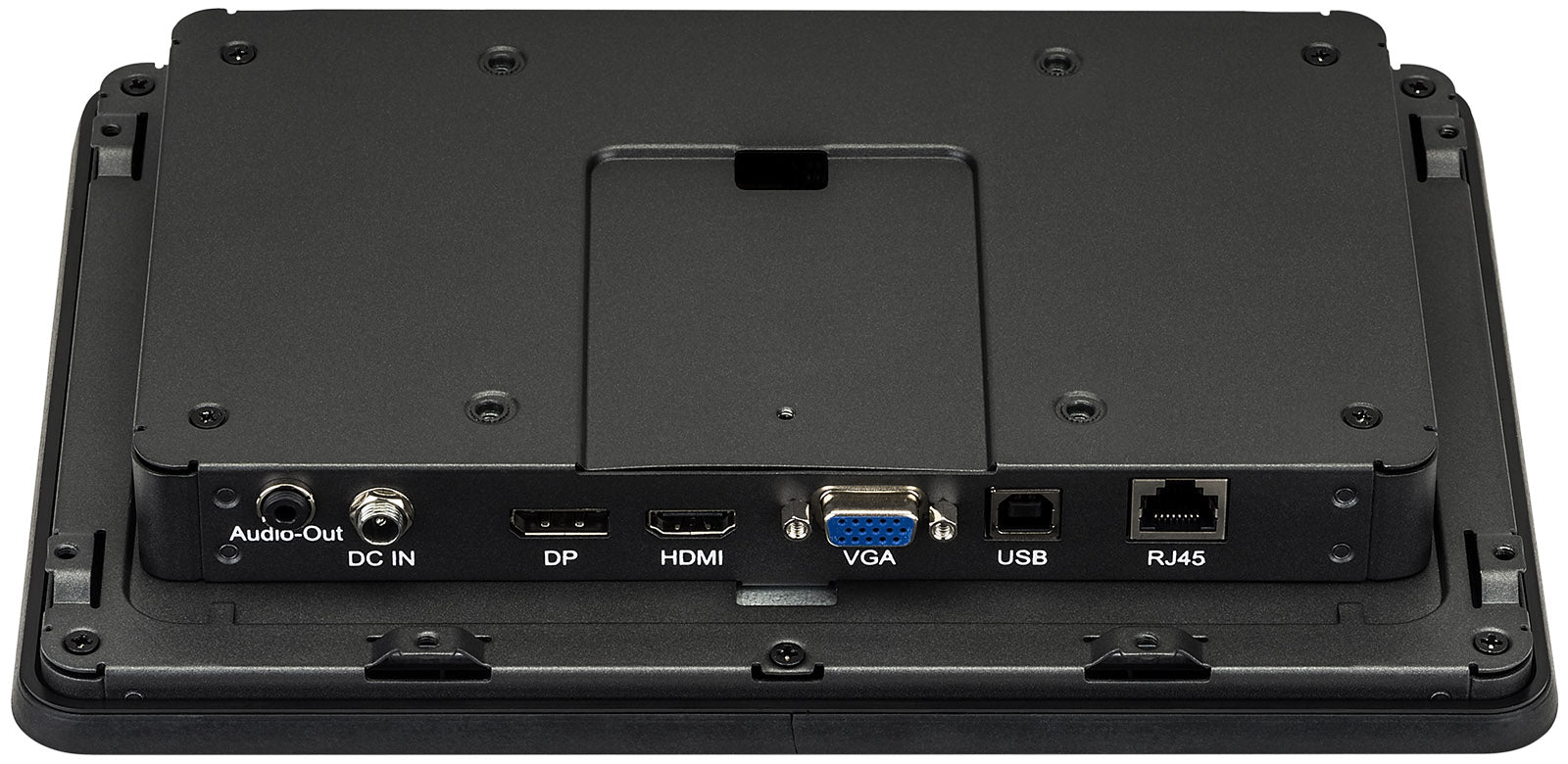

    Analog Signal Input VGA x1
    Digital Signal Input HDMI x1, DisplayPort x1
    Monitor Control Input RJ45 (LAN) x1
    Audio Output Mini jack x1
    HDCP yes
    USB Ports x1
    Extra Features anti-fingerprint coating, touch through-glass
    Glass Thickness 3.3mm
    Glass Hardness 7H
    Ball Drop Test yes
    Water and Dust Protection IP65 (front)
    Water Tight Seal yes
    OSD Key Lock yes
    OSD Languages EN, DE, FR, ES, IT, CN, JP
    Control Buttons Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
    User Controls Various settings including contrast, brightness, and advanced color adjustments
    Plug&Play DDC2B
    Orientation landscape, portrait, face-up

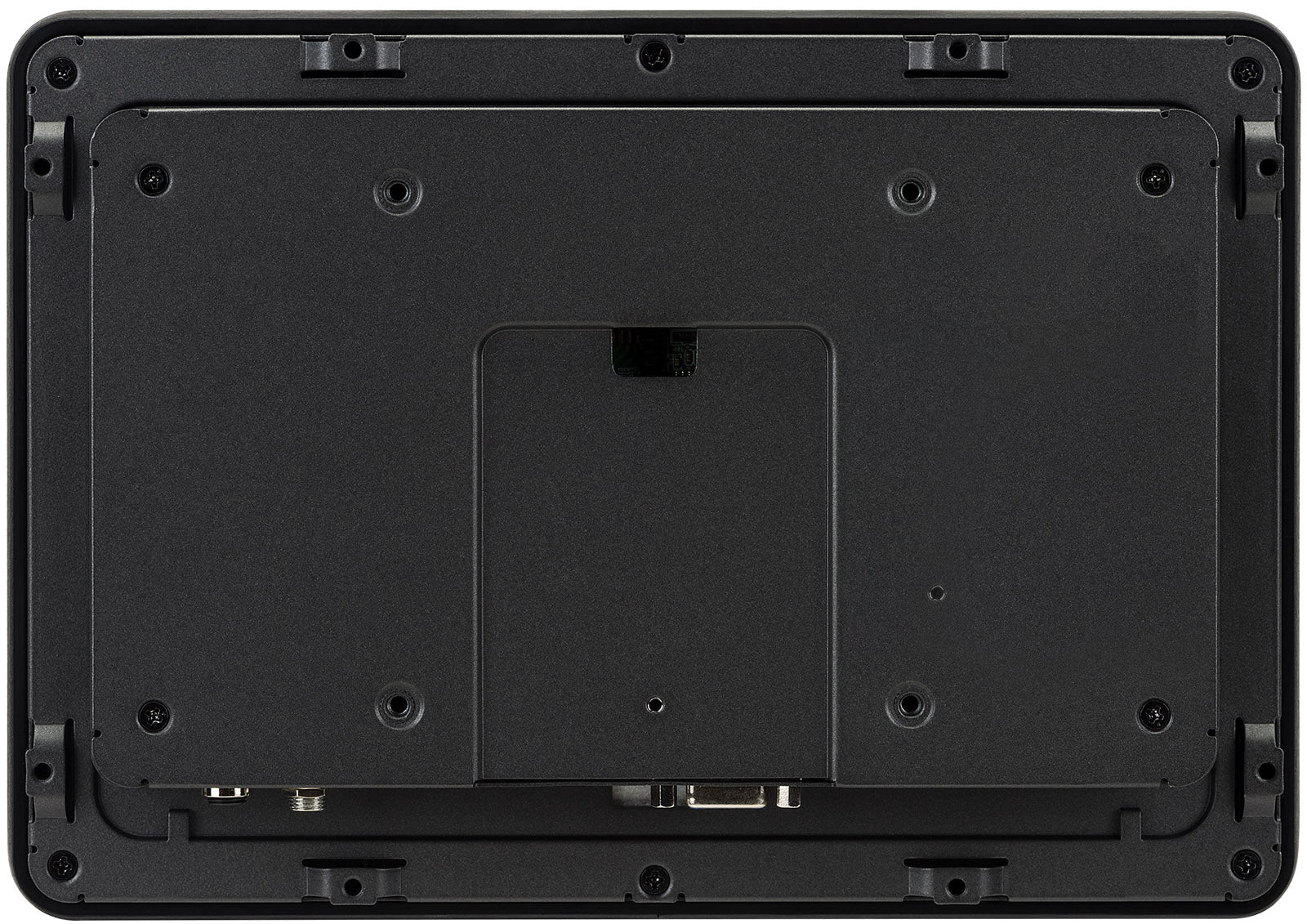

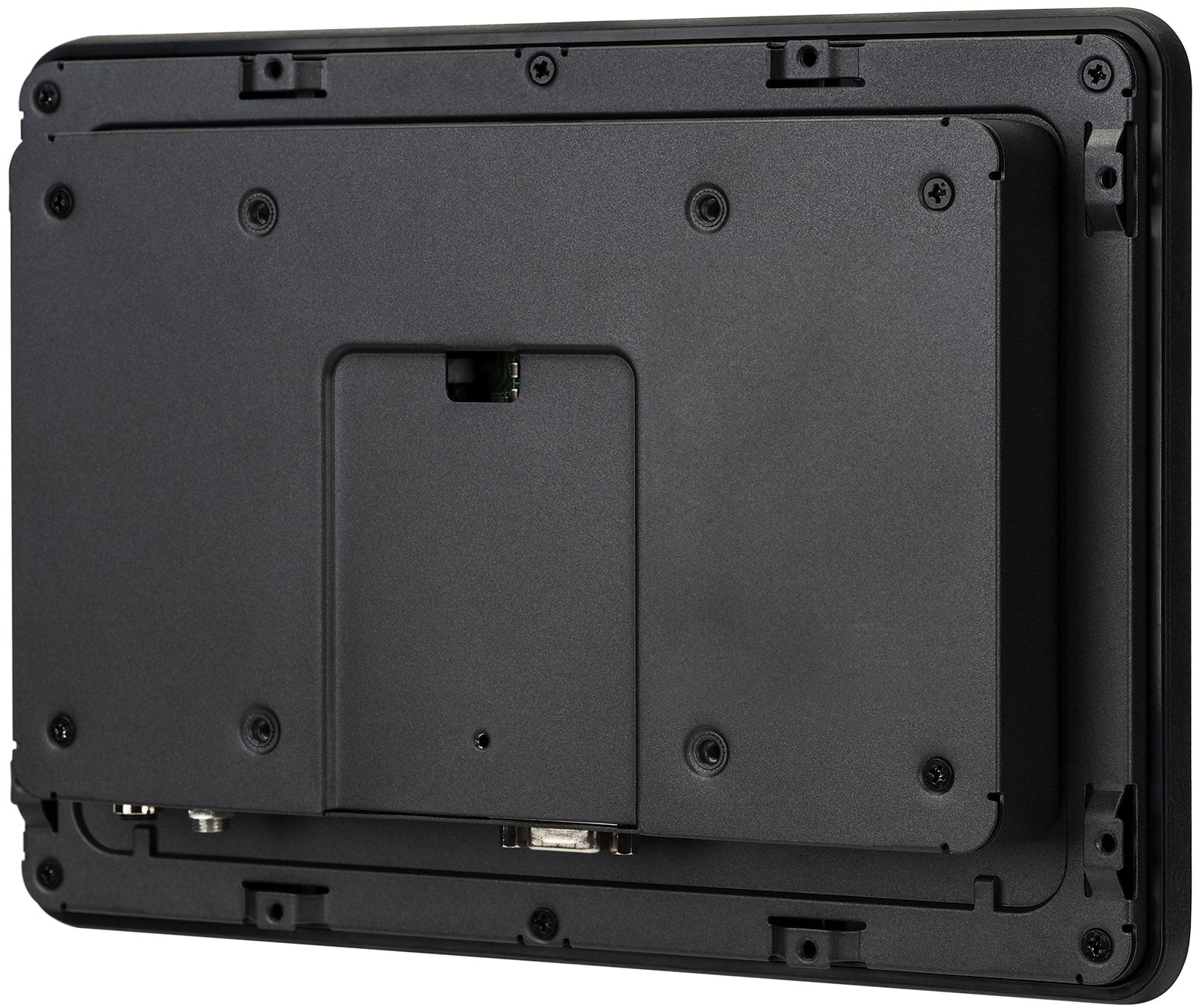

    VESA Mounting 100 x 100mm
    Operation Temperature Range 0°C - 40°C
    Storage Temperature Range -20°C - 60°C
    MTBF 50000 hours

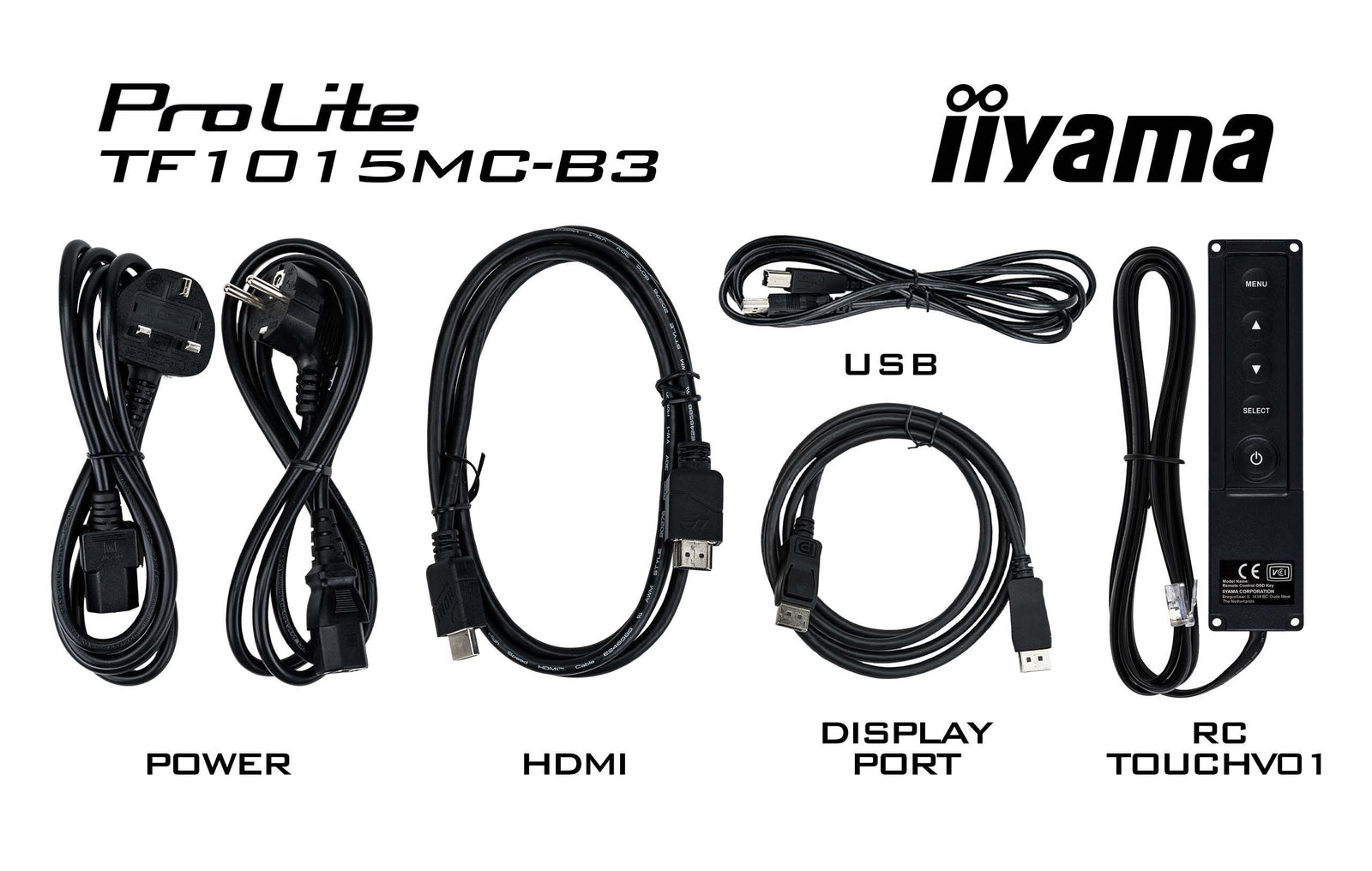

    Included Accessories power cable, USB cable, HDMI cable, DP cable, quick start guide, safety guide, AC adapter, external control pad, cable cover, remote control
    Power Management external PSU, DC 12 V, 6W typical, 1.5W stand by, 0.3W off mode
    Regulations CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
    Energy Efficiency Class C (Regulation (EU) 2017/1369)
    REACH SVHC above 0.1%: Lead
    Product Dimensions W x H x D 260.5 x 183.5 x 39.5mm
    Box Dimensions W x H x D 310 x 160 x 370mm
    Weight (without box) 1.4kg
    Weight (without stand) 2.7kg
    EAN Code 4948570124107
