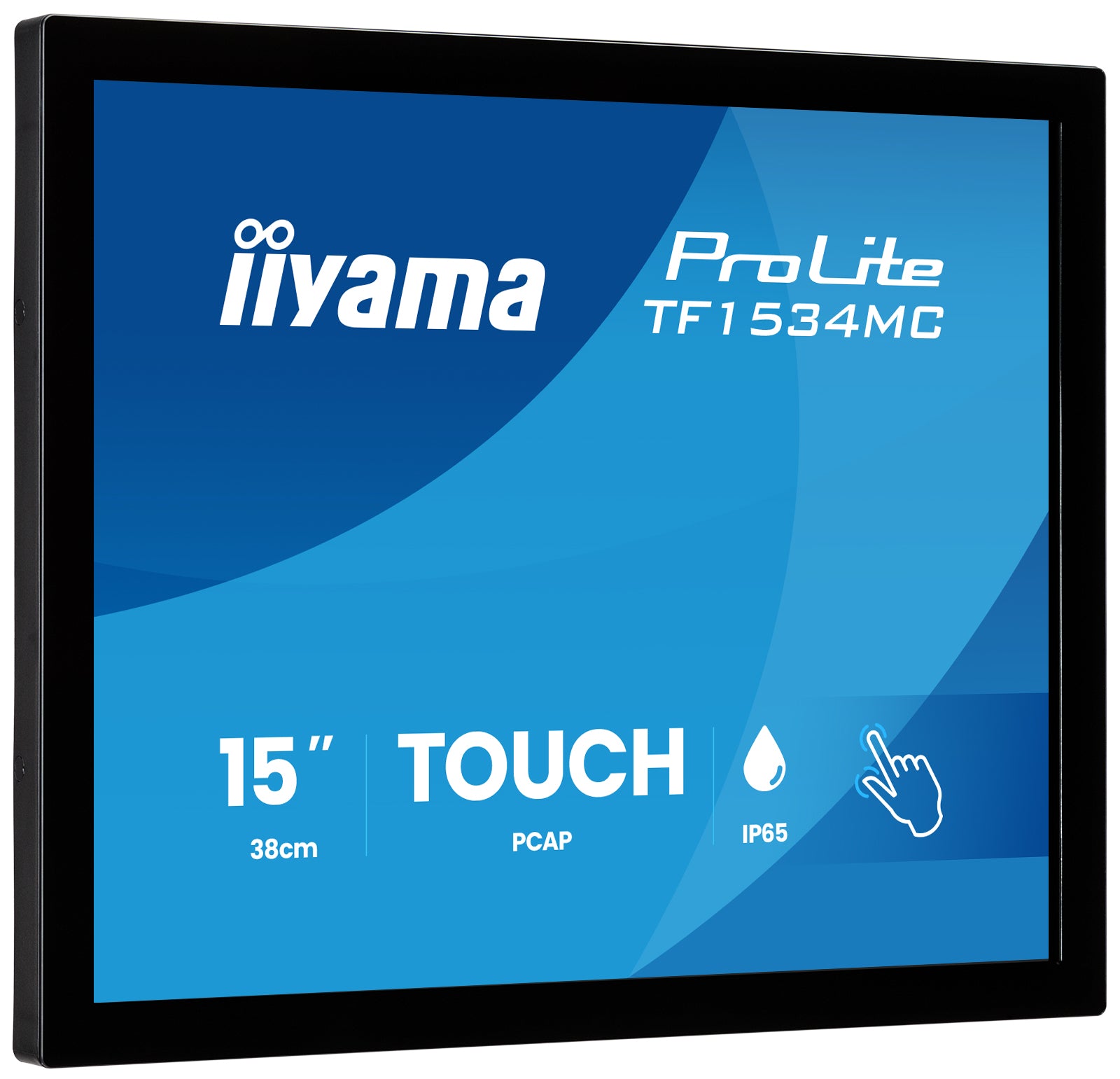

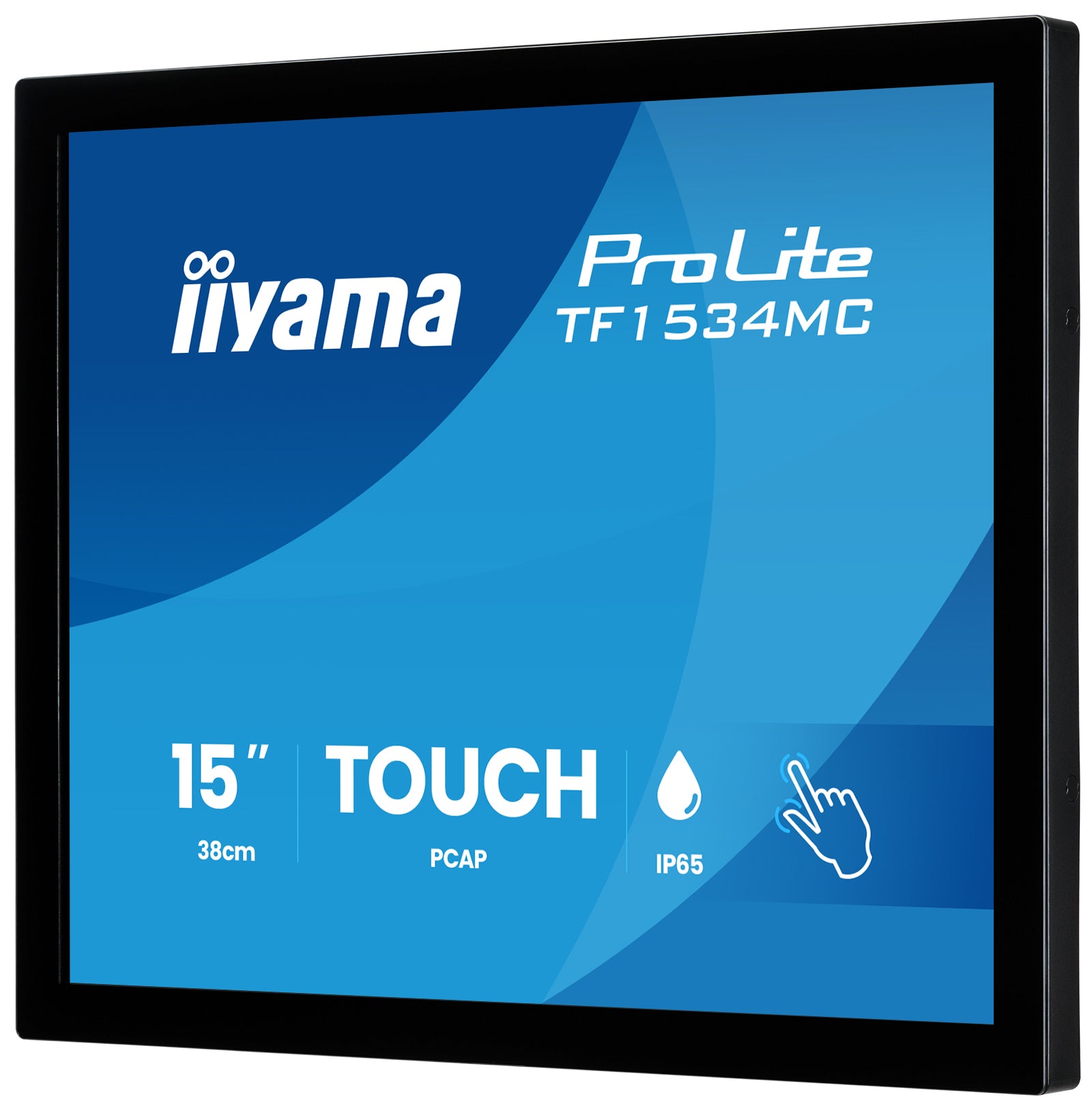

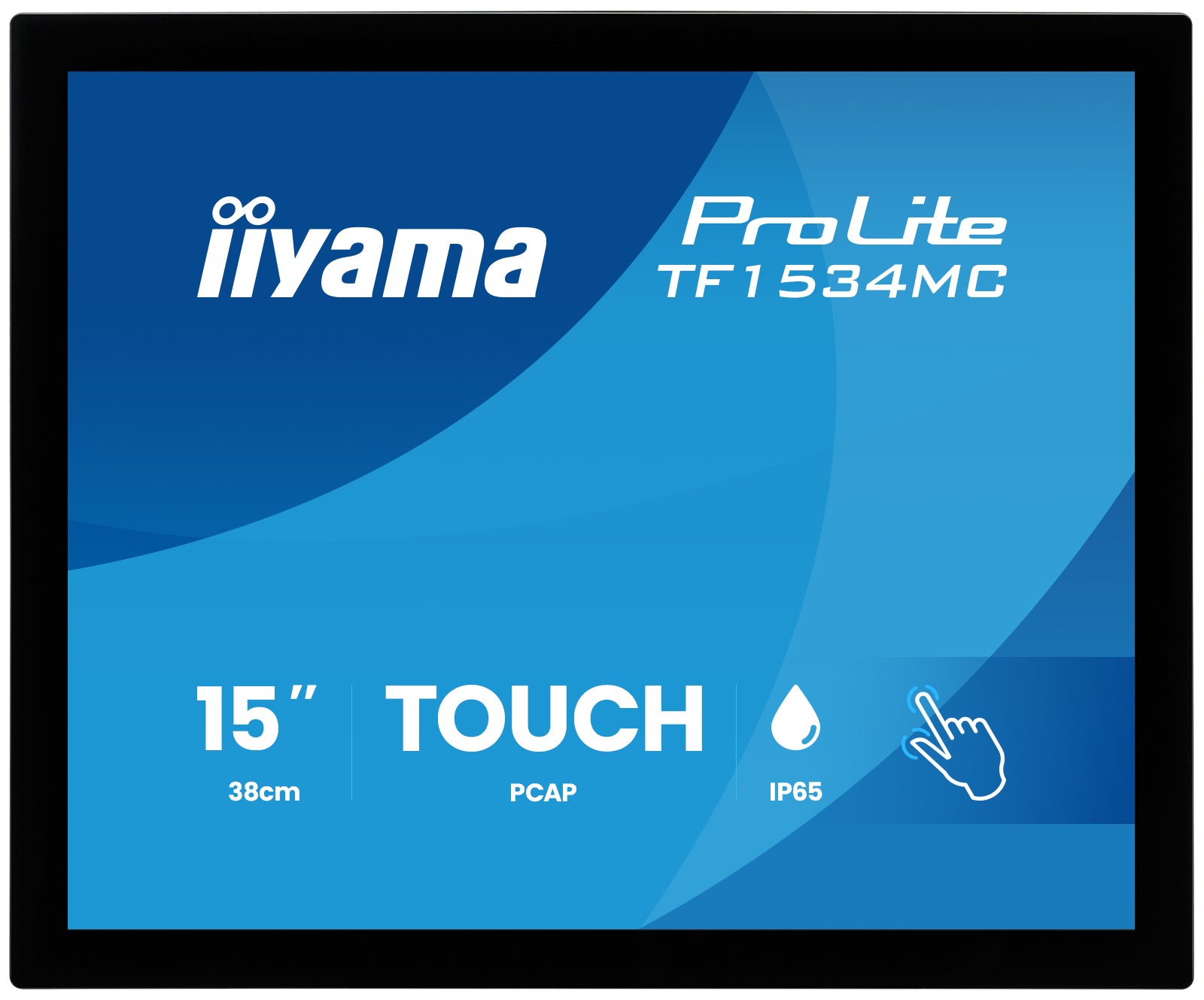

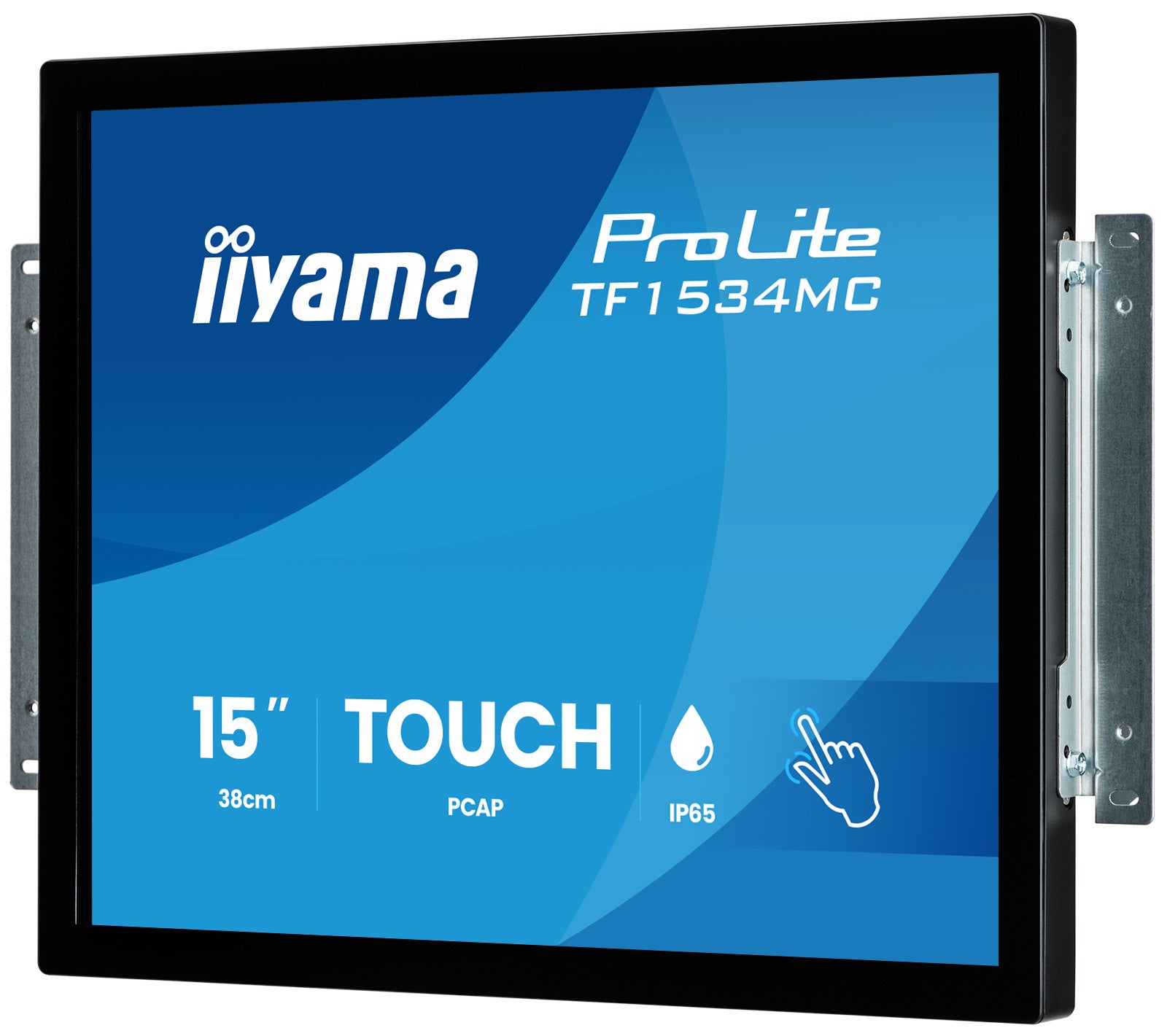

The ProLite TF1534MC-B8X is a 15” Open Frame touchscreen monitor designed for integration into kiosks, retail systems, interactive displays and custom installations. Its 10-point PCAP touch technology provides accurate multi-touch operation, while the edge-to-edge glass surface offers durability, scratch resistance and a clean, professional appearance.
With IP65-rated front protection, the screen is resistant to dust and splashing water from the front, making it suitable for demanding public and commercial environments. The anti-fingerprint coating helps keep the display clear and easy to use, even with frequent interaction.
For applications requiring additional protection, the Touch Through-Glass function allows reliable touch operation through a glass overlay up to 6 mm. The monitor can be installed in landscape, portrait or face-up orientation, while optional Open Frame mounting brackets support easy and secure integration into different installation designs.For ease of integration, the monitor can be equipped with optional external mounting brackets (OMK1-1).
Touch works. Glass protects.
The display remains fully touch-responsive even when installed behind a protective glass layer. Ideal for kiosks, parcel lockers, self-service terminals and other public-facing installations where durability matters.
Reliable where conditions get tough
IP65 protection helps the monitor withstand dusty conditions and splashing water from any direction, making it suitable for more demanding environments.

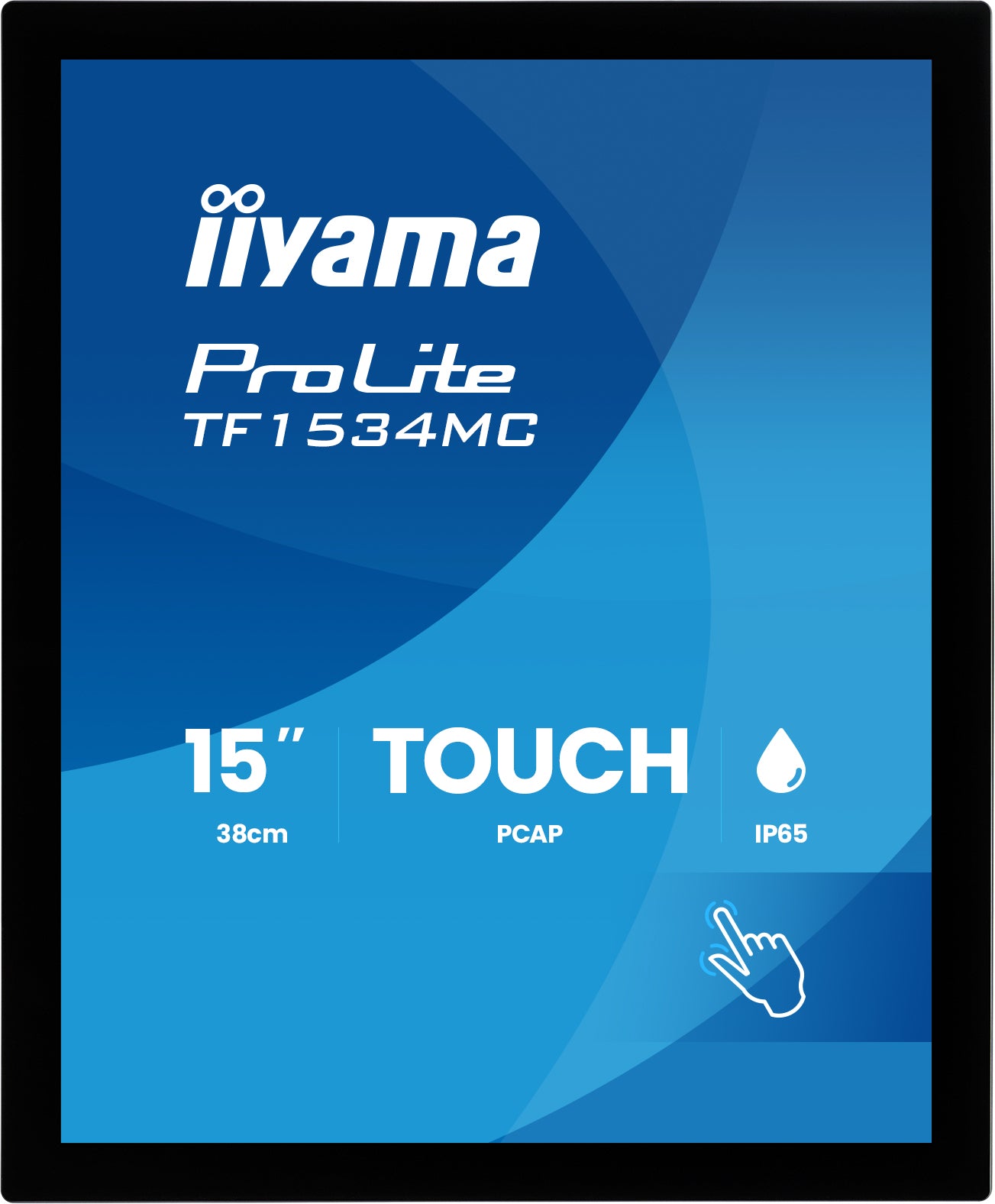

Versatile by design
From wall-mounted interfaces to counter-based interaction, the monitor supports landscape, portrait and face-up installation, giving integrators more freedom to create intuitive touch solutions.

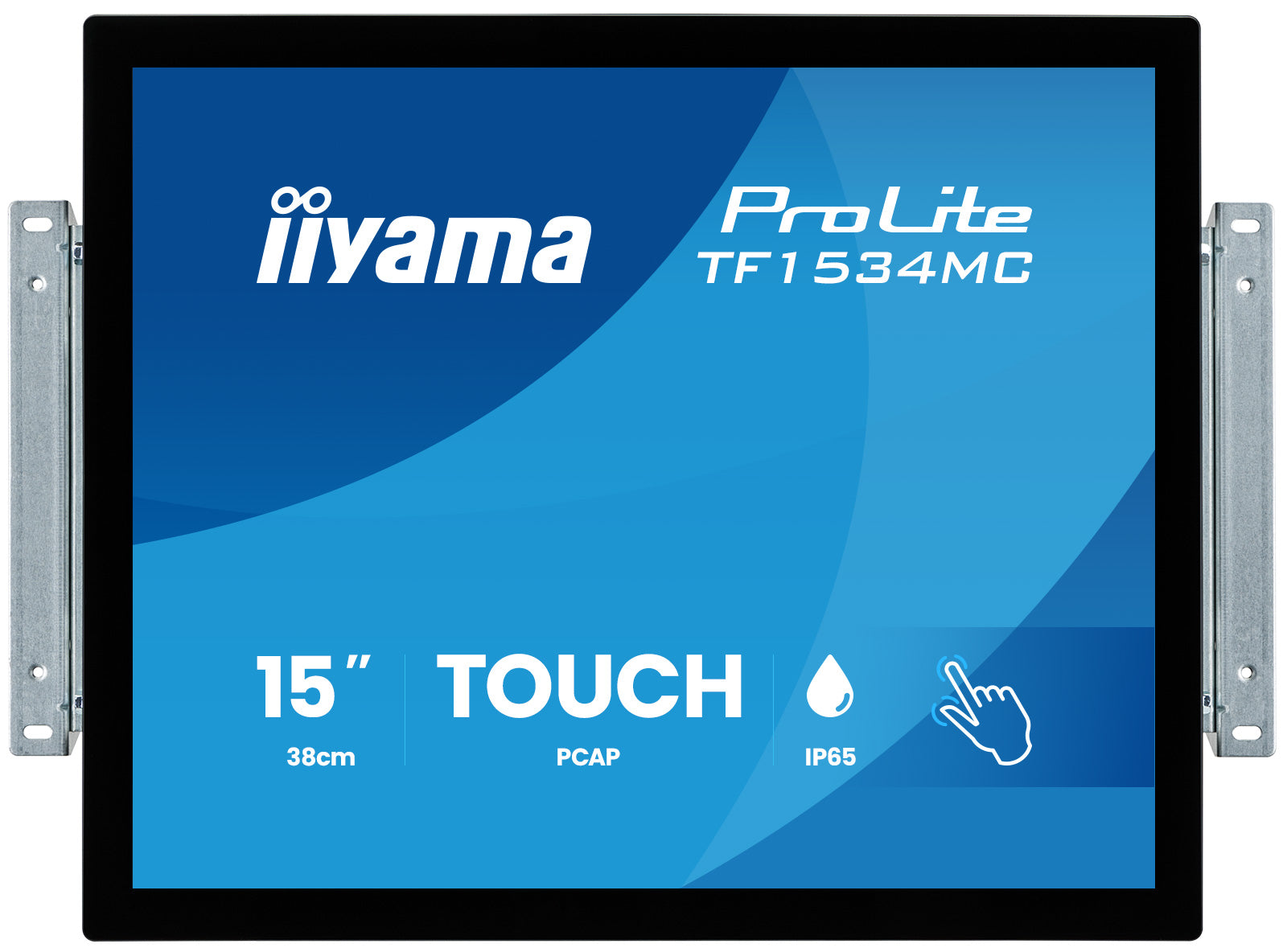

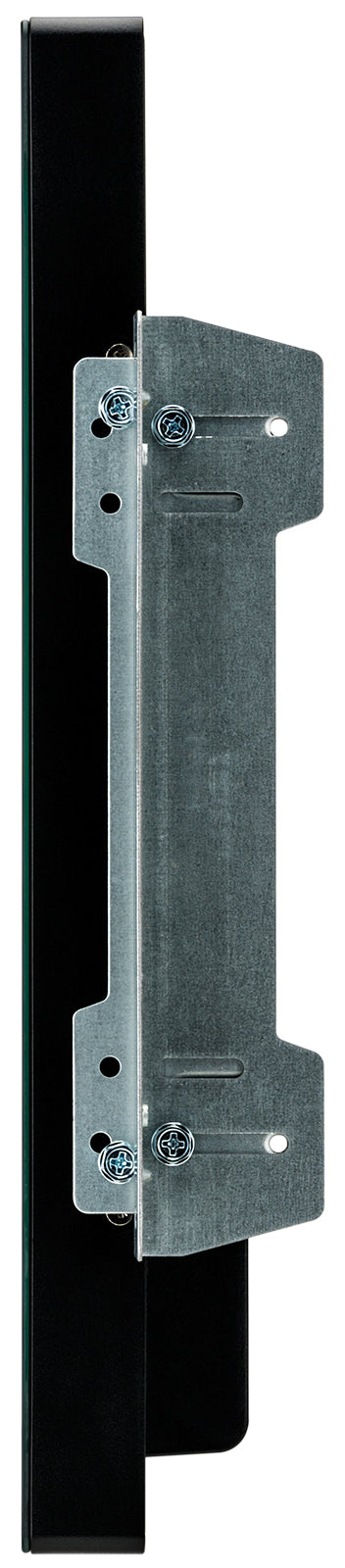

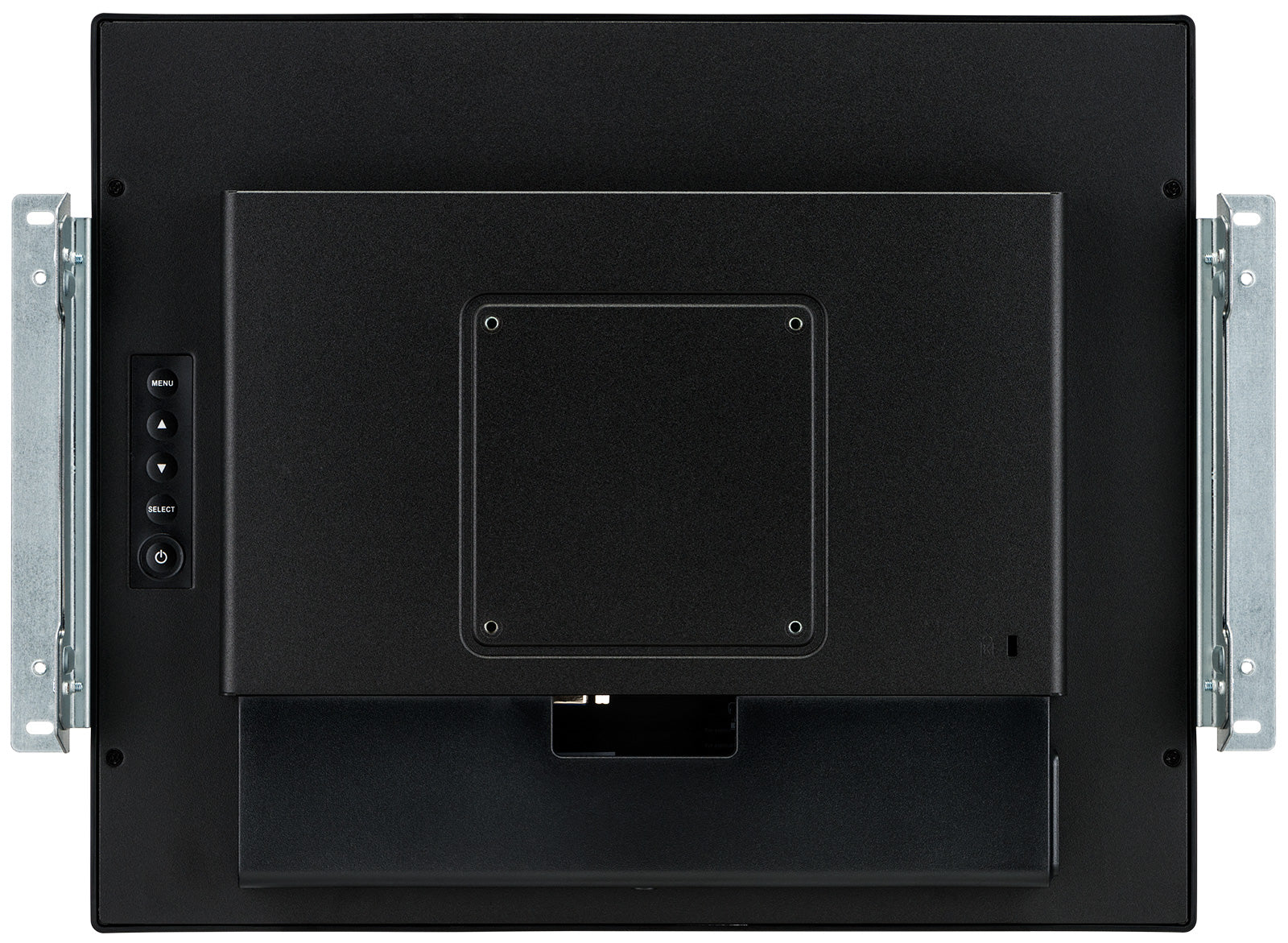

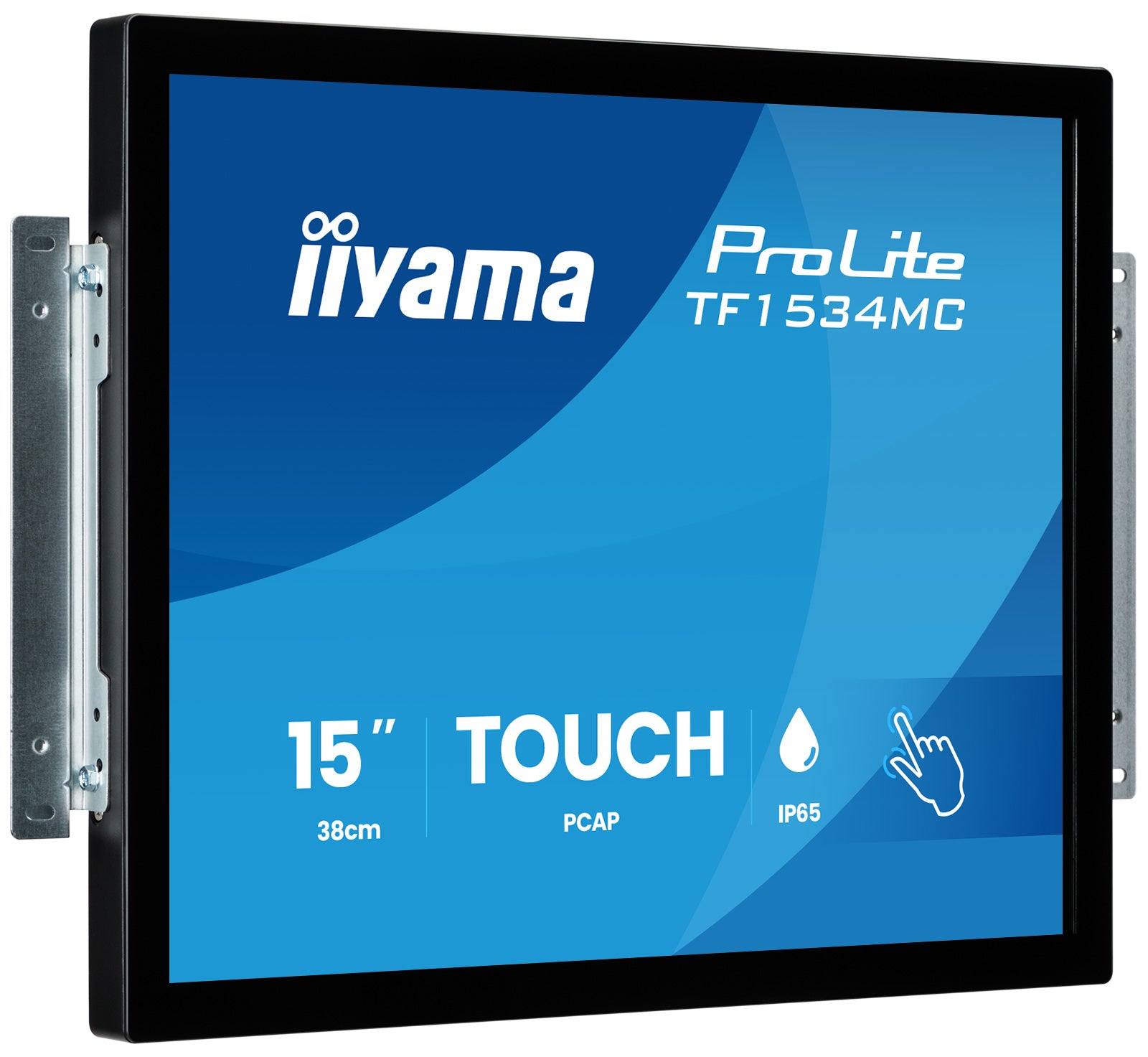

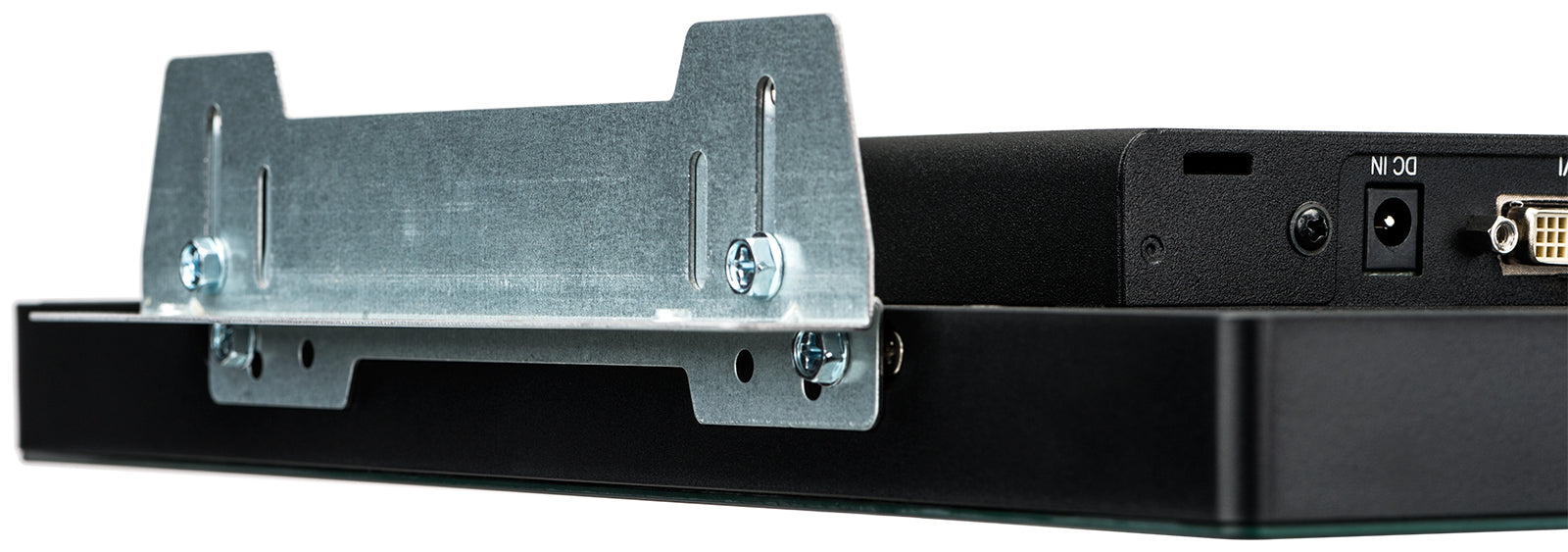

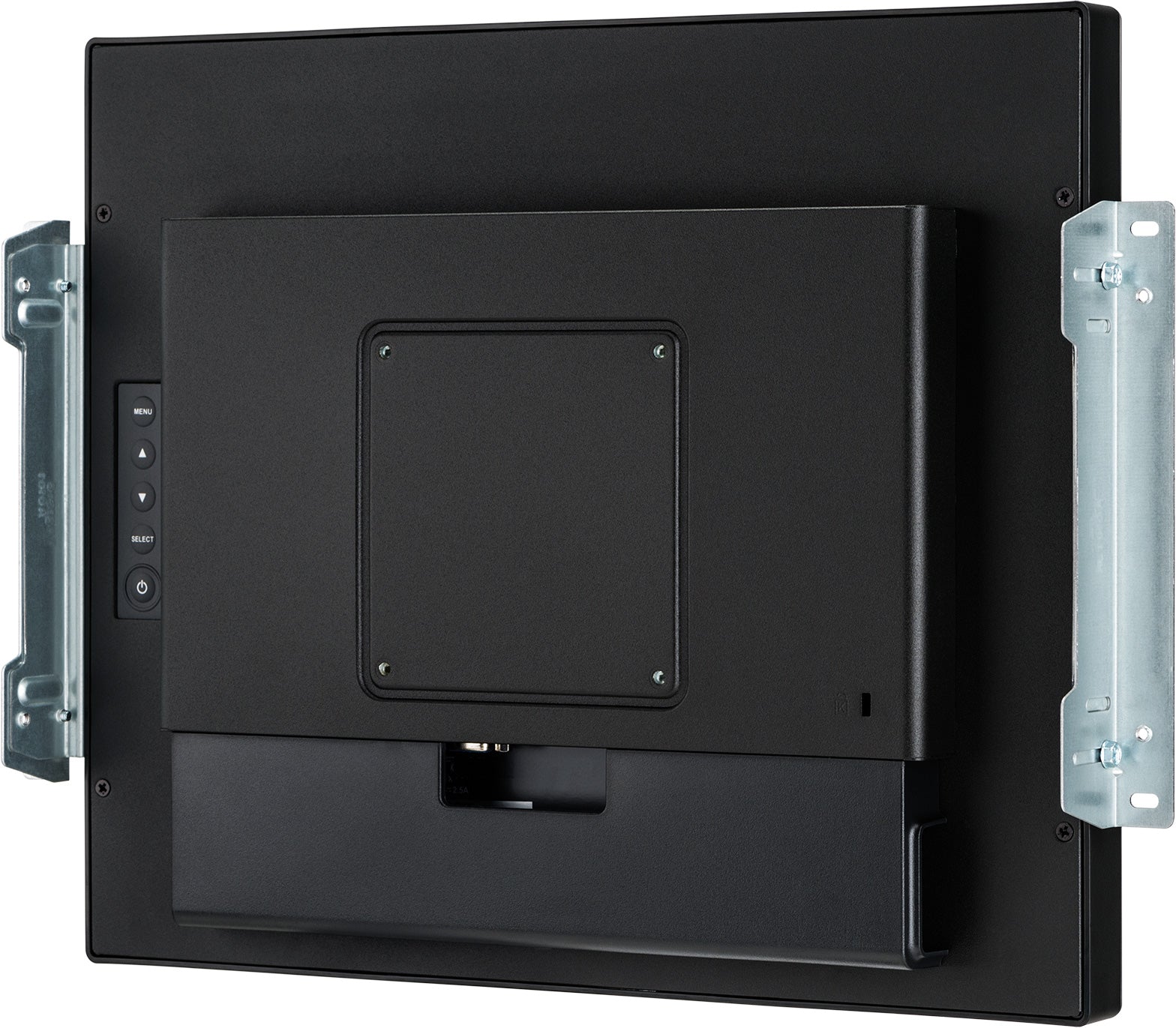

Open frame brackets
For ease of integration, the monitor can be equipped with optional external mounting brackets.
| Display Characteristics | |||
| Design | Edge to edge glass, Open Frame | Diagonal | 15", 38cm |
| Panel | TN | Native resolution | 1024 x 768 @75Hz (0.8 megapixel) |
| Aspect ratio | 4:3 | Panel brightness | 350 cd/m² |
| Brightness | 301 cd/m² with touch | Light transmittance | 86% |
| Static contrast | 800:1 | Response time (BTB) | 8ms |
| Viewing zone | Horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80° | Colour support | 16.2mln (6bit + Hi-FRC) |
| Horizontal Sync | 31 - 60kHz | Viewable area W x H | 304 x 228mm, 12 x 9" |
| Pixel pitch | 0.297mm | Bezel colour and finish | Black, matte |
| Touch | |||
| Touch technology | Projective capacitive | Touch points | 10 (HID, only with supported OS) |
| Touch accuracy | +- 2mm | Touch method | Stylus, finger, glove (latex) |
| Touch interface | USB | Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Through-Glass | 6mm | Palm rejection | Yes |
| Interfaces / Connectors / Controls | |||
| Analog signal input | VGA x1 | Digital signal input | HDMI x1 |
| DisplayPort | DisplayPort x1 | HDCP | Yes |
| Features | |||
| Extra | Anti-fingerprint coating, touch through-glass | Glass hardness | 7H |
| 60950 Ball drop test | Yes | Water and dust protection | IP65 (front) |
| OSD key lock | Yes | ||
| General | |||
| OSD languages | EN, DE, FR, ES, IT, CN, JP | Control buttons | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| User controls | Picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory) | Convenience | Kensington-lock™ prepared |
| Plug&Play | DDC2B | ||
| Mechanical | |||

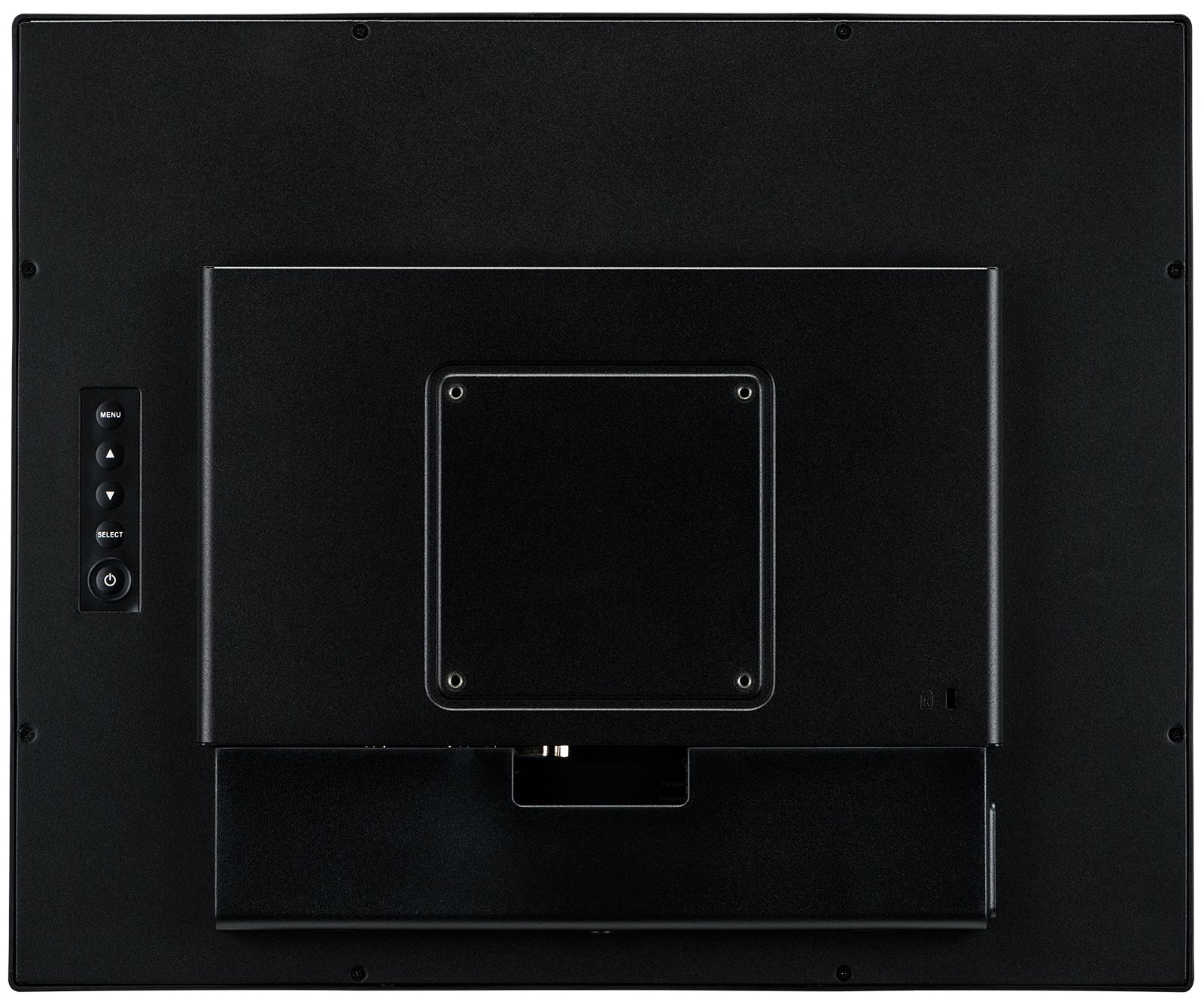

| Orientation | Landscape, portrait, face-up | VESA mounting | 100 x 100mm |
| MTBF | 50000 hours | ||
| Accessories Included | |||

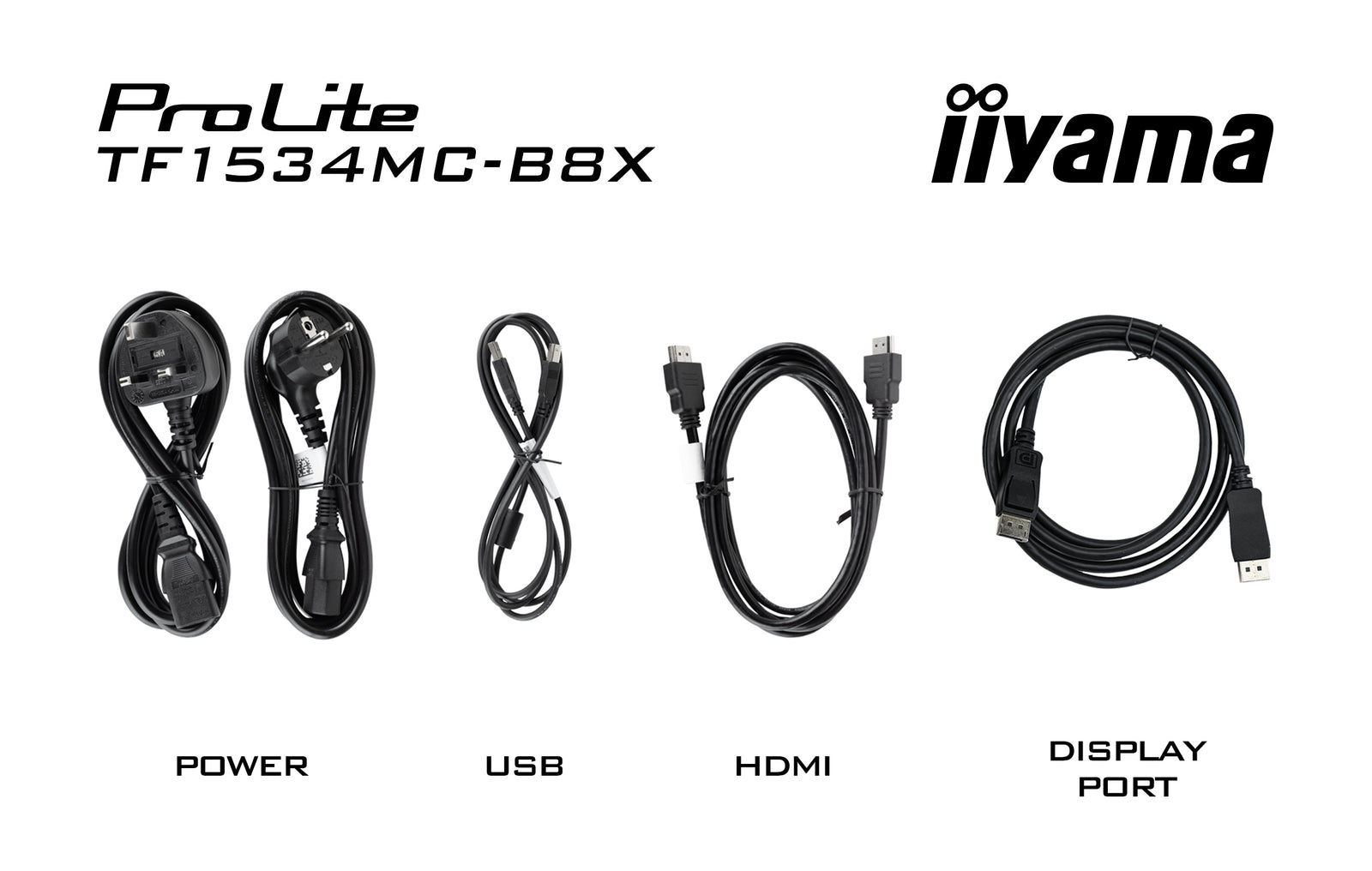

| Cables | Power (1.8m), USB (1.8m), HDMI (1.8m), DP (1.8m) | Guides | Quick start guide, safety guide |
| Other | AC adapter | Cable cover | Yes |
| Power Management | |||
| Power supply unit | External | Power supply | DC 12 V |
| Power usage | 9W typical, 1.5W stand by, 0.3W off mode | ||
| Sustainability | |||
| Regulations | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA | Energy efficiency class (Regulation (EU) 2017/1369) | D |
| REACH SVHC | Above 0.1%: Lead, Lead monoxide, Boric acid | ||
| Dimensions / Weight | |||
| Product dimensions W x H x D | 338 x 267 x 45mm | Box dimensions W x H x D | 355 x 165 x 435mm |
| Pallet dimensions W x H x D | 910 x 2430 x 1140mm | Weight (without box) | 2.7kg |
| Weight (with box) | 4kg | EAN code | 4948570127801 |
