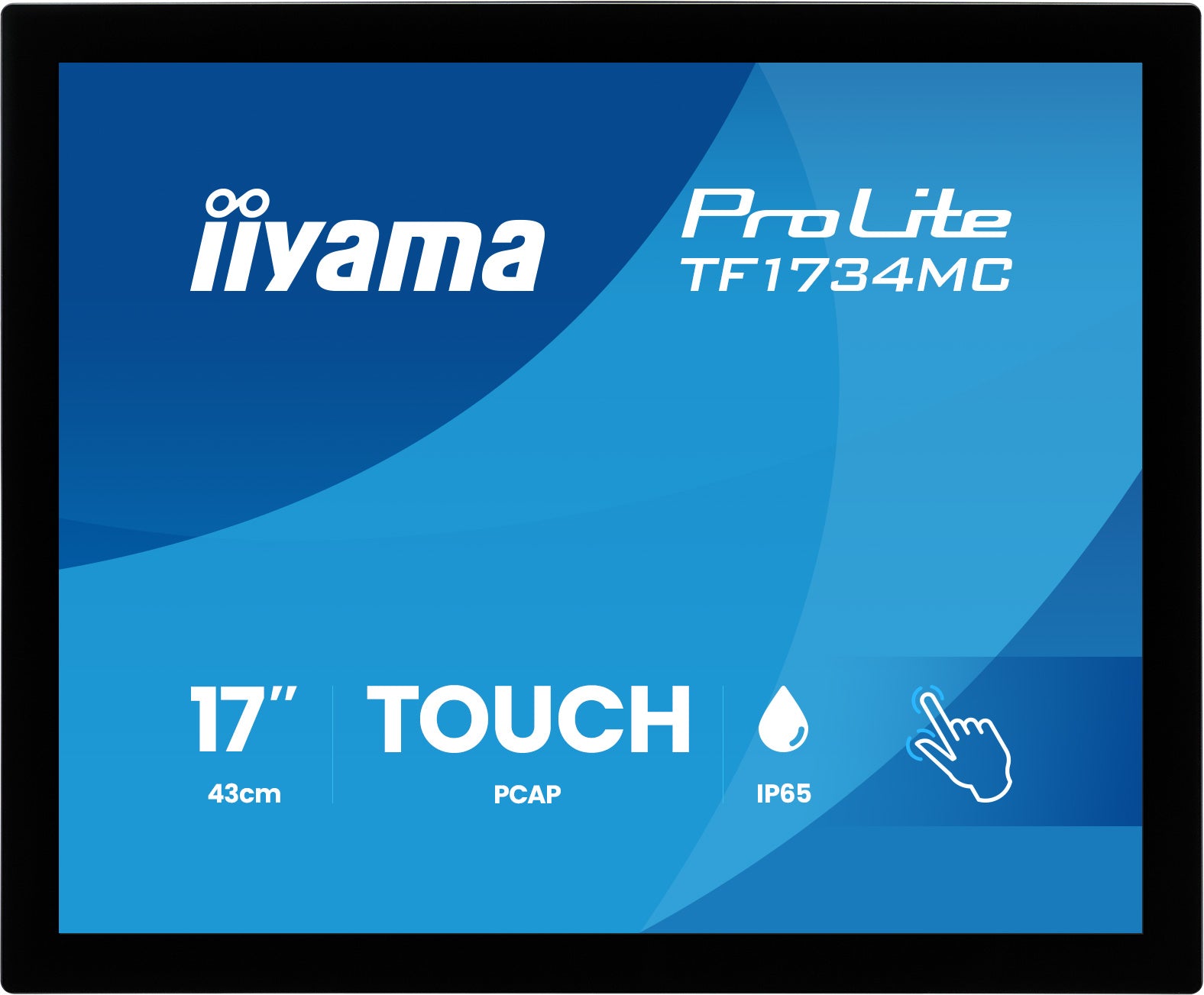

iiyama ProLite TF1734MC-B8X 17" Open Frame Touchscreen Monitor
SKU: TF1734MC-B8X
£347.20 (Excl. VAT)
- Display Size17"
- Touch Capabilities10pt multi-touch
- Net Weight3.6kg
- Operating SystemNone
- VESA Patterns100x100
- Panel TypeTN Panel
- Description
- Specifications
- Downloads
-

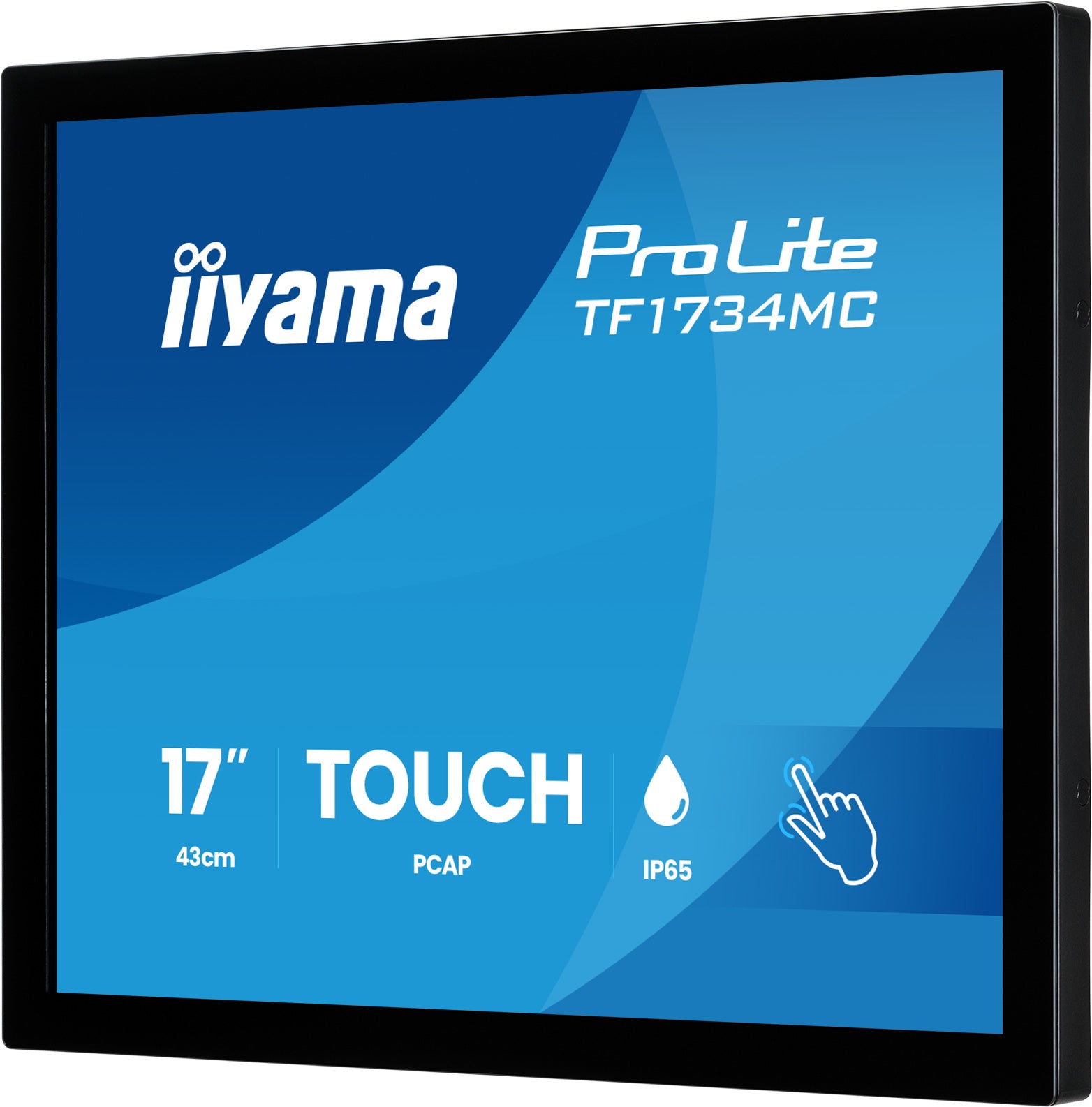

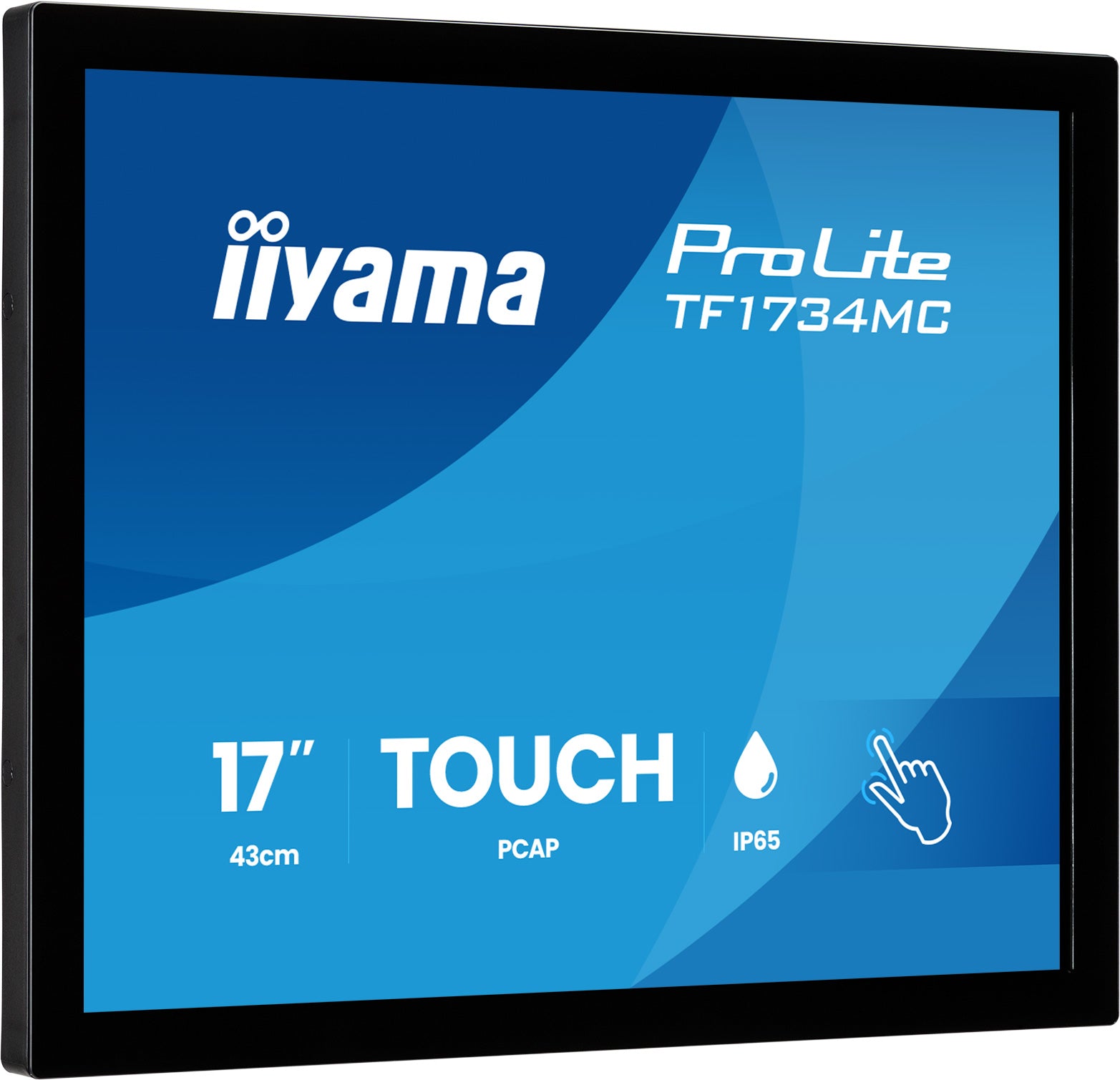

17” PCAP Touch Monitor with IP65 Front Protection
The ProLite TF1734MC-B8X is a 17” Open Frame touchscreen monitor designed for integration into kiosks, retail systems, interactive displays and custom installations. Its 10-point PCAP touch technology provides accurate multi-touch operation, while the edge-to-edge glass surface offers durability, scratch resistance and a clean, professional appearance.
With IP65-rated front protection, the screen is resistant to dust and splashing water from the front, making it suitable for demanding public and commercial environments. The anti-fingerprint coating helps keep the display clear and easy to use, even with frequent interaction.
For applications requiring additional protection, the Touch Through-Glass function allows reliable touch operation through a glass overlay up to 6 mm. The monitor can be installed in landscape, portrait or face-up orientation, while optional Open Frame mounting brackets support easy and secure integration into different installation designs.For ease of integration, the monitor can be equipped with optional external mounting brackets (OMK1-1).
Touch works. Glass protects.
The display remains fully touch-responsive even when installed behind a protective glass layer. Ideal for kiosks, parcel lockers, self-service terminals and other public-facing installations where durability matters.
Reliable where conditions get tough
IP65 protection helps the monitor withstand dusty conditions and splashing water from any direction, making it suitable for more demanding environments.
Versatile by design

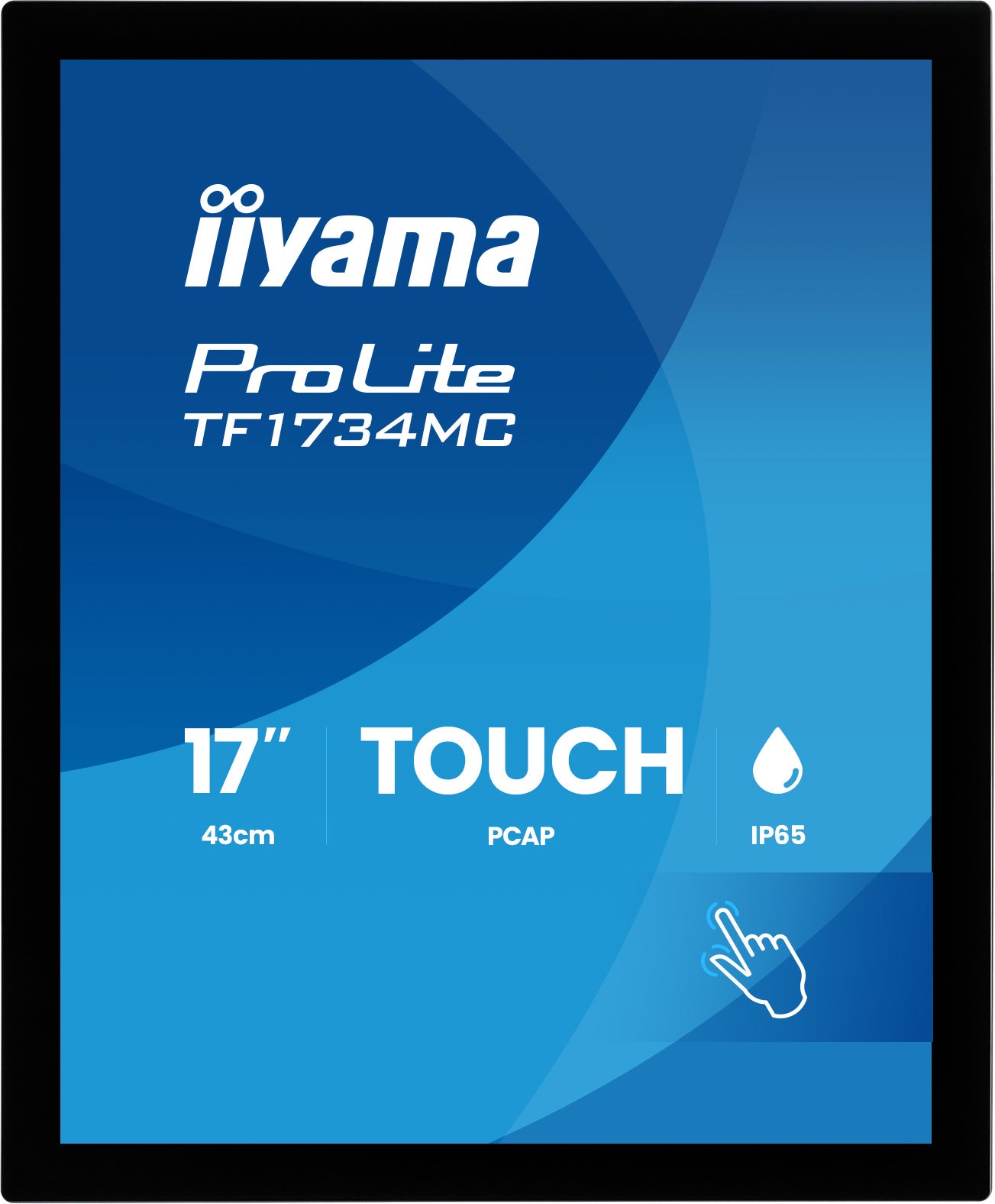

From wall-mounted interfaces to counter-based interaction, the monitor supports landscape, portrait and face-up installation, giving integrators more freedom to create intuitive touch solutions.

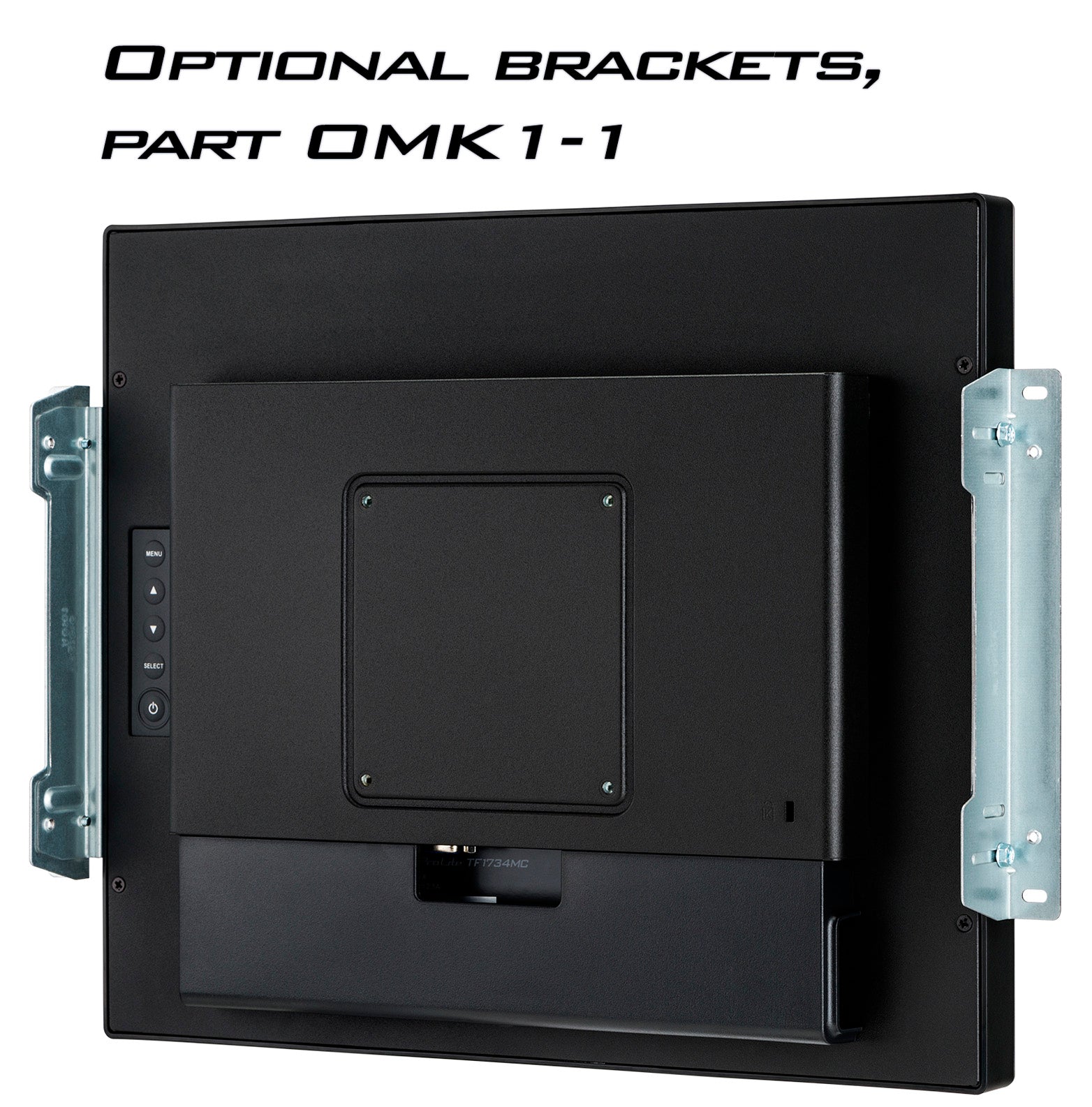

Open frame brackets
For ease of integration, the monitor can be equipped with optional external mounting brackets.
-
Design Edge to edge glass, Open Frame Diagonal 17", 43cm Panel TN Native resolution 1280 x 1024 @75Hz (1.3 megapixel) Aspect ratio 5:4 Panel brightness 350 cd/m² Brightness 300 cd/m² with touch Light transmittance 85% Static contrast 1000:1 with touch Response time (BTB) 5ms Viewing zone Horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80° Colour support 16.7mln Horizontal Sync 31 - 80kHz Viewable area W x H 338 x 270mm, 13.3 x 10.6" Pixel pitch 0.264mm Bezel colour and finish Black, matte Touch technology Projective capacitive Touch points 10 (HID, only with supported OS) Touch accuracy +- 2mm Touch method Stylus, finger, glove (latex) Touch interface USB Supported operating systems Plug & Play and compatible with Windows and Linux Through-Glass 6mm Palm rejection Yes Analog signal input VGA x1 Digital signal input HDMI x1, DisplayPort x1 HDCP Yes Extra Anti-fingerprint coating, touch through-glass Glass thickness 3mm 60950 Ball drop test Yes Water and dust protection IP65 (front) OSD key lock Yes OSD languages EN, DE, FR, ES, IT, PT, RU, JP, NL, PL Control buttons Menu, Scroll up/Brightness, Scroll down/Contrast, Select, Power User controls Picture, advanced, OSD, option controls Plug&Play DDC2B Orientation Landscape, portrait, face-up VESA mounting 100 x 100mm Cables Power (1.8m), USB (1.8m), HDMI (1.8m), DP (1.8m) Guides Quick start guide, safety guide Other AC adapter Cable cover Yes Power supply unit External Power supply DC 12 V Power usage 13W typical, 1.5W stand by, 0.3W off mode Regulations CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA Energy efficiency class E REACH SVHC Above 0.1%: Lead, Lead monoxide, Boric acid Product dimensions W x H x D 369 x 307 x 47.5mm Box dimensions W x H x D 387 x 145 x 455mm Weight (without box) 3.6kg Weight (with box) 5.2kg EAN code 4948570127818 -
Description Downloads User manual Download Technical specification Download Drawing Download UK Energy Label Download
