30pt PCAP 32" Open Frame Touchscreen Display
Open Frame PCAP 30 point touch screen with AG coating equipped with a foam seal finish for seamless integration

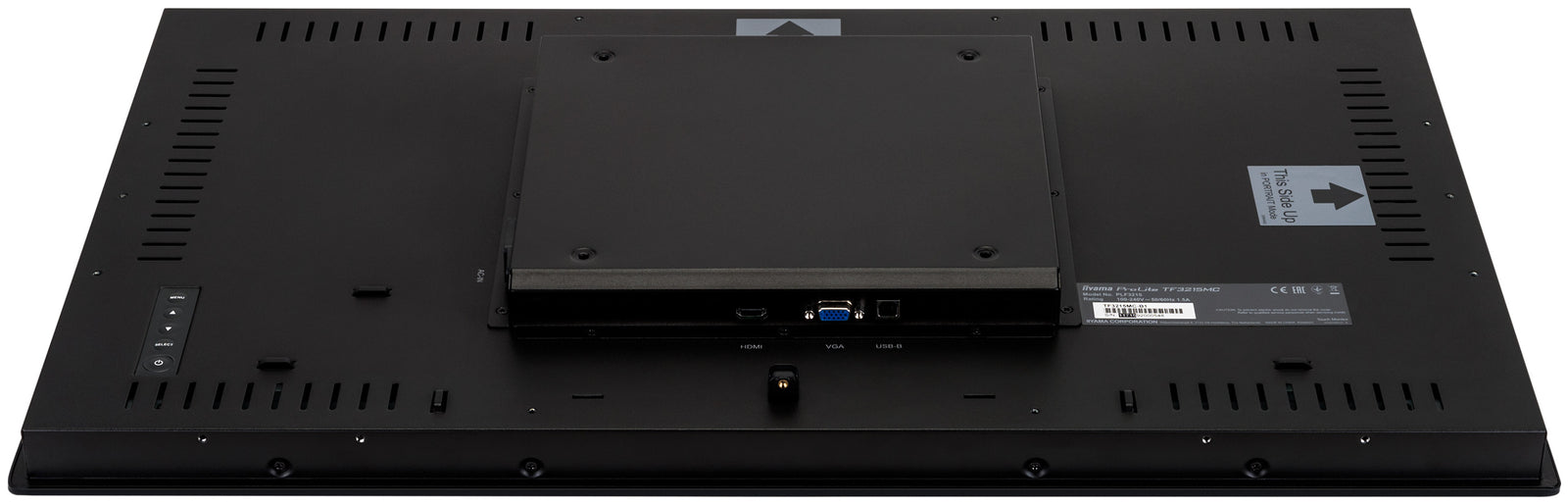

PROLITE TF3215MC-B1AG
Open Frame PCAP 30 point touch screen with AG coating equipped with a foam seal finish for seamless integration

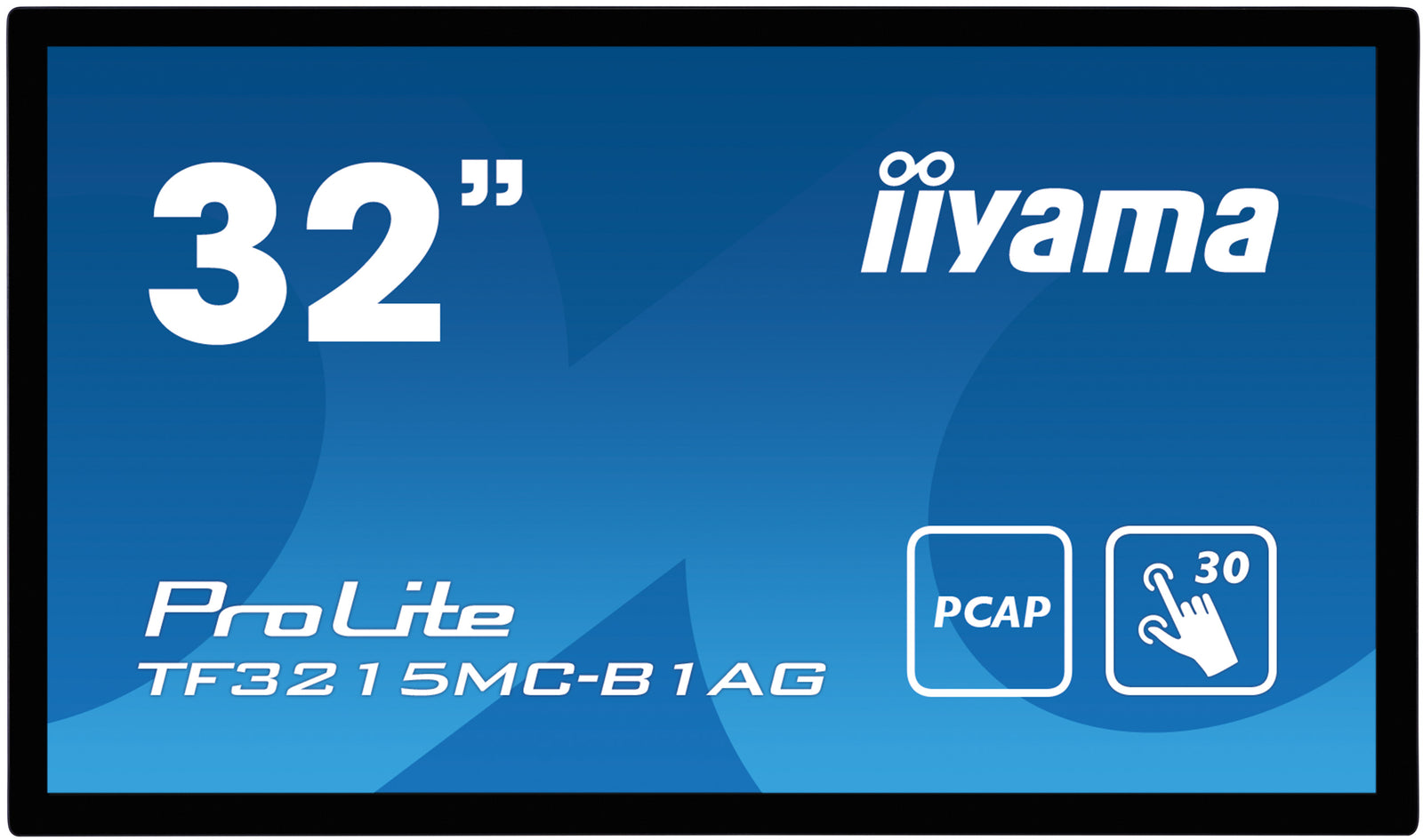

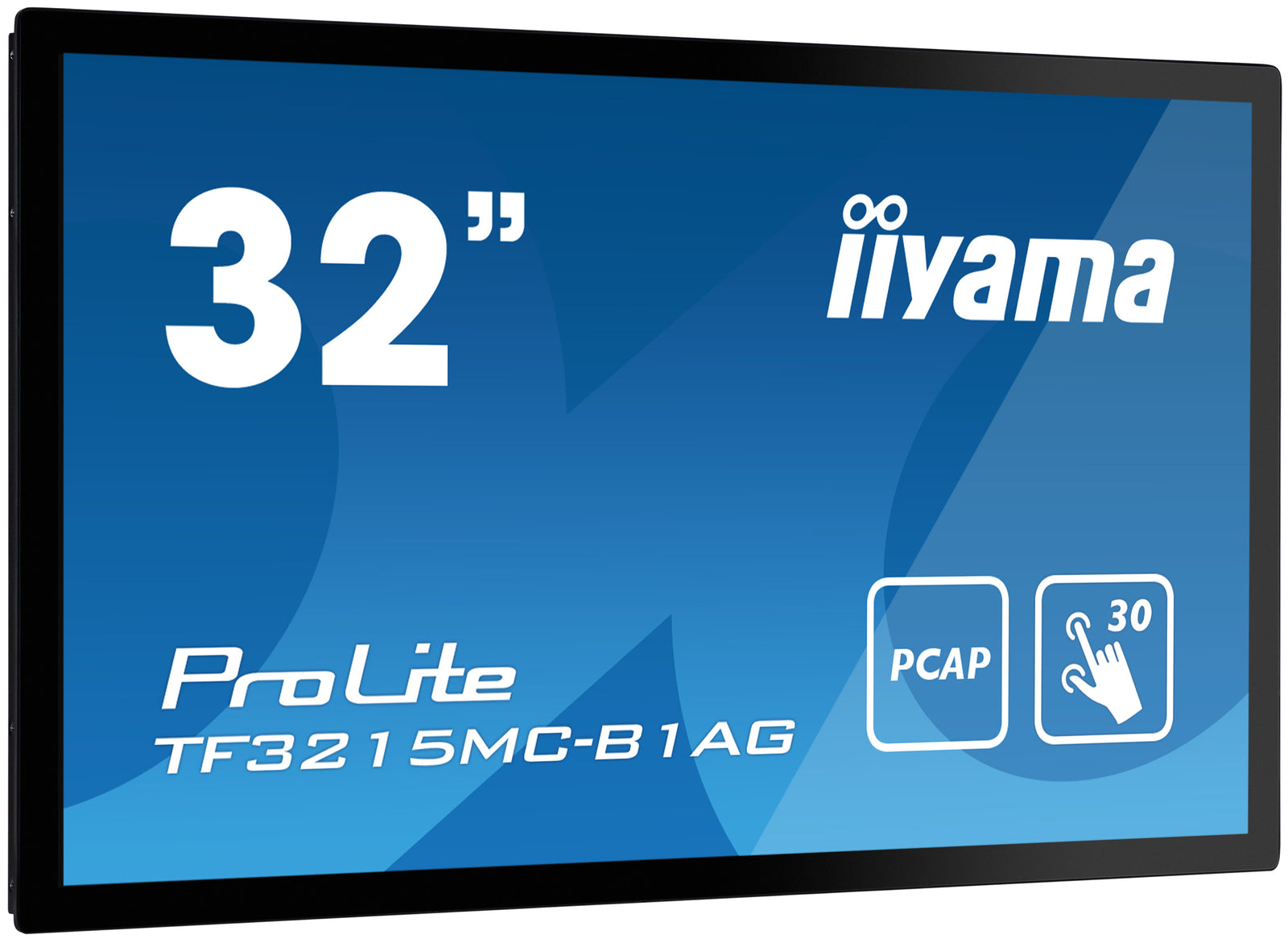

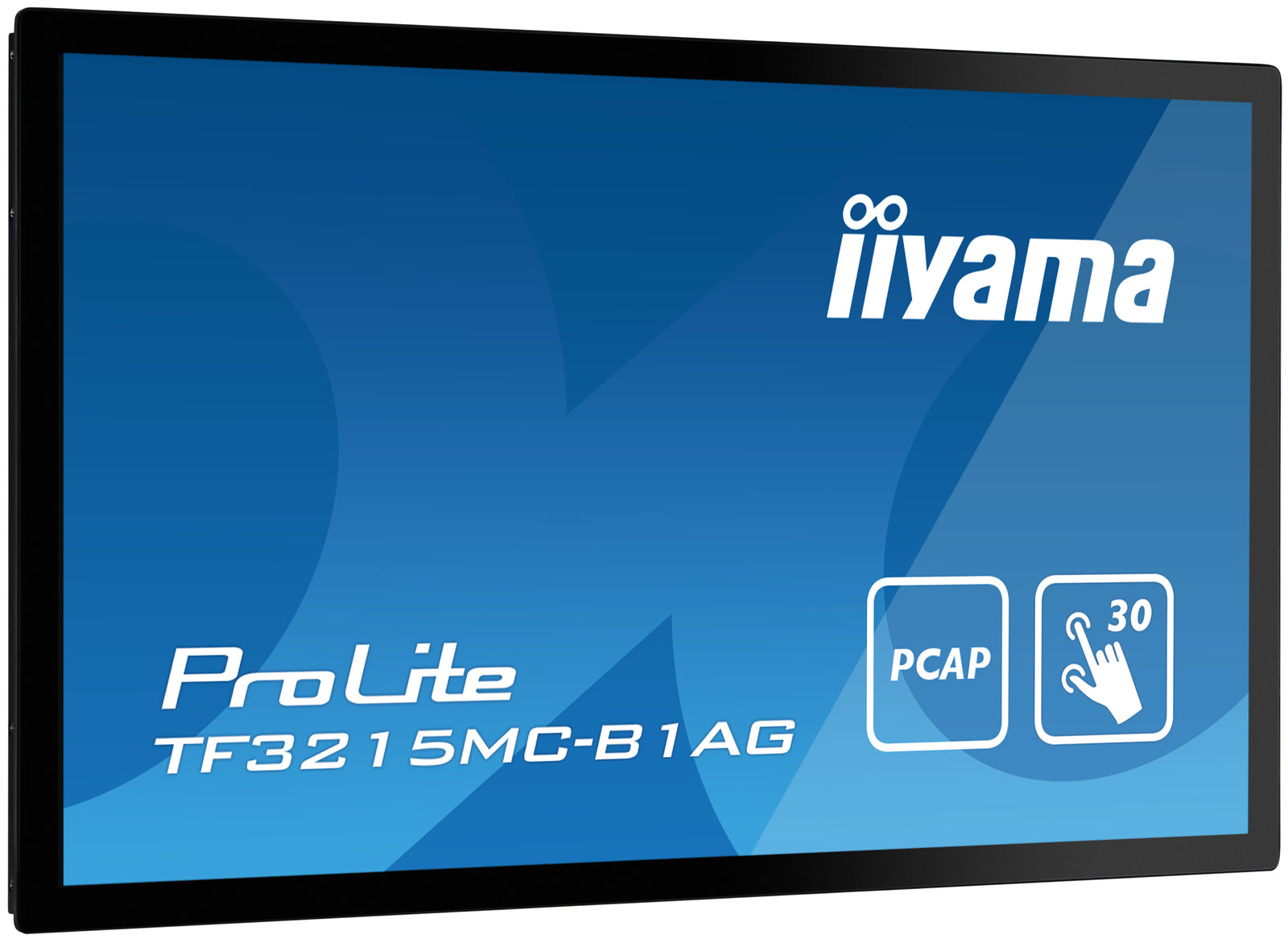

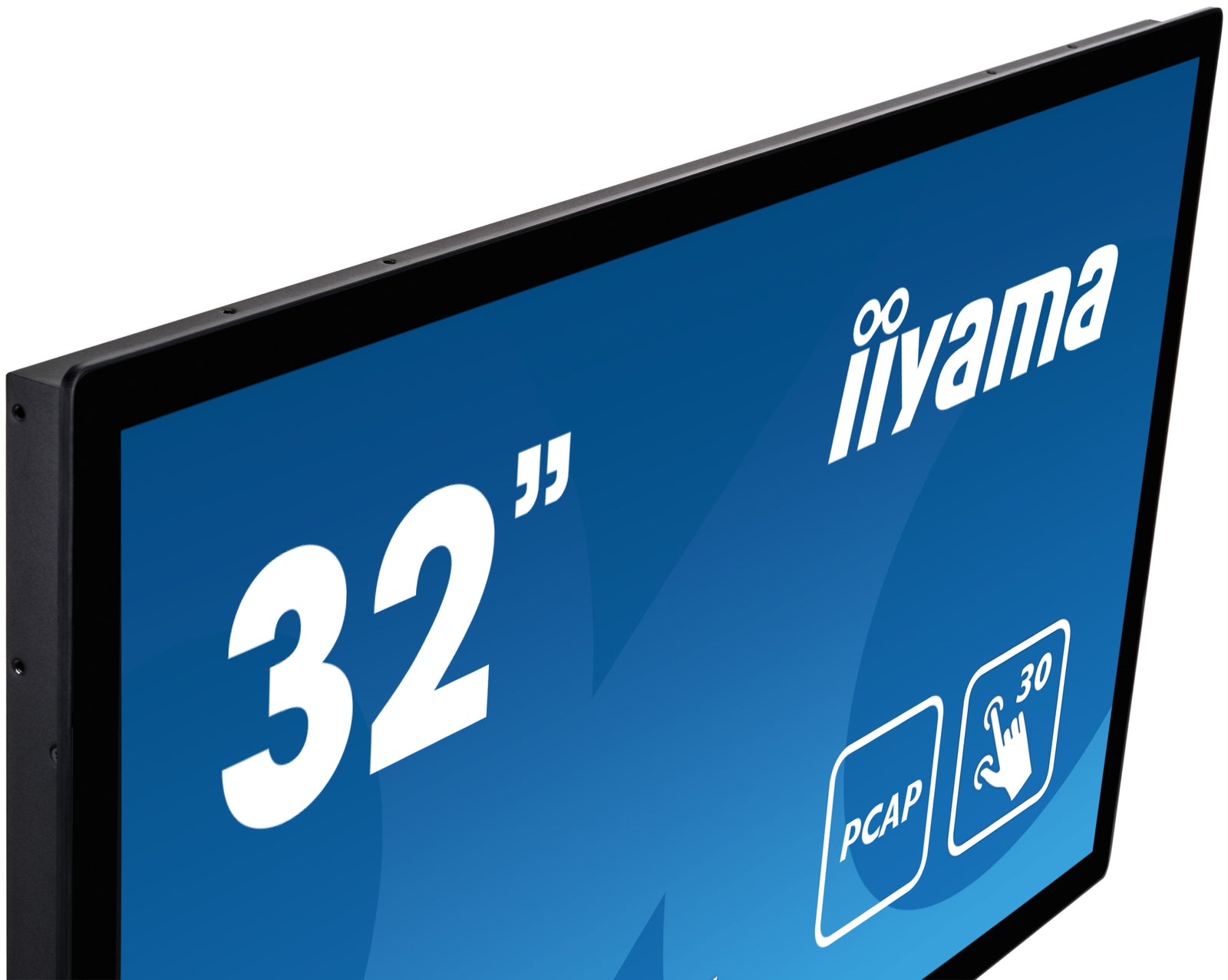

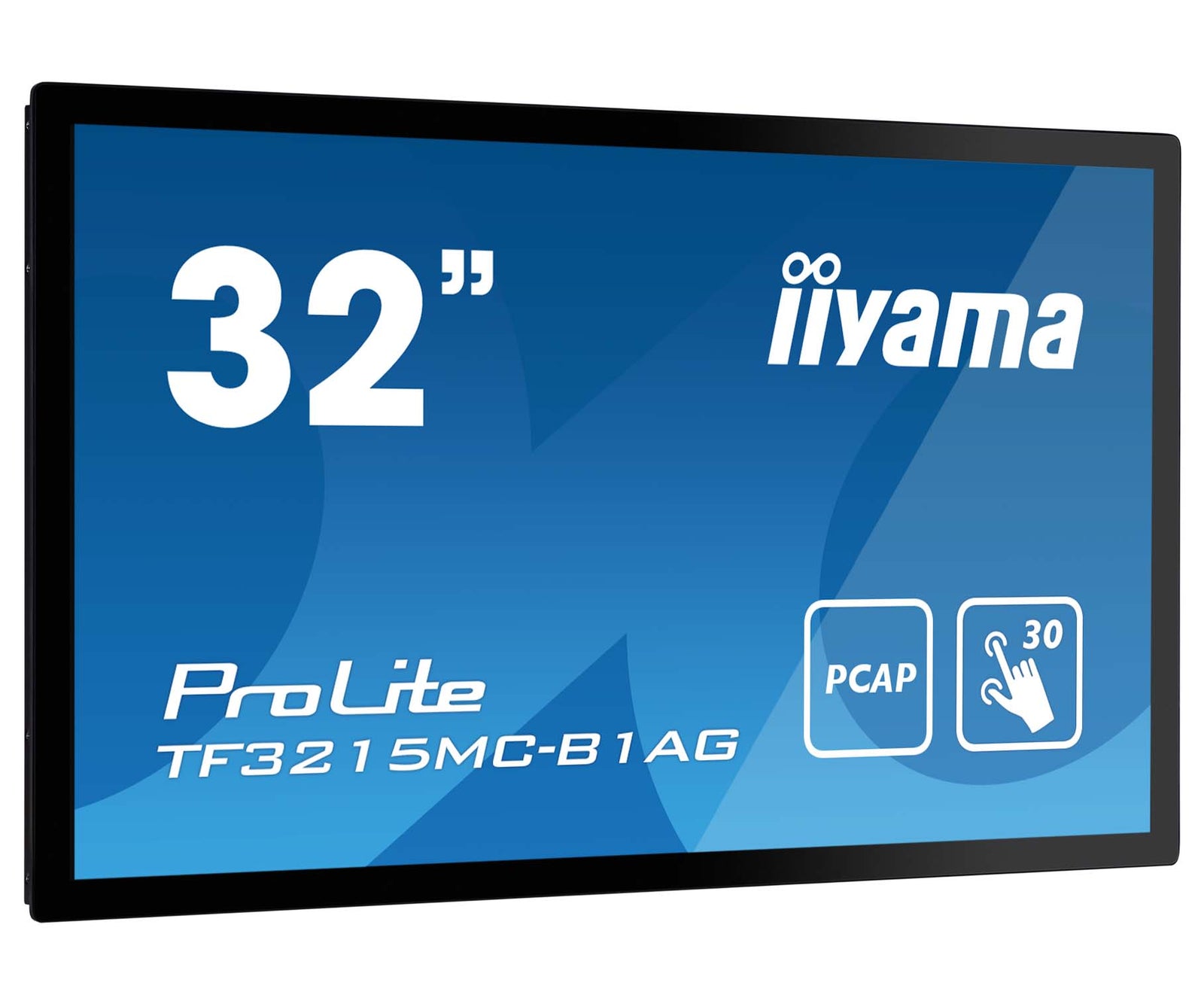

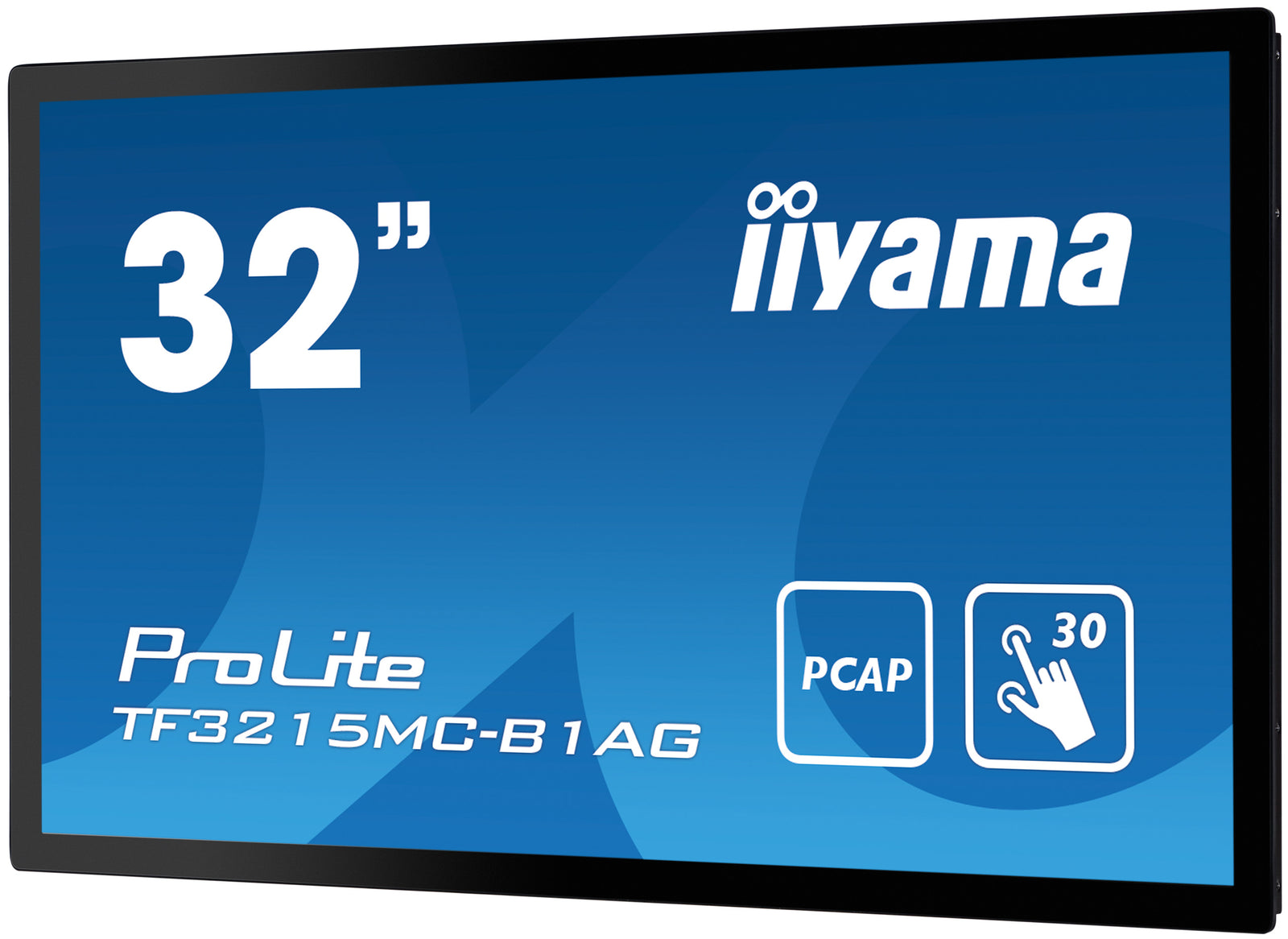

The ProLite TF3215MC-B1AG (31.5 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge anti-glare coated glass drastically reducing ambient reflections in high-brightness environments without compromising the sharpness and clarity of the image. The rugged bezel equipped with a foam seal finish supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front making it perfect for high use public facing applications. Landscape and portrait orientation ensures flexible mounting possibilities in almost any installation. The TF3215MC-B1AG is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

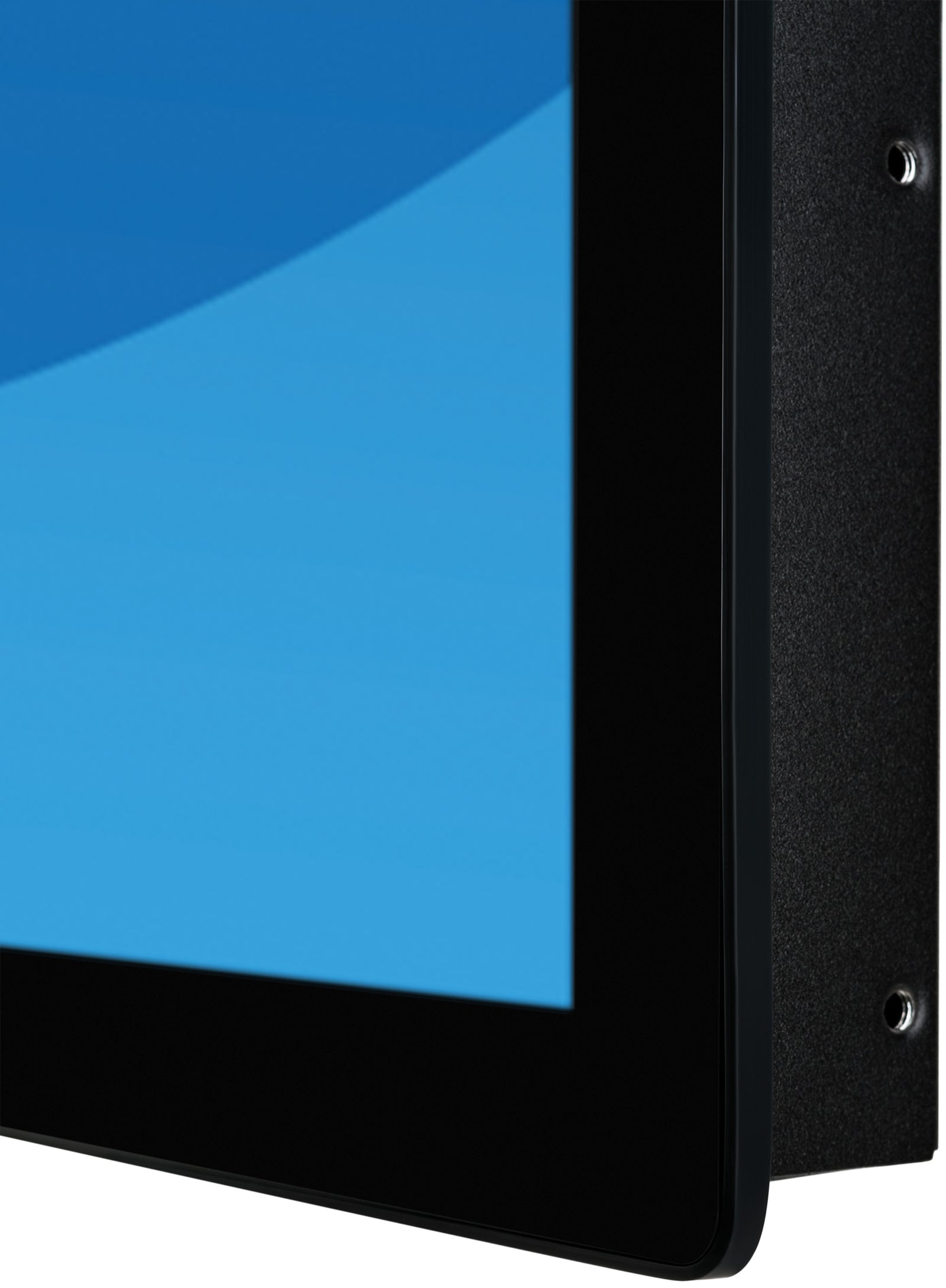

FOAM SEAL

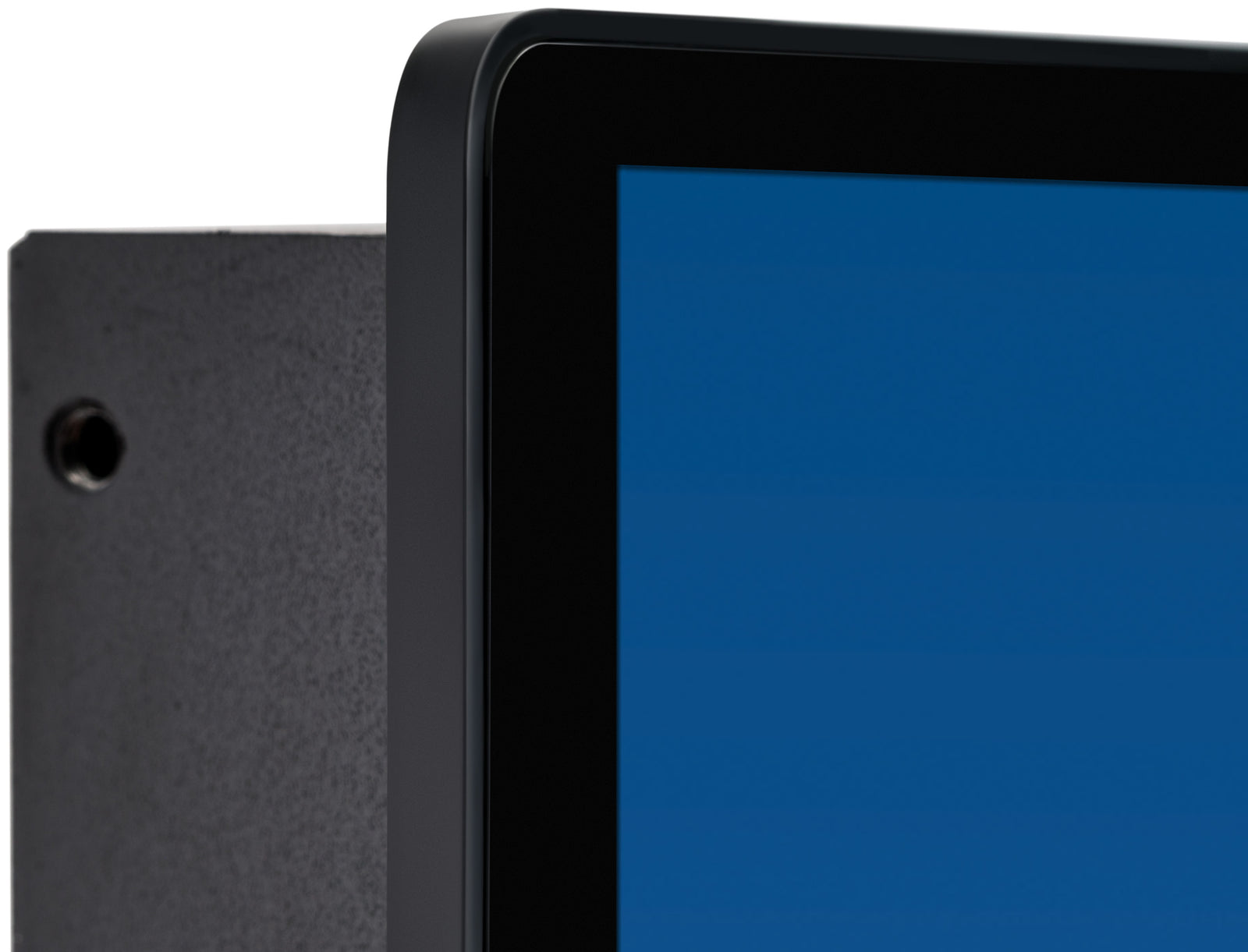

A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.
BALL-DROP-TEST PROOF
The ball-drop-test uses a half-kilo steel ball, which is dropped onto the touch screen from a height of 1.3 meter. If the touch screen surface remains unaffected, the monitor passes the ball-drop-test for high impact resistance and durability.
TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
24/7
24/7 displays are designed for a continuous operation.
| Feature | Description |
|---|---|
| Design | Open Frame |
| Diagonal | 31.5", 80cm |
| Panel | AMVA3 LED, Anti-glare coating |
| Native resolution | 1920 x 1080 (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Panel brightness | 500 cd/m² |
| Light transmittance | 85% |
| Static contrast | 3000:1 with touch |
| Response time (GTG) | 8ms |
| Viewing zone | Horizontal/Vertical: 178°/178°, Right/Left: 89°/89°, Up/Down: 89°/89° |
| Colour support | 16.7 million 8-bit |
| Horizontal Sync | 30 - 68kHz |
| Viewable area W x H | 698.4 x 392.8mm, 27.5 x 15.5" |
| Pixel pitch | 0.3637mm |
| Bezel colour and finish | Black |
| Recommended usage | Retail |
| Touch technology | Projective capacitive |
| Touch points | 30 (HID, only with supported OS) |
| Touch accuracy | ± 2mm |
| Touch method | Finger, glove (latex), capacitive stylus |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Through-Glass | 6mm |

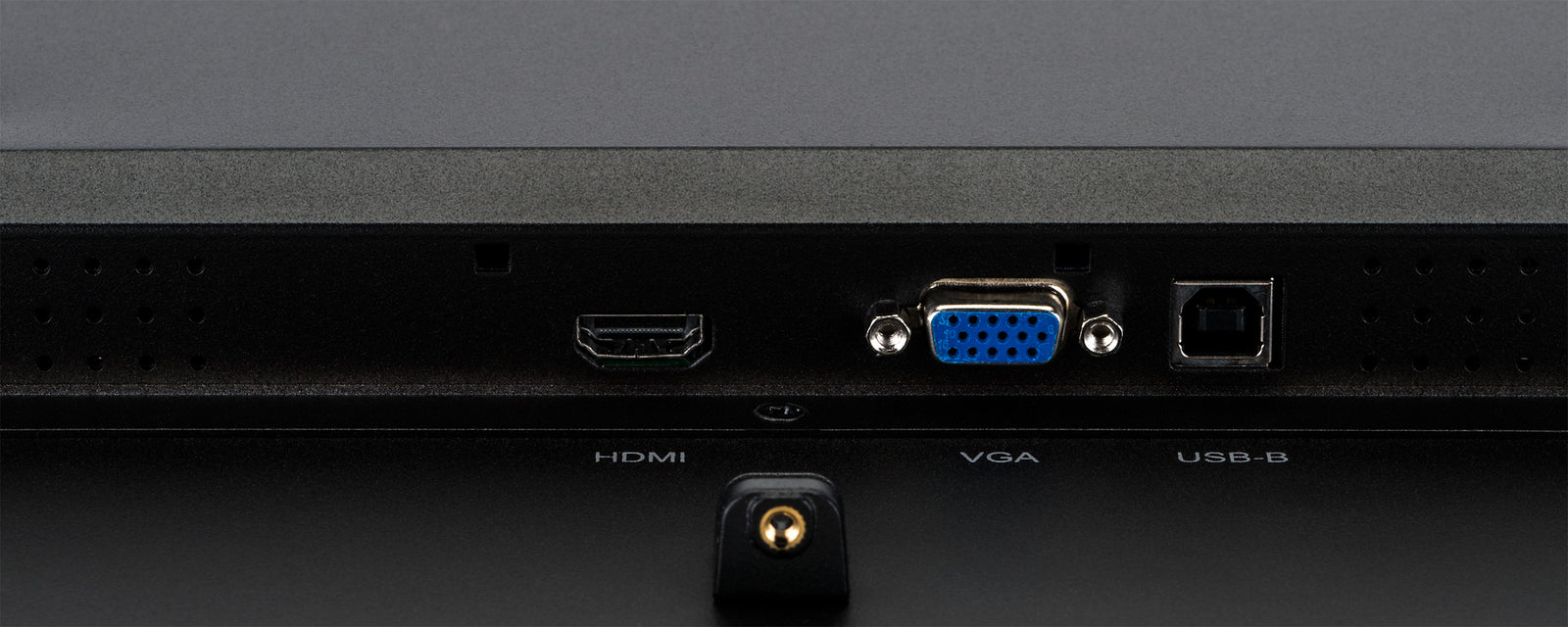

| INTERFACES / CONNECTORS / CONTROLS | |
| Analog signal input | VGA x1 |
| Digital signal input | HDMI x1 |
| HDCP | Yes |
| Extra | Touch through-glass |
| Kiosk mode | Yes |
| Max. non-stop operating time | 24/7 |
| Glass thickness | 3mm |
| Glass hardness | 7H |
| 60950 Ball drop test | Yes |
| Impact testing | IK-7 |
| Water and dust protection | IP65 (front) |
| Housing (bezel) | Metal |
| Water tight seal | Yes |
| OSD key lock | Yes |
| OSD languages | EN, DE, FR, ES, IT, CN, JP |
| Control buttons | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| User controls | Contrast, brightness, auto adjust, H. position, V. position, phase, OSD H. position, OSD V. position, OSD timeout, reset, input select, OSD language, color temperature, sharpness, touch switch (normal, glove, through-glass) |
| Plug & Play | DDC2B |

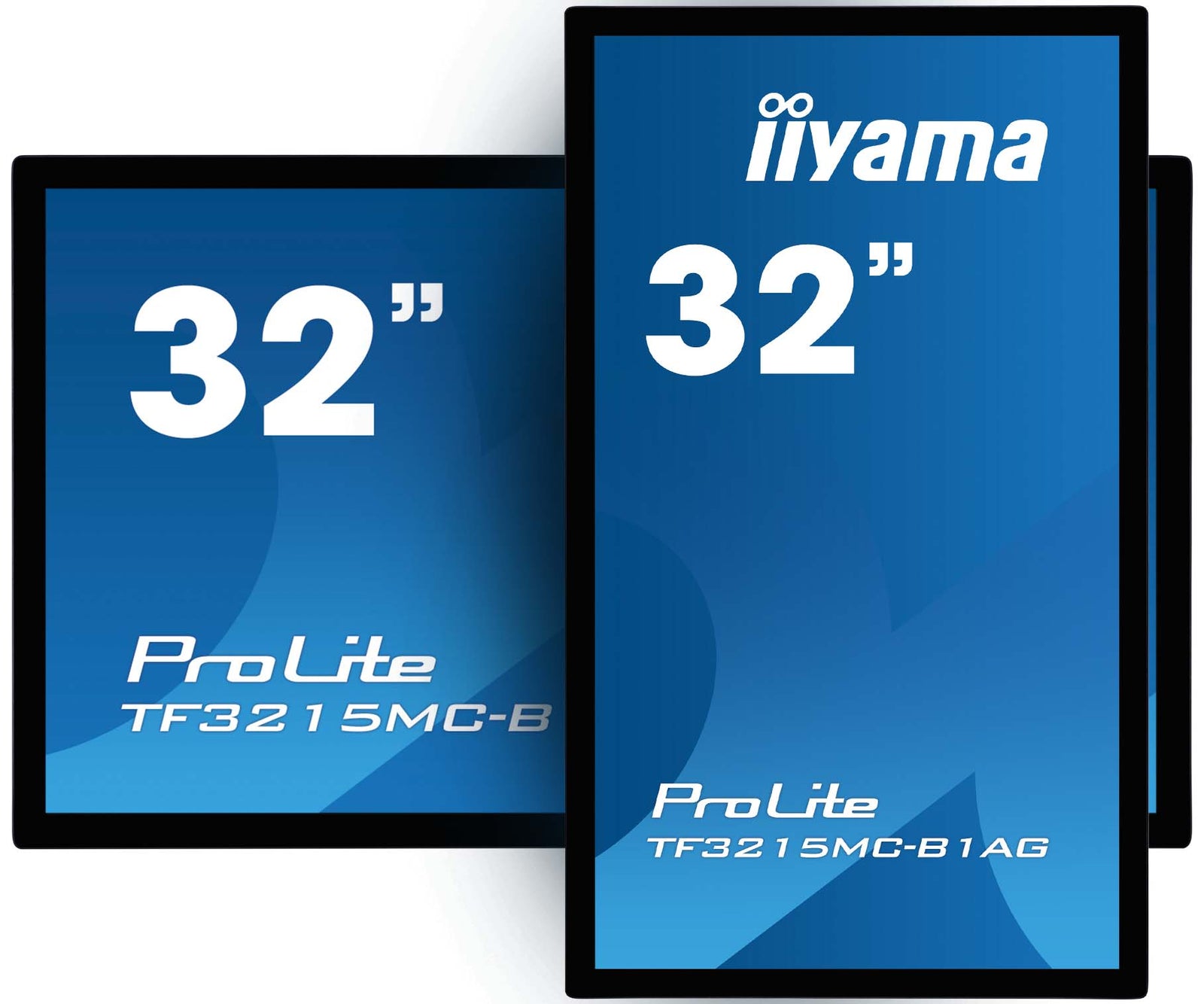

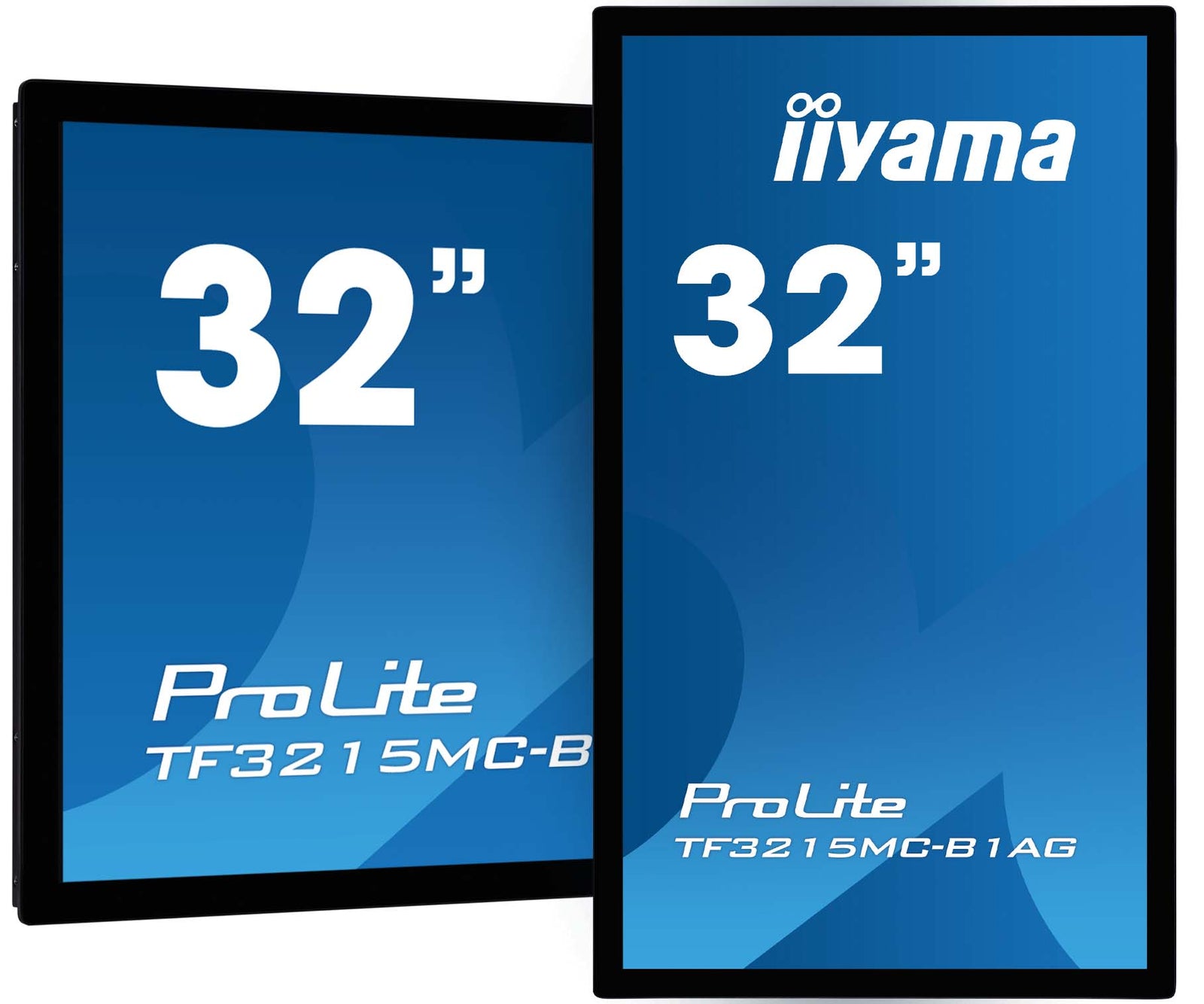

| Orientation | Landscape, portrait, face-up |
| Fanless design | Yes |

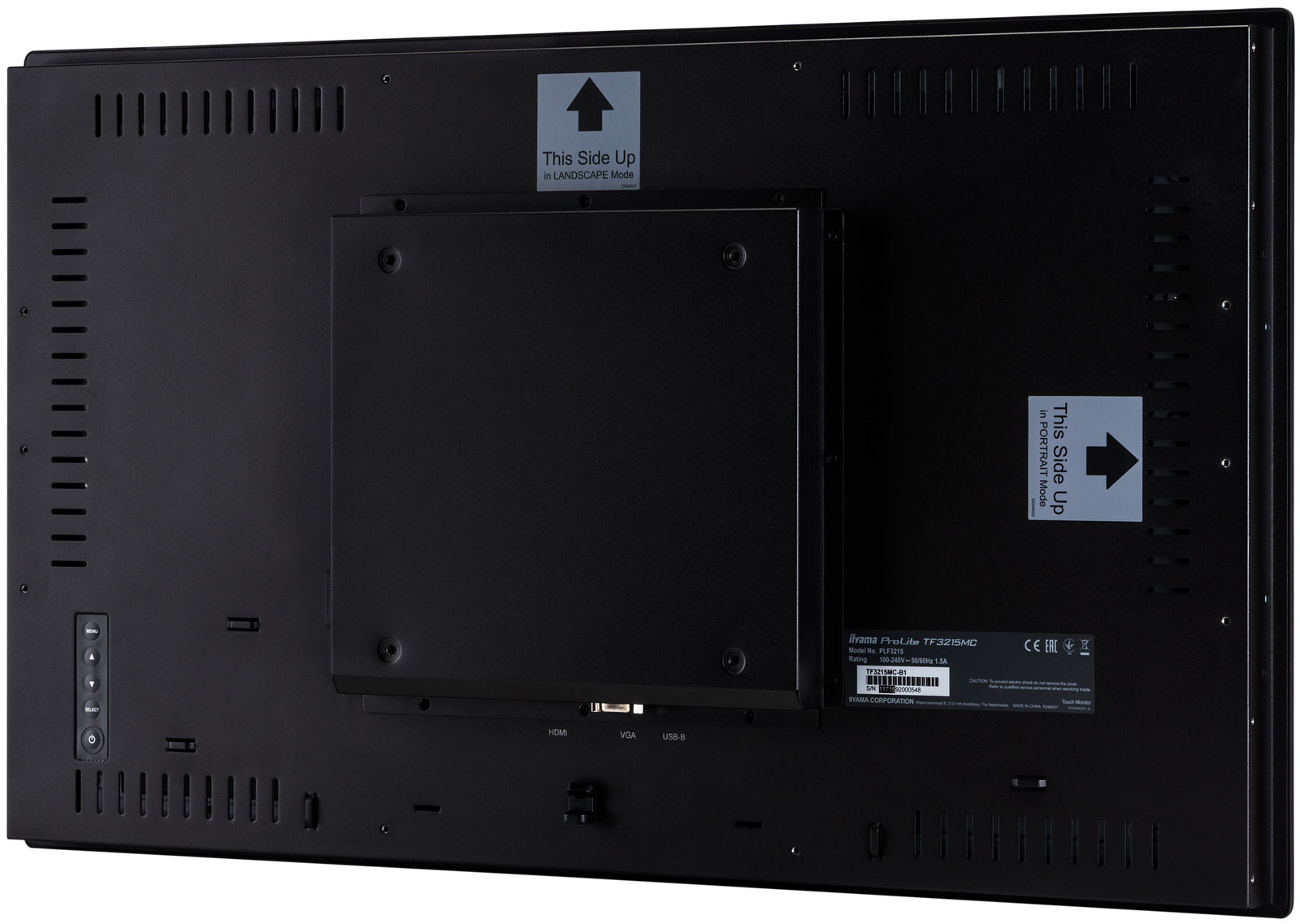

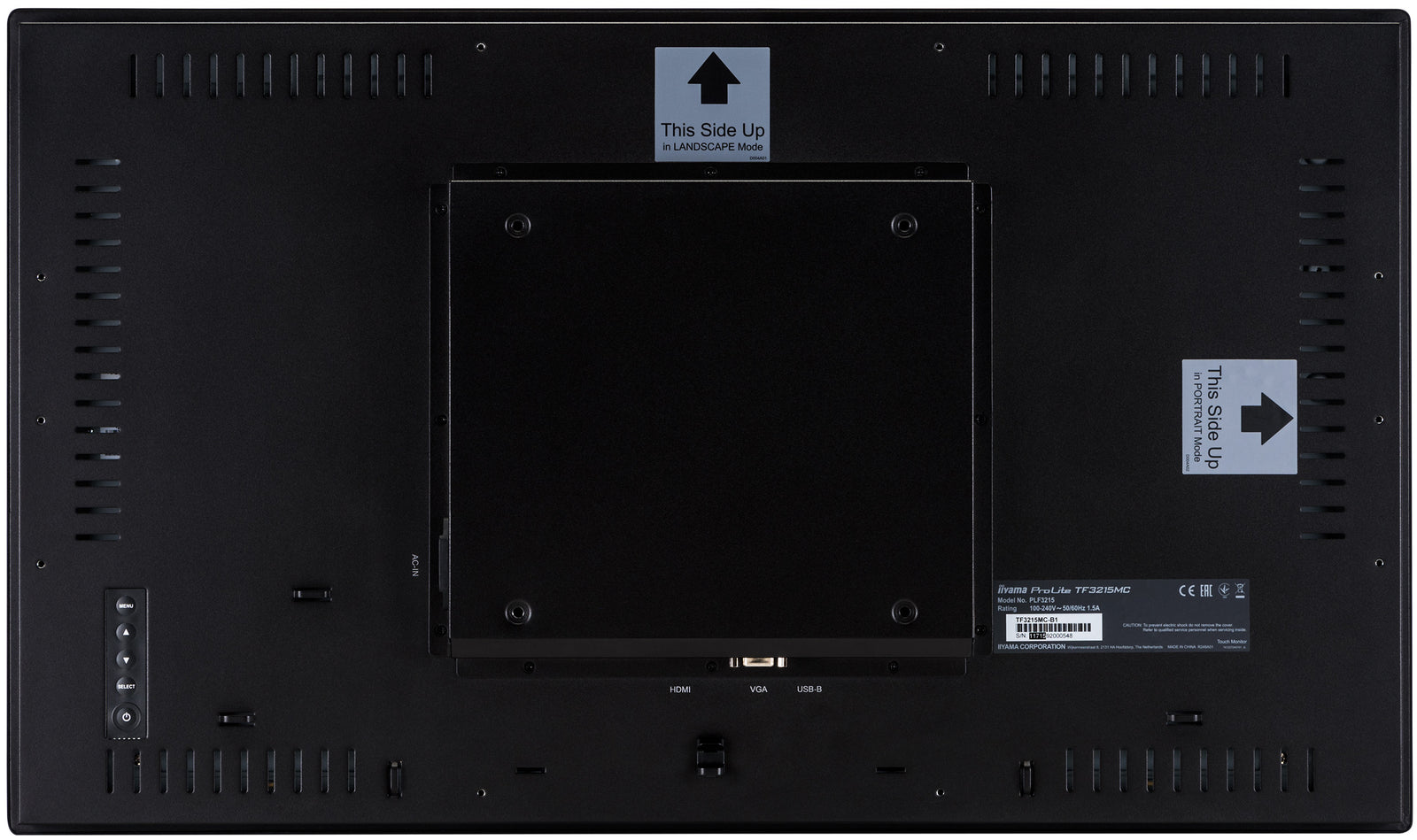

| VESA mounting | 200 x 200mm |

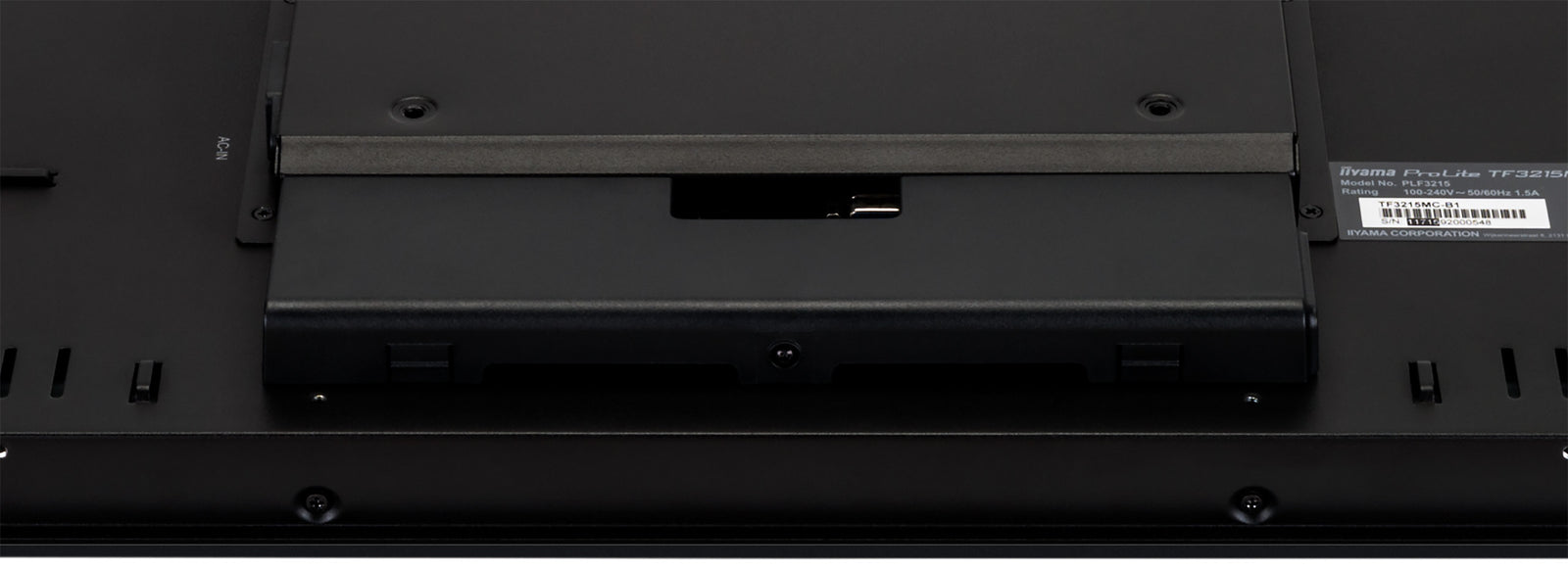

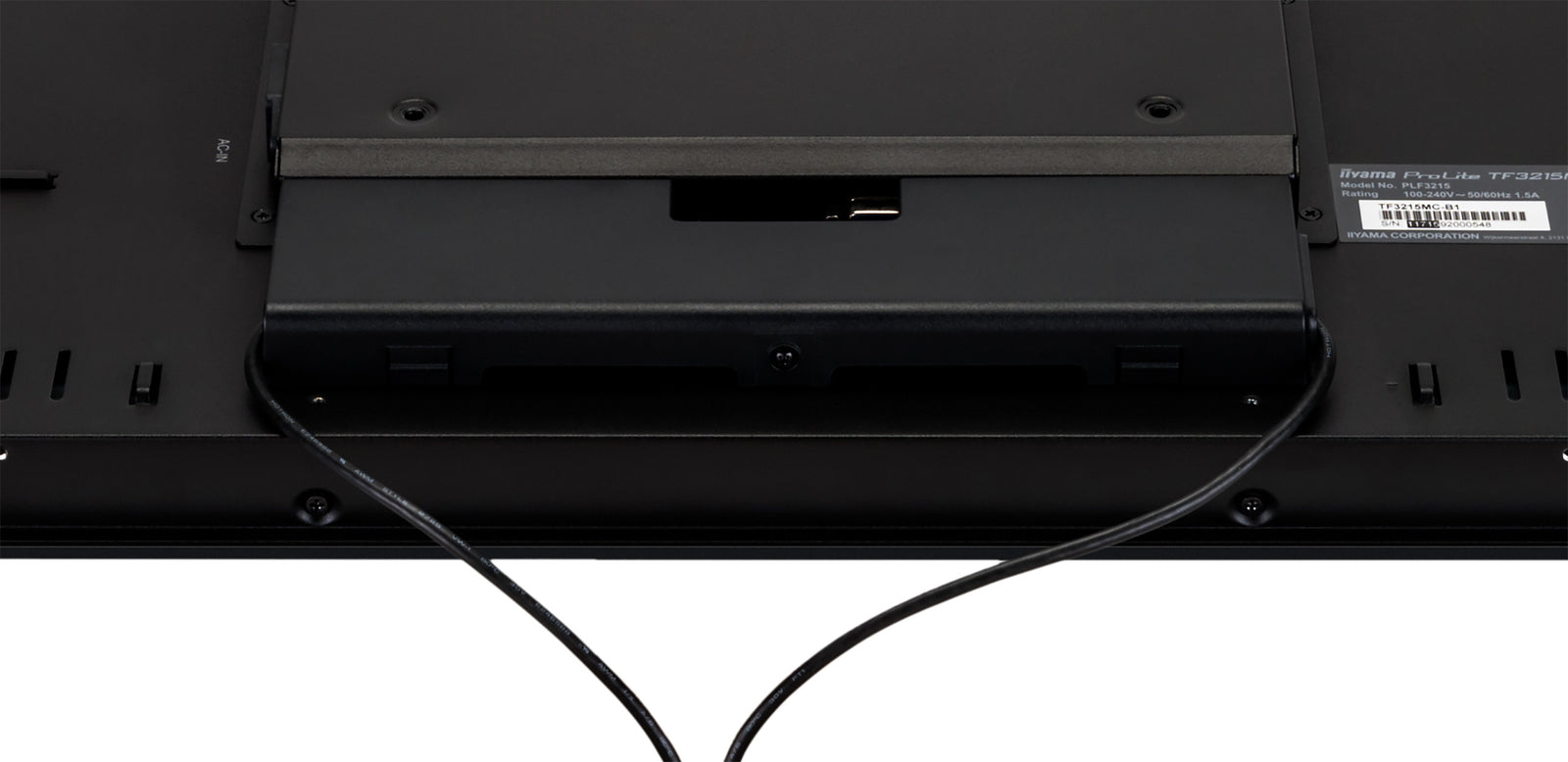

| Cable management system | Yes |
| Operation temperature range | 0°C - 40°C |
| Storage temperature range | -20°C - 60°C |
| MTBF | 50,000 hours |

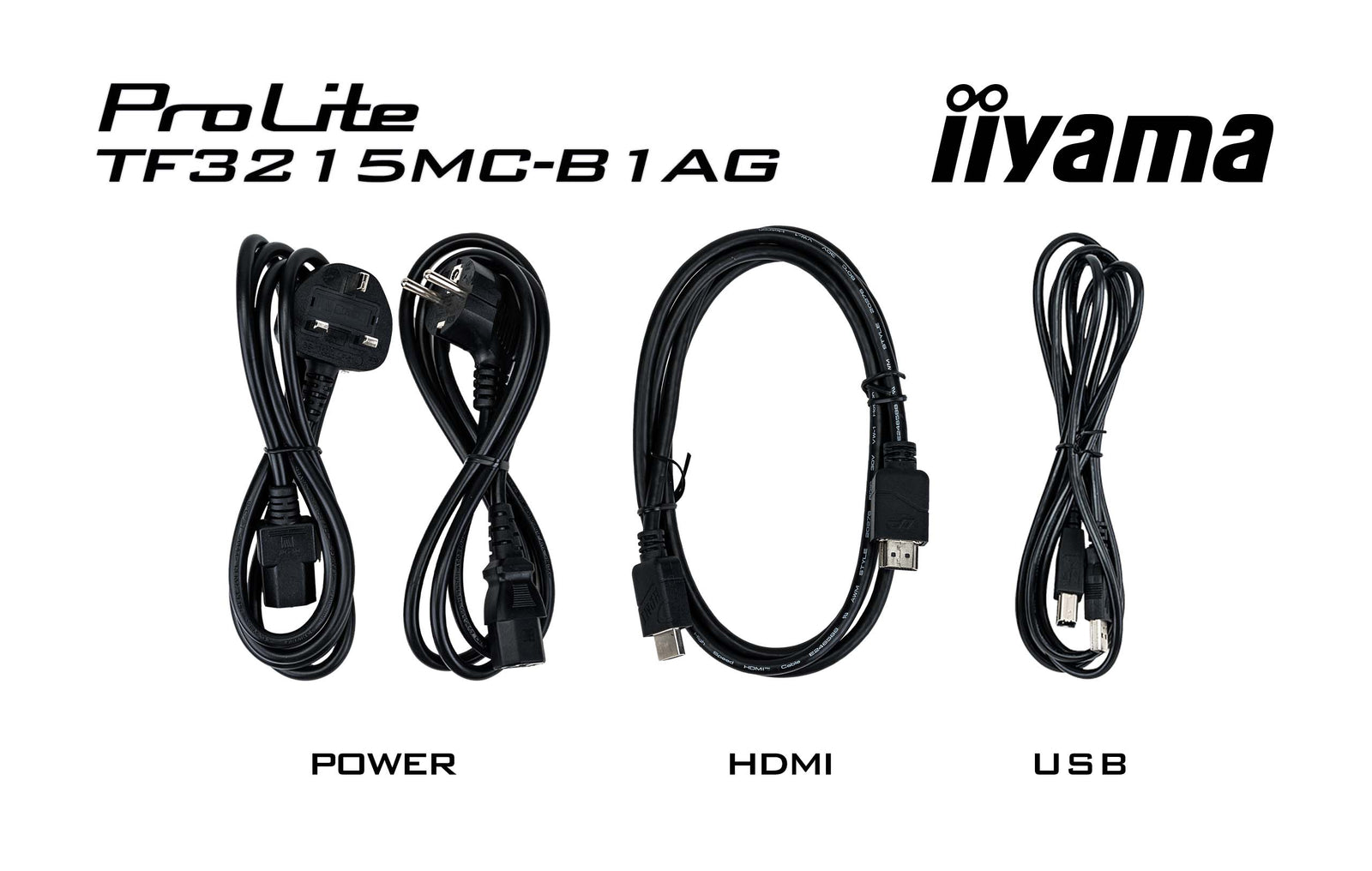

| Cables | Power, USB, HDMI |
| Guides | Quick start guide, safety guide |
| Other | Touch Panel Driver Disk (CD-ROM), Cable cover |
| Power supply unit | Internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 43W typical, 2W standby |
| Regulations | CB, CE, RoHS support, ErP, WEEE, CU, REACH |
| Energy efficiency class (Regulation (EU) 2017/1369) | F |
| REACH SVHC | Above 0.1%: Lead |
| Product dimensions W x H x D | 739.5 x 434 x 61mm |
| Box dimensions W x H x D | 890 x 630 x 155mm |
| Pallet volume | 21pcs |
| Pallet dimensions W x H x D | 1000 x 2040 x 1200mm |
| Weight (without box) | 10.3kg |
| Weight (with box) | 12.85kg |
| EAN code | 4948570117161 |
| Product country origin | China |
| Warranty | Product | Cover |
| Visioncare | Desktop LCD products (Monitors) (17" - 43") |
3 years on-site UK warranty. (Upgrades to 5 years available) |
| Touchcare |
LCD touchscreen products | 3 years repair and return. (Upgrades to on-site & 5 years available) |
| LFD | Large Format Displays Standard Warranty |
3 years collect and return (Upgrade to swap, installation & 5 years available) Download |
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one - Check that all connections have been properly made.
Step two - Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three - If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four - Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five - Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six - Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
