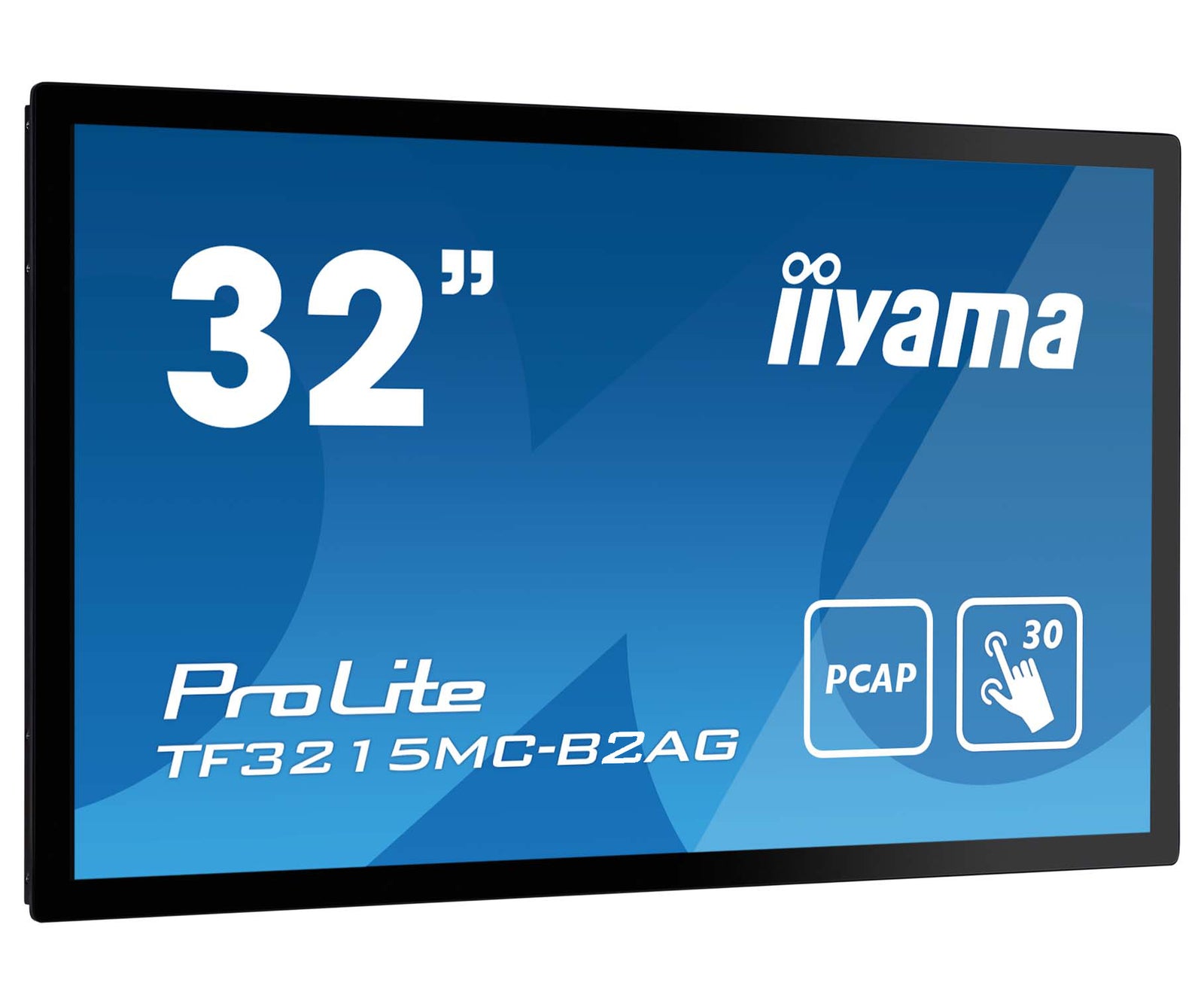

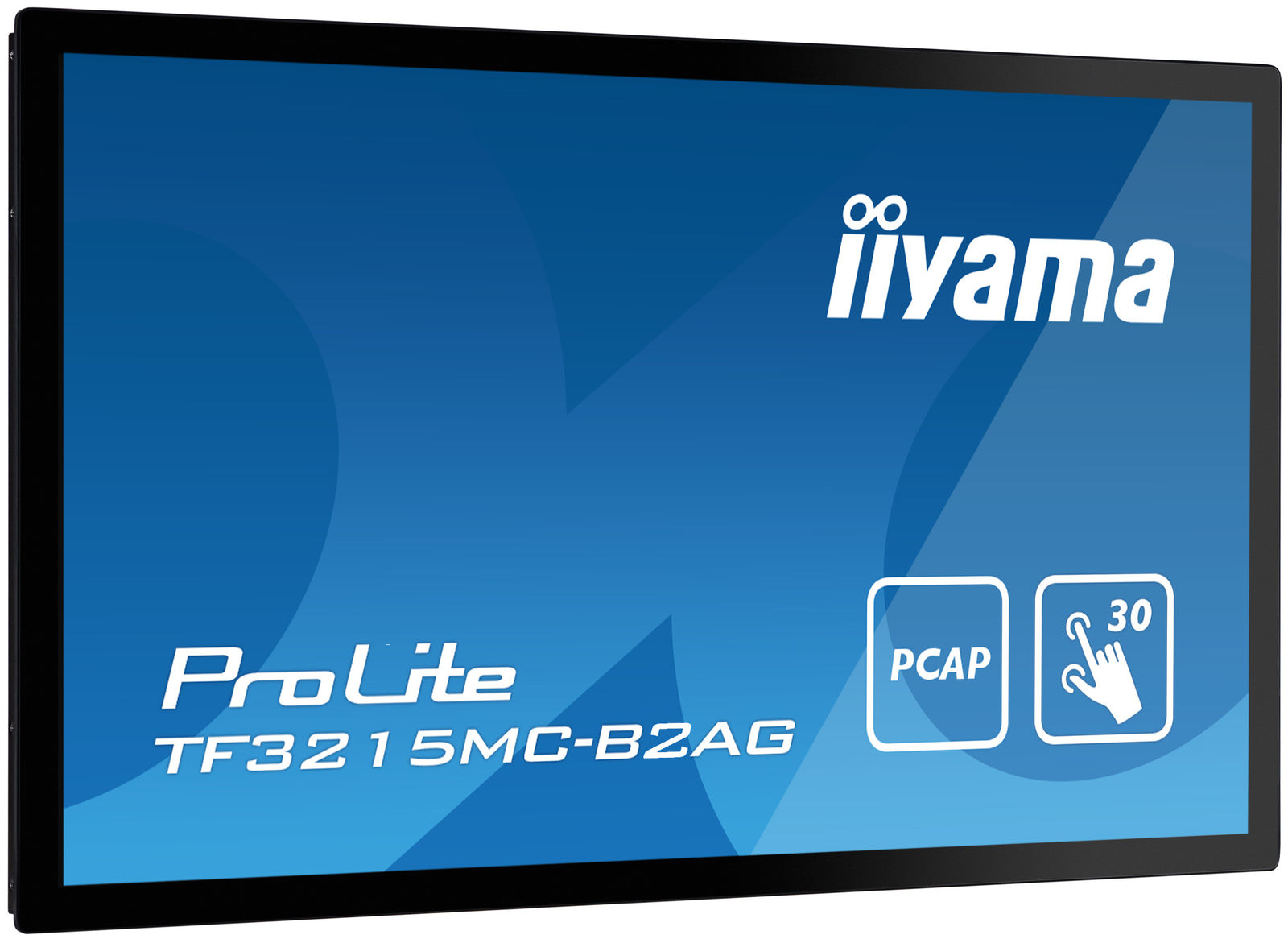

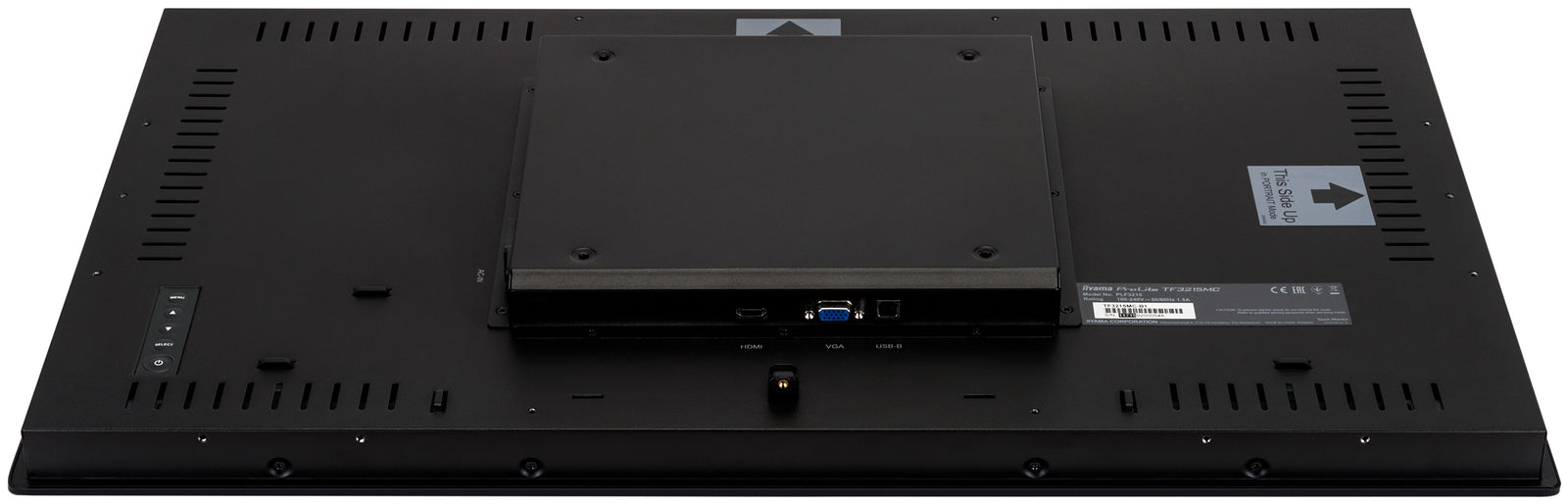

iiyama ProLite TF3215MC-B2AG 32" Full HD Open Frame PCAP 30-point Touch Monitor

The ProLite TF3215MC-B2AG uses PCAP Touch technology and is built into an eye-catching bezel with edge-to-edge anti-glare coated glass drastically reducing ambient reflections in high-brightness environments without compromising the sharpness and clarity of the image. The rugged bezel equipped with a foam seal finish supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front making it perfect for high use public facing applications. Landscape and portrait orientation ensures flexible mounting possibilities in almost any installation. The TF3215MC-B2AG is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

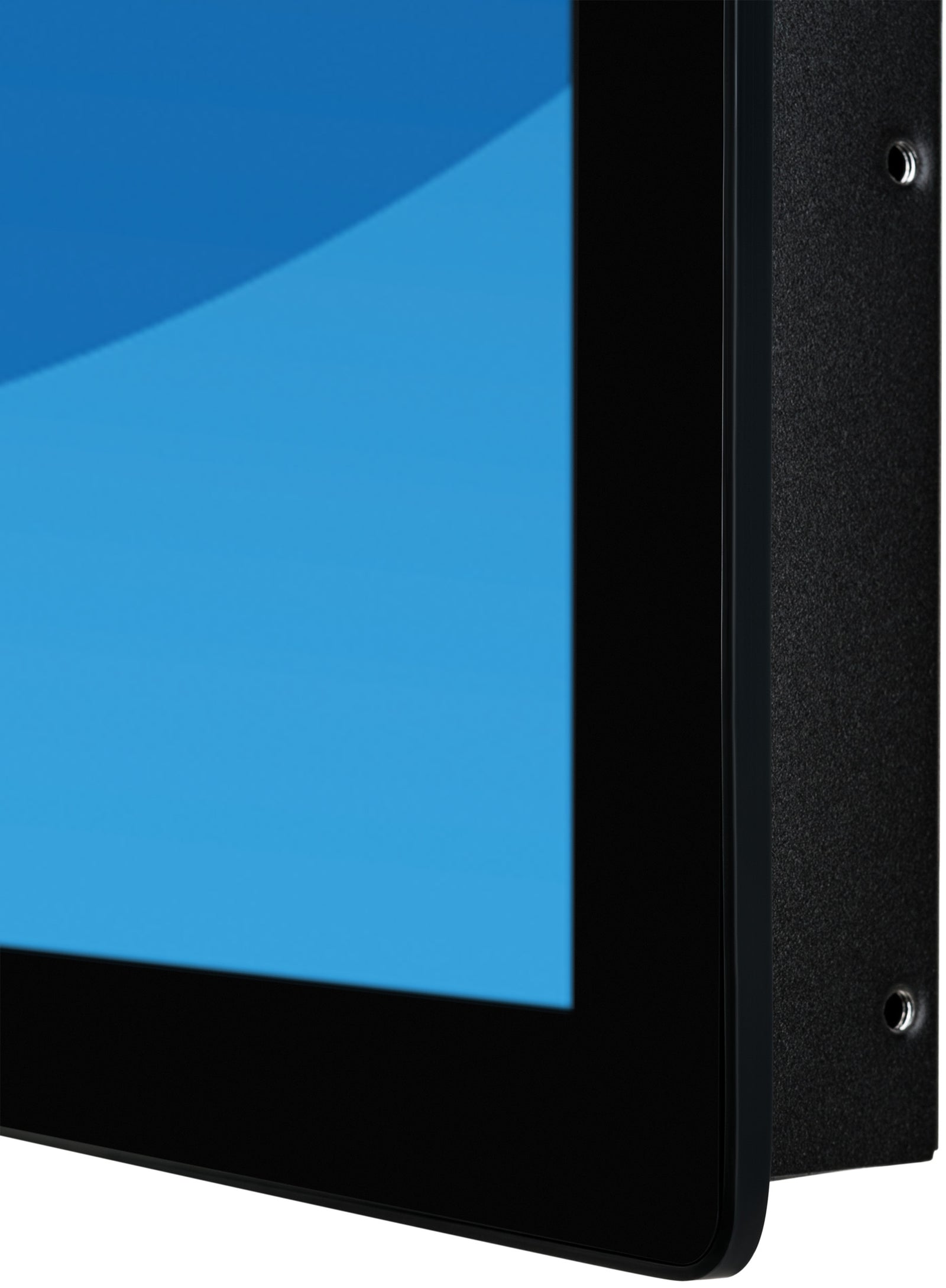

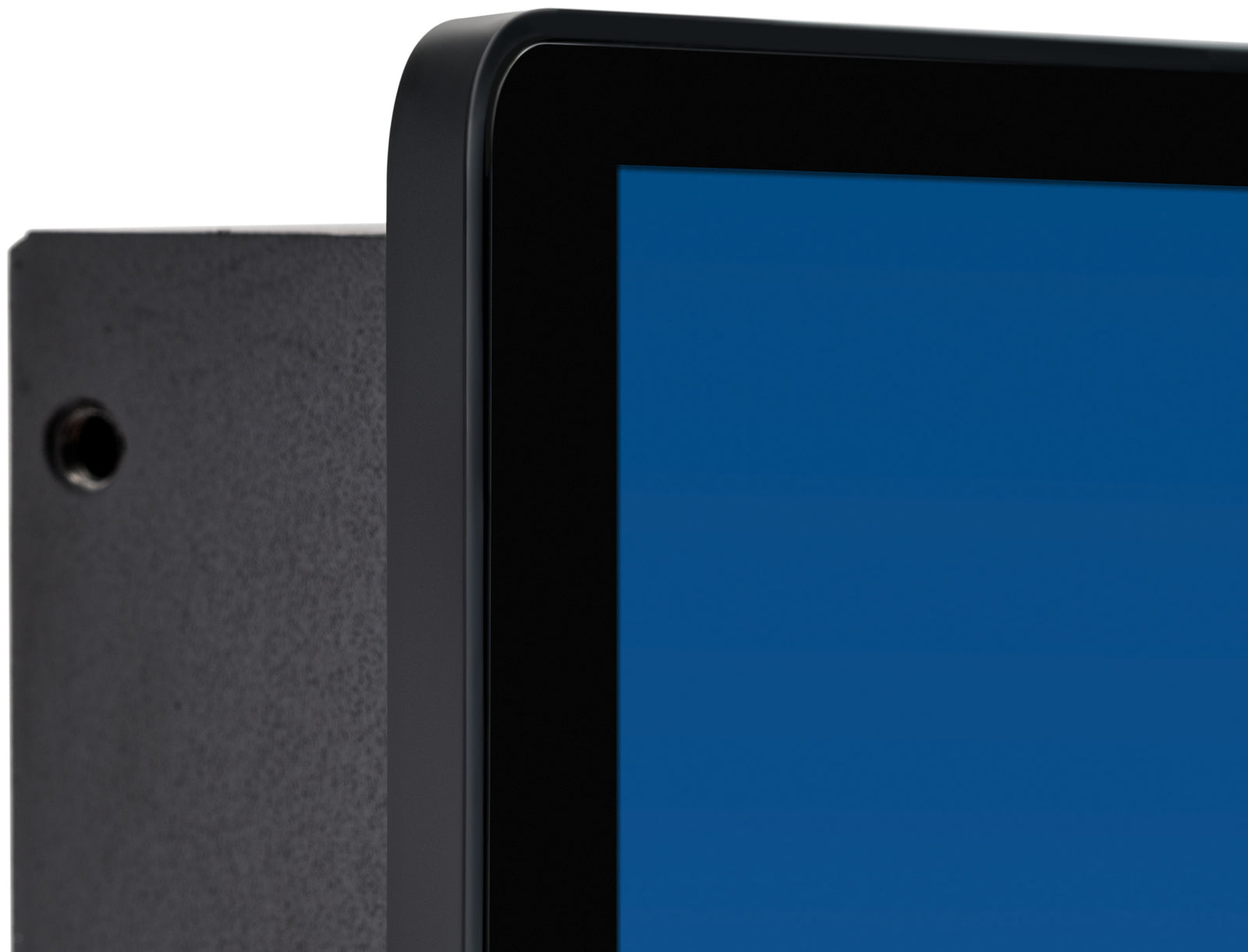

Foam Seal
A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.

Ball-drop-test proof
The ball-drop-test uses a half-kilo steel ball, which is dropped onto the touch screen from a height of 1.3 meter. If the touch screen surface remains unaffected, the monitor passes the ball-drop-test for high impact resistance and durability.

Touch Through-Glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

24/7
24/7 displays are designed for a continuous operation.

Category	Details
Design	Open Frame
Diagonal	31.5", 80cm
Panel	VA, Anti-Glare coating
Native Resolution	1920 x 1080 (2.1 megapixel Full HD)
Aspect Ratio	16:9
Panel Brightness	500 cd/m²
Brightness with Touch	425 cd/m²
Light Transmittance	85%
Static Contrast with Touch	3000:1
Response Time (GTG)	8ms
Viewing Zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour Support	16.7mln 8bit
Horizontal Sync	30 - 68kHz
Viewable Area W x H	698.4 x 392.8mm, 27.5 x 15.5"
Pixel Pitch	0.3637mm
Bezel Colour and Finish	black
Recommended Usage	retail
Touch Technology	projective capacitive
Touch Points	30 (HID, only with supported OS)
Touch Accuracy	± 2mm
Touch Method	finger, glove (latex), capacitive stylus
Touch Interface	USB
Supported Operating Systems	Compatible with Windows and Linux
Through-Glass	6mm

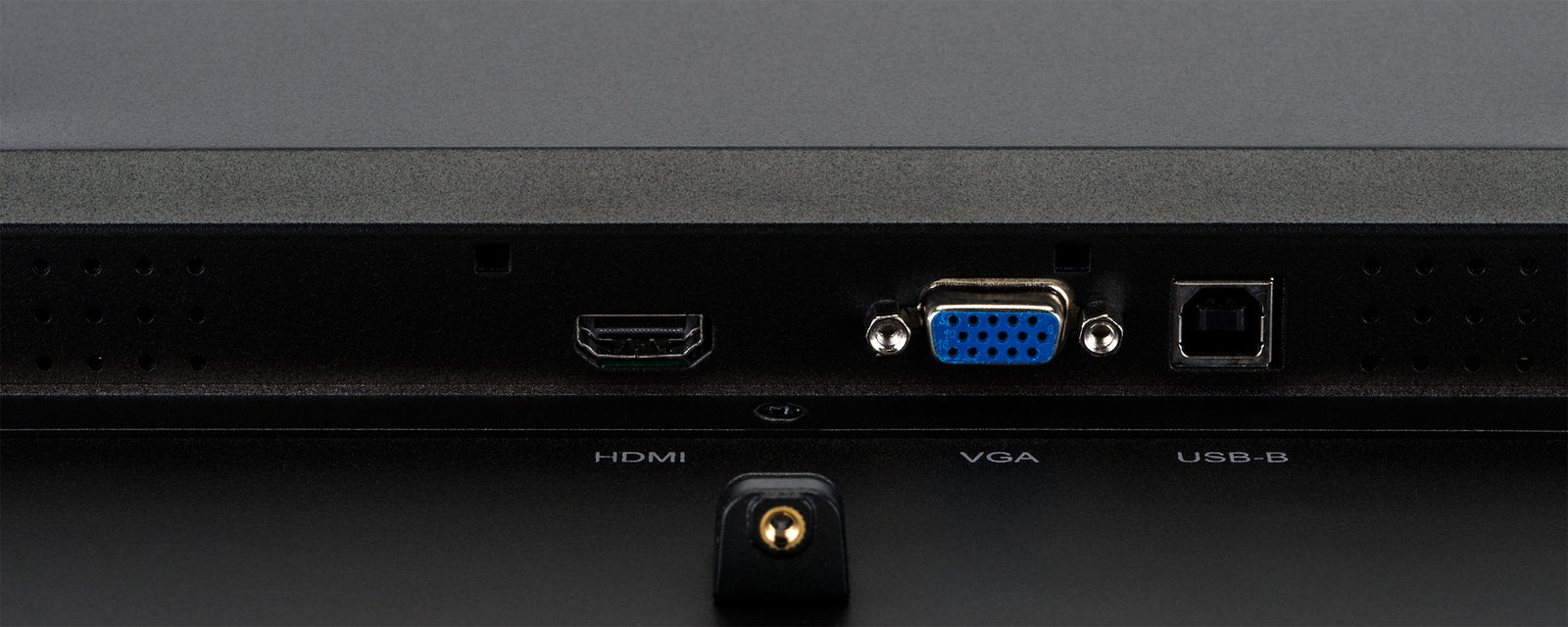

Signal Inputs	VGA x1, HDMI x1, DisplayPort x1
HDCP	yes
Features	Touch Through-Glass, Anti-glare coating, Kiosk mode, Max. non-stop operating time 24/7
Glass Hardness	6H
Impact Testing	IK-7
Water and Dust Protection	IP65 (front)
Housing (Bezel)	metal
Water Tight Seal	yes
OSD Key Lock	yes
OSD Languages	EN, DE, FR, ES, IT, CN, JP
Control Buttons	Menu, Scroll up/Brightness, Scroll down/Contrast, Select, Power
User Controls	Various, including brightness, contrast, and input select
Plug&Play	DDC2B

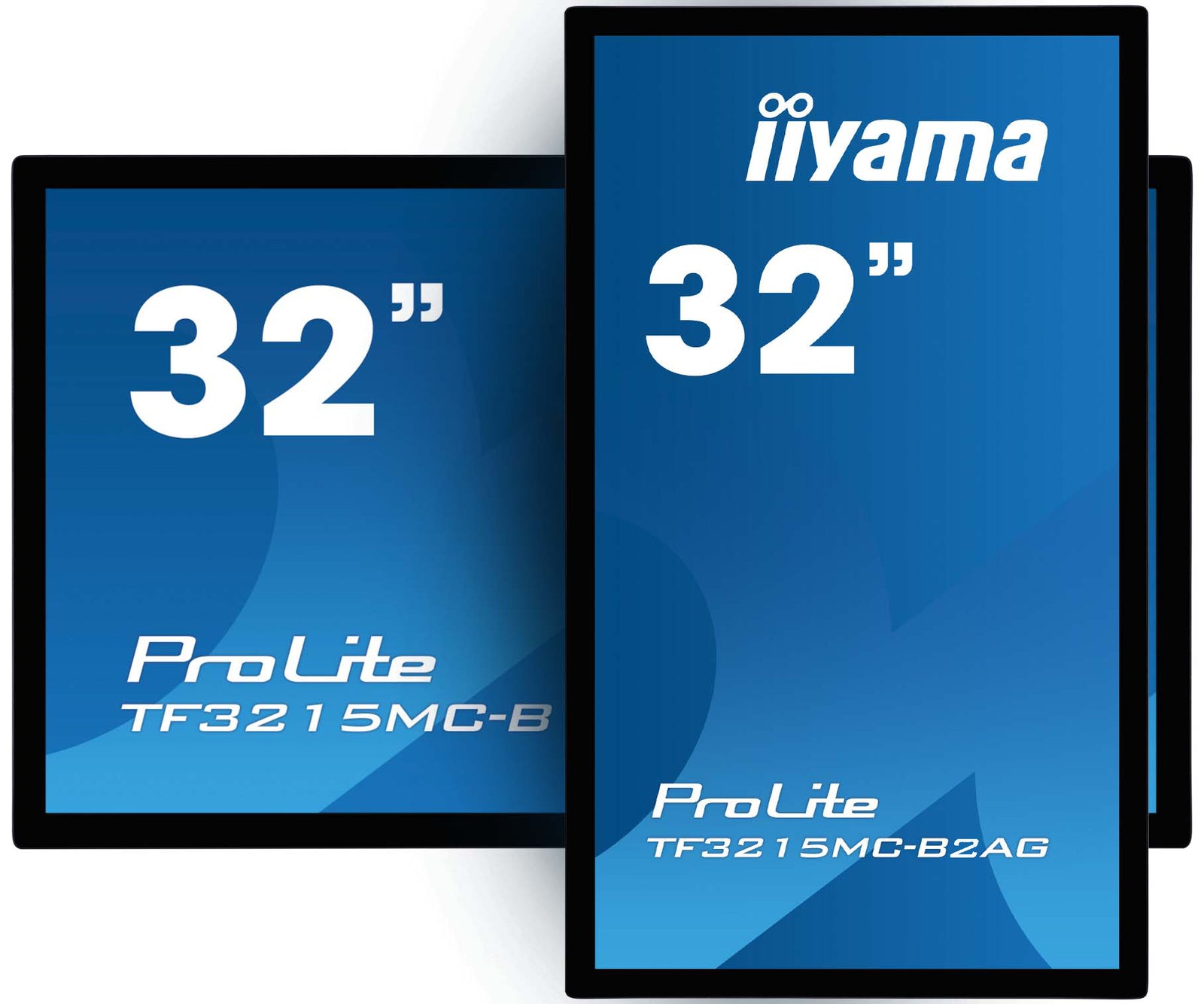

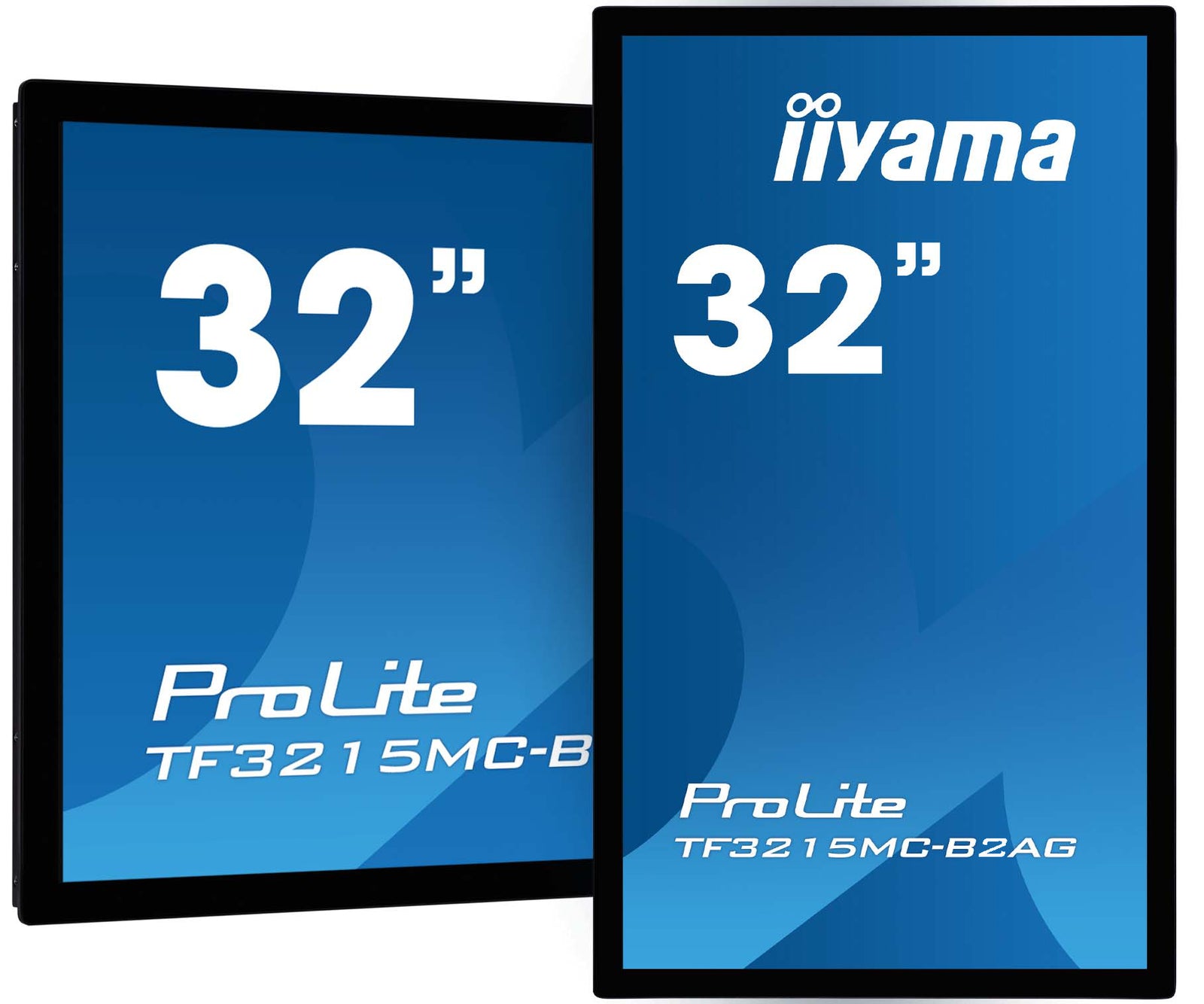

Orientation	landscape, portrait
Fanless Design	yes

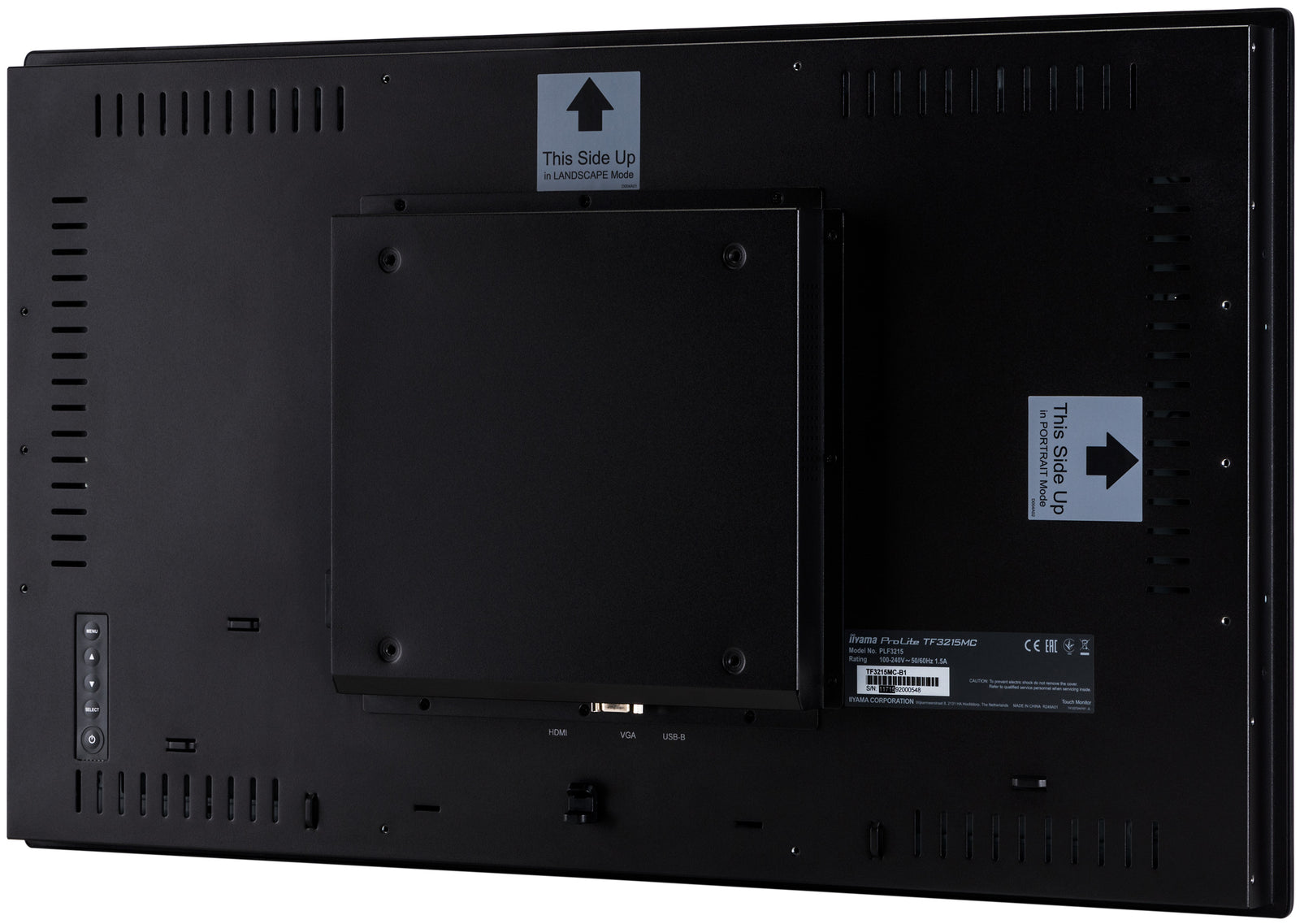

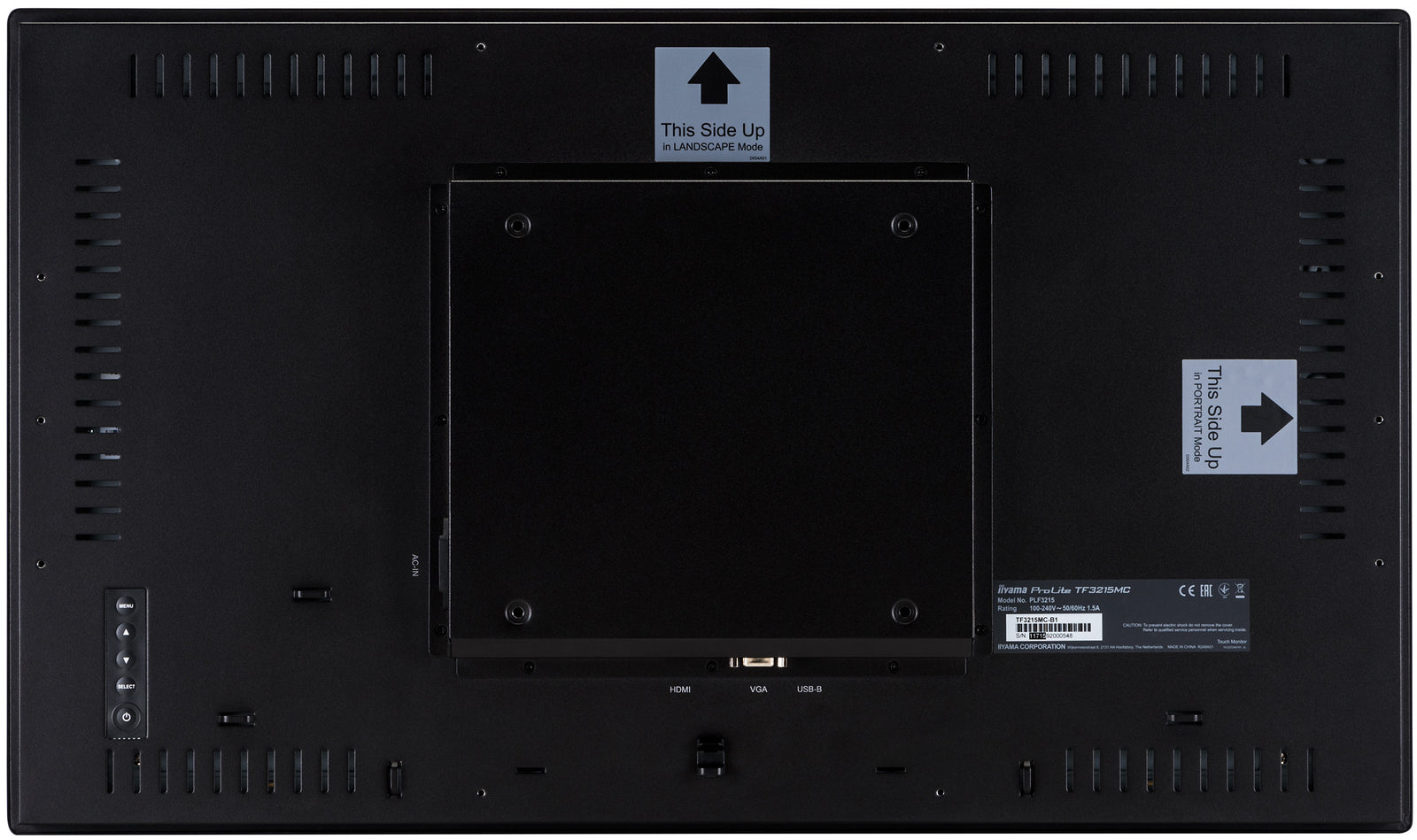

VESA Mounting	200 x 200mm

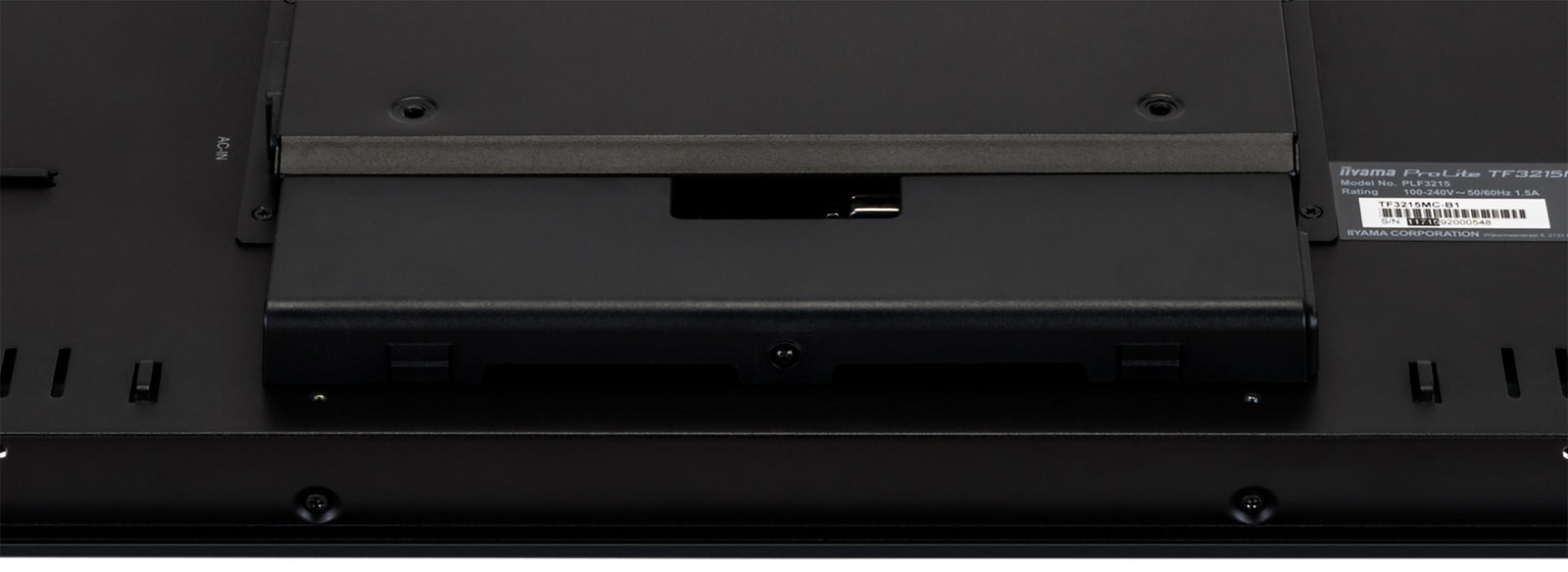

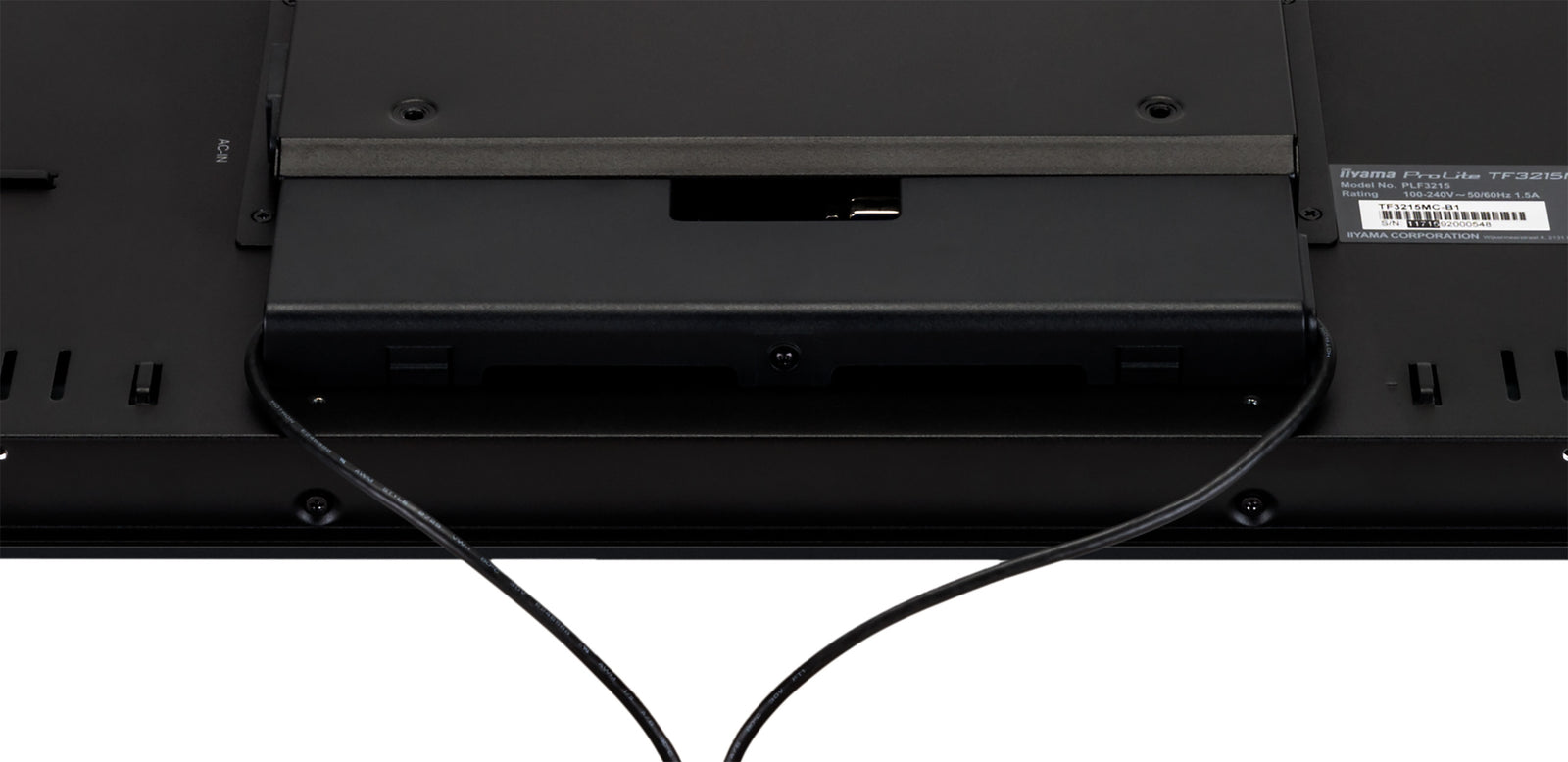

Cable Management System	cable cover
Operating Temperature Range	0°C - 40°C
Storage Temperature Range	-20°C - 60°C
MTBF	50000 hours

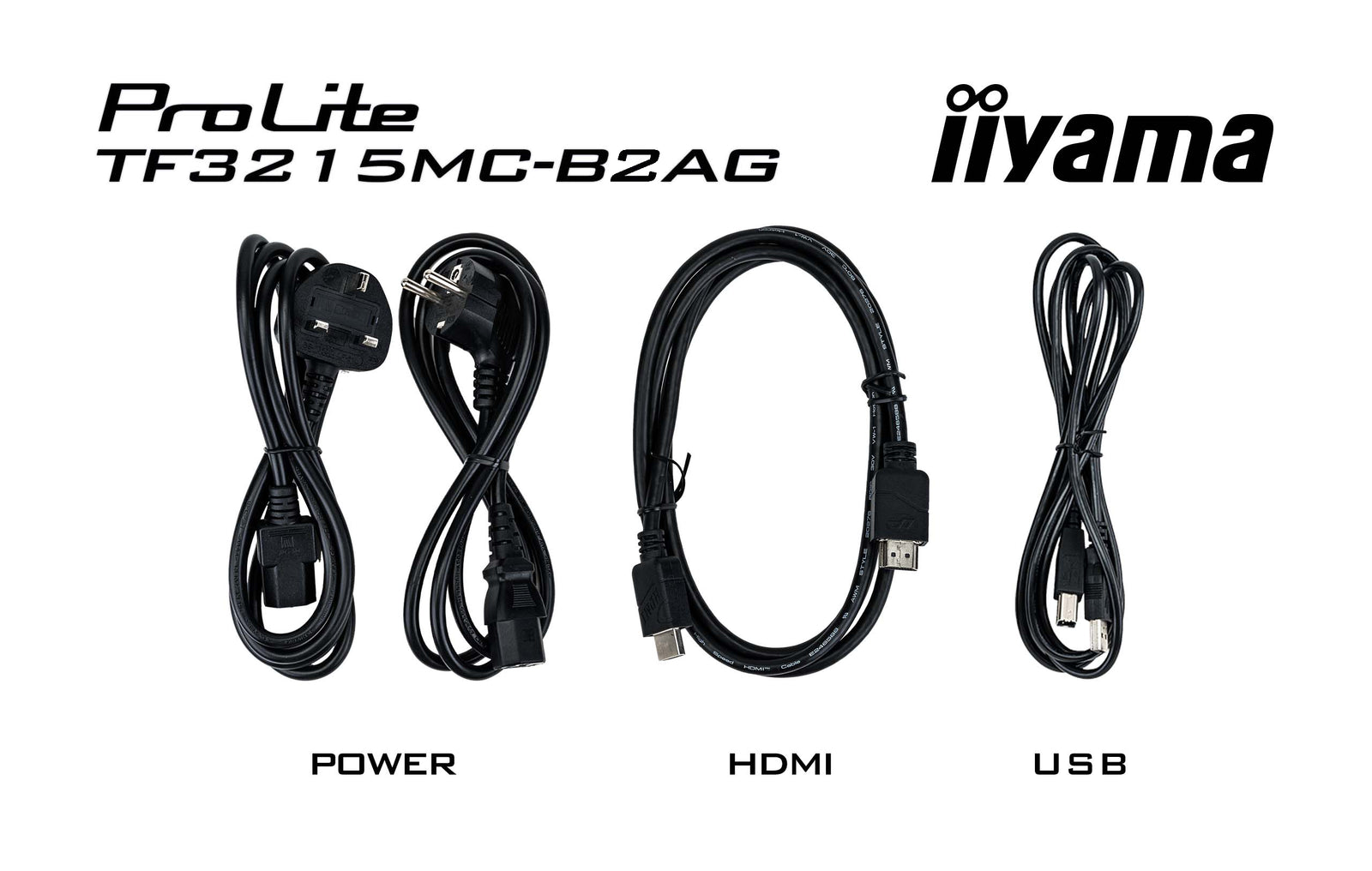

Included Accessories	power cable, USB cable, HDMI cable, quick start guide, safety guide, cable cover
Power Management	internal PSU, AC 100 - 240V, 50/60Hz, 32W typical, 1.5W stand by, 0.3W off mode
Energy Efficiency Class	F (Regulation (EU) 2017/1369)
REACH SVHC	above 0.1%: Lead
Product Dimensions W x H x D	745.5 x 437 x 61mm
Box Dimensions W x H x D	890 x 630 x 155mm
Pallet Volume	21pcs
Pallet Dimensions W x H x D	1000 x 2040 x 1200mm
Weight (without box)	10kg
Weight (with box)	12.85kg
EAN Code	4948570123674
