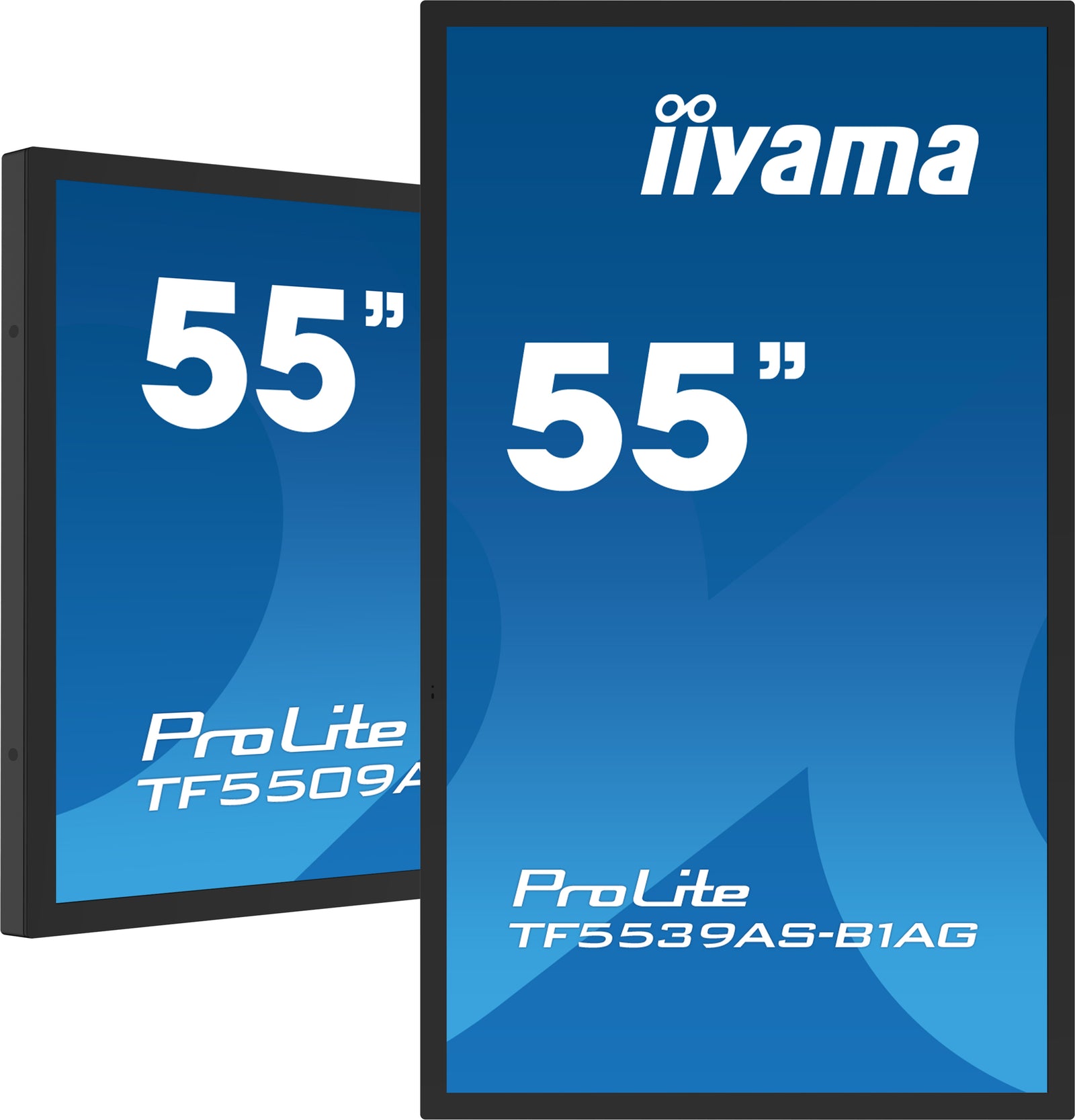

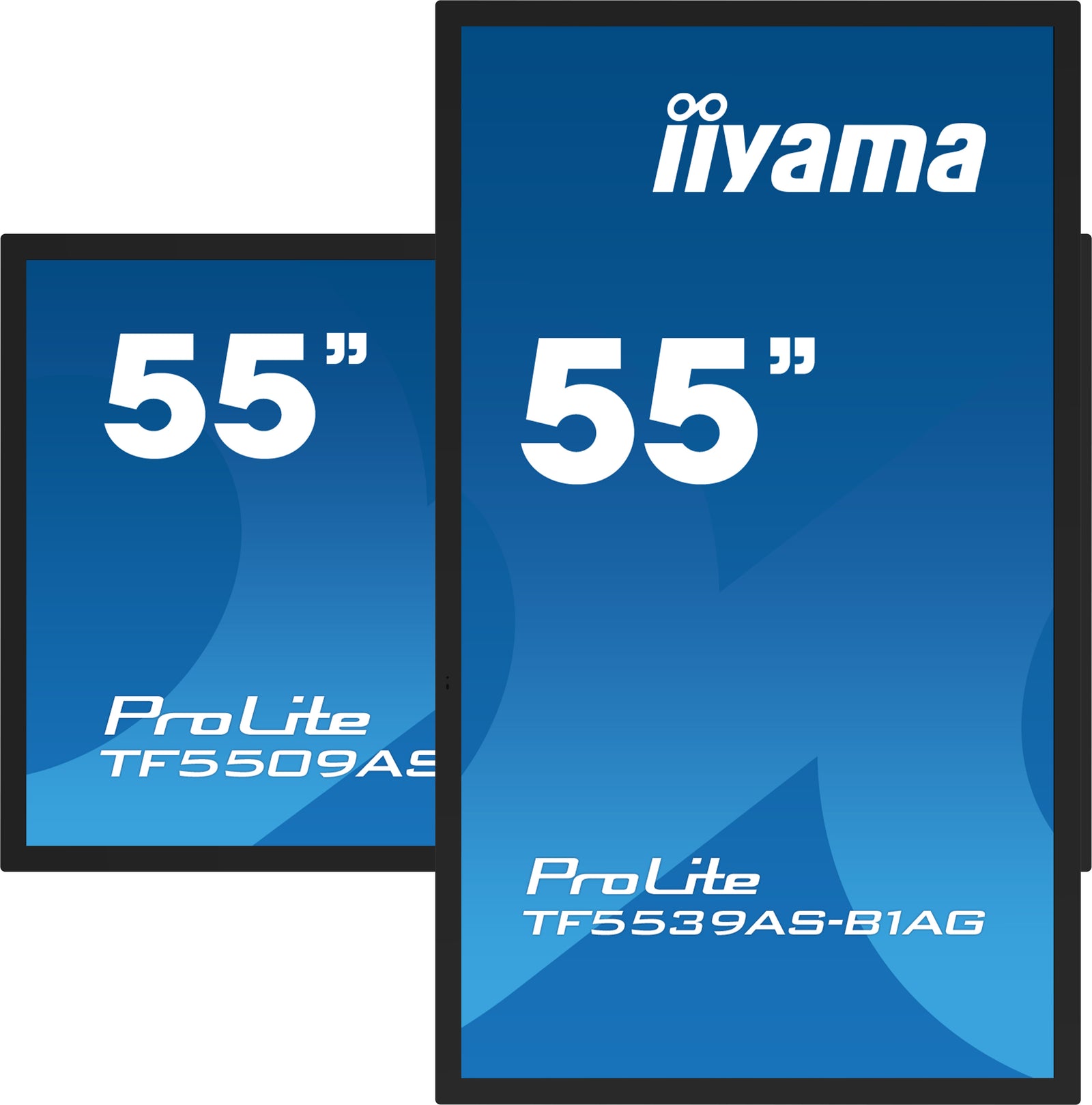

iiyama ProLite TF5539AS-B1AG 55" 4K Ultra HD PCAP Touchscreen Display
SKU: TF5539AS-B1AG
£1,648.67 (Excl. VAT)
- Display Size55"
- Touch Capabilities40pt multi-touch
- Net Weight40 kg
- Operating SystemAndroid 11

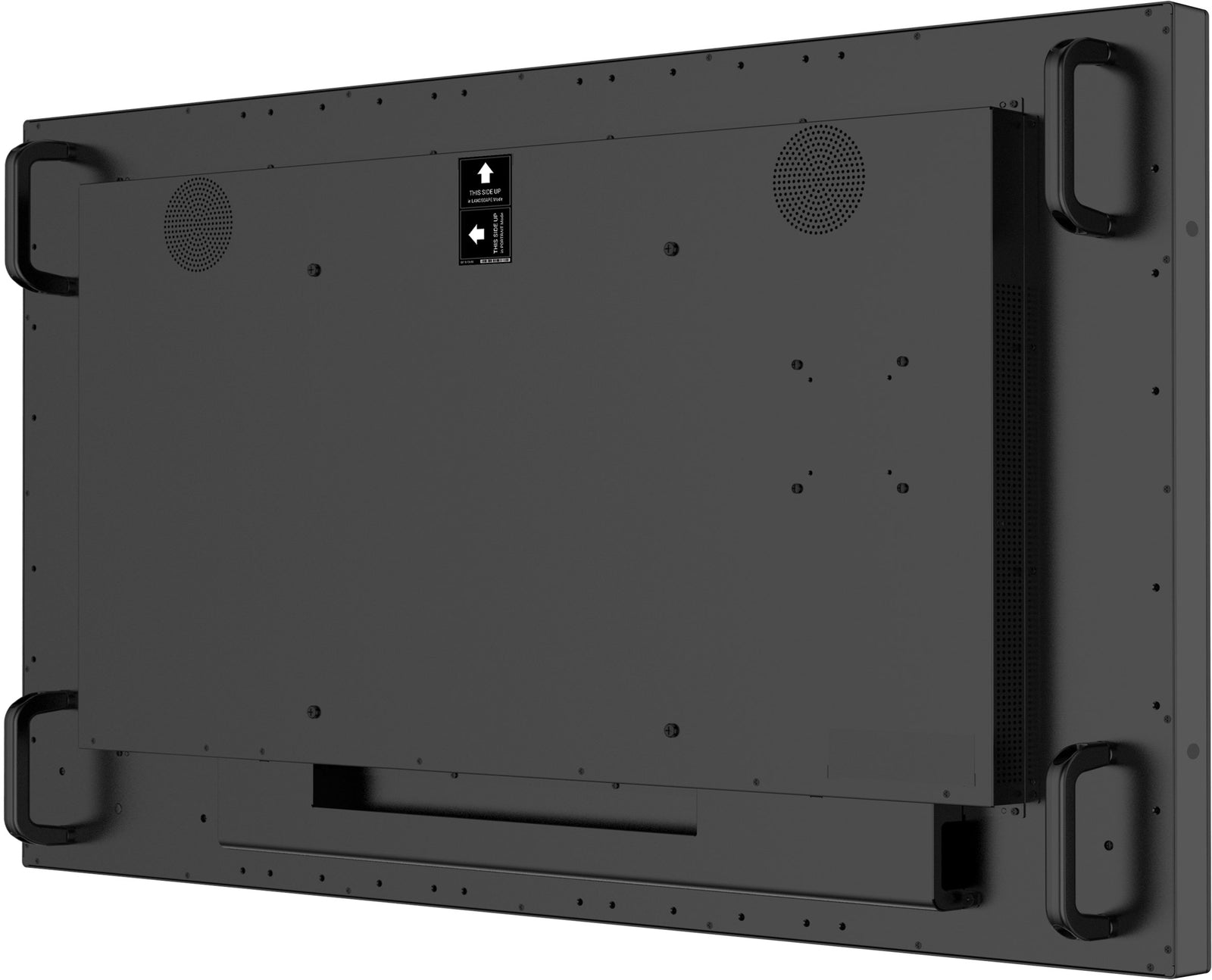

- VESA Patterns400x400
- Panel TypeIPS Panel
- ResolutionUltra HD (4K)
- Screen TypeFlat
- Response Time8ms
- Screen Ratio16:9
- Brightness500 cd/m2
- Operating Hours24/7
Book a Free Product Demo
Remote or on-site. No obligation.
Integrator or Installer?
Trade pricing, volume discounts, same-day collection.
Education & Public Sector Solutions
Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.
- Description
- Specifications
- Downloads
-

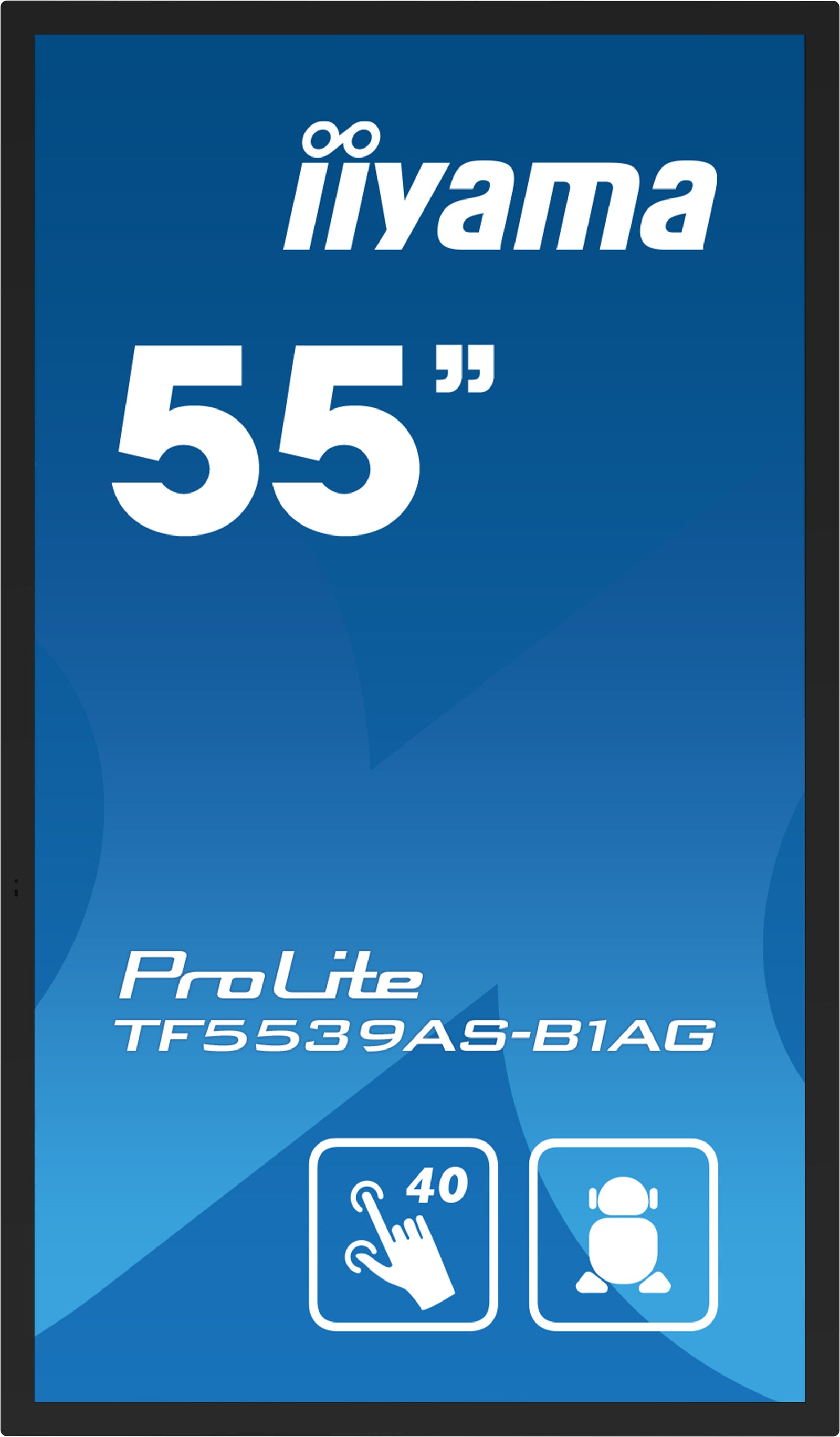

iiyama ProLite TF5539AS-B1AG 55" 4K Ultra HD PCAP Touchscreen Display
Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen.
The refined edge-to-edge glass design of the TF5539AS-B1AG lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks.
The on-board iiSignage² CMS (Content Management System) gives you total control of your messaging and advertising, remotely and safely. The EShare App enables you to bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wireless easier than ever before.
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
Retail Instalations
The interactive 4K Touchscreens are the key for immersive interactive experiences for spatial retail design. Allow customers to explore your website right there and then or engage with a range of creative or experiential applications you want to host. The flexibility of either landscape or portrait modes with 24/7 Operation, built-in Android and MediaPlayer make this SERIES displays one of the most adaptable Touchscreens solutions around.
Huddle Spaces
Turn these small meeting rooms into neat Collaboration spaces by employing the embedded applications like Android OS, EShare and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive Touchscreens. With Android OS you can easily customize the display by installing applications directly to it. With the EShare app you can share, stream and edit content from any device directly on screen and transform your team meetings into an easy, fast and seamless interactive session.
Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.
Touch Through-Glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants. -

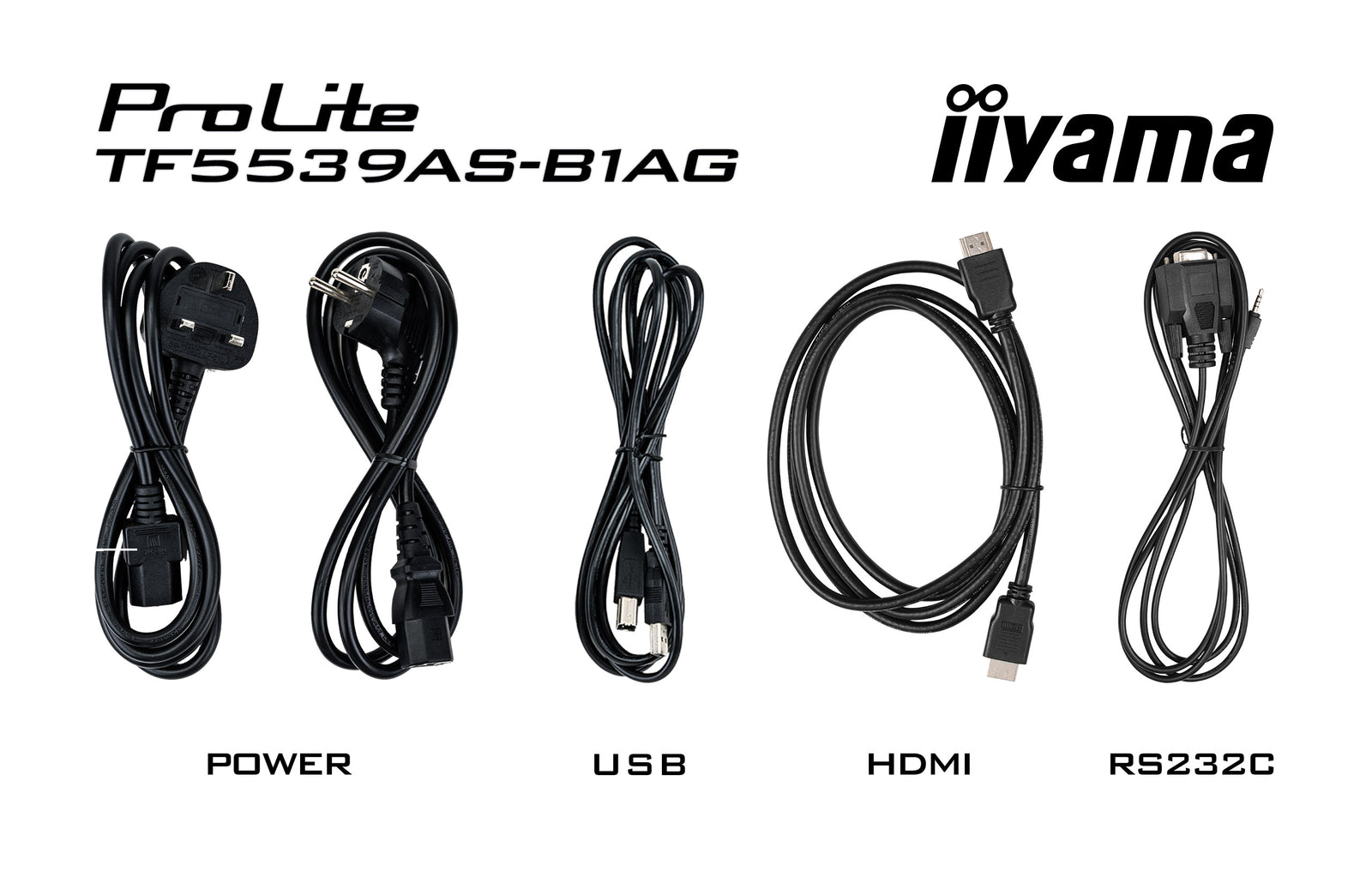

Attribute Details Design Edge to edge glass, Open Frame Diagonal 54.6", 139cm Panel IPS LED, AG coated glass, matte finish, haze 25% Native resolution 3840 x 2160 @60Hz (4K UHD) Aspect ratio 16:9 Panel brightness 500 cd/m² Brightness with touch 435 cd/m² Light transmittance 87% Static contrast 1200:1 Response time (GTG) 8ms Viewing zone 178°/178° (horizontal/vertical) Colour support 1.07G (8 Bits+FRC) (72% NTSC) Horizontal Sync 28 - 160kHz Viewable area (W x H) 1209.6 x 680.4mm (47.6 x 26.8") Bezel width (sides, top, bottom) 30mm, 30mm, 30mm Pixel pitch 0.315mm Bezel colour and finish Black, matte Touch technology Bonded PCAP Touch points 40 Touch accuracy +- 2.5mm Touch method Stylus, finger, glove (latex) Touch interface USB Supported OS Windows, Linux Through-Glass 6mm Palm rejection Yes Digital signal input HDMI x2 (2.0, max. 3840x2160 @60Hz), DisplayPort x1 (1.2, max. 3840x2160 @60Hz) Monitor control input RS-232c x1 (Get/Set Command) RJ45 (LAN) x1 (Control and Internet) Audio output Mini jack x1 Speakers 2 x 10W HDCP 2.2 USB ports 3 OUT (2.0 x1 (up Type B), 2.0 x2 (Type A)) Integrated software Android 11 OS, iiSignage², EShare, FailOver Hardware CPU: A734+A534, GPU: G52 MP8, RAM: 4GB, ROM: 32GB Extra features Handles, Touch Through-Glass Kiosk mode Yes Max. non-stop operating time 24/7 Anti image retention Yes Glass thickness 4mm Glass hardness 3H 60950 Ball drop test Yes Water and dust protection IP65 (front) Housing (bezel) Metal OSD key lock Yes Remote control lock Yes OSD languages EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB Control buttons Power User controls Picture, screen, audio, configuration, advanced options Plug&Play DDC2B Orientation Landscape, portrait, face-up VESA mounting 400 x 400mm Mini PC mount VESA 100 x 100, NUC INTEL Operation temperature range 0°C - 40°C Storage temperature range -20°C - 60°C MTBF 50,000 hours (excluding backlight) Cables included Power (1.8m), USB (1.8m), HDMI (1.8m), DP (1.8m) Guides Quick start guide, safety guide Cable cover Yes Remote control Yes (batteries included) Power supply unit Internal Power supply AC 100 - 240V, 50/60Hz Power usage 139W typical, 0.5W standby, 0.3W off mode Regulations CB, CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH (UKCA, cTUVus) Energy efficiency class F REACH SVHC Above 0.1%: Lead Product dimensions (W x H x D) 1274 x 744.8 x 65.2mm Box dimensions (W x H x D) 1428 x 894 x 185mm Weight (without box) 39.6kg Weight (with box) 47.2kg EAN code 4948570123896 -
Description Downloads User manual Downloads Technical specification Downloads Drawing Downloads UK Energy Label Downloads
