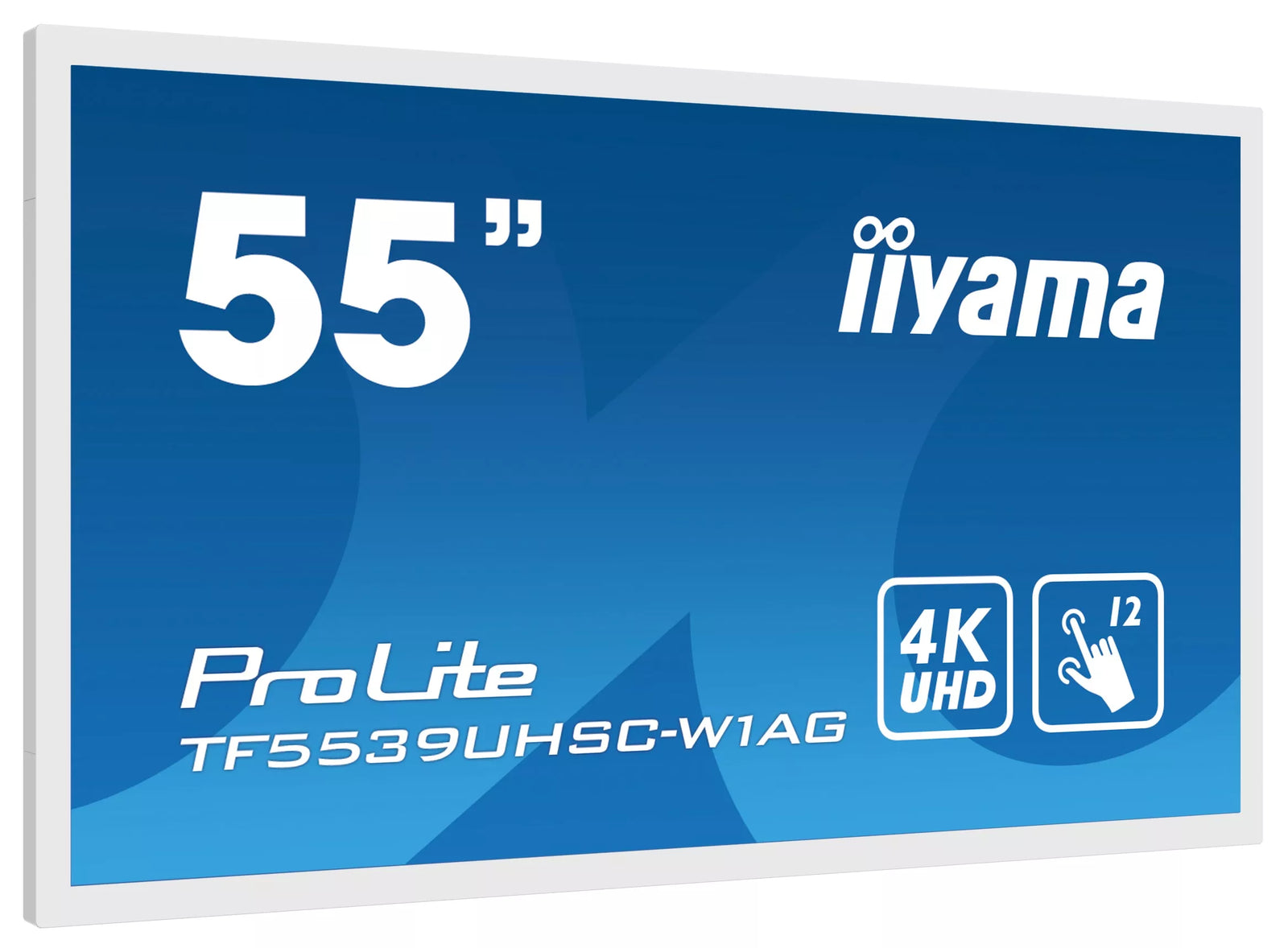

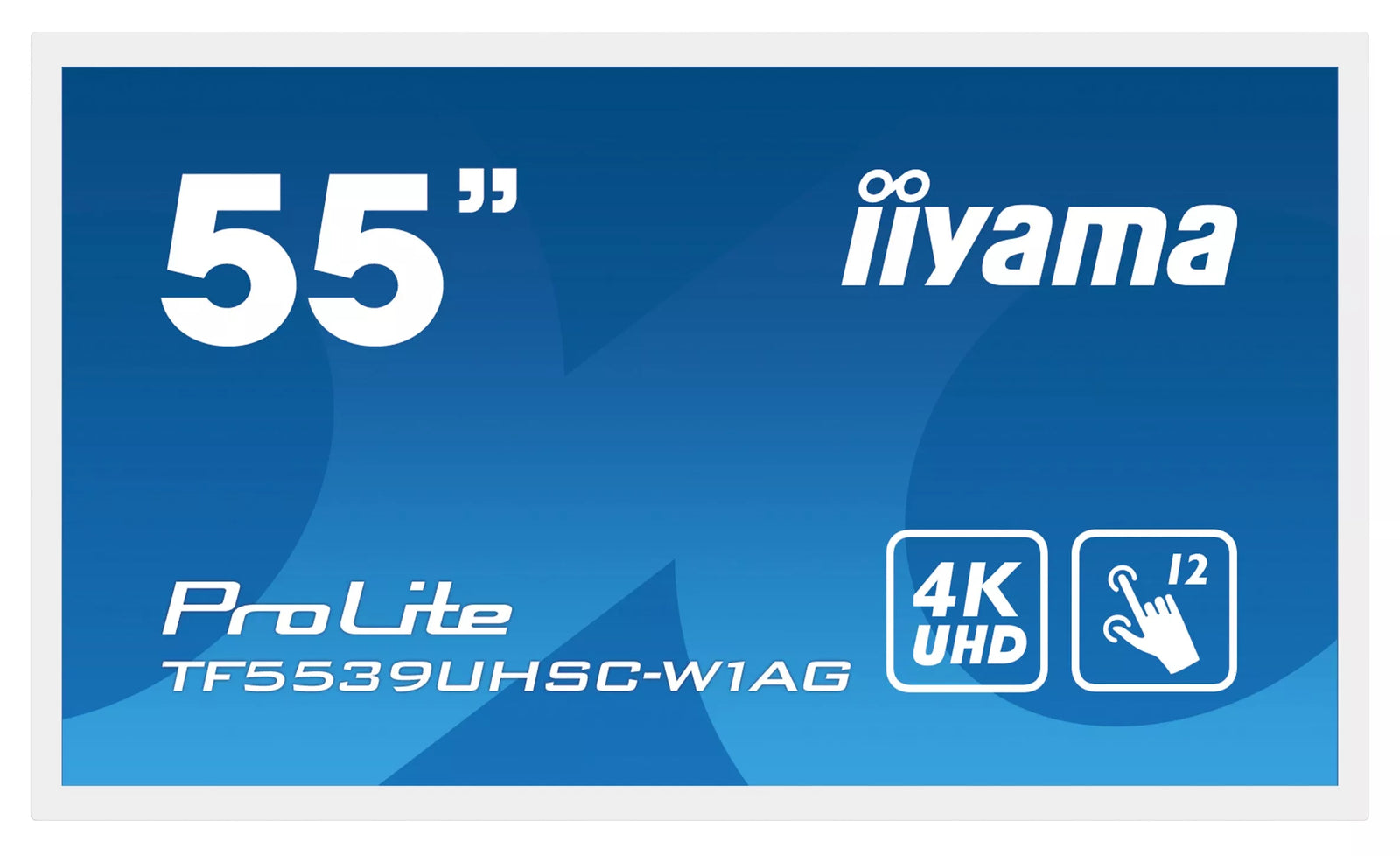

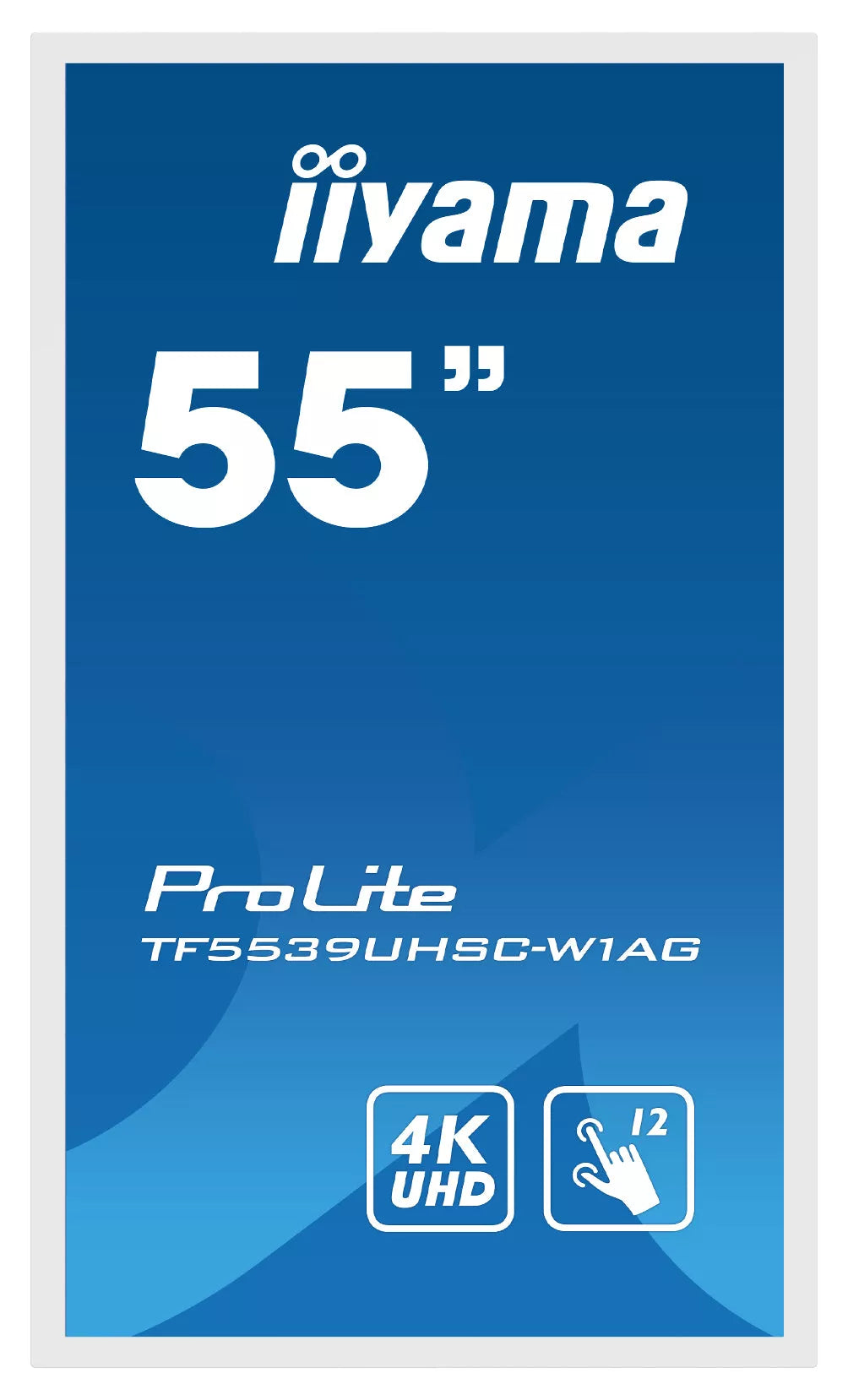

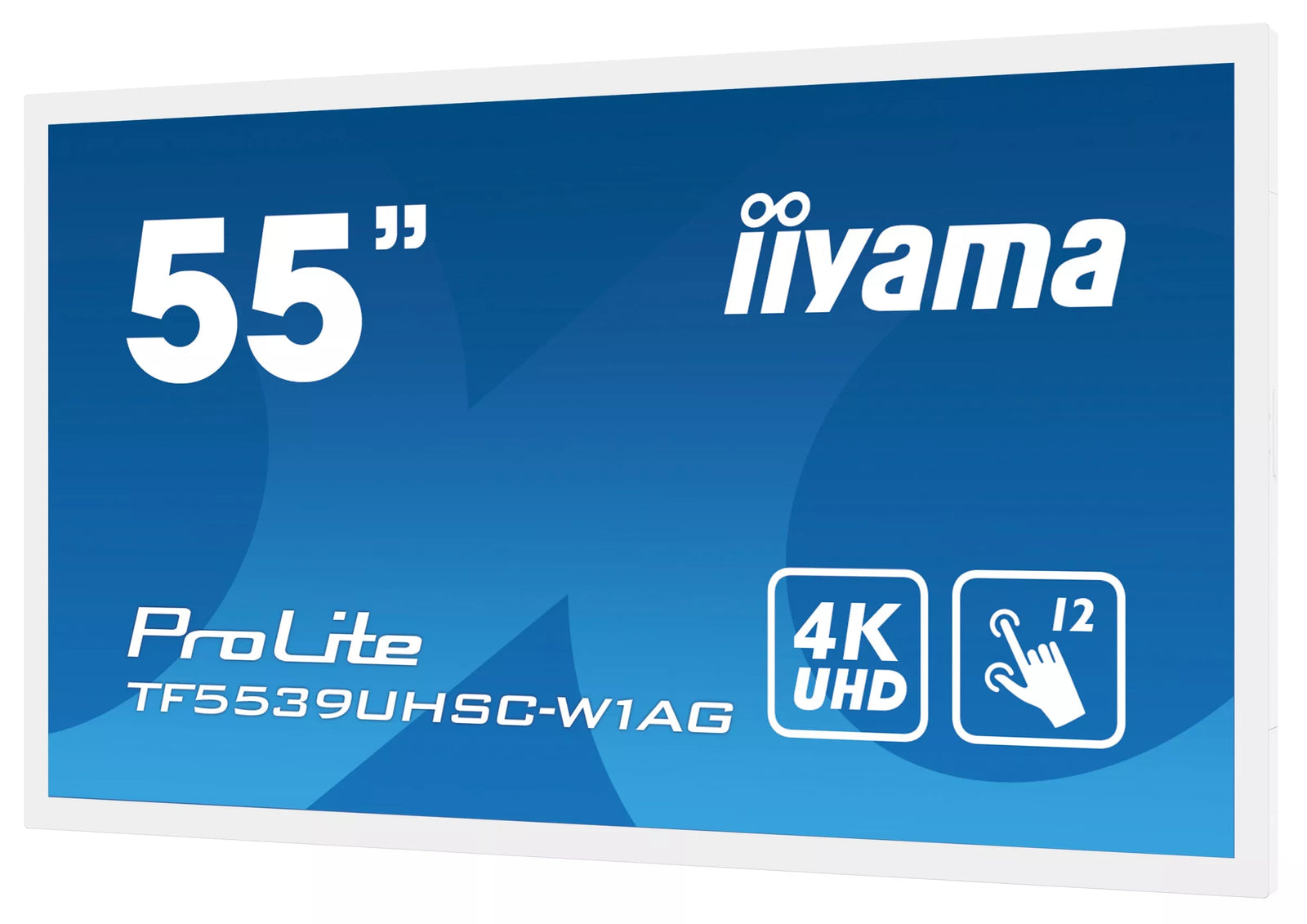

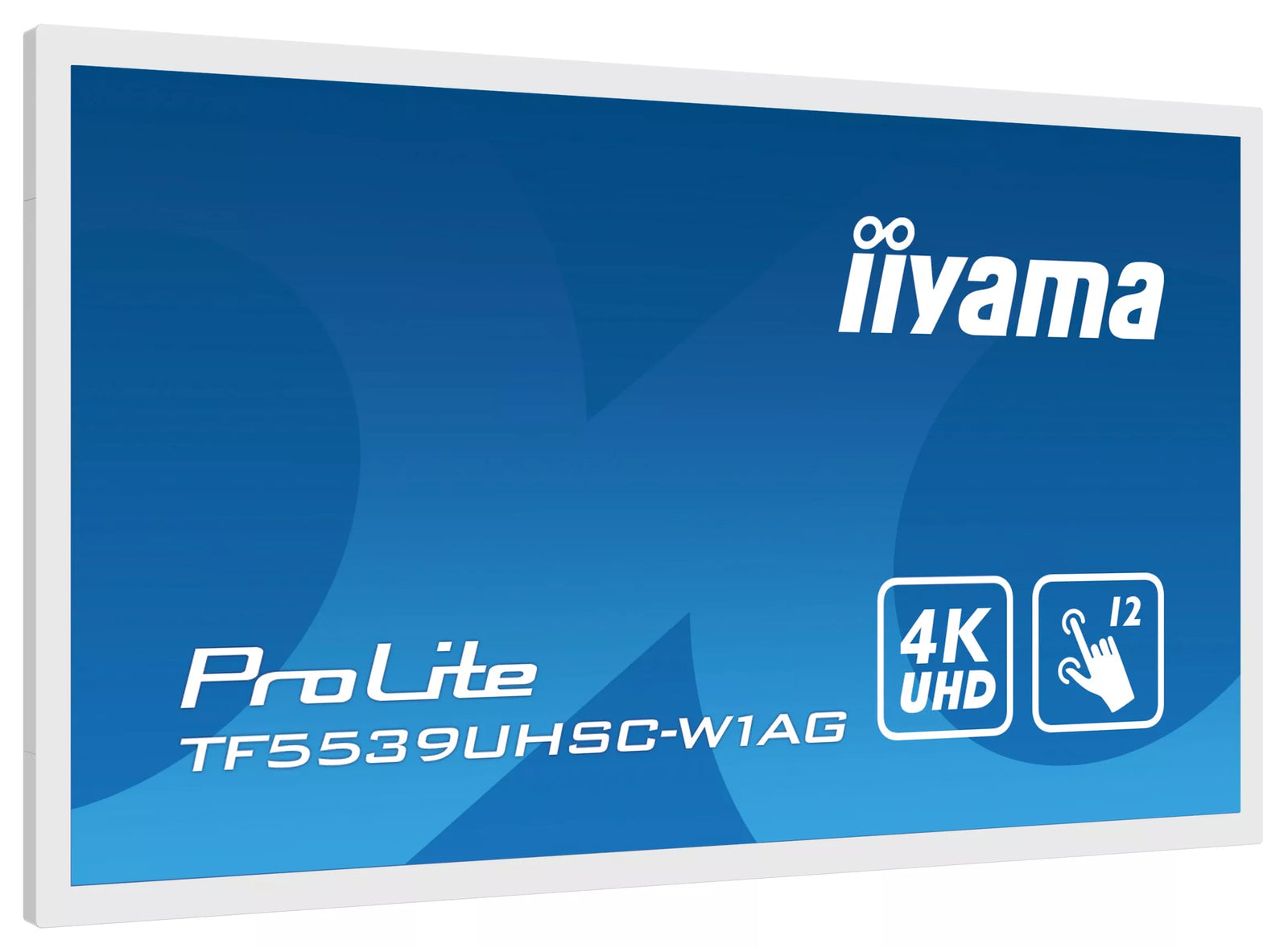

iiyama ProLite TF5539UHSC-W1AG
12pt PCAP 55" Open Frame Touchscreen Display
55" Open Frame PCAP interactive large format display with 15pt touch capability, IPS panel technology and touch through glass function for landscape, portrait or face-up use
55" Open Frame PCAP interactive large format display with 15pt touch capability, IPS panel technology and touch through glass function for landscape, portrait or face up use

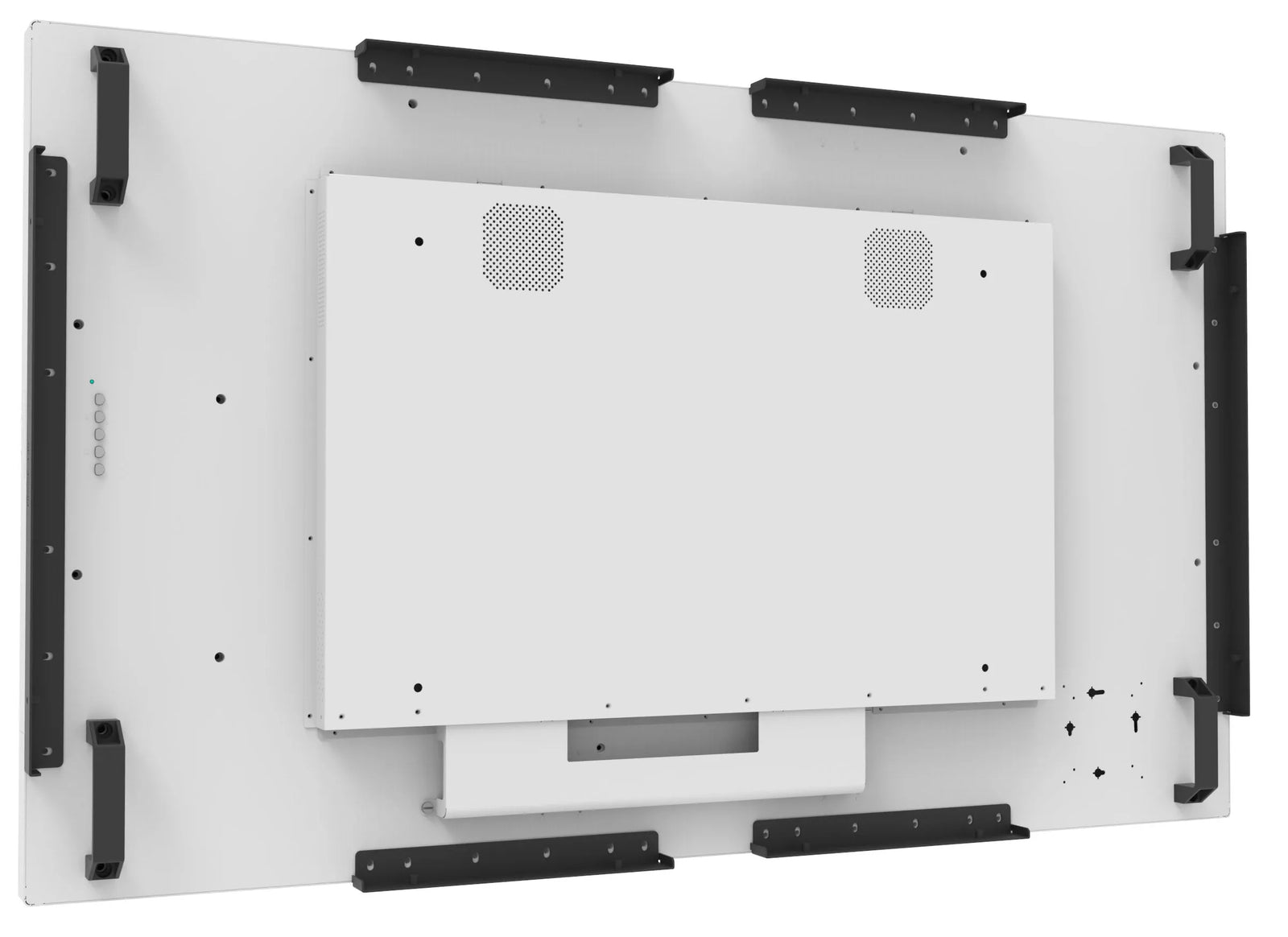

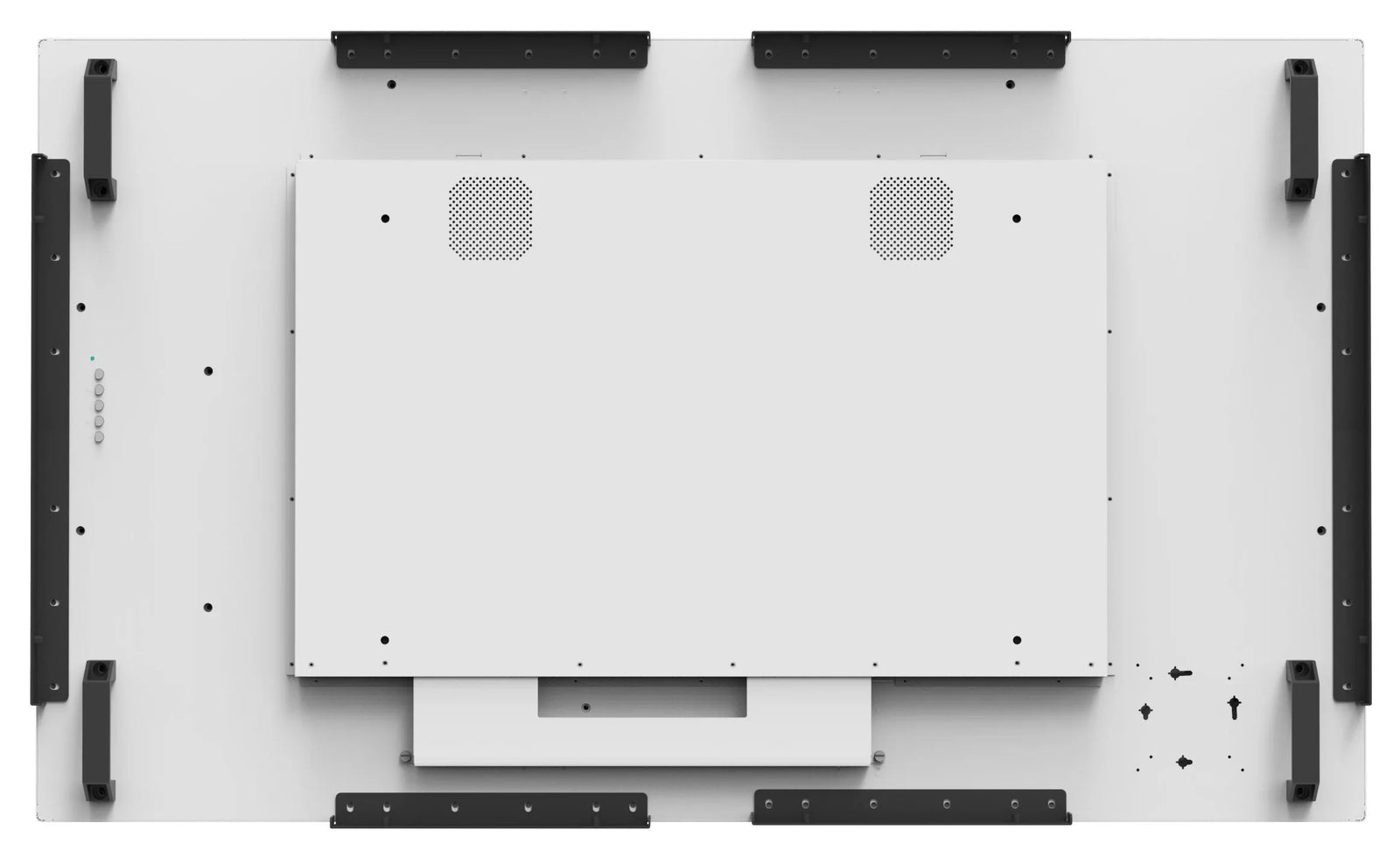

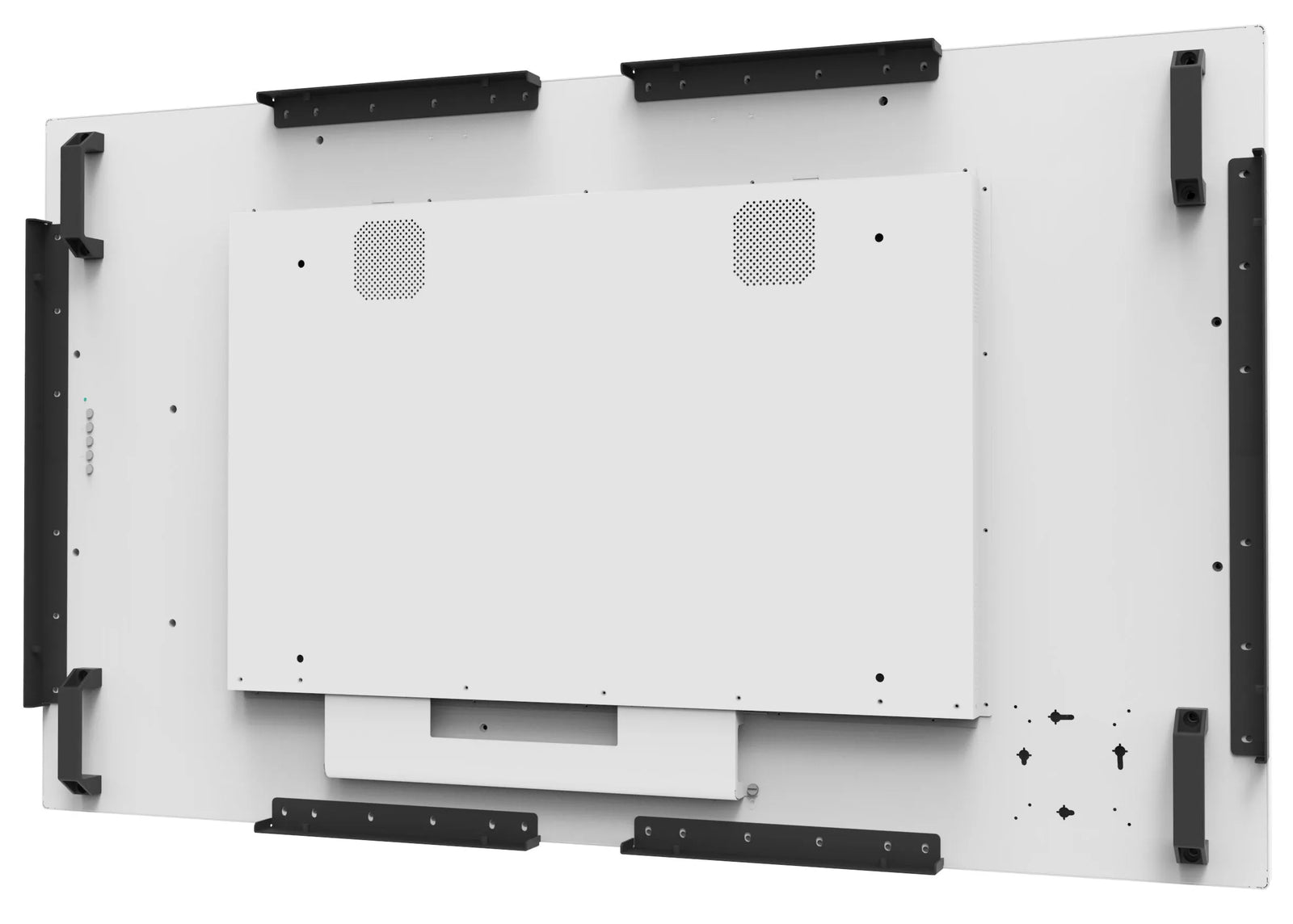

The 4K UHD (3840x2160) Open Frame TF5539UHSC-W1AG with Touch-Through-Glass function guarantees a seamless and accurate touch response for true kiosk integration or interactive behind-glass-retail applications. The IPS panel technology offers exceptional colour performance and wide viewing angles, making it a perfect solution for interactive shop windows, education, kiosks and in-store communications. Featuring a metal housing with 60950-1 ball-drop proof, scratch-resistant and edge-to-edge glass, this display can be installed in the most demanding environments for an 24/7 usage and in different set-ups as a result of its Open Frame side mounting holes. For ease of integration, the TF5539UHSC-W1AG can be equipped with optional external mounting brackets (OMK4-2) making it an ideal solution for kiosk integrators and interactive multimedia.
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

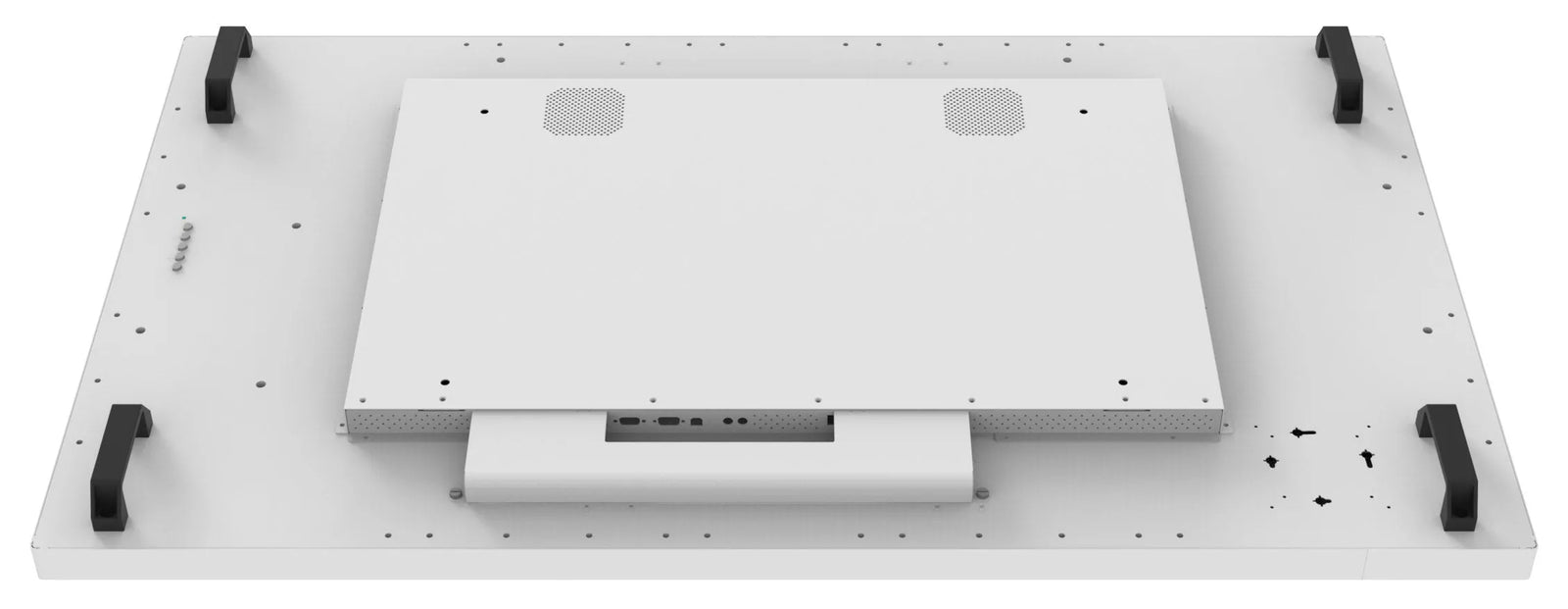

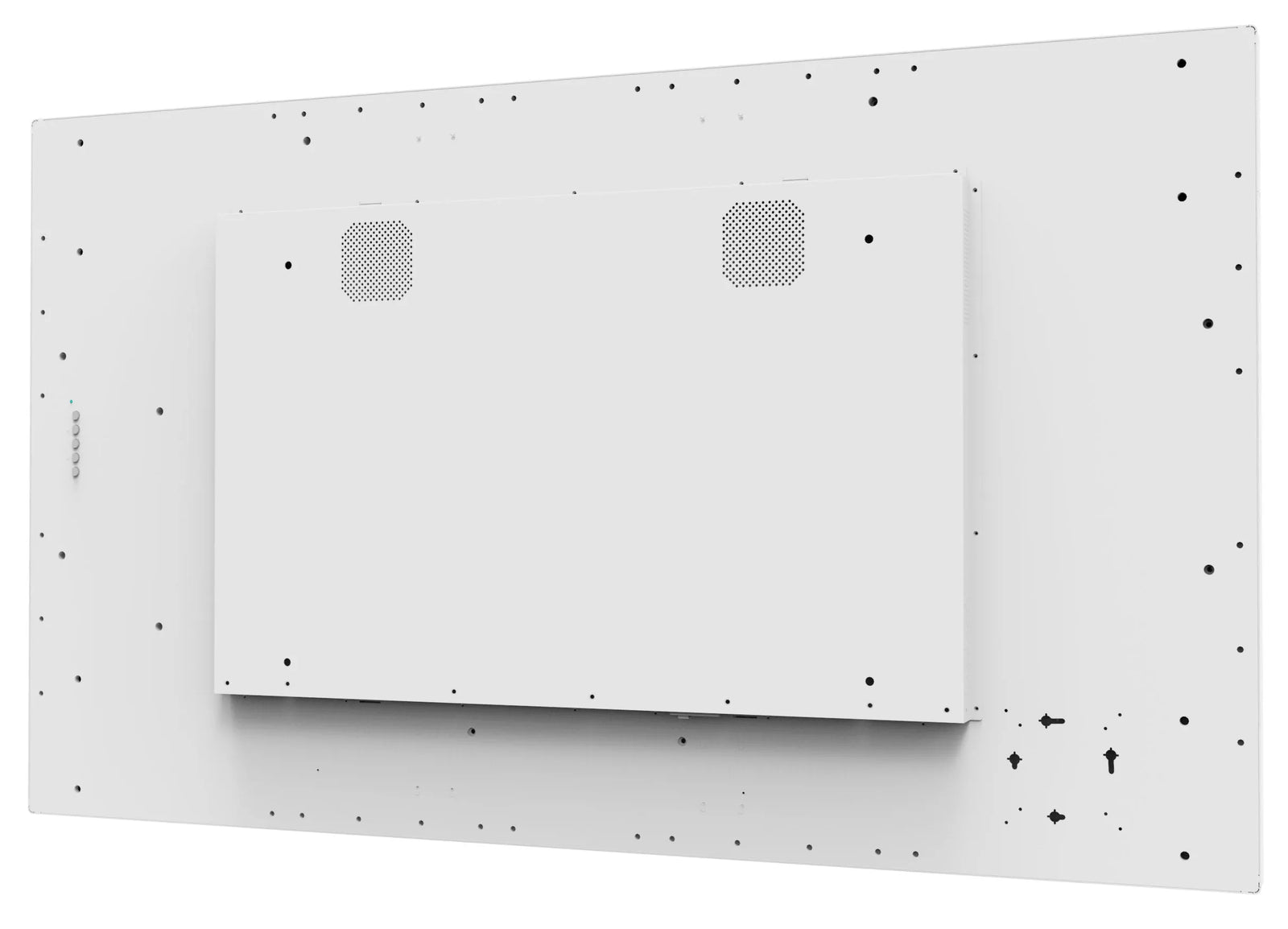

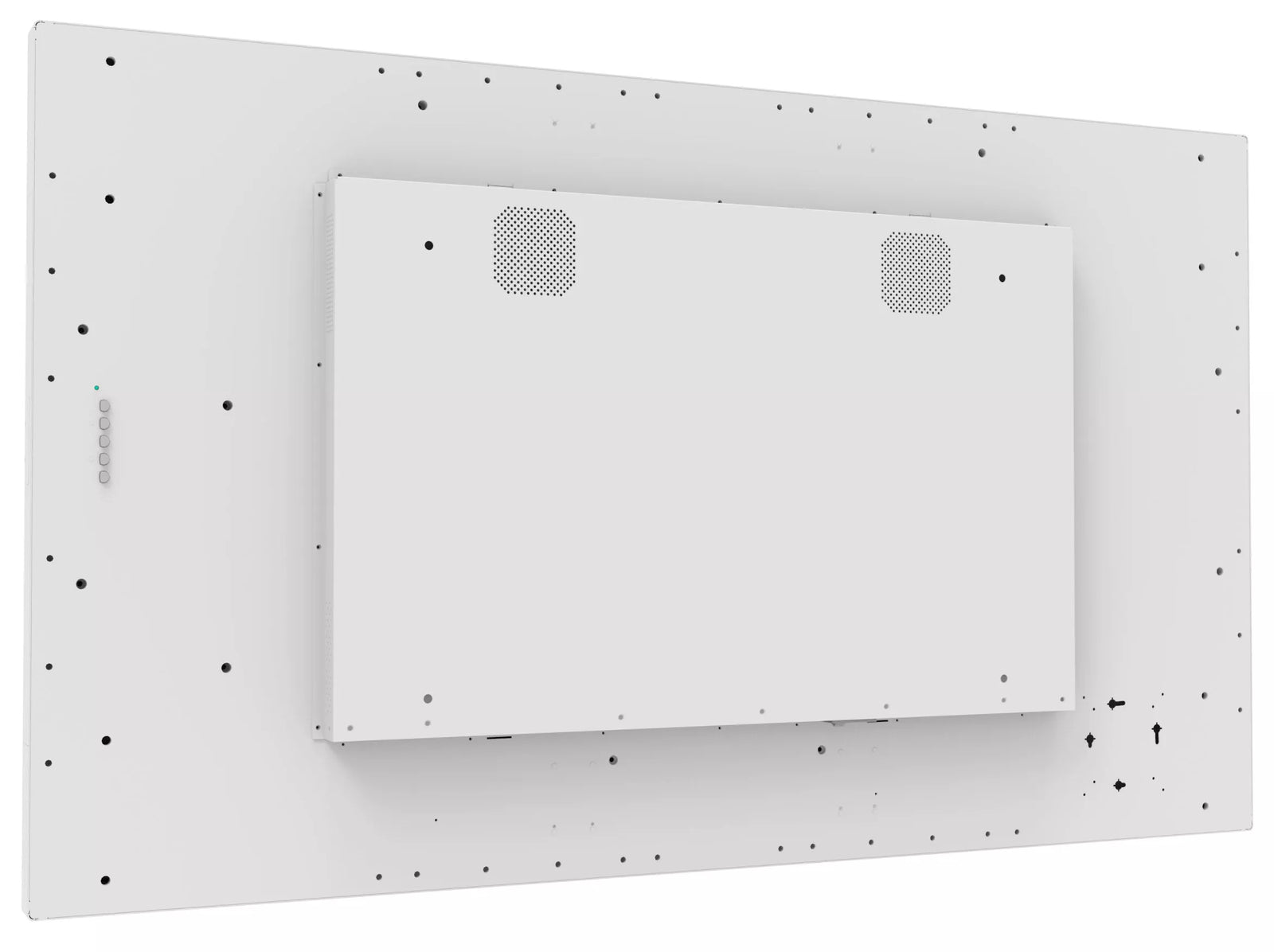

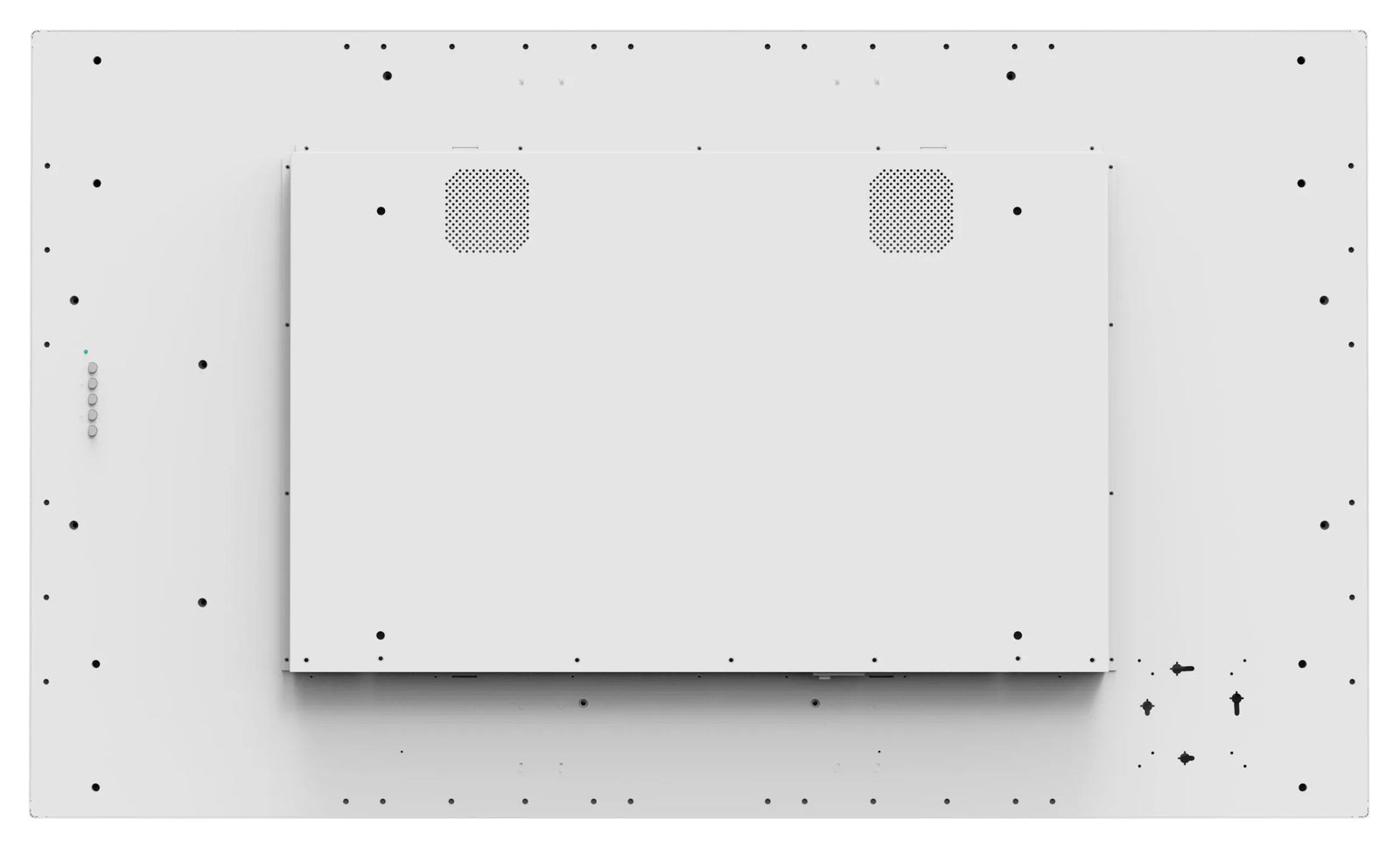

Open frame monitors feature special mounting screw holes on all sides of the monitor that can be used for installing the monitor. Open Frame monitors are an ideal solution for kiosk integrators and Instore Retail.
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks
24/7 displays are designed for a continuous operation.
| Feature | Description |
|---|---|
| DISPLAY CHARACTERISTICS | |

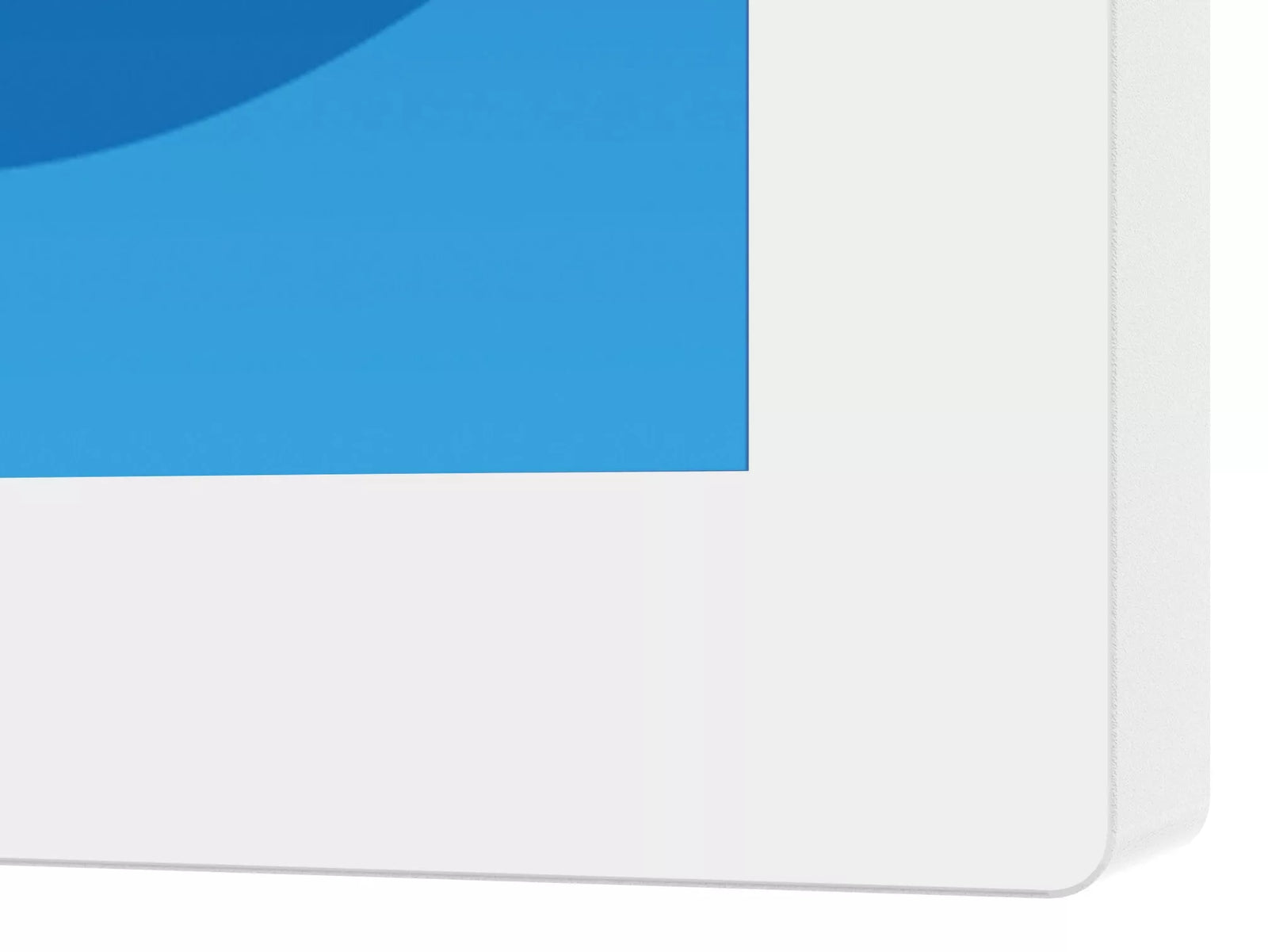

| Design | Edge to edge glass, Open Frame |
| Diagonal | 55", 139cm |
| Panel | IPS LED, AG coated glass |
| Native resolution | 3840 x 2160 @60Hz (8.3 megapixel 4K UHD) |
| Aspect ratio | 16:9 |
| Panel brightness | 500 cd/m² |
| Light transmittance | 84% |
| Static contrast | 1100:1 |
| Response time (GTG) | 8ms |
| Viewing zone | Horizontal/Vertical: 178°, Right/Left: 89°/89°, Up/Down: 89°/89° |
| Colour support | 16.7 million colors (8-bit) |
| Horizontal Sync | 30 - 83kHz |
| Viewable area W x H | 1212 x 683mm, 47.7 x 26.89" |
| Bezel width (sides, top, bottom) | 29.7mm, 33.2mm, 33.2mm |
| Pixel pitch | 0.315mm |
| Bezel color and finish | White, matte |
| TOUCH | |
| Touch technology | Projective capacitive |
| Touch points | 15 (HID, only with supported OS) |
| Touch accuracy | ±3mm |
| Touch method | Stylus, finger, glove (latex) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Through-Glass | 6mm |
| Palm rejection | Yes |

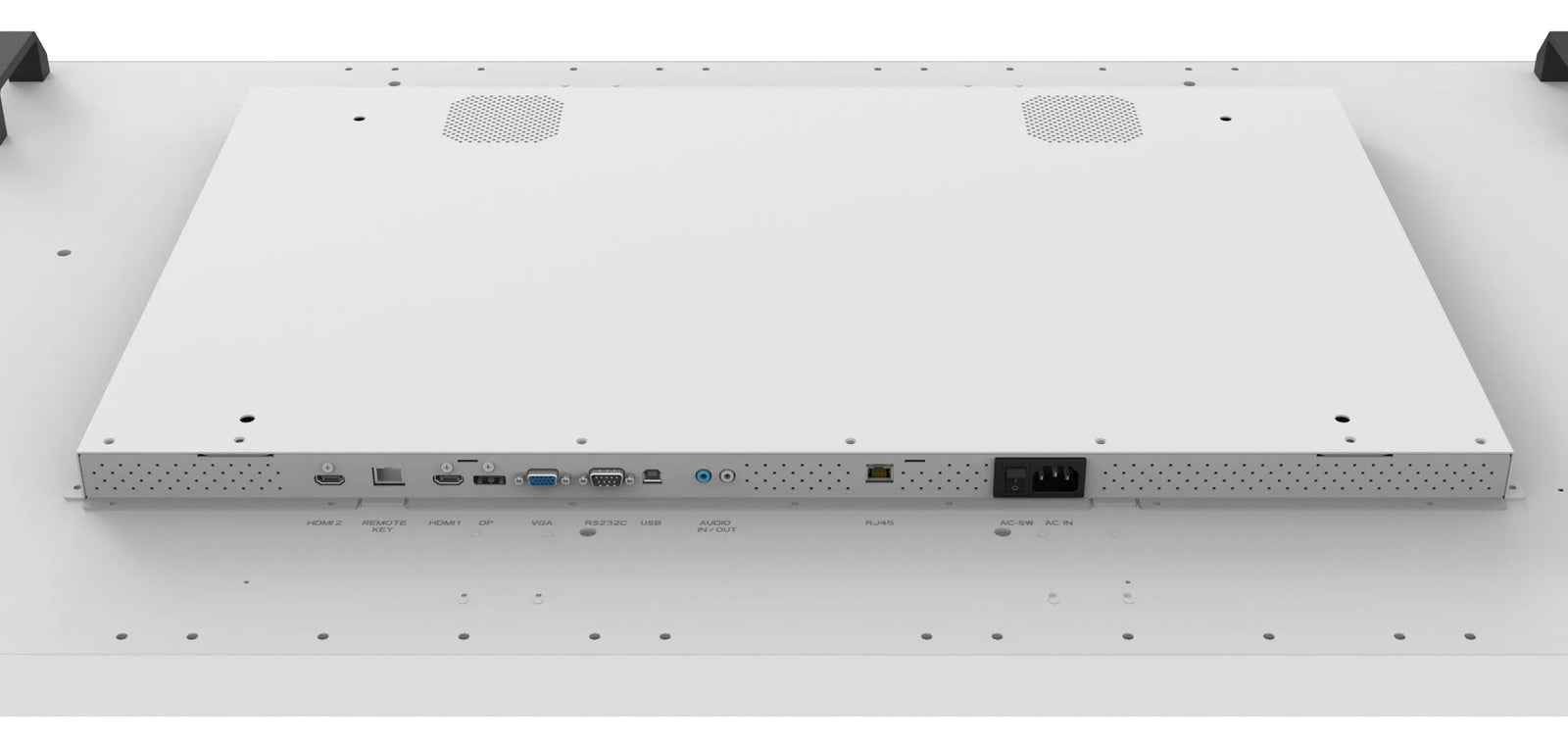

| INTERFACES / CONNECTORS / CONTROLS | |
| Analog signal input | VGA x1 (max. 1920x1080 @60Hz) |
| Digital signal input | HDMI x2 (v.2.0 x1 max. 3840x2160 @60Hz, v.1.4 x1 max. 3840x2160 @30Hz)<br>DisplayPort x1 (v.1.2 max. 3840x2160 @60Hz) |
| Audio input | Mini jack x1 |
| Monitor control input | RS-232c x1 |
| RJ45 (LAN) | x1 |
| Audio output | Mini jack x1<br>Speakers 2 x 8W |
| HDCP | Yes |

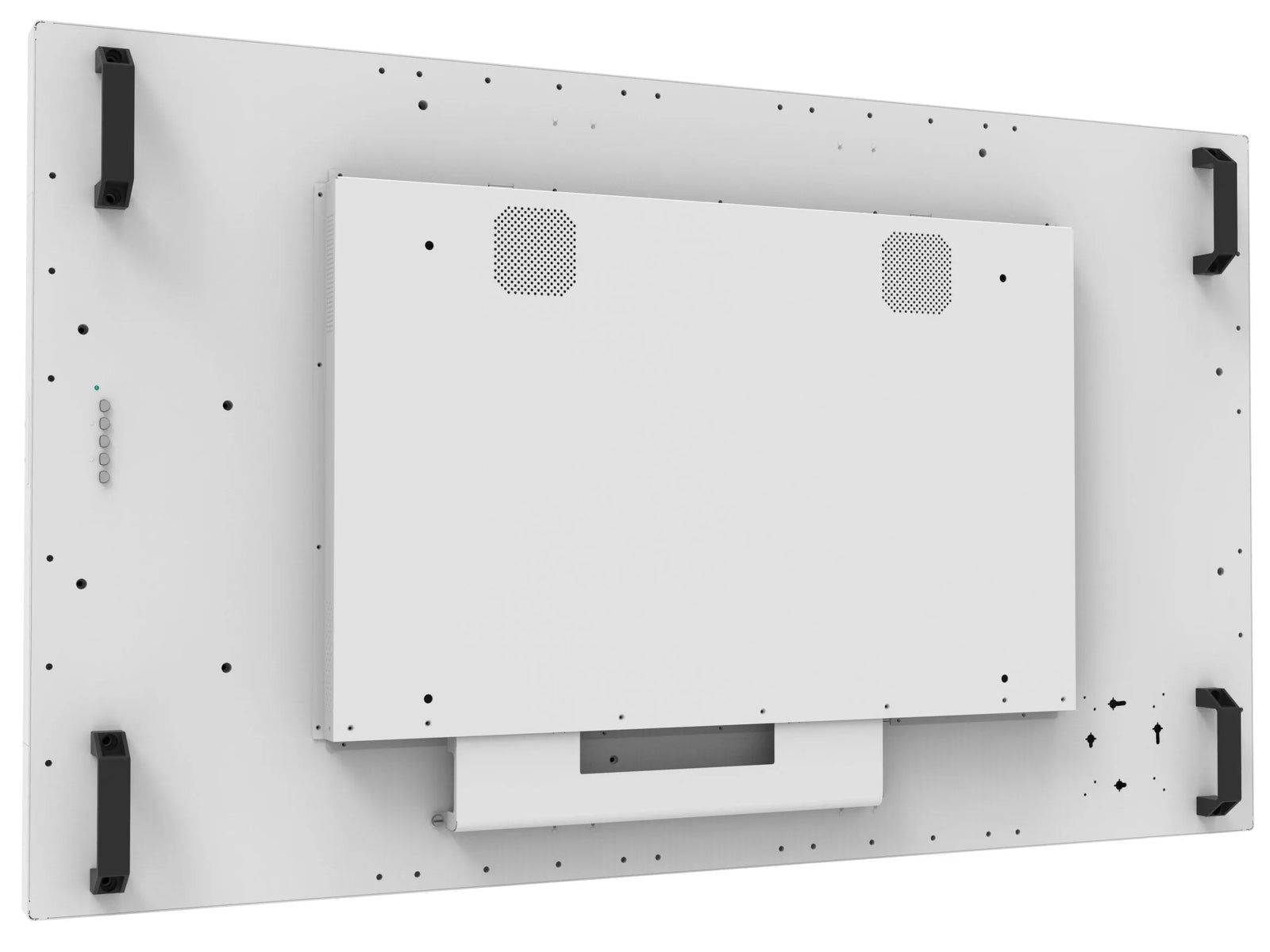

| Extra | Handles, touch through-glass, temperature sensor with fan control |
| Max. non-stop operating time | 24/7 |
| Anti image retention | Yes |
| Glass thickness | 4mm |
| Glass hardness | 7H |
| 60950 Ball drop test | Yes |
| Water and dust protection | IP54 (front) |
| Housing (bezel) | Metal |
| OSD languages | EN, DE, FR, ES, IT, RU, NL, PL |

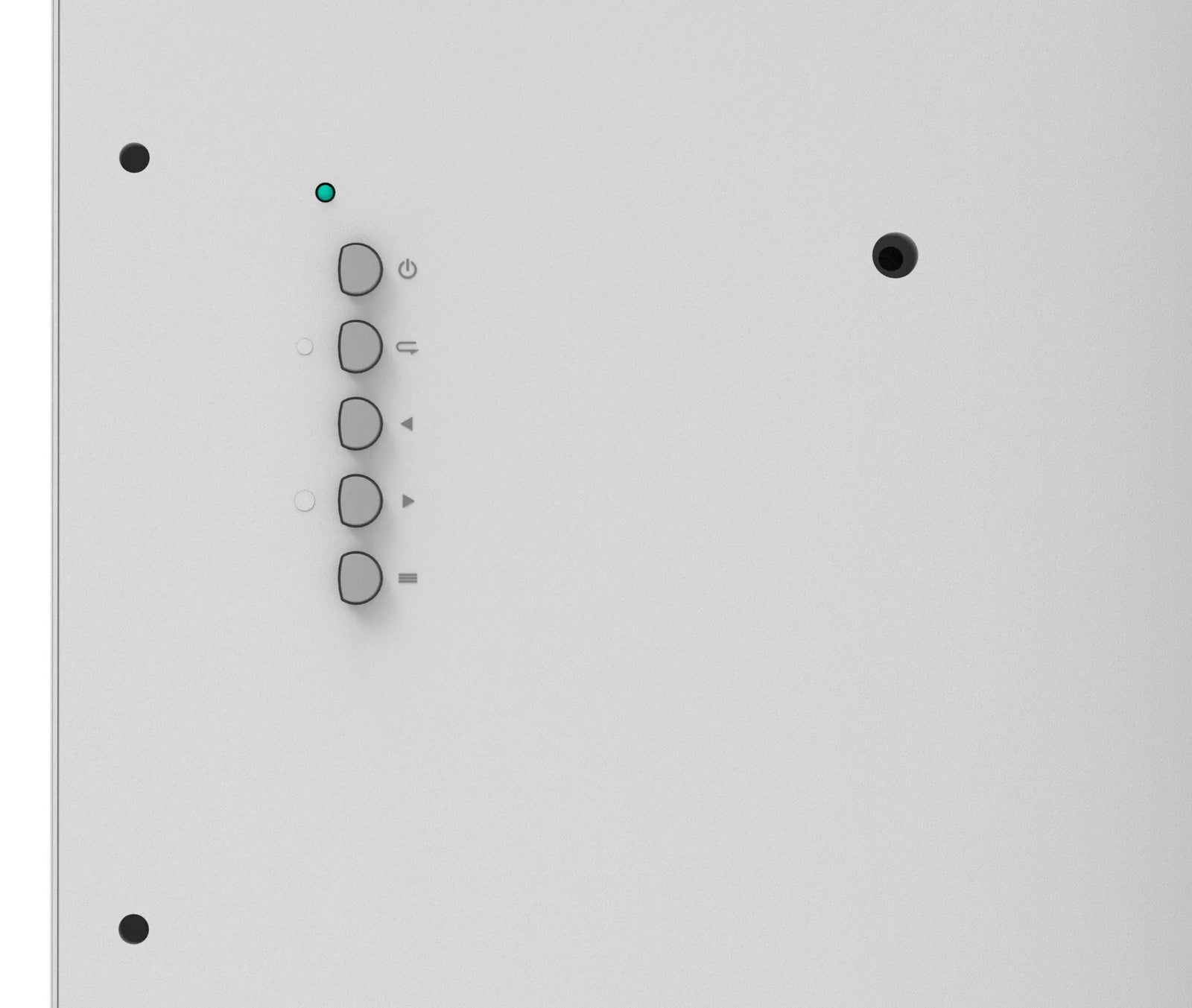

| Control buttons | Power, Menu, Exit, Up, Down |
| User controls | Picture (backlight, contrast, brightness, sharpness, H/V-position, phase, Chroma, adjust screen, color temp., picture mode), sound (treble, bass, balance, volume, mute, speaker, audio source), screen (aspect, Touch feature, reset), settings (OSD time, OSD H/V position, language, schedule, power save, control setting, network setting, advanced, information, all reset) |
| Plug & Play | DDC2B |

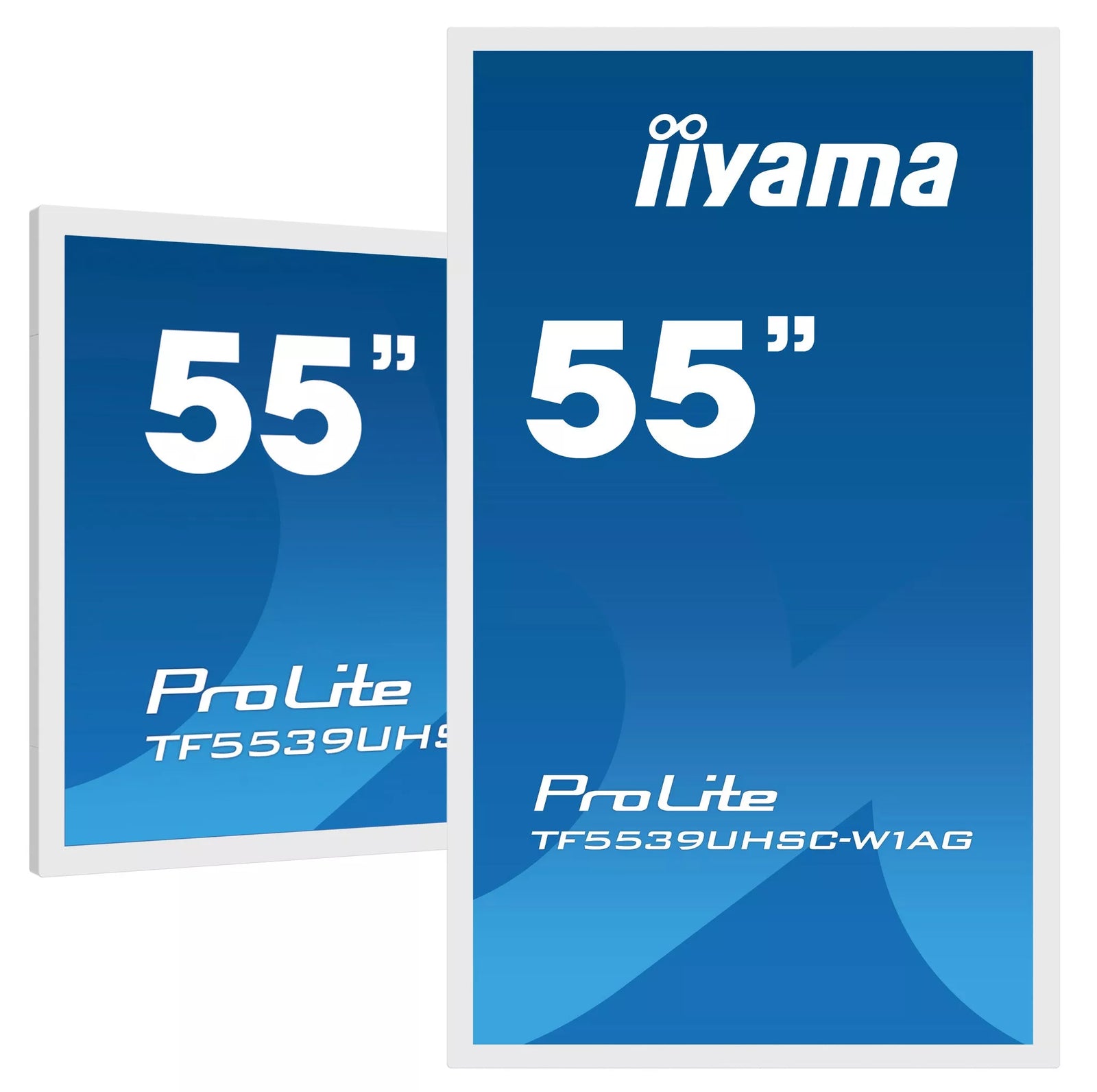

| Orientation | Landscape, portrait, face-up |
| VESA mounting | 600 x 400mm |
| Mini PC mount | VESA 100 x 100, NUC INTEL |
| Operation temperature range | 0°C - 40°C |
| Storage temperature range | -20°C - 60°C |
| MTBF | 50,000 hours (excluding backlight) |
| ACCESSORIES INCLUDED | |

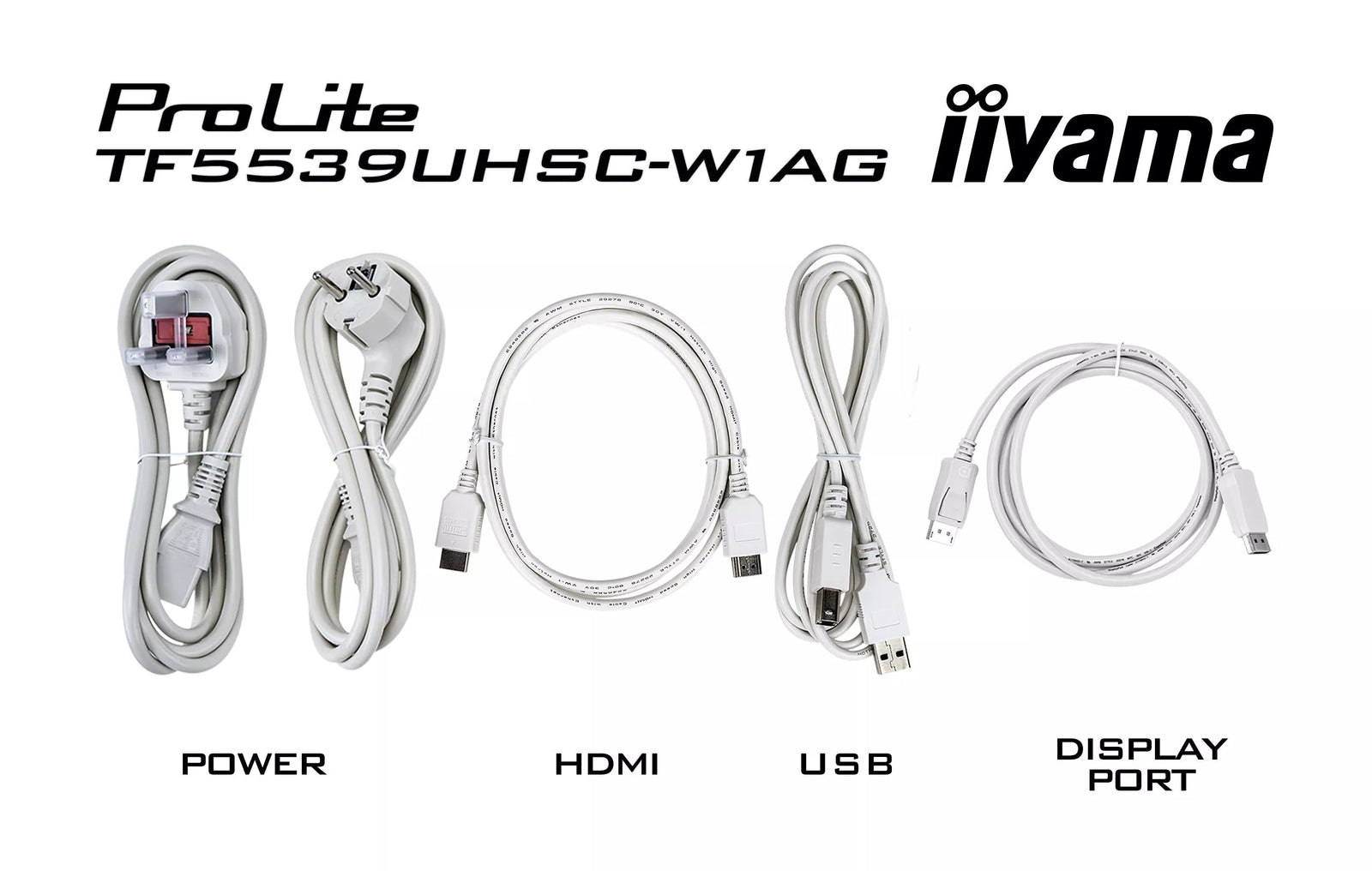

| Cables | Power (1.8m), USB (1.8m), HDMI (1.8m), DP (1.8m) |
| Guides | Quick start guide, safety guide |
| Cable cover | Yes |
| Power supply unit | Internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 155W typical, 1.5W standby, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) | G |
| REACH SVHC | Above 0.1%: Lead |
| Product dimensions W x H x D | 1271.5 x 749.4 x 68mm |
| Box dimensions W x H x D | 1400 x 930 x 245mm |
| Pallet volume | 10 pcs |
| Pallet dimensions W x H x D | 1420 x 1245 x 1986mm |
| Weight (without box) | 41kg |
| Weight (with box) | 46.5kg |
| EAN code | 4948570118076 |
| Warranty | Product | Cover |
| Visioncare | Desktop LCD products (Monitors) (17" - 43") |
3 years on-site UK warranty. (Upgrades to 5 years available) |
| Touchcare |
LCD touchscreen products | 3 years repair and return. (Upgrades to on-site & 5 years available) |
| LFD | Large Format Displays Standard Warranty |
3 years collect and return (Upgrade to swap, installation & 5 years available) Download |
