iiyama ProLite TW1023ASC-B1P - 10pt PCAP Android 10" POE Touch Screen Monitor
SKU: TW1023ASC-B1P
£160.27 (Excl. VAT)
Book a Free Product Demo
Remote or on-site. No obligation.
Integrator or Installer?
Trade pricing, volume discounts, same-day collection.
Education & Public Sector Solutions
Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.
- Description
- Specifications
- Warranty
-

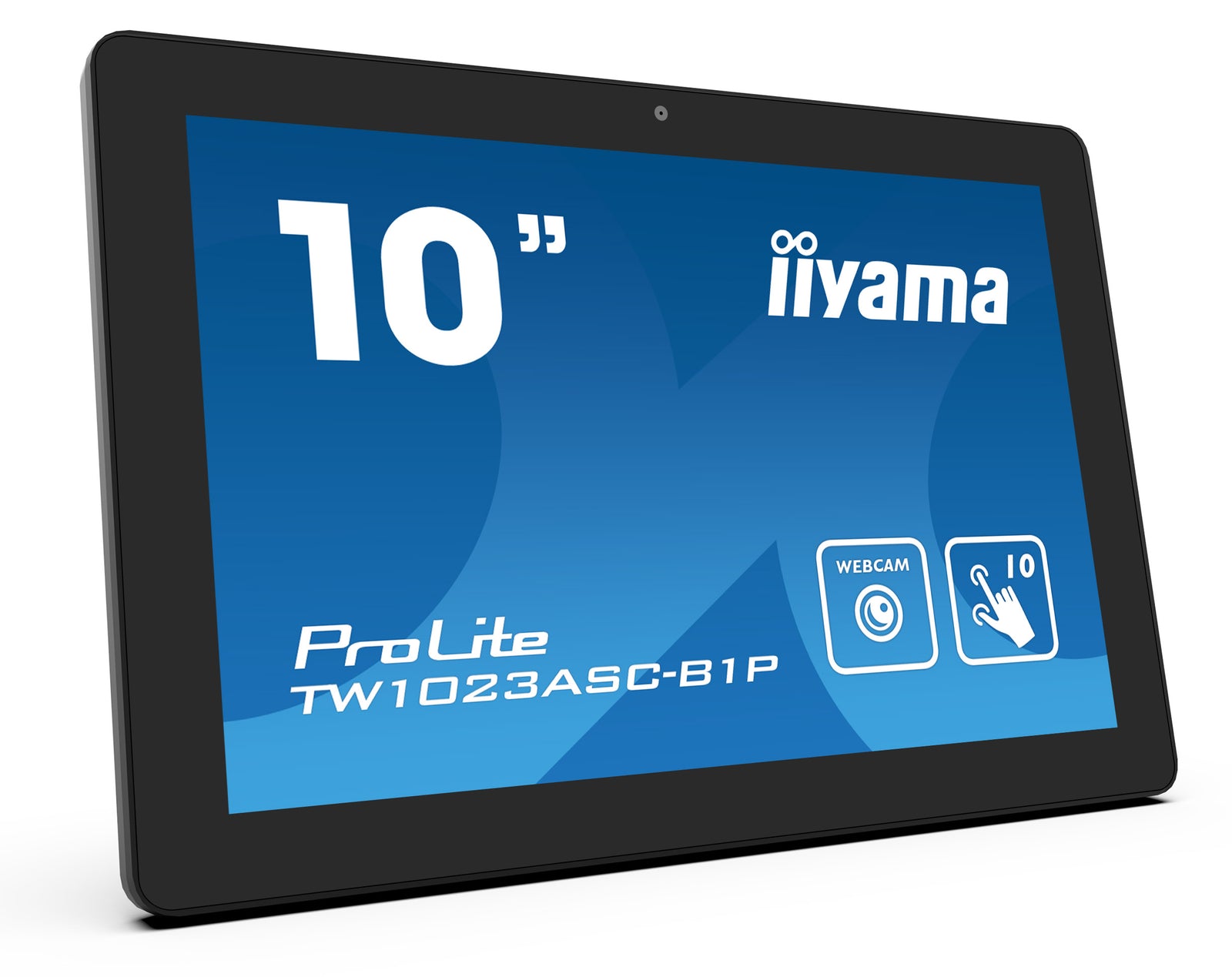

10.1” PCAP 10pt touch screen with Android and Power over Ethernet Technology
The ProLite TW1023ASC-B1P touch panel PC is a perfect choice for high-use environments such as retail, interactive POS, information desks or hospitality applications.
This 10.1” PCAP 10-point touchscreen with Android allows users to directly connect and operate the monitor from any device. The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. This monitor can operate in landscape, portrait or face-up orientation. Together with the built-in camera and speakers it offers limitless interactive installation possibilities.
-
CONNECTIVITY
The RJ45 (LAN) connector supporting Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.
-
BUILT-IN WEBCAM & SPEAKERS
Making the screen a perfect solution for semi or fully automated reception solutions allowing businesses to track and manage visitor traffic at the front desk lobby without compromising on the safety and security of your staff, visitors and company assets.
-
ANDROID OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
-
ANTI-FINGERPRINT COATING
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
-
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
-
-
DISPLAY CHARACTERISTICS
Design Edge to edge glass Diagonal 10.1", 25.5cm Panel IPS Panel Technology, LED Native resolution 1280 x 800 (1 megapixel HD) Aspect ratio 16:10 Panel brightness 450 cd/m² Brightness 385 cd/m² with touch Light transmittance 85% Static contrast 1000:1 with touch Response time (GTG) 25ms Viewing zone horizontal/vertical: 160°/160°, right/left: 80°/80°, up/down: 80°/80° Colour support 16.7mln 8bit Viewable area W x H 216.6 x 135.4mm, 8.5 x 5.3" Pixel pitch 0.1692mm Bezel colour and finish black, matte TOUCH
Touch technology projective capacitive Touch points 10 Touch method finger, glove (latex), capacitive stylus Touch interface USB INTERFACES / CONNECTORS / CONTROLS

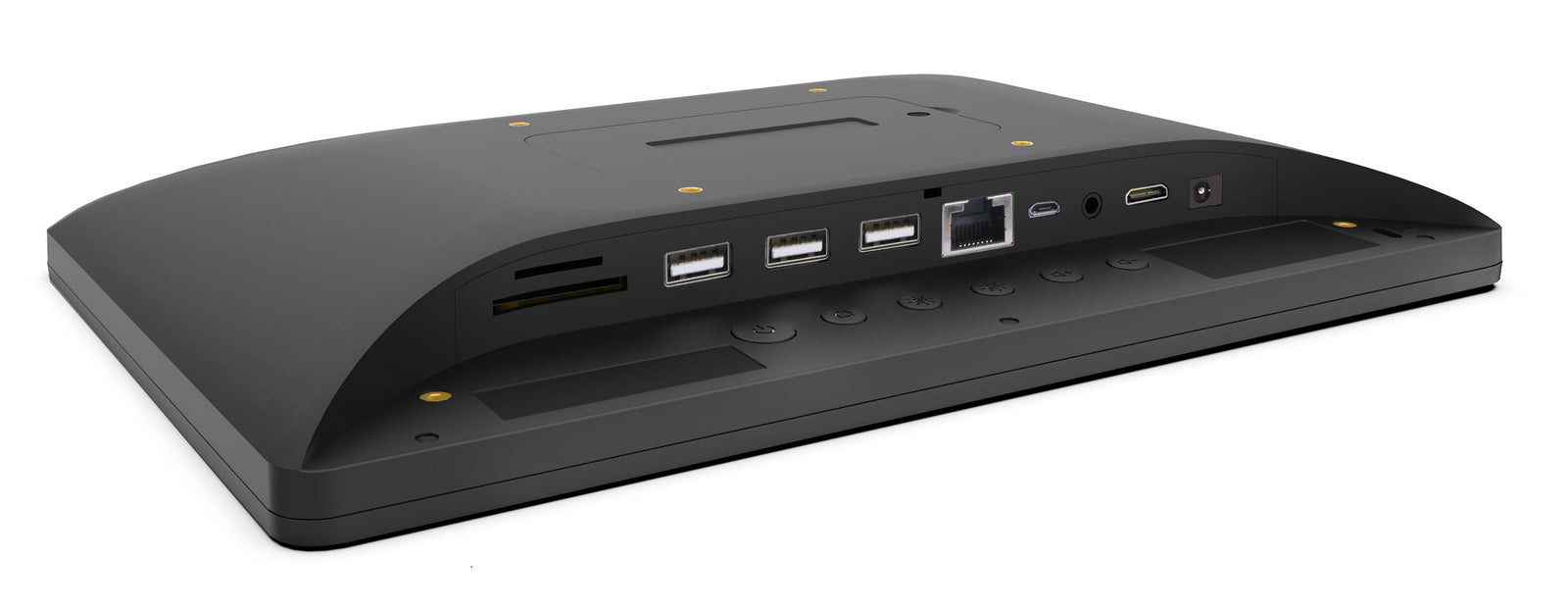

Digital signal output HDMI x1 (mini HDMI, 1280x720 @60Hz) Audio output Speakers 2 x 1.5W USB ports x2 (2.0, 1 x MICRO with OTG) RJ45 (LAN) x1 (PoE) FEATURES
Integrated software Android 8.1 without GMS CPU Rockchip RK3288, quad-core Cortex--A17 up to 1.8GHz GPU Quad-core cortex A17 Storage 16GB eMMC Memory 2GB DDR3 WiFi IEEE802.11b/g/n Bluetooth 4.0 Extra auto-rotation, webcam (2 megapixel), microphone, SD card slot, anti-fingerprint coating Max. non-stop operating time 24/7 Glass thickness 1.25mm Glass hardness 7H GENERAL
Applications install new application / manage application, lock application, calculator, calendar, camera, chrome, alarm / clock / timer / stopwatch, email, manage files and folders, manage images / video / audio, organize albums, manage power on/off time, play audio files, search engine, system preferences, sound recorder, play video files MECHANICAL

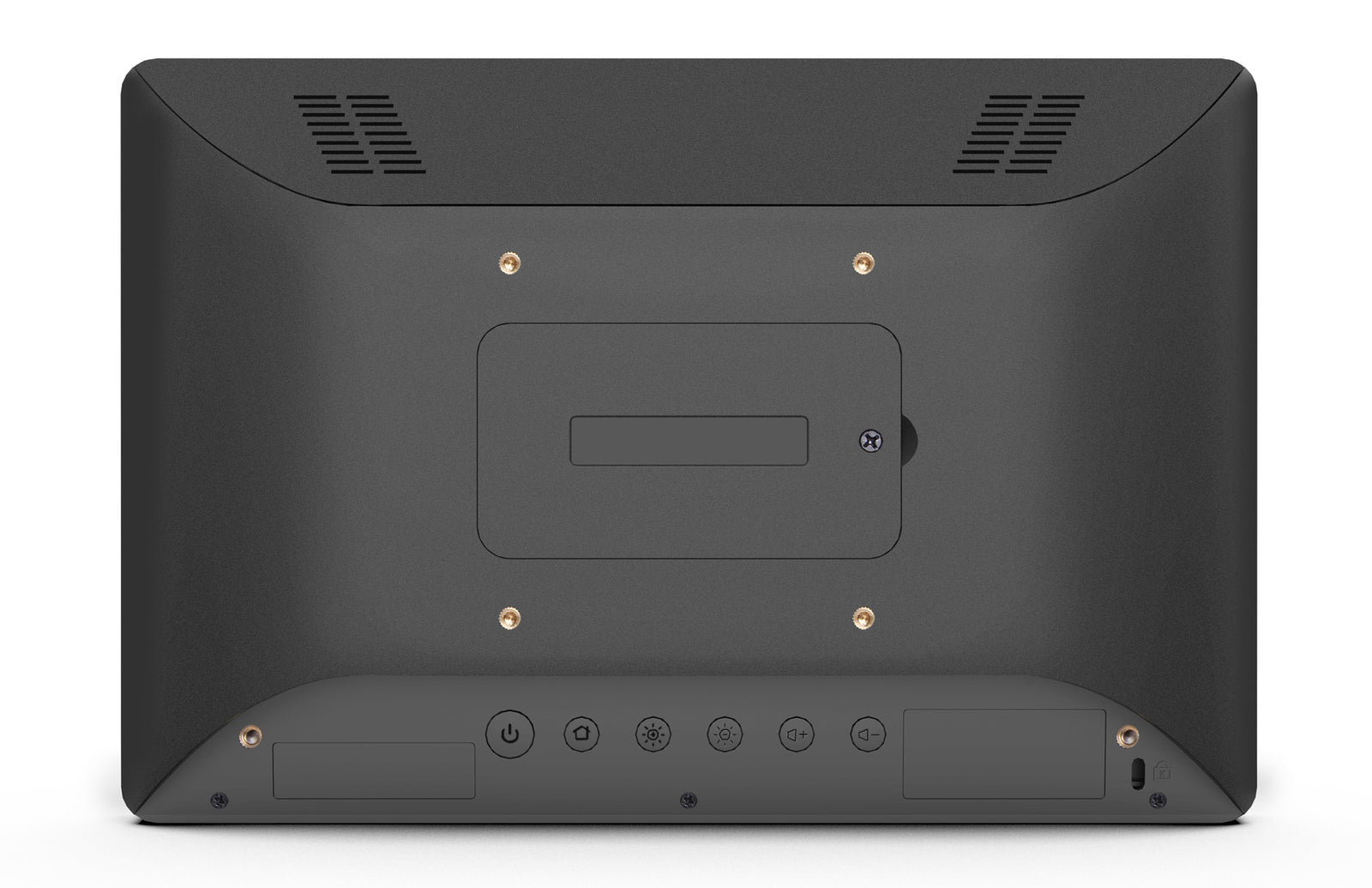

Orientation landscape, portrait, face-up VESA mounting 75 x 75mm ACCESSORIES INCLUDED
Guides quick start guide, safety guide Other AC adapter Cable cover yes POWER MANAGEMENT
Power supply unit external Power supply DC 12 V Power usage 7W typical SUSTAINABILITY
Regulations CE, RoHS support, ErP, WEEE, REACH REACH SVHC above 0.1%: Lead DIMENSIONS / WEIGHT
Product dimensions W x H x D 255 x 172 x 30.5mm Box dimensions W x H x D 398 x 223 x 68mm Pallet volume 256pcs Pallet dimensions W x H x D 1000 x 1200 x 2150mm Weight (without box) 0.8kg Weight (with box) 1.36kg EAN code 4948570117116 RELATED INFORMATION
Product series ProLite TW1523AS-B1P -
Warranty Product Cover Visioncare Desktop LCD products (Monitors) (17" - 43")
3 years on-site UK warranty. (Upgrades to 5 years available)
Touchcare
LCD touchscreen products 3 years repair and return. (Upgrades to on-site & 5 years available)
LFD Large Format Displays Standard Warranty
3 years collect and return (Upgrade to swap, installation & 5 years available) Download
HOW TO ACTIVATE YOUR WARRANTYThere is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one - Check that all connections have been properly made.
Step two - Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three - If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four - Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five - Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six - Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be requiredON-SITE SWAP OUT
