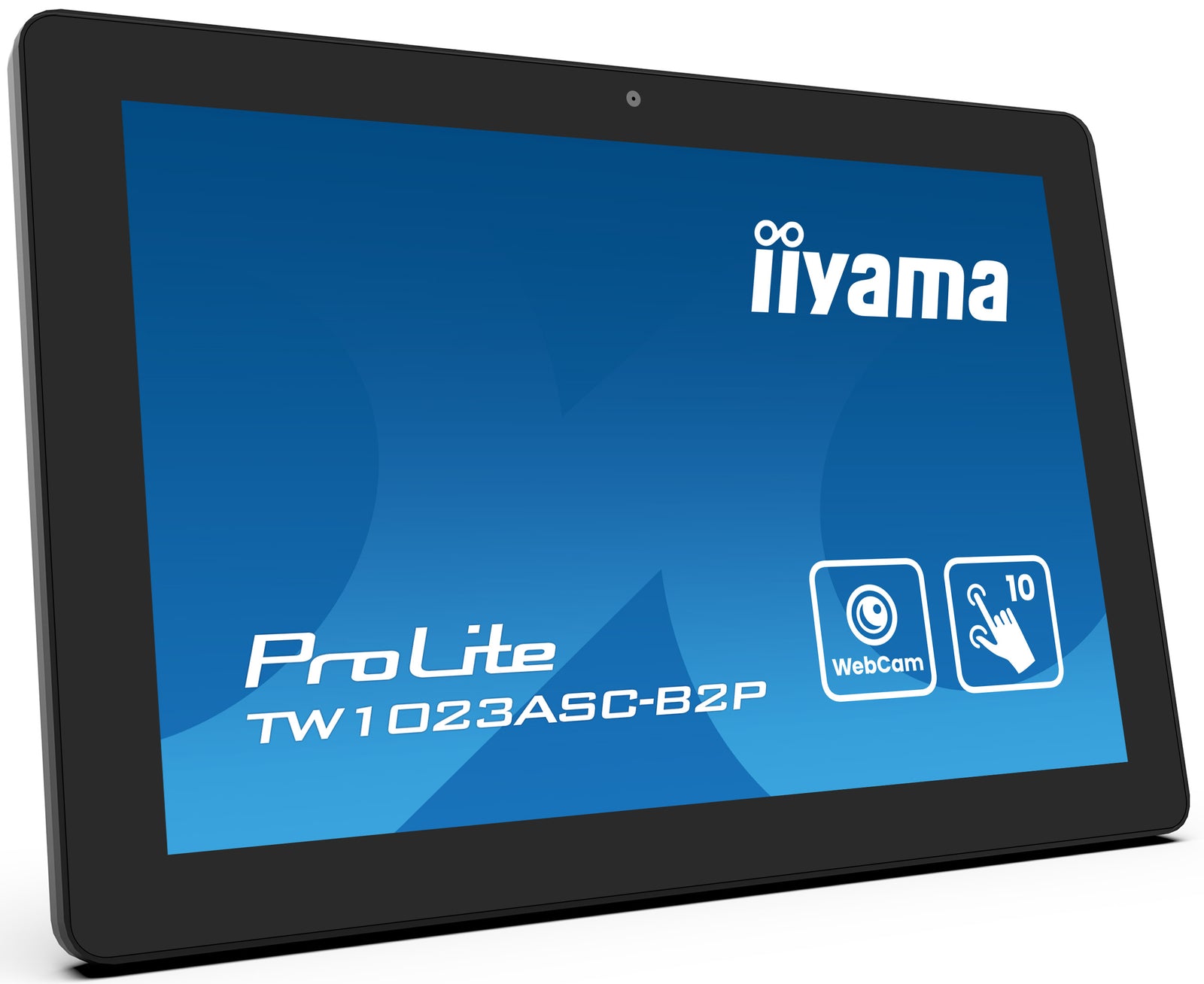

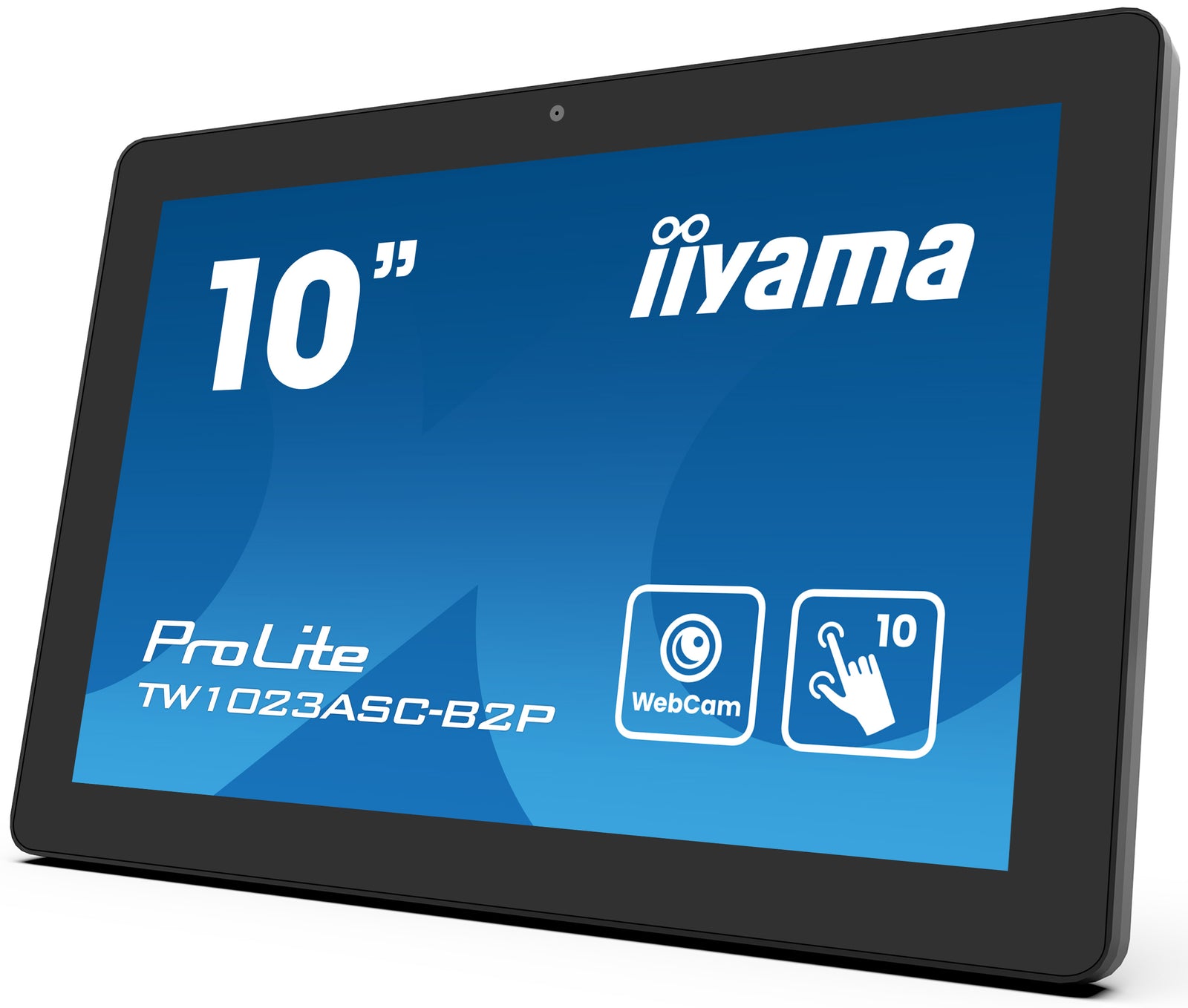

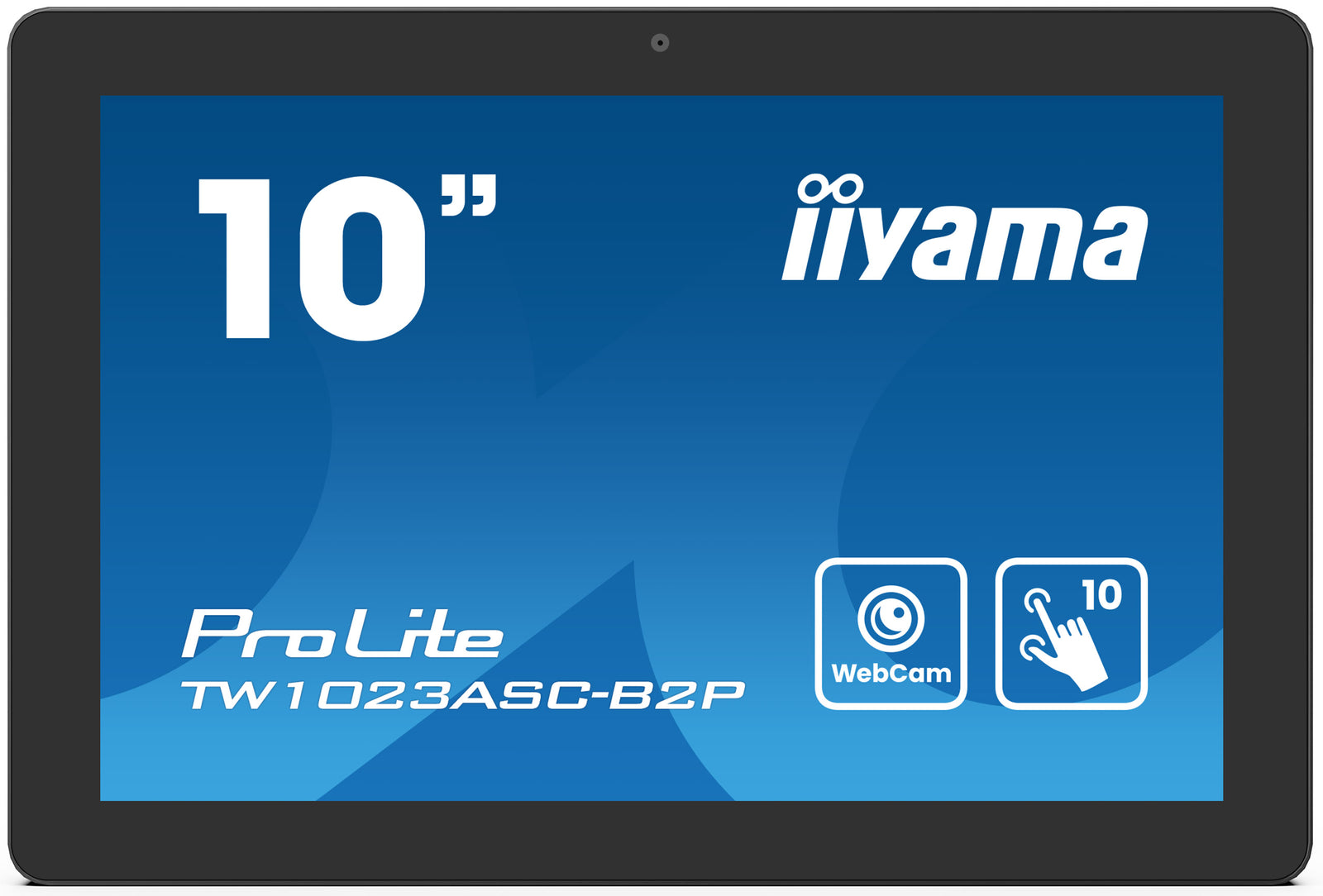

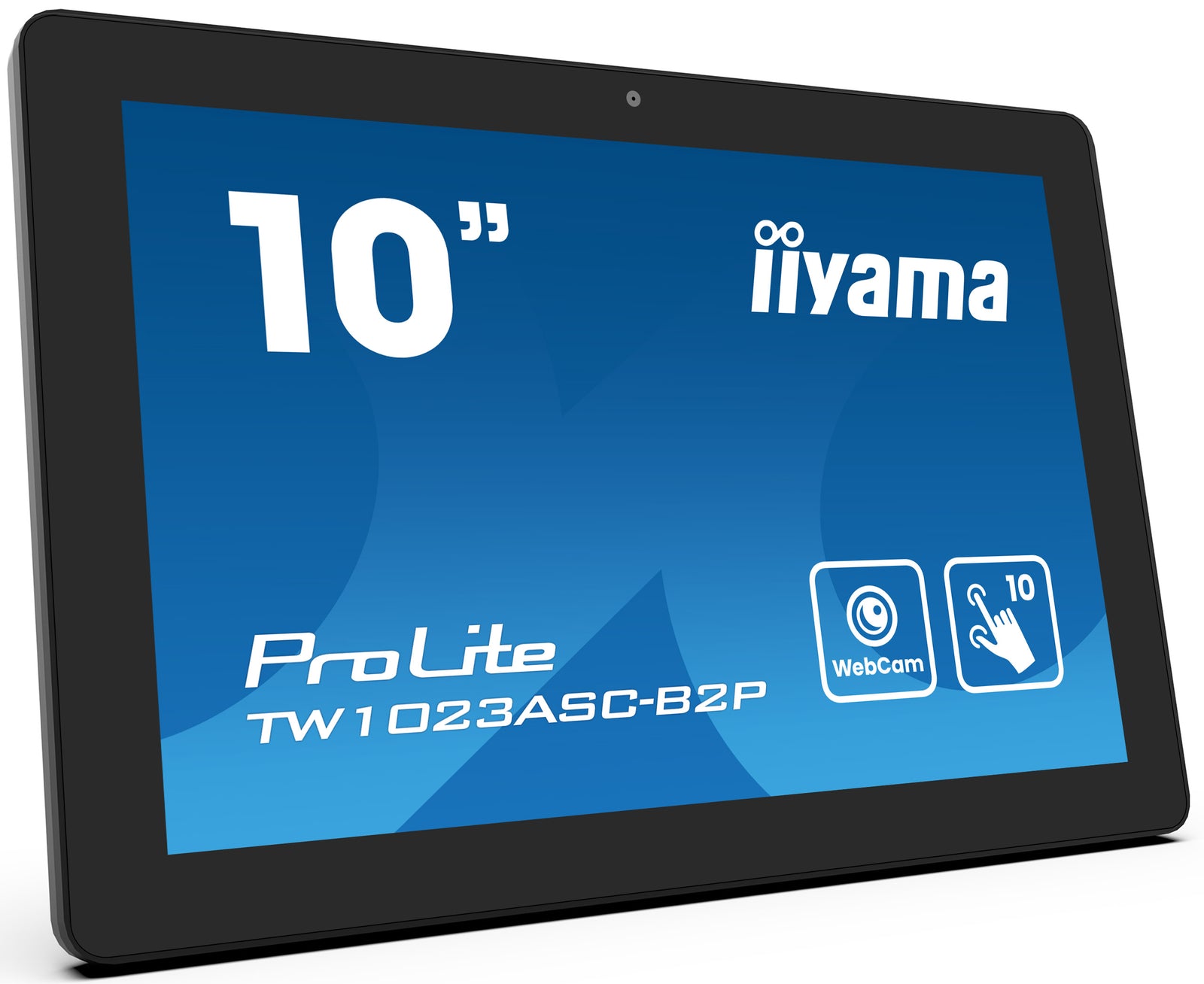

iiyama ProLite TW1023ASC-B2P 10.1" IPS PCAP 10pt Touchscreen
SKU: TW1023ASC-B2P
£140.46 (Excl. VAT)
Book a Free Product Demo
Remote or on-site. No obligation.
Integrator or Installer?
Trade pricing, volume discounts, same-day collection.
Education & Public Sector Solutions
Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.
- Description
- Specifications
- Downloads
-
iiyama ProLite TW1023ASC-B2P 10.1" IPS PCAP 10pt Touchscreen
The ProLite TW1023ASC-B2P touch panel PC is a perfect choice for high-use environments such as retail, interactive POS, information desks or hospitality applications. Thanks to the pre-installed Android operating system, it is possible to easily customize the monitor by installing applications directly to it.
The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. This monitor can operate in landscape, portrait or face-up orientation. Together with the built-in camera, microphone and speakers it offers limitless, interactive installation possibilities.
Connectivity

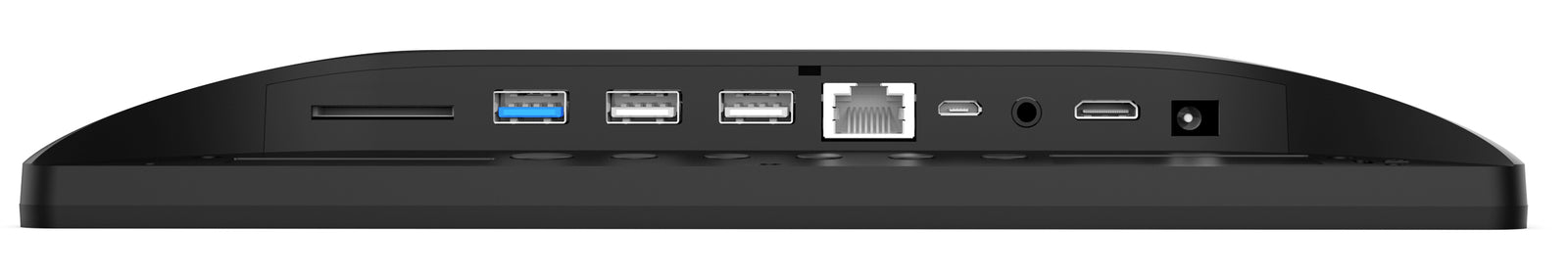

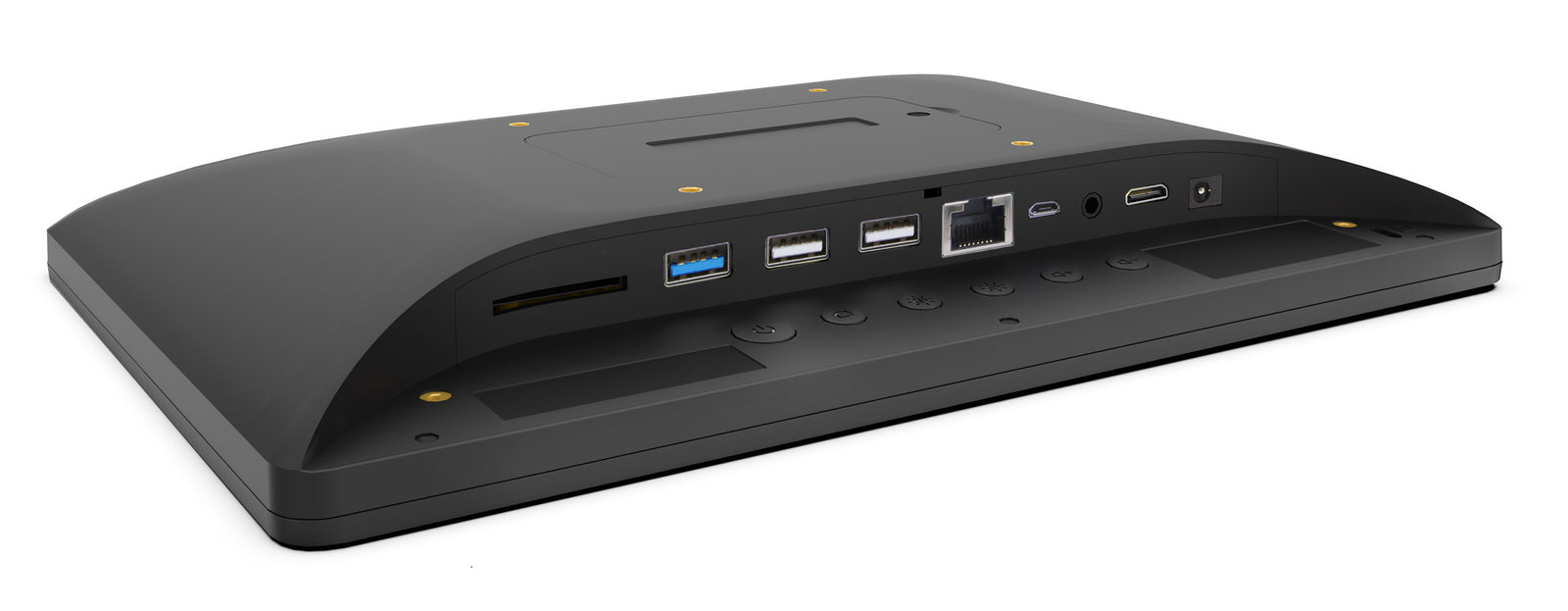

The RJ45 (LAN) connector supporting Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.
Built-in webcam, microphone & speakers
Making the screen a perfect solution for semi or fully automated reception solutions allowing businesses to track and manage visitor traffic at the front desk lobby without compromising on the safety and security of your staff, visitors and company assets.
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
Anti-fingerprint coating
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen. -
Category Specifications Display Characteristics Design Edge to edge glass Diagonal 10.1", 25.5cm Panel IPS Native Resolution 1280 x 800 (1 megapixel HD) Aspect Ratio 16:10 Panel Brightness 450 cd/m² Brightness (with touch) 387 cd/m² Light Transmittance 86% Static Contrast 1000:1 with touch Response Time (GTG) 25ms Viewing Zone 160°/160° horizontal/vertical Colour Support 16.7mln 8bit Viewable Area W x H 216.6 x 135.4mm, 8.5 x 5.3" Pixel Pitch 0.1692mm Bezel Colour and Finish Black, matte Touch Touch Technology Projective capacitive Touch Points 10 (HID, only with supported OS) Touch Method Finger, glove (latex), capacitive stylus Touch Interface USB Interfaces / Connectors / Controls Audio Input Mini jack x1 Digital Signal Output HDMI x1 (mini HDMI, 1280x720 @60Hz) Audio Output Speakers 2 x 1.5W USB Ports 4 (1 x 3.2 Gen1, 2 x 2.0, 1 x MICRO with OTG) RJ45 (LAN) 1 (PoE - IEEE802.3 at/Max. 30W) Microphone 1 Features Integrated Software Android 13 CPU Rockchip RK3568, quad-core Cortex-A55 up to 2GHz GPU Quad-core Cortex A55 Storage 32GB eMMC Memory 4GB DDR4 WiFi IEEE802.11a/b/g/n/ac Bluetooth 5.2 Extra Auto-rotation, webcam (5MP), SD card slot, anti-fingerprint coating Kiosk Mode Yes Max Operating Time 24/7 Glass Thickness 1.25mm Glass Hardness 6H OSD Key Lock Yes Mechanical Orientation Landscape, portrait, face-up VESA Mounting 75 x 75mm Accessories Included Guides Quick start guide, safety guide Cable Cover Yes Power Management Power Supply Unit External Power Supply DC 12 V Power Usage 18W typical, 0.5W stand by Sustainability Regulations CE, EAC, RoHS, ErP, WEEE, REACH, UKCA REACH SVHC Above 0.1%: Lead Dimensions / Weight Product Dimensions 255 x 172 x 30.5mm Box Dimensions 398 x 223 x 68mm Pallet Volume 256pcs Pallet Dimensions 1000 x 1200 x 2150mm Weight (without box) 0.8kg Weight (with box) 1.36kg EAN Code 4948570124541 -
Description Downloads User Manual Downloads Technical specification Downloads Drawing Downloads
