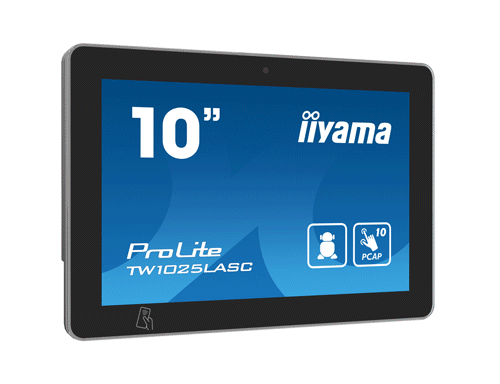

iiyama ProLite TW1025LASC-B1PNR 10.1" 25ms PCAP 10PT Touch Screen

The ProLite TW1025LASC-B1PNR touch panel PC is a perfect choice for high-use environments such as booking rooms, information desks or other corporate and hospitality applications. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. Thanks to the pre-installed Android 12 operating system, it is possible to easily customize the monitor by installing applications directly to it. The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations.

Thanks to the NFC/RFID reader, the touch panel PC allows to communicate wirelessly with enabled devices or tags within close proximity and the RGB Led bar will clearly and intuitively indicate the availability status of the room. Together with the built-in 5 megapixel camera, microphone and speakers it offers limitless, interactive installation possibilities.

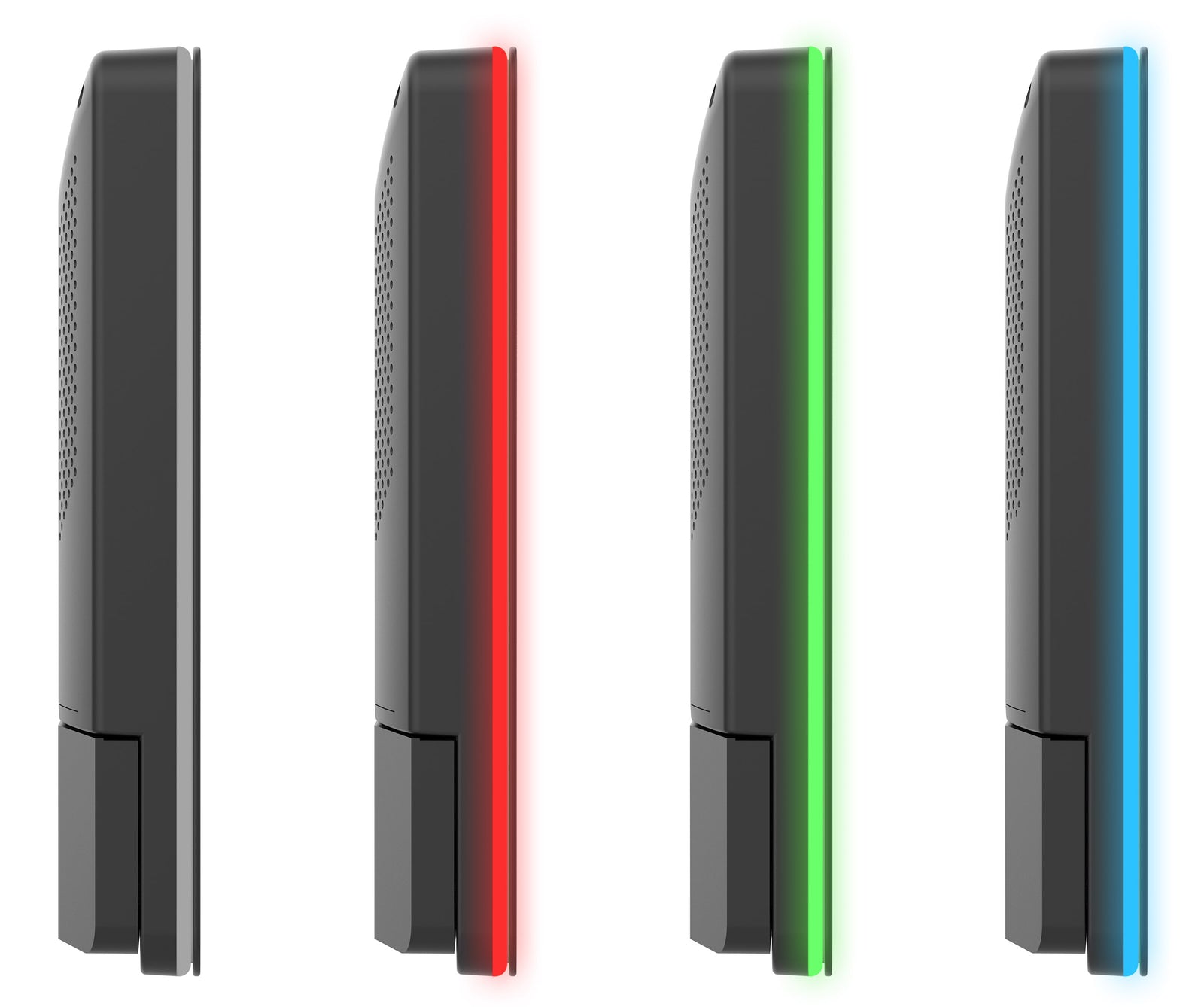

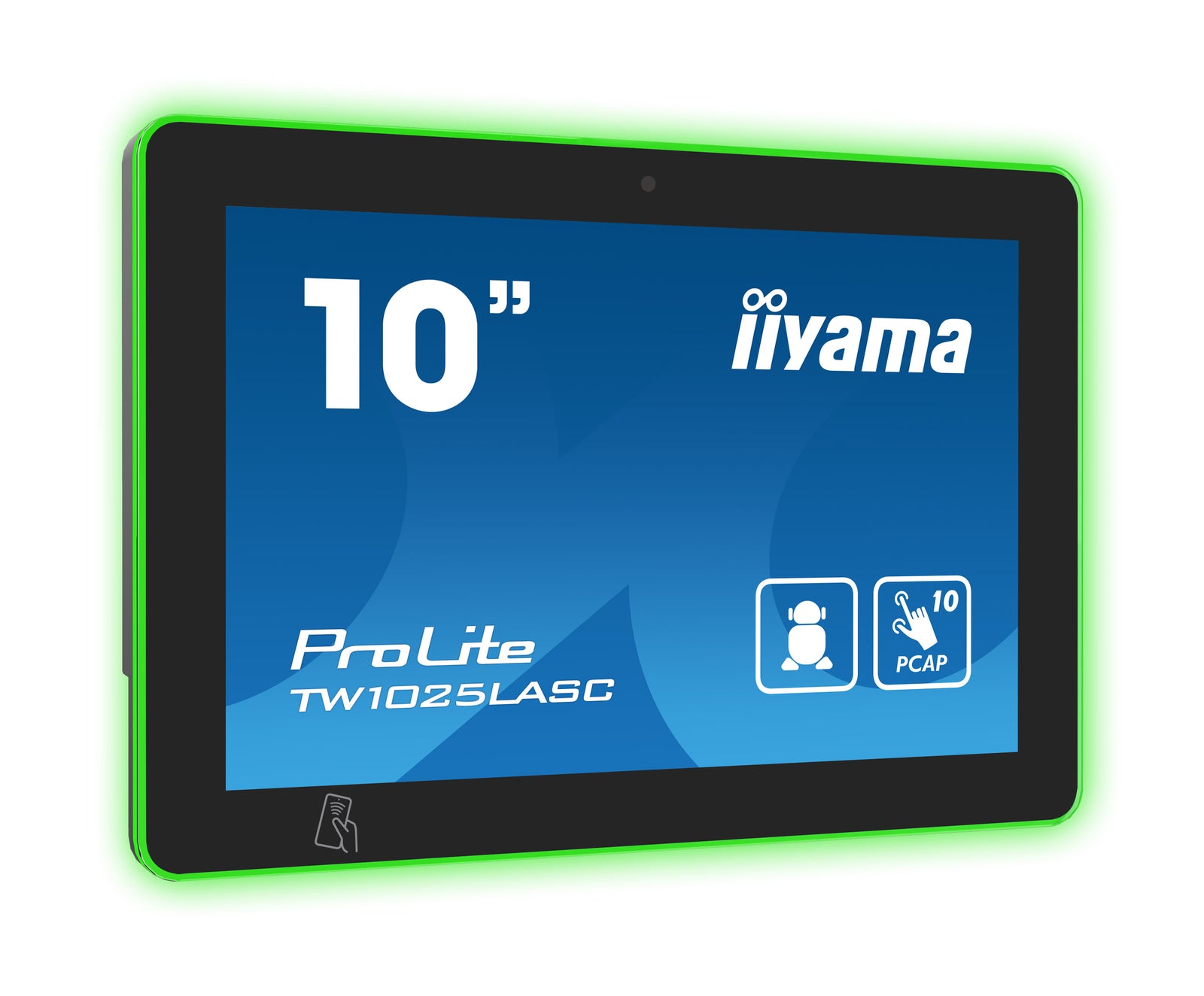

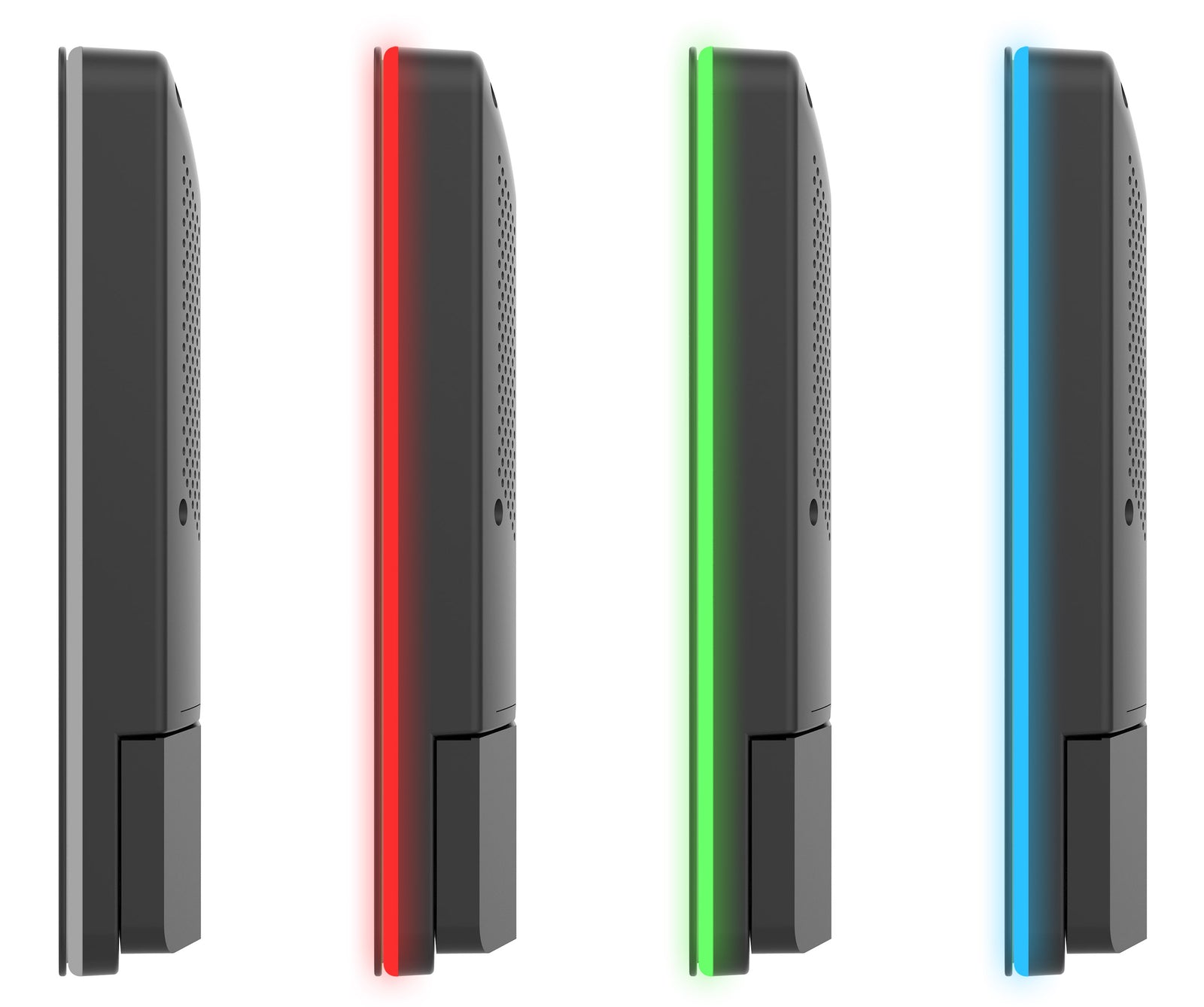

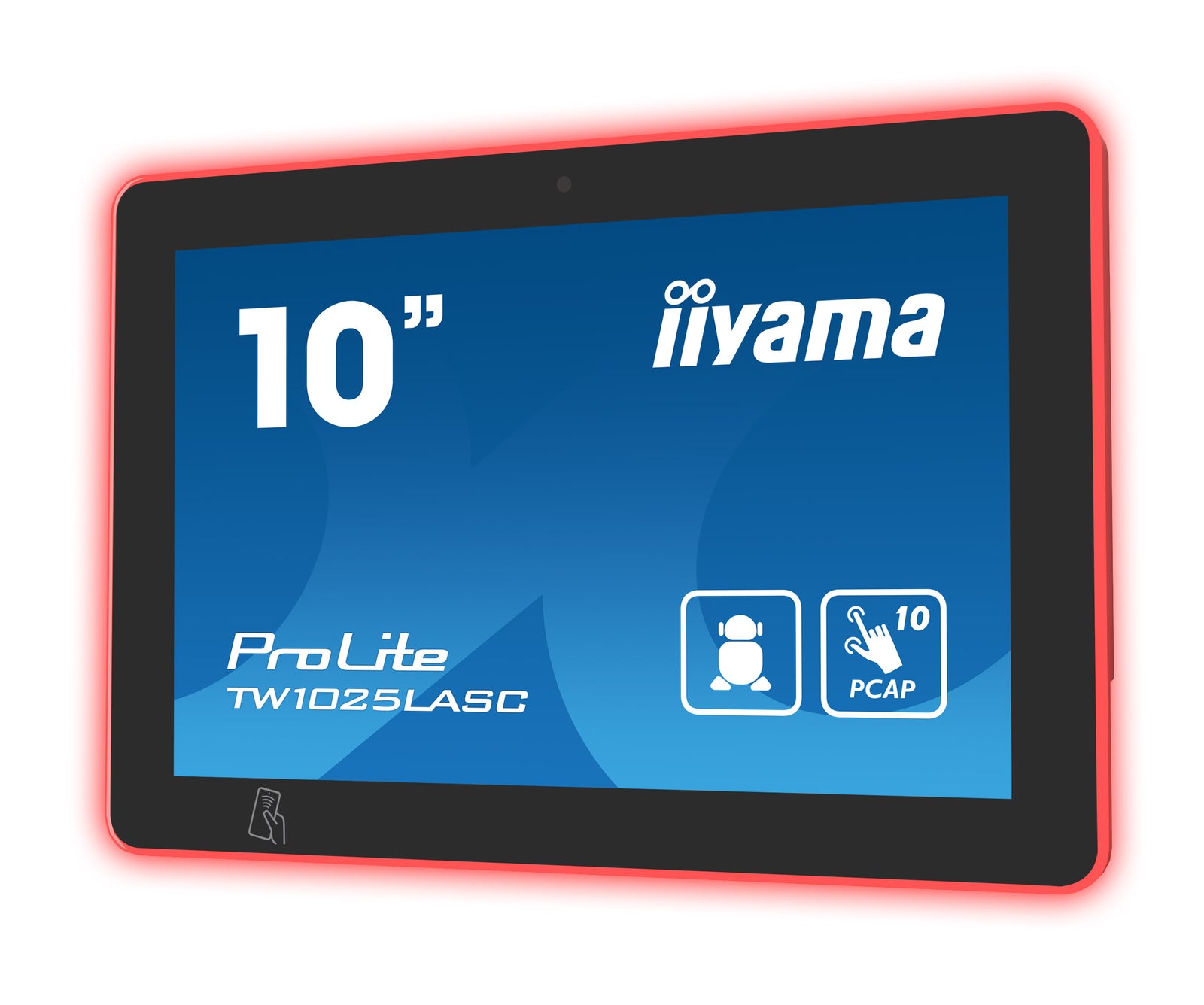

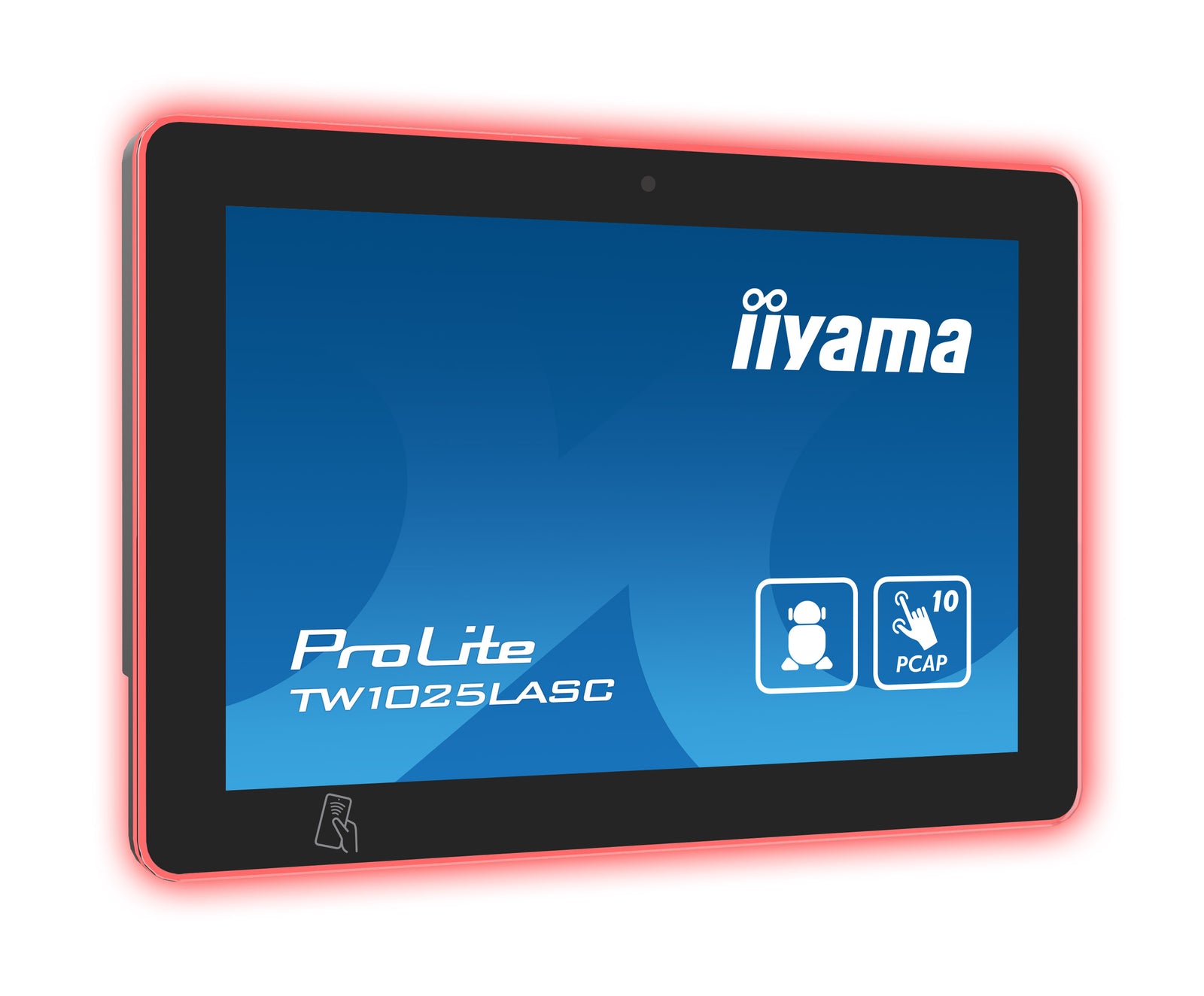

RGB Led bar
The RGB Led bar will clearly and intuitively indicate the room's availability status and can display a wide range of colors.

NFC & RFID reader
Thanks to the NFC/RFID reader, the touch panel PC alows to communicate wirelessly with enabled devices or tags within close proximity.

Connectivity

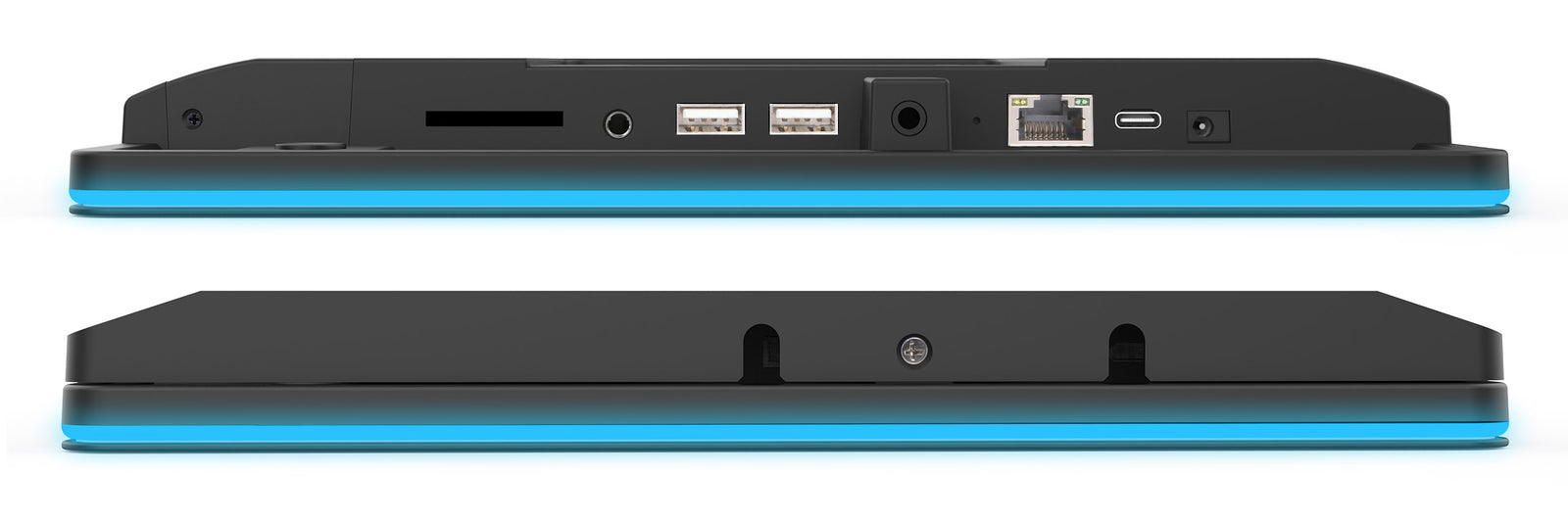

The RJ45 (LAN) connector supporting Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.

Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Build-in webcam, microphone and speakers
Making the screen a perfect solution for semi or fully automated reception solutions allowing businesses to track and manage visitor traffic at the front desk lobby without compromising on the safety and security of your staff, visitors and company assets.

Category	Details
Design	Edge to edge glass
Diagonal	10.1", 25.5cm
Panel	IPS Panel Technology, LED
Native Resolution	1280 x 800 (1 megapixel HD)
Aspect Ratio	16:10
Panel Brightness	450 cd/m²
Brightness with Touch	390 cd/m²
Light Transmittance	86%
Static Contrast	1000:1 with touch
Response Time (GTG)	25ms
Viewing Zone	horizontal/vertical: 160°/160°, right/left: 80°/80°, up/down: 80°/80°
Viewing Zone CR>5	horizontal/vertical: 170°/170°, right/left: 85°/85°, up/down: 85°/85°
Colour Support	16.7mln 8bit
Viewable Area W x H	218.4 x 137.2mm, 8.5 x 5.4"
Pixel Pitch	0.1692mm
Bezel Colour and Finish	black, matte
Touch Technology	projective capacitive
Touch Points	10 (HID, only with supported OS)
Touch Method	finger, glove (latex), capacitive stylus
Touch Interface	USB
Audio Output	Mini jack x1
Speakers	2 x 2W
USB Ports	3 (1x v. 3.2 (Gen 1, 5Gbit; DC5V, 900mA), 1x 2.0 (DC5V, 500mA), 1x Mini with OTG (DC5V, 500mA))
RJ45 (LAN)	1 (PoE - IEEE802.3af/15.4W)
Microphone	Yes
Integrated Software	Android 12
CPU	Rockchip RK3399 up to 1.8GHz
GPU	Dual-core Cortex--A72 & Quad-core Cortex--A53
Storage	32GB eMMC
Memory	4GB DDR4
WiFi	IEEE802.11b/g/n
Bluetooth	5.2
Hardware	NFC, RFID

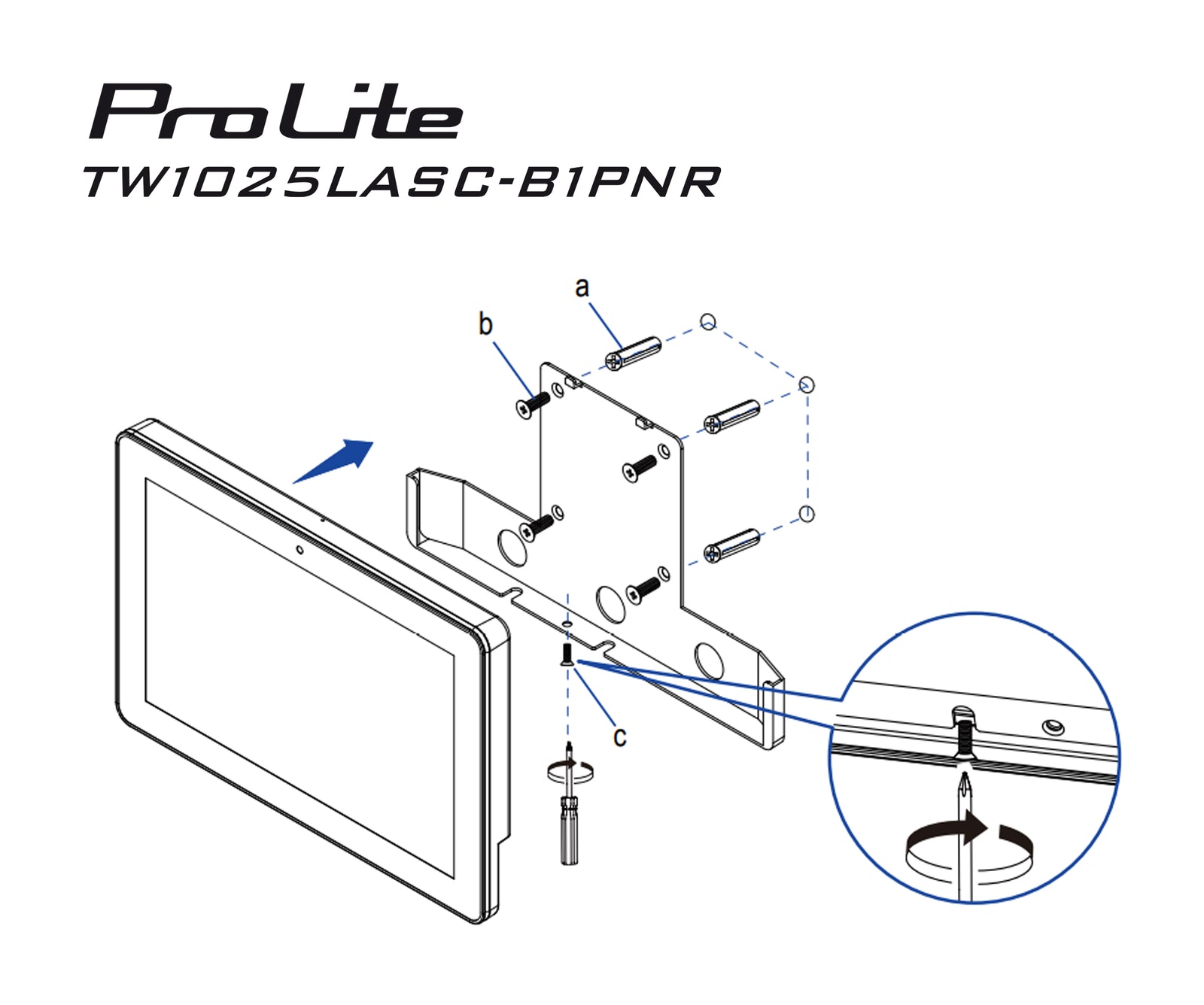

Extra Features	auto-rotation, webcam (5 megapixel), SD card slot, anti-fingerprint coating, anti-glare coating, PoE, NFC/RFID reader, RGB Led lightbar, wall mount
Kiosk Mode	Yes
Max. Non-stop Operating Time	24/7
Glass Thickness	1.85mm
Glass Hardness	6H
Control Buttons	Power switch
Applications	Various including calculator, camera, Chrome, Play Store
Orientation	landscape, portrait, face-up

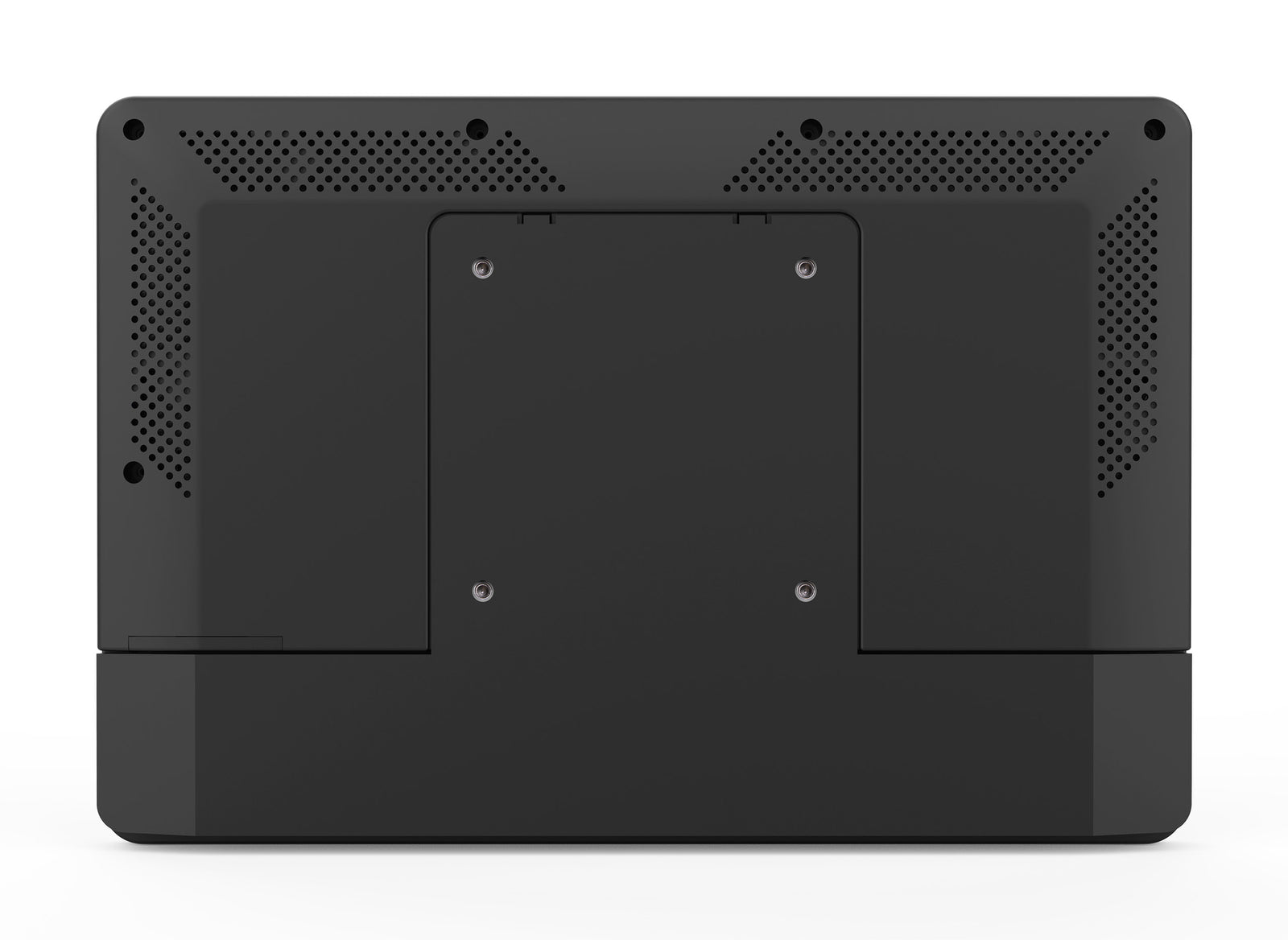

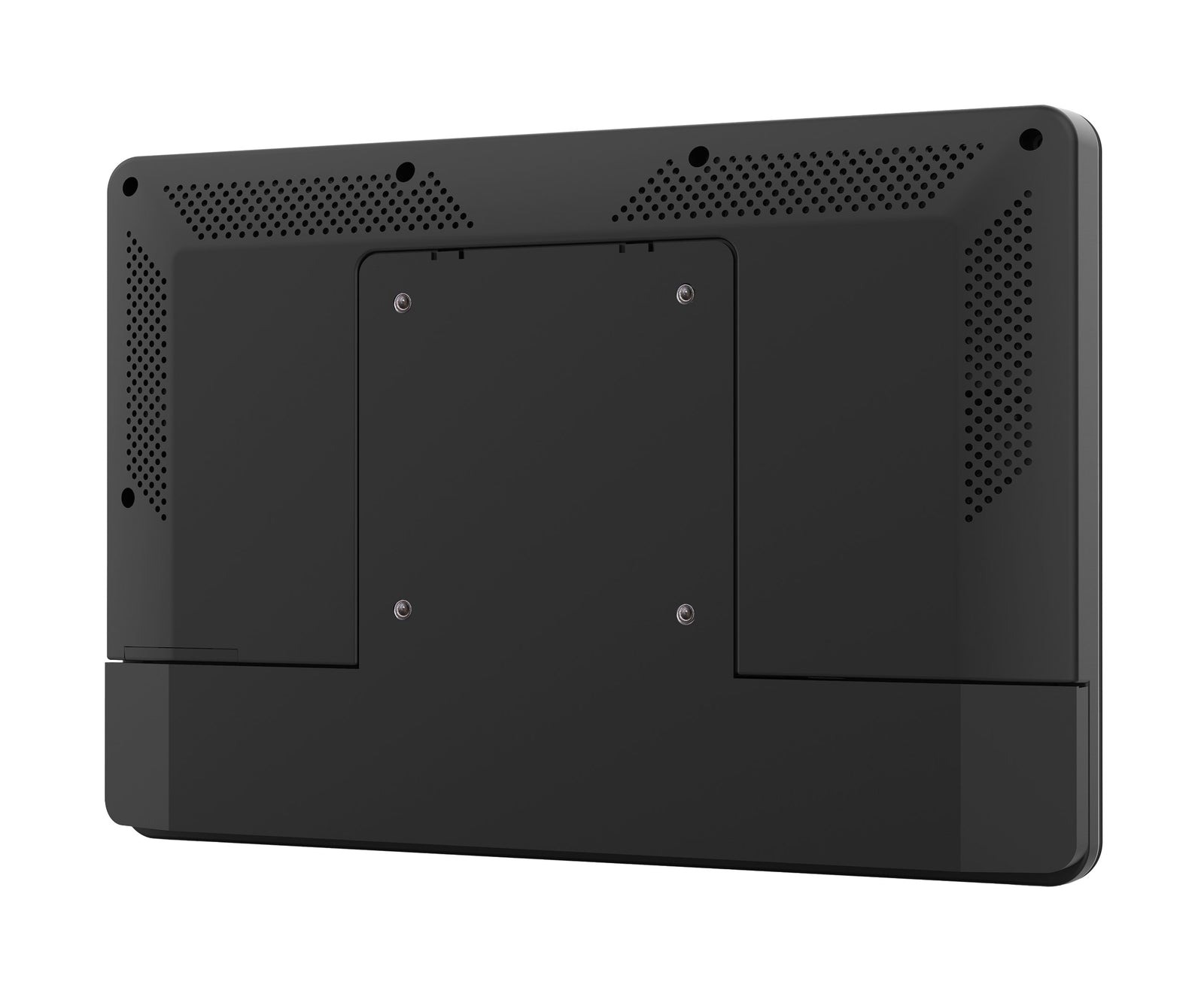

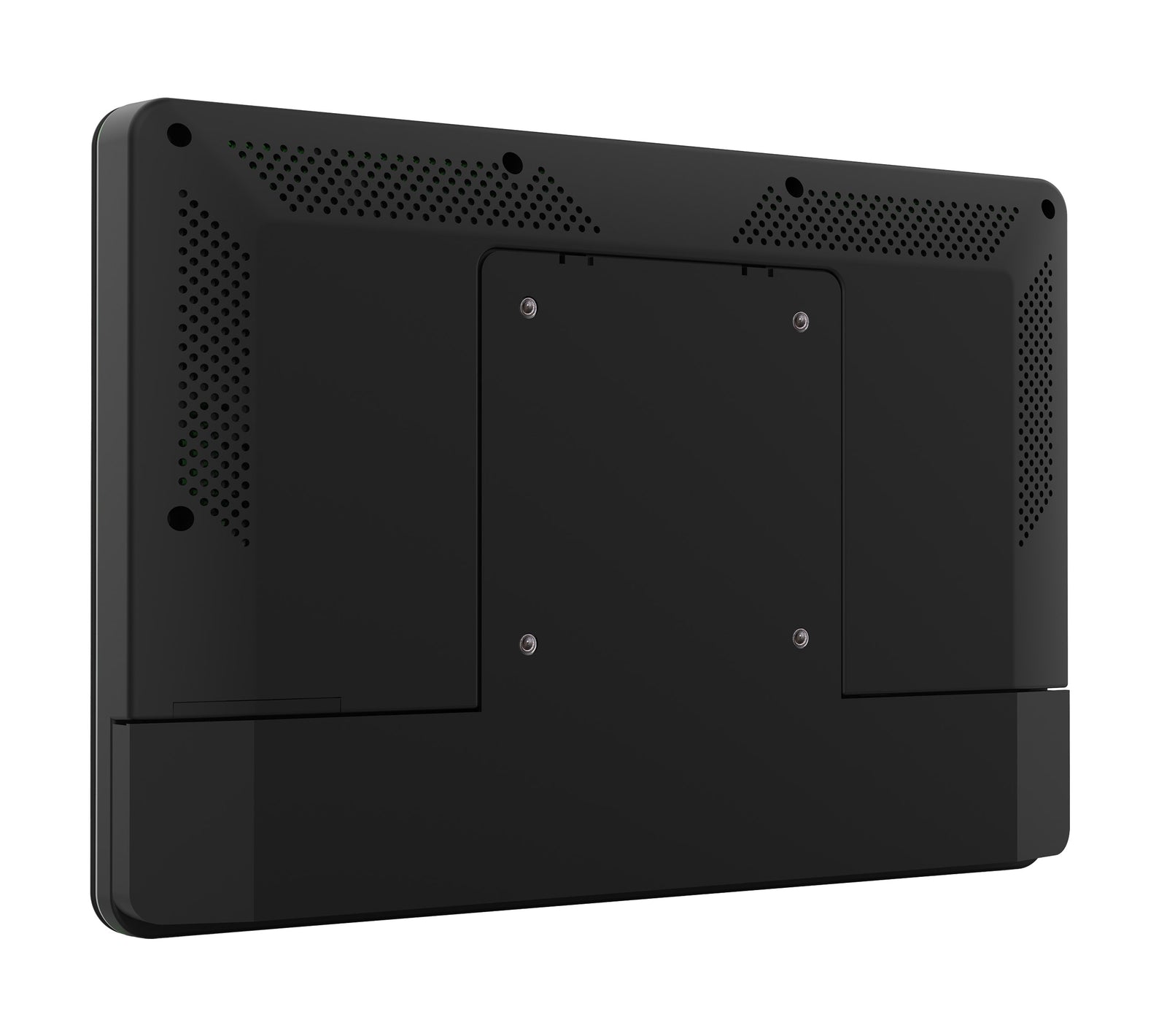

VESA Mounting	75 x 75mm
Cable Management System	Yes
Included Accessories	AC adapter, interchangeable plugs (EU/UK), cable cover
Power Supply Unit	External
Power Supply	DC 12 V
Power Usage	18W typical
Regulations	CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
REACH SVHC	above 0.1%: Lead
Product Dimensions W x H x D	259.5 x 178.5 x 28mm
Weight (without box)	1.1kg
EAN Code	4948570124275
