PROLITE TW2223AS-B1

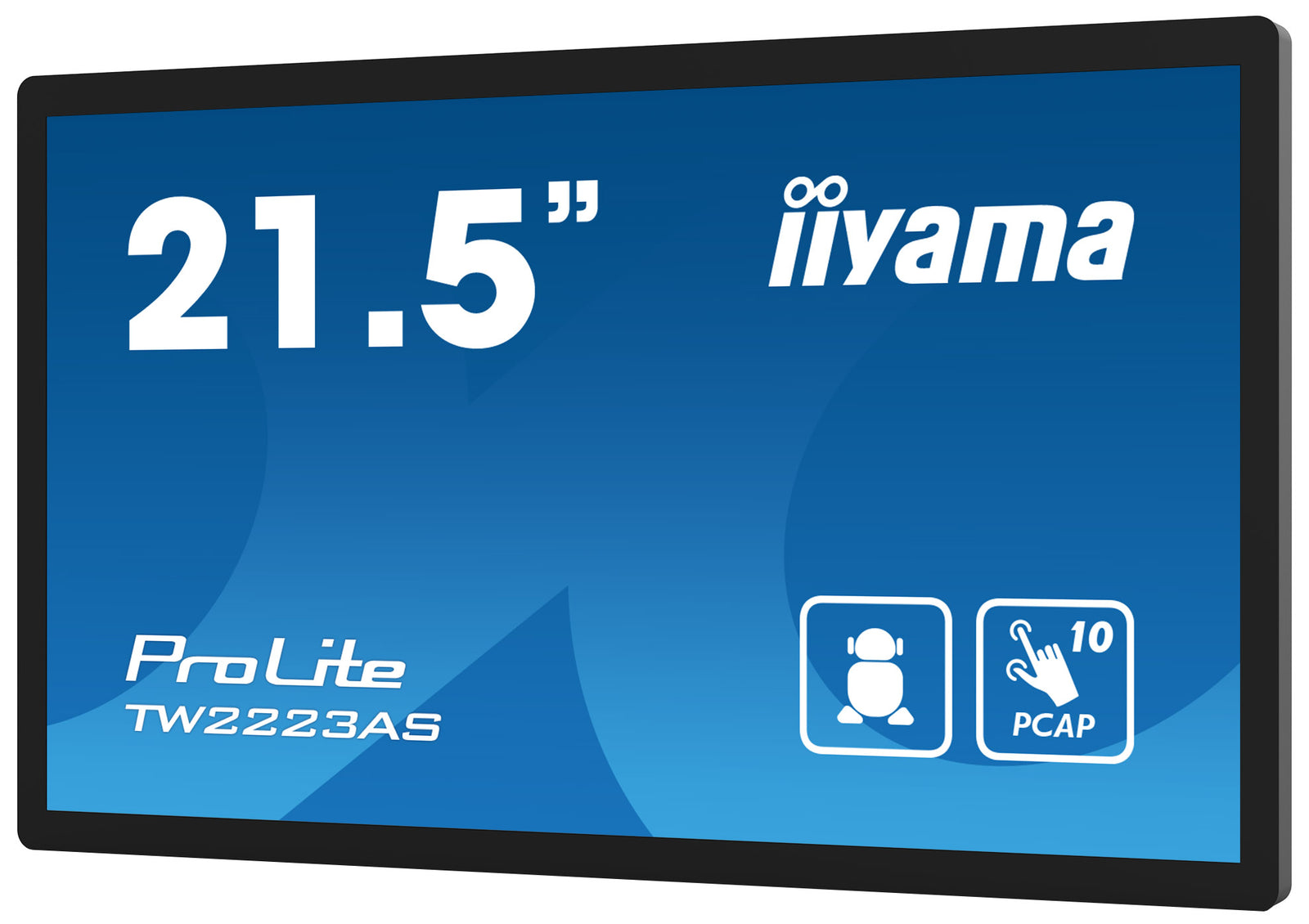

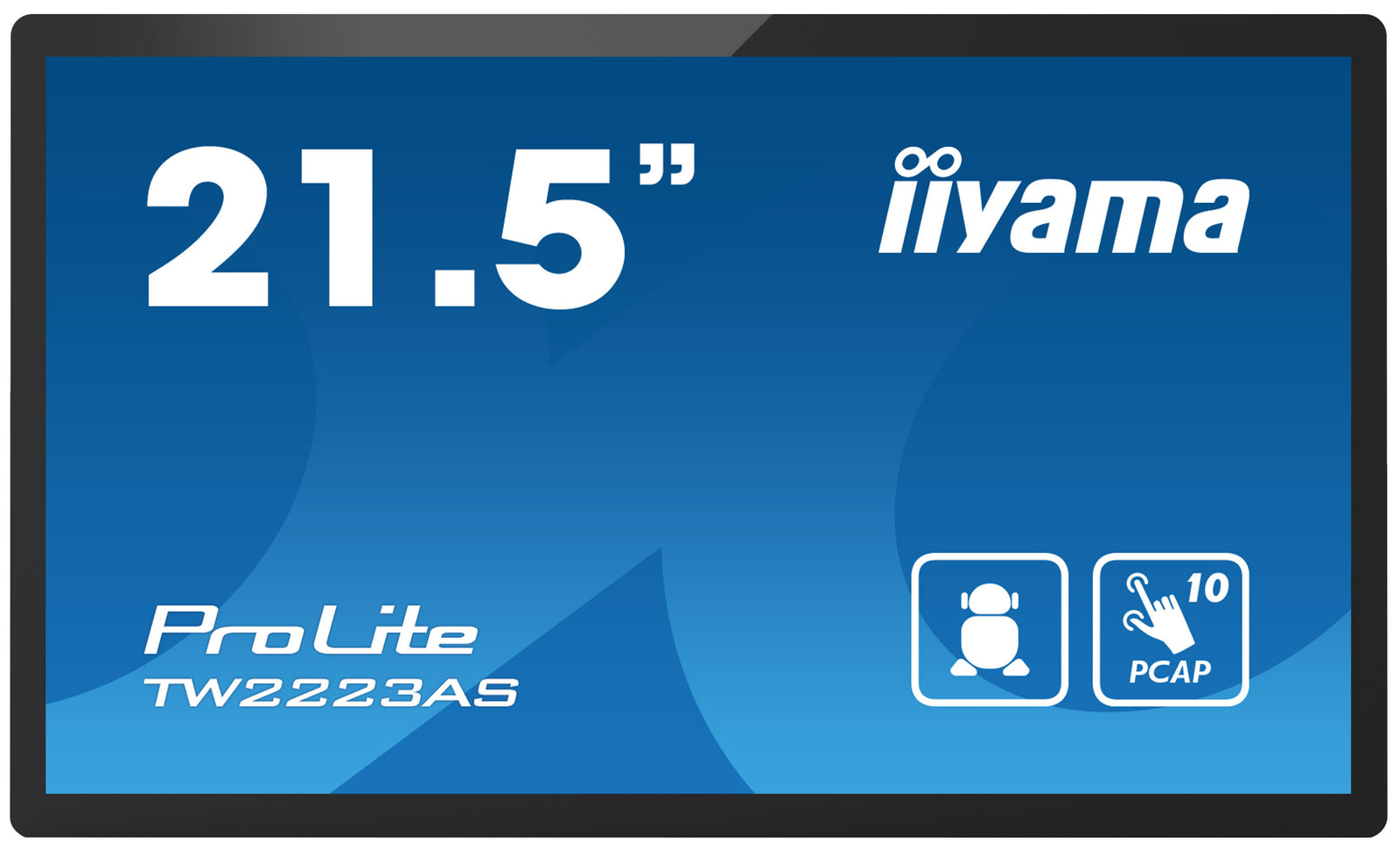

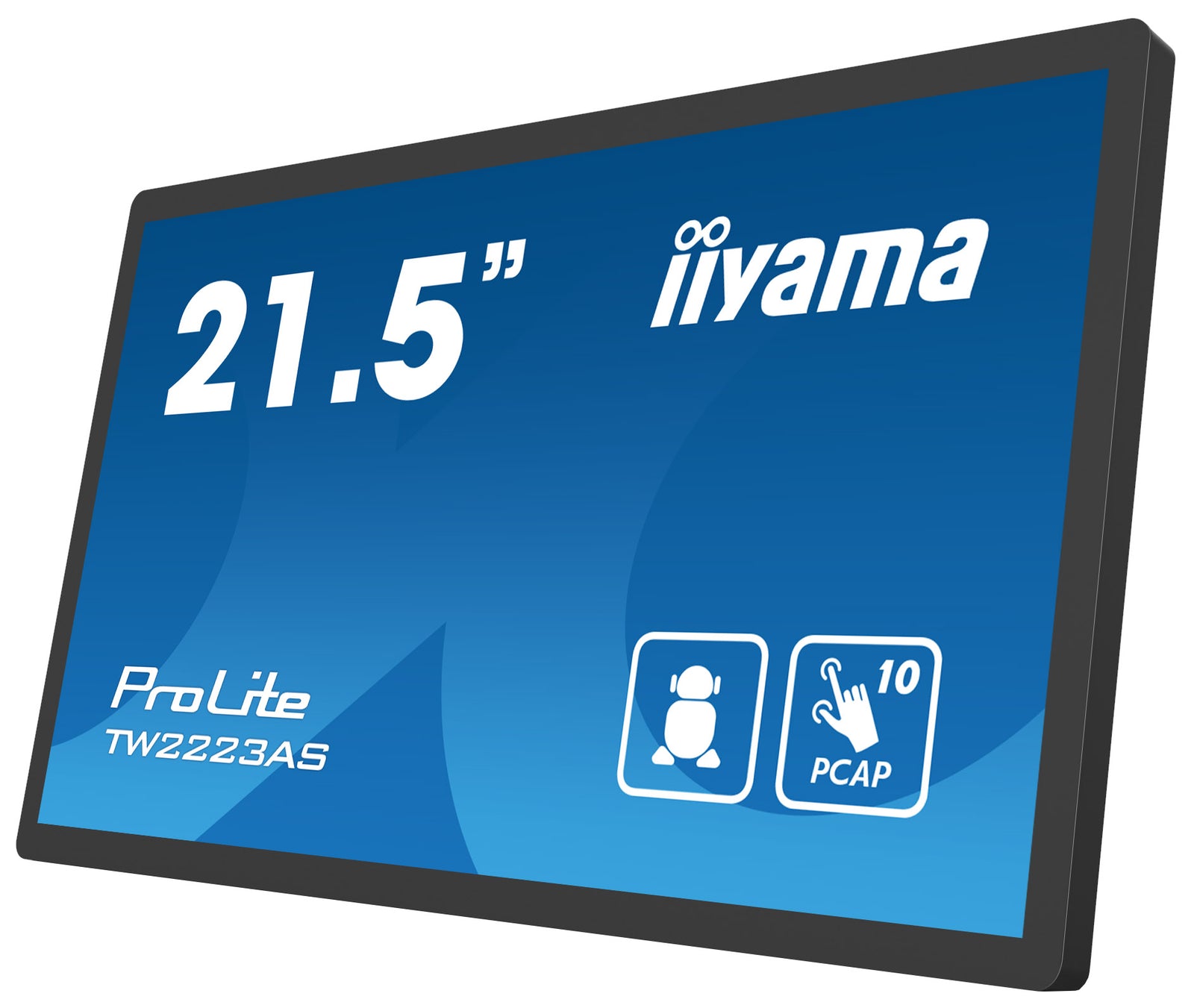

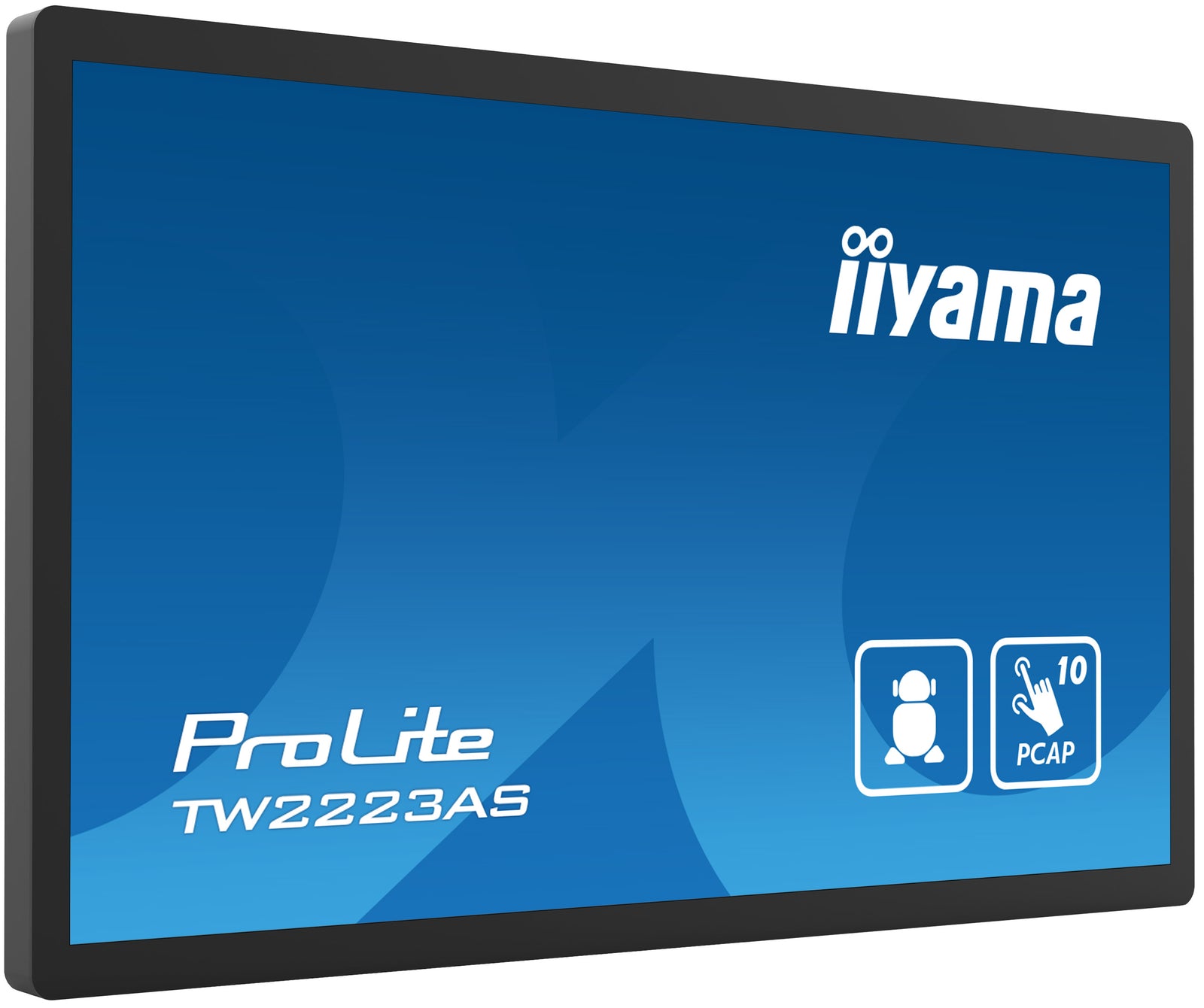

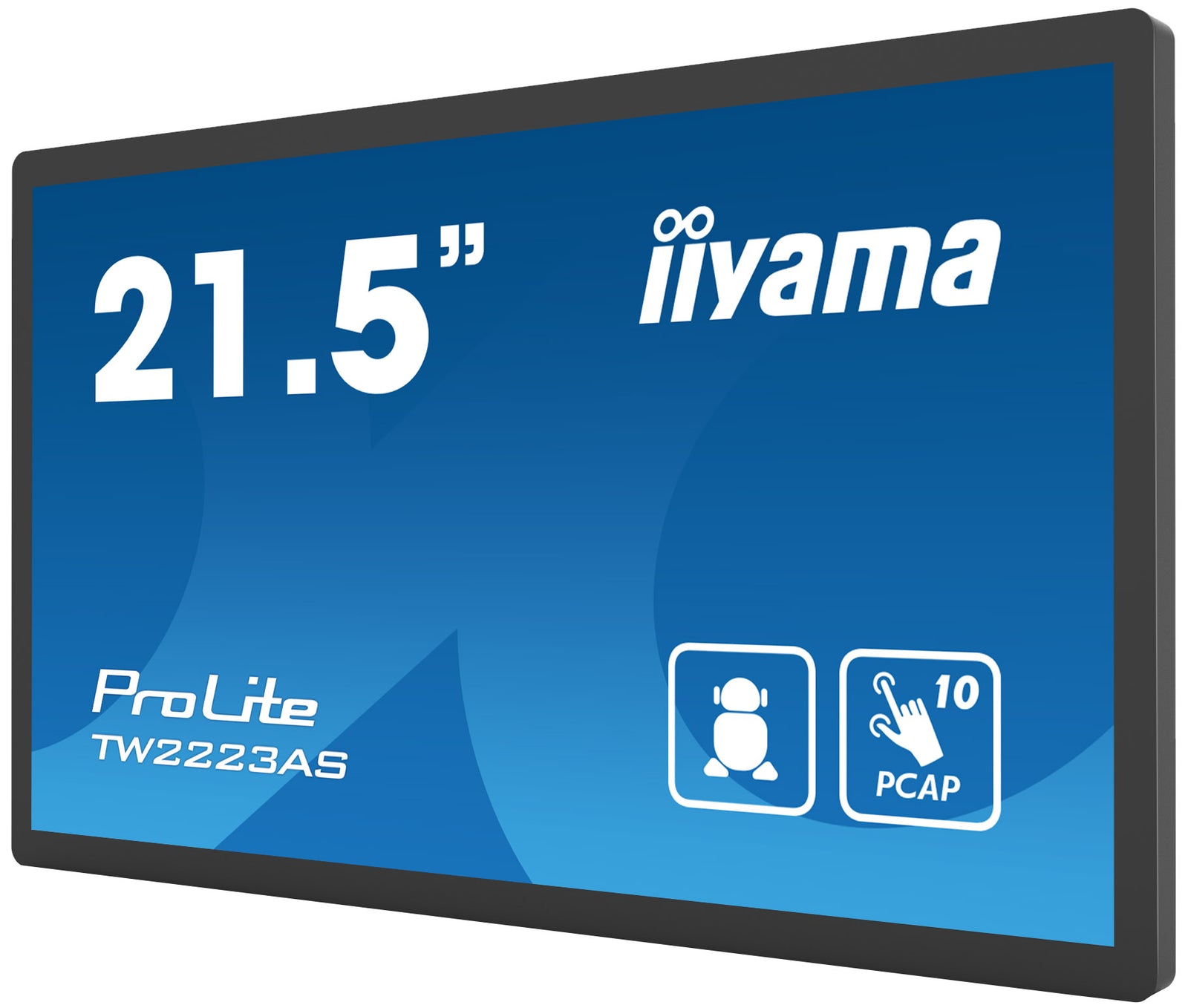

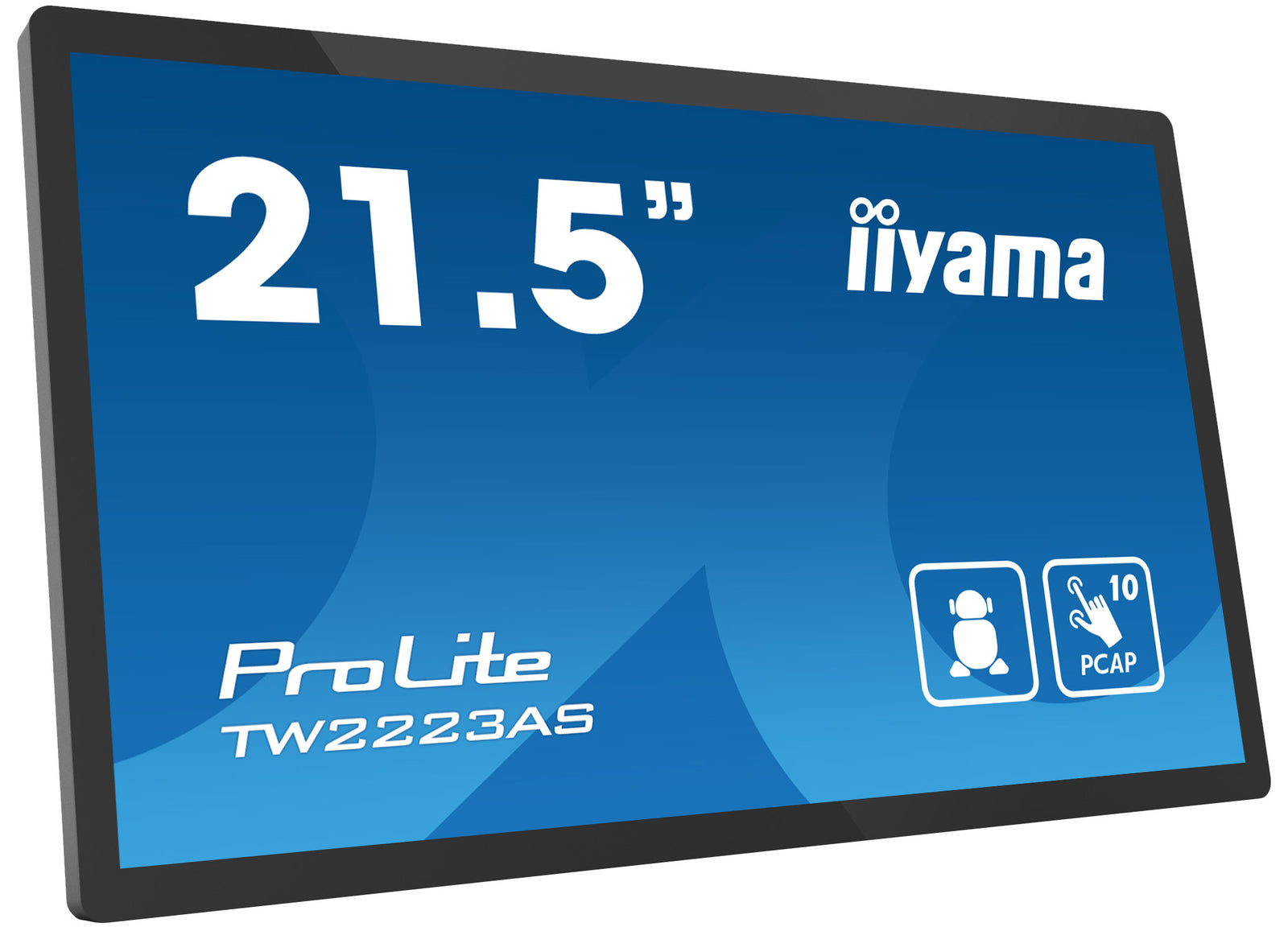

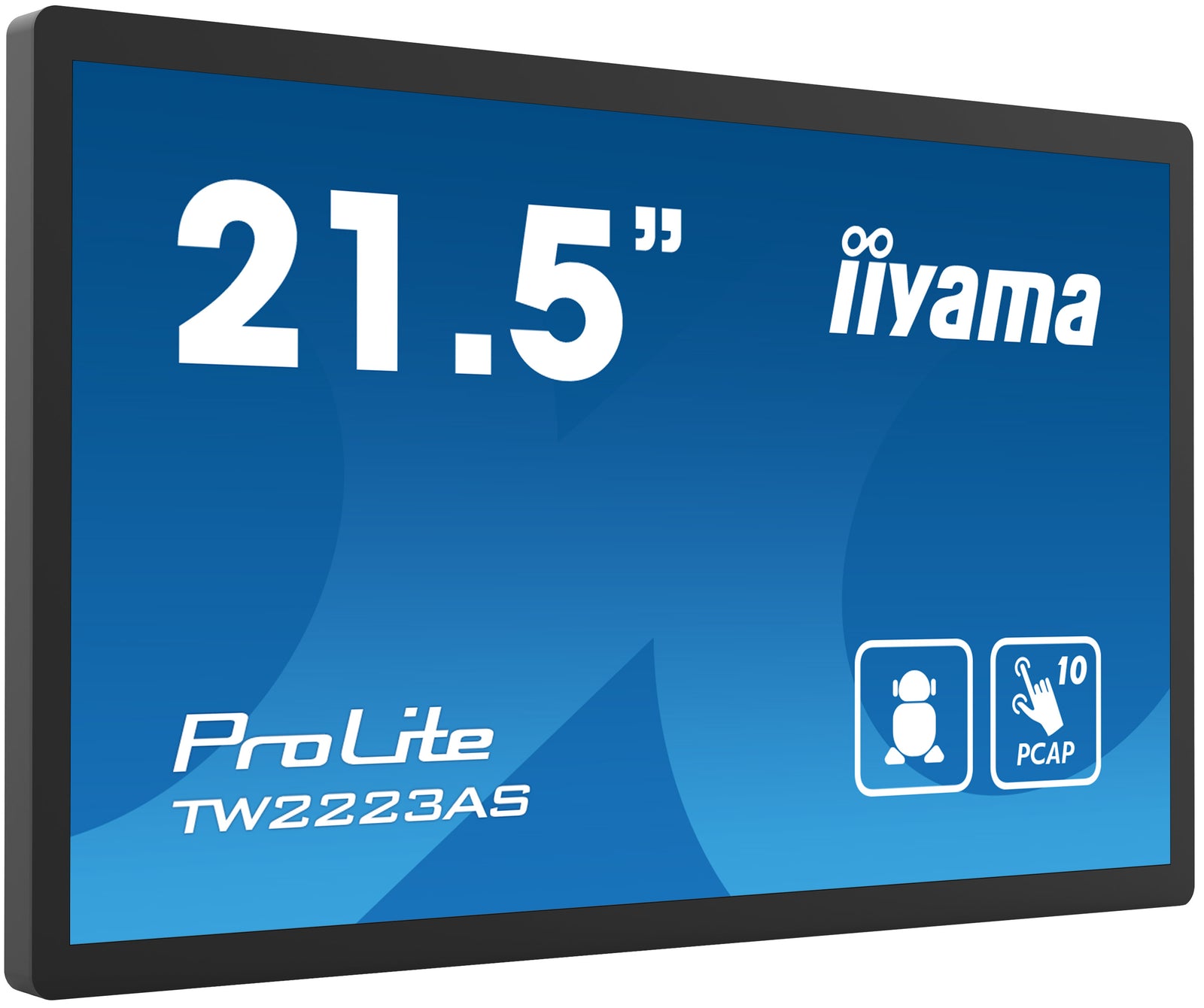

21.5” Full HD PCAP 10pt interactive Touch Panel PC with Android OS and edge-to-edge glass design

The ProLite TW2223AS-B1 interactive Touchpanel-PC with an elegant edge-to-edge glass design is a perfect choice for high-use environments. This monitor can operate in landscape, portrait, and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 12 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 16GB storage, Wi-Fi connection, LAN (RJ45), and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications.

TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because the electrical characteristics of the sensor grid change when a human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human fingers (also latex gloved) and stylus pens.

ANDROID OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

24/7
24/7 displays are designed for continuous operation.

SPEAKERS AND HEADPHONES
Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.

DISPLAY CHARACTERISTICS
Design	Edge-to-edge glass
Diagonal	21.5", 54.6cm
Panel	VA
Native resolution	1920 x 1080 (2 megapixel HD)
Aspect ratio	16:9
Panel brightness	400 cd/m²
Brightness (with touch)	350 cd/m²
Light transmittance	85%
Static contrast	3000:1 (with touch)
Response time (GTG)	18ms
Viewing zone	Horizontal/vertical: 178°/178°
	Right/left: 89°/89°
	Up/down: 89°/89°
Colour support	16.7 million
Horizontal Sync	30. - 84.kHz
Viewable area W x H	478 x 269.5mm, 18.8 x 11.8"
Pixel pitch	0.248mm
Bezel color and finish	Black, matte

TOUCH
Touch technology	Projective capacitive
Touchpoints	10 (HID, only with supported OS)
Touch accuracy	±2mm
Touch method	Finger, glove (latex), capacitive stylus
Touch interface	USB

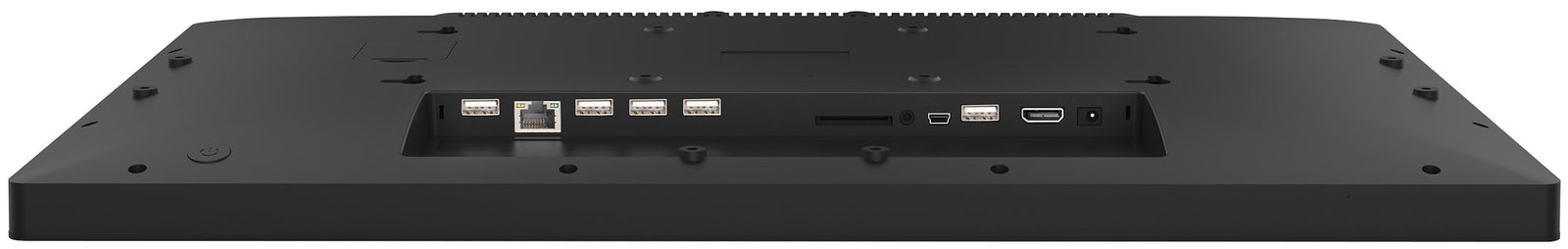

INTERFACES / CONNECTORS / CONTROLS
Digital signal output	HDMI x1 (1920x1080 @60Hz)
Audio output	Speakers 2 x 2W
HDCP	Yes
USB ports	5 (2x 2.0 (DC5V, 500mA), 1x v. 3.2 (Gen 1, 5Gbit;
	DC5V, 900mA), 2x serial port (for maintenance
	use), 1x USB OTG)
RJ45 (LAN)	x1

FEATURES
Integrated software	Android 12 with GMS
CPU	Rockchip RK3399 (1.8GHz, 16Gb storage)
GPU	Dual-core A72 + Quad-core A53
Storage	16Gb eMMC
Memory	2Gb LPDDR4
WiFi	IEEE802.11a/b/g/n/ac
Bluetooth	5.2
Extra	Auto-rotation, SD card slot, anti-glare coating
Max. non-stop operating time	24/7
Anti-image retention	Yes
Glass thickness	2.9mm
Glass hardness	6H
OSD key lock	Yes

GENERAL
Control buttons	Power switch
Applications	Lock applications, manage restart time, manage
	power on/off, calculator, calendar, Chrome,
	alarm/clock, timer, stopwatch, manage files,
	organize albums, Gmail, play audio files, Play
	Store, search engine, system preferences, sound
	recorder, play videos
Flicker-free	Yes

MECHANICAL
Orientation	Landscape, portrait, face-up

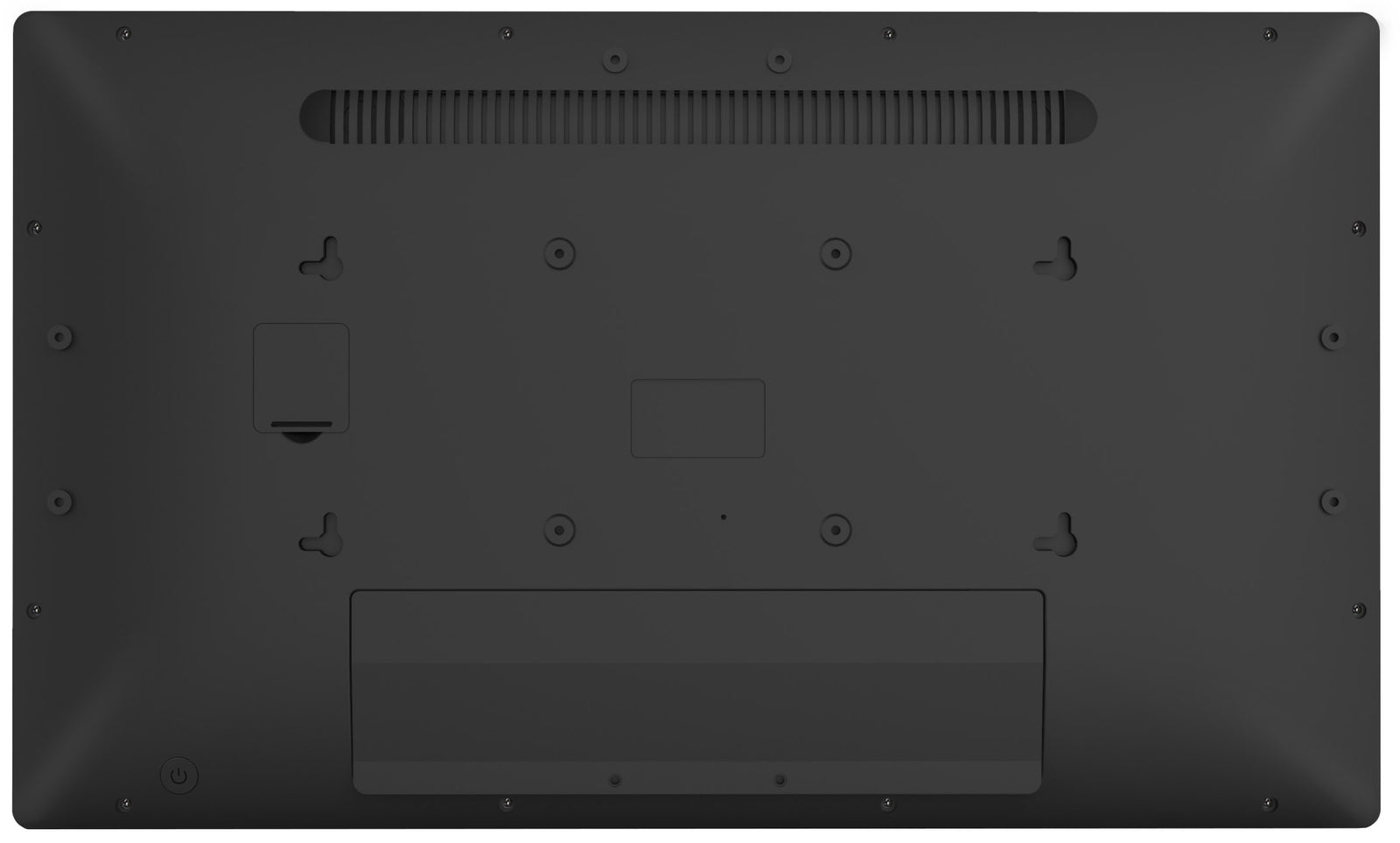

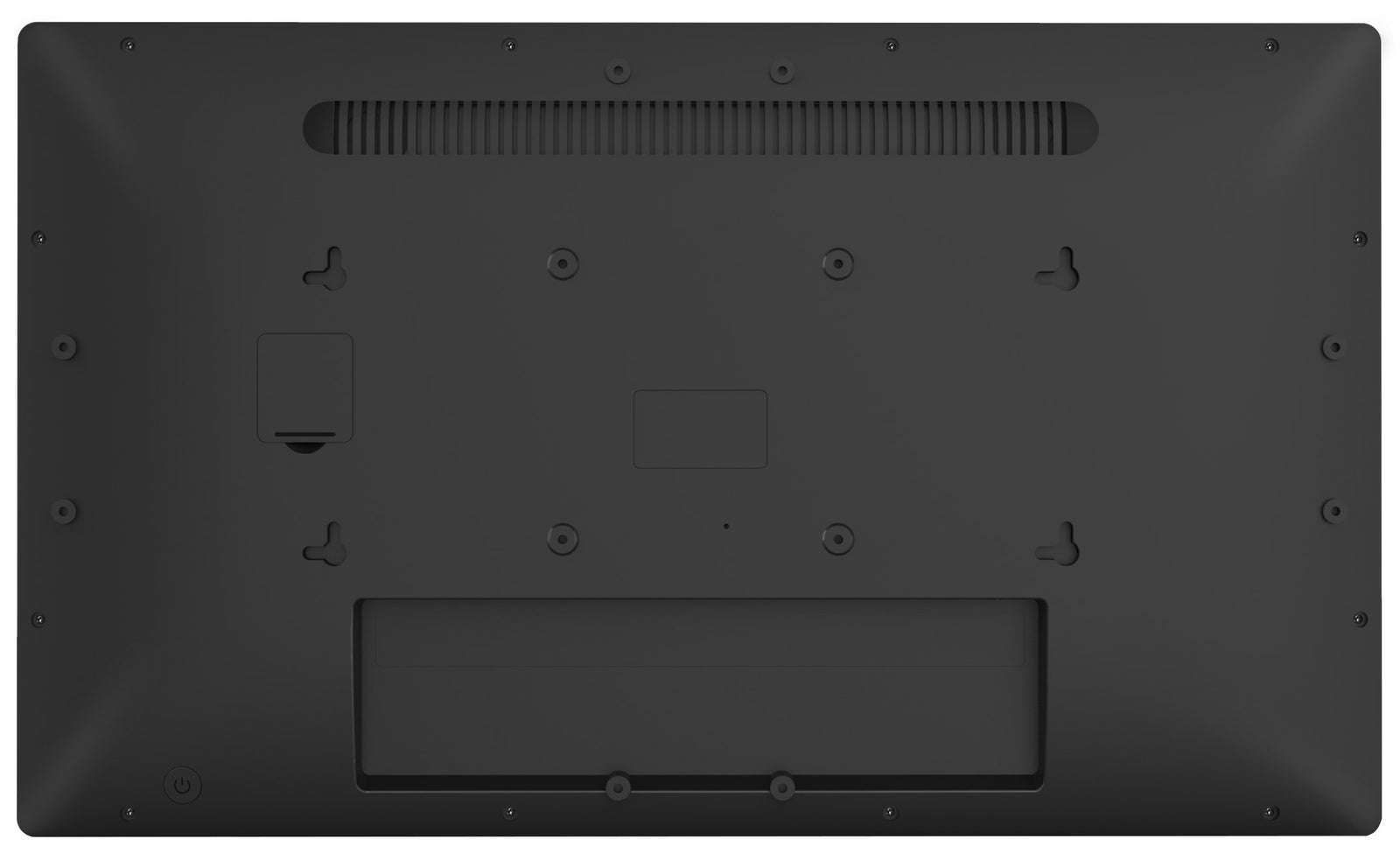

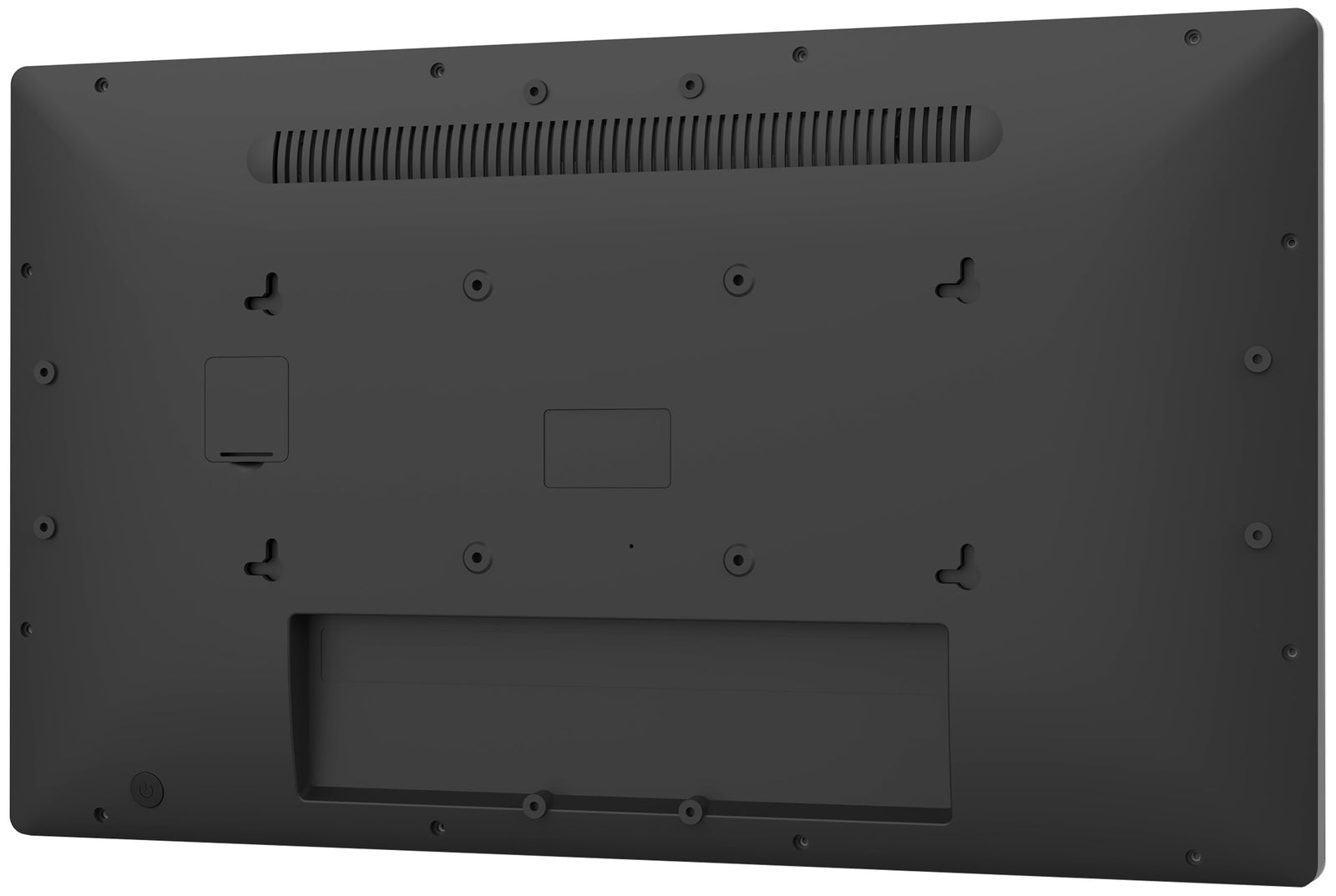

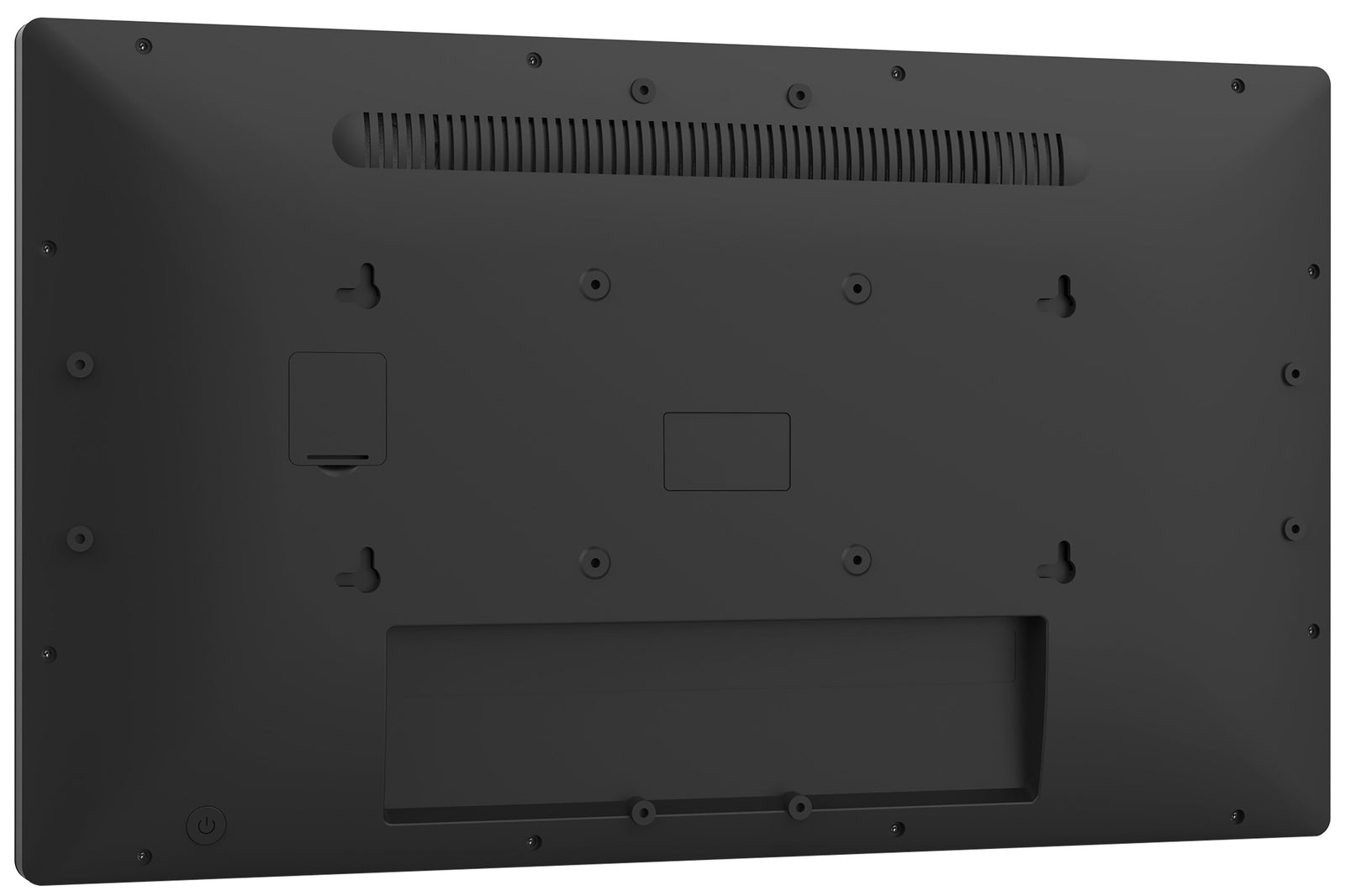

VESA mounting	100 x 100mm
MTBF	50,000 hours (excluding backlight)

ACCESSORIES INCLUDED
Cables	Power
Guides	Quick start guide, safety guide
Other	AC adapter
Cable cover	Yes

POWER MANAGEMENT
Power supply unit	External
Power supply	DC 12V
Power usage	23W typical, 0.5W standby, 0.3W off mode

SUSTAINABILITY
Regulations	CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
REACH SVHC	Above 0.1%: Lead

DIMENSIONS / WEIGHT

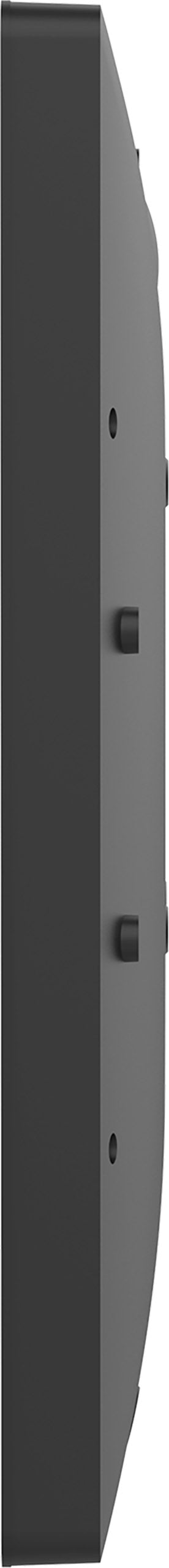

Product dimensions W x H x D	504.5 x 302 x 32mm
Box dimensions W x H x D	640 x 410 x 121mm
Weight (without box)	3.61kg
Weight (with box)	5.98kg
EAN code	4948570122936

Warranty	Product	Cover
Visioncare	Desktop LCD products (Monitors) (17" - 43")	3 years on-site UK warranty. (Upgrades to 5 years available)
Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download

HOW TO ACTIVATE YOUR WARRANTY

There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

Step one - Check that all connections have been properly made.

Step two - Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

Step three - If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number, and date of purchase*. Or fill in the Service Request Form.

Step four - Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

Step five - Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

Step six - Please ensure your product is clean and presentable before packaging it in the original box for collection.

* Proof of purchase may be required
