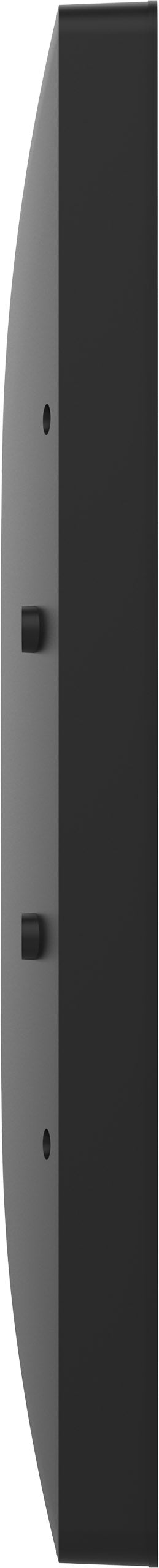

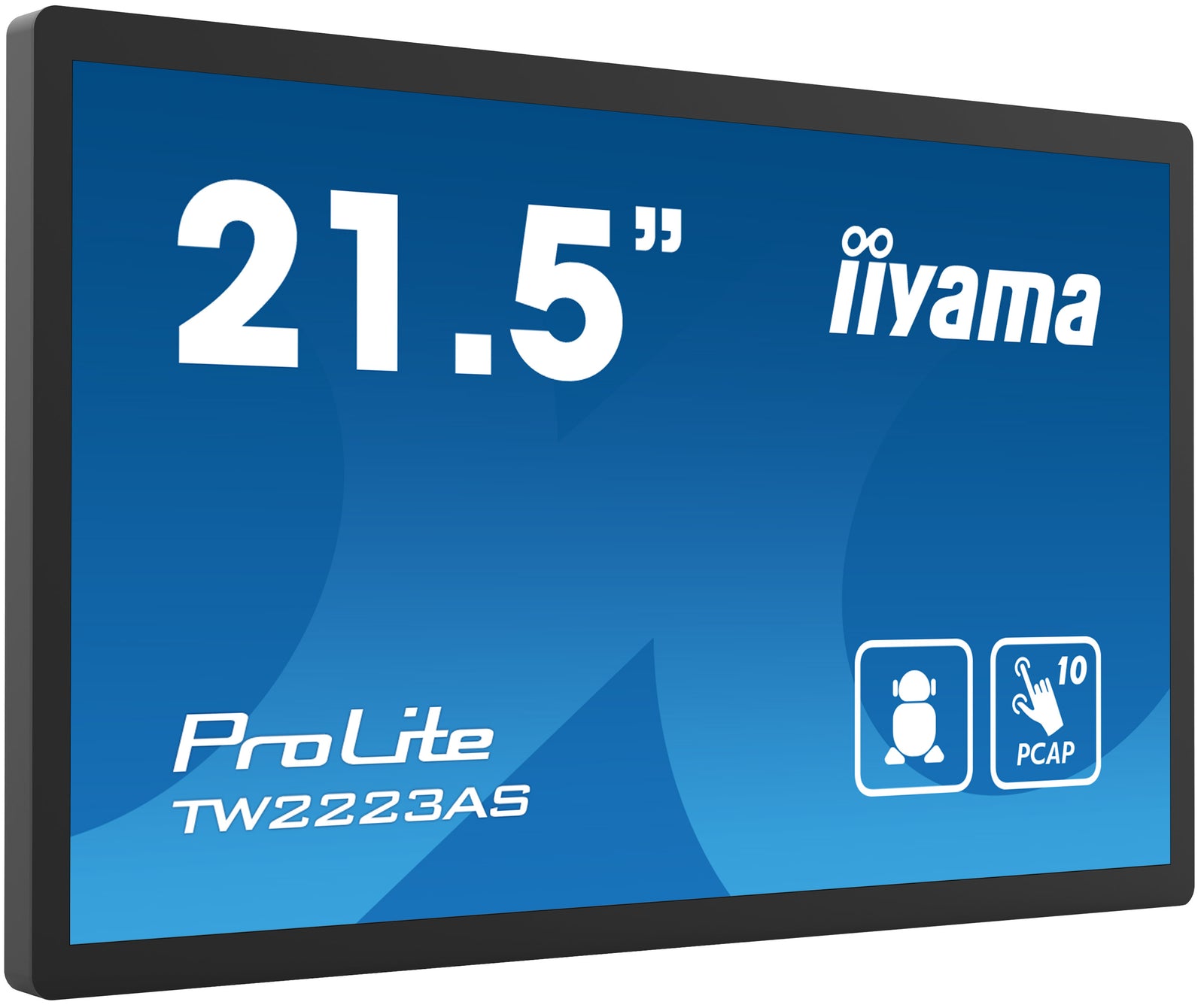

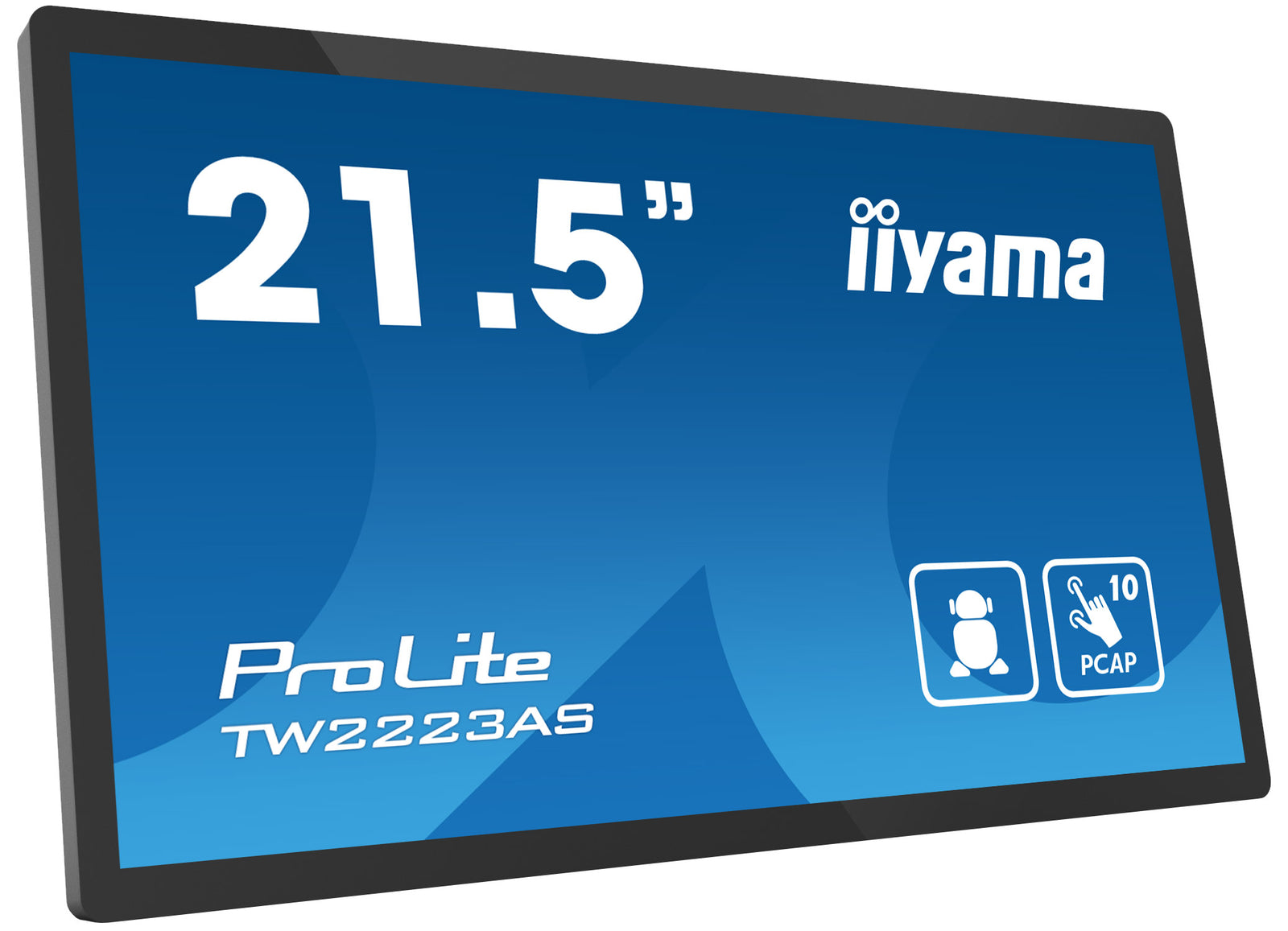

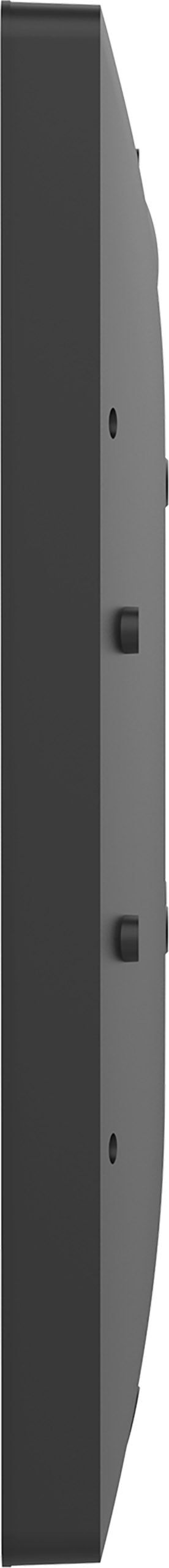

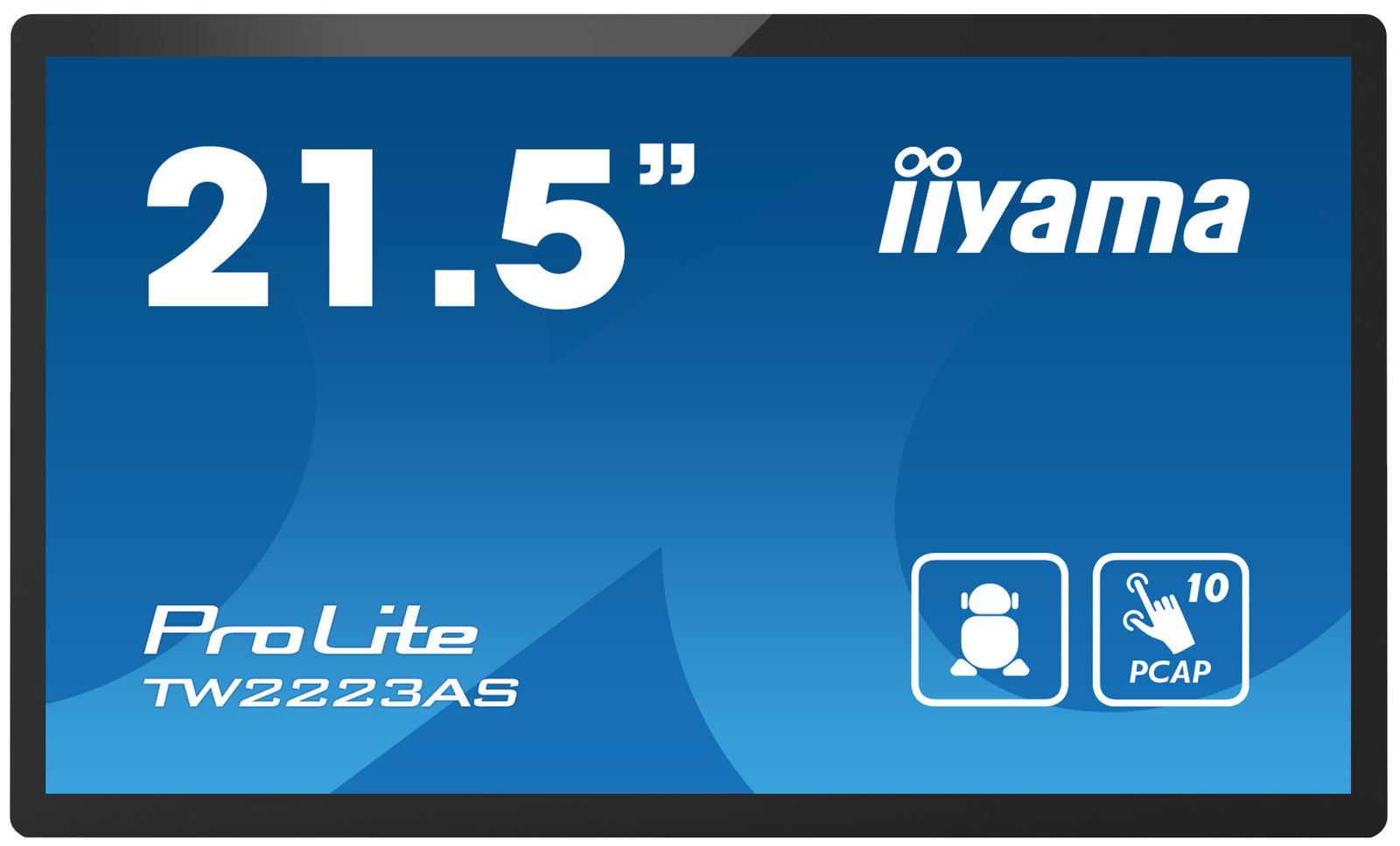

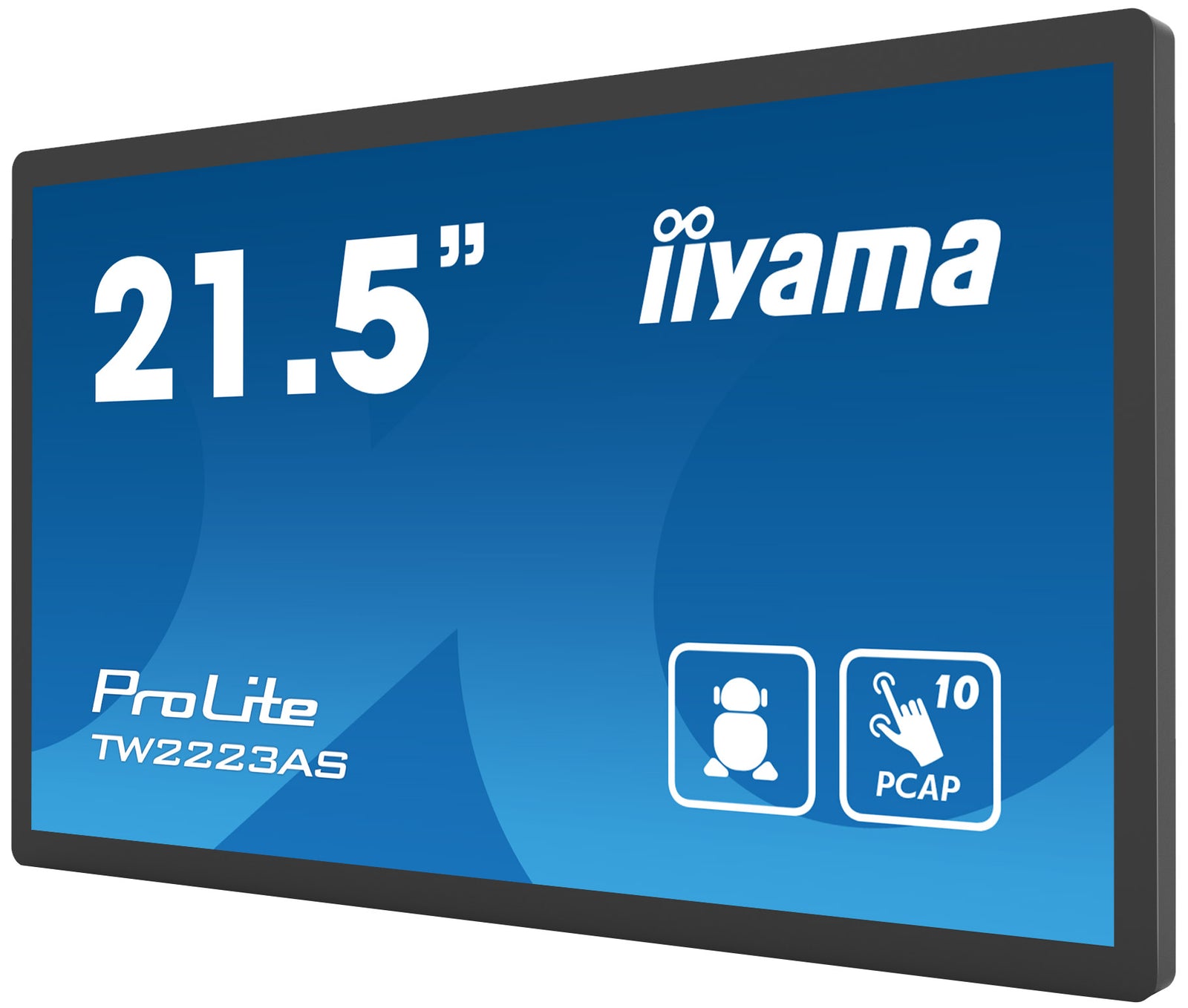

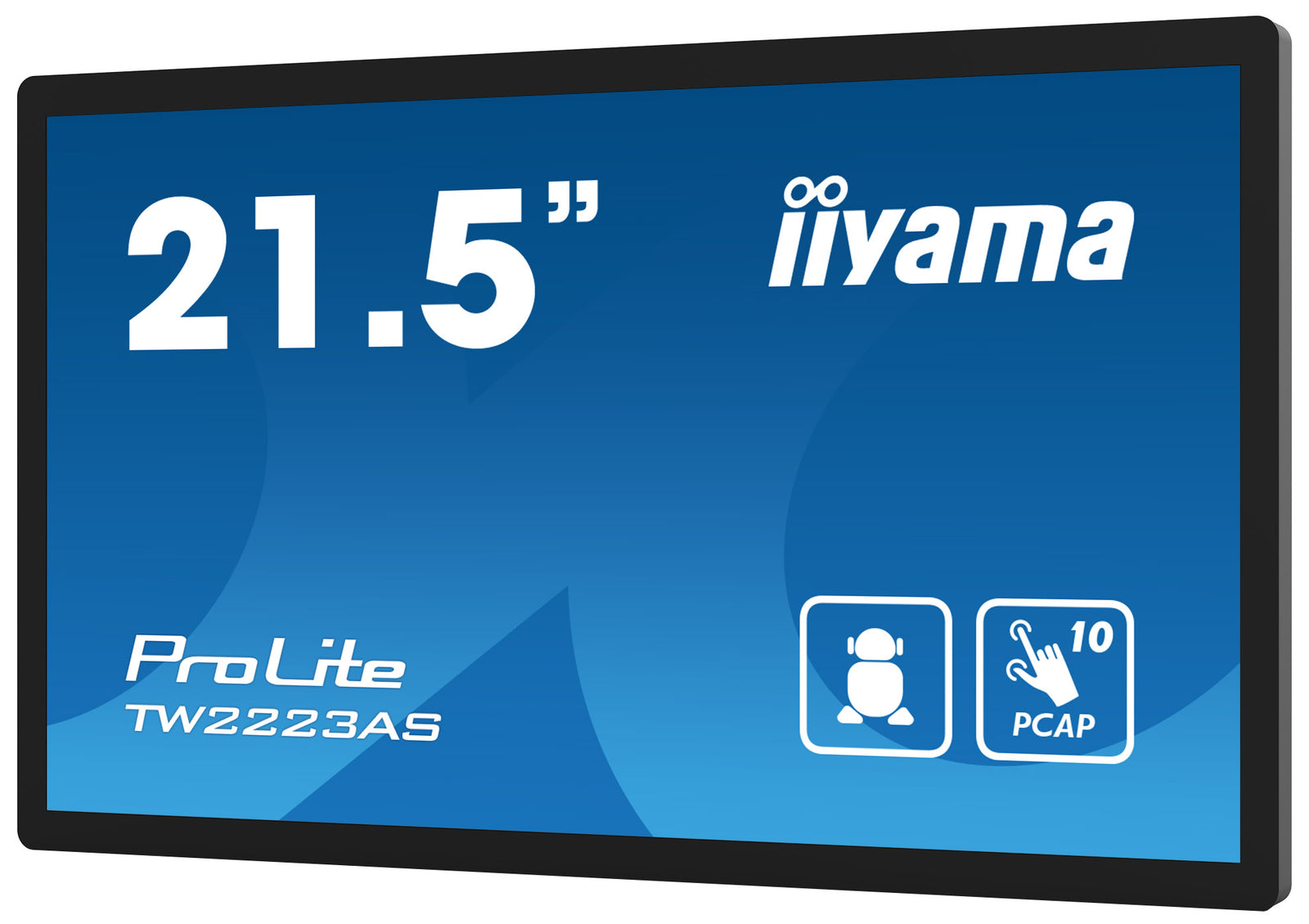

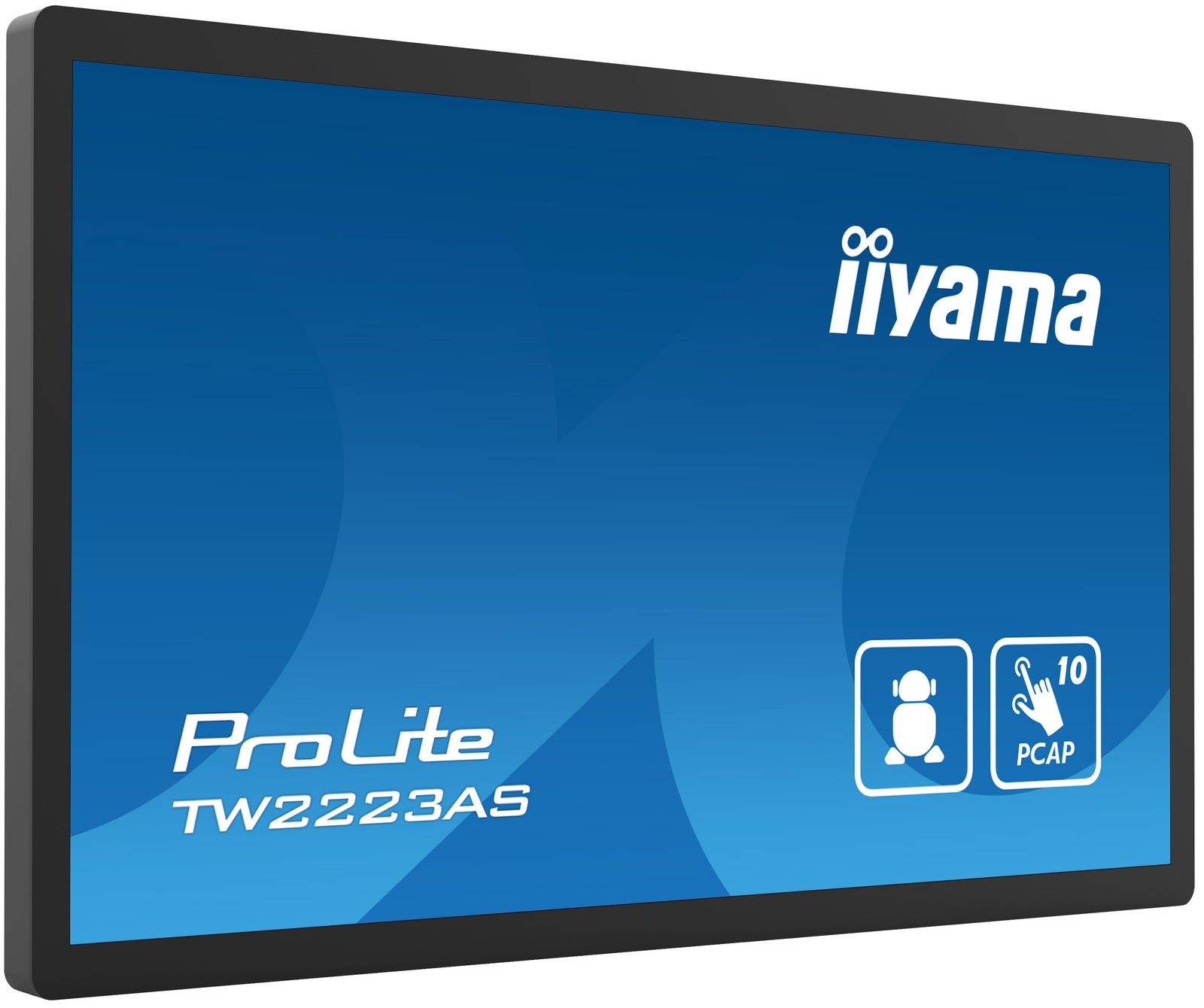

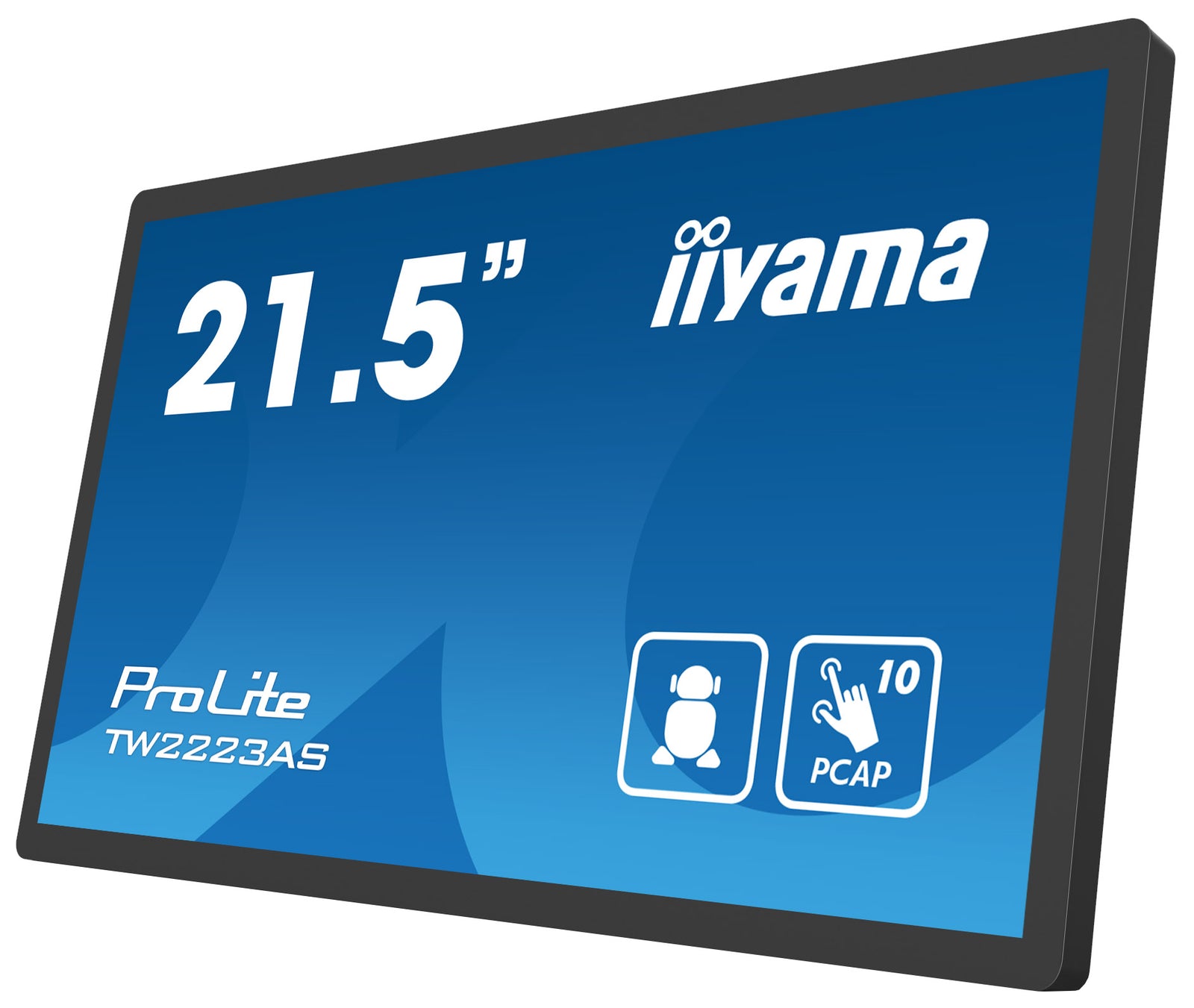

iiyama ProLite TW2223AS-B2 21.5" Full HD PCAP 10pt interactive Touch Panel

The ProLite TW2223AS-B2 interactive Touch Panel PC with an elegant edge-to-edge glass design is a perfect choice for high-use environments. This monitor can operate 24/7 in landscape, portrait and face-up orientation. Thanks to the pre-installed Android 12 operating system it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications.

Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Full HD
With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.

24/7
24/7 displays are designed for a continuous operation.

Speakers
This LED monitor is equipped with two high quality stereo speakers.

Category	Details
Design	Edge to edge glass
Diagonal	21.5", 54.6cm
Panel	VA
Native Resolution	1920 x 1080 (2 megapixel HD)
Aspect Ratio	16:9
Panel Brightness	400 cd/m²
Brightness with Touch	345 cd/m²
Light Transmittance	85%
Static Contrast with Touch	3000:1
Response Time (GTG)	18ms
Viewing Zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour Support	16.7mln
Horizontal Sync	30 - 84kHz
Viewable Area W x H	478 x 269.5mm, 18.8 x 11.8"
Pixel Pitch	0.248mm
Bezel Colour and Finish	black, matte
Touch Technology	projective capacitive
Touch Points	10 (HID, only with supported OS)
Touch Accuracy	± 2mm
Touch Method	finger, glove (latex), capacitive stylus
Touch Interface	USB
Digital Signal Output	HDMI x1 (1920x1080 @60Hz)
Audio Output	Mini jack x1
Speakers	2 x 2W
HDCP	yes

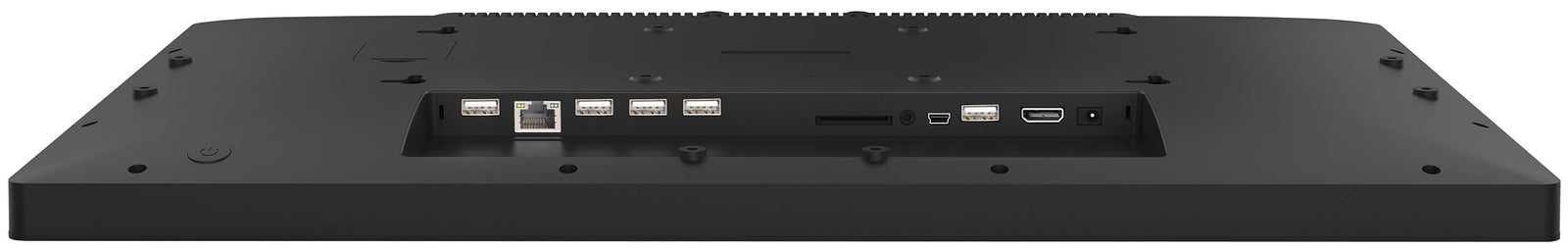

USB Ports	2x USB 2.0, 1x USB 3.2, 2x serial port, 1x USB OTG
RJ45 (LAN)	10M/100M/1000M
Microphone	yes
Integrated Software	Android 12 with GMS
CPU	Rockchip RK3399 (1.8GHz, 16Gb storage)
GPU	Dual-core A72 + Quad-core A53
Storage	32Gb eMMC
Memory	4Gb LPDDR4
WiFi	IEEE802.11a/b/g/n/ac
Bluetooth	5.2
Extra Features	auto-rotation, SD card slot
Max. Operating Time	24/7
Anti Image Retention	yes
Glass Thickness	2.9mm
Glass Hardness	6H
Control Buttons	Power switch
Applications	Various including calculator, calendar, Chrome, etc.
Flicker Free	yes
Orientation	landscape, portrait, face-up

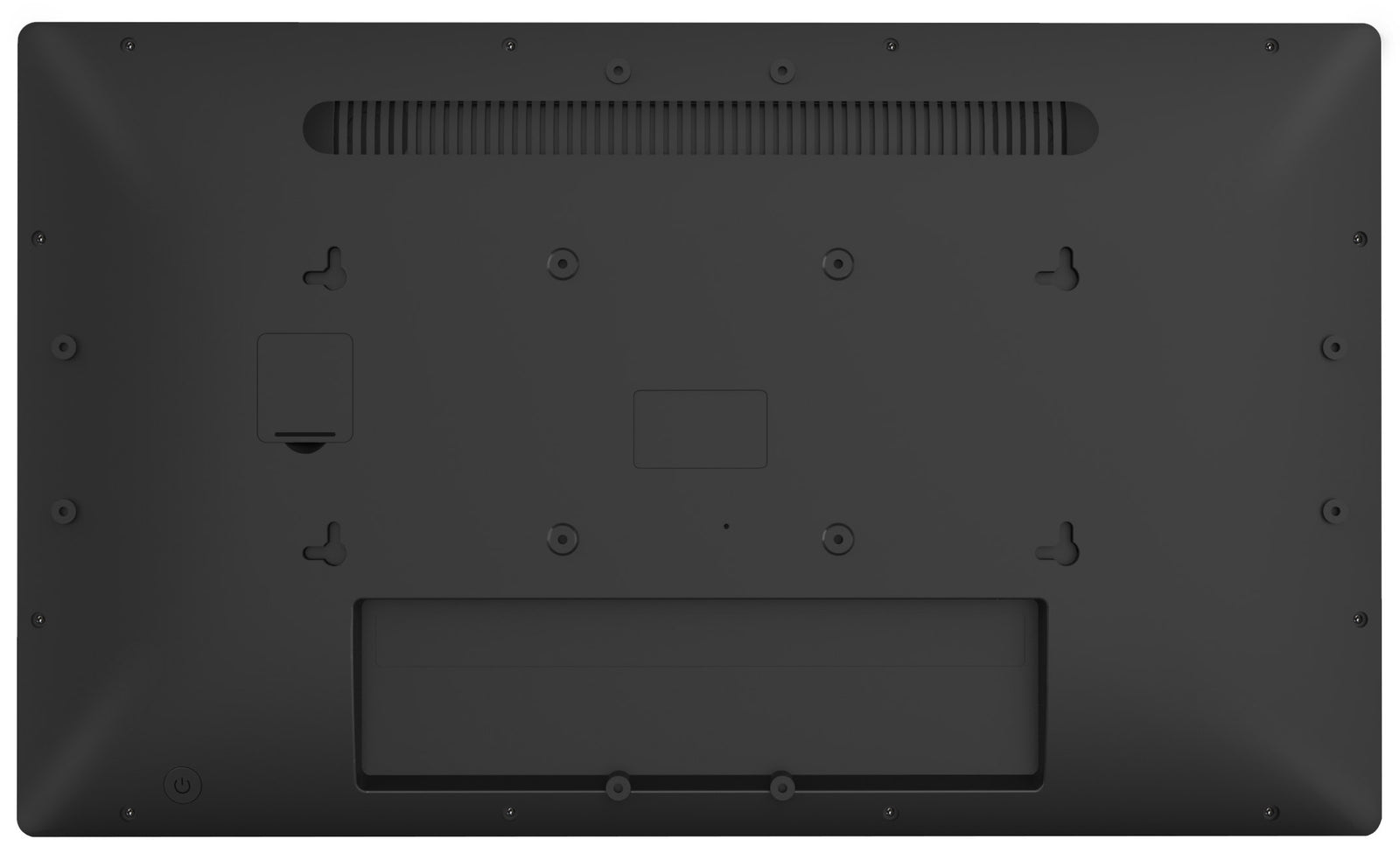

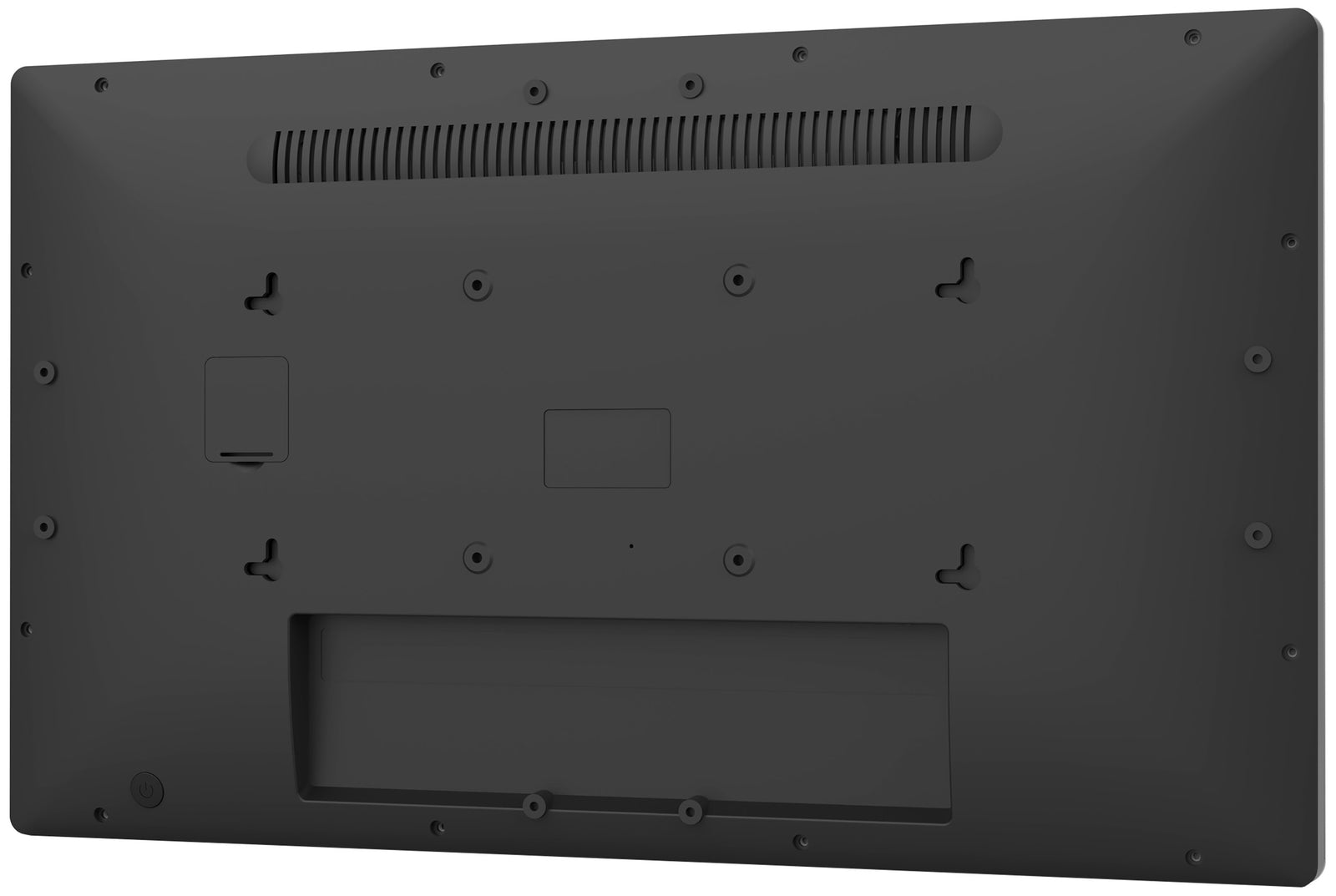

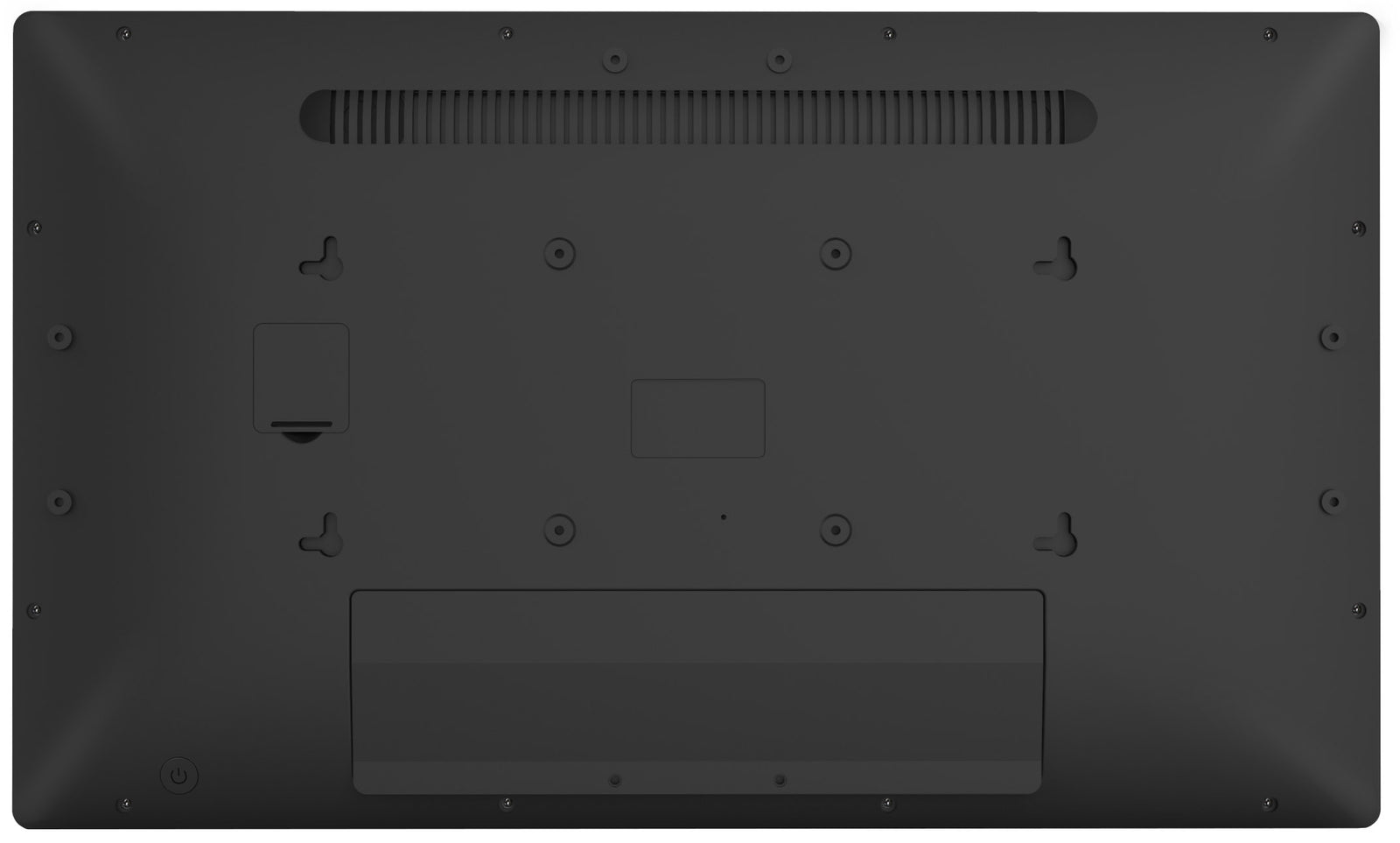

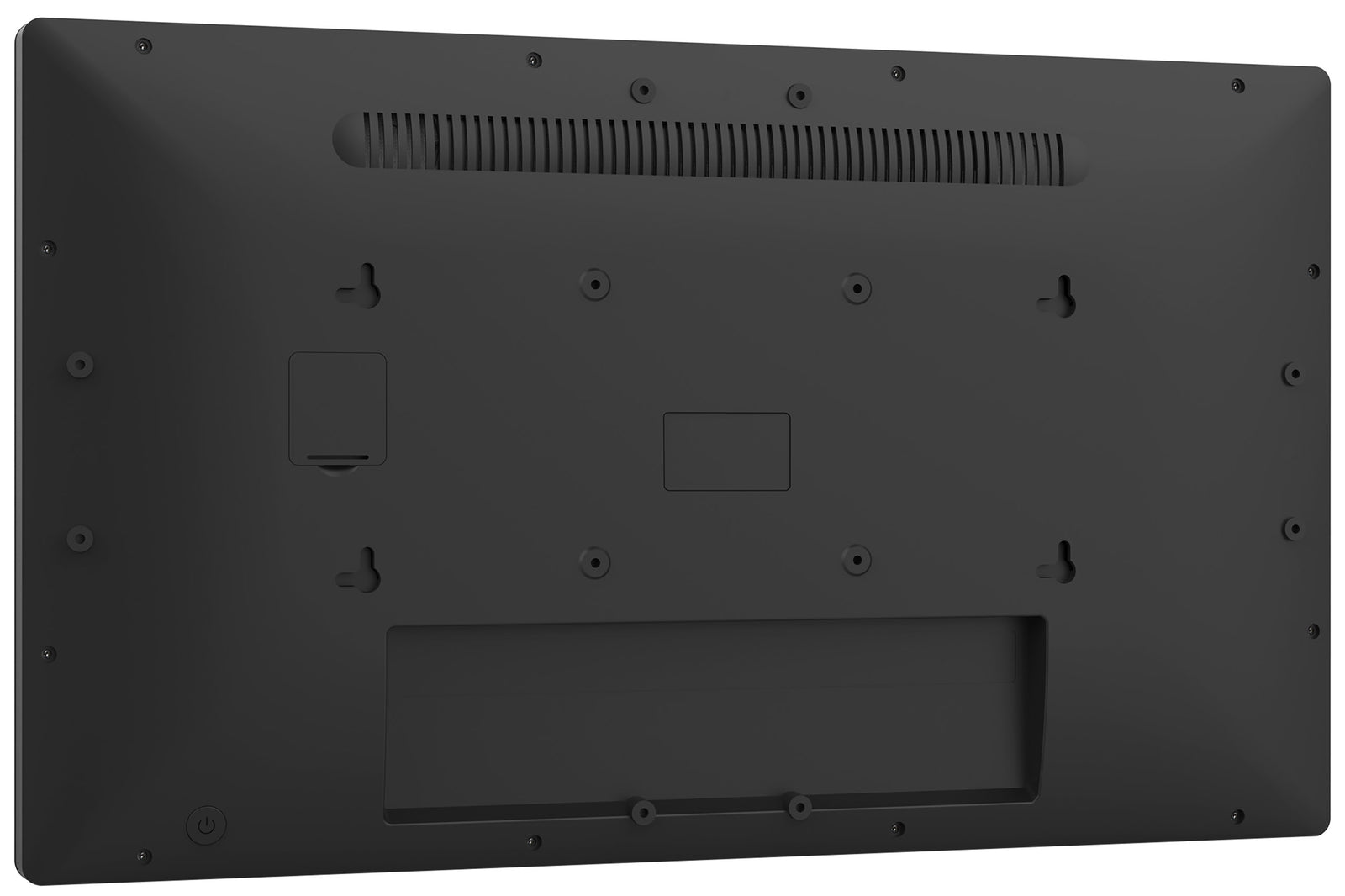

VESA Mounting	100 x 100mm
Cable Management System	yes
MTBF	50000 hours (excluding backlight)
Included Accessories	power cable, quick start guide, safety guide, AC adapter, cable cover
Power Supply Unit	external
Power Supply	DC 12 V
Power Usage	23W typical, 0.5W stand by, 0.3W off mode
Regulations	CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
REACH SVHC	above 0.1%: Lead
Product Dimensions W x H x D	504.5 x 302 x 32mm
Box Dimensions W x H x D	640 x 410 x 121mm
Weight (without box)	3.61kg
Weight (with box)	5.98kg
EAN Code	4948570124787
