PROLITE TW2424AS-W1

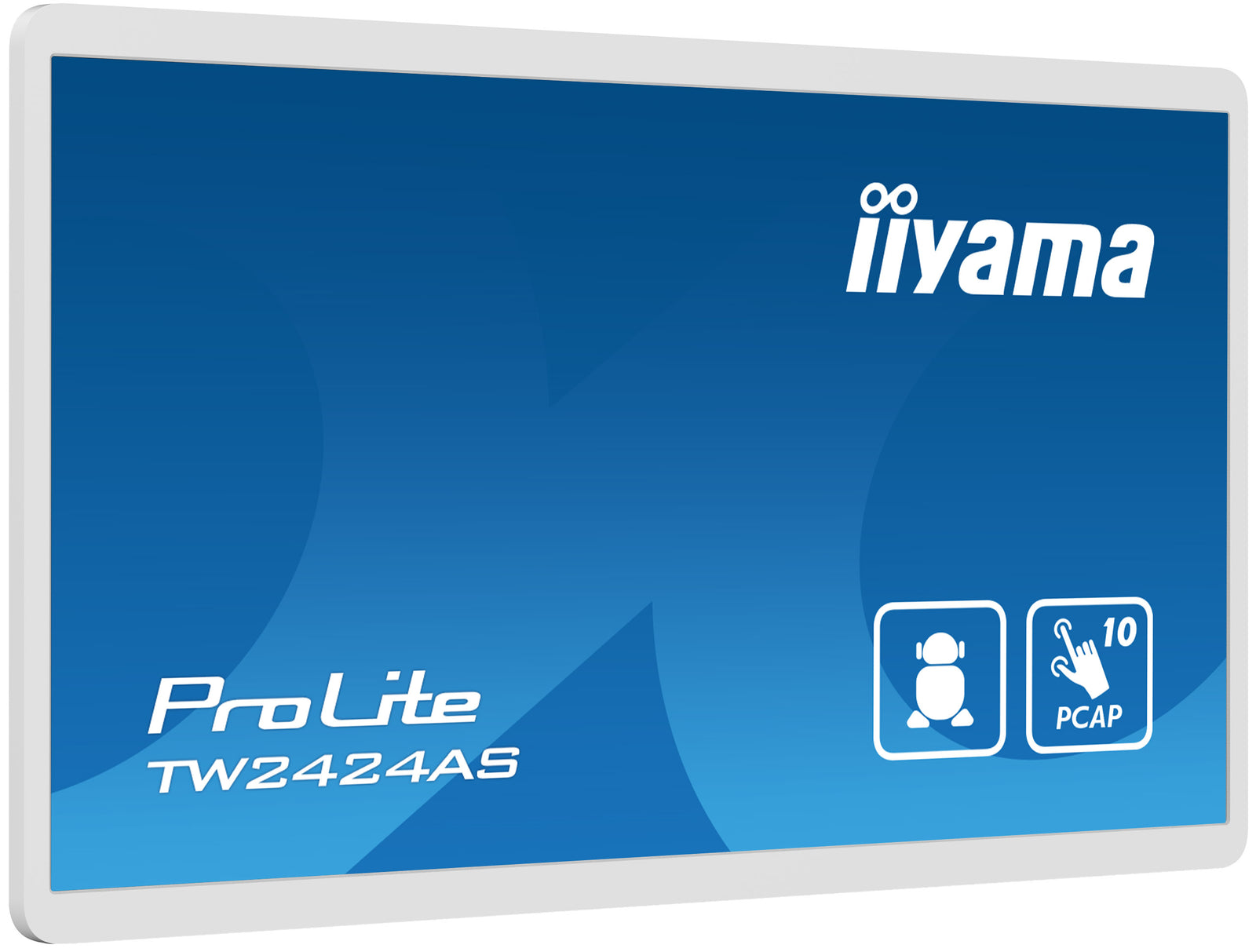

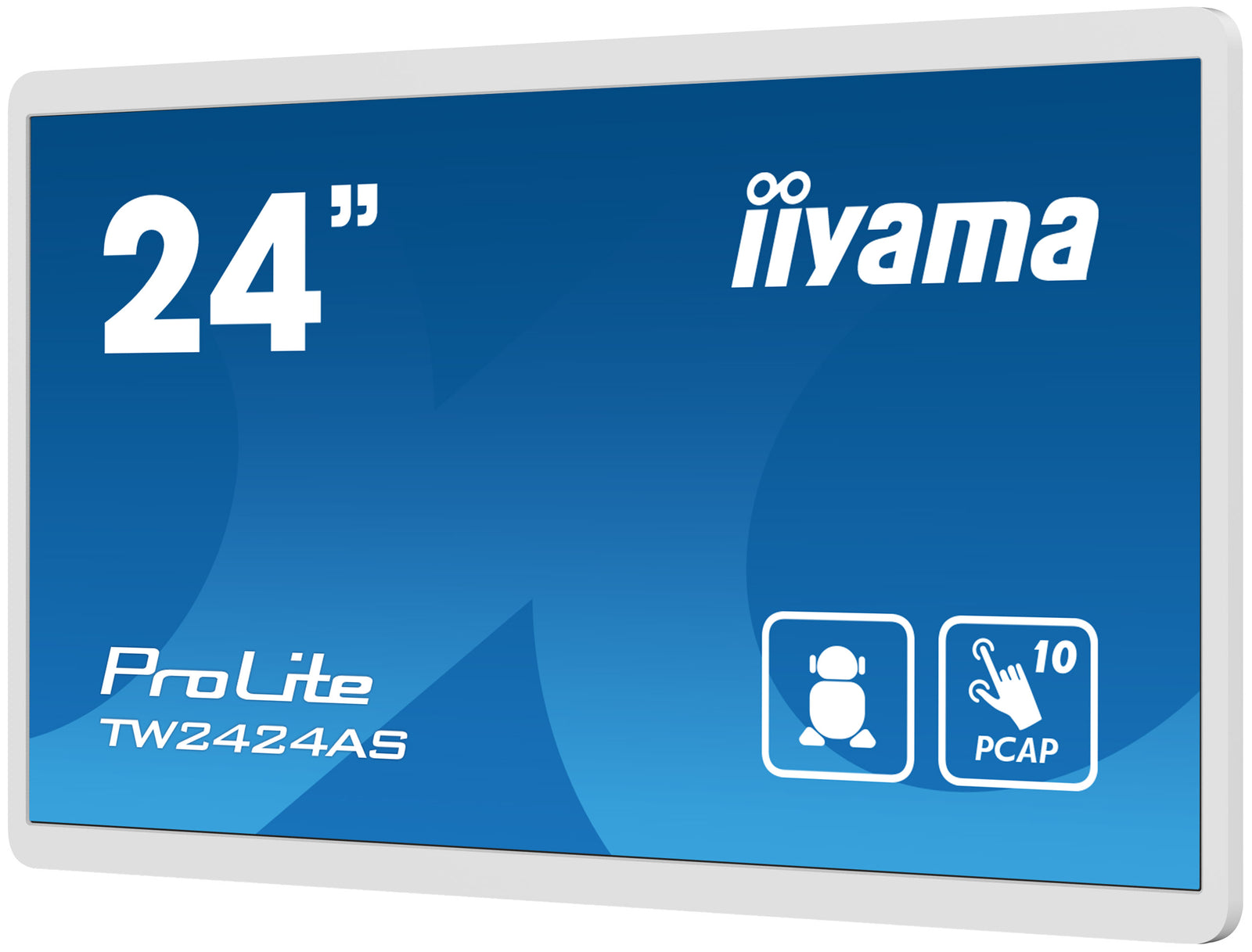

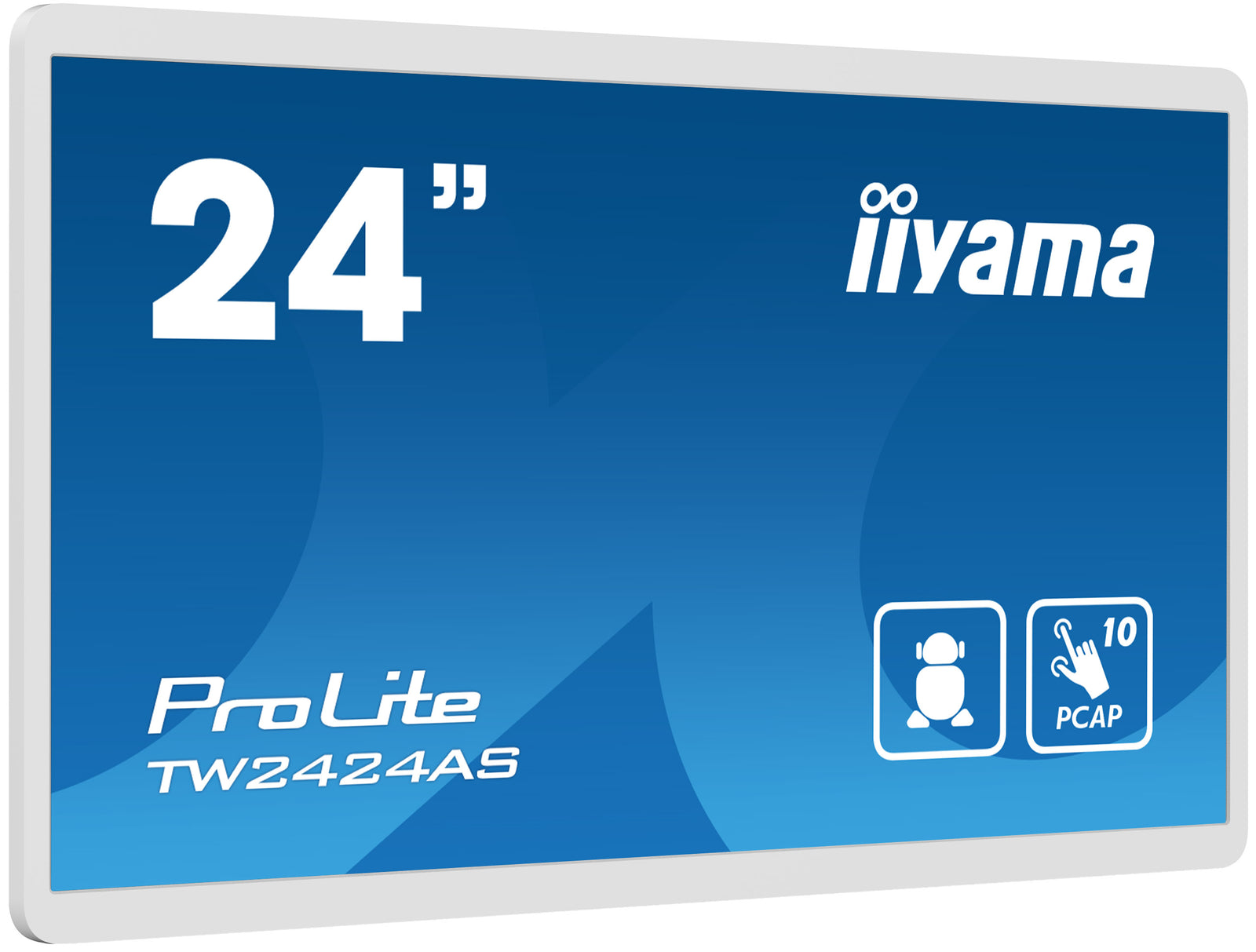

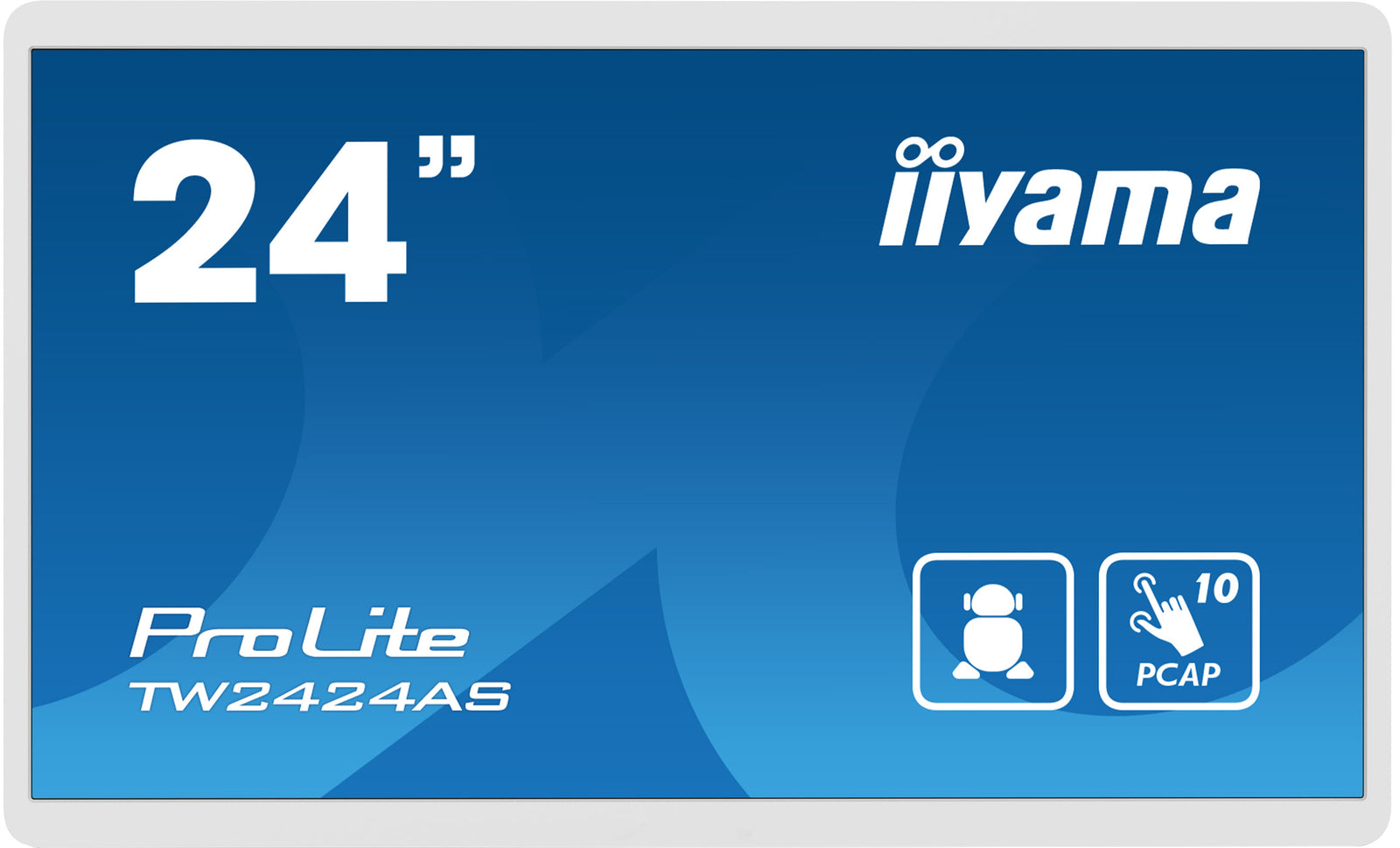

23.8” Full HD In-cell PCAP 10pt interactive Touch Panel PC with Android OS, IPS panel technology, and anti glare coating

The ProLite TW2424AS-W1 interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated into a slim and elegant bezel, delivers both excellent color performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait, and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 12 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45), and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications.

ANDROID OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because the electrical characteristics of the sensor grid change when a human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human fingers (also latex gloved) and stylus pens.

IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colors. They are especially suited for colour-critical applications.

24/7
24/7 displays are designed for continuous operation.

SPEAKERS AND HEADPHONES
Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.

DISPLAY CHARACTERISTICS
Design	Thin bezel
Diagonal	23.8", 60.5cm
Panel	IPS
Native resolution	1920 x 1080 (2 megapixel HD)
Aspect ratio	16:9
Brightness	250 cd/m² with touch
Static contrast	1000:1 with touch
Response time (GTG)	14ms
Viewing zone	Horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support	16.7 million
Horizontal Sync	31. - 83. kHz
Viewable area W x H	527 x 296.5mm, 20.7 x 10.6"
Pixel pitch	0.275mm
Bezel colour and finish	White, matte
TOUCH
Touch technology	Projective capacitive
Touch points	10 (HID, only with supported OS)
Touch method	Finger, glove (latex), capacitive stylus
Touch interface	USB
INTERFACES / CONNECTORS / CONTROLS
Digital signal input	HDMI x1 (1920x1080 @60Hz)
Audio input	Mini jack x1
Digital signal output	USB-C x1 (DC5V, 900mA)
Audio output	Mini jack x1
Speakers	2 x 5W
HDCP	Yes
RJ45 (LAN)	x1
USB HUB	x3 (2x 2.0 (DC5V, 500mA), 1x v. 3.2 (Gen 1, 5Gbit; DC5V, 900mA))
FEATURES
Integrated software	Android 12 with GMS
CPU	Rockchip RK3399 (1.8GHz, 32GB storage)
GPU	Dual-core A72 + Quad-core A53
Storage	32GB eMMC
Memory	4GB LPDDR4
WiFi	IEEE802.11a/b/g/n/ac
Bluetooth	5.2
Extra	Auto-rotation, 2x 5W speakers, microphone, anti-glare coating
Max. non-stop operating time	24/7
Anti-image retention	Yes
Glass hardness	3H
OSD key lock	Yes
GENERAL
Control buttons	Volume +, volume -, power switch
Applications	Lock applications, manage restart time, manage power on/off, calculator, calendar, Chrome, alarm/clock, Timer, Stopwatch, Manage files, organize albums, Gmail, play audio files, Play Store, search engine, system preferences, sound recorder, play videos
Flicker-free	Yes
MECHANICAL
Orientation	Landscape, portrait, face-up

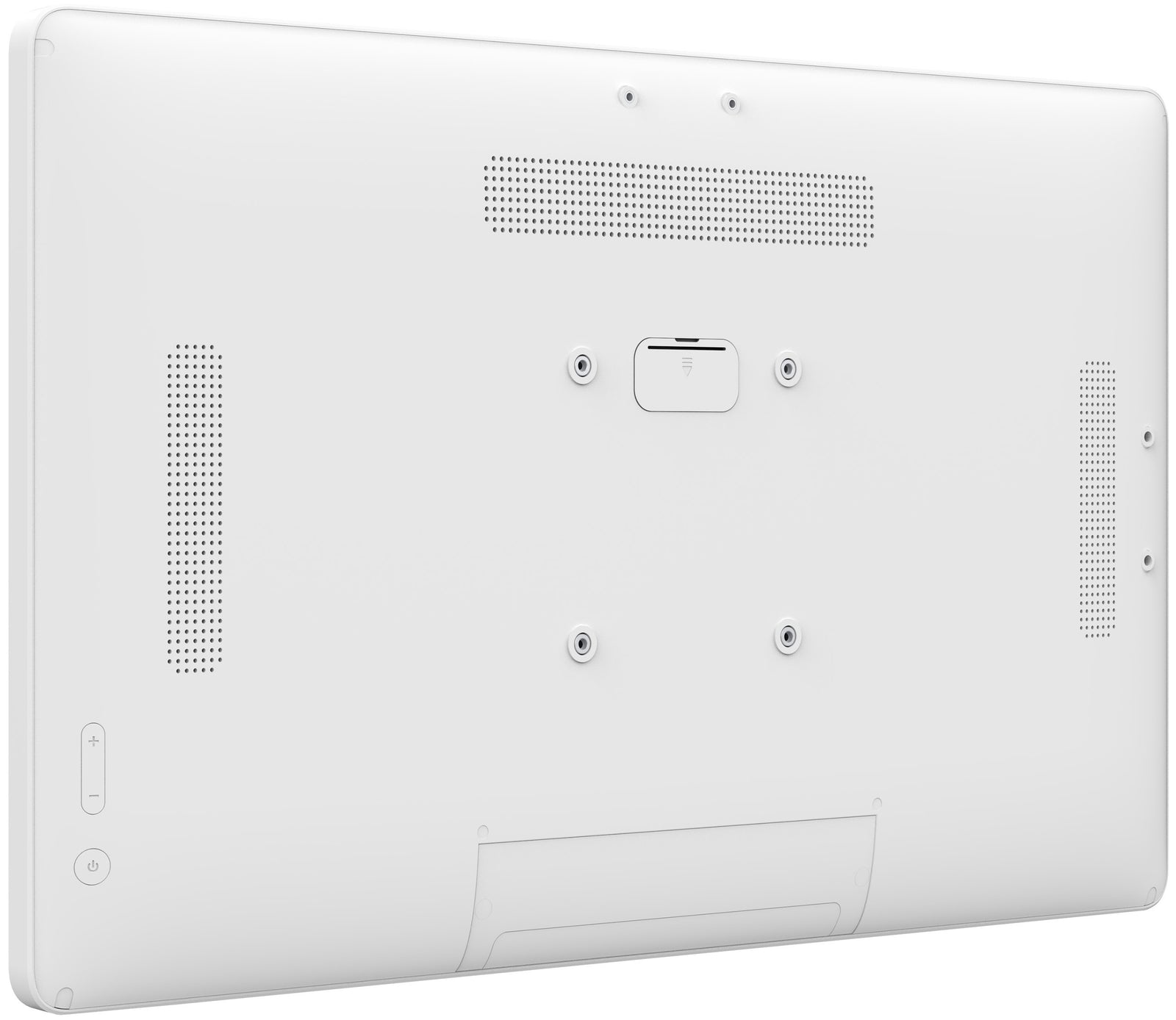

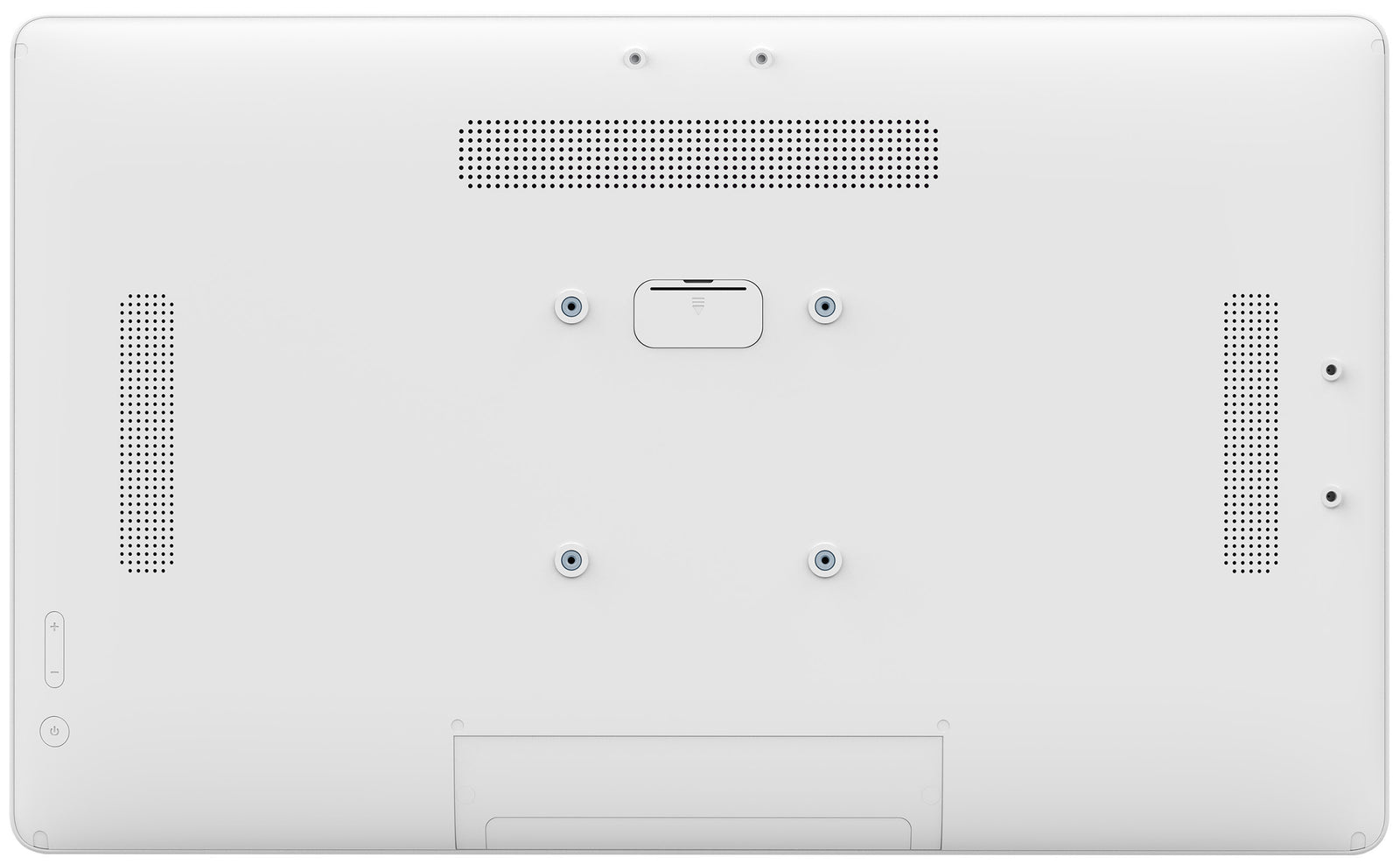

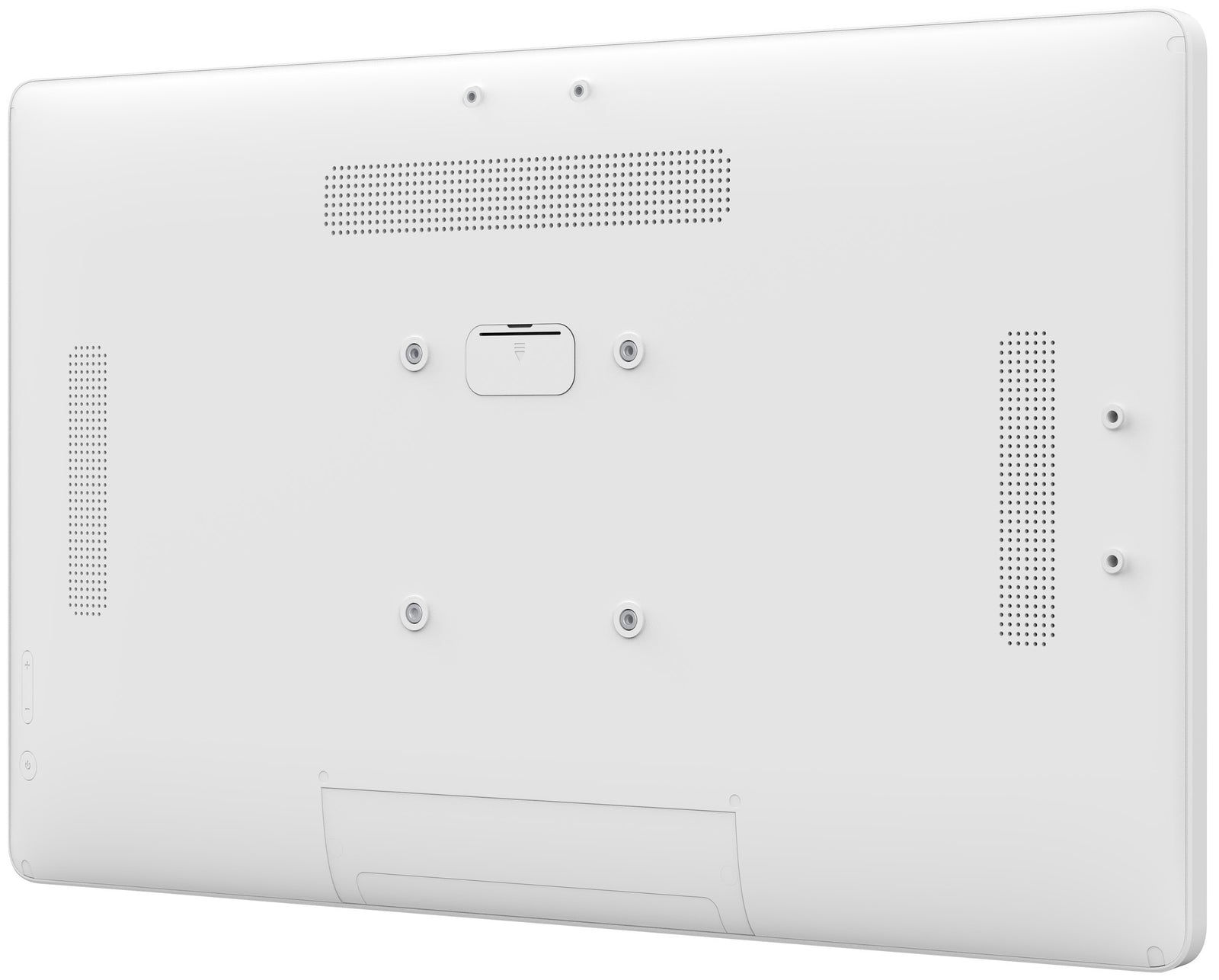

VESA mounting	100 x 100mm
MTBF	50,000 hours (excluding backlight)
ACCESSORIES INCLUDED
Cables	Power
Guides	Quick start guide, safety guide
Other	AC adapter
Cable cover	Yes
POWER MANAGEMENT
Power supply unit	External
Power supply	DC 12V
Power usage	19W typical, 0.5W standby, 0.3W off mode
SUSTAINABILITY
Regulations	CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
REACH SVHC	Above 0.1%: Lead
DIMENSIONS / WEIGHT
Product dimensions W x H x D	549.5 x 336 x 28mm
Box dimensions W x H x D	580 x 375 x 126mm
Weight (without box)	4.23kg
Weight (with box)	6.15kg
EAN code	4948570122950

Warranty	Product	Cover
Visioncare	Desktop LCD products (Monitors) (17" - 43")	3 years on-site UK warranty. (Upgrades to 5 years available)
Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download

HOW TO ACTIVATE YOUR WARRANTY

There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

Step one - Check that all connections have been properly made.

Step two - Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

Step three - If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number, and date of purchase*. Or fill in the Service Request Form.

Step four - Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

Step five - Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

Step six - Please ensure your product is clean and presentable before packaging it in the original box for collection.

* Proof of purchase may be required

ON-SITE SWAP OUT

PIONEERING CUSTOMER SERVICE.

Document Type Download Link

User Manual Download

Technical Specification Download

Drawing Download

Quick Start Guide Download
