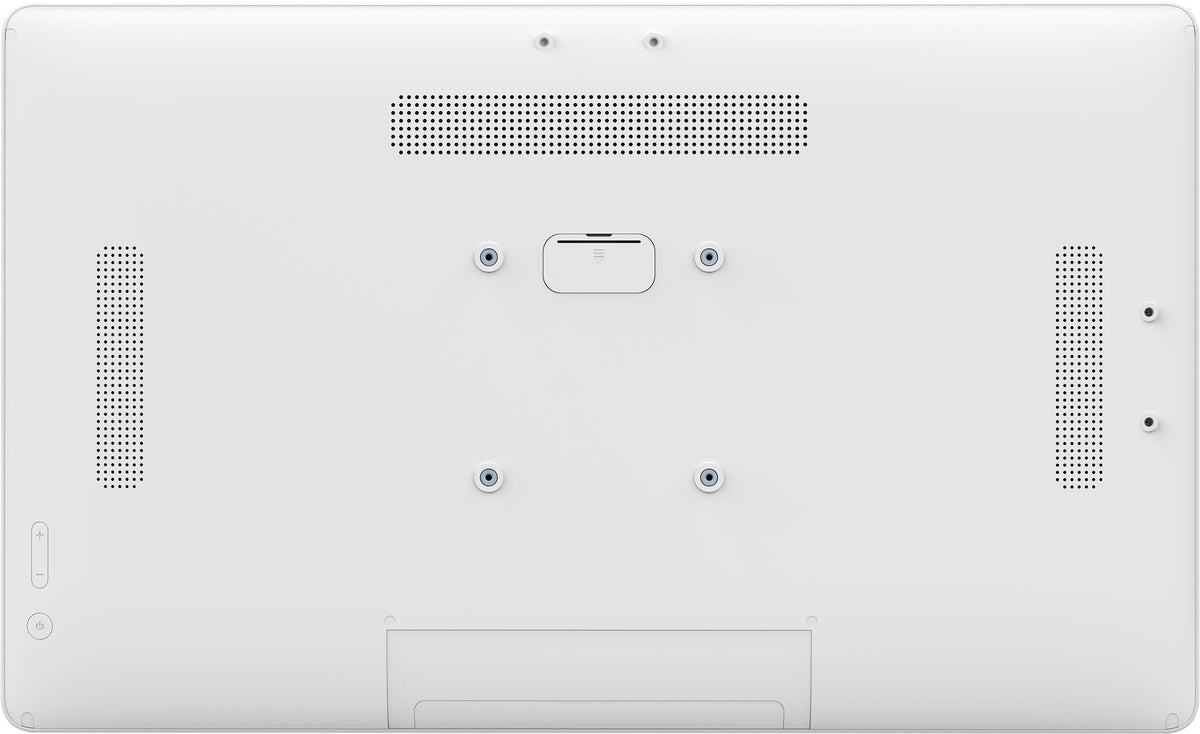

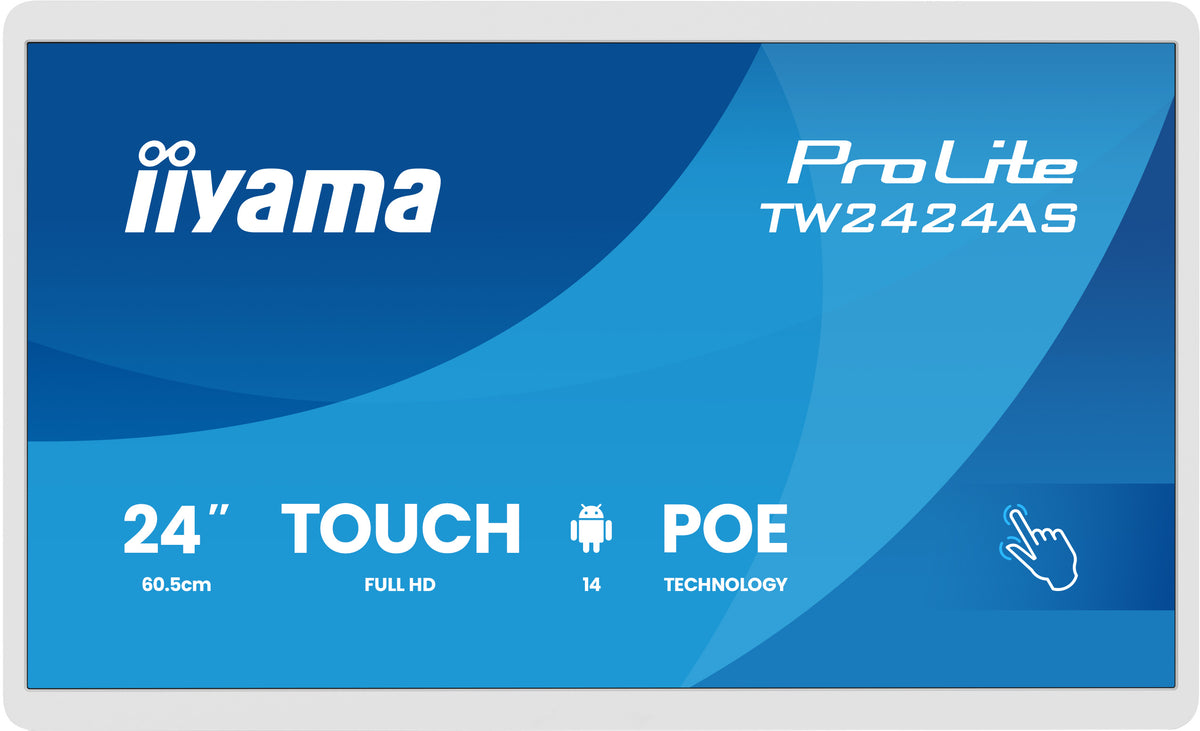

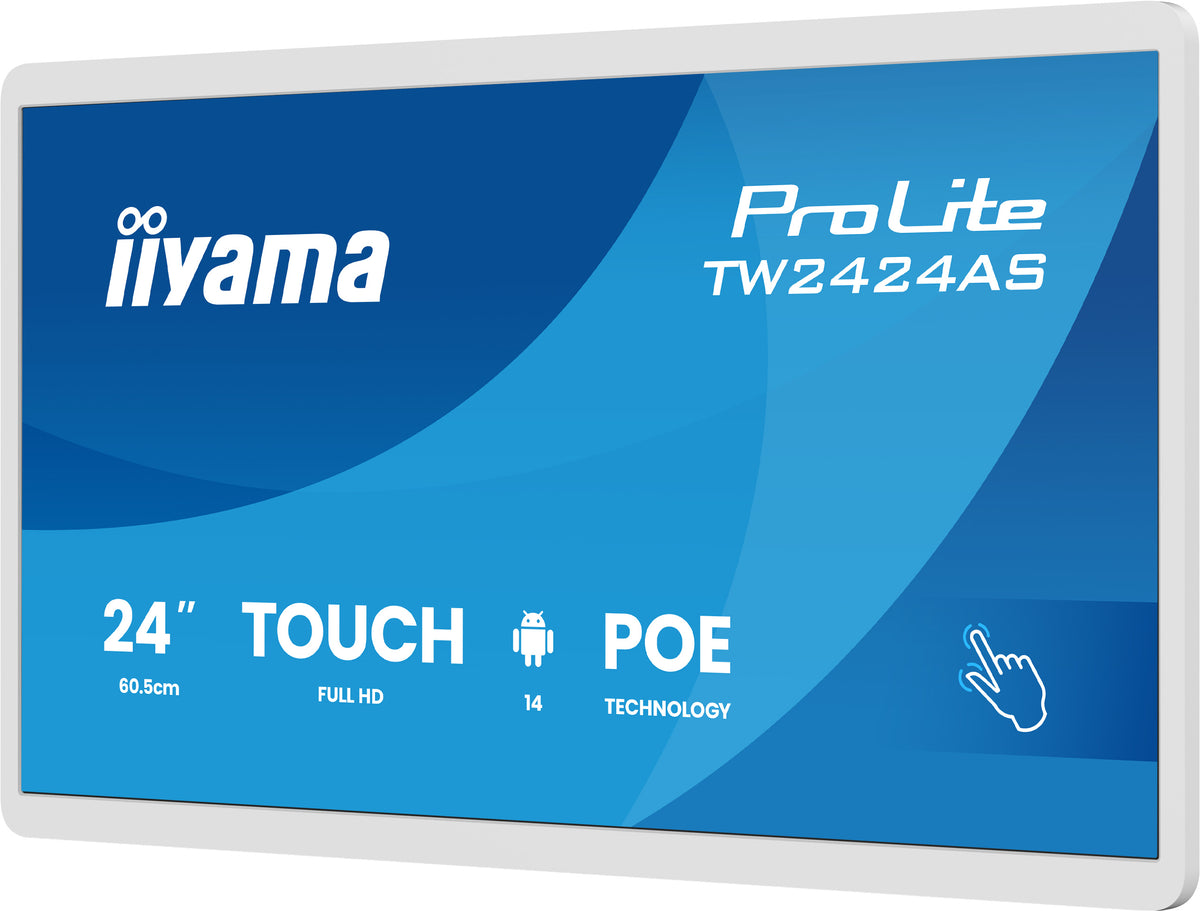

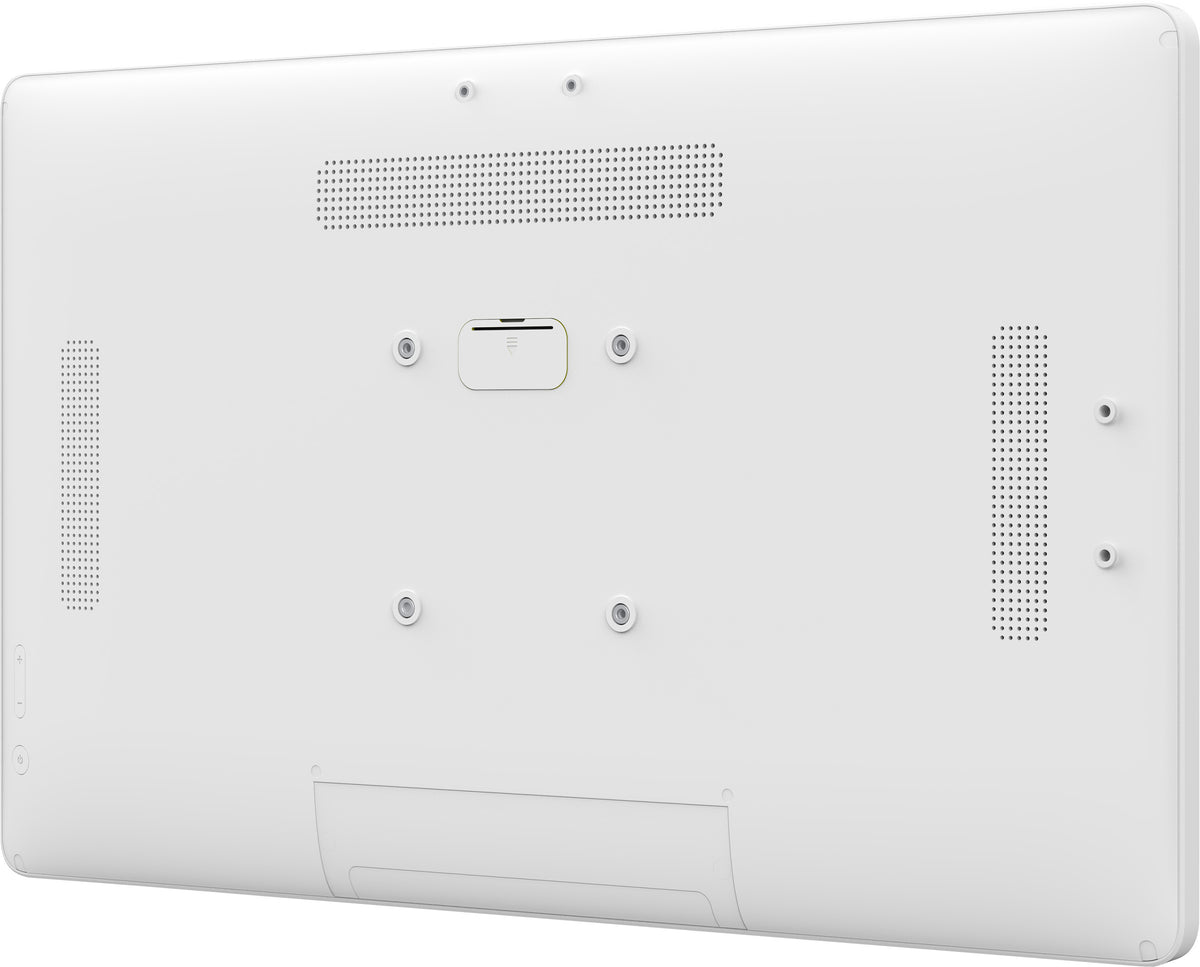

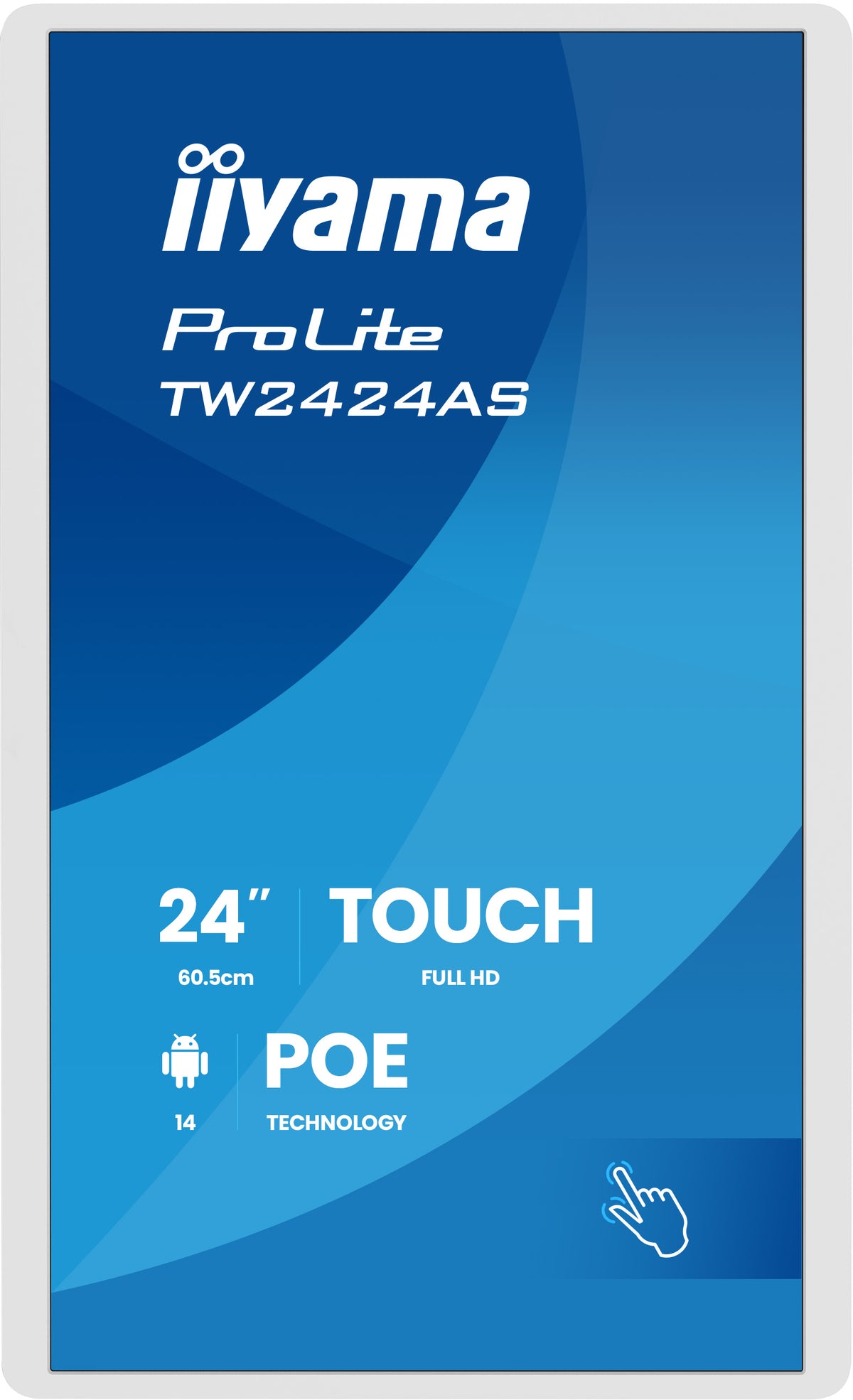

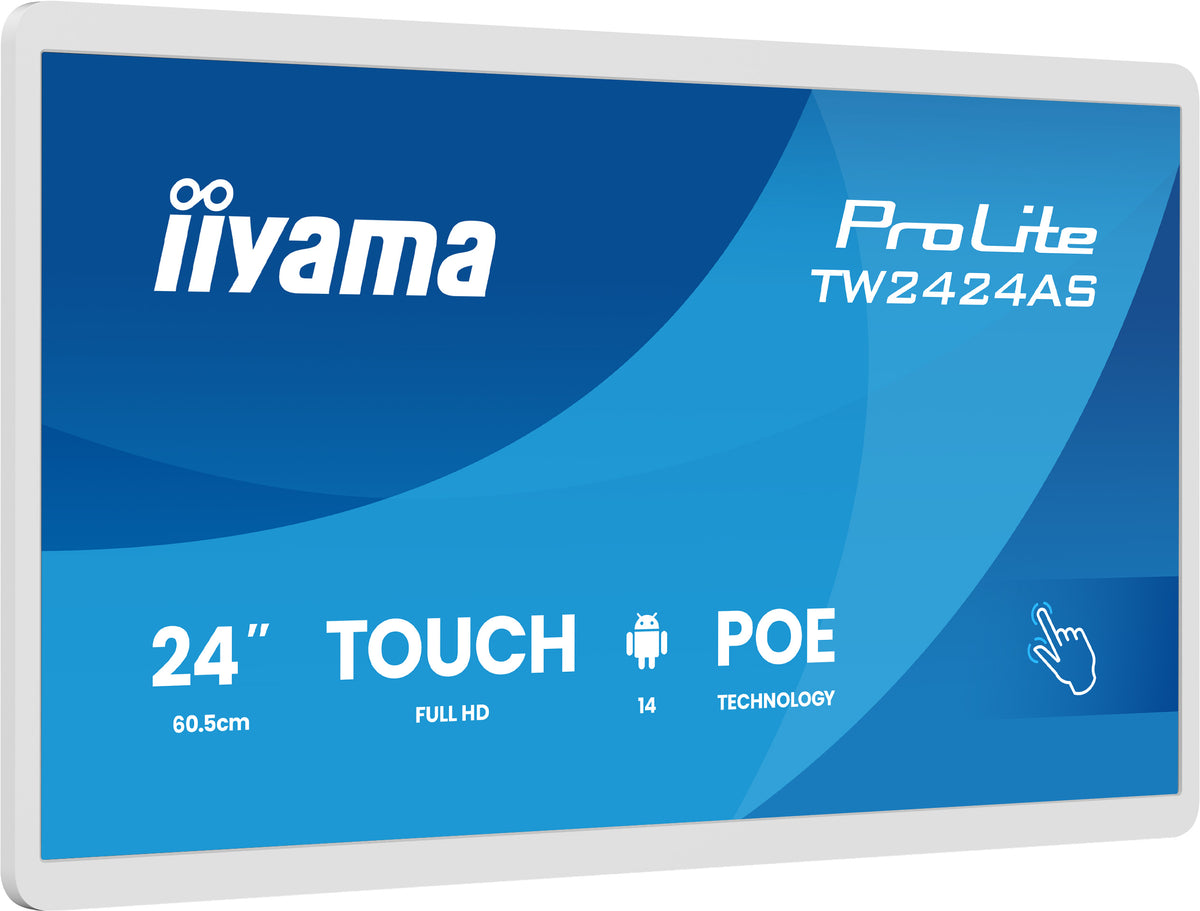

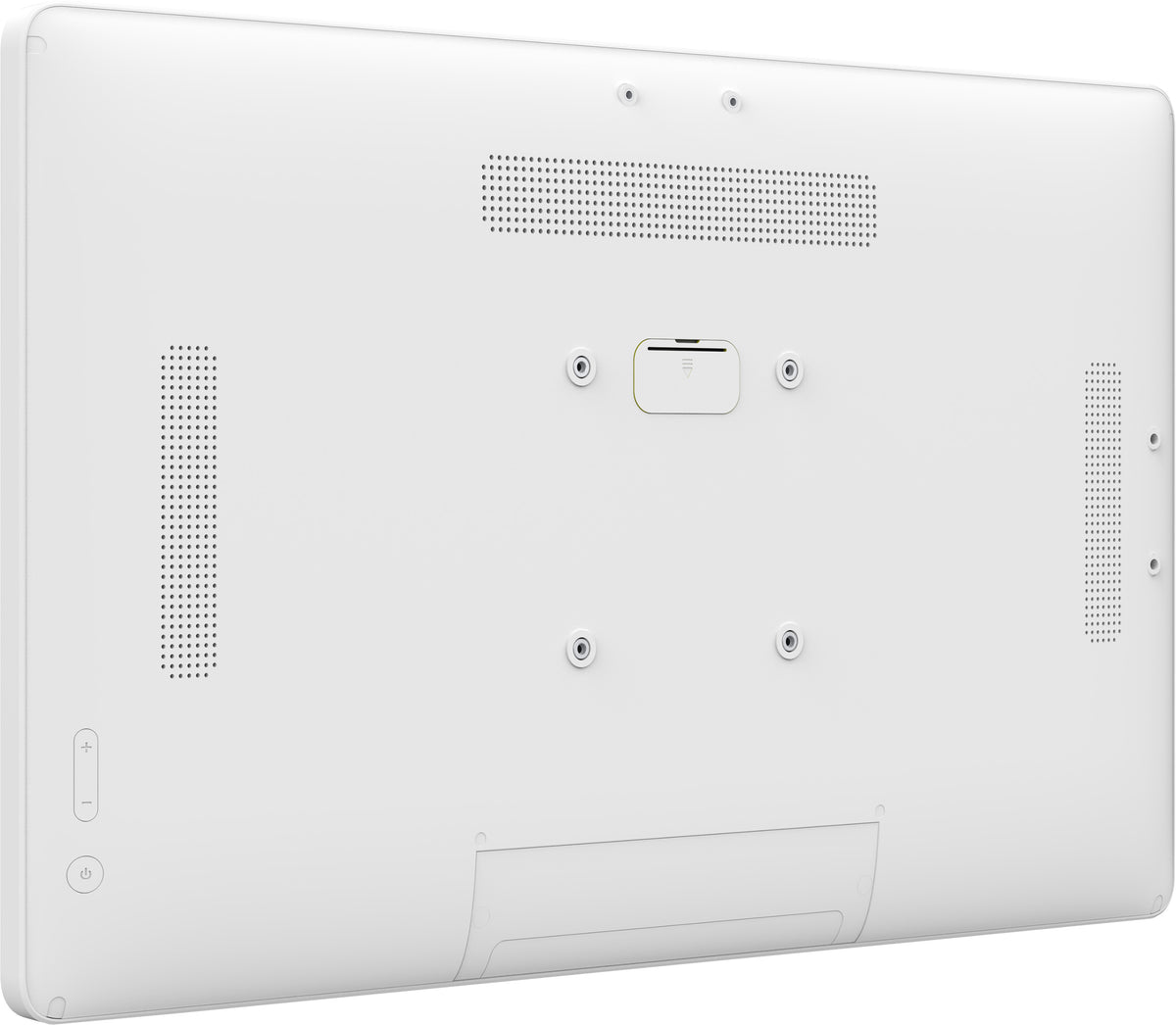

The ProLite TW2424AS-W3P interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated in a slim and elegant bezel, delivers both excellent colour performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time.
Thanks to the pre-installed Android 14 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables.
Additionally, it integrates effortlessly with iiSignage², iiyama’s Content Management System (CMS), giving you full control over your messages and advertising.
Elegant Design meets Smooth Interaction
Elegant by design, vibrant in every detail and smooth response to every touch. With its slim, modern appearance and crisp, vivid colors, it creates an engaging user experience while blending naturally into a wide range of environments. Its flexible, app-ready platform also makes it easy to tailor the display to different applications, from retail and information points to showrooms, hospitality and interactive installations.
Connectivity
The RJ45 (LAN) connector supporting Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
| Display Characteristics | |||
| Design | Thin bezel | Diagonal | 23.8", 60.5 cm |
| Panel | IPS | Native Resolution | 1920 x 1080 (2 megapixel HD) |
| Aspect Ratio | 16:9 | Brightness | 450 cd/m² with touch |
| Static Contrast | 1000:1 with touch | Response Time (GTG) | 14 ms |
| Viewing Zone | Horizontal/vertical: 178°/178°; right/left: 89°/89°; up/down: 89°/89° | Colour Support | 16.7 million colours, 8-bit |
| Horizontal Sync | 31–83 kHz | Viewable Area (W x H) | 527 x 296.5 mm |
| Pixel Pitch | 0.275 mm | Bezel Colour and Finish | White, matte |
| Touch | |||
| Touch Technology | InCell PCAP | Touch Points | 10 (HID, supported by integrated OS only; external OS supports single touch only) |
| Touch Method | Finger, latex glove, capacitive stylus | Touch Interface | USB |
| Interfaces / Connectors / Controls | |||
| Digital Signal Input | HDMI x1 (1920 x 1080 @ 60 Hz) | Digital Signal Output | USB-C x1 (USB 3.2 Gen 1, 5 Gbit/s, video output and touch board function – mirror screen) |
| Audio Output | 2 x 5 W speakers | HDCP | Yes |
| USB Ports | 2 x USB (1 x USB 3.2 Gen 1, 5 Gbit/s, DC 5 V/900 mA; 1 x USB 2.0, DC 5 V/500 mA) | RJ45 (LAN) | 1 x RJ45 (PoE IEEE 802.3bt/72 W, 10/100/1000 Mbps) |
| Microphone | 1 x Dual Microphone | ||
| Features | |||
| Integrated Software | Android 14 with GMS | SoC | Octa-core RK3576 (4 x A53 + 4 x A72) |
| GPU | ARM G52 MC3 | Storage | 32 GB eMMC |
| Memory | 4 GB LPDDR4 | Wi-Fi | IEEE 802.11ax/ac/a/b/g/n |
| Bluetooth | 5.3 | Extra Features | Auto-rotation, 2 x 5 W speakers, dual microphone, anti-glare coating, 3H hard coating, PoE, iiSignage² |
| Max. Non-Stop Operating Time | 24/7 | Anti Image Retention | Yes |
| Glass Hardness | 6H | OSD Key Lock | Yes |
| General | |||
| Control Buttons | Power switch, volume/button +, volume/button - | Flicker Free | Yes |
| Applications | Lock application, manage restart time, manage power on/off time, calculator, calendar, Chrome, alarm/clock/timer/stopwatch, manage files and folders, organise albums, Gmail, Google, iiSignage², play audio files, Play Store, system preferences, sound recorder, play video | ||
| Mechanical | |||
| Orientation | Landscape, portrait, face-up | VESA Mounting | 100 x 100 mm |
| Cable Management System | Yes | MTBF | 50,000 hours (excluding backlight) |
| Accessories Included | |||
| Cables | Power cable (1.8 m) | Guides | Quick start guide, safety guide |
| Other | AC adapter | Cable Cover | Yes |
| Power Management | |||
| Power Supply Unit | External | Power Supply | DC 12 V |
| Power Usage | 17.5 W typical, 0.5 W standby, 0.3 W off mode | ||
| Sustainability | |||
| Regulations | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA | REACH SVHC | Above 0.1%: Lead |
| Dimensions / Weight | |||
| Product Dimensions (W x H x D) | 550 x 336 x 28 mm | Box Dimensions (W x H x D) | 640 x 410 x 121 mm |
| Weight (Without Box) | 4.24 kg | Weight (With Box) | 6.2 kg |
| EAN Code | 4948570128273 | ||
| Description | Downloads |
|---|---|
| User manual | Download |
| Technical specification | Download |
| Drawing | Download |
