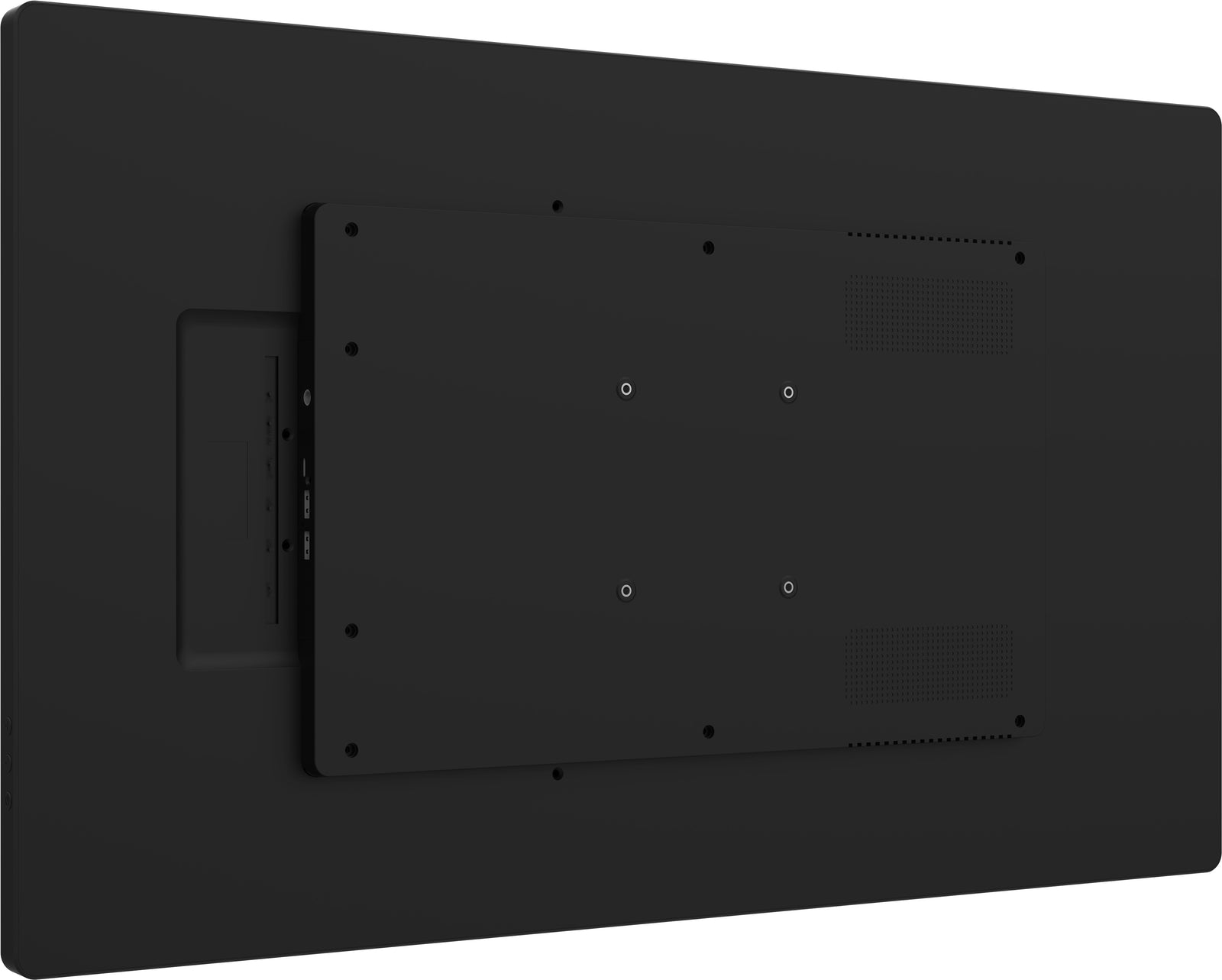

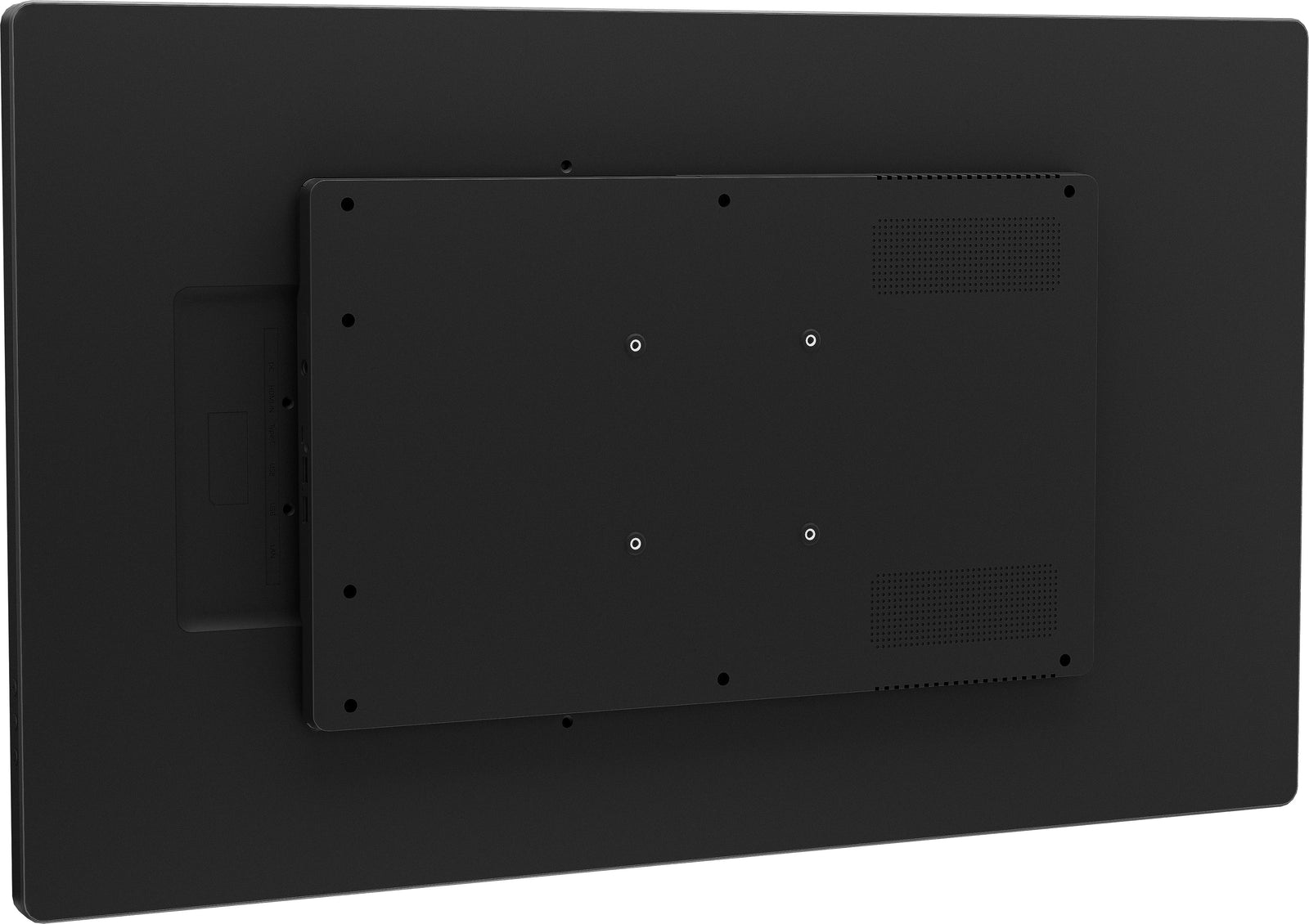

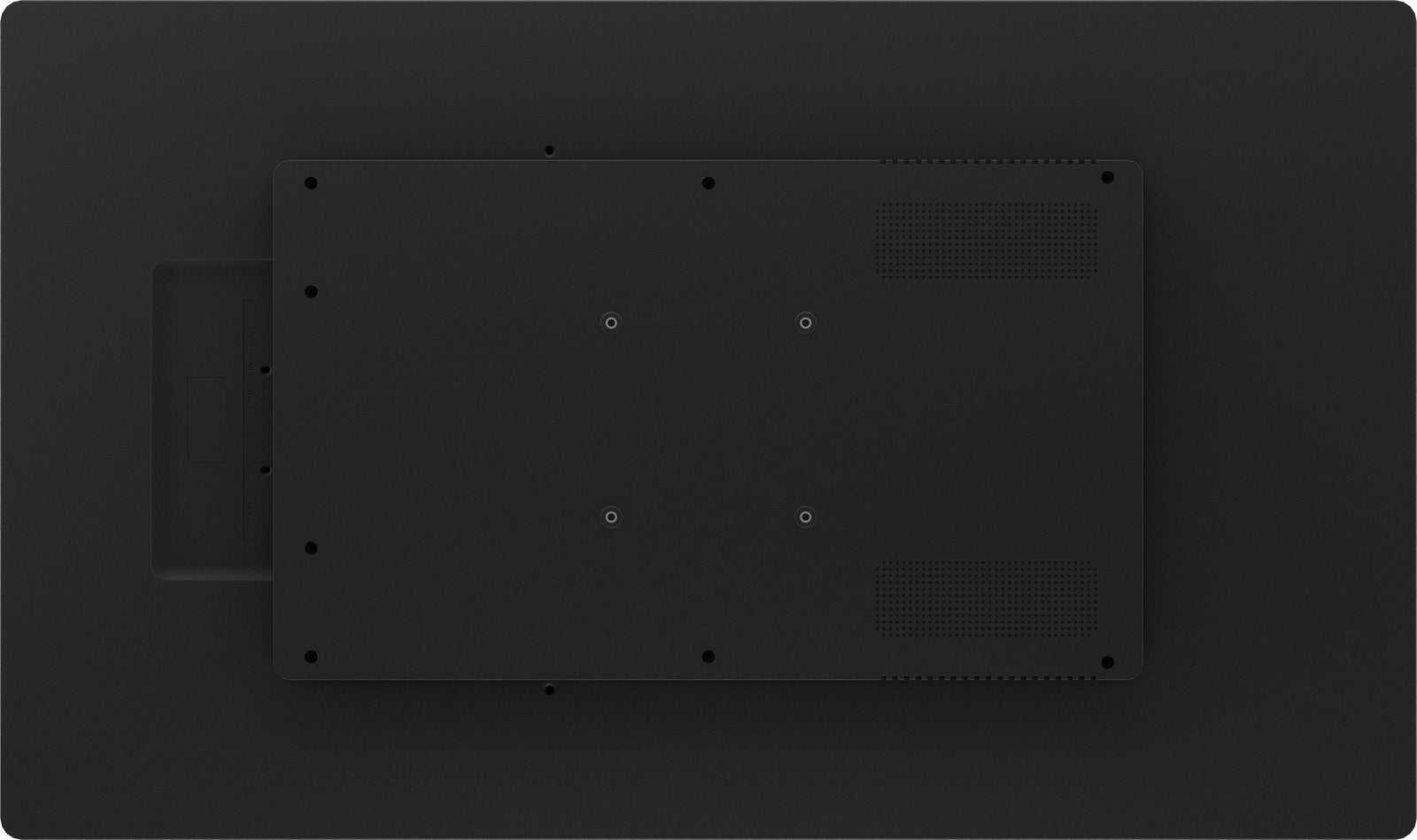

iiyama ProLite TW3226AS-B3P 32" PCAP 10pt Touchscreen PC
SKU: TW3226AS-B3P
£564.48 (Excl. VAT)
- Description
- Specifications
- Downloads
-

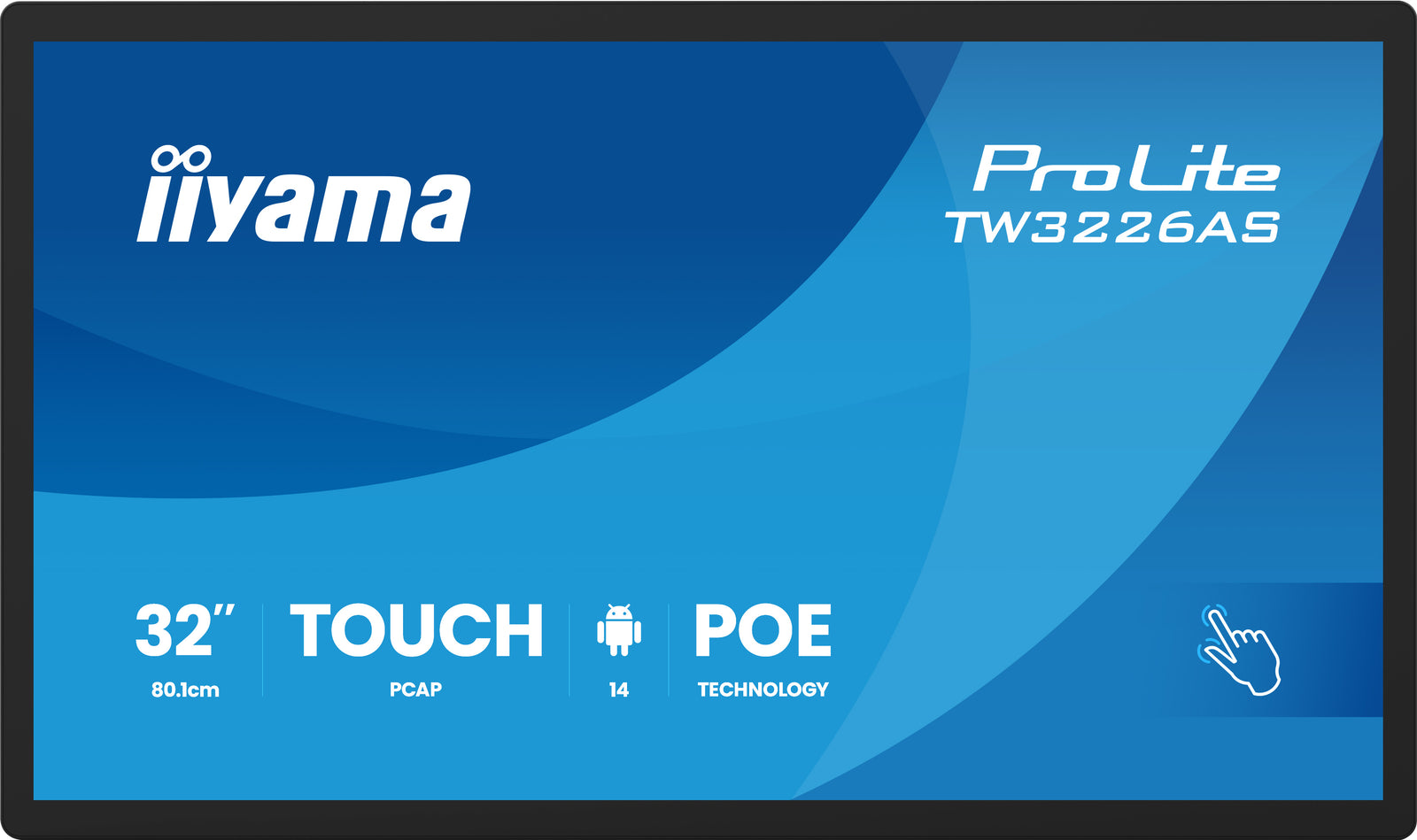

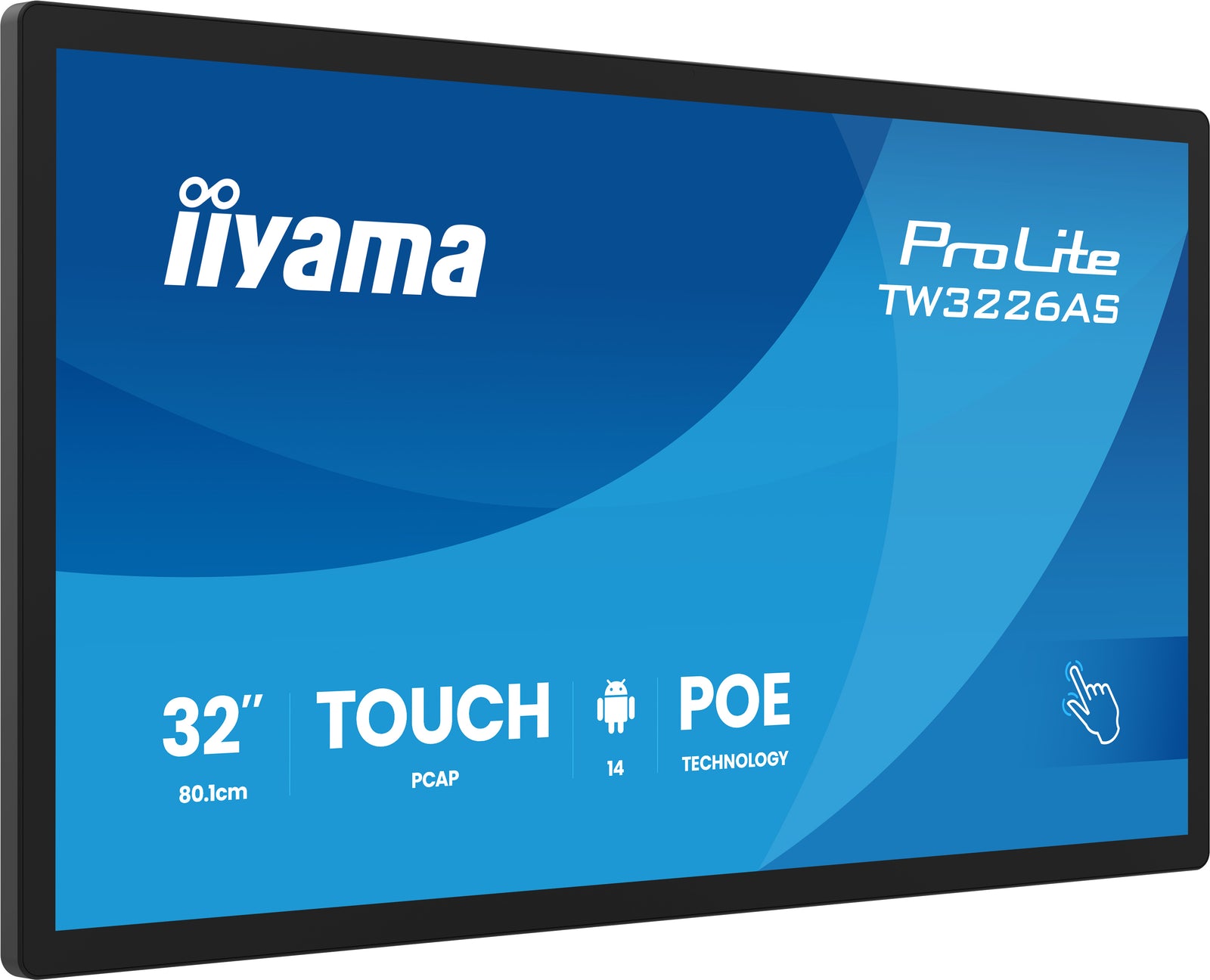

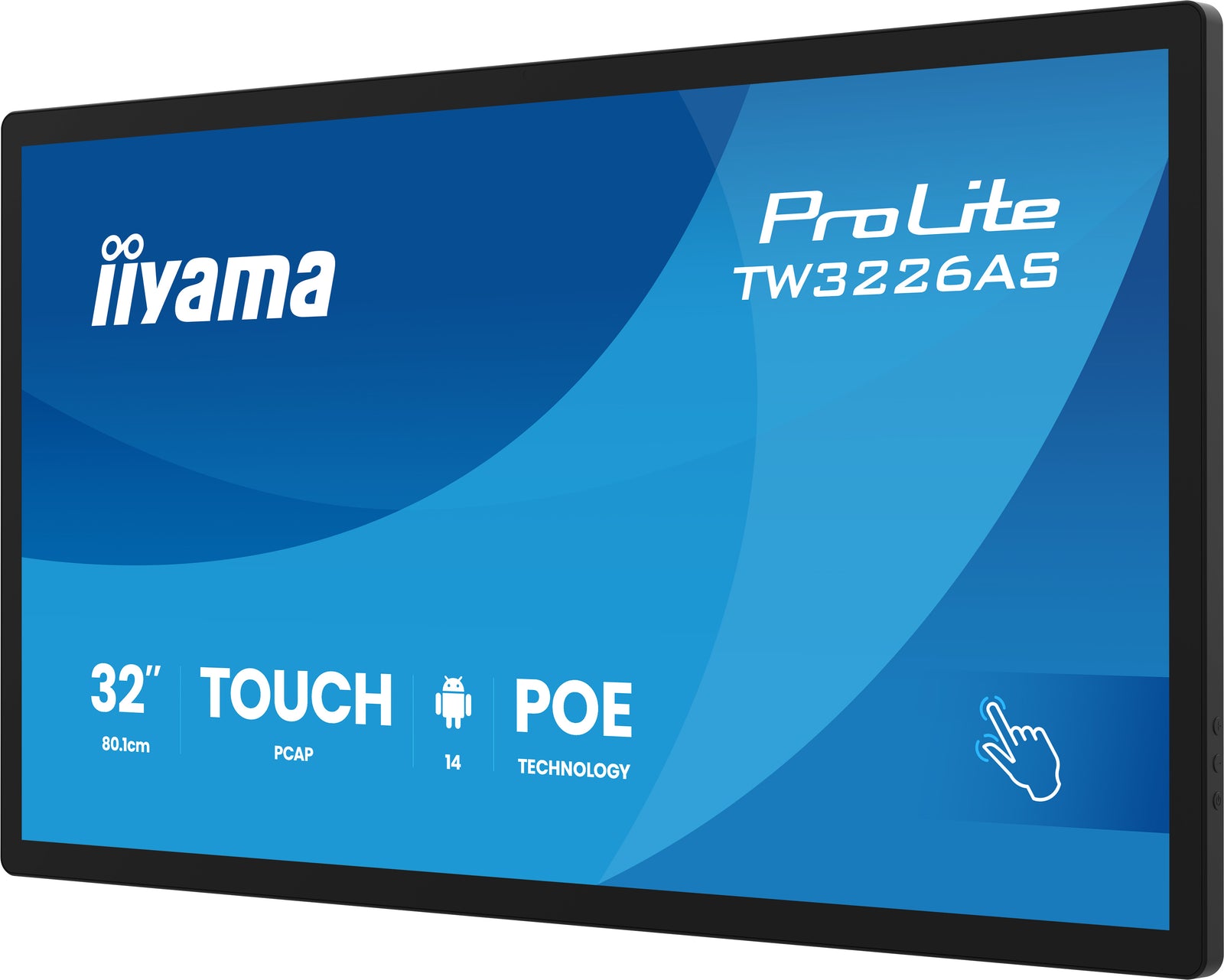

32" Full HD PCAP Touchscreen for Business

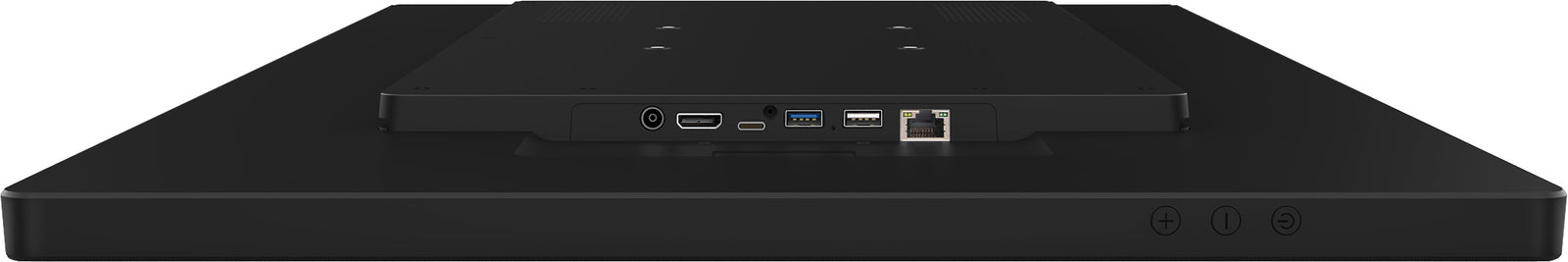

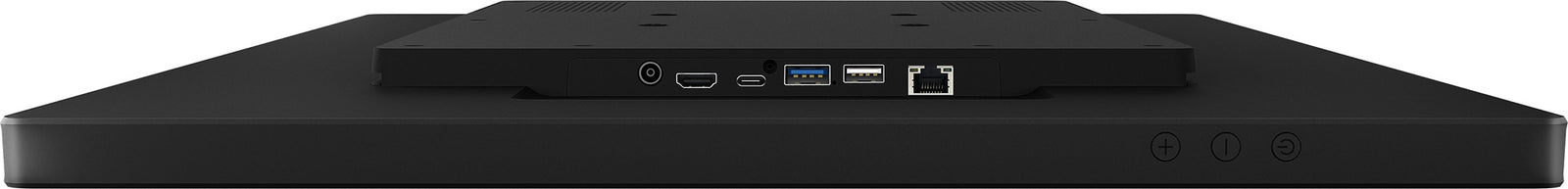

Connectivity
The RJ45 (LAN) connector supporting Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely. -
Design Edge to edge glass Diagonal 31.5", 80.1cm Panel VA Native resolution 1920 x 1080 (2MP HD) Aspect ratio 16:9 Panel brightness 500 cd/m² Brightness 430 cd/m² with touch Static contrast 4000:1 with touch Response time (GTG) 8ms Viewing zone 178°/178°, RL: 89°/89°, UD: 89°/89° Colour support 16.7mln 8bit Viewable area W x H 698.4 x 392.8mm, 27.4 x 15.4" Pixel pitch 0.3637mm Bezel colour & finish Black, matte Touch technology Projective capacitive Touch points 10 (HID, OS support) Touch method Finger, glove, stylus Touch interface USB Supported OS Windows, Linux Digital input HDMI x1 (1920x1080@60Hz) Audio output Mini jack x1 Speakers 2 x 5W HDCP Yes USB ports 3x (1x 3.2, 1x 2.0, 1x USB-C) RJ45 (LAN) x1 (PoE IEEE802.3bt/85W) Microphone x1 (Quad Microphone) Integrated software Android 14 CPU Rockchip RK3576 Octa-core GPU ARM-G52 MC3 Storage 32GB eMMC Memory 4GB LPDDR4X WiFi IEEE802.11ax/ac/a/b/g/n Bluetooth 5.3 Extra Auto-rotation, anti-glare, PoE Kiosk mode Yes Max. operating time 24/7 Glass hardness 3H Control buttons Power, Vol +, Vol - Applications Lock app, restart, power schedule, Chrome, Gmail, Google, iiSignage², Play store, media apps Flicker free Yes Orientation Landscape, portrait, face-up VESA mounting 100 x 100mm Cable management Yes MTBF 50000 hours Cables included Power Guides Quick start, safety guide Other AC adapter, wall mount kit, eva pads, spirit level Cable cover Yes Power supply unit External Power supply DC 12V Power usage 36.34W typical, 0.5W standby, 0.3W off Regulations CE, EAC, RoHS, ErP, WEEE, REACH, UKCA REACH SVHC Above 0.1%: Lead Product dimensions 735 x 436 x 35mm Box dimensions 833 x 508 x 126mm Weight (without box) 7.7kg Weight (with box) 12.4kg EAN code 4948570125708 -
Description Downloads User Manual Download Technical Specification Download Drawing Download
