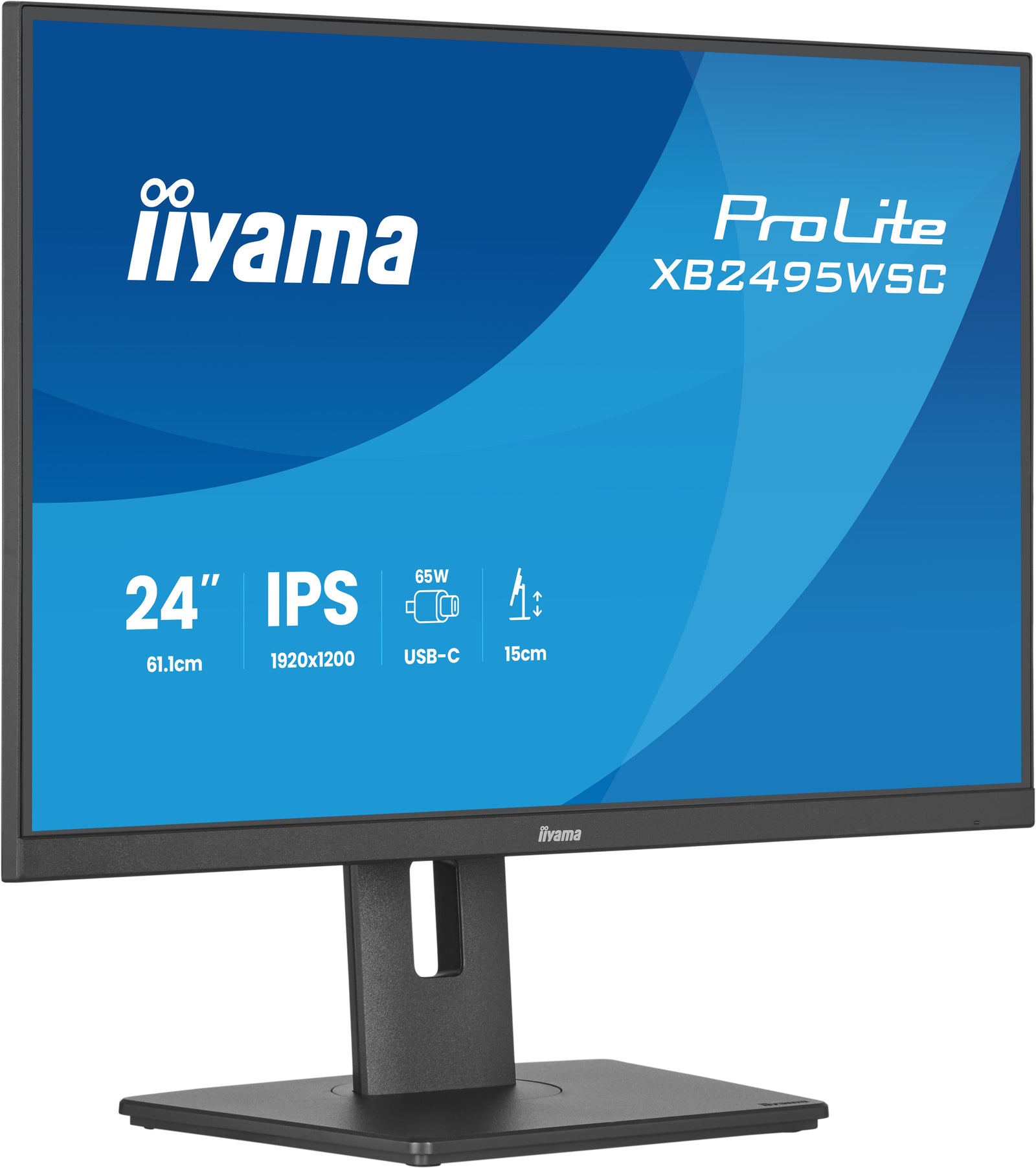

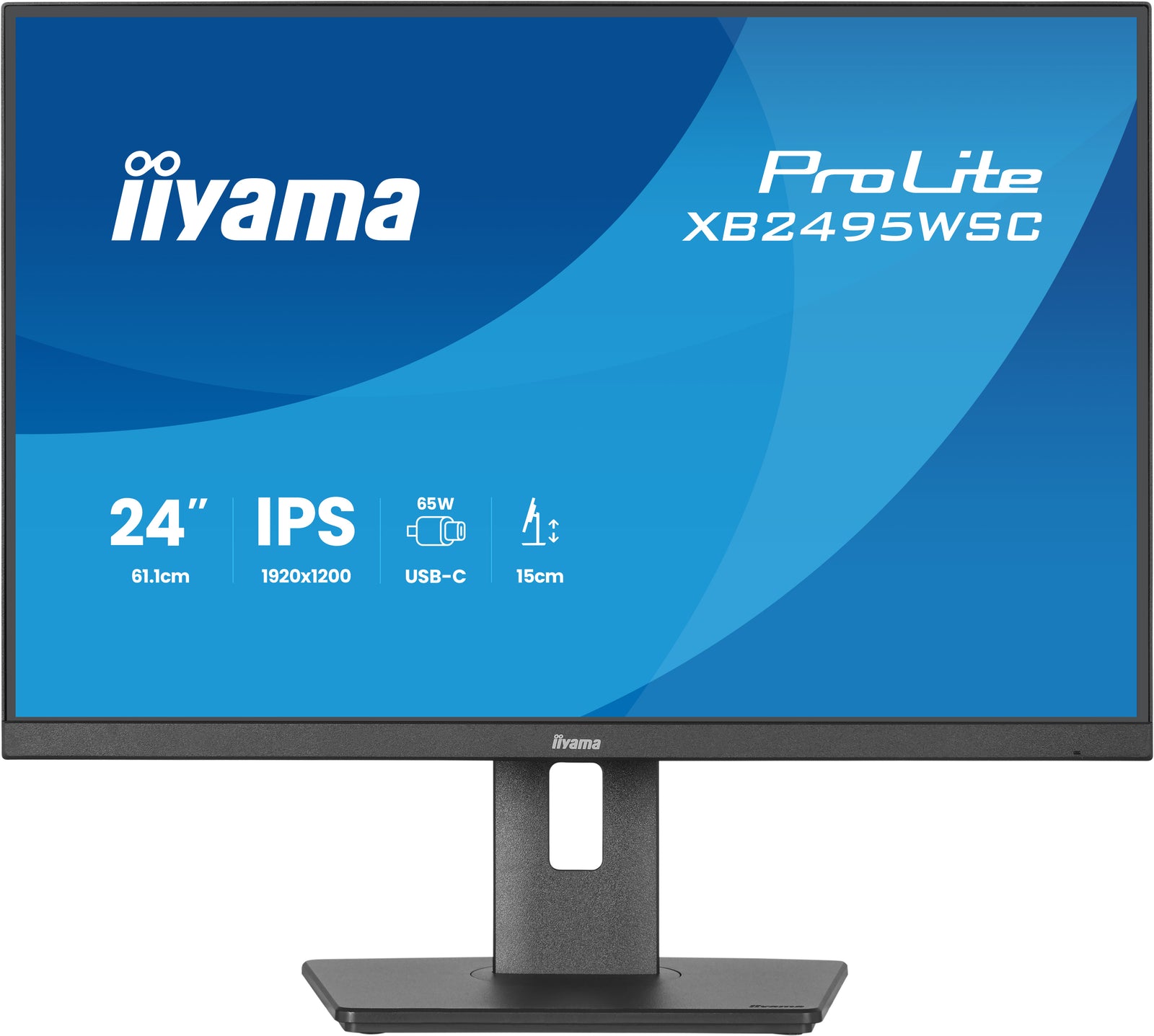

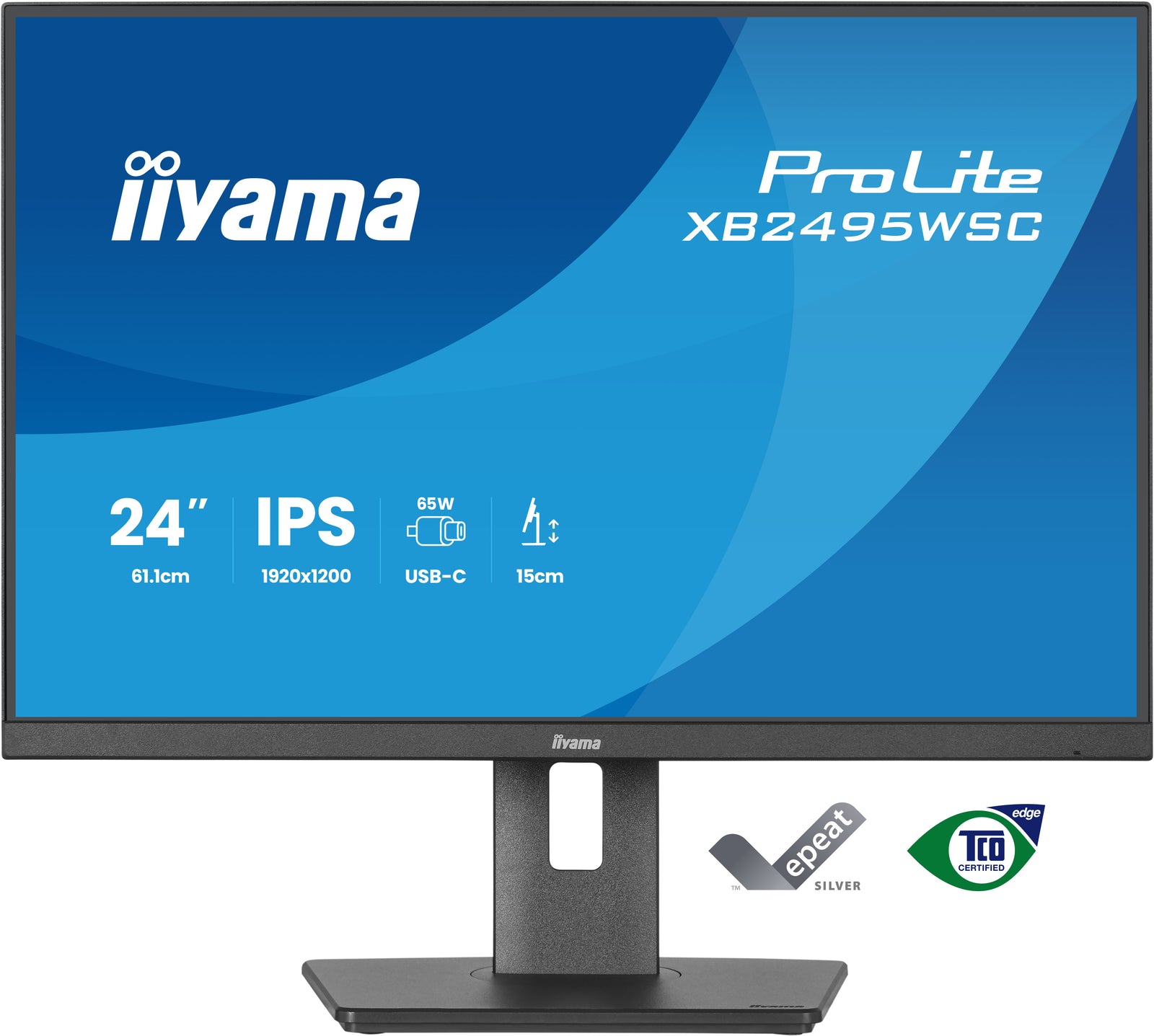

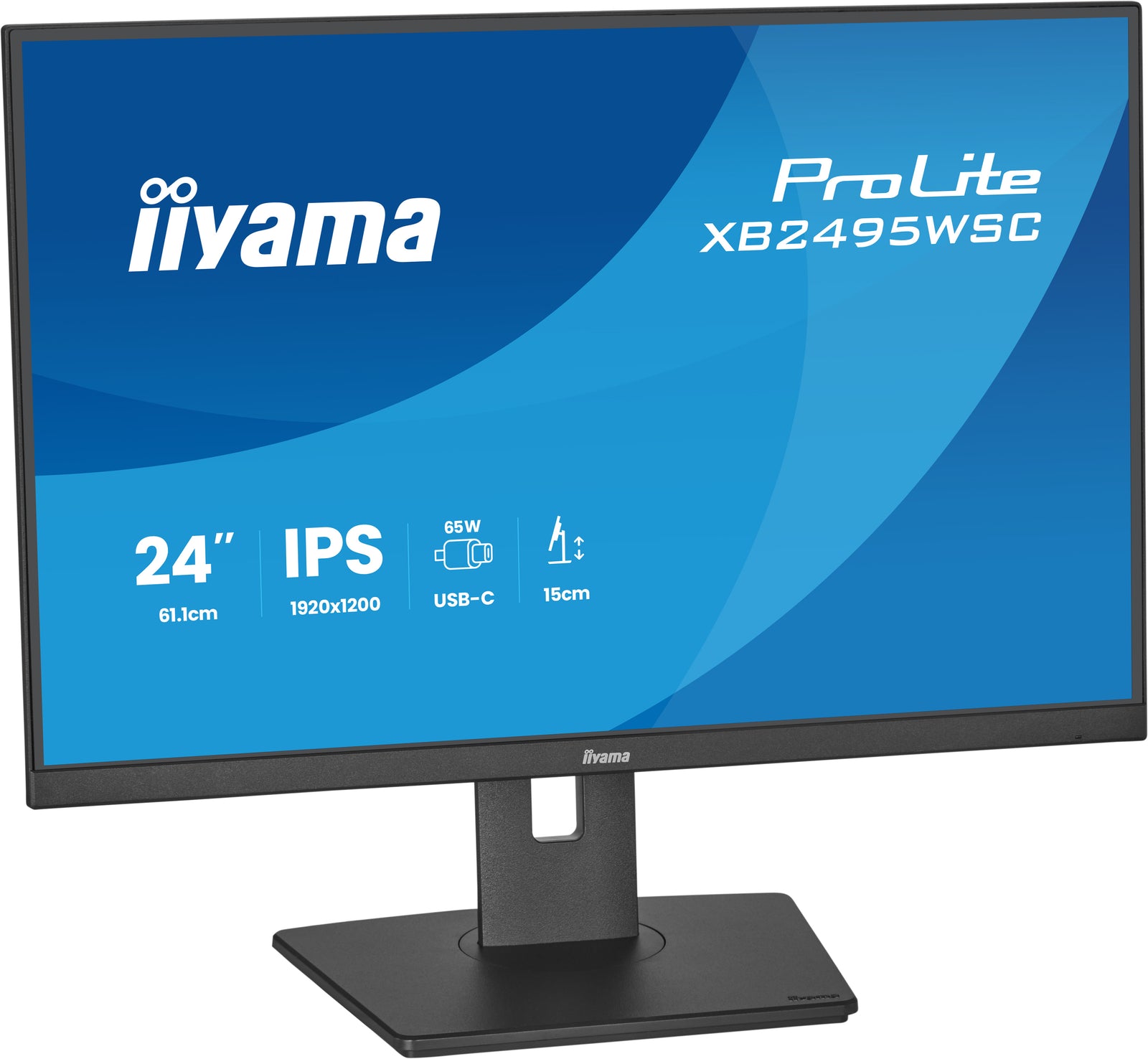

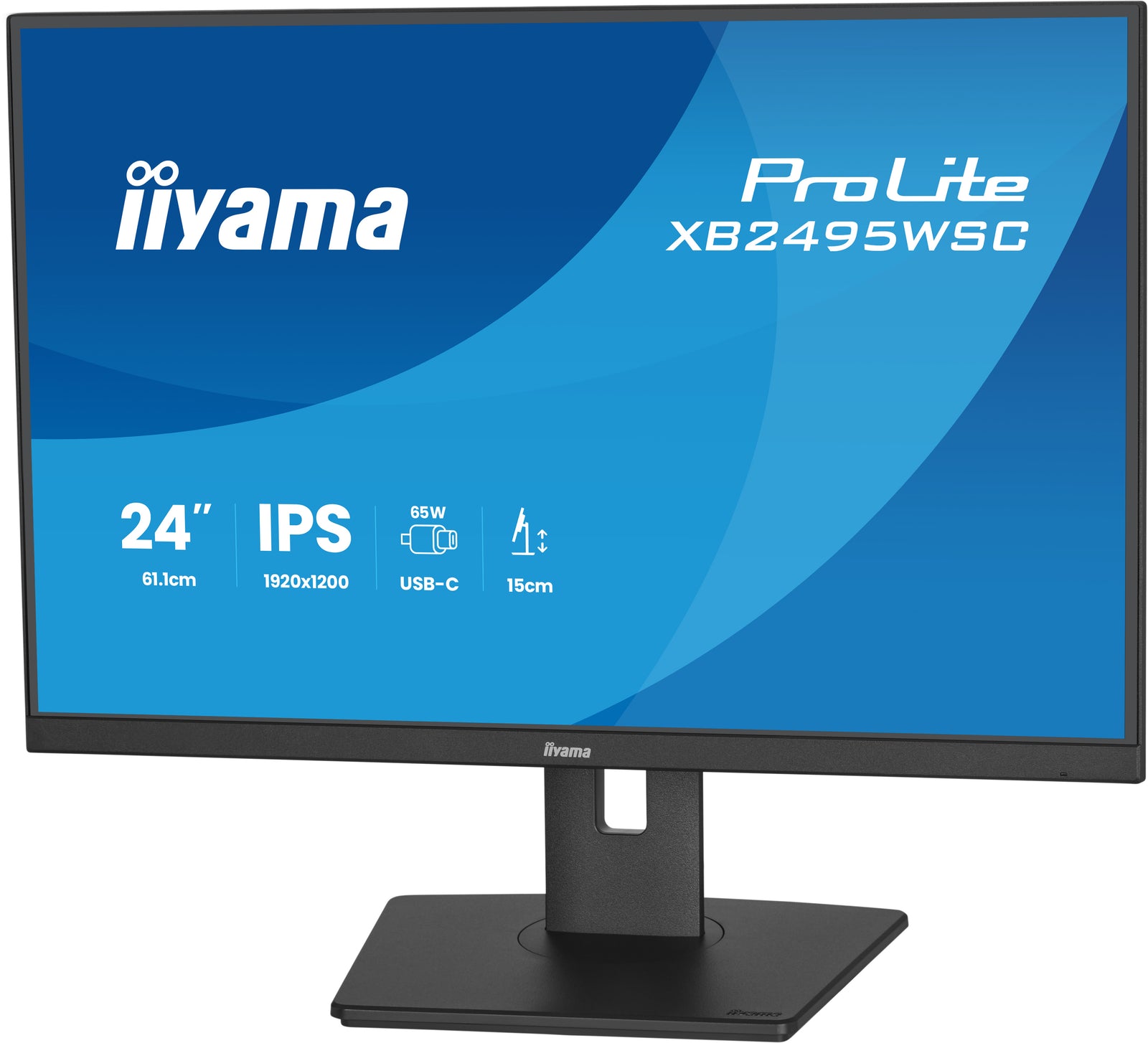

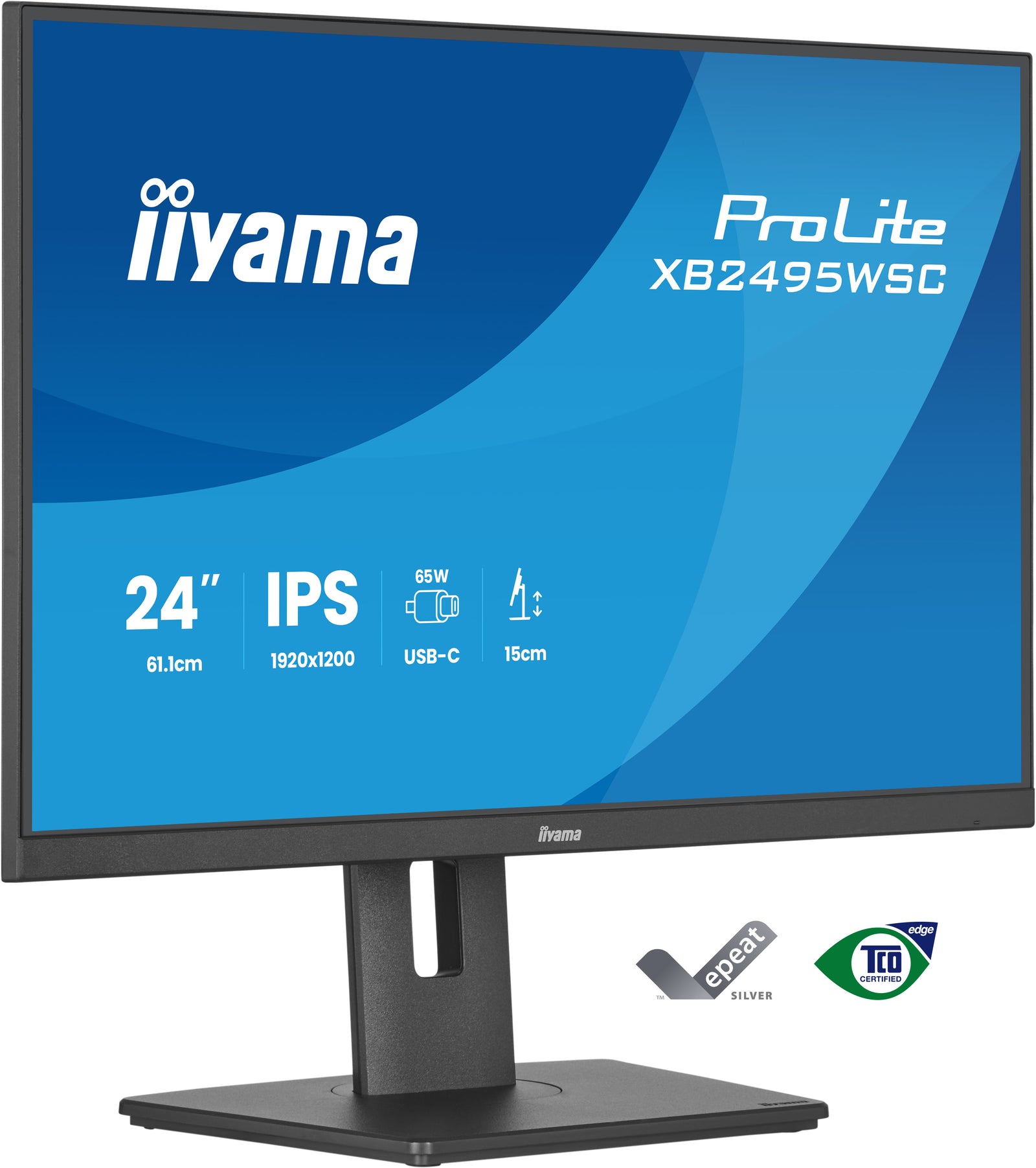

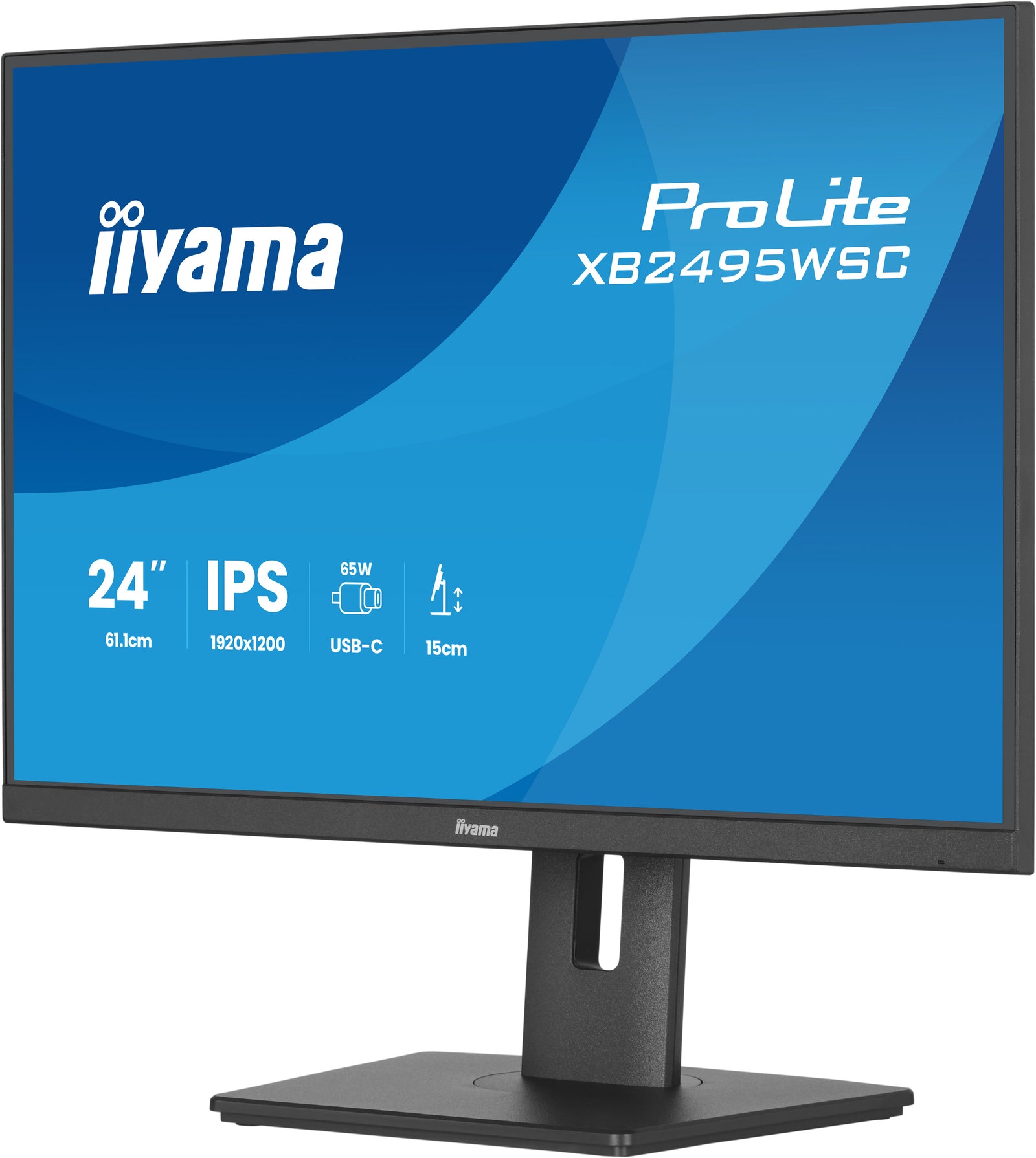

Designed for professionals who value precision, comfort and efficiency, the ProLite XB2495WSC-B1 combines extra vertical screen space, accurate colour reproduction and convenient USB-C connectivity. It is well suited to CAD, data analysis, education and corporate environments.

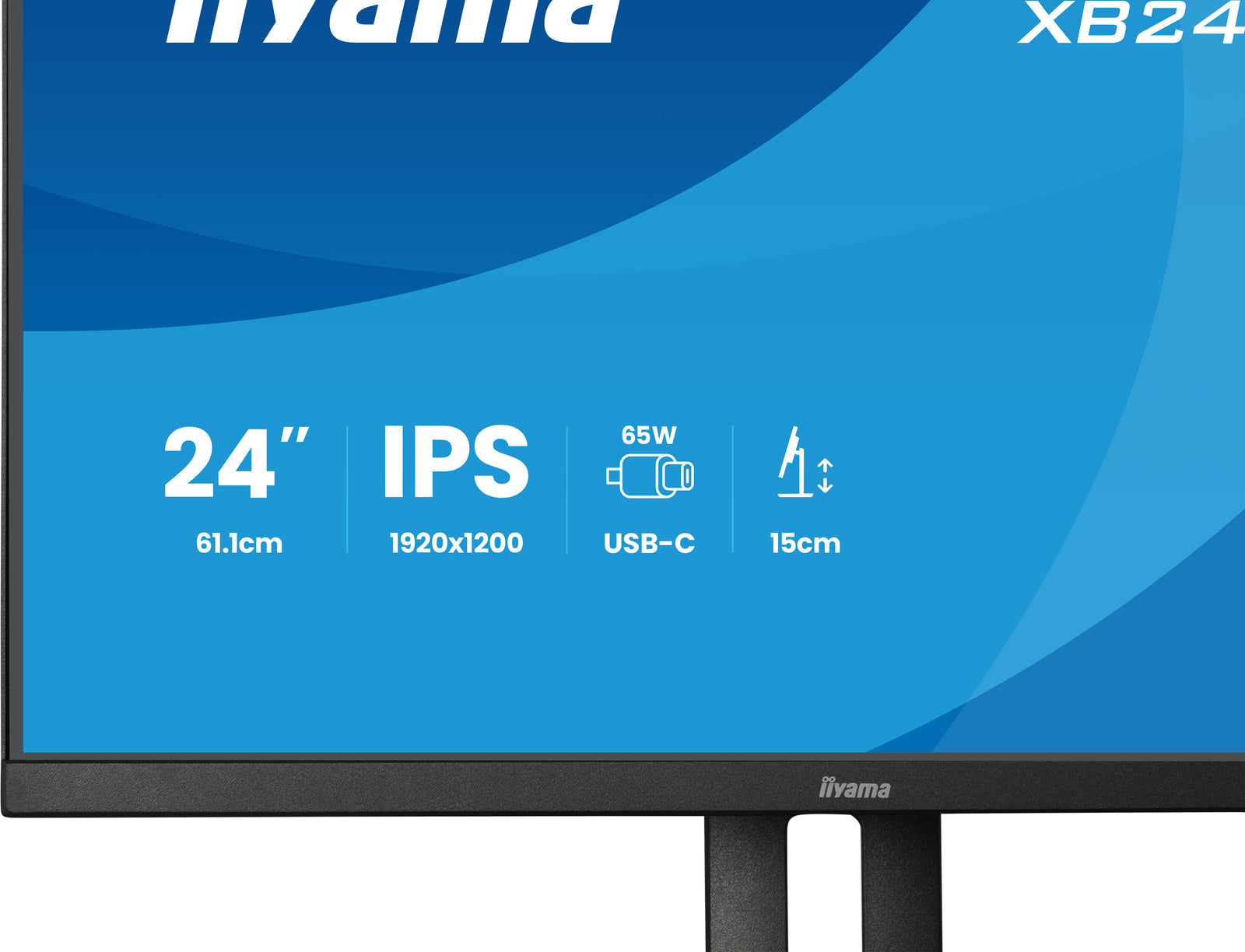

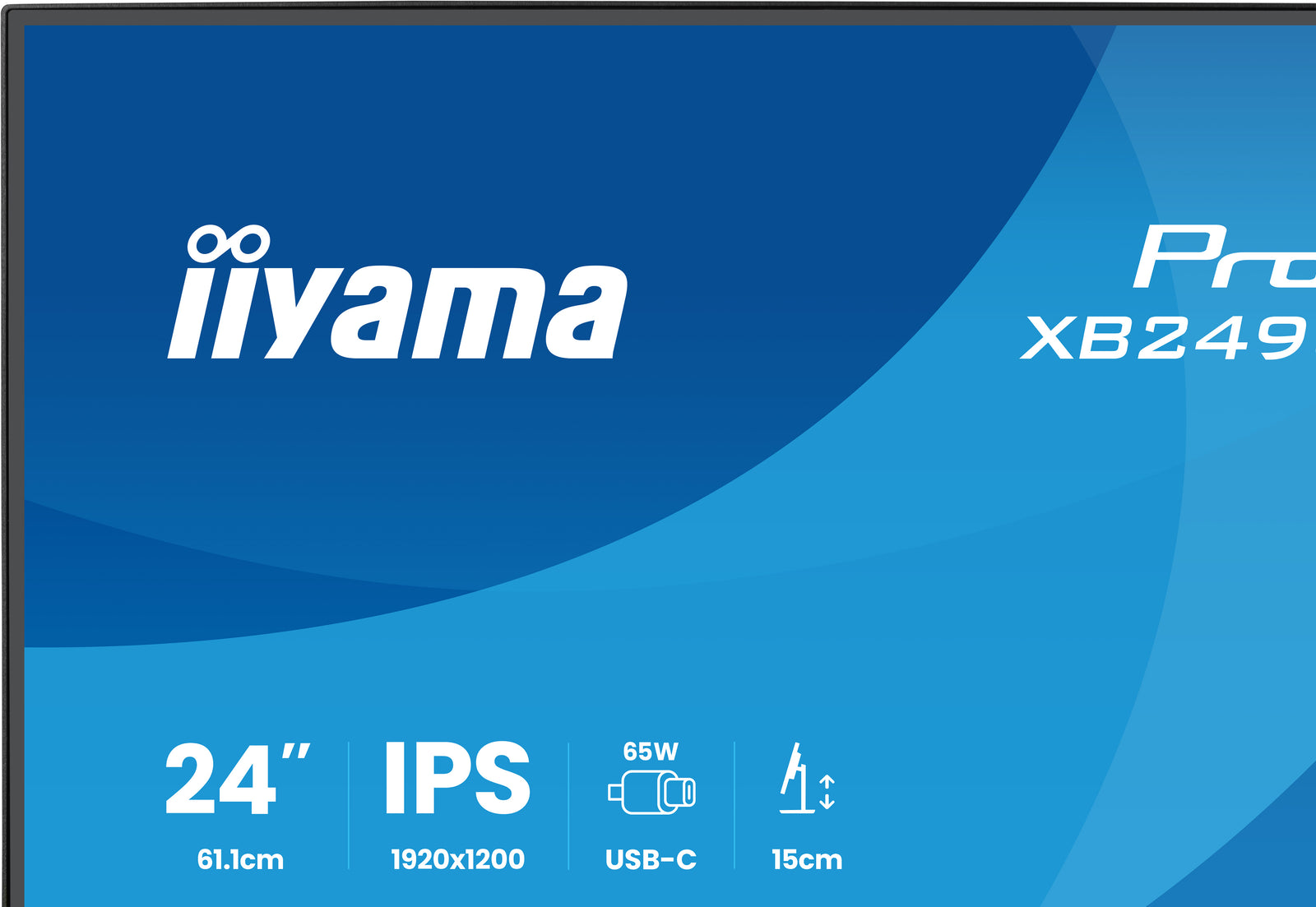

The 24-inch IPS panel features a 16:10 aspect ratio and WUXGA resolution of 1920 x 1200, displaying more content vertically than a standard Full HD screen. This means less scrolling when working with drawings, spreadsheets and documents, while wide viewing angles ensure clear, consistent visuals.
USB-C enables video transmission and charges a compatible laptop with up to 65W Power Delivery through a single cable, simplifying setup and reducing clutter.

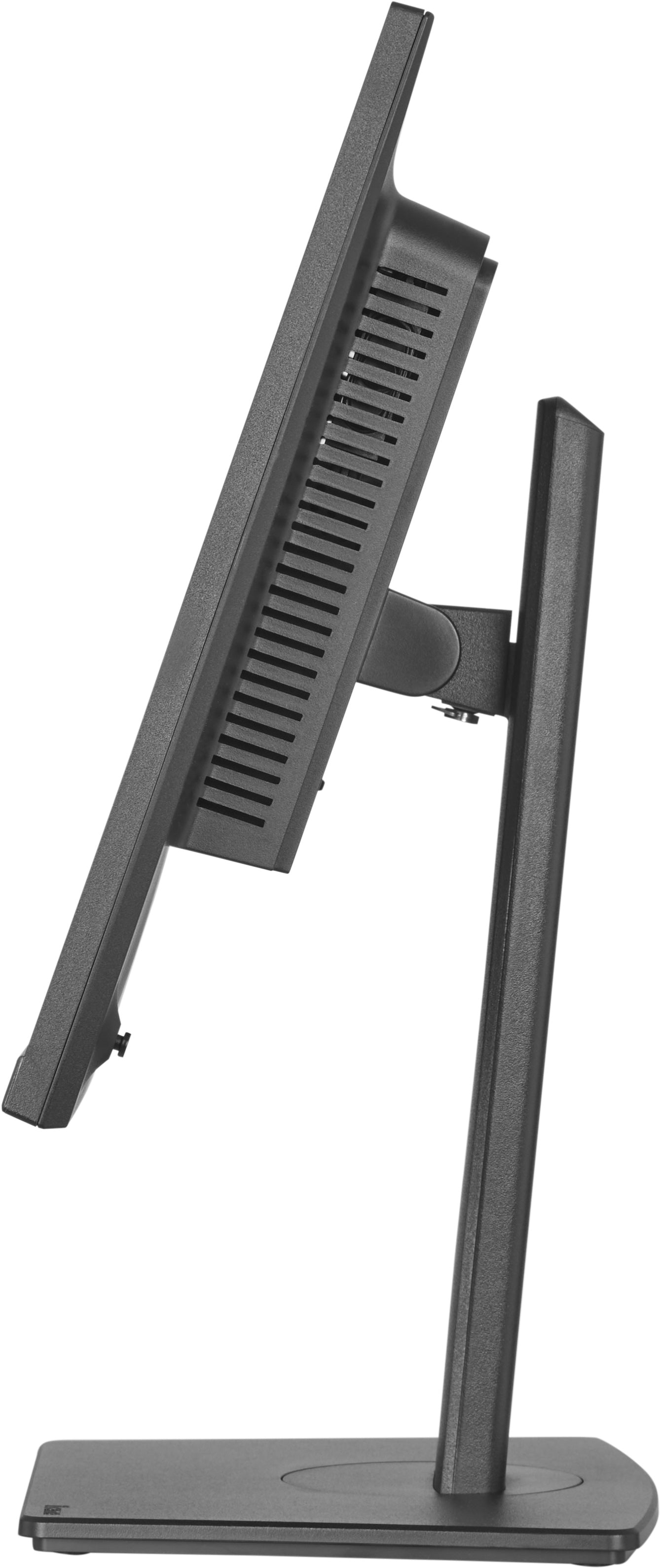

The 15cm height-adjustable stand with pivot, swivel and tilt supports a comfortable working position and better posture. Eye Comfort certification and Flicker-Free technology help reduce visual fatigue during extended use.

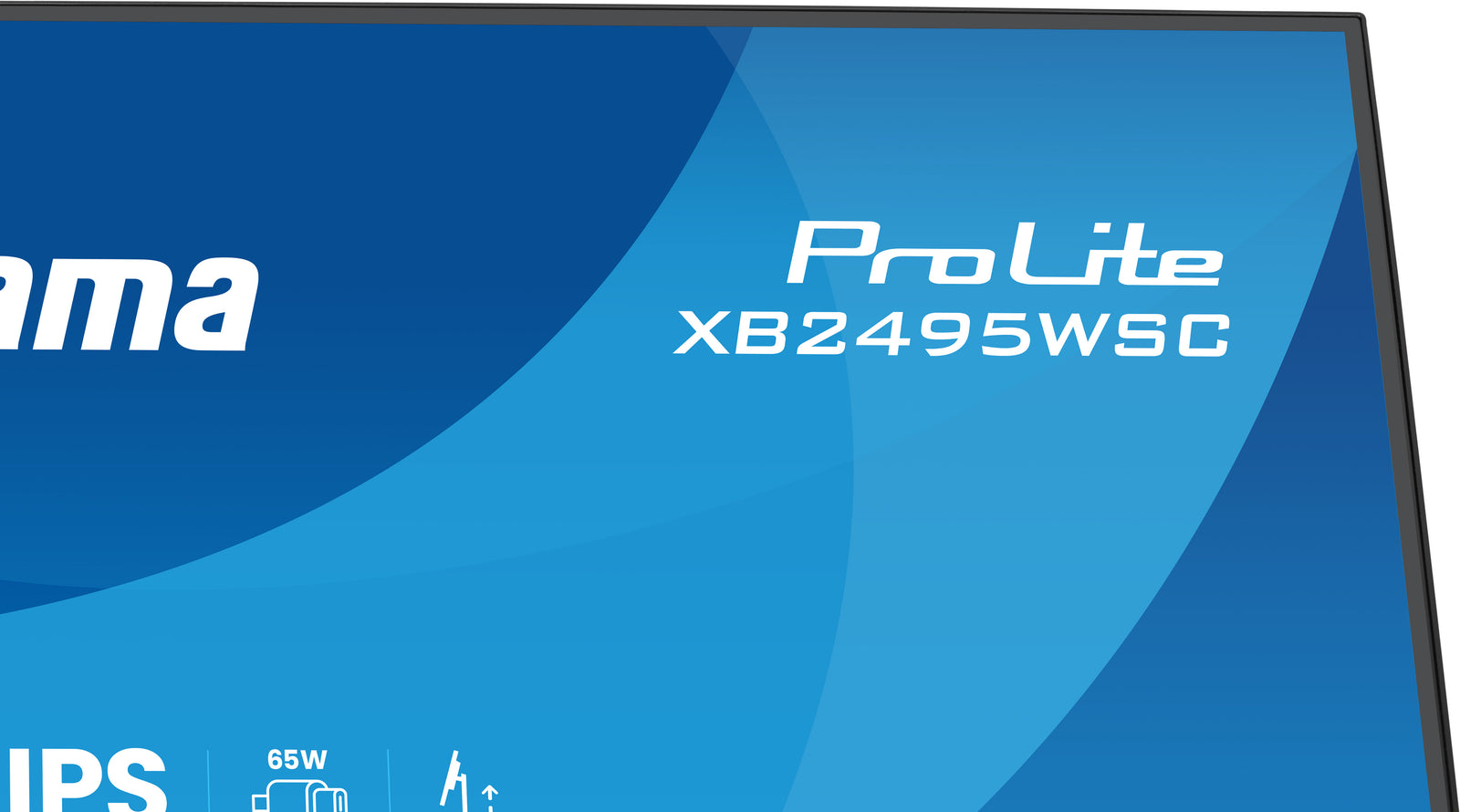

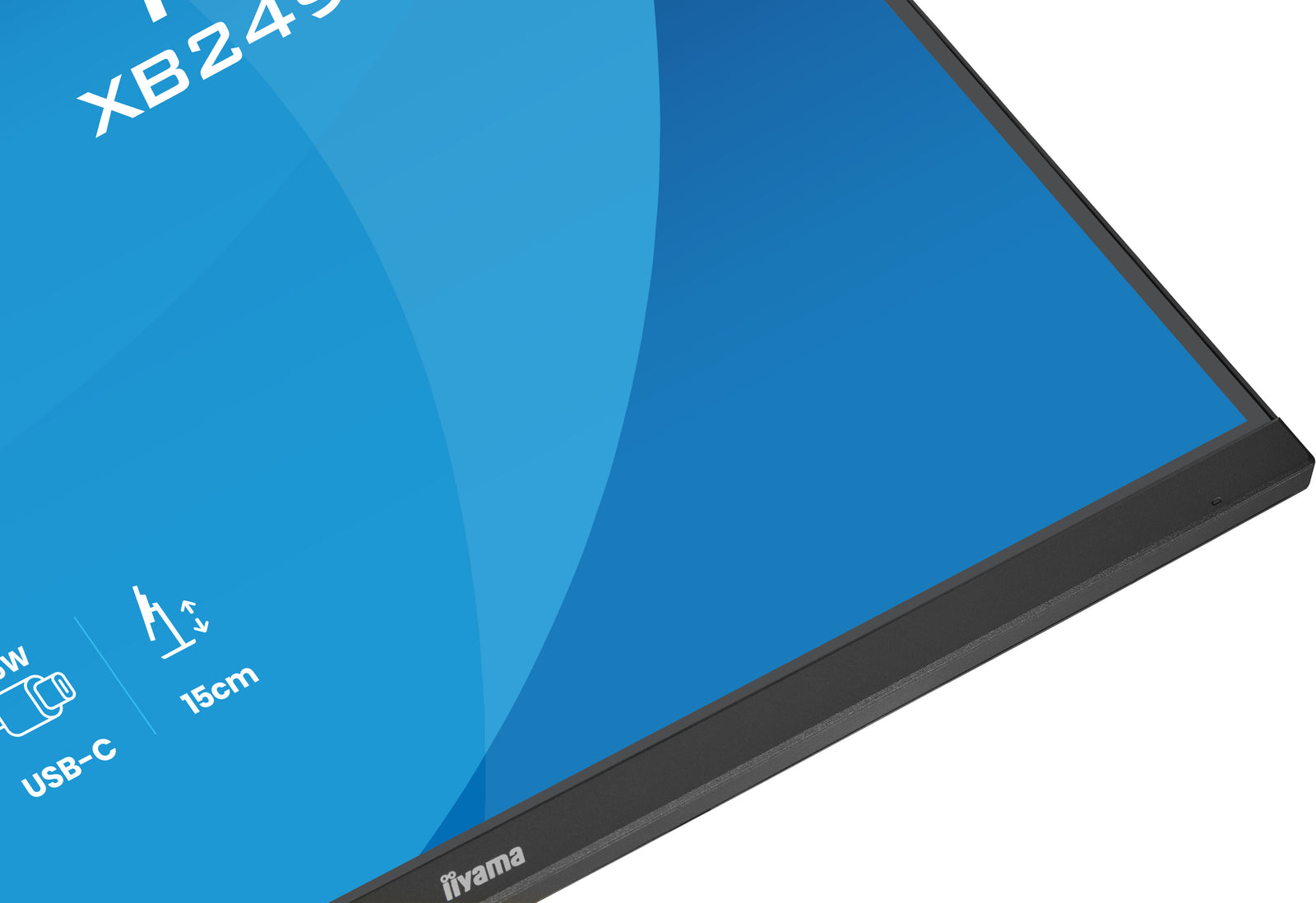

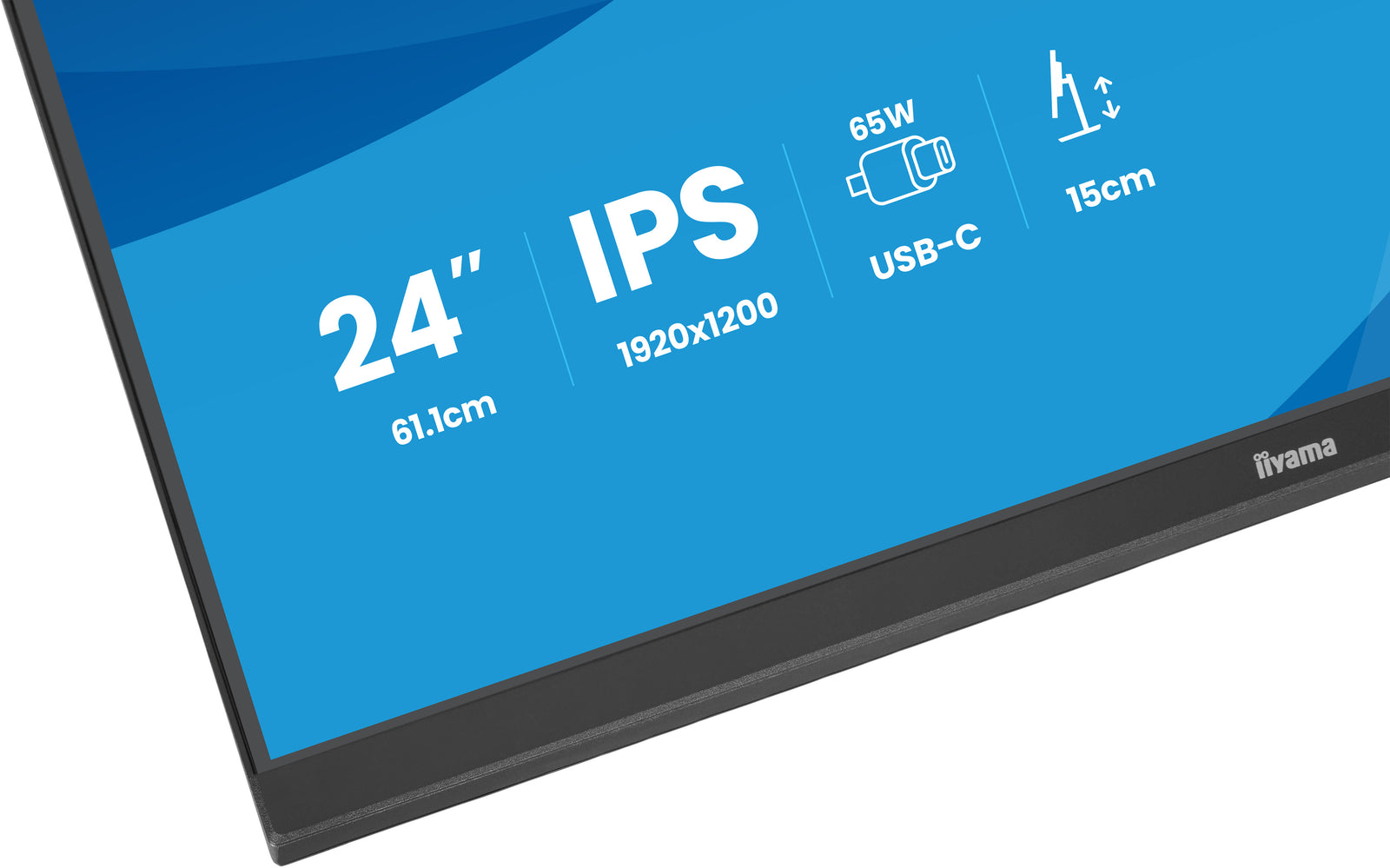

A four-side slim bezel design adds a professional finish and supports seamless multi-monitor setups, helping users work more comfortably and efficiently.
Gain extra workspace with a 16:10 aspect ratio
With a WUXGA 1920 × 1200 monitor, you can see more rows in Excel, a larger portion of an A4 document, and longer sections of code without constant scrolling. In CAD work, you benefit from a larger drawing area while keeping toolbars visible. You switch views less often and compare data more efficiently, helping you complete reports, analyses, projects, and technical documentation faster.

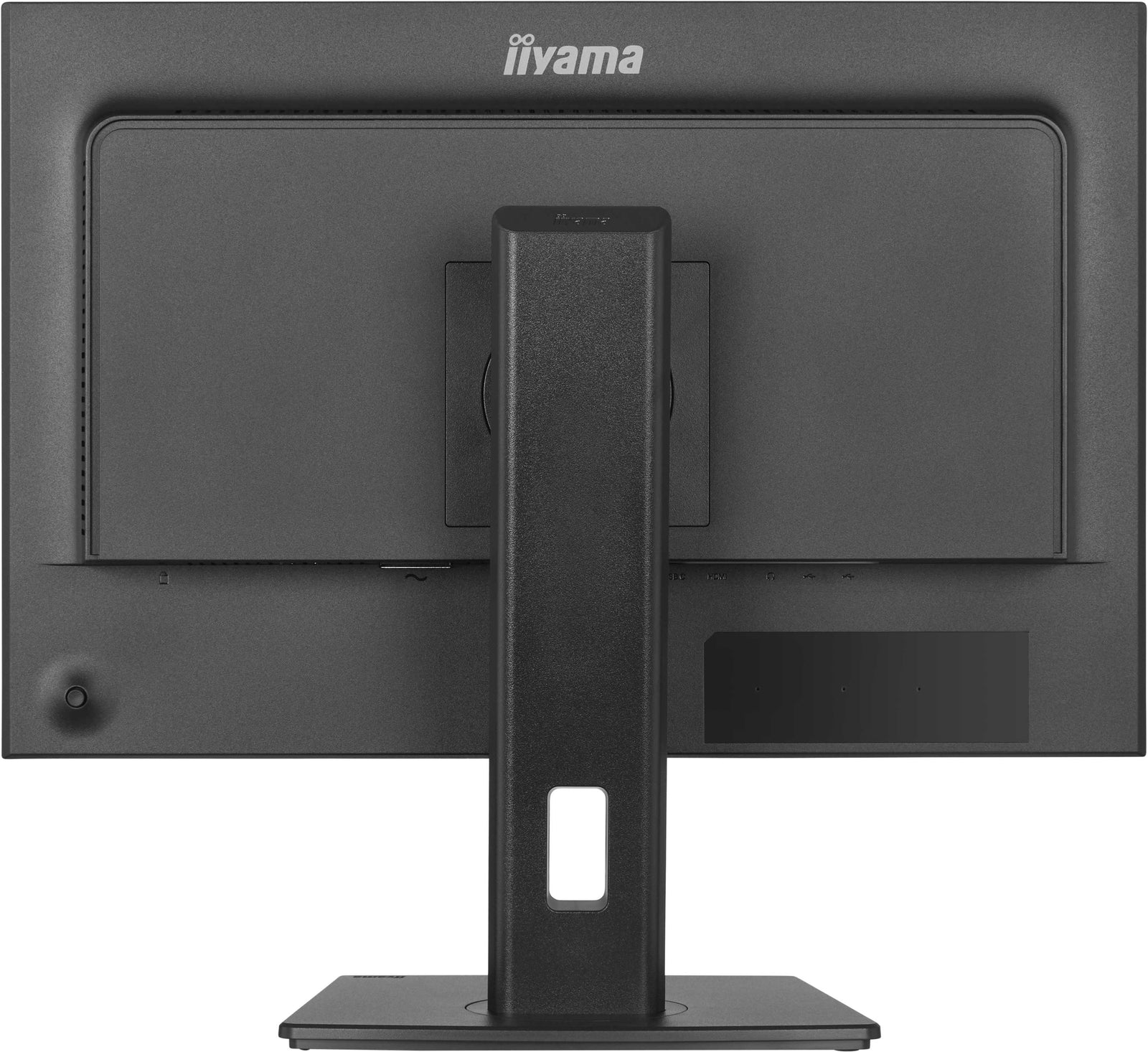

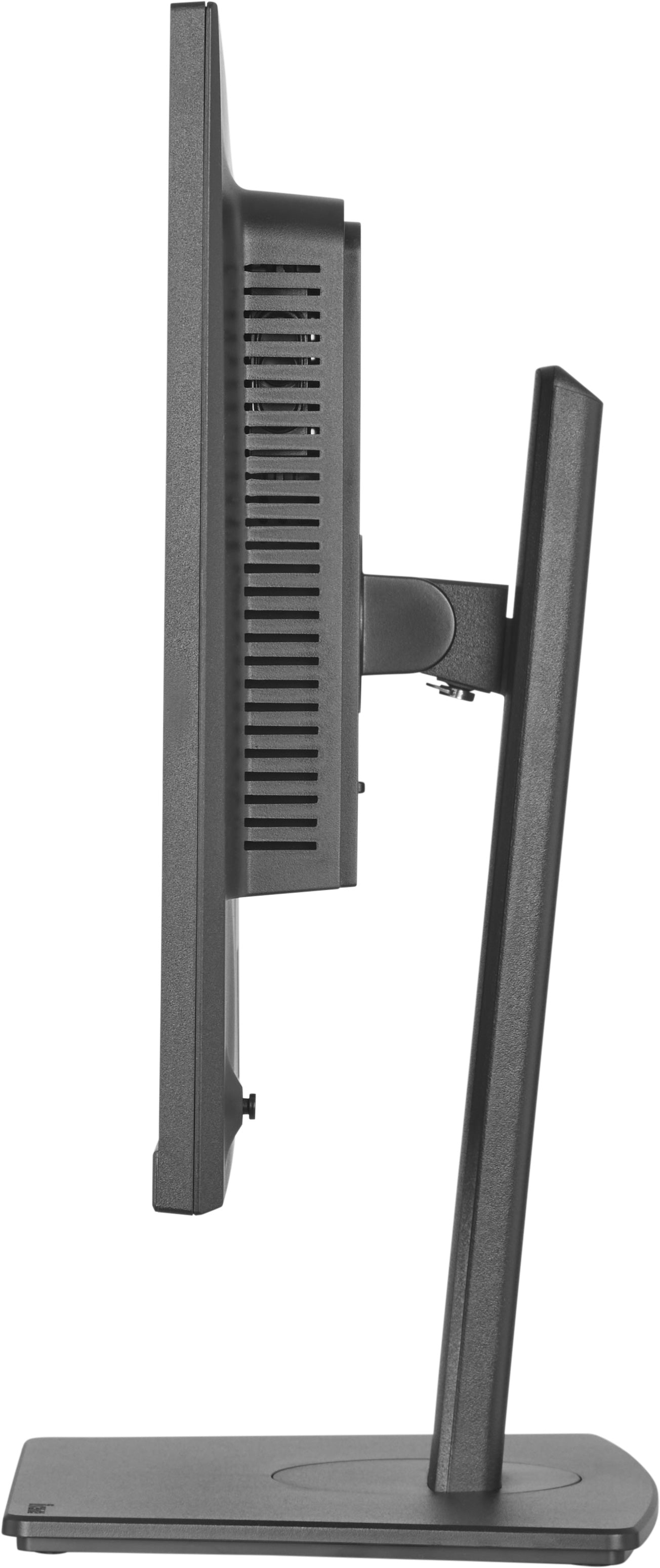

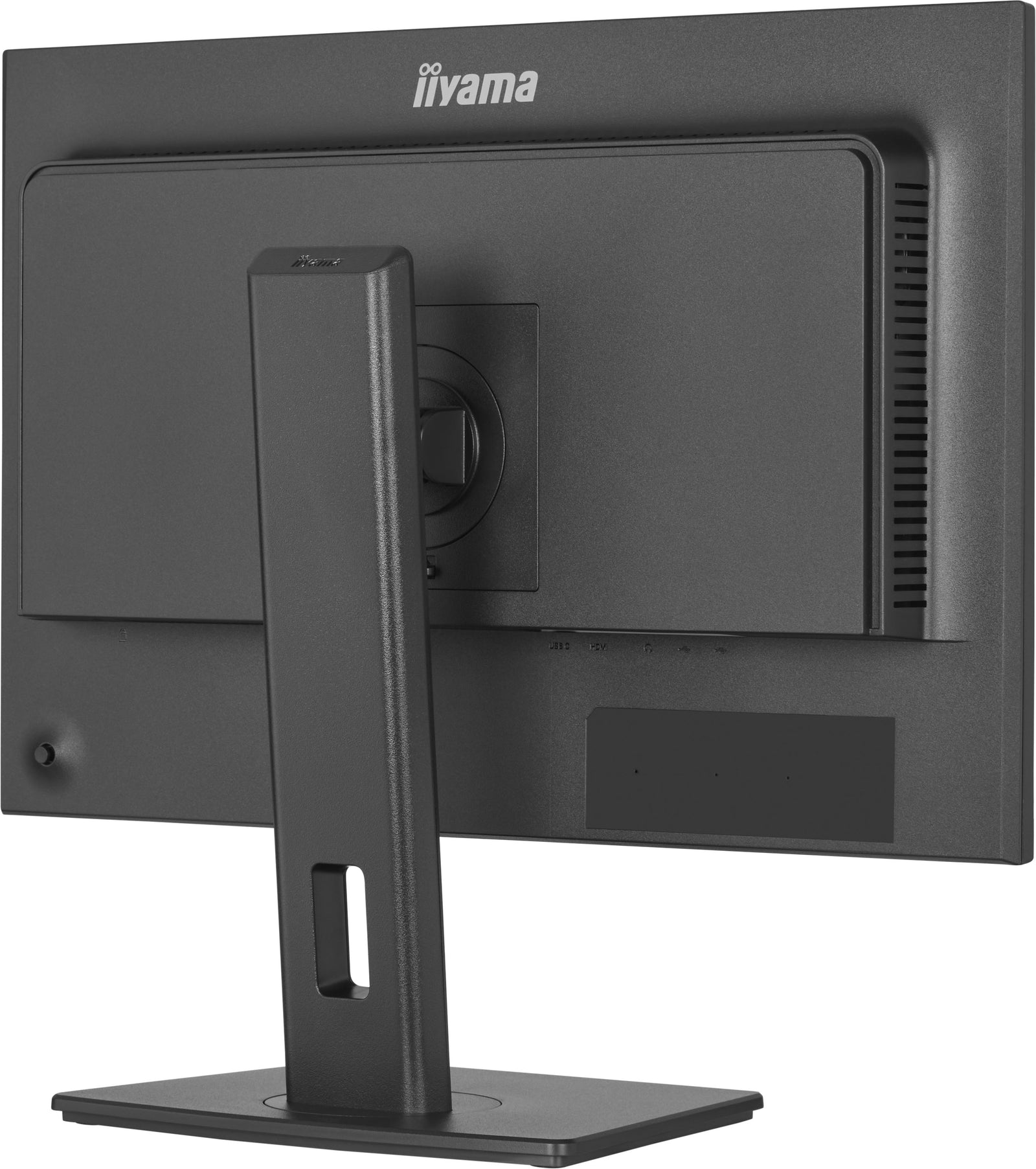

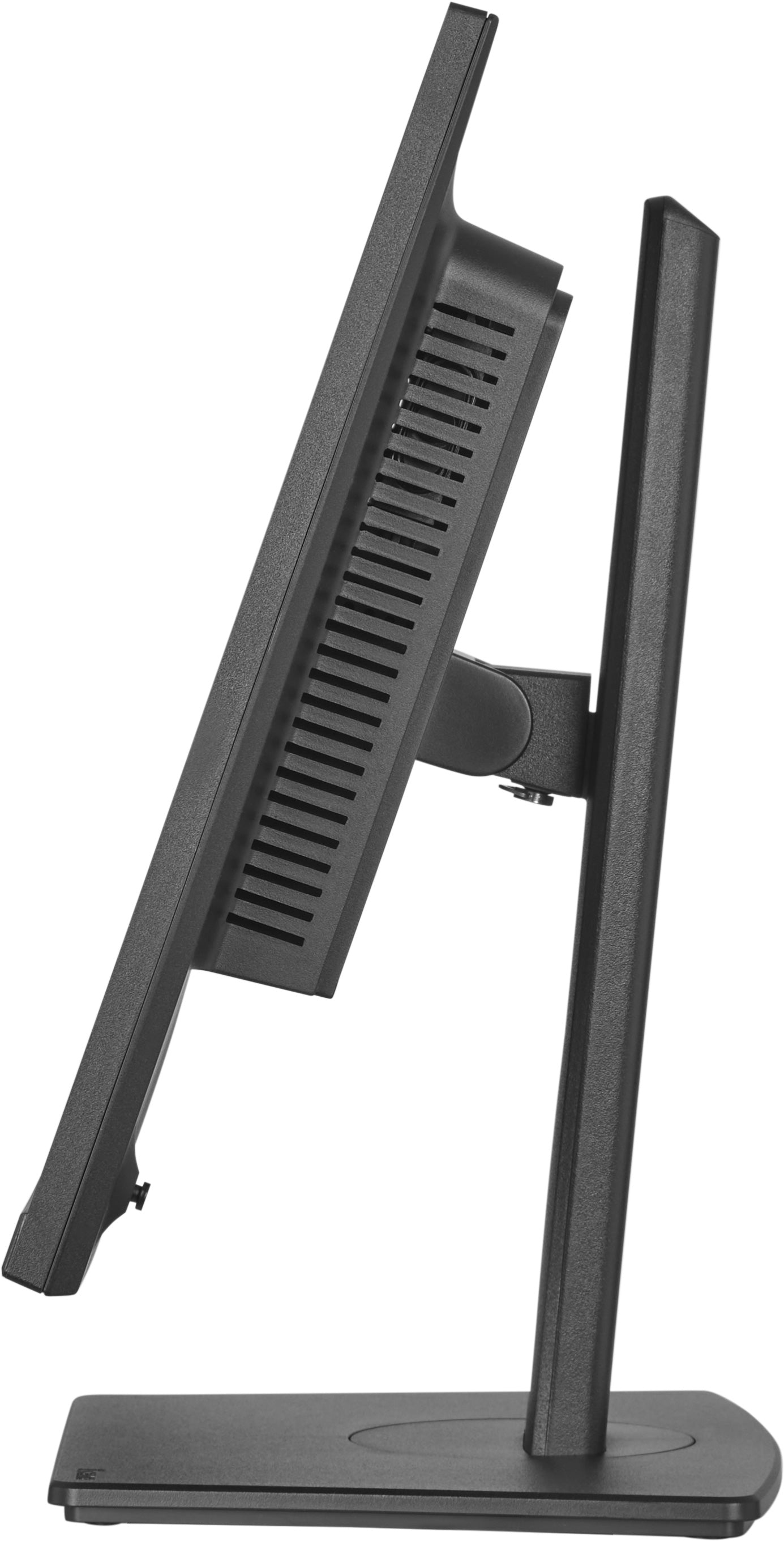

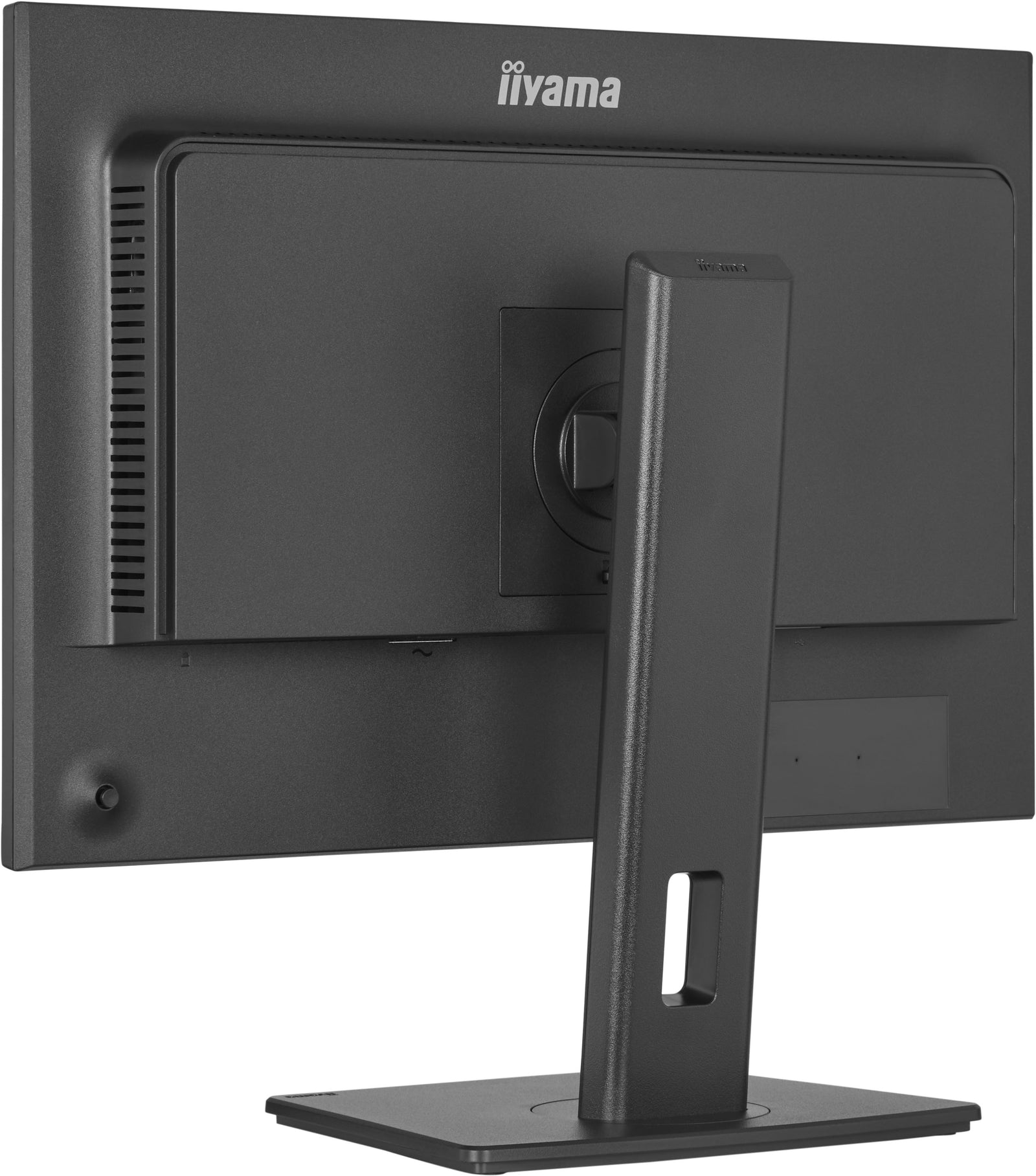

Adjustable stand for optimal comfort
Find your perfect screen position easily and maintain a healthy, comfortable posture all day long. Thanks to its fully adjustable stand, you can effortlessly adapt the monitor to your needs. Raise or lower the height, swivel left or right, or tilt the screen to reduce glare and find the optimal viewing angle. Whether you're working, designing, or attending long video calls, this flexibility helps reduce neck and back strain, improving both comfort and productivity throughout your day.
Built-in audio without extra clutter
Enjoy clear, pleasant sound for calls, videos, and music while keeping your desk free of extra speakers, thanks to the integrated audio.
Feel the difference with certified eye comfort
Hardware-based low blue light built into the panel, flicker-free technology and true-to-life colour accuracy all work together to support more comfortable viewing throughout the day. Backed by TÜV Rheinland Eye Comfort certification, this display lets you work, browse and create for longer with greater ease.
Save electricity, maintain picture performance
Compared to a C Energy class monitor of the same size, your C label iiyama display reduces energy costs by around 37%! Without sacrificing picture quality. The efficient LED backlight technology combined with a high-performance colour filter keeps brightness and colour vibrancy intact, ensuring your viewing experience stays exactly as it should be. And with lower power consumption, you're also reducing your environmental footprint.
Connect with ease, work in comfort
With USB-C delivering up to 95W, your laptop stays charged while you work, using just a single, clutter-free connection. The reversible design means you never have to fumble or check which way to plug it in. It’s a simple, reliable solution that keeps your focus on what matters most.
| Display Characteristics | |||
| Design | 4-side slim bezel | Diagonal | 24.1", 61.1cm |
| Panel | IPS Panel Technology LED, matte finish | Native resolution | 1920 x 1200 @100Hz (2.3 megapixel) |
| Aspect ratio | 16:10 | Panel brightness | 350 cd/m² |
| Static contrast | 1500:1 | Advanced contrast | 80M:1 |
| Response time (GTG) | 4ms | Viewing zone | Horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 16.7mln (sRGB: 99%; NTSC: 72%) | Horizontal Sync | 30 - 135kHz |
| Viewable area W x H | 518.4 x 324mm, 20.4 x 12.8" | Pixel pitch | 0.27mm |
| Colour | Matte, black | ||

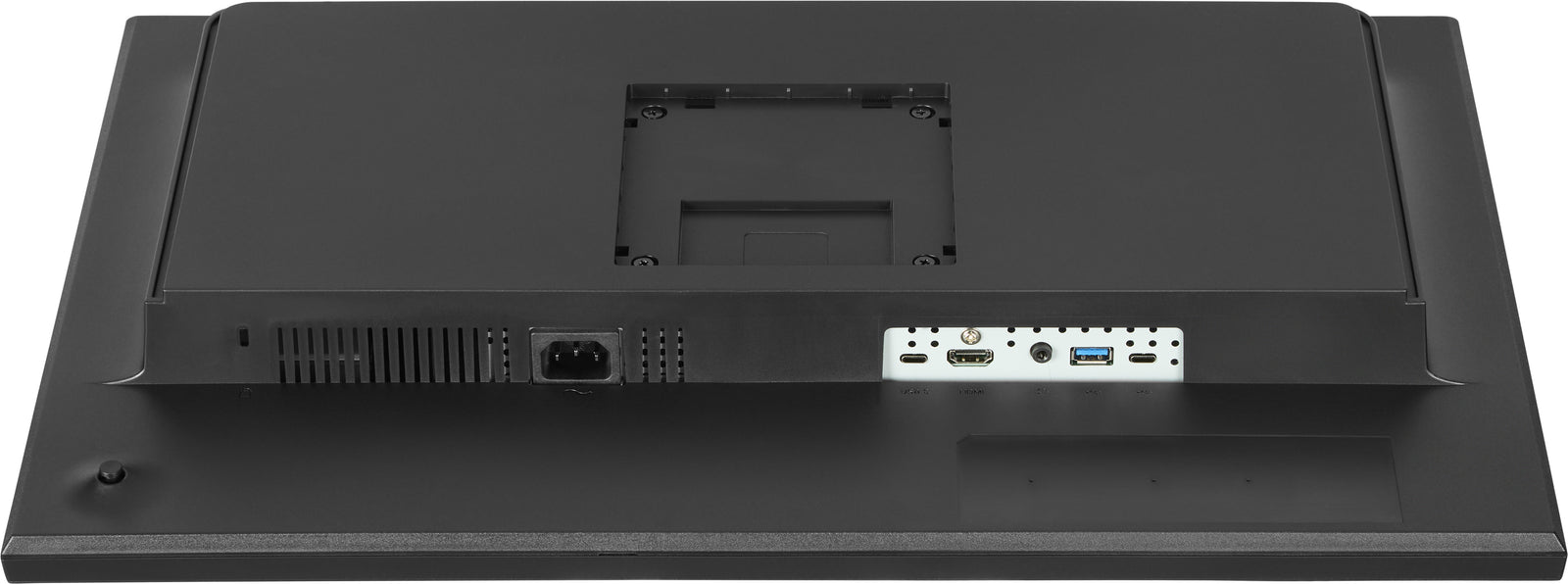

| Interfaces / Connectors / Controls | |||
| Signal input | HDMI x1 (v.1.4) | USB-C | USB-C x1 (PD 65W) |
| USB HUB | x2 (1x Type A, v.3.2 Gen 1 (5Gbps, 4.5W) 1x Type C, v.3.2 (5Gbps, 7.5W)) | HDCP | Yes |
| Headphone connector | Yes | ||
| Features | |||
| Flicker free | Yes | Extra | i-Style colour, Eye Comfort |
| OSD languages | EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL, UA | Control buttons | Joystick/Power Button: (Centre) Power/Menu, Up/Input Select, Down, Left/Show Submenu, Right/Volume |
| User controls | Picture adjust (brightness, contrast, ECO, ACR, ACR, OD, X-res technology), colour settings (6-axis, i-Style colour, RGB range, colour temp., user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time, OSD background, DDC/CI control, display information), language, extra 1 (sharpness, video mode adjust, opening logo, power LED, USB charge, USB-C speed), extra 2 (shortcut key, FW version), input select, audio settings (volume, mute), reset (recall all?) | Speakers | 2 x 2W |
| Convenience | Kensington-lock™ prepared, DDC/CI, DDC2B, Mac OSX | ||
| Mechanical | |||
| Display position adjustments | Height, swivel, tilt, pivot (rotation both sides) | Height adjustment | 150mm |

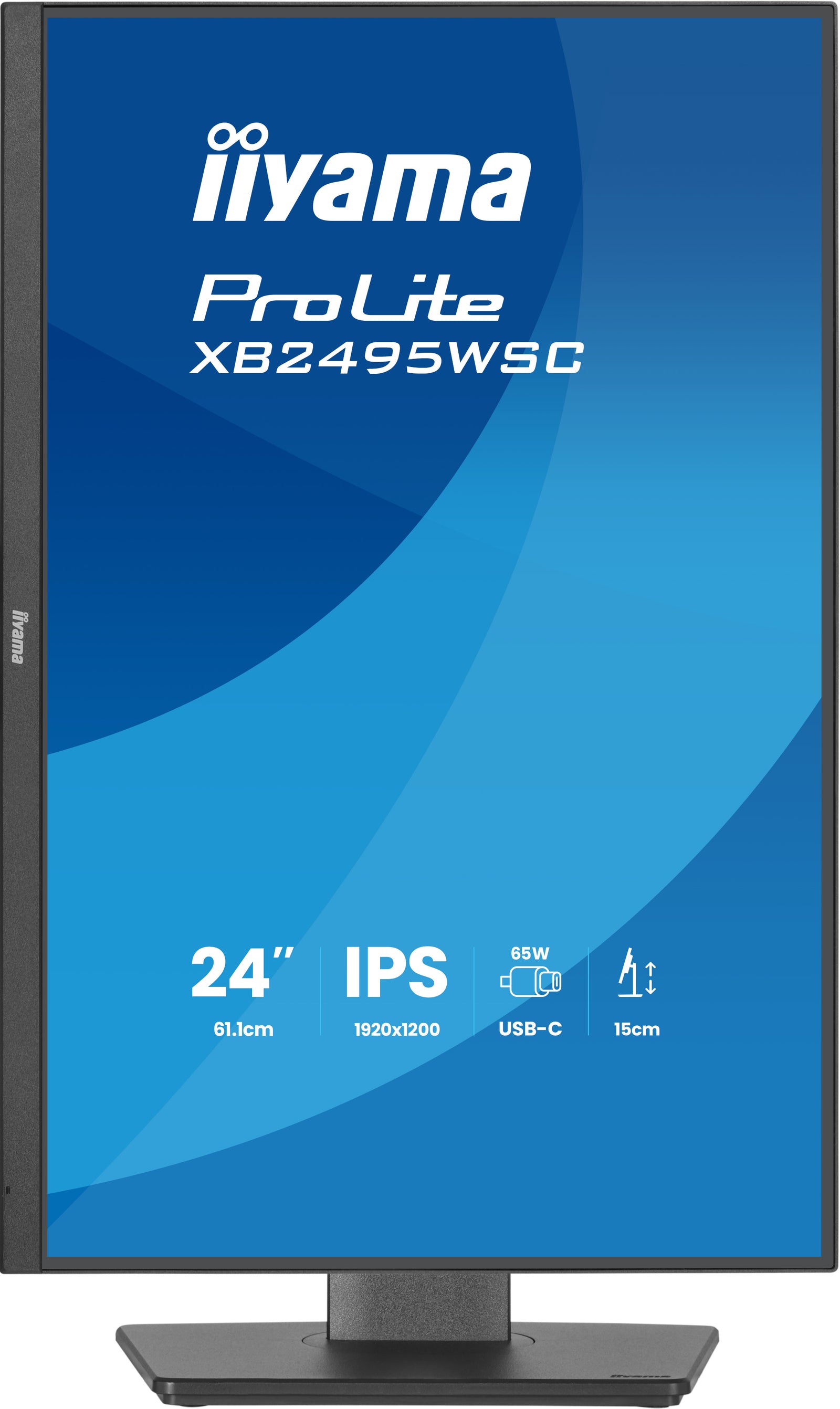

| Rotation (PIVOT function) | 90° | Swivel stand | 120°; 60° left; 60° right |
| Tilt angle | 23° up; 5° down | VESA mounting | 100 x 100mm |
| Cable management system | Yes | ||
| Accessories Included | |||

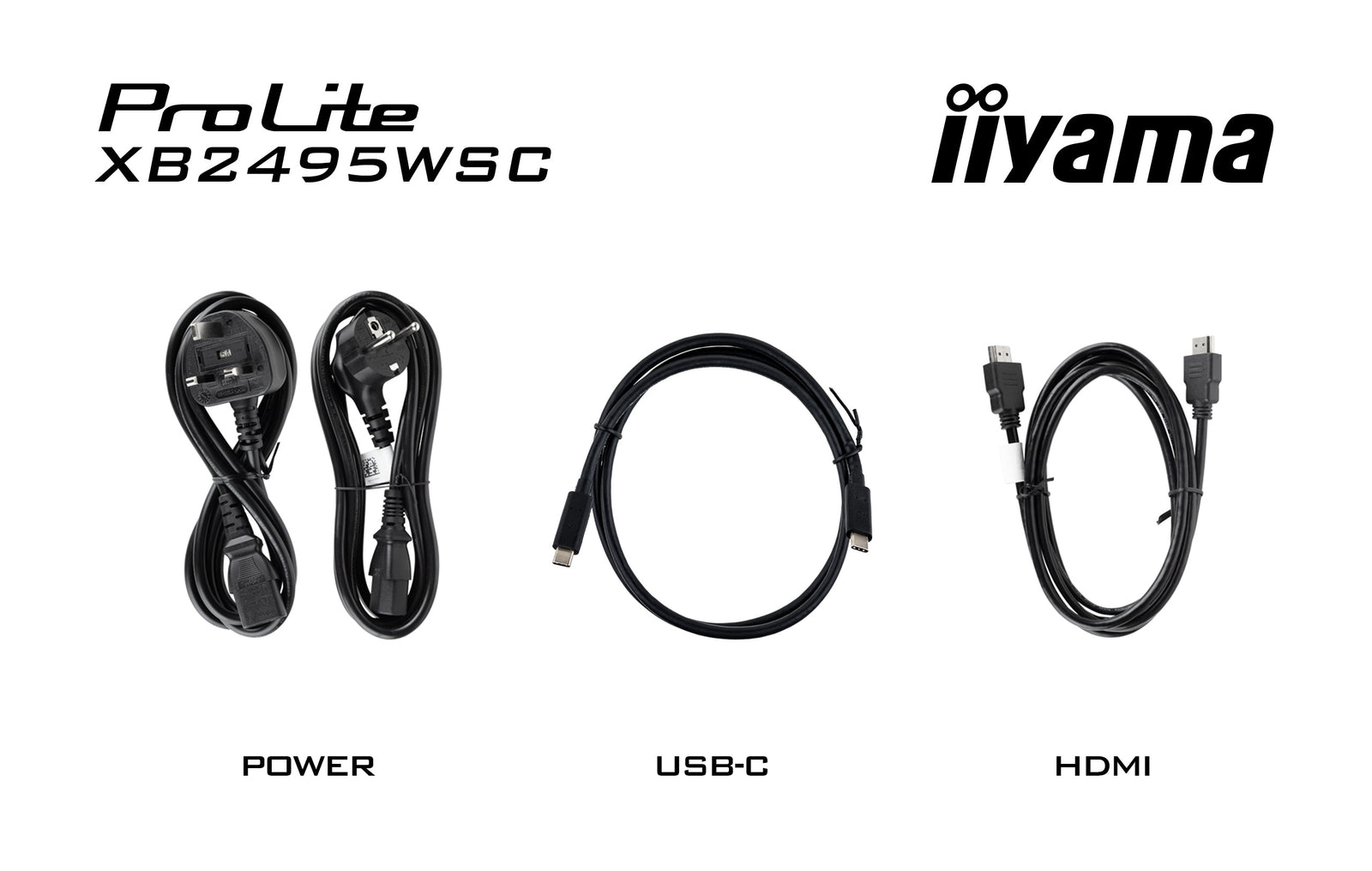

| Cables | Power (1.8m), HDMI (1.8m), USB-C (1m) | Other | Quick start guide, safety guide |
| Power Management | |||
| Power supply unit | Internal | Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 12W typical, 0.5W stand by, 0.3W off mode | ||
| Sustainability | |||
| Regulations | TCO Certified, CE, TÜV-GS, EAC, RoHS support, ErP, WEEE, REACH, UKCA | Energy efficiency class (Regulation (EU) 2017/1369) | C |
| EPEAT Silver | Registration varies by country; go to www.epeat.net for details | REACH SVHC | Above 0.1%: Lead |
| Dimensions / Weight | |||
| Product dimensions W x H x D | 533.5 x 373.5 (521) x 209.5mm | Box dimensions W x H x D | 633 x 130 x 437mm |
| Weight (without box) | 5kg | Weight (with box) | 7.2kg |
| EAN code | 4948570127856 | ||
