iiyama ProLite XU2493HSU-B6

24" IPS 100Hz Monitor

Description
Specifications
Warranty
Downloads

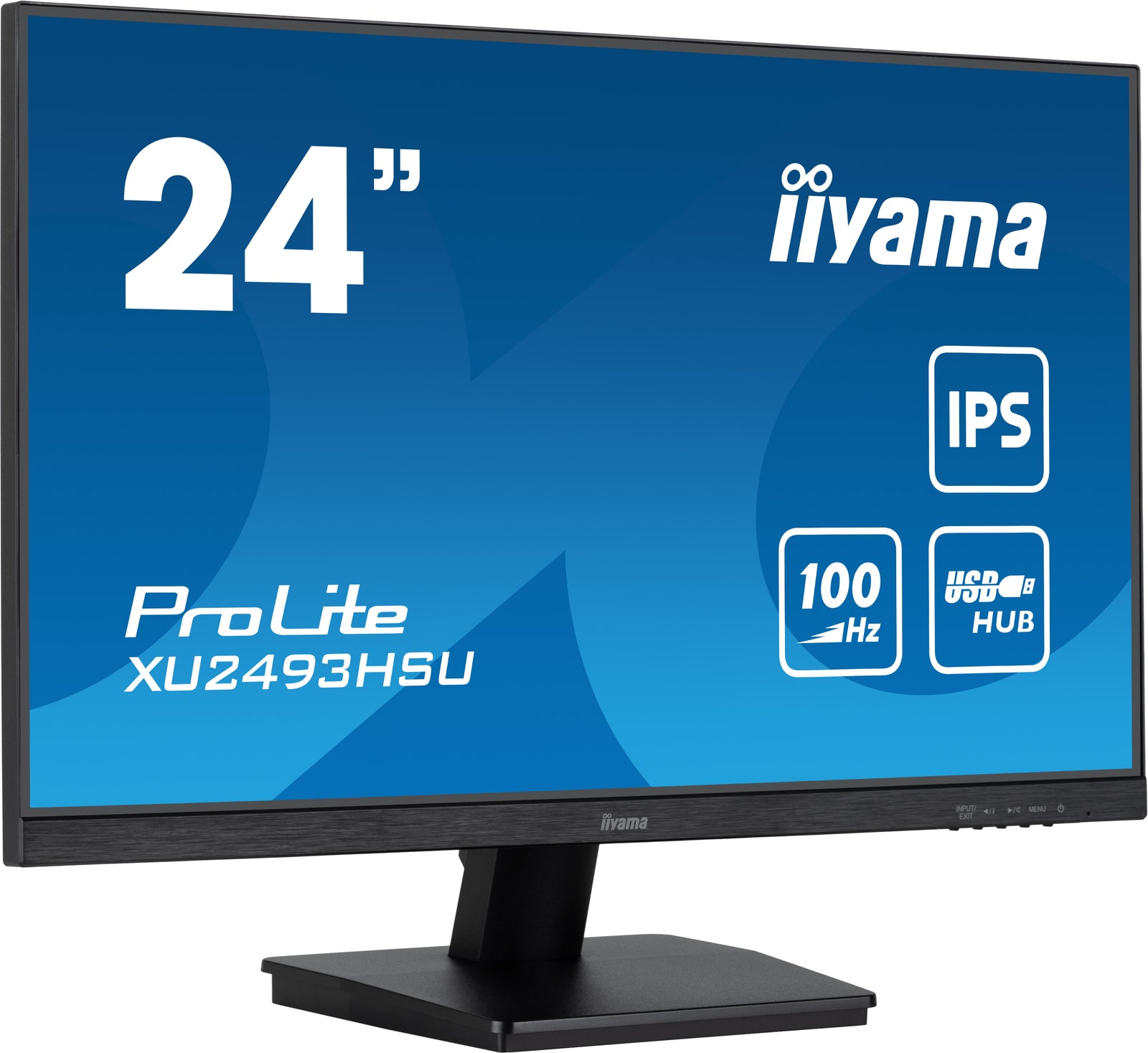

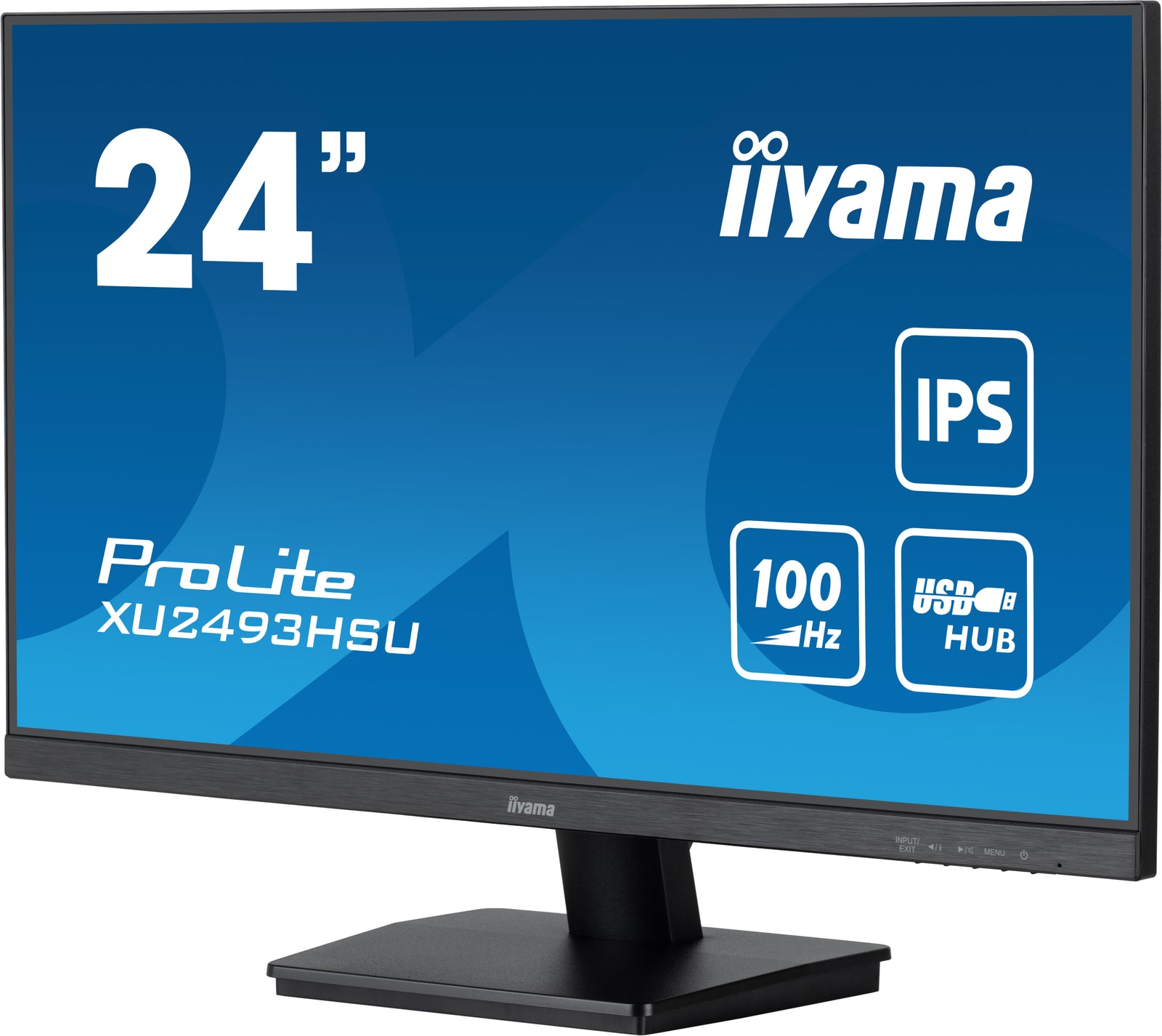

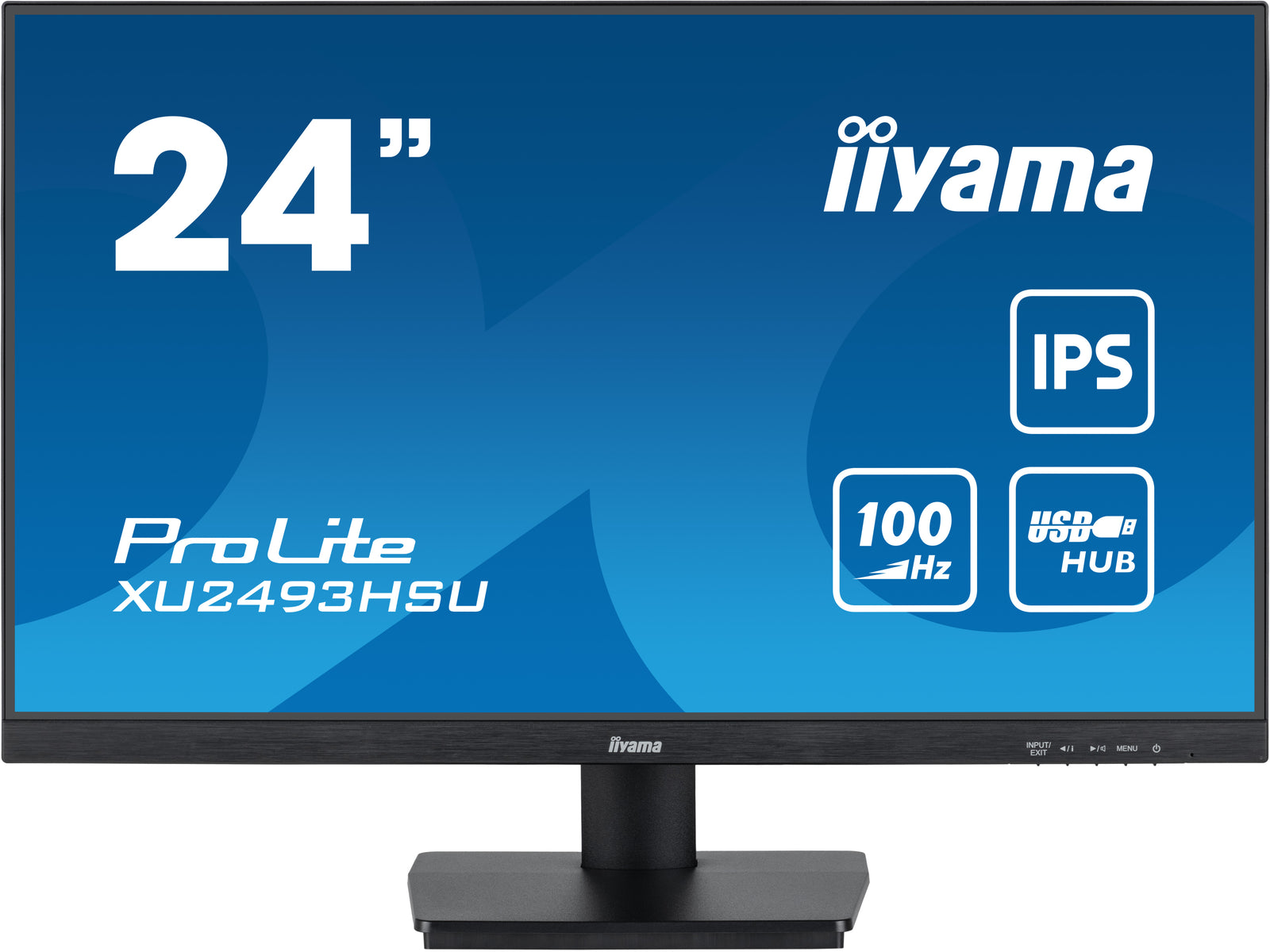

PROLITE XU2493HSU-B6
24” IPS technology panel with USB hub and 100Hz refresh rate

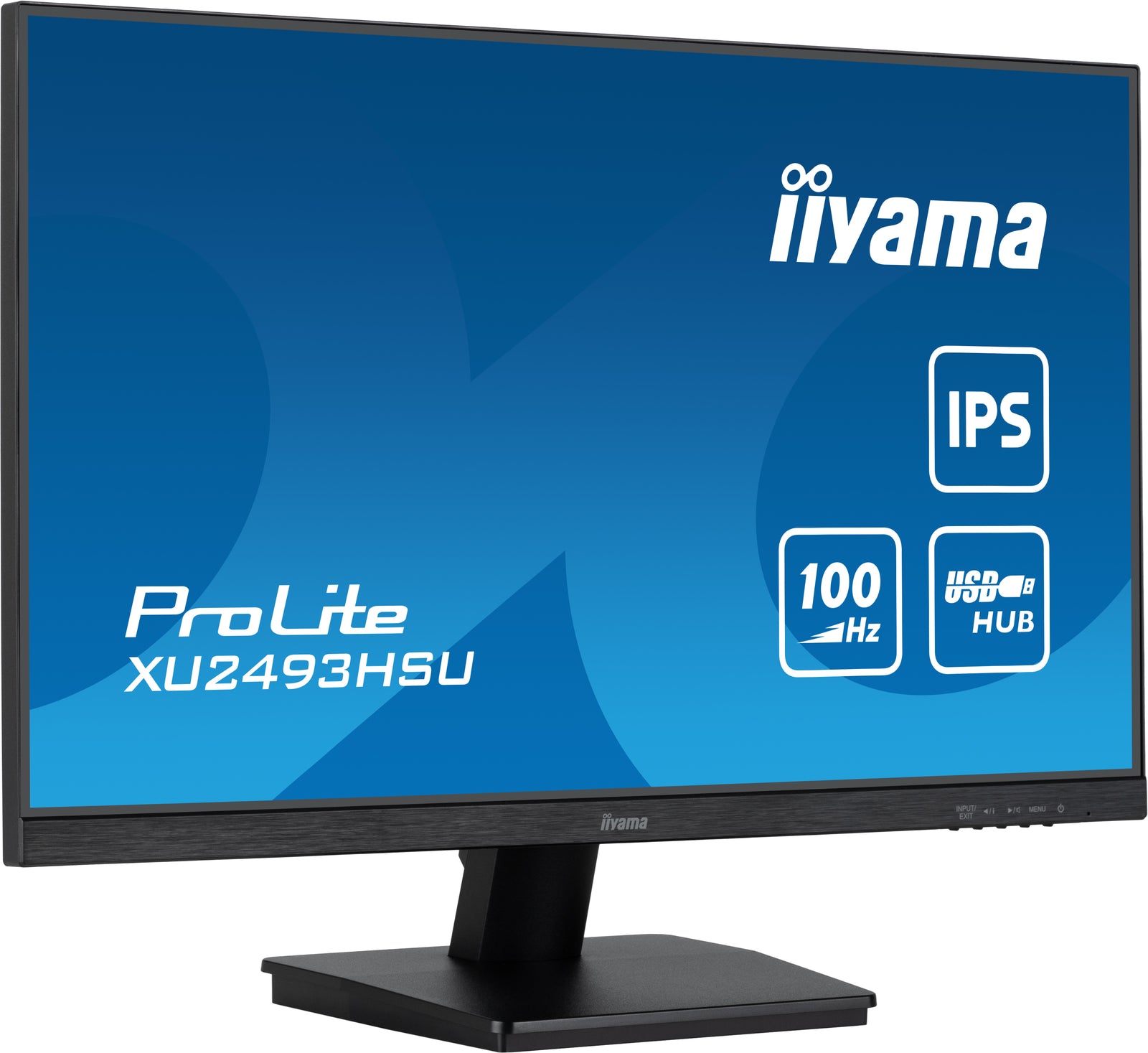

Stylish edge-to-edge design makes the ProLite XU2493HSU perfect for multi-monitor set-ups. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. The 100Hz refresh rate together with FreeSync function provides very tangible improvement in image smoothness. High contrast and brightness values mean the monitor will provide excellent performance for photographic and web design. Equipped with speakers, 2 port USB hub, headphone socket, HDMI and DisplayPort connections, plus a blue light reducer function to reduce eye fatigue for optimal user comfort, make this 24’’ monitor a great choice for both multi-monitor configuration and office applications.

Available also with height adjustable stand: ProLite XUB2493HSU-B6

IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

100HZ
A 100Hz refresh rate translates into increased smoothness of the image. This means that flickering is reduced and therefore eye fatigue is also less noticeable. The increased frequency also means smoother transitions between contrasting colours, smoother motion scenes in both movies and gaming, and even reduced mouse cursor flickering.

FLICKER-FREE + BLUE LIGHT
The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.

SPEAKERS AND HEADPHONES
Playing with friends? Use the integrated high-quality speakers. Don’t want to disturb anybody? Plug your headset into the headphone socket and turn the volume up.

ACR
Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts contrast and brightness of the screen to assure perfect picture quality while watching films and playing games.

DISPLAY CHARACTERISTICS
Design	3-side borderless
Diagonal	23.8", 60.5cm
Panel	IPS panel technology LED, matte finish
Native resolution	1920 x 1080 @100Hz (2.1 megapixel Full HD)
Aspect ratio	16:9
Panel brightness	250 cd/m²
Static contrast	1000:1
Advanced contrast	80M:1
Response time (MPRT)	1ms
Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support	16.7mln (sRGB: 96%; NTSC: 72%)
Horizontal Sync	30 - 110kHz
Viewable area W x H	527 x 296.5mm, 20.8 x 11.7"
Pixel pitch	0.275mm
Colour	matte, black

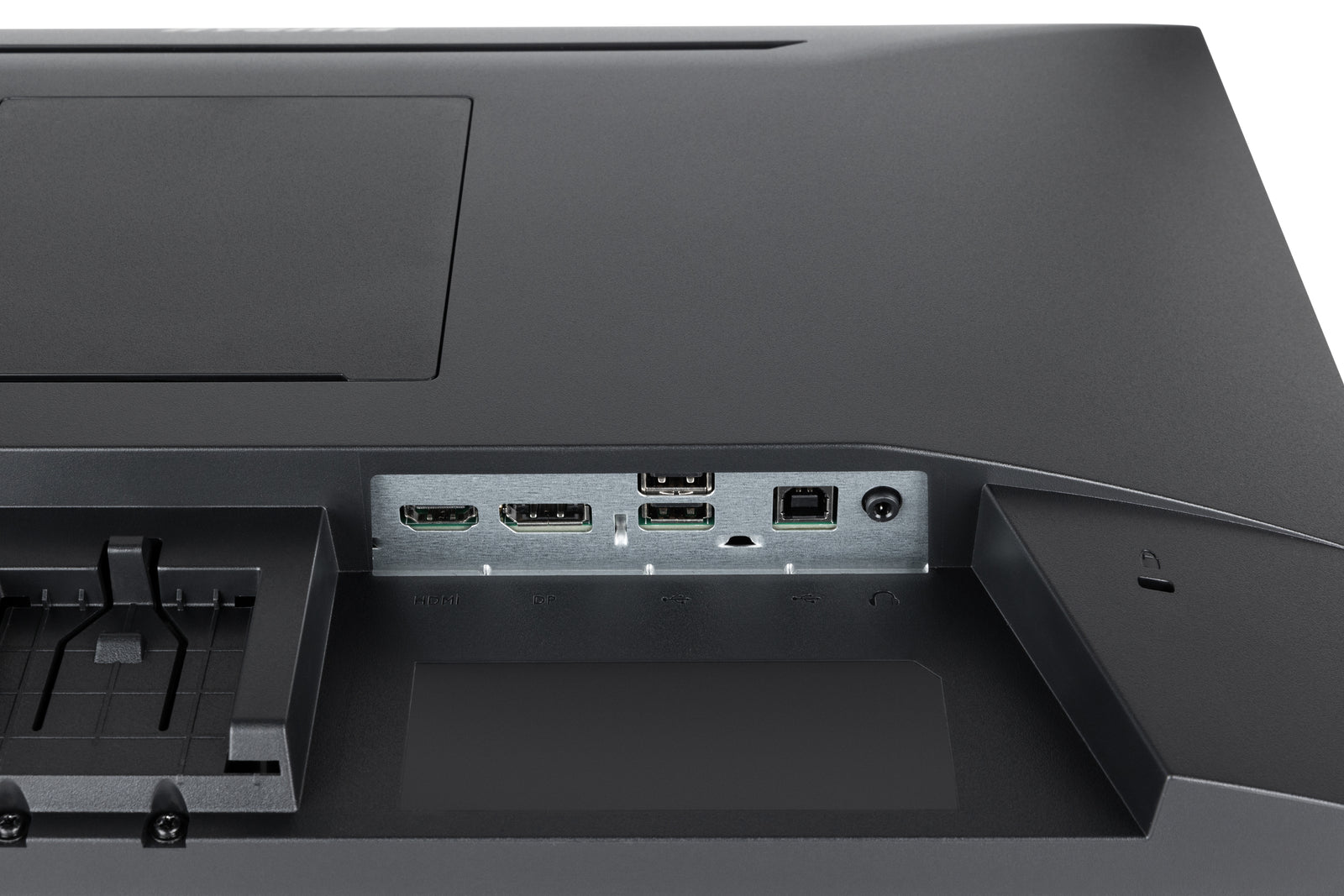

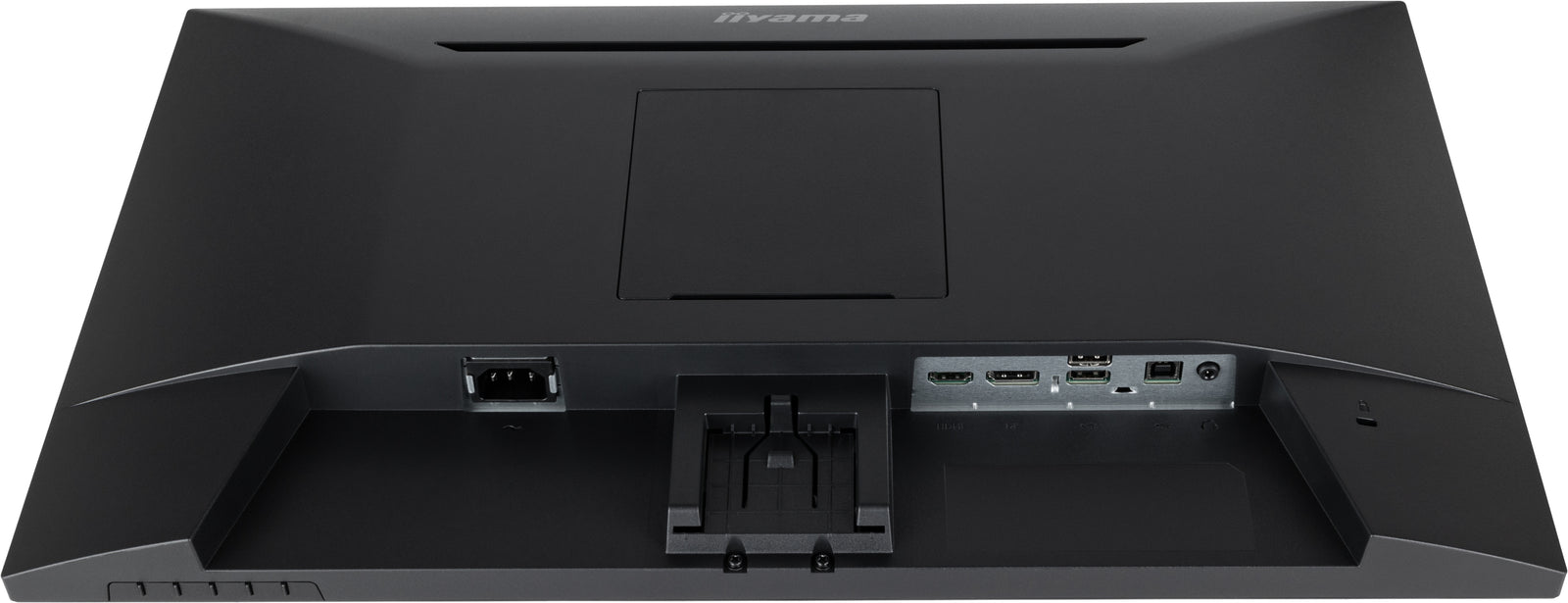

INTERFACES / CONNECTORS / CONTROLS
Signal input	HDMI x1
	DisplayPort x1
USB HUB	x2 (v. 2.0 (DC5V, 500mA))
HDCP	yes
Headphone connector	yes

FEATURES
Blue light reducer	yes
Flicker-free	yes
FreeSync support	yes
Extra	i-Style colour
OSD languages	EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL
Control buttons	Power, Menu, Up / Right / Volume, Down / Left / i-Style colour, Input / Exit
User controls	picture adjust (brightness, contrast, Eco, ACR, OD, MBR, AMD FreeSync), colour settings (i-Style colour, blue light reducer, colour temp., user preset), OSD (OSD H. position, OSD V. position, OSD rotate, OSD time), language, recall, miscellaneous (sharp and soft, video mode adjust, opening logo, RGB range, LED, display information), input select (source), audio settings (volume, mute audio)
Speakers	2 x 2W
Convenience	Kensington-lock™ prepared, DDC/CI, DDC2B, Mac OSX

MECHANICAL

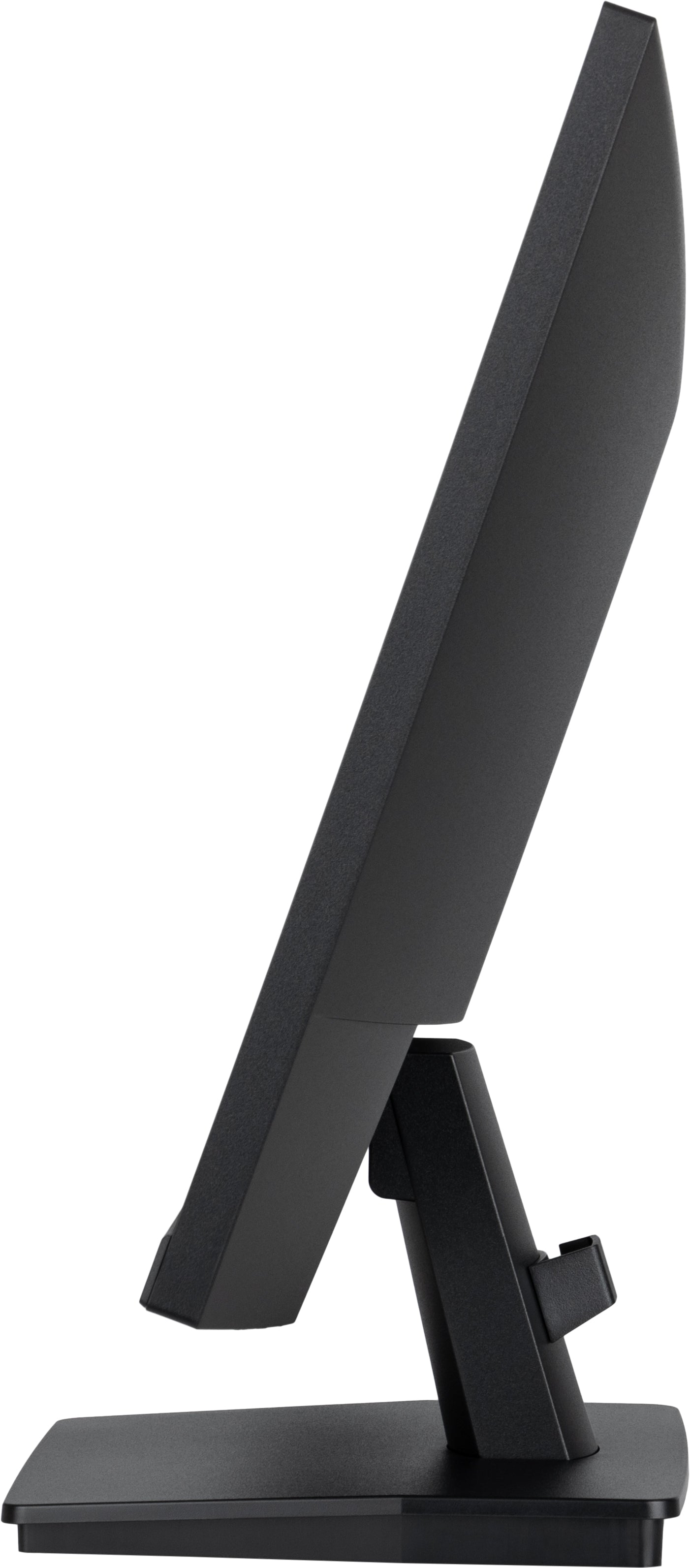

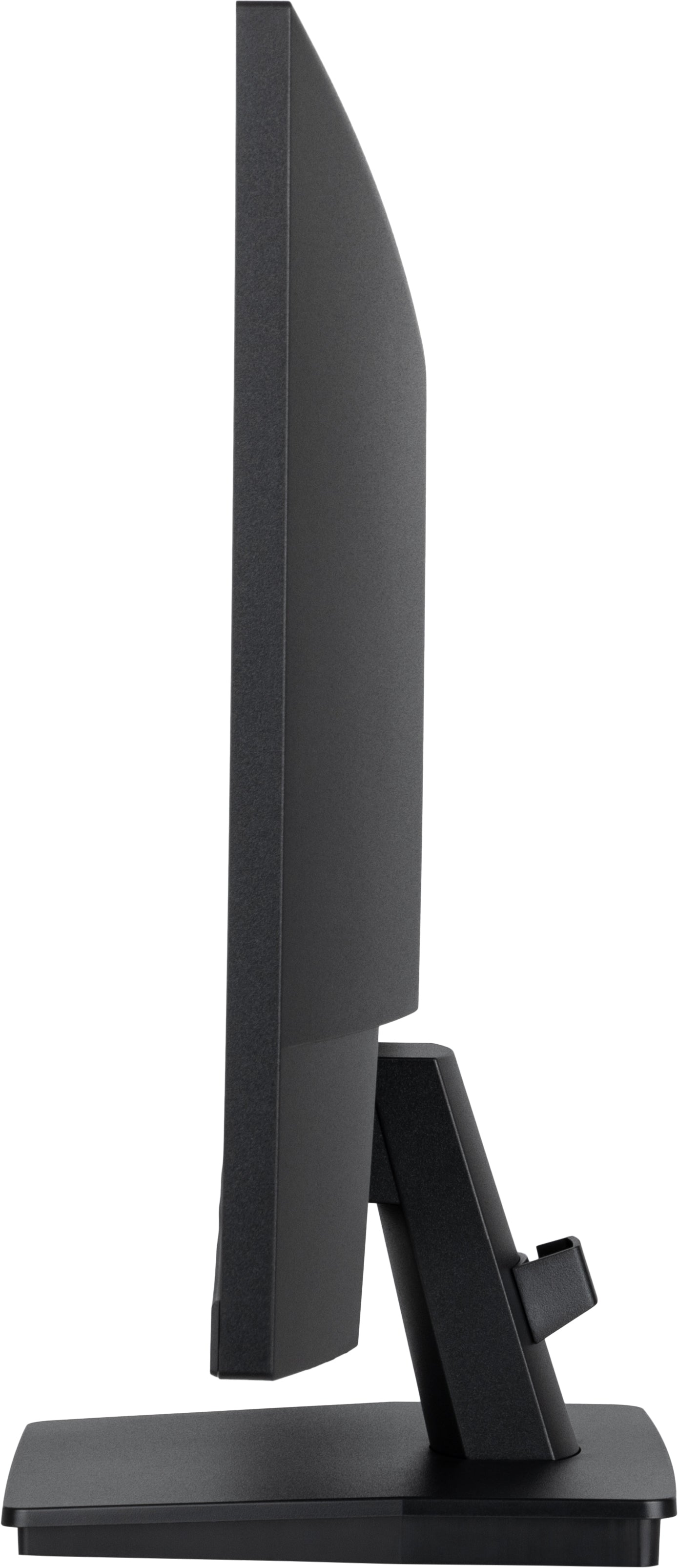

Display position adjustments	tilt
Tilt angle	22° up; 4° down

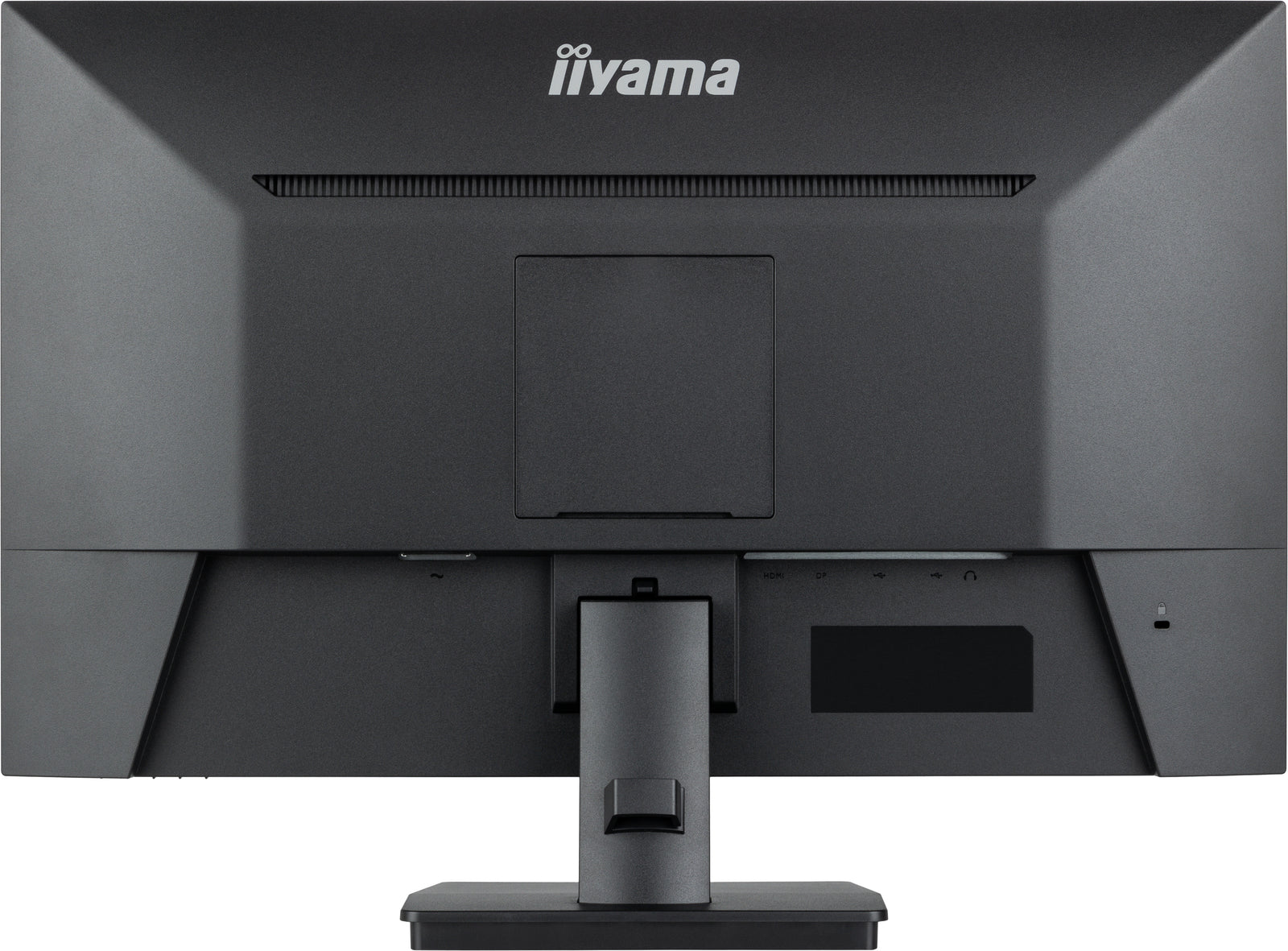

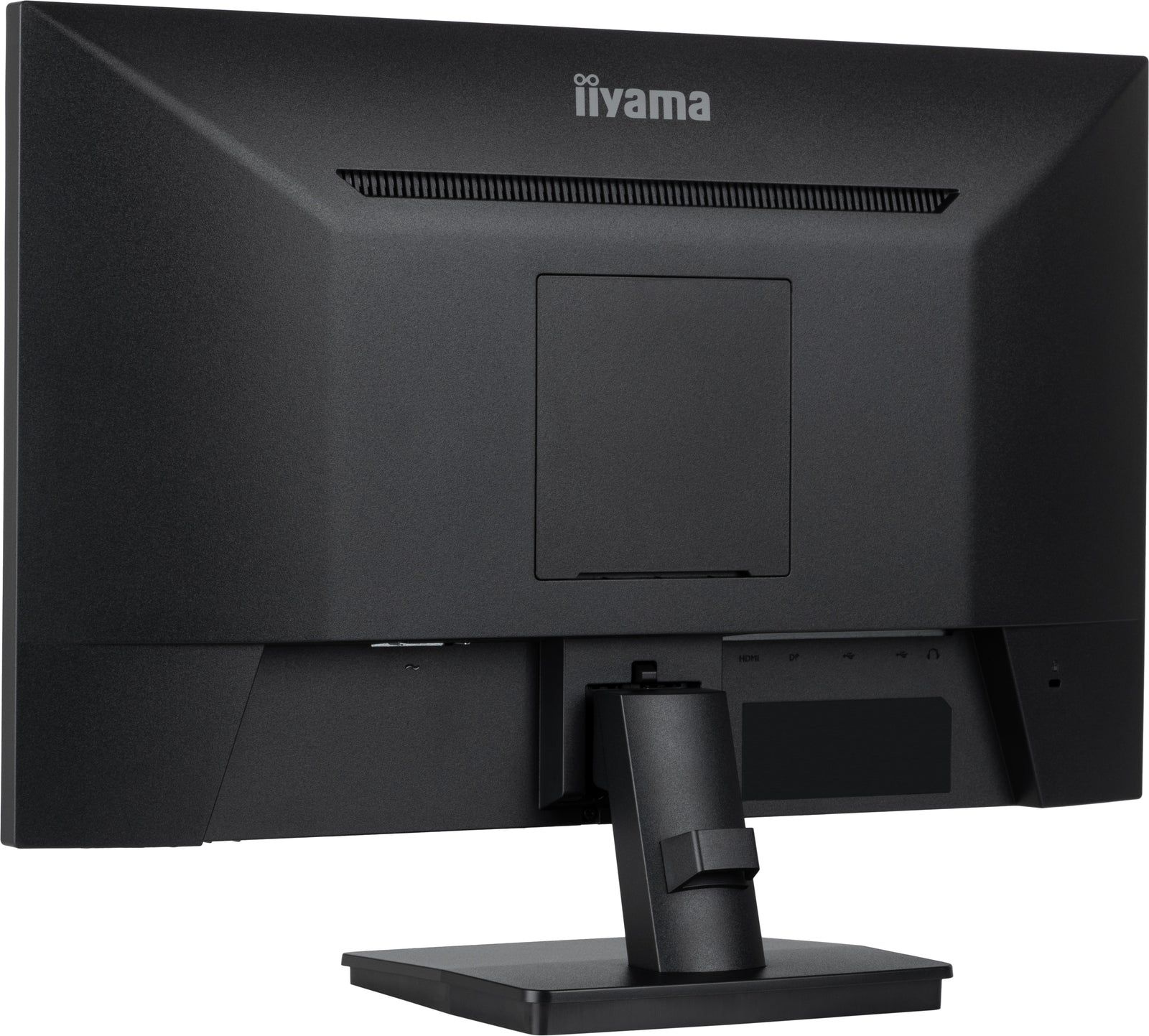

VESA mounting	100 x 100mm
Cable management system	yes

ACCESSORIES INCLUDED

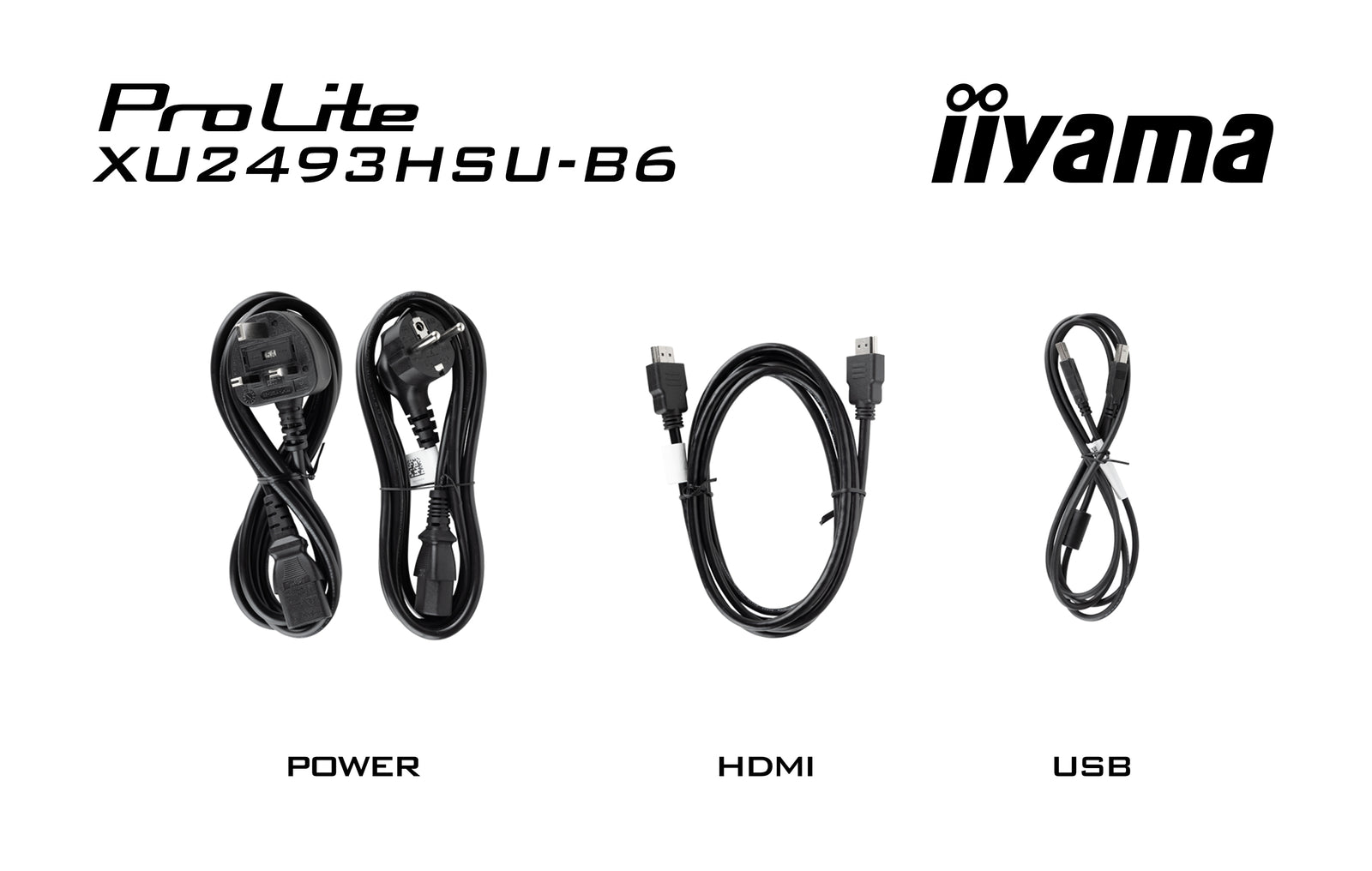

Cables	power, USB, HDMI
Other	quick start guide, safety guide

POWER MANAGEMENT
Power supply unit	internal
Power supply	AC 100 - 240V, 50/60Hz
Power usage	18W typical, 0.5W standby, 0.3W off mode

SUSTAINABILITY
Regulations	TCO Certified, CE, TÜV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA (*registration varies by country, go to www.epeat.net for details)
Energy efficiency class (Regulation (EU) 2017/1369)	E
REACH SVHC	above 0.1%: Lead

DIMENSIONS / WEIGHT
Product dimensions W x H x D	538.5 x 393 x 178.5mm
Box dimensions W x H x D	615 x 405 x 126mm
Weight (without box)	3.0kg
Weight (with box)	4.2kg

Warranty	Product	Cover
Visioncare	Desktop LCD products (Monitors) (17" - 43")	3 years on-site UK warranty. (Upgrades to 5 years available)
Touchcare	LCD touchscreen products	3 years repair and return. (Upgrades to on-site & 5 years available)
LFD	Large Format Displays Standard Warranty	3 years collect and return (Upgrade to swap, installation & 5 years available) Download

HOW TO ACTIVATE YOUR WARRANTY

There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.

Step one - Check that all connections have been properly made.

Step two - Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.

Step three - If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.

Step four - Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.

Step five - Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.

Step six - Please ensure your product is clean and presentable before packaging it in the original box for collection.

* Proof of purchase may be required

ON-SITE SWAP OUT

PIONEERING CUSTOMER SERVICE.

File Type Downloads

User Manual Download

Technical Specification Download

Drawing Download

UK Energy Label Download

EU Energy Label Download
