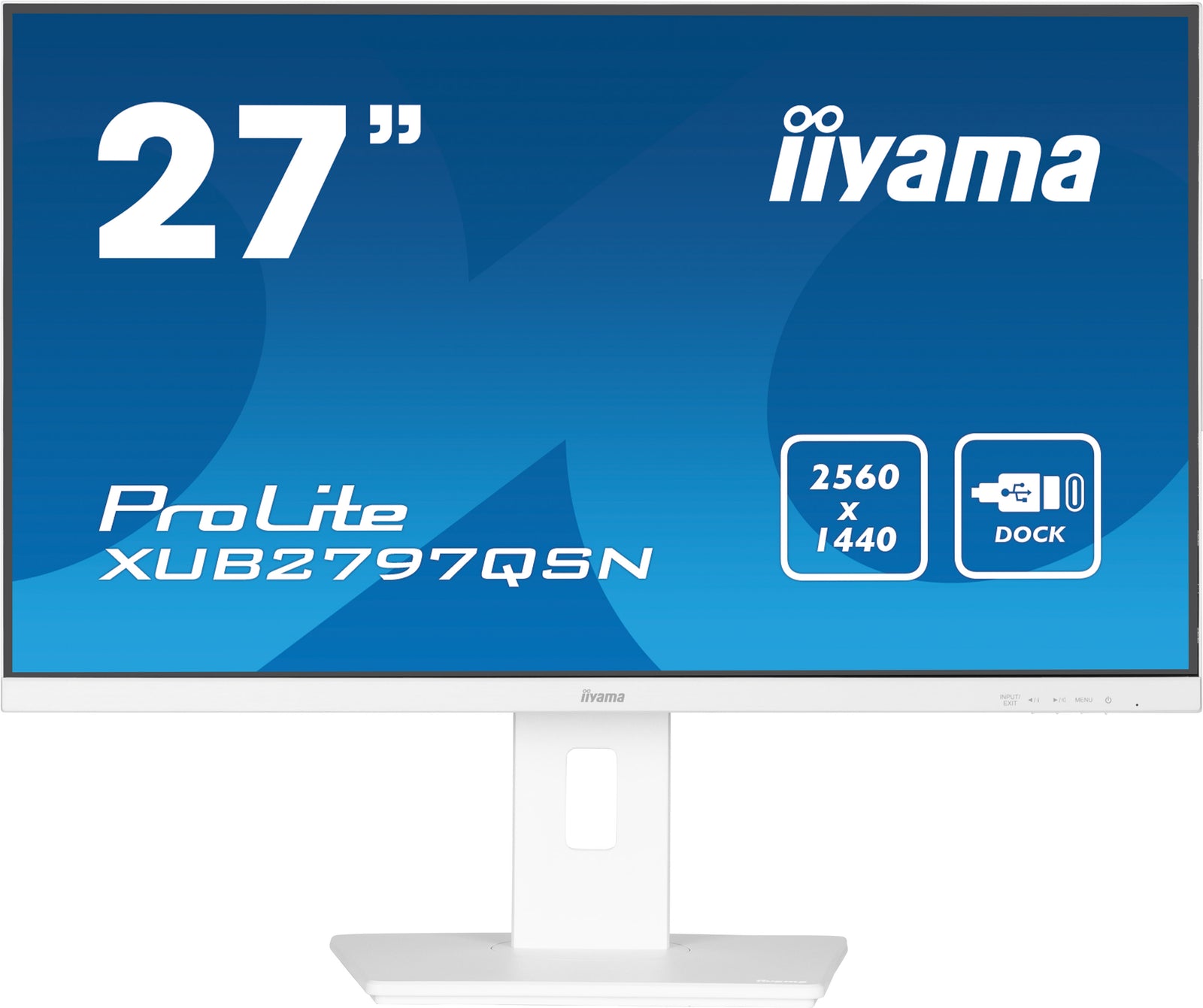

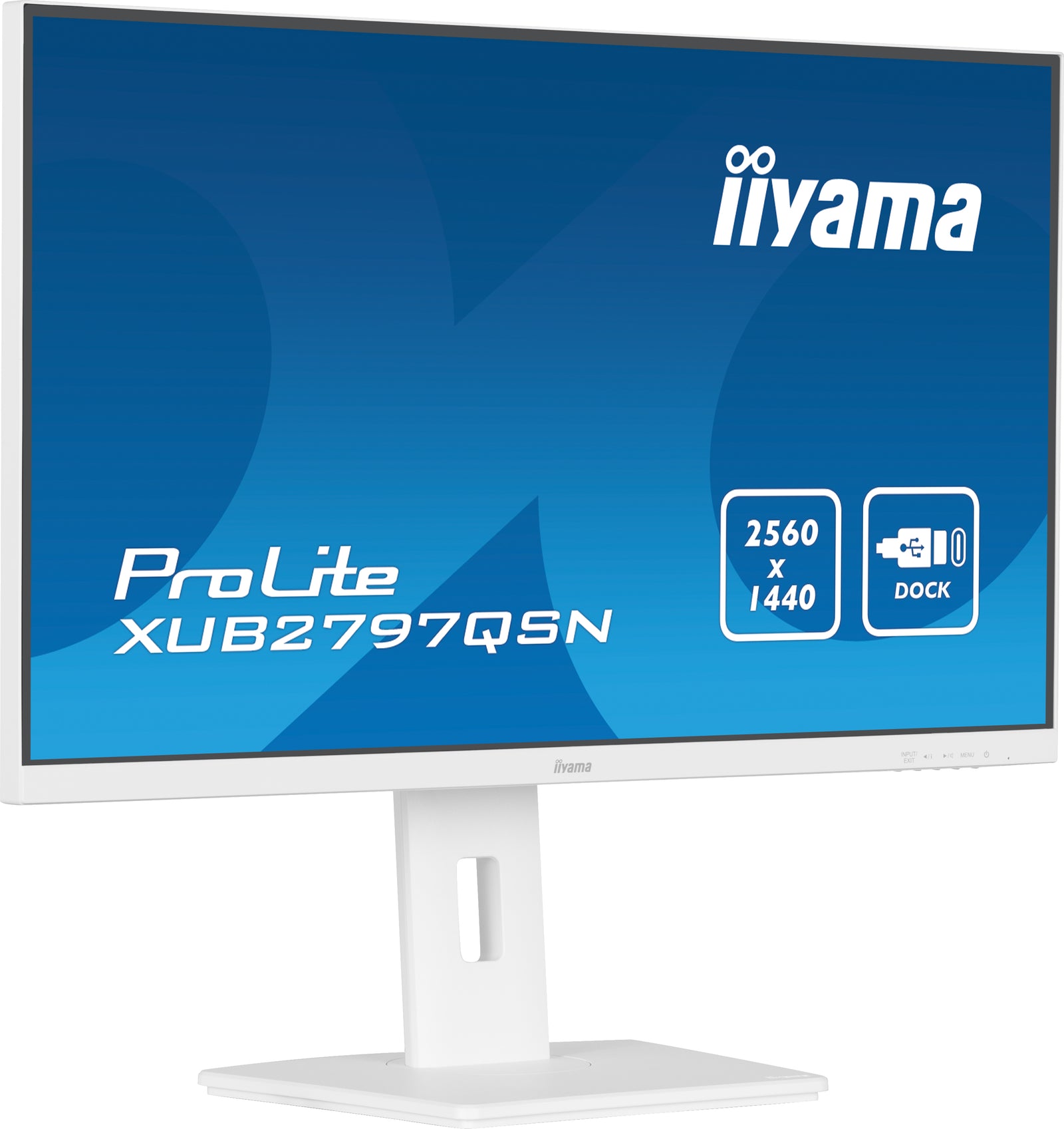

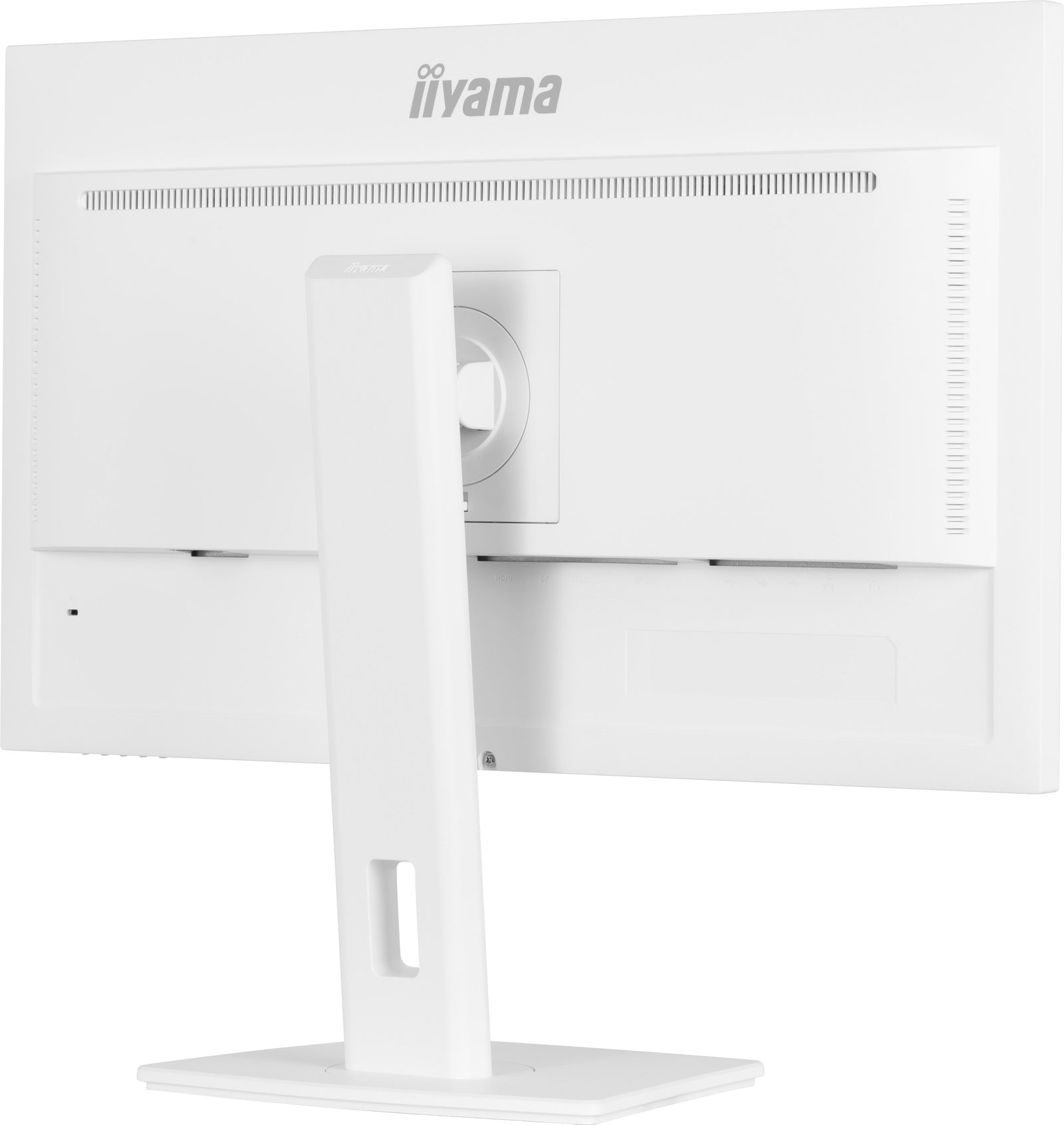

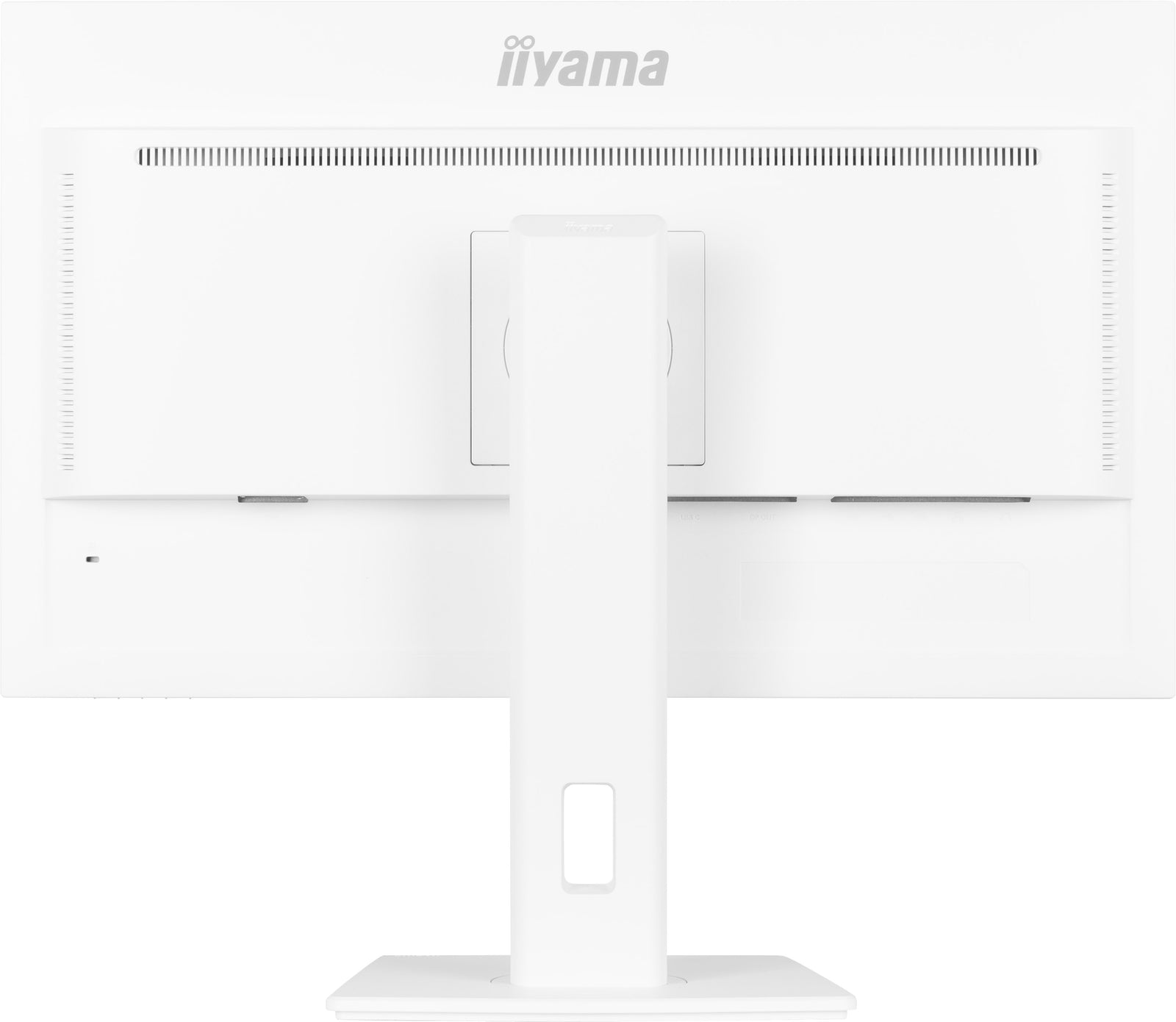

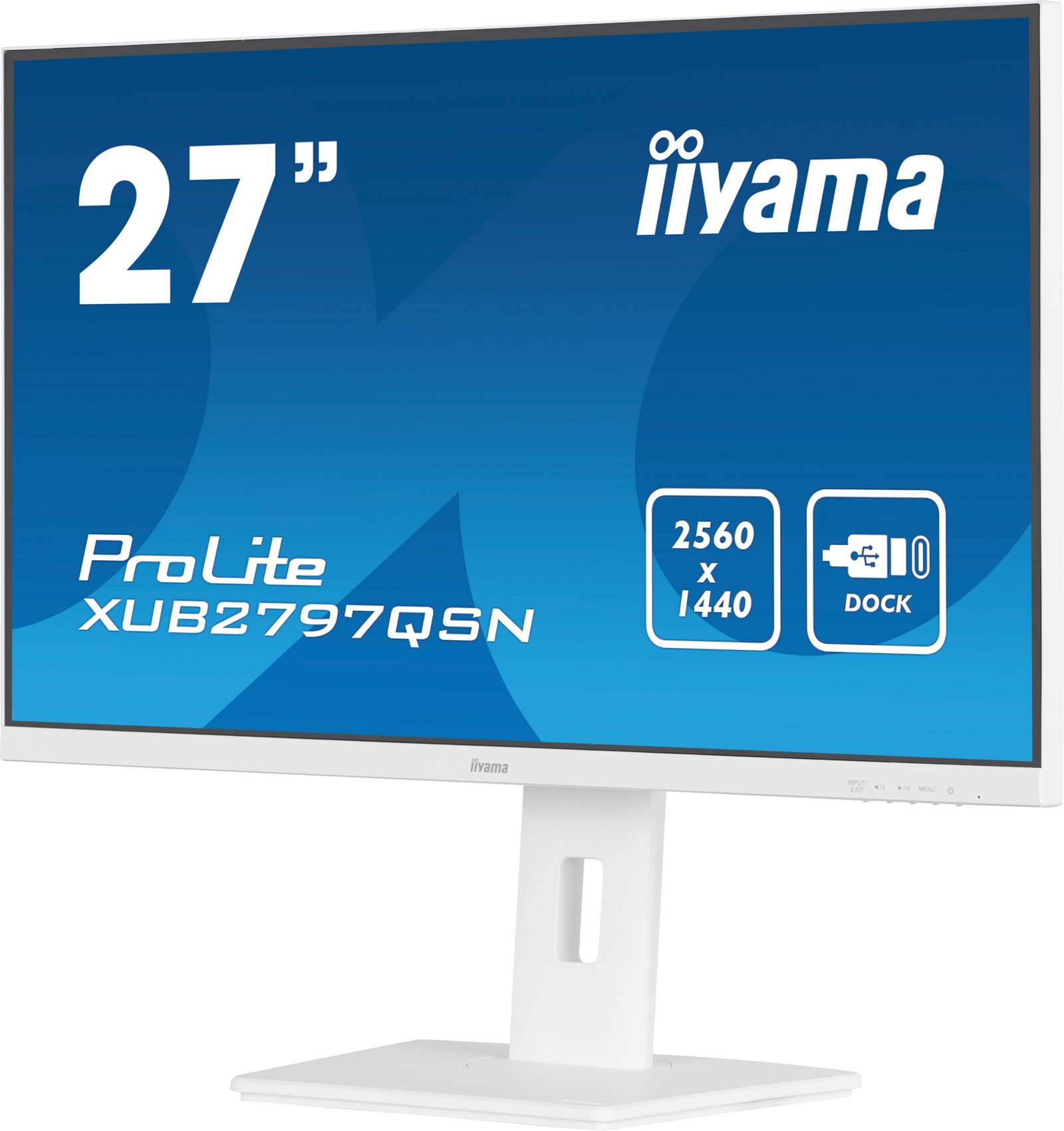

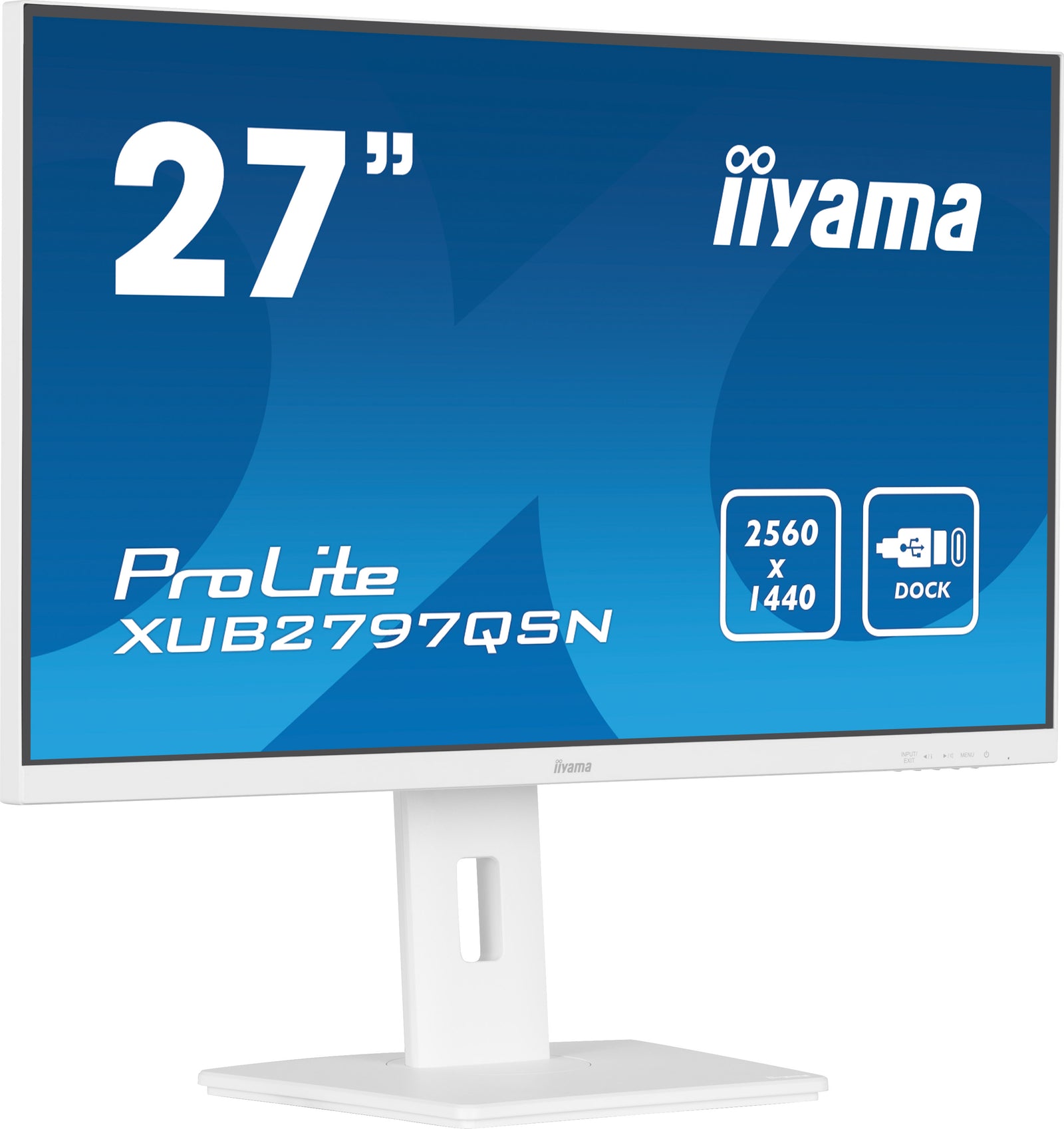

iiyama ProLite XUB2797QSN-W1 27" WQHD IPS Desktop Monitor

Equipped with a USB-C dock connector, the XUB2797QSN allows you to simplify your workspace by using a single cable to both send signal (audio, video and touch) from your notebook to your monitor whilst providing power and charge to the notebook. Additionally, if your monitor is connected to the Internet with a LAN cable, your notebook will automatically be connected to the network as well. Thanks to a DisplayPort output you can easily extend your desktop by creating a double-monitor set-up. The IPS panel assures rich and accurate colours with wide viewing angles. WQHD resolution, high contrast and brightness values mean the monitor provides excellent performance for photographic and web design. The ergonomic stand offers a height adjustment of 150mm and with the tilt and swivel mechanisms you can easily turn the monitor into portrait mode for more comfort while working on large data sheets.

USB-C Dock
The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. A second monitor can be connected to the DisplayPort (MST) output to create a multi-monitor set-up. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor.
*Functions vary depending on your laptop USB-C support.

IPS Technology
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

WQHD
With true WQHD 2560 x 1440p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen, i.e. over 76% more in comparison to a 1920 x 1080 monitor.

Flicker-free + Blue light
The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.

Speakers
This LED monitor is equipped with two high quality stereo speakers.

Attribute	Details
Design	3-side borderless
Diagonal	27", 68.5 cm
Panel	IPS Panel Technology LED, matte finish
Native resolution	2560 x 1440 @ 100Hz (WQHD)
Aspect ratio	16:9
Panel brightness	250 cd/m²
Static contrast	1300:1
Advanced contrast	80M:1
Response time (MPRT)	1ms
Viewing zone	178°/178° (horizontal/vertical)
Colour support	16.7 million (sRGB: 99%; NTSC: 72%)
Horizontal Sync	30 - 151kHz
Viewable area (W x H)	596.7 x 335.7 mm (23.5 x 13.2")
Pixel pitch	0.233 mm
Colour	Matte, white

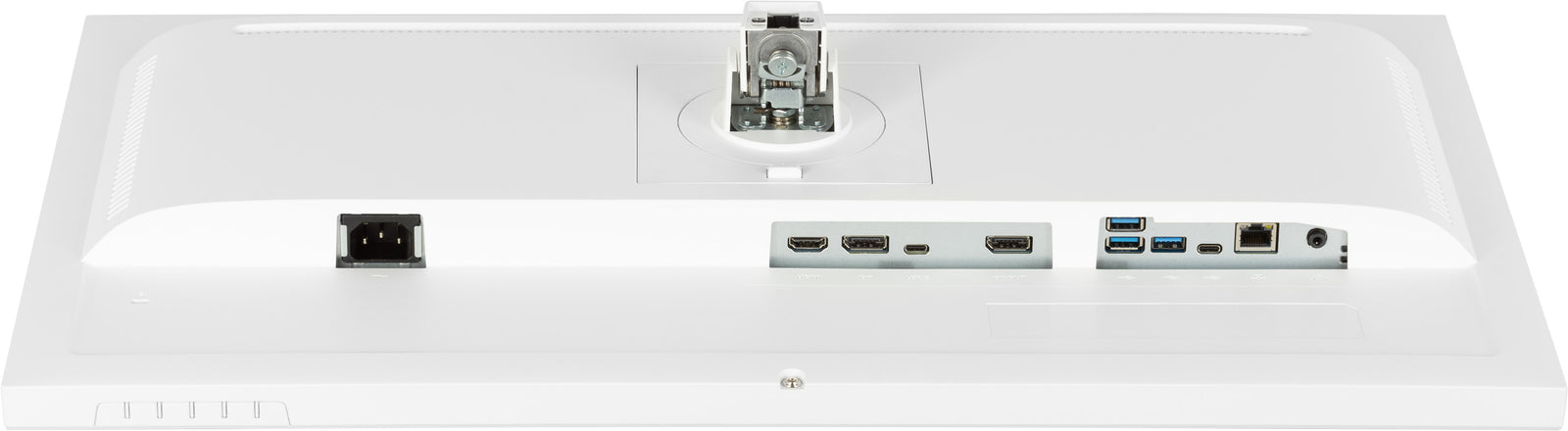

Signal input	HDMI x1 (v.2.0), DisplayPort x1 (v.1.4), USB-C x1 (PD 65W)
Signal output	DisplayPort x1 (Daisy Chain MST, max. 2560 x 1440)
USB HUB	3x USB 3.2 Gen 1 (5Gbps, 4.5W), 1x Type C (5Gbps, 15W)
USB-C Dock	Power delivery 65W, LAN, DP out, USB 3.2 (Gen 1, 5Gbit)
HDCP	Yes
Headphone connector	Yes
RJ45 (LAN)	x1
Blue light reducer	Yes
Flicker free	Yes
Adaptive Sync support	Yes
Extra features	i-Style colour
OSD languages	EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL
Control buttons	Power, Menu, Volume, Input/Exit, Shortcut keys
User controls	Picture adjust, colour settings, OSD settings, input select, audio settings, miscellaneous settings
Speakers	2 x 2W
Convenience	Kensington-lock prepared, DDC2B

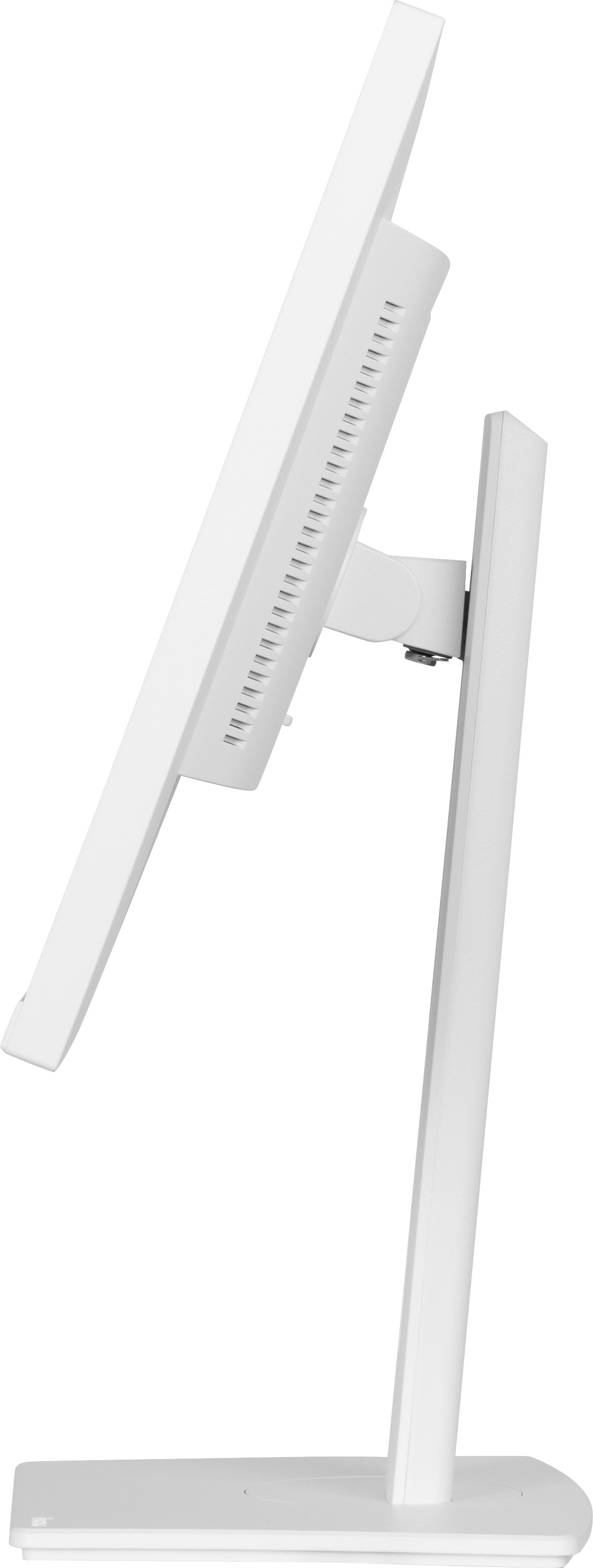

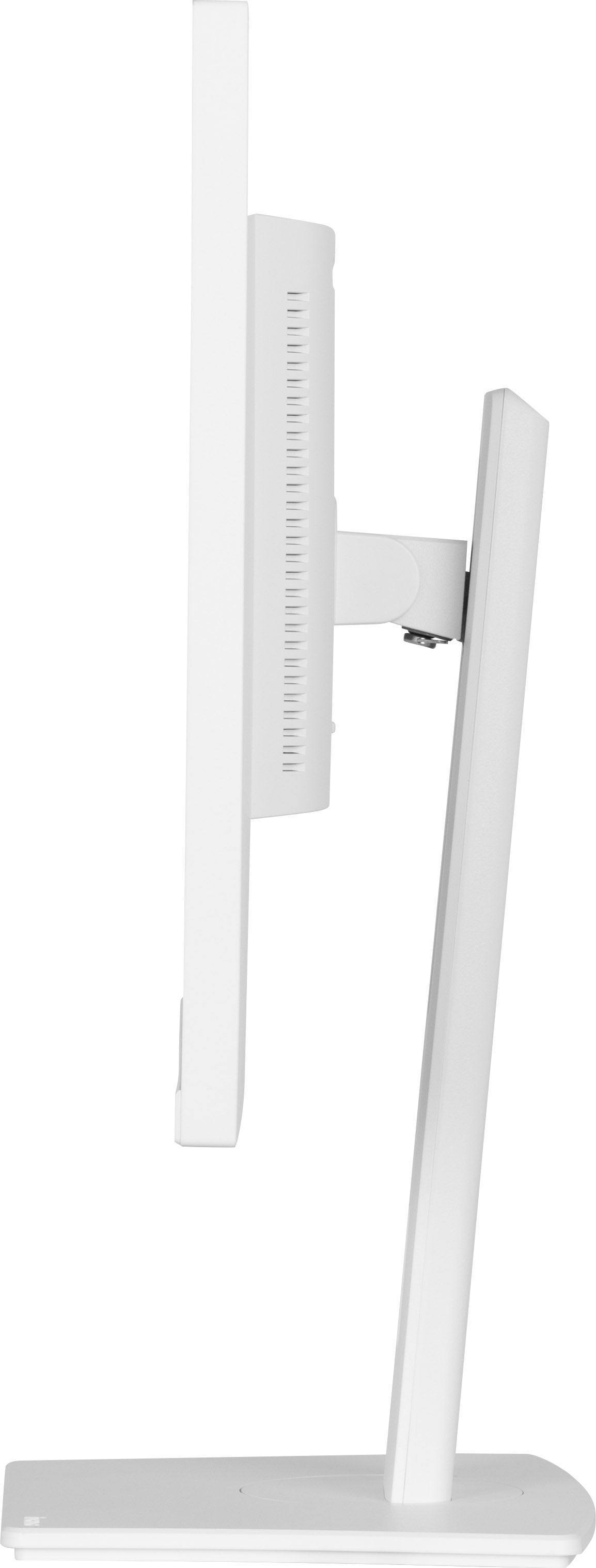

Height adjustment	150mm

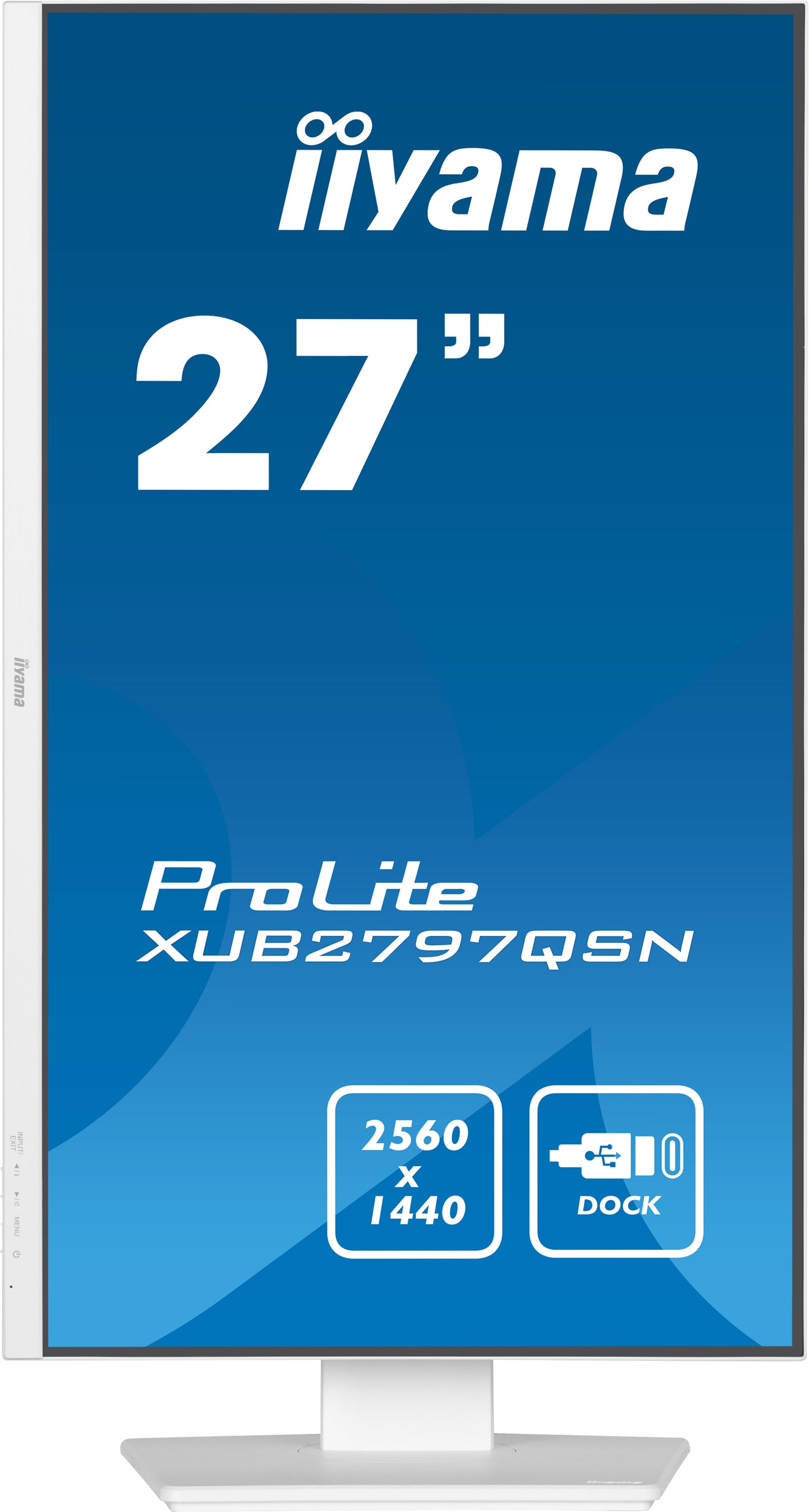

Rotation (PIVOT function)	90°
Swivel stand	90° (45° left, 45° right)

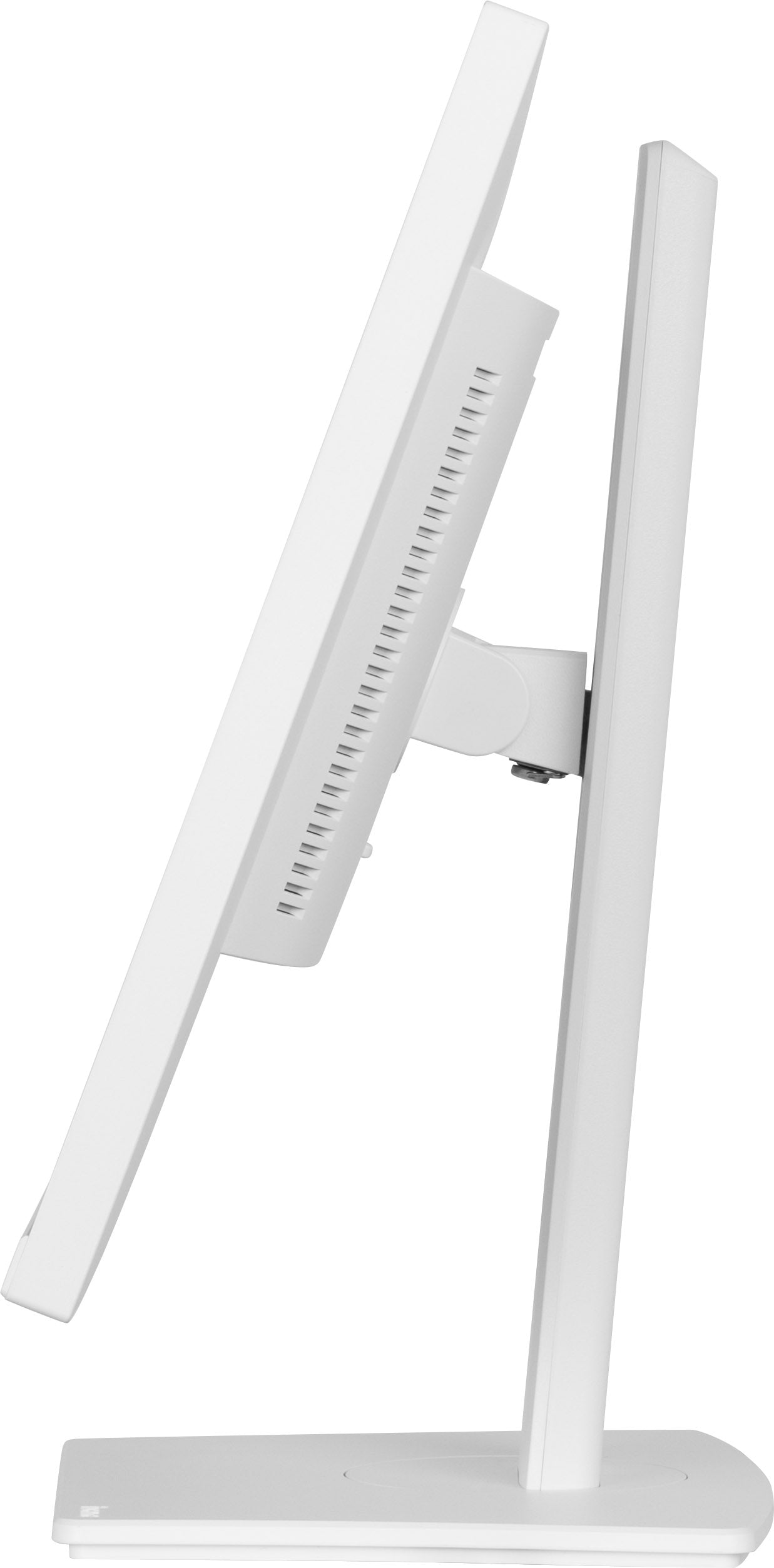

Tilt angle	23° up, 5° down
VESA mounting	100 x 100mm
Cable management system	Yes

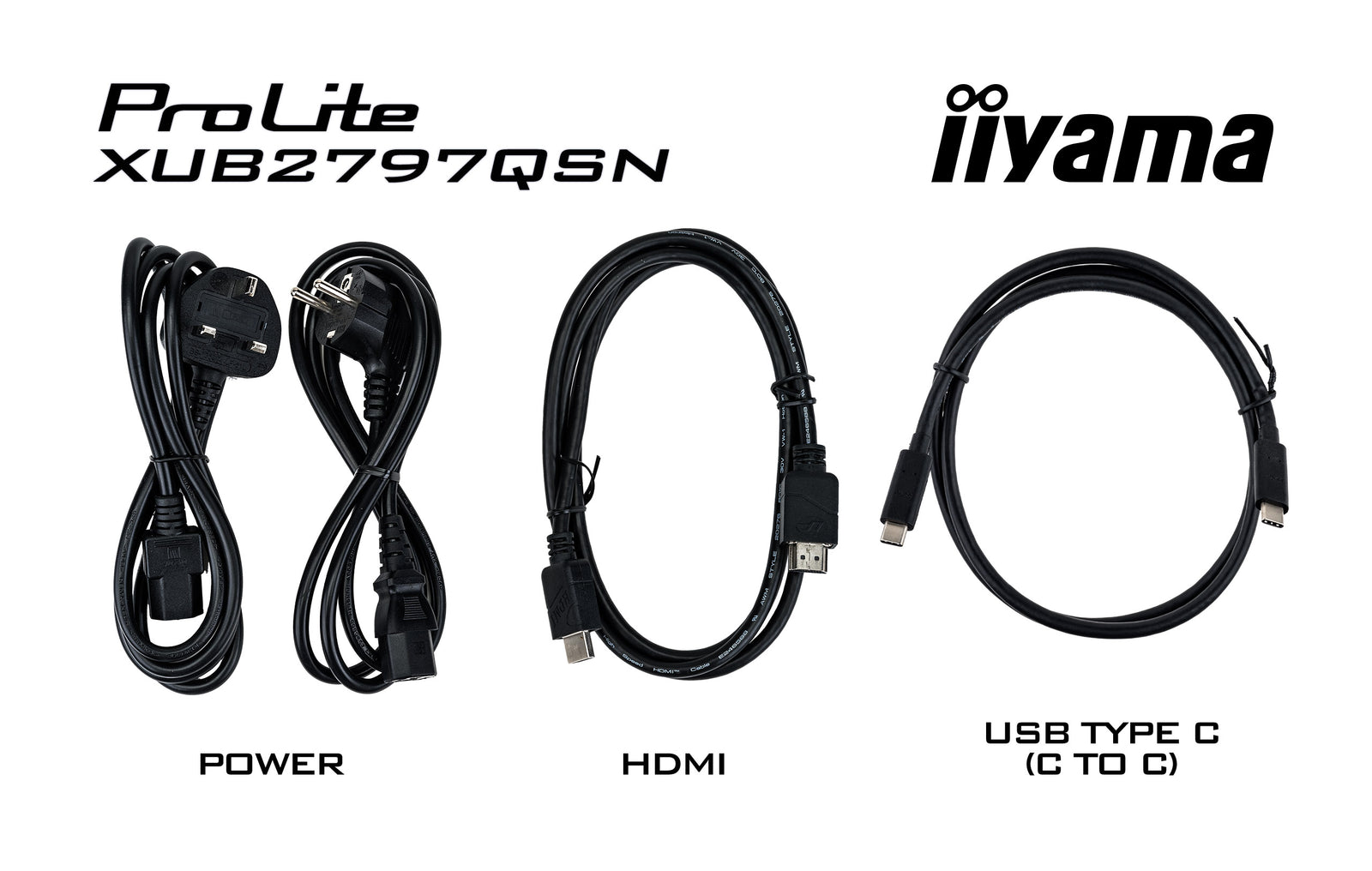

Cables included	Power, HDMI, DP, USB-C
Accessories included	Quick start guide, safety guide
Power supply unit	Internal
Power supply	AC 100 - 240V, 50/60Hz
Power usage	26W typical, 0.5W standby, 0.3W off mode
Regulations	TCO Certified, CE, TÜV-Bauart, EAC, VCCI-B, PSE, RoHS, ErP, WEEE, REACH, UKCA
Energy efficiency class	F
REACH SVHC	Above 0.1%: Lead
Product dimensions (W x H x D)	613.5 x 400.5 (550.5) x 209.5mm
Box dimensions (W x H x D)	679 x 427 x 130mm
Weight (without box)	6.1kg
Weight (with box)	8.7kg
EAN code	4948570123308
