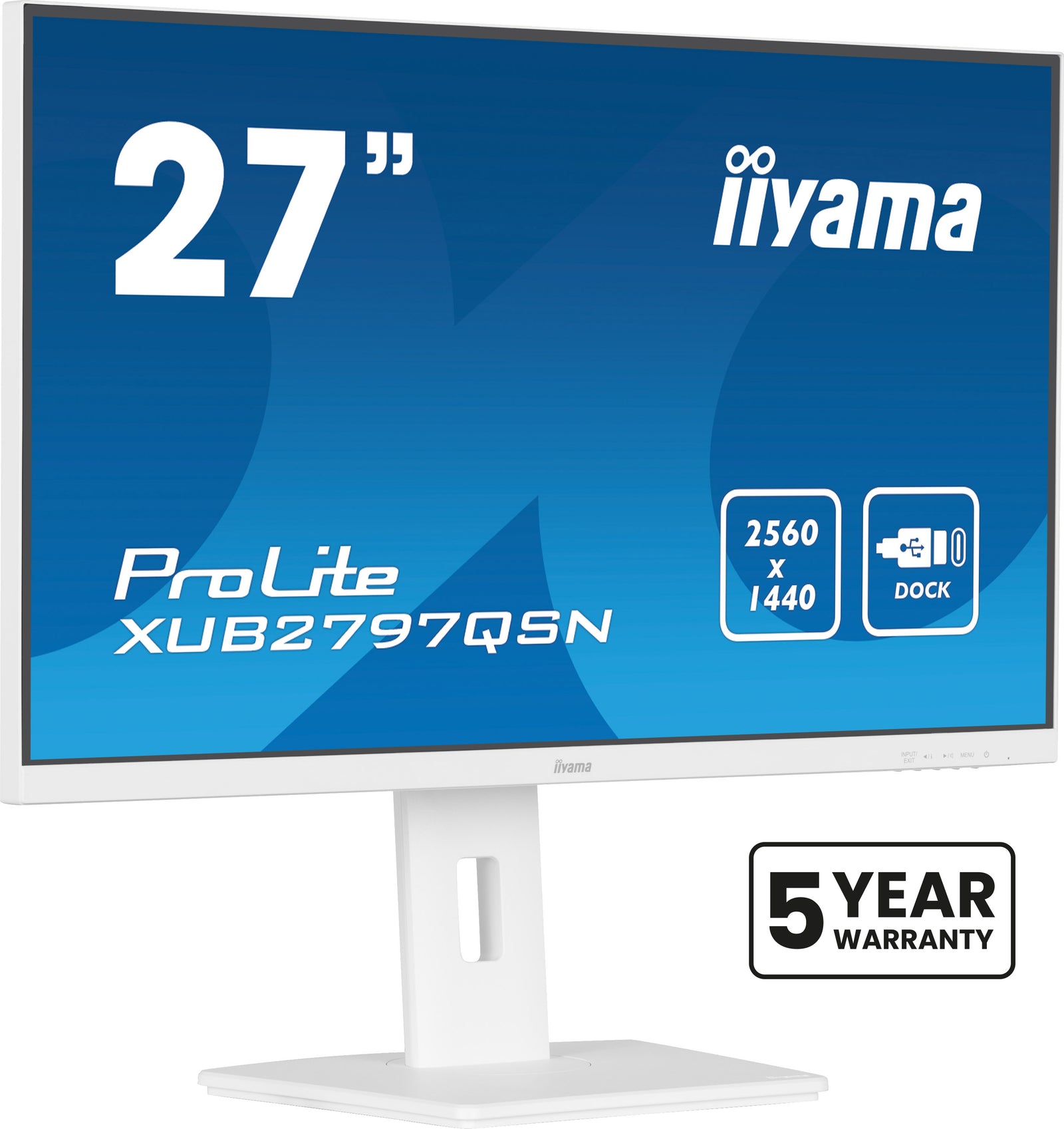

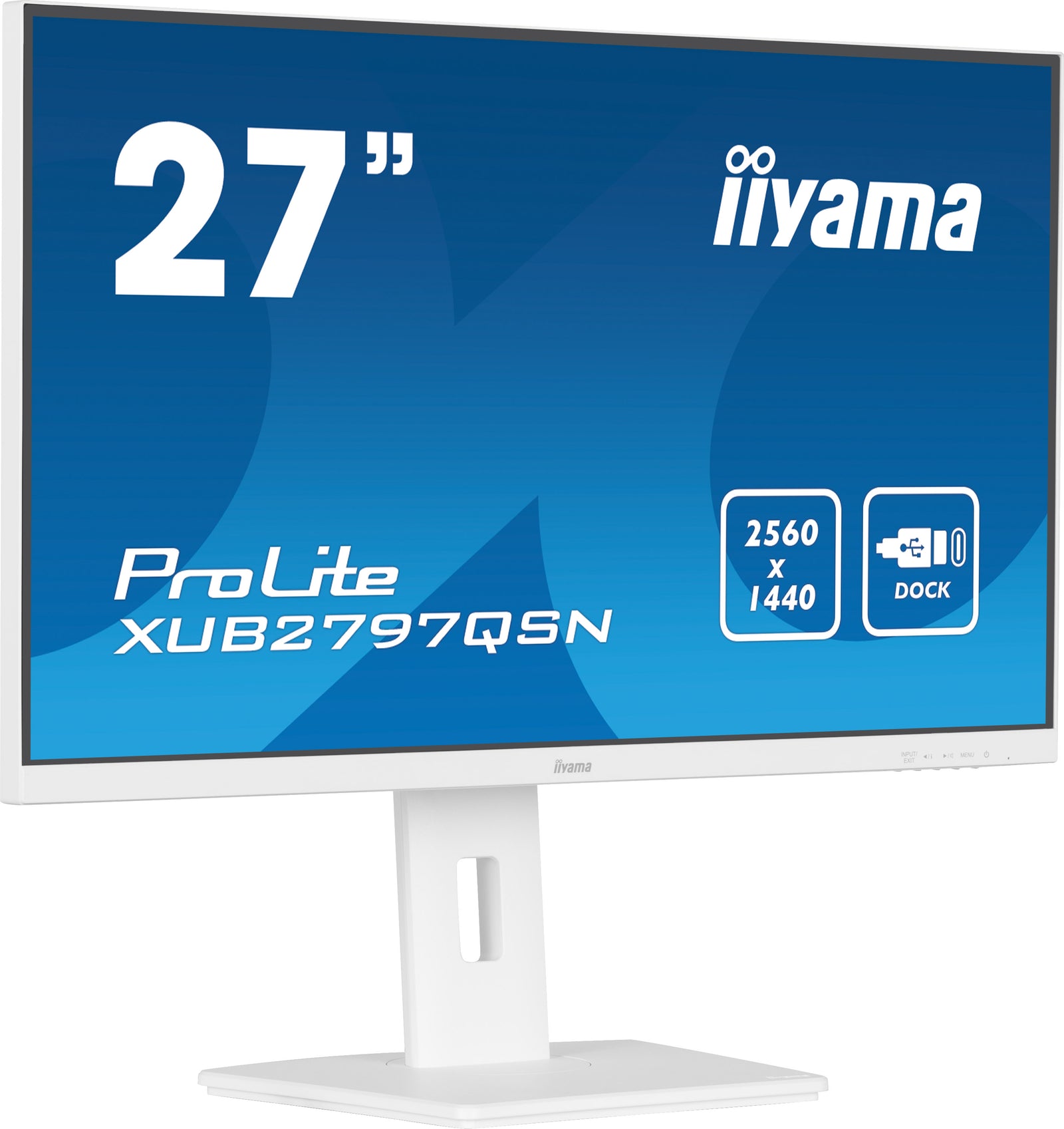

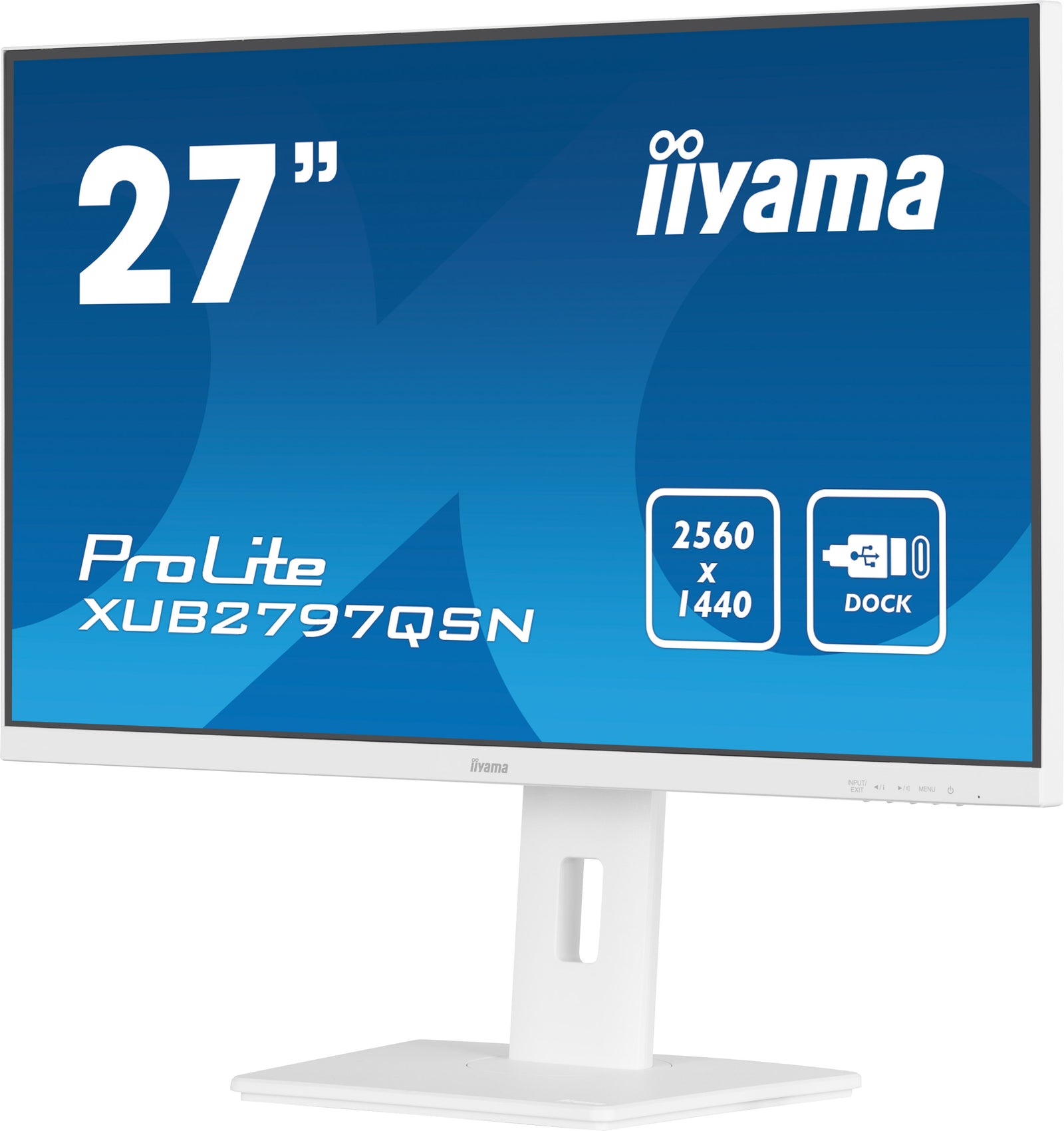

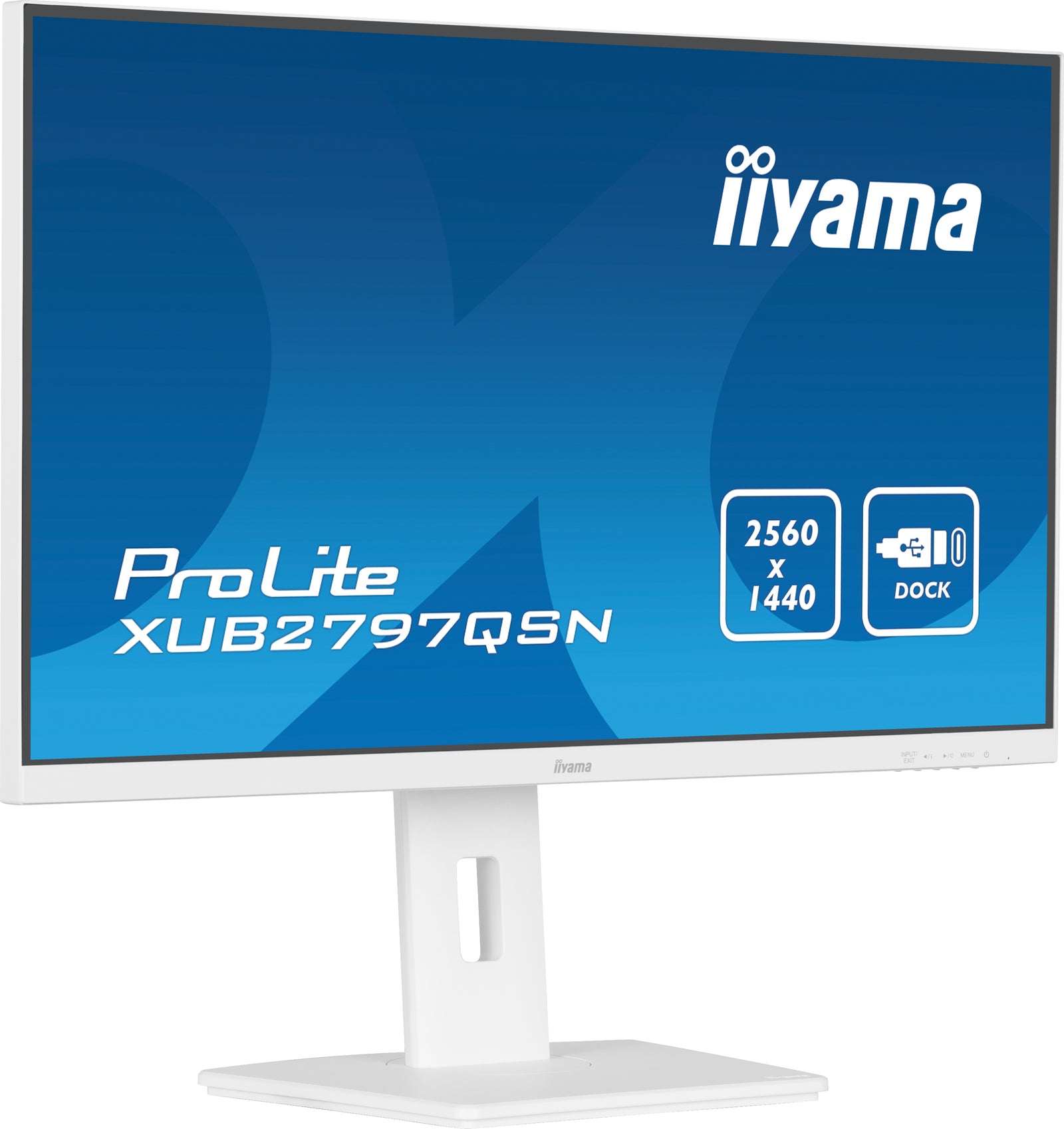

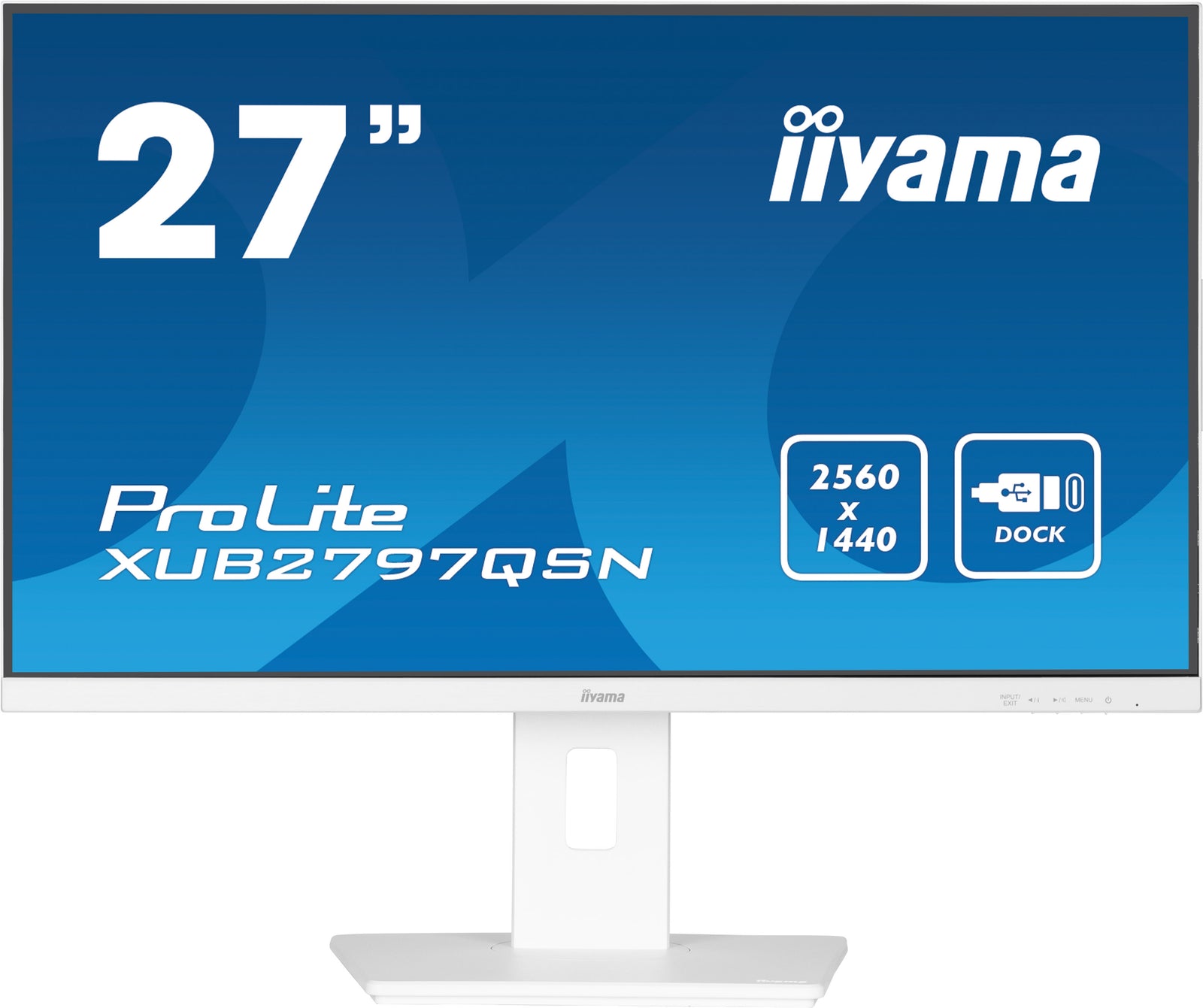

iiyama ProLite XUB2797QSN-W2 27’’ 100Hz QHD Desktop Monitor

USB-C Dock
The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. A second monitor can be connected to the DisplayPort (MST) output to create a multi-monitor set-up. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor.
*Functions vary depending on your laptop USB-C support.

IPS Technology
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

QHD
With true QHD 2560 x 1440p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen, i.e. over 76% more in comparison to a 1920 x 1080 monitor.

Flicker-free + Blue light
The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.

Speakers
This LED monitor is equipped with two high quality stereo speakers.

Category	Details
Design	3-side borderless
Diagonal	27", 68.5cm
Panel	IPS Panel Technology LED, matte finish
Native Resolution	2560 x 1440 @100Hz (3.7 megapixel QHD)
Aspect Ratio	16:9
Panel Brightness	300 cd/m²
Static Contrast	1300:1
Advanced Contrast	80M:1
Response Time (MPRT)	1ms
Viewing Zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour Support	16.7mln (sRGB: 99%; NTSC: 72%)
Horizontal Sync	30 - 151kHz
Viewable Area (W x H)	596.7 x 335.7mm, 23.5 x 13.2"
Pixel Pitch	0.233mm
Colour	matte, white

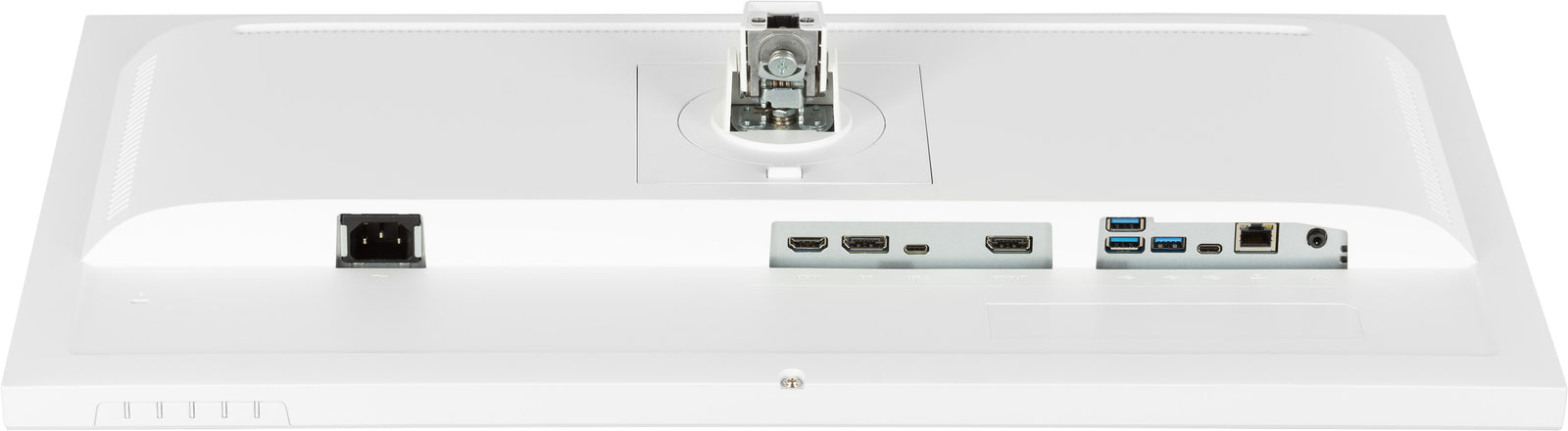

Signal Input	HDMI x1 (v.2.0), DisplayPort x1 (v.1.4), USB-C x1 (PD 65W)
Signal Output	DisplayPort x1 (Daisy Chain MST max. 2560 x 1440)
USB Hub	x4 (3x v.3.2 Gen 1 (5Gbps, 4.5W), 1x Type C (5Gbps, 15W))
USB-C Dock	x1 (Power delivery 65W, LAN, DP out, USB v.3.2 (Gen 1, 5Gbit))
HDCP	yes
Headphone Connector	yes
RJ45 (LAN)	x1
Blue Light Reducer	yes
Flicker Free	yes
Adaptive Sync Support	yes
Extra Feature	i-Style colour
OSD Languages	EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL
Control Buttons	Power, Menu, Adjustment/Volume, etc.
Speakers	2 x 2W

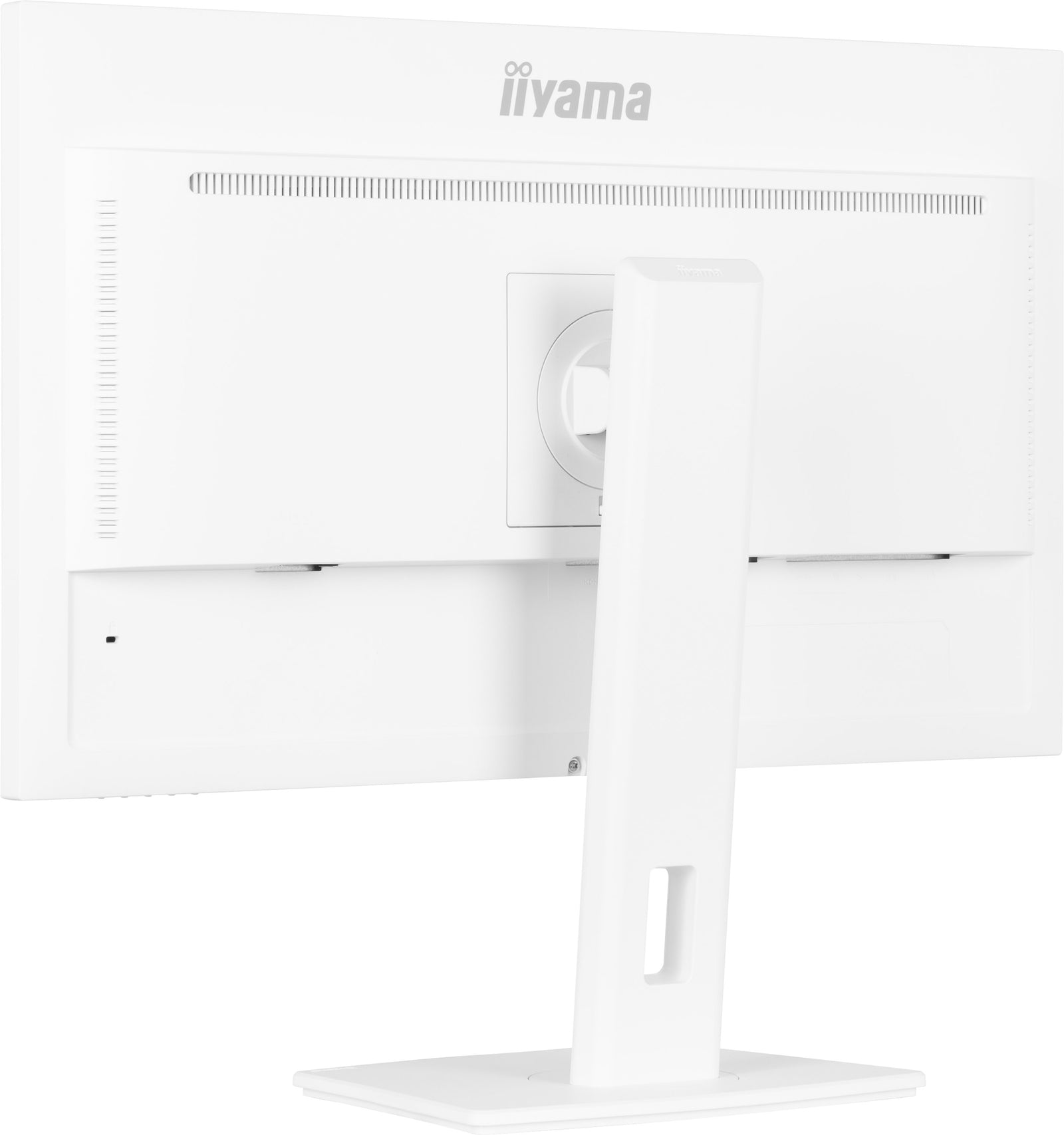

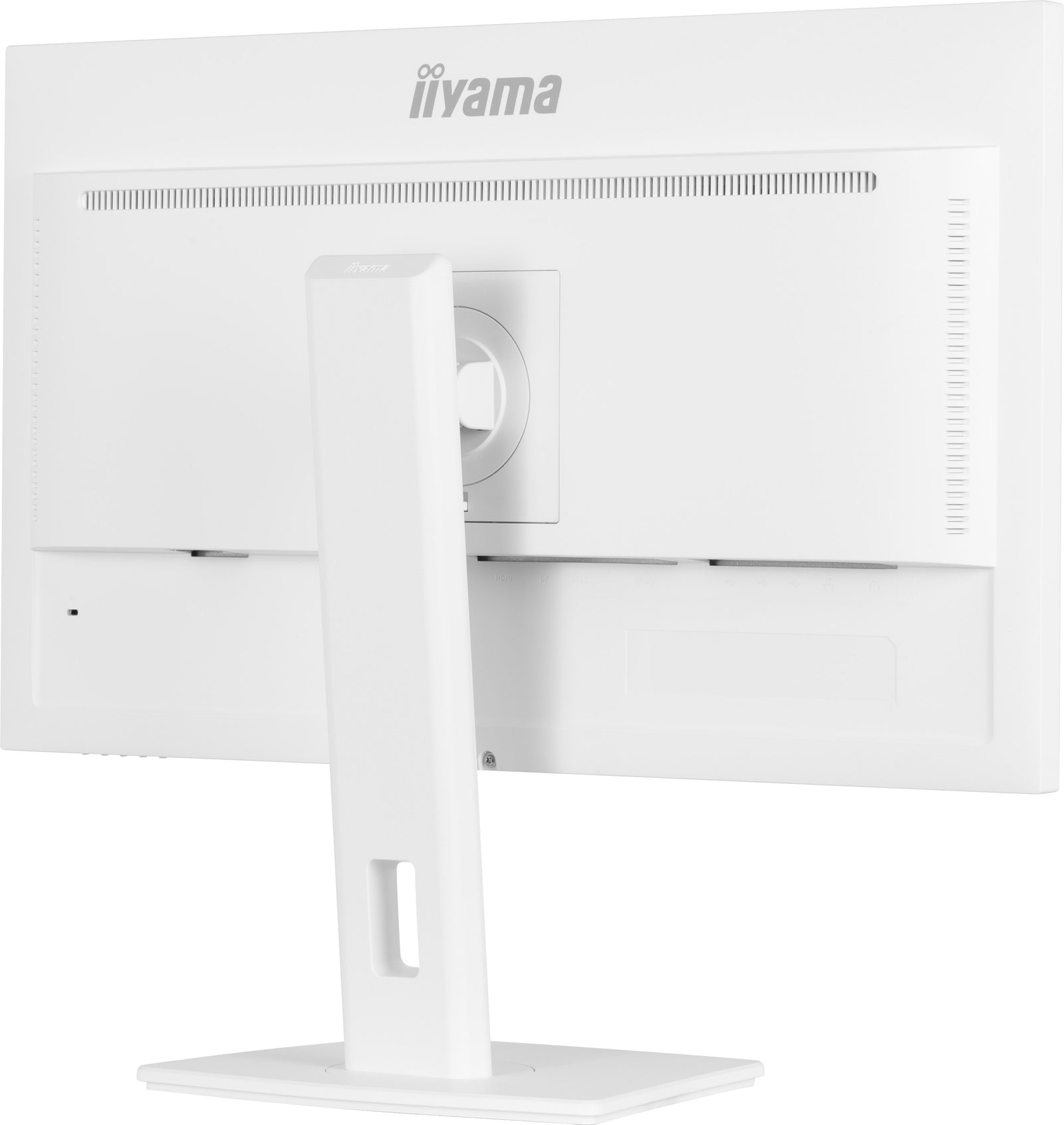

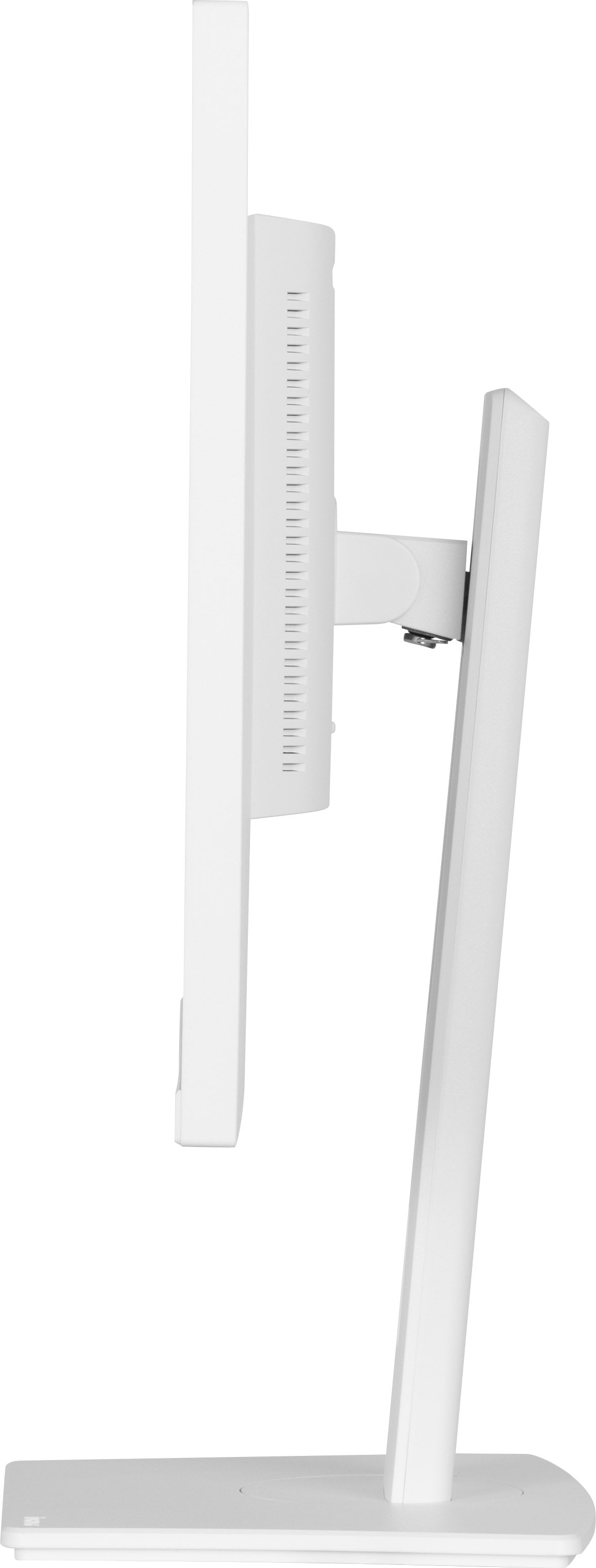

Display Position Adjustments	height, swivel, tilt, pivot (rotation both sides)
Height Adjustment	150mm

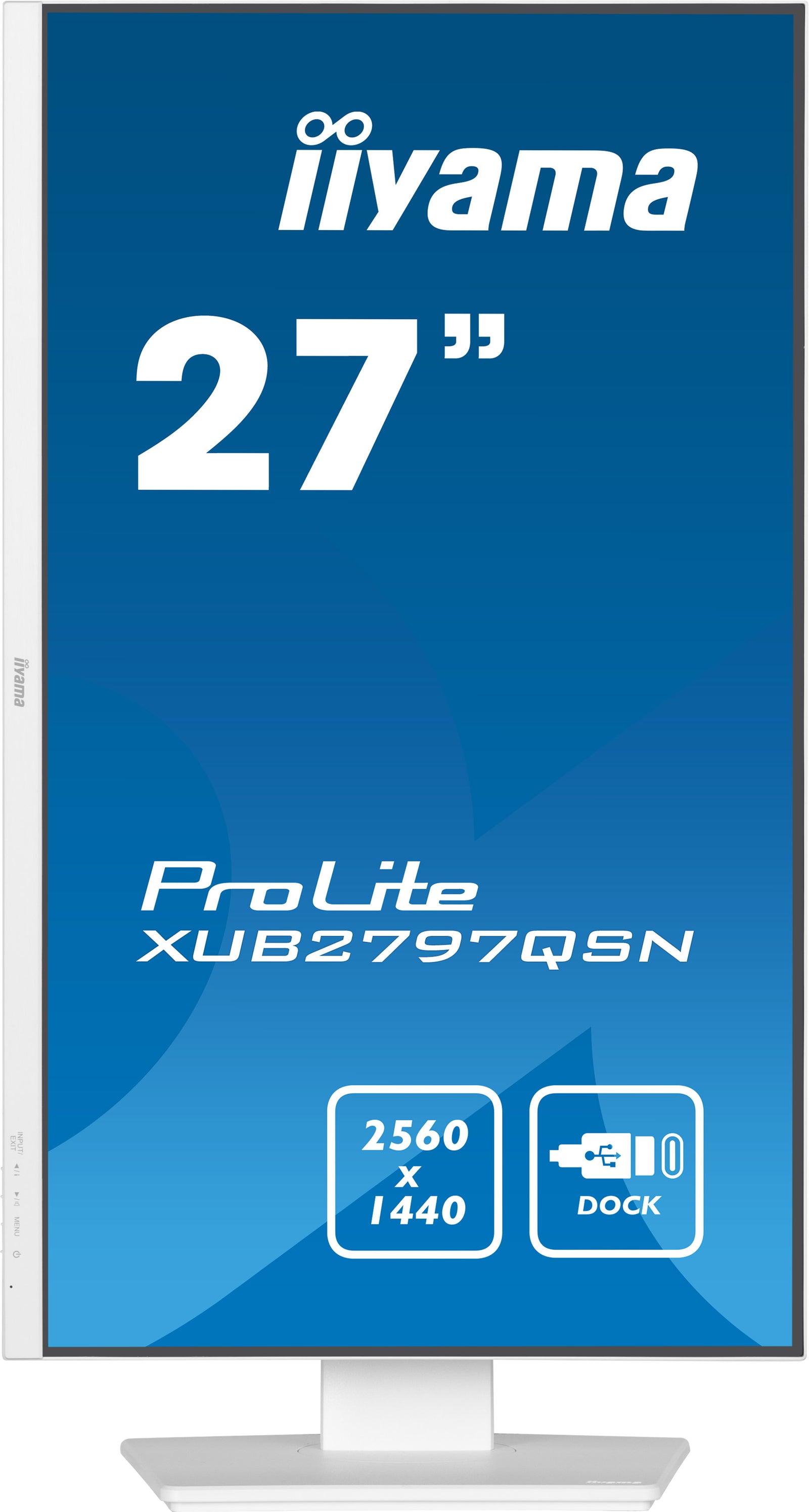

Rotation (Pivot Function)	90°
Swivel Stand	90°; 45° left; 45° right

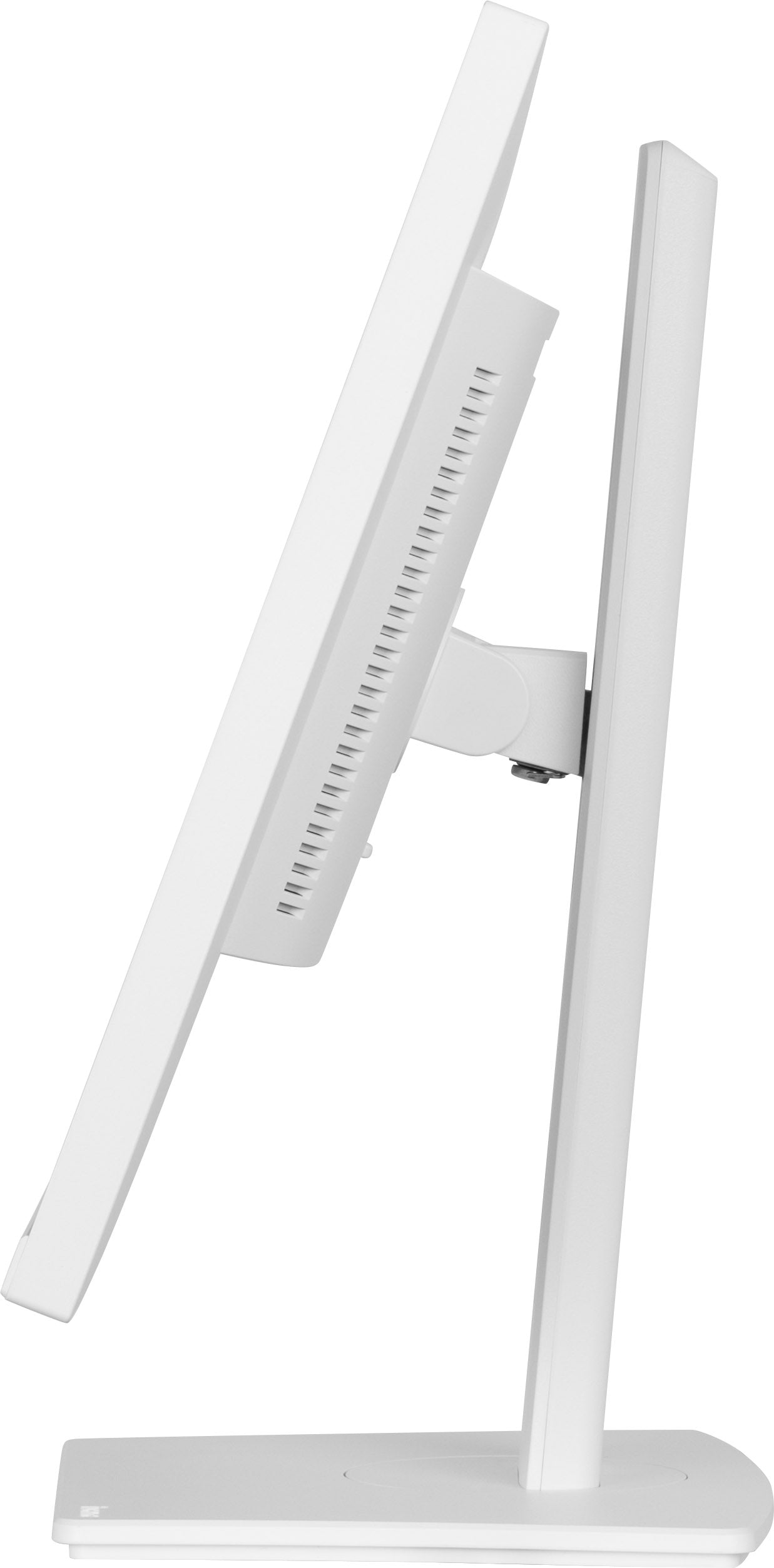

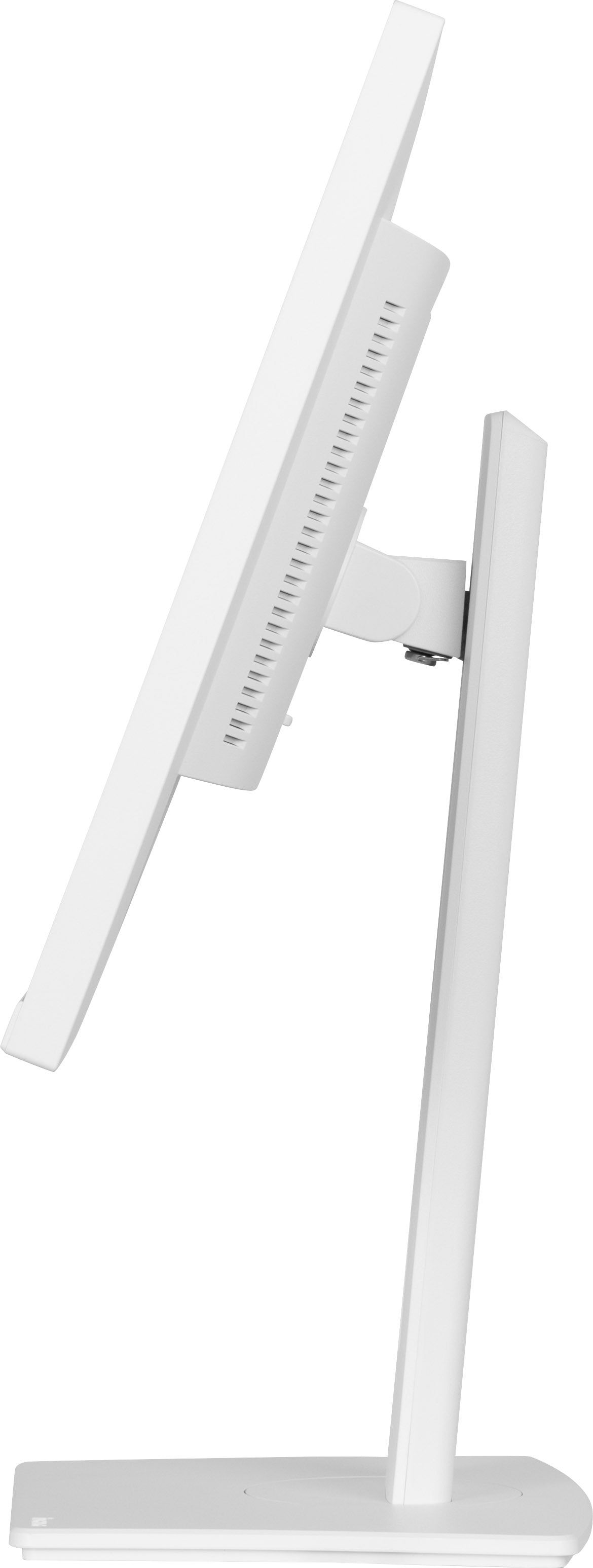

Tilt Angle	23° up; 5° down

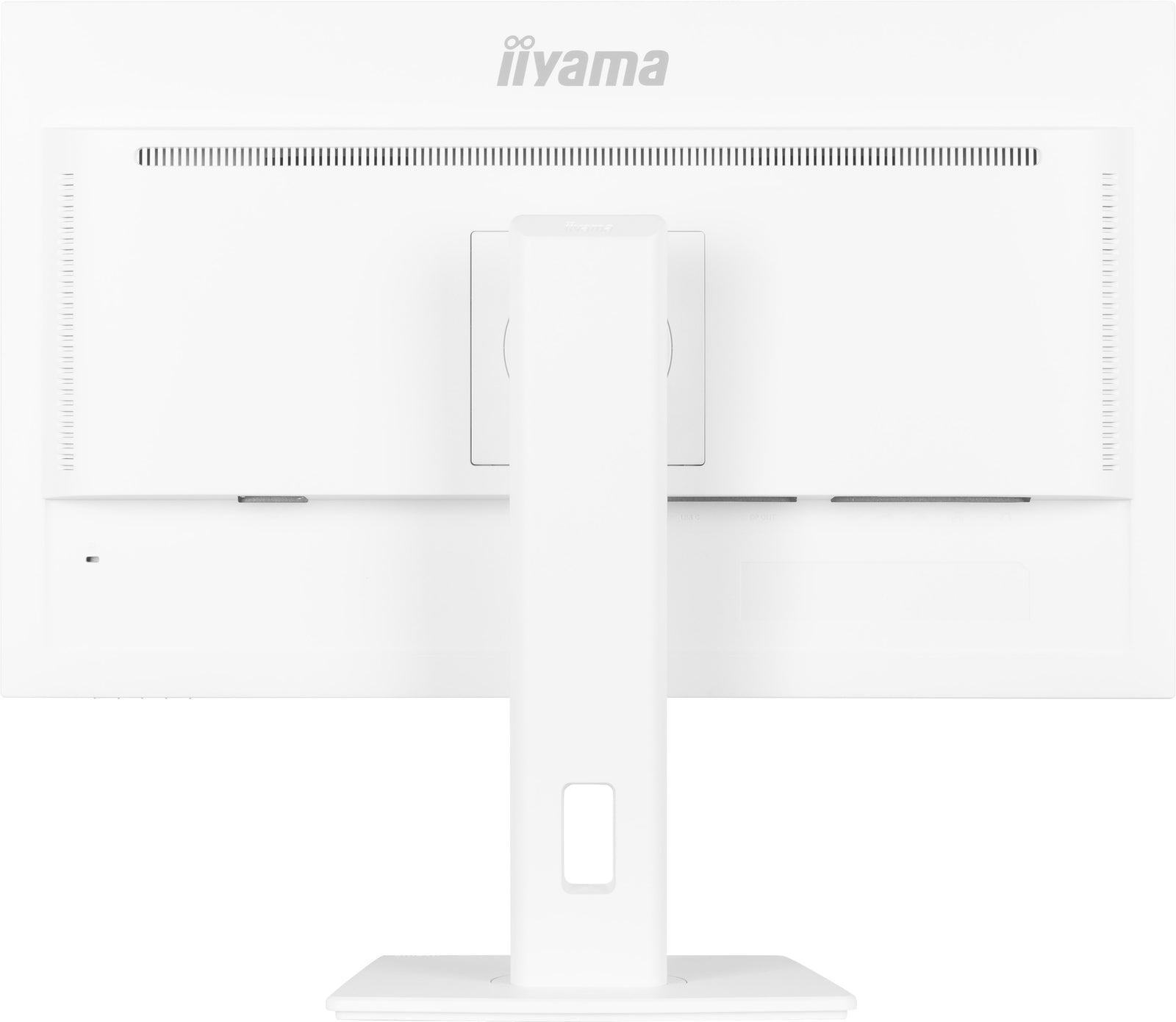

VESA Mounting	100 x 100mm
Cable Management System	yes
Included Cables	power, HDMI, DP, USB-C
Included Accessories	quick start guide, safety guide
Power Supply Unit	internal
Power Supply	AC 100 - 240V, 50/60Hz
Power Usage	26W typical, 0.5W stand by, 0.3W off mode
Energy Efficiency Class	E
Sustainability Regulations	TCO Certified, CE, TÜV-GS, EAC, VCCI-B, PSE, RoHS, ErP, WEEE, REACH, UKCA
REACH SVHC	above 0.1%: Lead
Warranty	5 years
Product Dimensions (W x H x D)	613.5 x 400.5 (550.5) x 209.5mm
Box Dimensions (W x H x D)	679 x 427 x 130mm
Weight (without box)	6.1kg
Weight (with box)	8.7kg
EAN Code	4948570125036
