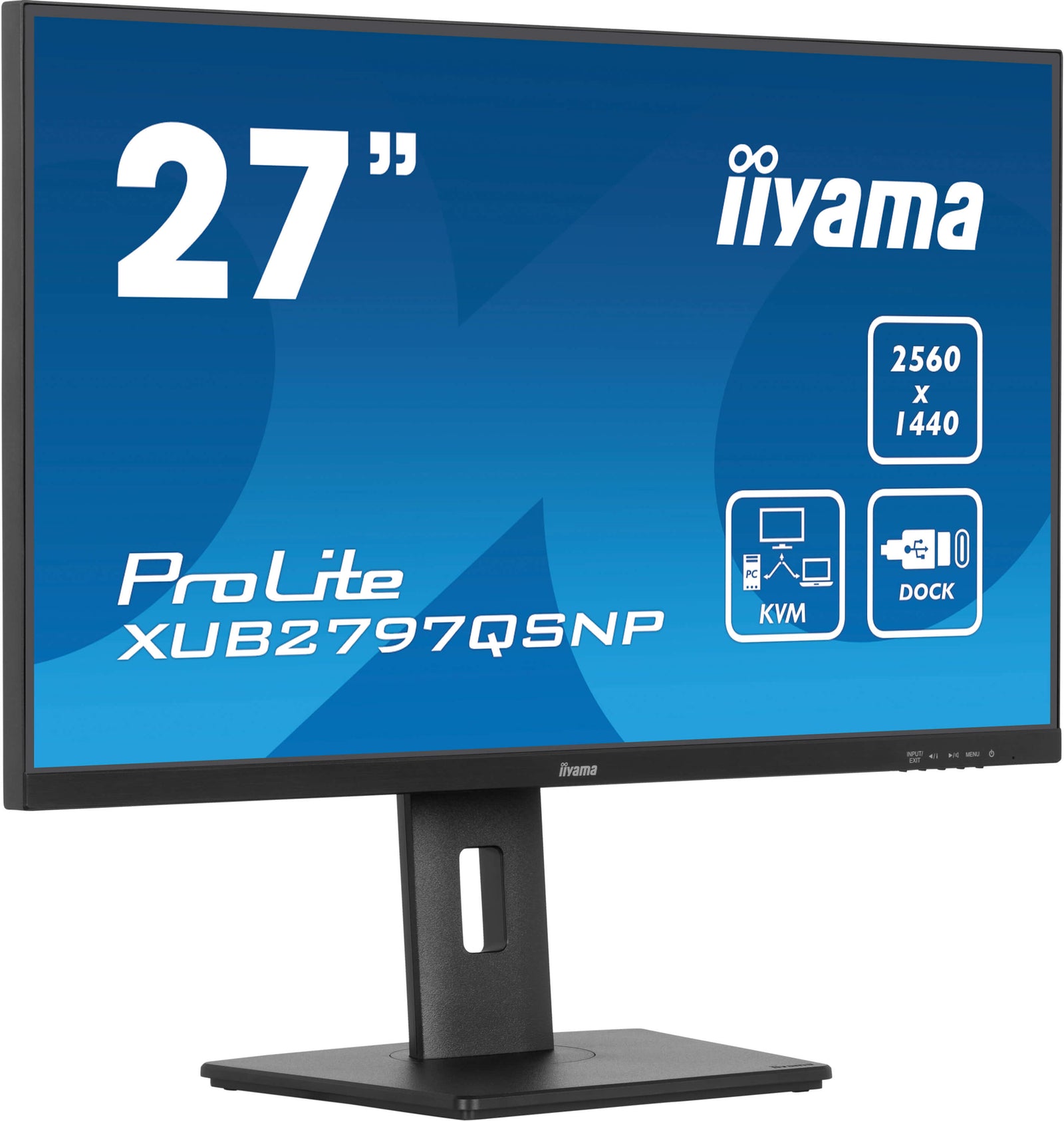

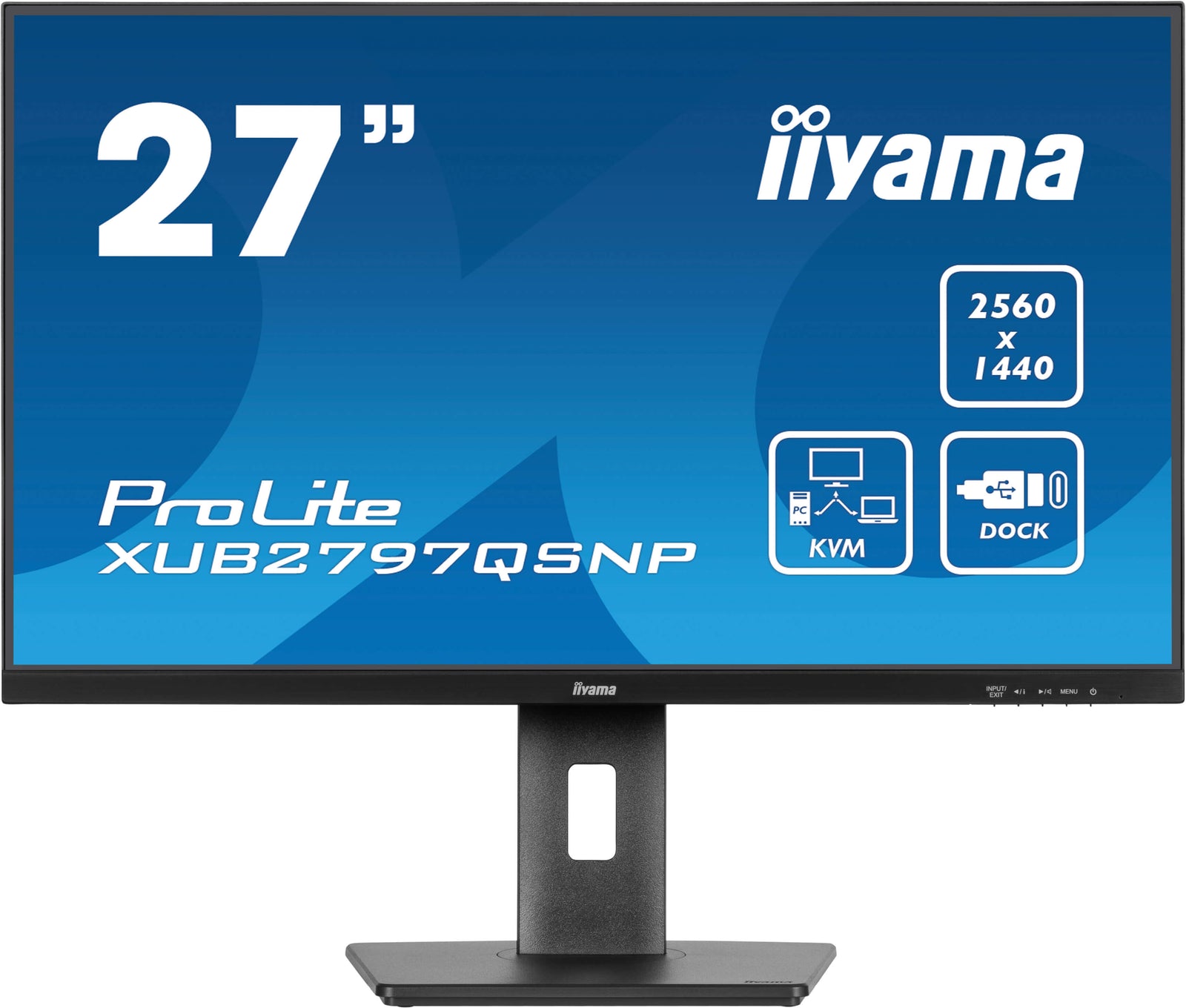

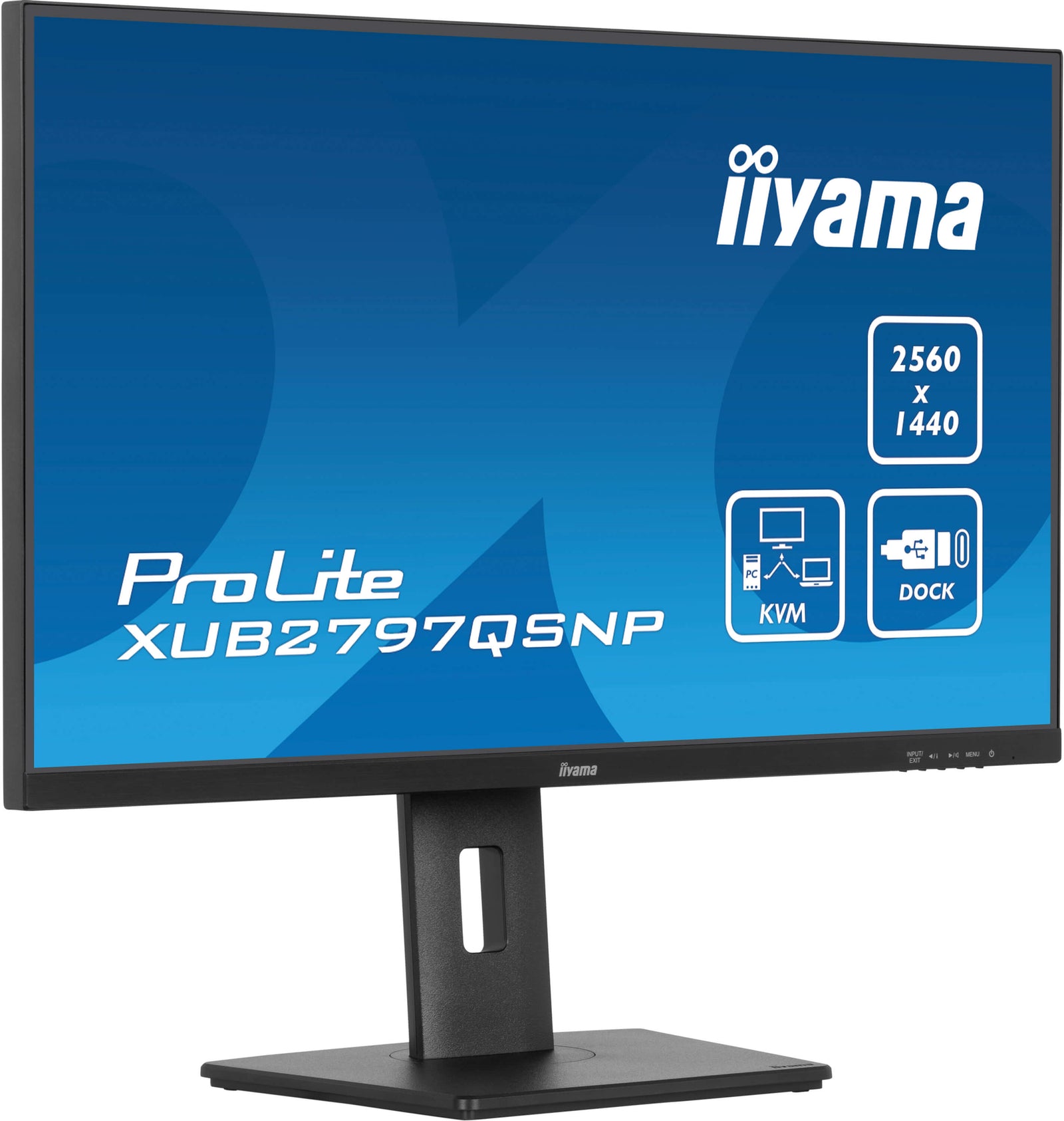

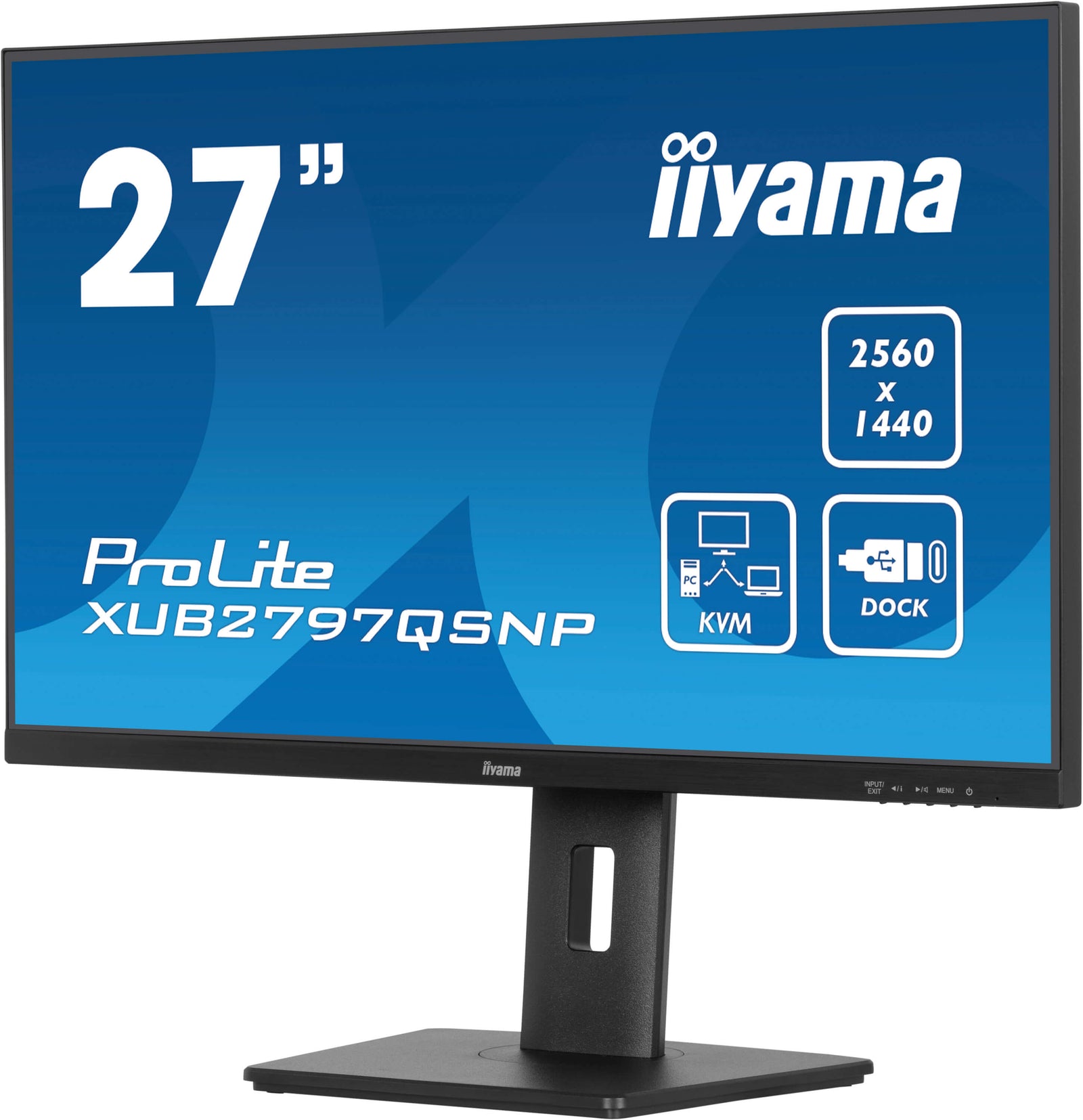

iiyama ProLite XUB2797QSNP-B1 27" 100Hz 1ms IPS Desktop Monitor

Discover the XUB2797QSNP, a 27’’ QHD IPS panel equipped with USB-C dock, KVM switch, and RJ45 for LAN connectivity. The KVM switch allows to connect multiple computers through a single console. Get rid of cable clutter with the USB-C dock that carries all data (audio and video) whilst powering your notebook. Easily extend your desktop by creating a dual-monitor set-up with the DisplayPort output. Enjoy accurate colours and wide viewing angles thanks to the IPS panel. Benefit from exceptional performance for tasks like photography and web design, thanks to the QHD resolution and high contrast. The ergonomic stand offers a height adjustment of 150mm and tilt/swivel mechanisms for portrait mode, optimizing comfort while working with extensive data sheets

USB-C Dock
The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. A second monitor can be connected to the DisplayPort (MST) output to create a multi-monitor set-up. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor.
*Functions vary depending on your laptop USB-C support.

KVM SWITCH
Having a monitor with a KVM switch allows you to share the devices connected via USB to your monitor with two different PCs. Just change the signal input in the OSD menu of the monitor and your keyboard, mouse and webcam will switch from your work laptop to your gaming PC.

IPS Technology
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

QHD
With true QHD 2560 x 1440p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen, i.e. over 76% more in comparison to a 1920 x 1080 monitor.

Flicker-free + Blue light
The ultimate solution for the comfort and health of your eyes. Flicker-free monitors with the blue light reducer function substantially reduce the strain and fatigue caused by flickering and blue light emittance of regular monitors.

Category	Details
DISPLAY CHARACTERISTICS
Design	3-side borderless
Diagonal	27", 68.5cm
Panel	IPS Panel Technology LED, matte finish
Native resolution	2560 x 1440 @100Hz (3.7 megapixel QHD)
Aspect ratio	16:9
Panel brightness	300 cd/m²
Static contrast	1300:1
Advanced contrast	80M:1
Response time (MPRT)	1ms
Viewing zone	horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support	16.7mln (sRGB: 99%; NTSC: 72%)
Horizontal Sync	30 - 151kHz
Viewable area W x H	596.7 x 335.7mm, 23.5 x 13.2"
Pixel pitch	0.233mm
Colour	matte, black

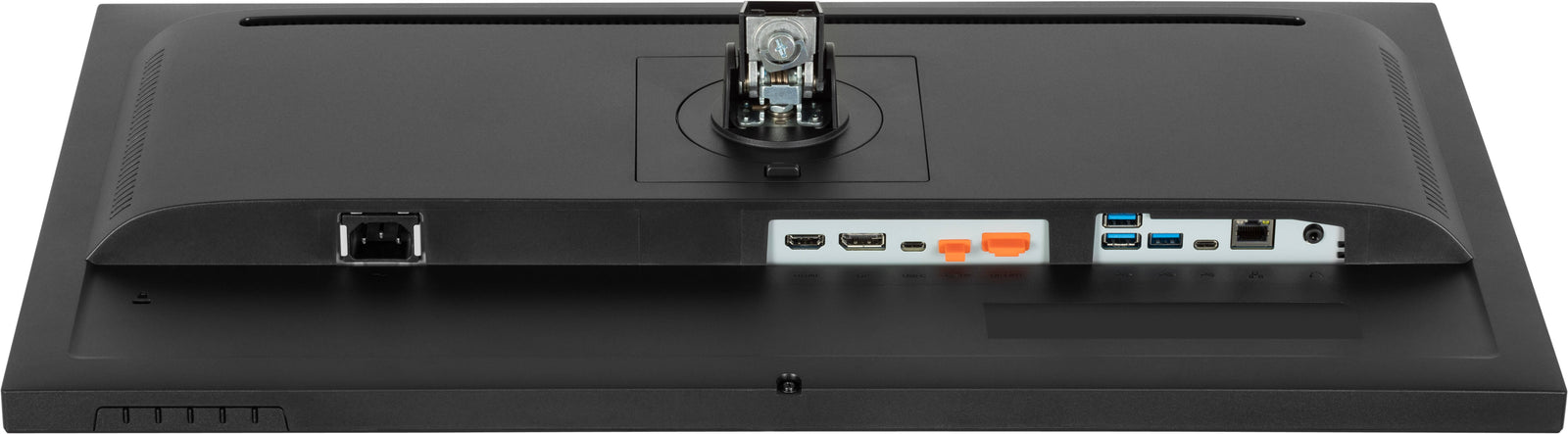

INTERFACES / CONNECTORS / CONTROLS

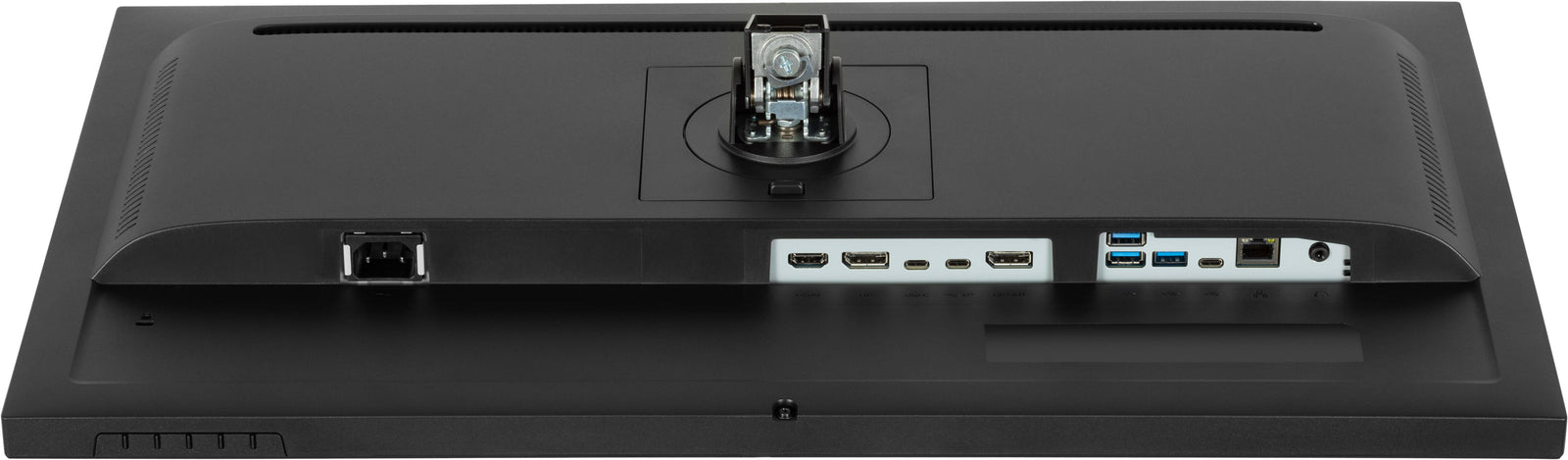

Signal input	HDMI x1 (v.2.0), DisplayPort x1 (v.1.4), USB-C x1 (PD 96W)
Signal output	DisplayPort x1 (Daisy Chain MST max. 2560 x 1440)
USB HUB	x4 (USB 3.2 Gen 1, Type C)
USB-C DOCK	x1 (Power delivery 96W, LAN, DP out, USB 3.2)
HDCP	yes
Headphone connector	yes
RJ45 (LAN)	x1
FEATURES
KVM switch	yes
Blue light reducer	yes
Flicker free	yes
Adaptive Sync support	yes
Extra	i-Style colour
OSD languages	EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL
Control buttons	Power, Menu, Volume, Shortcut, Input / Exit
User controls	Various (picture adjust, color settings, OSD, audio settings)
Speakers	2 x 2W
Convenience	Kensington-lock™, DDC/CI, DDC2B
MECHANICAL

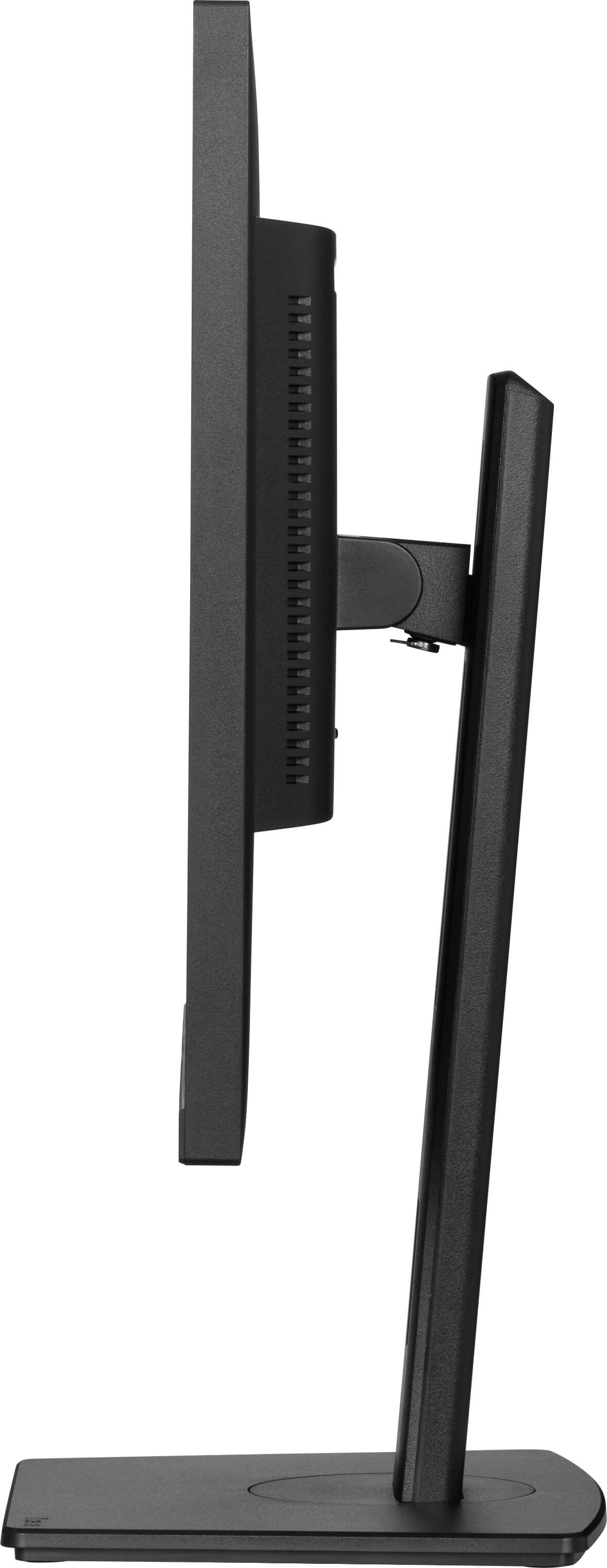

Display position adjustments	height, swivel, tilt, pivot
Height adjustment	150mm

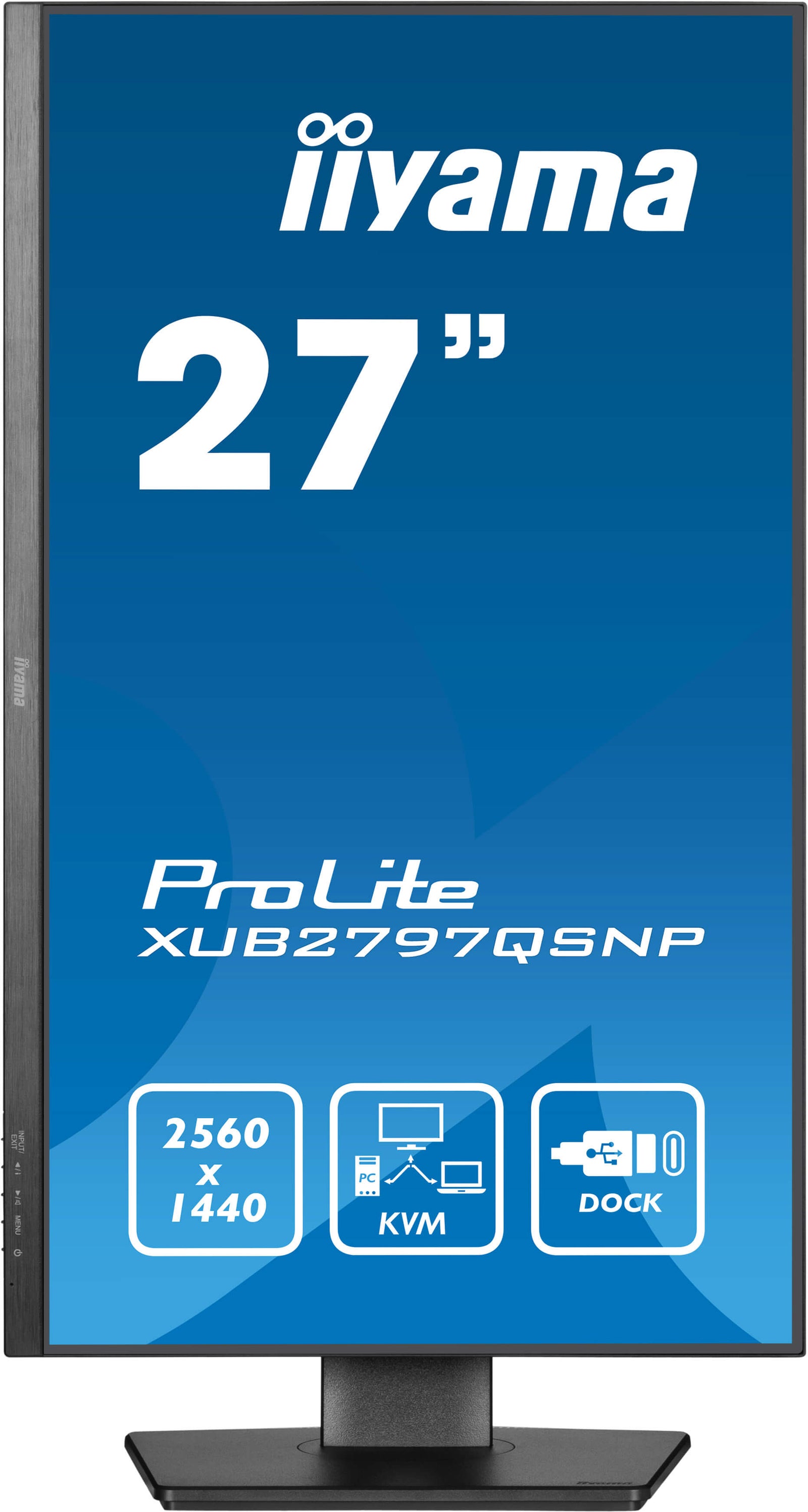

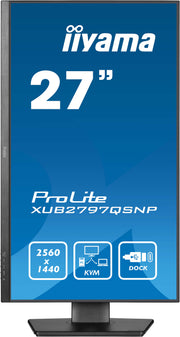

Rotation (PIVOT function)	90°
Swivel stand	90°; 45° left; 45° right

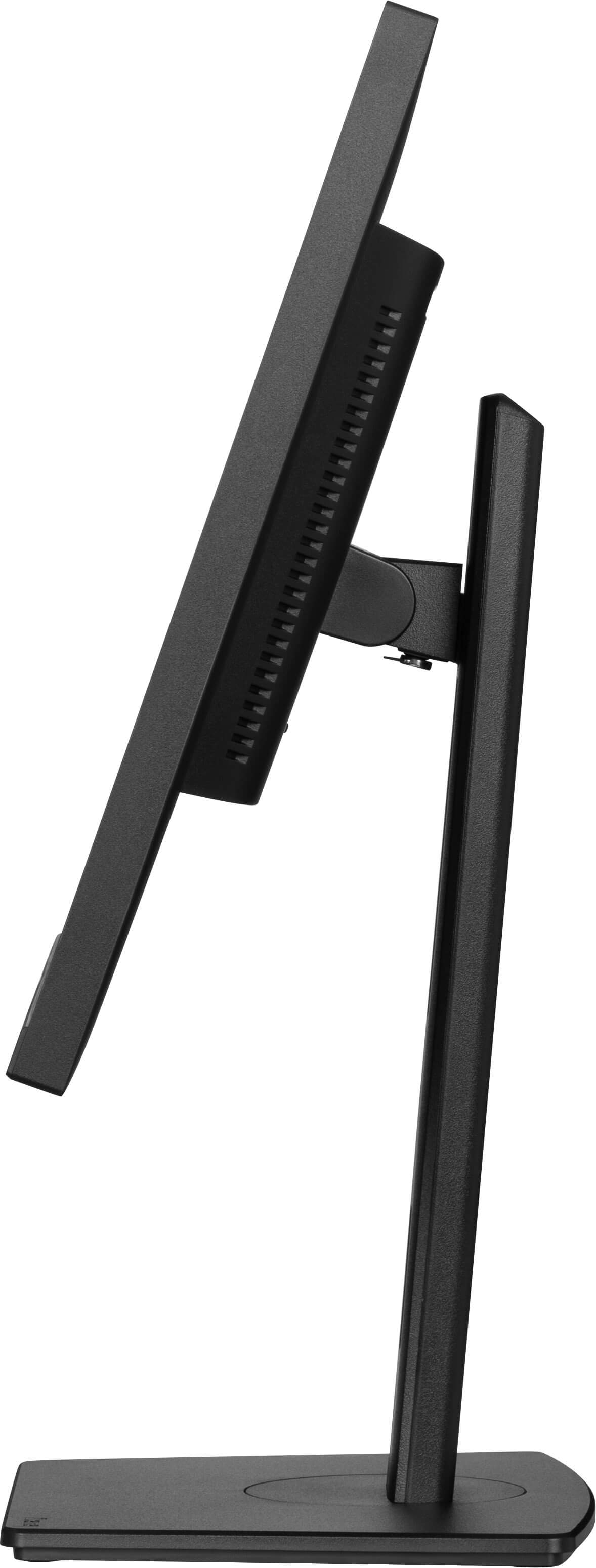

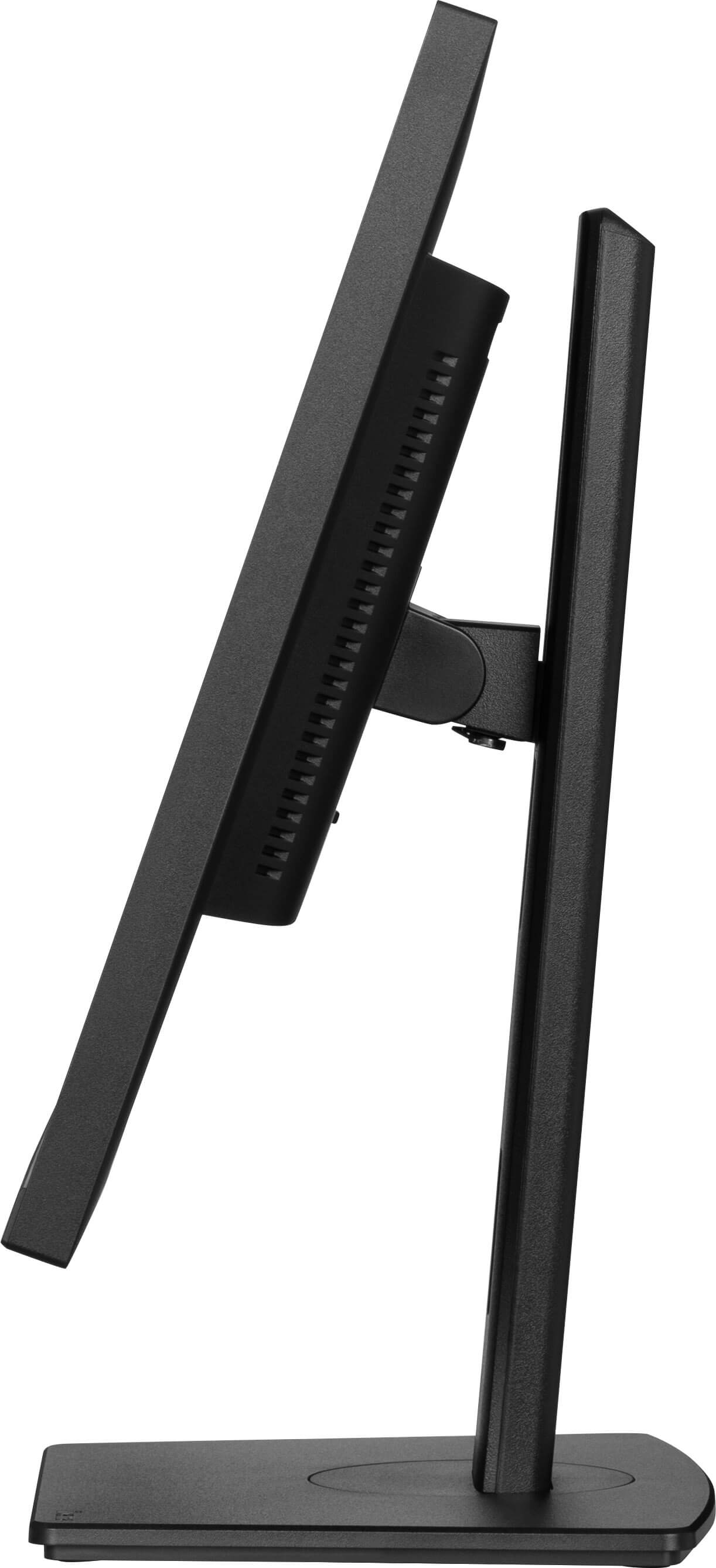

Tilt angle	23° up; 5° down

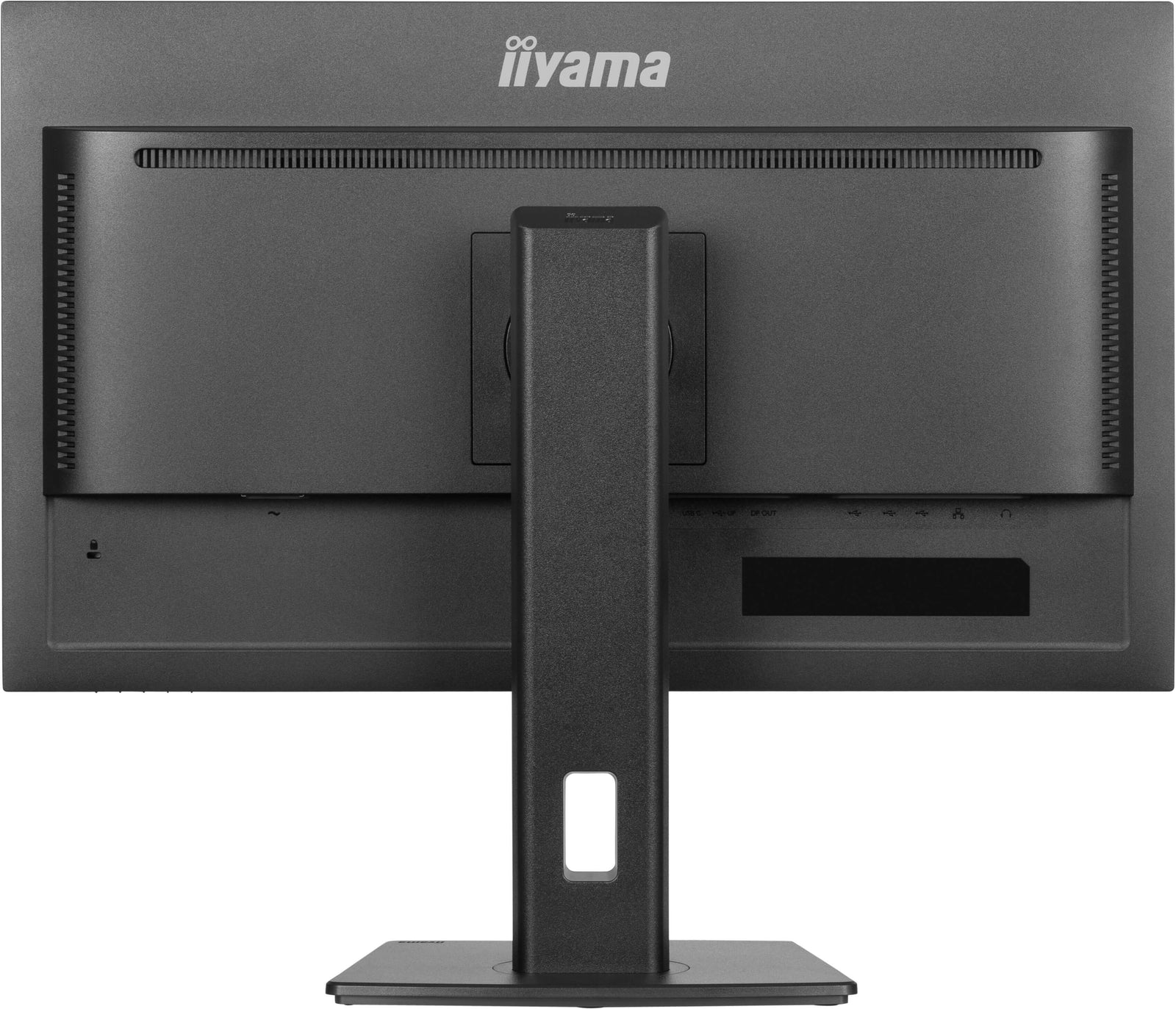

VESA mounting	100 x 100mm
Cable management system	yes
ACCESSORIES INCLUDED

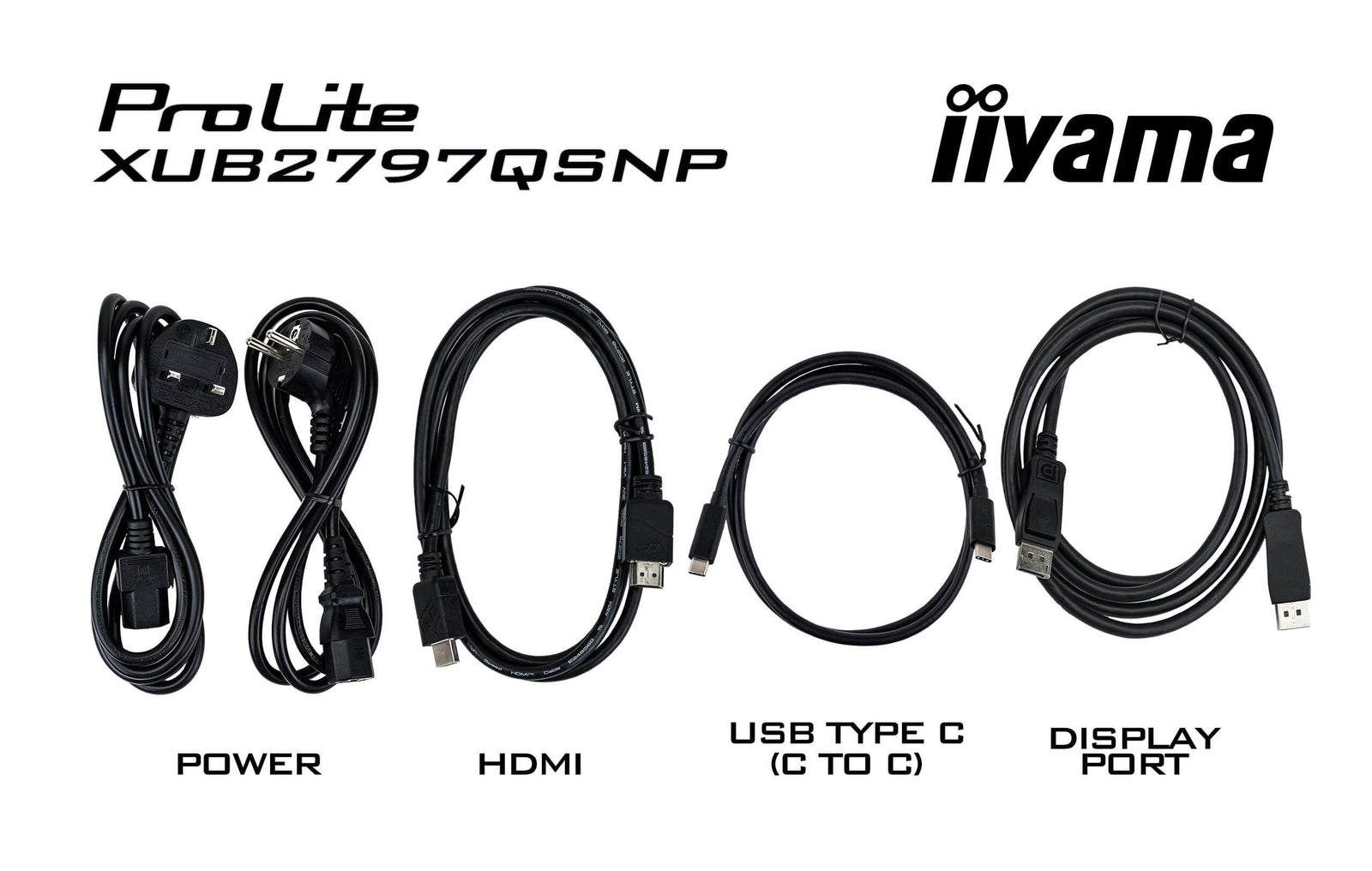

Cables	power, HDMI, DP, USB-C
Other	quick start guide, safety guide
POWER MANAGEMENT
Power supply unit	internal
Power supply	AC 100 - 240V, 50/60Hz
Power usage	26W typical, 0.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations	TCO Certified, CE, TÜV-GS, EAC, VCCI-B, PSE, RoHS, ErP, WEEE, REACH, UKCA
Energy efficiency class	E (Regulation (EU) 2017/1369)
EPEAT Silver	EPEAT Silver certified
REACH SVHC	above 0.1%: Lead

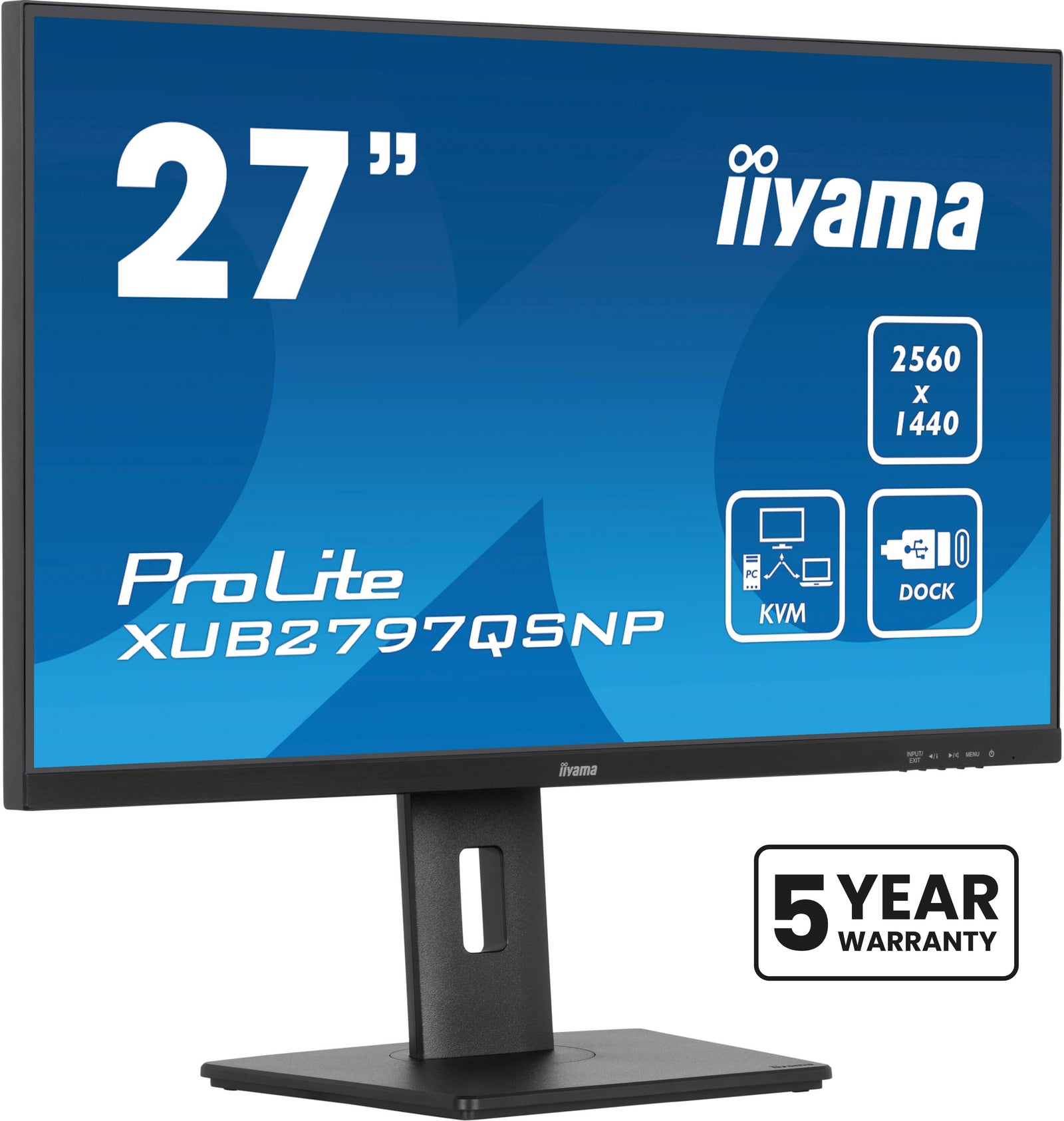

Warranty	5 years
DIMENSIONS / WEIGHT
Product dimensions W x H x D	613.5 x 400.5 (550.5) x 209.5mm
Box dimensions W x H x D	679 x 427 x 130mm
Weight (without box)	6.1kg
Weight (with box)	8.7kg
EAN code	4948570124329
