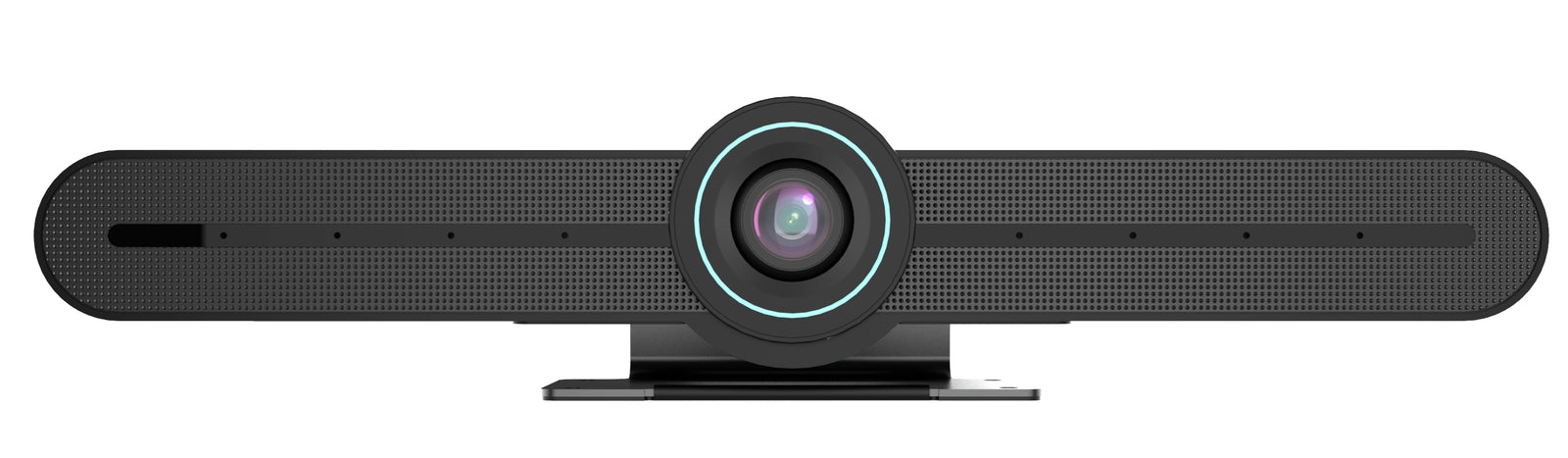

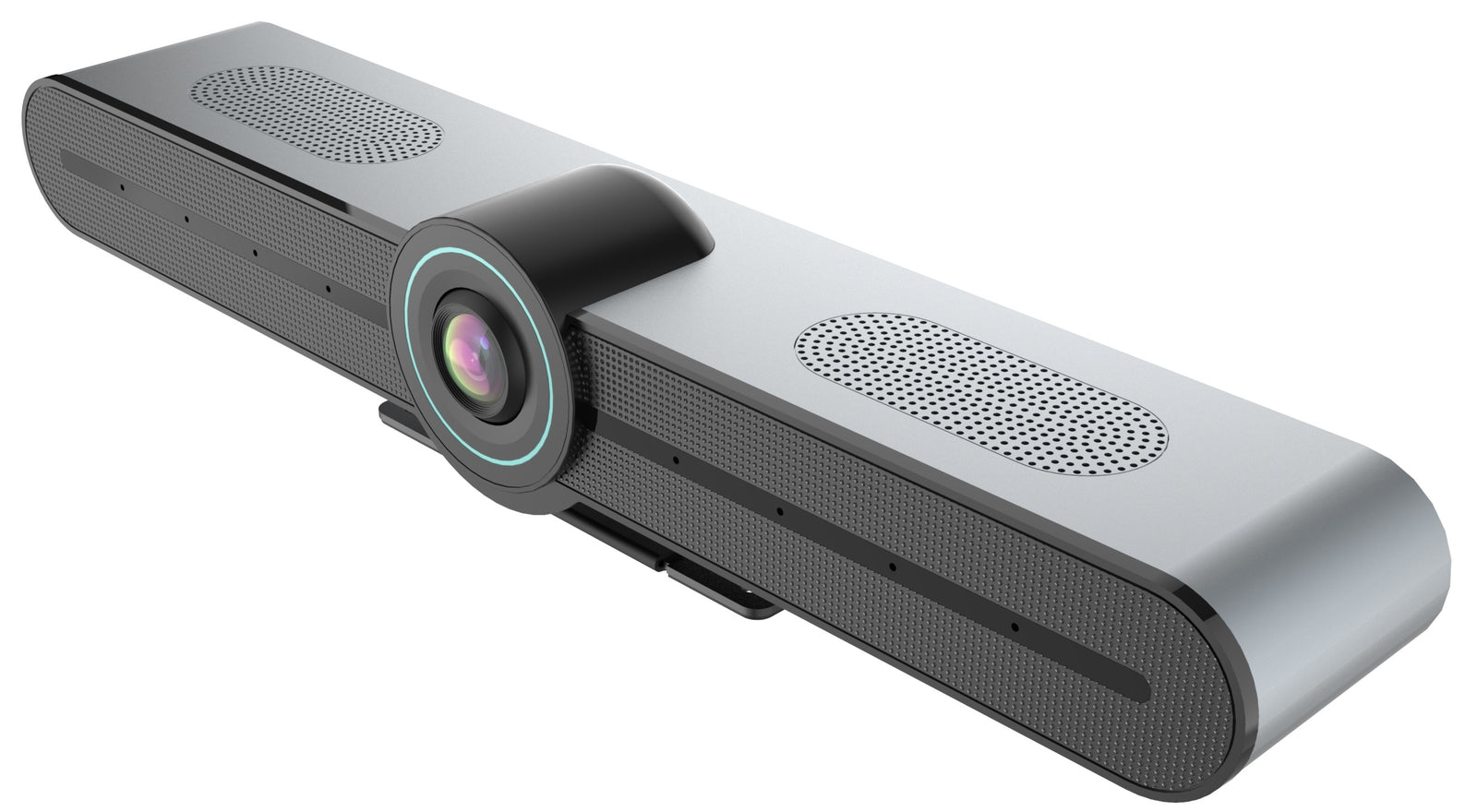

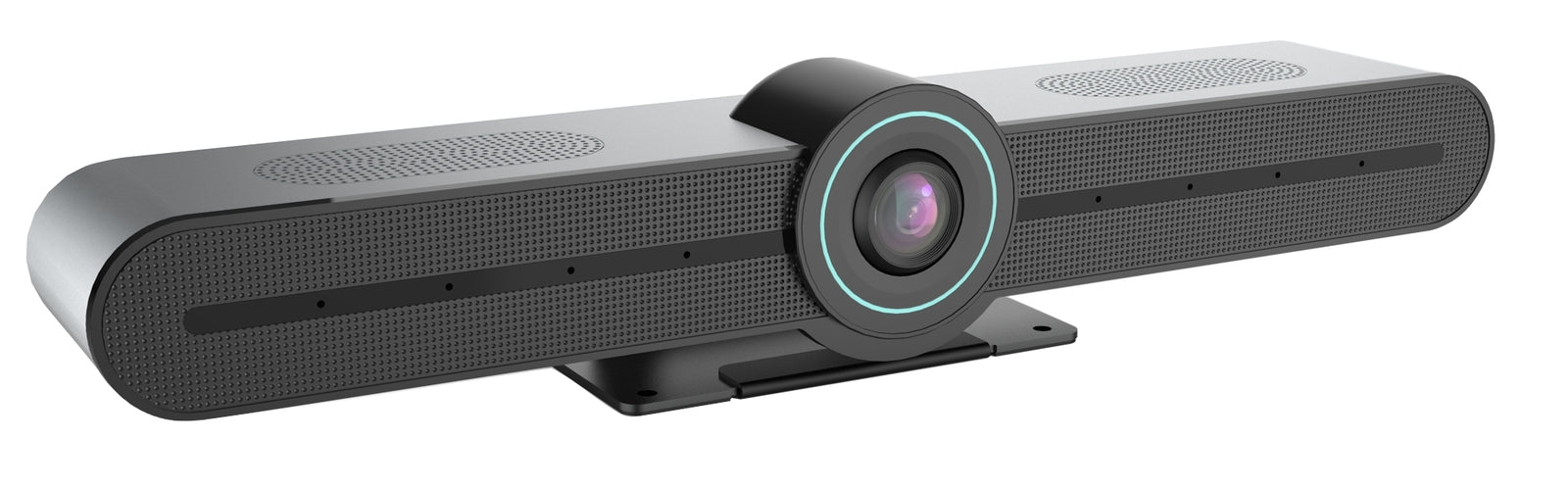

The UC-BAR30-1 is a compact all-in-one video conferencing solution designed to simplify hybrid meetings and collaboration. Combining a 4K UHD camera, integrated speaker and a 4-microphone array in a single sleek video bar, it delivers clear video and natural audio for small meeting rooms, huddle spaces and personal workspaces.
Featuring a wide 116° diagonal field of view, AI auto framing and gesture-controlled tracking, the UC-BAR30-1 keeps participants naturally framed during calls without manual adjustments. The integrated far-field microphone array captures voices from up to 8 metres away, while full duplex audio ensures smooth and uninterrupted conversations.
With plug-and-play USB connectivity, compatibility with Windows, macOS, and Android, and flexible installation options including monitor, desktop or wall mounting, the UC-BAR30-1 is ready for fast deployment in any professional environment.
Auto-framing
With intelligent face detection and voice localization, the camera tracks whoever is speaking and smoothly switches between presenters automatically adjusting to best fit participant location and quantity. It not only recognizes and zooms in on meeting participants, but also tracks speakers as they move about the room.
Gesture-Based Control
Control the camera with simple hand gestures. Start or stop tracking and zoom in or out without touching the device. It keeps presentations smooth and professional, allowing you to move freely while the camera follows and frames you automatically.
Present and Navigate with Ease
Take full control of your presentation without being tied to your device. The integrated presenter buttons let you move through slides effortlessly, keeping your flow smooth and uninterrupted. Switch to mouse mode with a single button to point, click, and navigate on-screen content directly.
| Speaker | |||
| Impedance | 4Ω | Maximum sound pressure level | 74±3dB (1W/0.5M) |
| Distortion | <5% | Frequency range | 20Hz ~ 20kHz |
| Camera | |||
| Pixels | 8,29M | Native resolution | 4K UHD |
| Supported resolutions | 3840 x 2160p/30fps, 1920 x 1080p/30fps, 1280 x 720p 30fps, 640 x 480p/30fps | Diagonal field of view (dFoV) | 116° |
| Focus mode | Fixed | Focus distance | 0,5m |
| Aperture | F/2.2 | Zoom | 16x on-screen (effective 5x at 1080P, 2x at 4K) |
| AutoFraming | Yes | ||
| Audio | |||
| Sampling rate | 16KHz 48kHz | Number of microphone arrays | 4 |
| Voice pickup distance | 8m | Speakers | 1 x 5W |
| Connectivity | |||
| Host | USB v.2.0 | ||
| Microphone | |||
| Number of microphone arrays | x4 | Voice pickup range | 0 to 8m (radius) |
| Sensitivity | -26dBV | Signal to noise ratio | 65.5dB |
| Connectivity & Button Operations | |||
| Video Output Resolution | 3840*2160p30, 2560*1440p30, 1920*1080p30, 1280*720p30 | Bluetooth | Yes |
| Buttons | Mute / UnMute | ||
| Mechanical | |||
| Tilt angle | ≤15° | Privacy shutter | Yes |
| Accessories Included | |||
| Cables | USB 2.0 (Type A to C) | Wall mount | Yes |

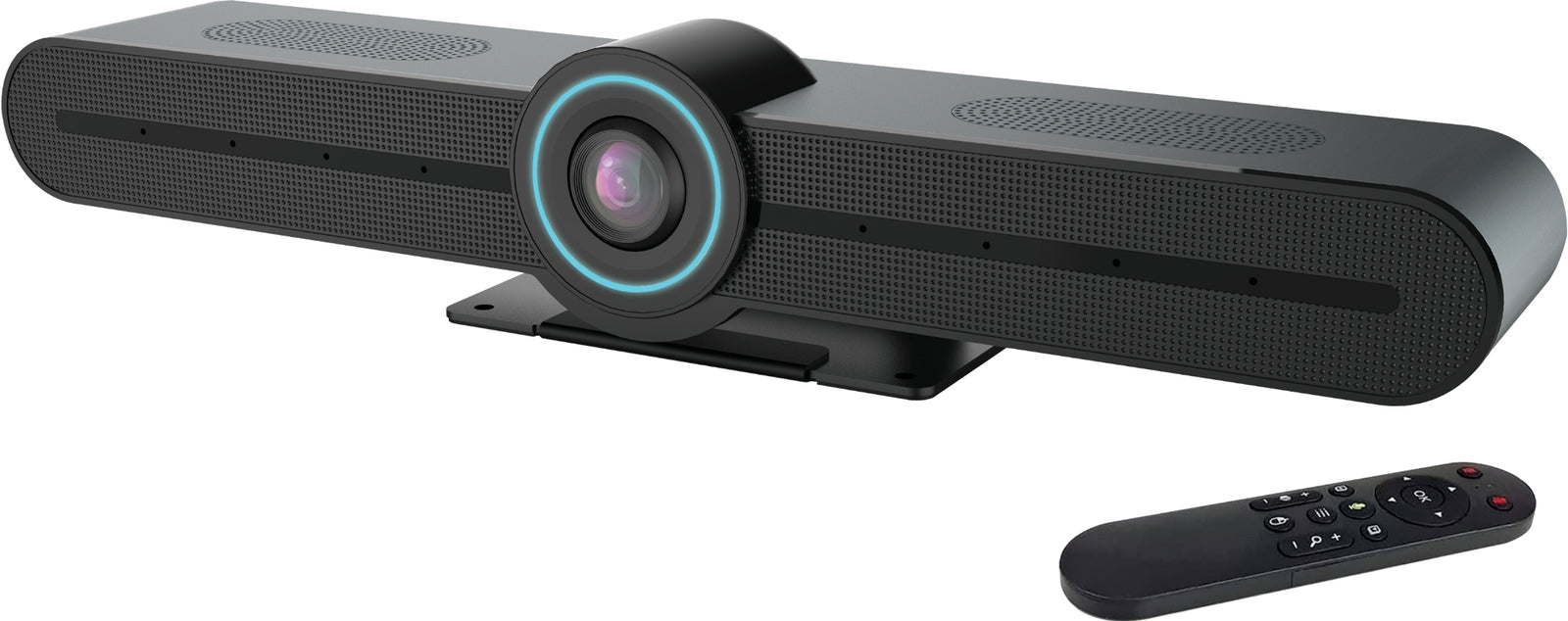

| Remote control | Yes (batteries included) | Power adapter | Yes |
| Power Management | |||
| Power usage | 5W typical | ||
| Dimensions / Weight | |||
| Product dimensions W x H x D | 400.5 x 92.8 x 81.2mm | Weight (without box) | 0.960kg |
| EAN code | 4948570033553 | ||
| Description | Downloads |
|---|---|
| User Manual | Download |
