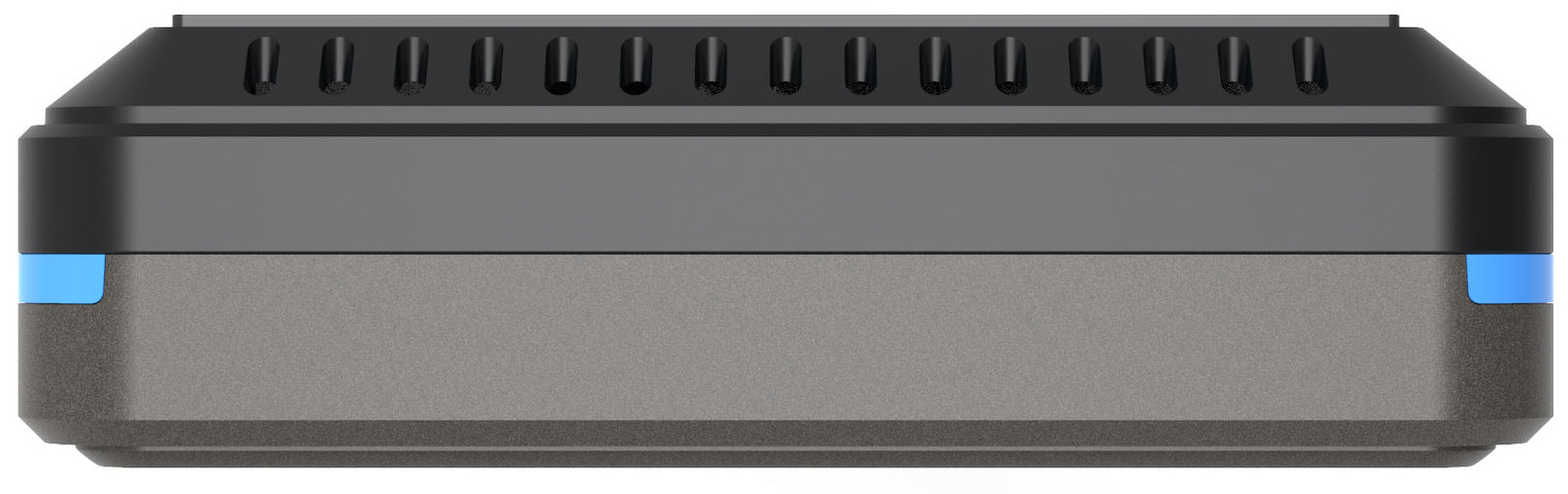

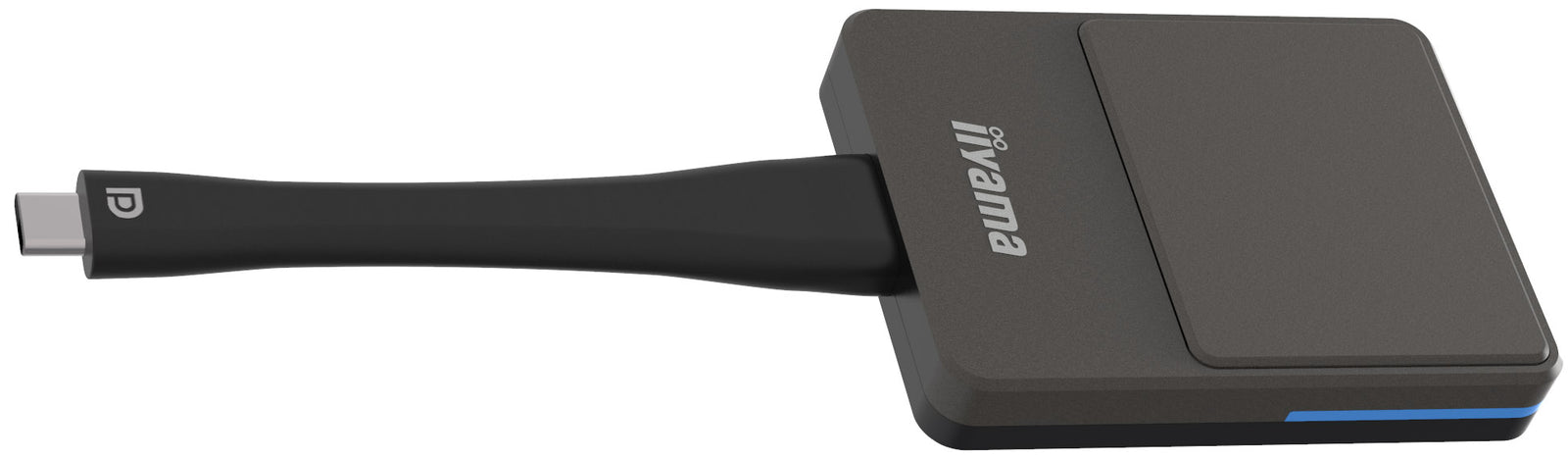

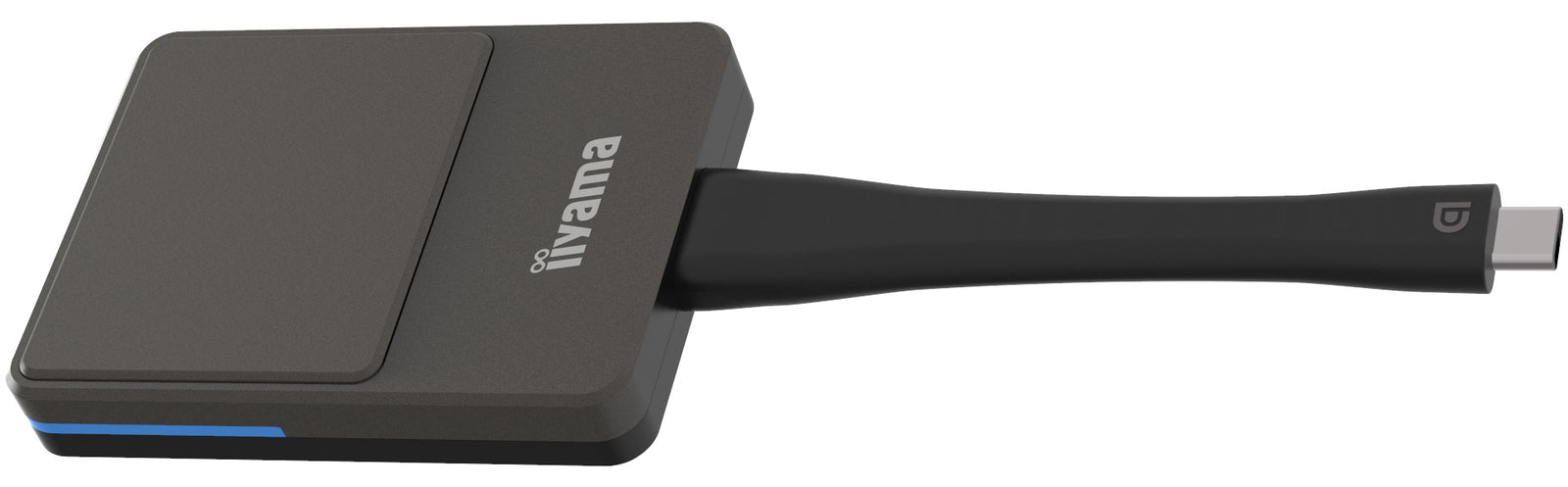

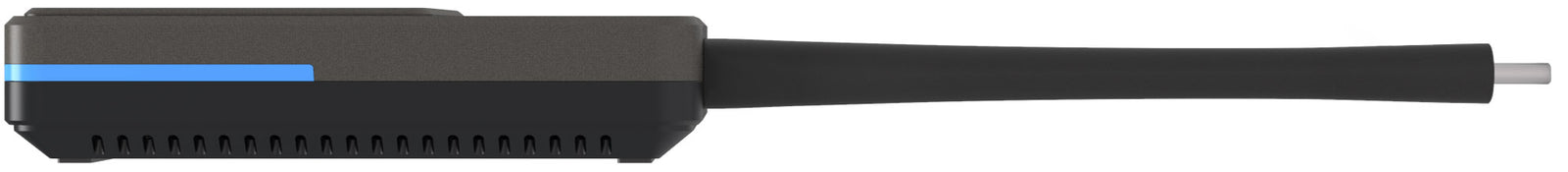

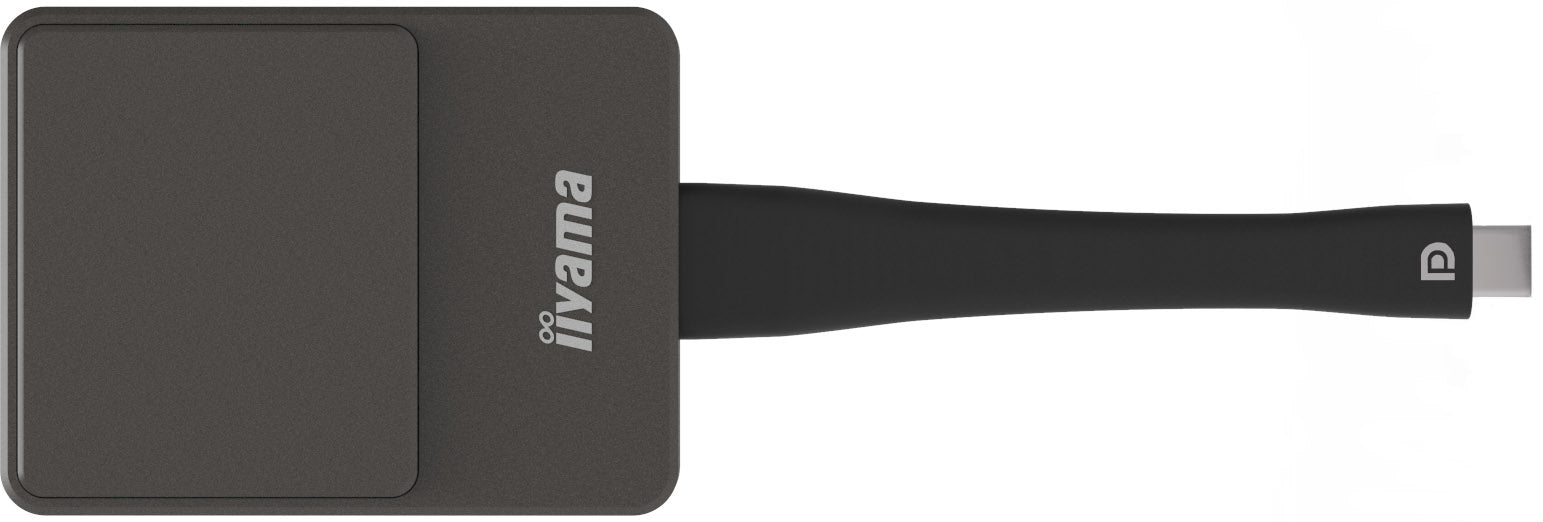

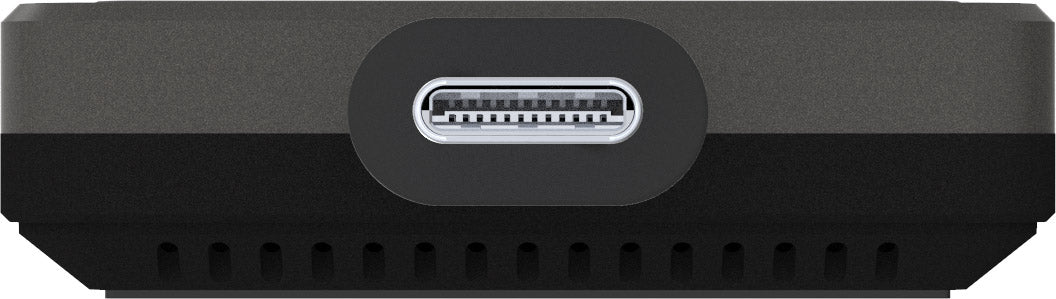

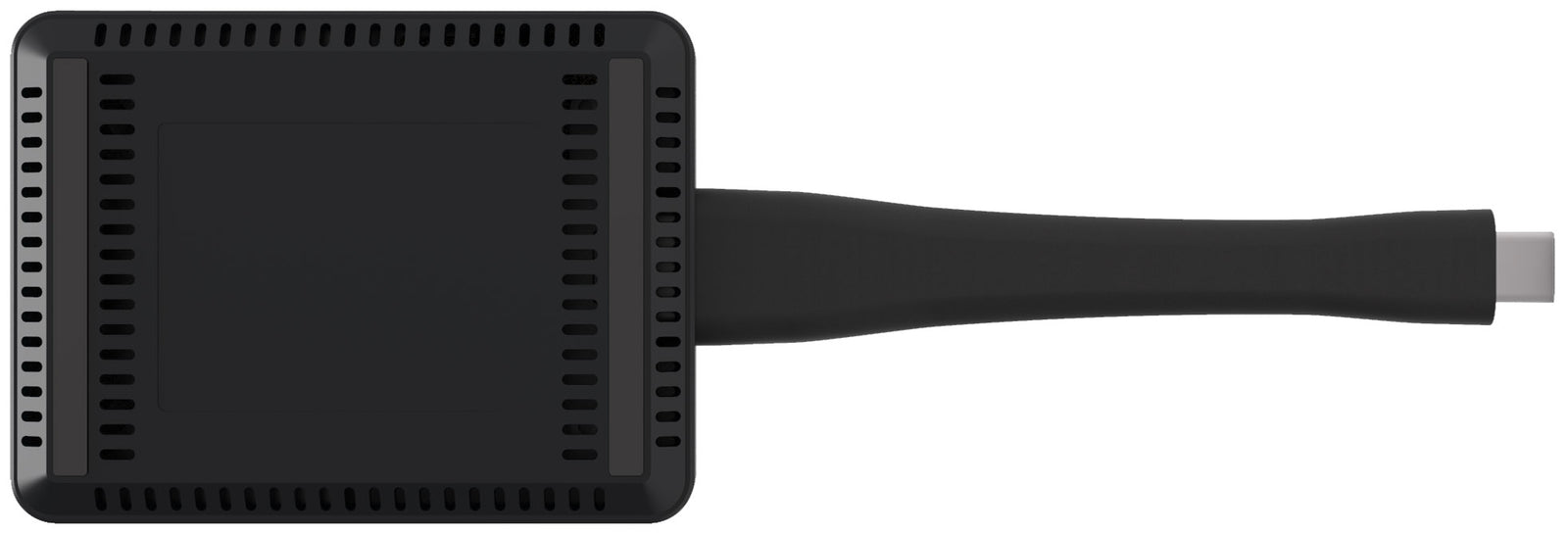

The wireless presentation dongle allows to share content (e.g. videos, applications) from your computer to an iiyama (i)LFD with the pre-installed EShare app. It is compatible with computers equipped with USB-C (DP-Alt mode) and supports smooth video streaming up to 4K.

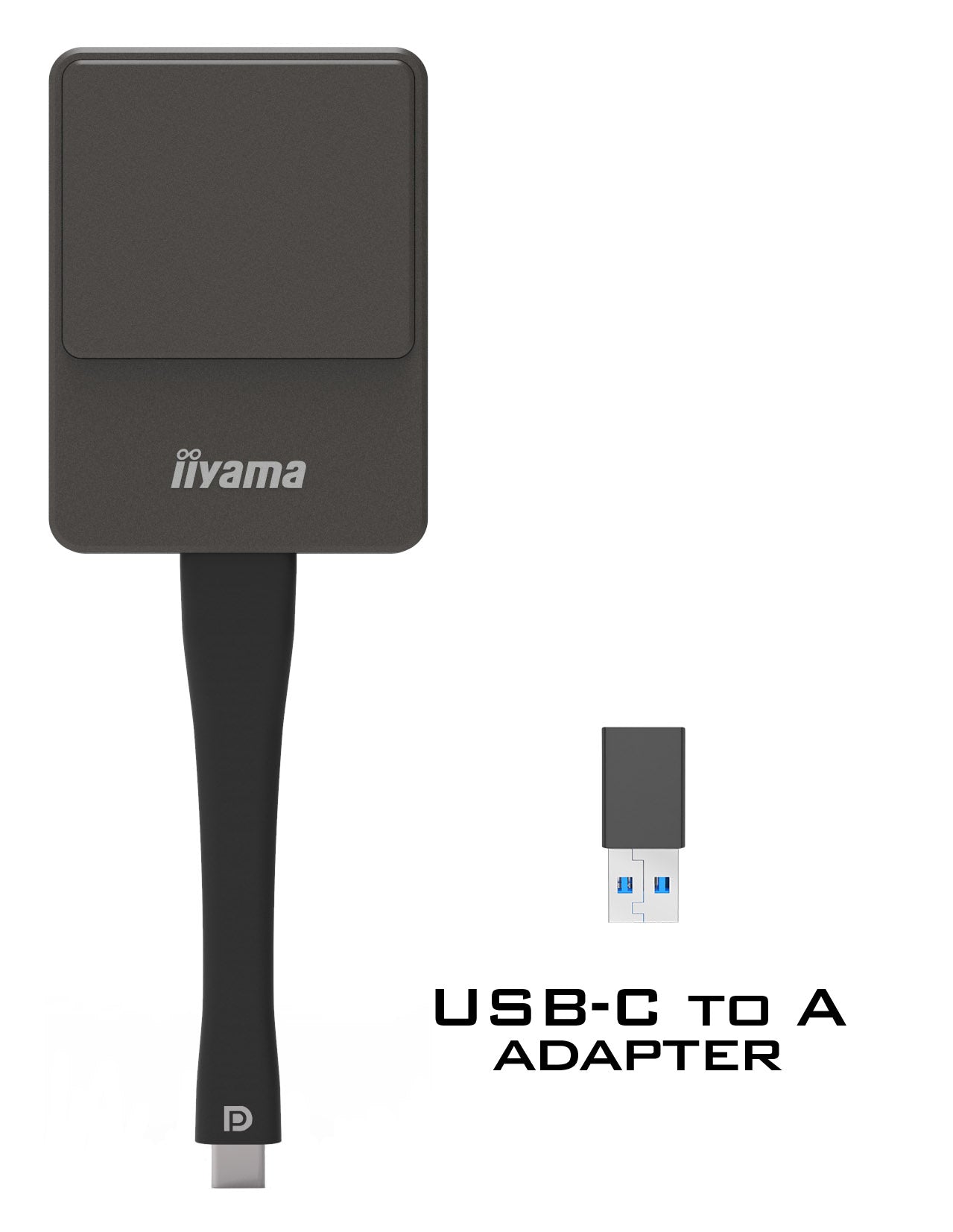

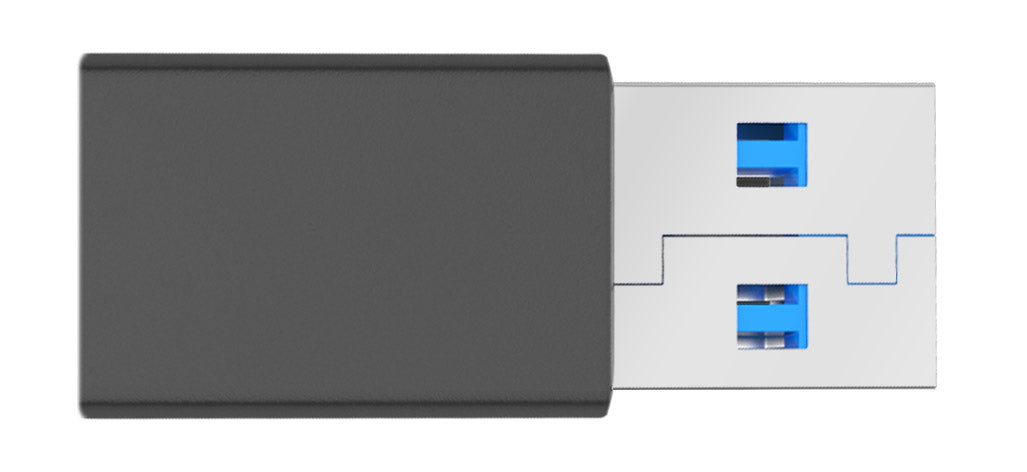

To use the dongle you need to pair it with the Android receiver. The included USB Type-C to A adapter can be used if the Android receiver doesn't have a Type-C connection.
| DEVICE | |
|---|---|
| Supported platforms | Windows, MAC, Chrome, Any OS which supports full feature Type-C (DP-Alt supported) |
| DisplayPort Out | x1 (1.2, complies with HDCP) |
| Audio | Stereo, radio quality 16bits 48kHz |
| Frame rate | Up to 60 fps depending on environment (FHD) and 30fps for 4K |
| Output resolution | 720x480, 720x576, 1280x720, 1920x1080(1080P), 3840x2160@30Hz |
| Features | Included: USB type-C to A adapter (to pair devices) |
| Input resolution | Video: 480p, 576p, 720p, 1080p |
| Wireless | IEEE 802.11n, 5GHz |
| Data rate wireless | Up to 300Mbps |
| Authentication protocol | WPA2(WPA2-PSK (Pre-Shared key) / WPA2- Enterprise) |
| Security (encryption) | WPA2 |
| Reach | 20 m max. |
| TECHNICAL SPECIFICATION | |
|---|---|
| Colour | Silver, black |
| Software | Connects with EShare app version 7.3 and higher. |
| POWER MANAGEMENT | |
|---|---|
| Power supply unit | External |
| Power usage | 4.5W typical |
| SUSTAINABILITY | |
|---|---|
| Regulations | CE, RoHS support, WEEE, REACH |
| DIMENSIONS / WEIGHT | |
|---|---|
| Product dimensions | 57 x 175 x 17mm |
| Box dimensions | 100 x 123 x 33mm |
| Weight (without box) | 0.81kg |
| Weight (with box) | 0.217kg |
| EAN code | 4948570032891 |
| ENVIRONMENTAL CONDITIONS | |
|---|---|
| Operation temperature range | 0°C - 40°C |
| Operation humidity | 10% - 80% |
| Storage temperature range | -10°C - 60°C |
| Storage humidity | 5% - 90% |
| Warranty | Product | Cover |
| Visioncare | Desktop LCD products (Monitors) (17" - 43") |
3 years on-site UK warranty. (Upgrades to 5 years available) |
| Touchcare |
LCD touchscreen products | 3 years repair and return. (Upgrades to on-site & 5 years available) |
| LFD | Large Format Displays Standard Warranty |
3 years collect and return (Upgrade to swap, installation & 5 years available) Download |
HOW TO ACTIVATE YOUR WARRANTY
There is no need to pre-register your warranty, just follow the six simple steps below to activate your warranty should the need arise. First-class service is assured by our experienced engineers and customer service helpdesk.
Step one - Check that all connections have been properly made.
Step two - Check the set-up in the user manual. Wherever possible, please try to check your iiyama product with alternate equipment before contacting the iiyama customer service help desk.
Step three - If the fault cannot be cured by the above means, call the iiyama customer service helpdesk on 01926 819 189. Please have ready to hand the following details: model number, serial number and date of purchase*. Or fill in the Service Request Form.
Step four - Your fault will be registered and you will be issued with a returns number, which you must quote on all paperwork relating to the defective unit.
Step five - Please retain any of your leads and manuals. Replacement/returned units will not include these sundry items.
Step six - Please ensure your product is clean and presentable before packaging it in the original box for collection.
* Proof of purchase may be required
ON-SITE SWAP OUT
PIONEERING CUSTOMER SERVICE.
| Description | Downloads |
|---|---|
| User manual | Download |
| Technical specification | Download |
| Drawing | Download |
