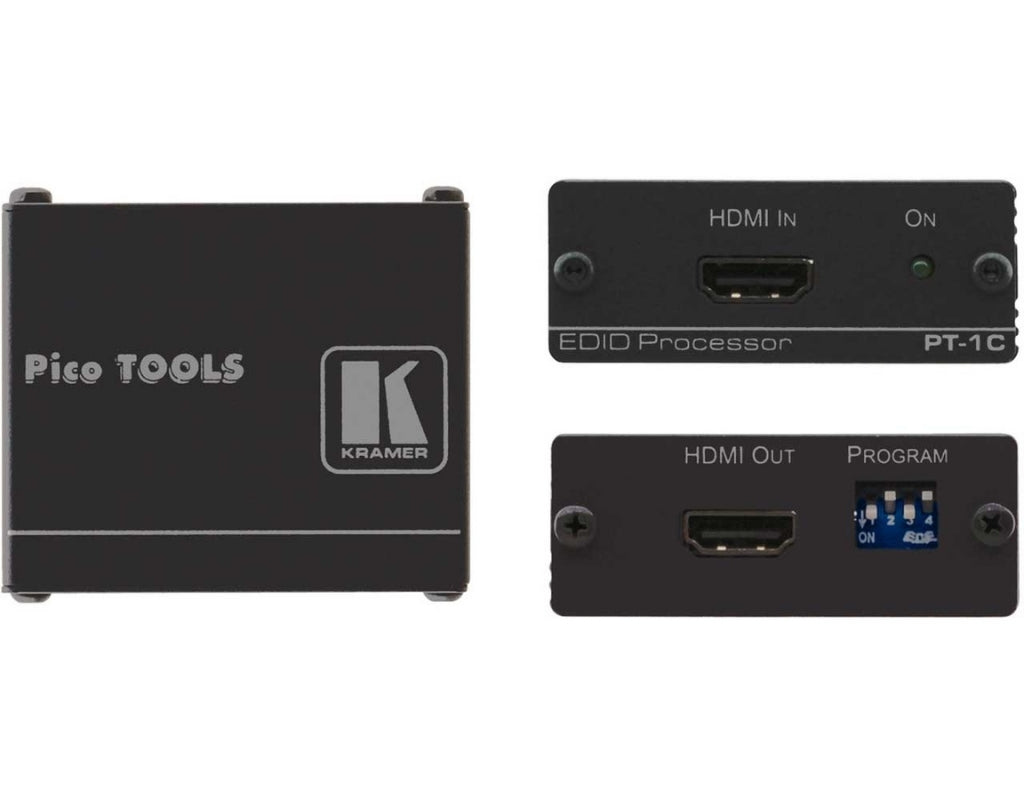

PT−1C is a 4K HDR EDID processor. It allows you to lock EDID signals and to support or not support HDCP, multi−channel audio or deep color signals that may or may not be compatible with the display.
Max. Data Rate — 17.82Gbps (5.94Gbps per data channel).
Max. Resolution — 4K@60Hz (4:4:4).
HDMI Compatible.
Compliance with HMDI Standards — HDR10, HDCP 2.2.
Line Powered Device — Power taken from the HDMI line, no power supply is needed.
Indicator — Power LED.
Controls — Four program DIP–switches control desired functions.
Applications
Ensuring backward compatibility of new devices on older infrastructure
A troubleshooting aid for installers
| Feature | Details |
|---|---|
| INPUT | 1 HDMI connector |
| OUTPUT | 1 HDMI connector |
| MAX DATA RATE | 17.82Gbps (5.94Gbps per channel), 4K compatible |
| STANDARDS SUPPORTED | Supports HDMI and HDCP 2.2 |
| CONTROLS | 4 DIP switches |
| INDICATOR | Power LED |
| POWER REQUIREMENTS | Takes power from the HDMI line |
| OPERATING TEMPERATURE | 0° to +40°C (32° to 104°F) |
| STORAGE TEMPERATURE | –40° to +70°C (–40° to 158°F) |
| HUMIDITY | 10% to 90%, RH non-condensing |
| OPTIONS | RK–4PT 19" rack adapter |
| PRODUCT DIMENSION | 6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96") W, D, H |
| PRODUCT WEIGHT | 0.1kg (0.2lbs) approx |
| SHIPPING DIMENSION | 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43") W, D, H |
| SHIPPING WEIGHT | 0.2kg (0.4lbs) approx |
