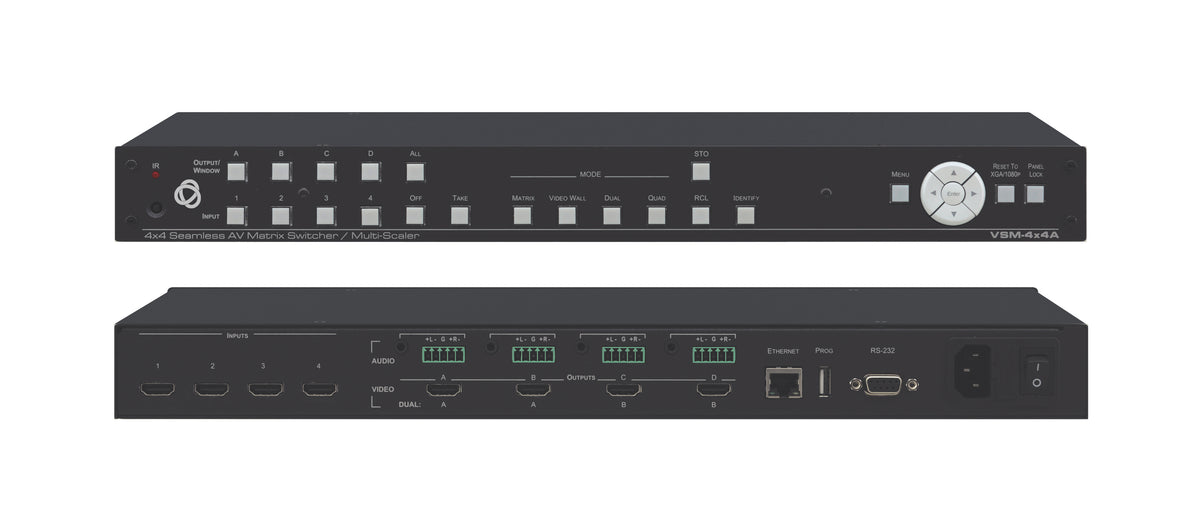

Kramer 4x4 Seamless AV Matrix Switcher/Multi–Scaler | VSM-4X4A
VSM−4x4A is a 4x4 seamless matrix switcher that can also be used as a video wall driver (2x2 or 1x4) or dual and quad multi−viewers. The unit enables switching between inputs with a clean video cut (frame−to−frame switching with no glitches). It supports HDMI resolutions with deep color, up to eight channels of audio and includes per−port HDCP and EDID settings.
PixPerfect™ Scaling Technology — Kramer’s precision pixel mapping and high–quality scaling technology.
HDTV Compatible.
HDCP Compliant.
4 HDMI Inputs & 4 Scaled HDMI Outputs.
Audio — 4 balanced and 4 unbalanced audio outputs with independent volume settings per output, embedded audio on the HDMI inputs and outputs.
Selectable Operation Modes — 4x4 matrix switcher, video wall (2x2 or 1x4 configuration), dual display (Split/PIP/POP) or quad display.
Bezel Correction Options — In video wall mode.
Matrix Switching Modes — Seamless switching mode (zero–time video cuts), or fade–through–black mode (enabling independent output resolutions).
Constant Output Sync — For all modes of operation.
HDMI Support — Deep Color, Dolby Digital Plus, DTS, DTS–HD®, LPCM 2CH/6CH/8CH, AC3.
Per Port HDCP and EDID Settings
Input Resolution Range — VGA to WUXGA and 480i to 1080p.
Output Resolution Range — 480p to 1080p.
Multiple Aspect Ratio Selections — Full, 4:3, 16:9 and best fit.
Built–in ProcAmp — Color, hue, sharpness, noise, contrast and brightness.
Front Panel Control — Operation mode, TAKE button and menu buttons.
4 Preset Memory Locations — For each operation mode for quick access to common IN–OUT configurations.
Front Panel Lockout.
Non–Volatile Memory — Saves final settings.
Additional Internal Memory — Supports larger firmware code.
Firmware Upgrade — Via Ethernet or the program mini USB connector.
Varied Control Options — Front panel buttons, RS–232 serial commands transmitted by a touch screen system, PC, or other serial controller; infrared remote control transmitter with OSD (on–screen display), Ethernet with built–in web pages.
Applications
Conference room presentations
Advertising applications, shopping malls and museums
Post production applications
Rental and staging
Security applications
Video–wall scaling

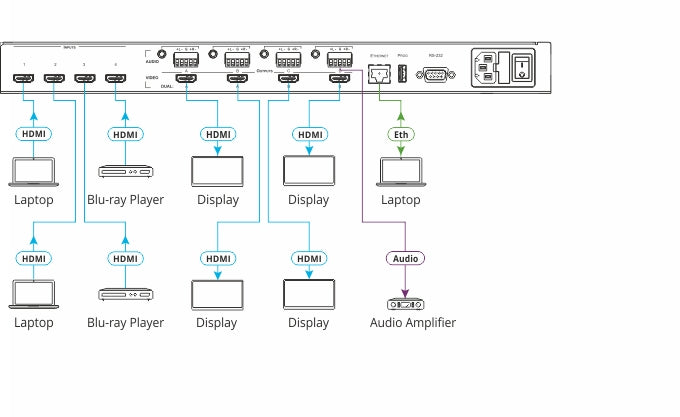

Applications with multiple inputs and outputs
Applications where quick, sleek, seamless switching is required
Any application requiring 4 scalers in a single 1RU rack space
| Category | Attribute | Value |
|---|---|---|
| Inputs | HDMI | 4 × HDMI (HDCP 1.1) |
| Outputs | HDMI | 4 × HDMI (HDCP 1.1) |
| Balanced Audio | 4 × Terminal Block | |
| Unbalanced Audio | 4 × 3.5mm Mini Jack | |
| Ports | RS-232 | 1 × 9-pin D-sub |
| Ethernet | 1 × RJ-45 | |
| USB | 1 × Type-A | |
| Output Resolutions | Supported | 480p–1080p, WUXGA (1920x1200) |
| Video Latency | Progressive Input | 30ms Typical |
| Controls | Front Panel | Buttons |
| Remote | IR with custom remote | |
| Serial / IP | RS-232, Ethernet (Web GUI), USB | |
| Power | Source | 100–240V AC |
| Consumption | 27VA Max | |
| Environment | Operating Temp | 0°C to 40°C |
| Storage Temp | -40°C to 70°C | |
| Humidity | 10%–90%, non-condensing | |
| Dimensions | Product Size (W×D×H) | 43.6 × 23.7 × 4.36 cm (1U) |
| Product Weight | 1.8 kg | |
| Shipping Size | 52.5 × 33.0 × 10.7 cm | |
| Shipping Weight | 2.7 kg | |
| Accessories | Included | Power cord, IR remote, rack ears |
| Description | Downloads |
|---|---|
| Kramer 4x4 Seamless AV Matrix Switcher/Multi–Scaler | VSM-4X4A DataSheet | Downloads |
| Kramer 4x4 Seamless AV Matrix Switcher/Multi–Scaler | VSM-4X4A User Manual | Downloads |
