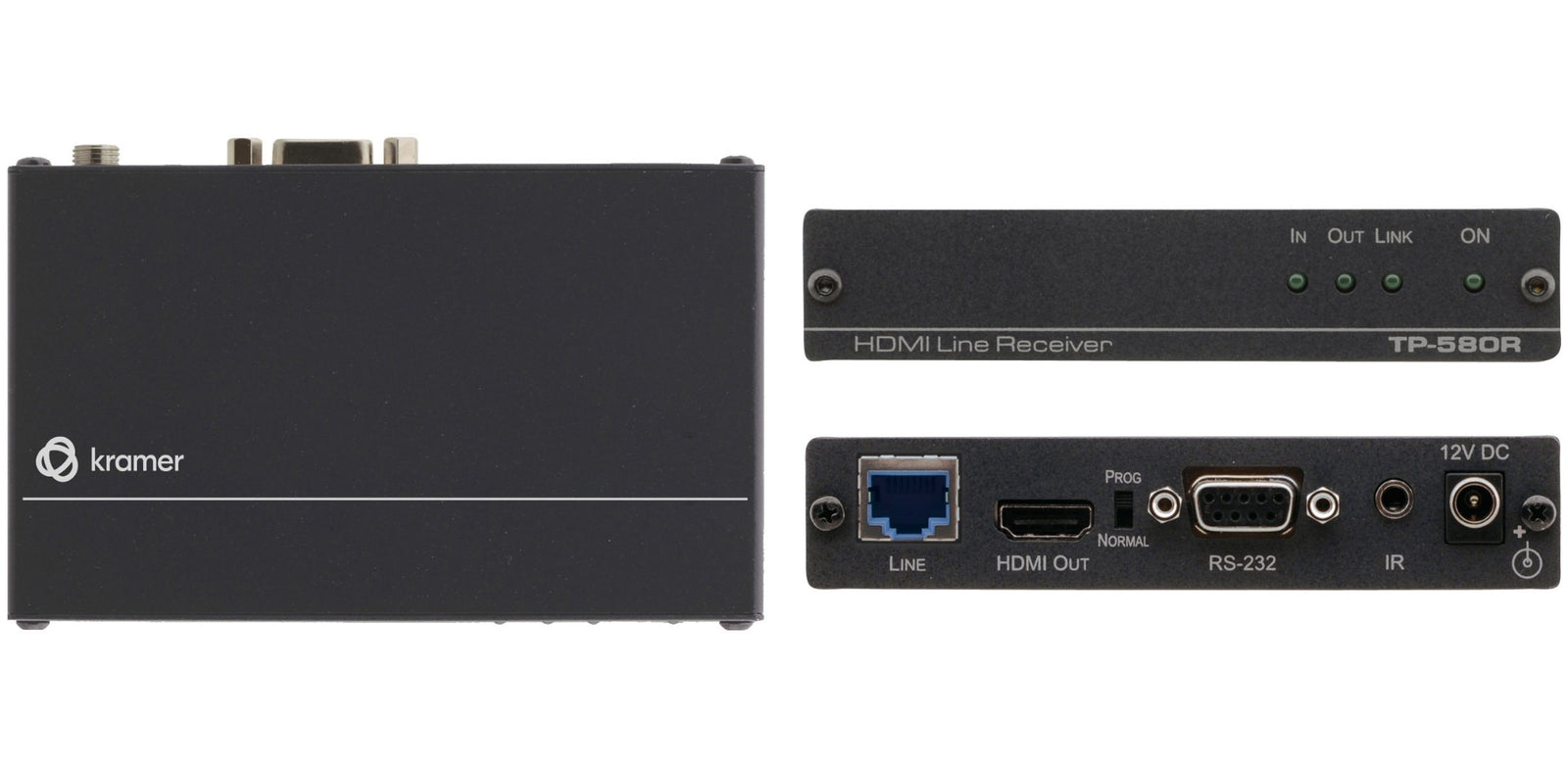

TP−580R is a high−performance, long−reach HDBaseT receiver for 4K60Hz (4:2:0) HDMI, RS−232 and IR signals over twisted pair. It extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.
High Performance Standard Extender — Professional HDBaseT extender for providing long–reach signals over twisted–pair copper infrastructures. TP–580R is a standard extender that can be connected to any market–available HDBaseT–compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
HDMI Signal Extension — HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.
I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
Multi–channel Audio Extension — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.

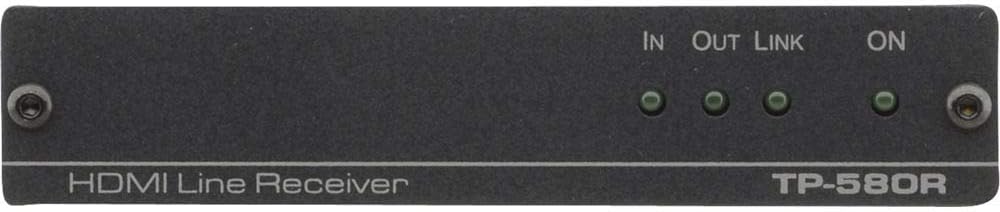

Cost–effective Maintenance — Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS–232 connection and the K–Upload tool ensures lasting, field–proven deployment.

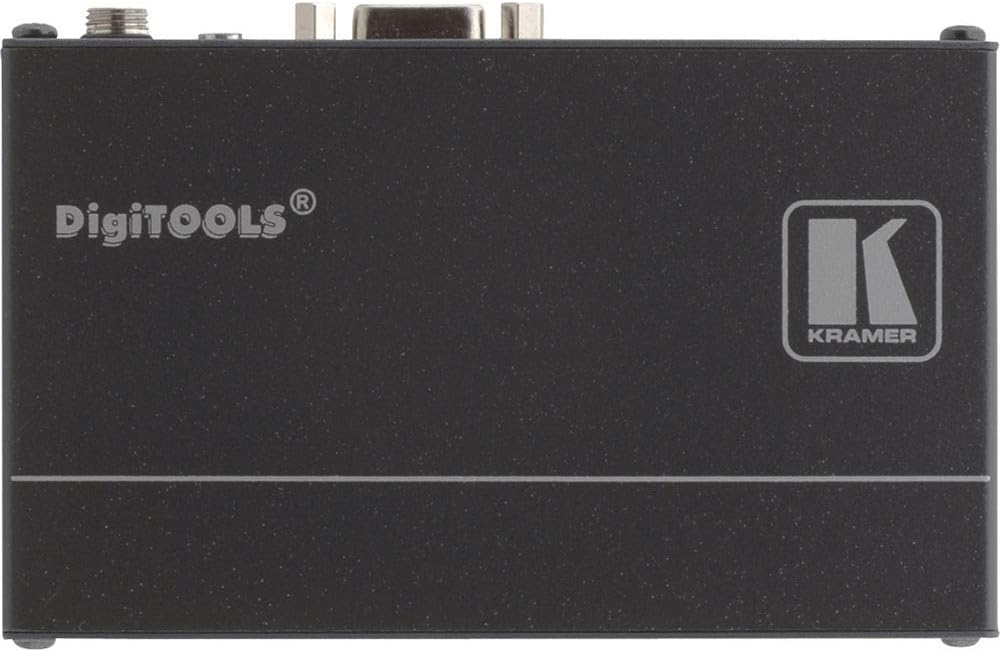

Easy Installation — Compact DigiTOOLS® fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.
Spec sheet
Print this page
Marketing Literature
Applications
Long–distance AV signal extension for multi–room, large dividable auditoriums and lecture hall connectivity
AV extension in conference rooms, boardrooms, control rooms, hotels and large church facilities

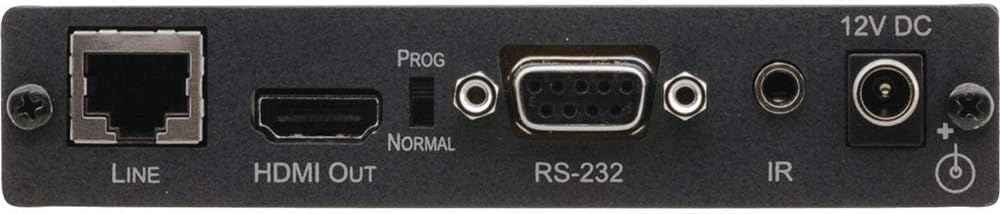

| Attribute | Details |
|---|---|
| INPUTS | 1 HDBT on an RJ–45 female connector |
| OUTPUTS | 1 HDMI on an HDMI connector |
| PORTS | 1 IR (3.5mm mini jack), 1 RS-232 (9-pin D-sub) |
| EXTENSION LINE | HDBaseT 1.0 compliant |
| VIDEO | Up to 4K UHD @60Hz (4:2:0), 10.2Gbps bandwidth |
| RS-232 | 300 to 115200 baud rate |
| CONTROL RS-232 | 115200 baud rate |
| POWER SOURCE | 12V DC, 2A |
| POWER CONSUMPTION | 12V DC, 430mA |
| ENCLOSURE | DigiTOOLS® size, aluminum |
| COOLING | Convection ventilation |
| OPERATING TEMP | 0° to 40°C (32° to 104°F) |
| STORAGE TEMP | –40° to +70°C (–40° to 158°F) |
| HUMIDITY | 10% to 90%, RHL non-condensing |
| INCLUDED ACCESSORIES | Power supply unit |
| PRODUCT DIMENSIONS | 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96") |
| PRODUCT WEIGHT | 0.2kg (0.4lbs) |
| SHIPPING DIMENSIONS | 49.00cm x 18.60cm x 58.80cm (19.29" x 7.32" x 23.15") |
| SHIPPING WEIGHT | 0.7kg (1.6lbs) |
| Description | Downloads |
|---|---|
| Kramer Electronics 4K60 4:2:0 HDMI HDCP 2.2 Receiver with RS-232 and IR Over Long-Reach HDBaseT | TP-580R SpecSheet | Downloads |
