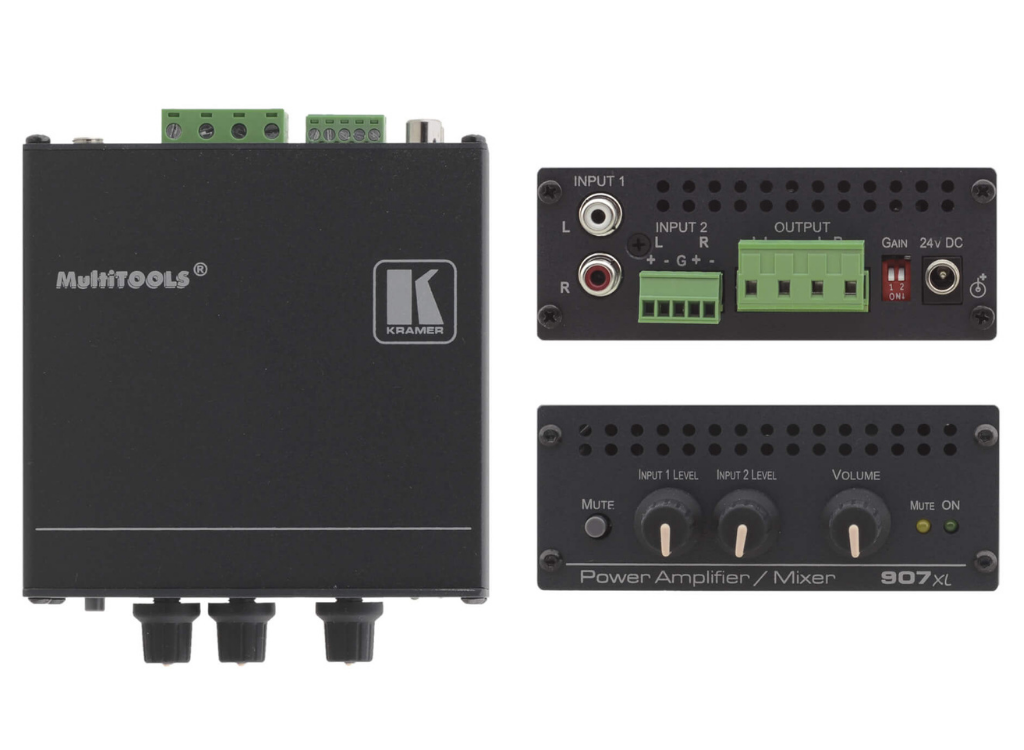

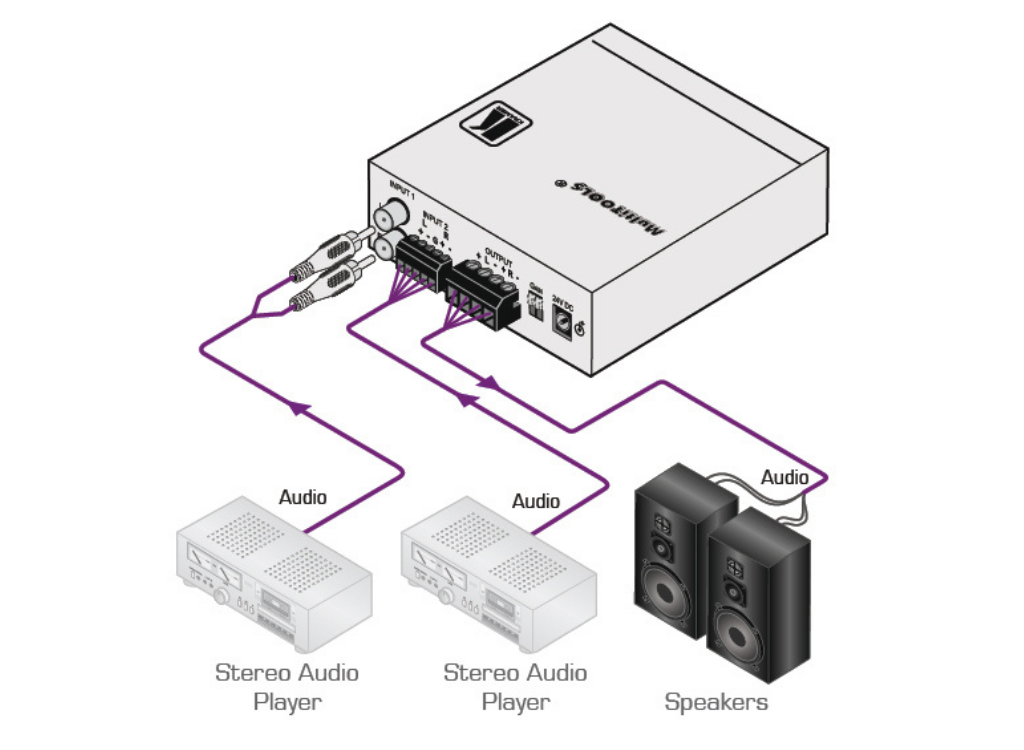

The 907xl is a high−performance power amplifier for line−level stereo audio signals. It accepts a balanced stereo audio signal on a terminal block connector and an unbalanced stereo signal on RCA connectors. It delivers 40 watts per channel into an 8Ω load.
High Efficiency — Class D operation.
Controls — 1 volume control knob for each input & mute button.
Gain Control DIP–Switches.
Mute and On Indicator LEDs.
Compact MultiTOOLS® — Up to 4 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.
Applications
Presentation rooms and multimedia applications for quick, local audio amplification.
Personal audio listening (for example, a PC and portable CD player).
| Category | Details |
|---|---|
| Inputs | 1 balanced stereo audio (terminal block), 1 unbalanced stereo audio (RCA connectors) |
| Output | Speaker output (terminal block connector) |
| Output Power | 40W per channel into 8Ω |
| Output Music Power | 150W per channel into 8Ω |
| Input Sensitivity | 1.2Vrms |
| Amplifier Type | Class D |
| Voltage Gain | 36dB (x10) |
| Bandwidth (-3dB) | 25kHz |
| S/N Ratio | 66dB |
| Coupling | Inputs: AC, Outputs: DC |
| Audio THD + Noise | 1.2% |
| Audio 2nd Harmonic | 1% |
| Power Consumption | 24V DC, 2.2A |
| Controls | 2 gain DIP-switches, mute button, 2 input level knobs, 1 volume knob |
| Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | –40° to +70°C (–40° to 158°F) |
| Humidity | 10% to 90%, RHL non-condensing |
| Included Accessories | Power supply |
| Product Dimensions | 10.68cm x 10.35cm x 4.36cm (4.20" x 4.07" x 1.72") W, D, H |
| Product Weight | 0.4kg (0.8lbs) approx. |
| Shipping Dimensions | 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83") W, D, H |
| Shipping Weight | 1.3kg (2.9lbs) approx. |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
