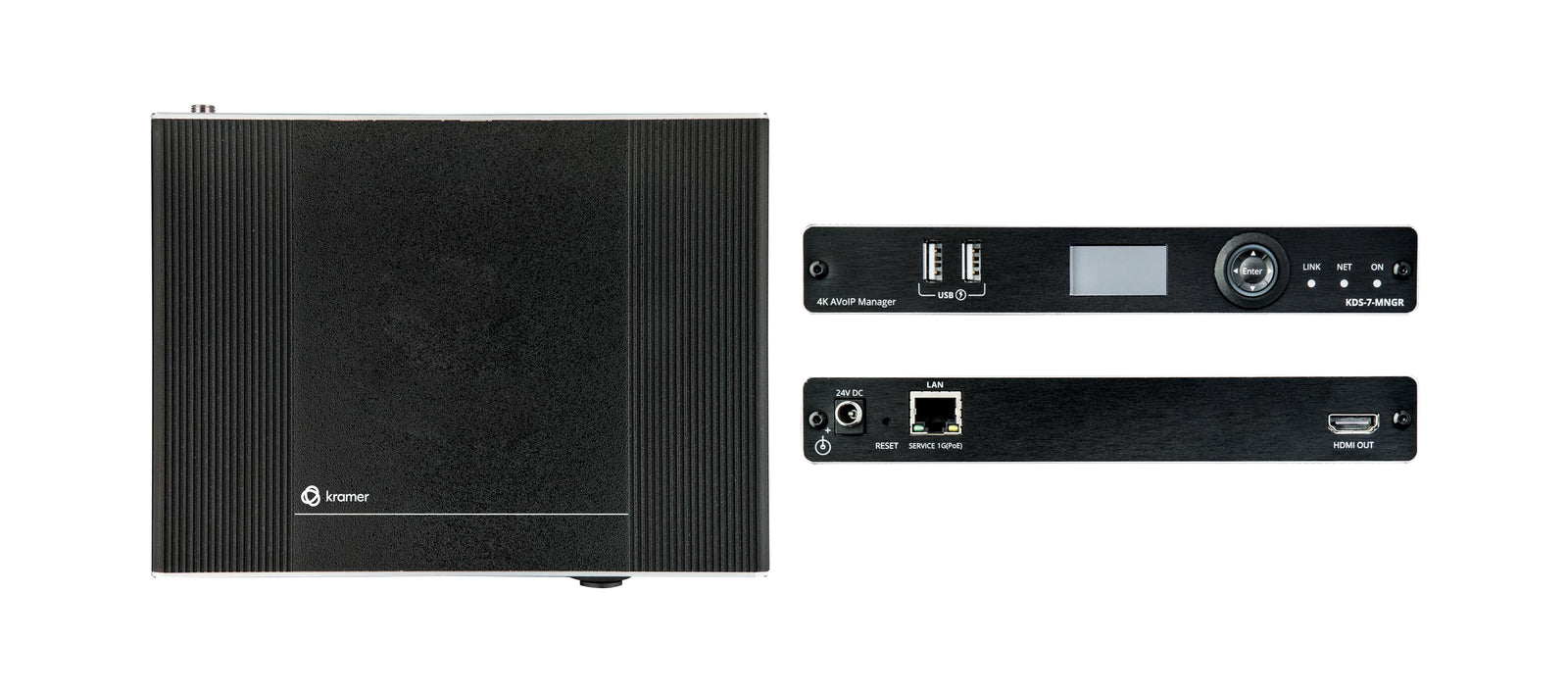

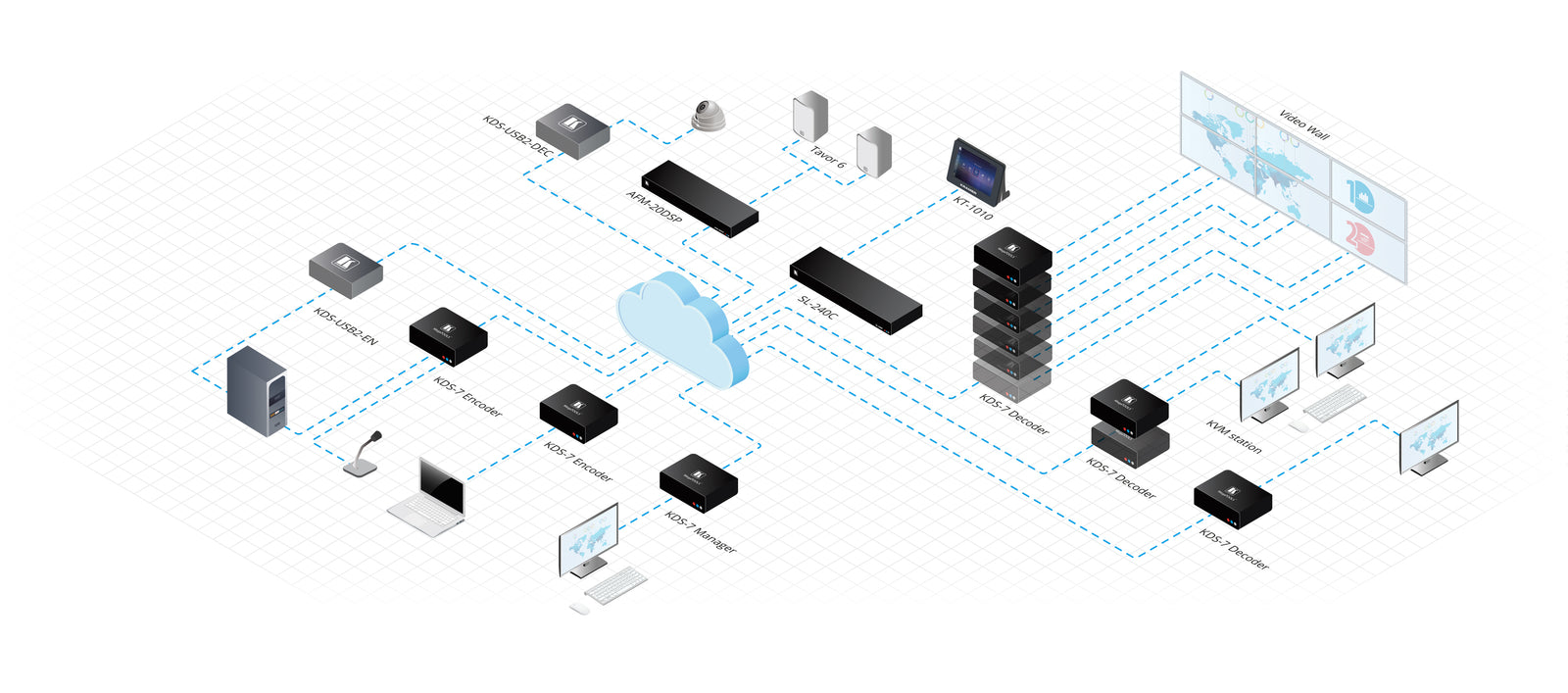

KDS−7−MNGR Manager is the solution for configuration and management of KDS−7 deployments within the same network. Simply install the unit into the same local network as the extenders (encoders and decoders) to easily define and configure channel routing selections (including video, audio, and a variety of control interface types) using the embedded web pages.
Additionally, this unit supports controlling and configuring the matrix, video wall, and KVM modes of connected KDS−7 devices as well as device grouping and group operations.
The settings of all connected encoder/decoder units, including IP configuration, compatibility settings, and extender status are clearly displayed and easily updated.
Outstanding end–user experience
Instant auto–discovery and status with preview

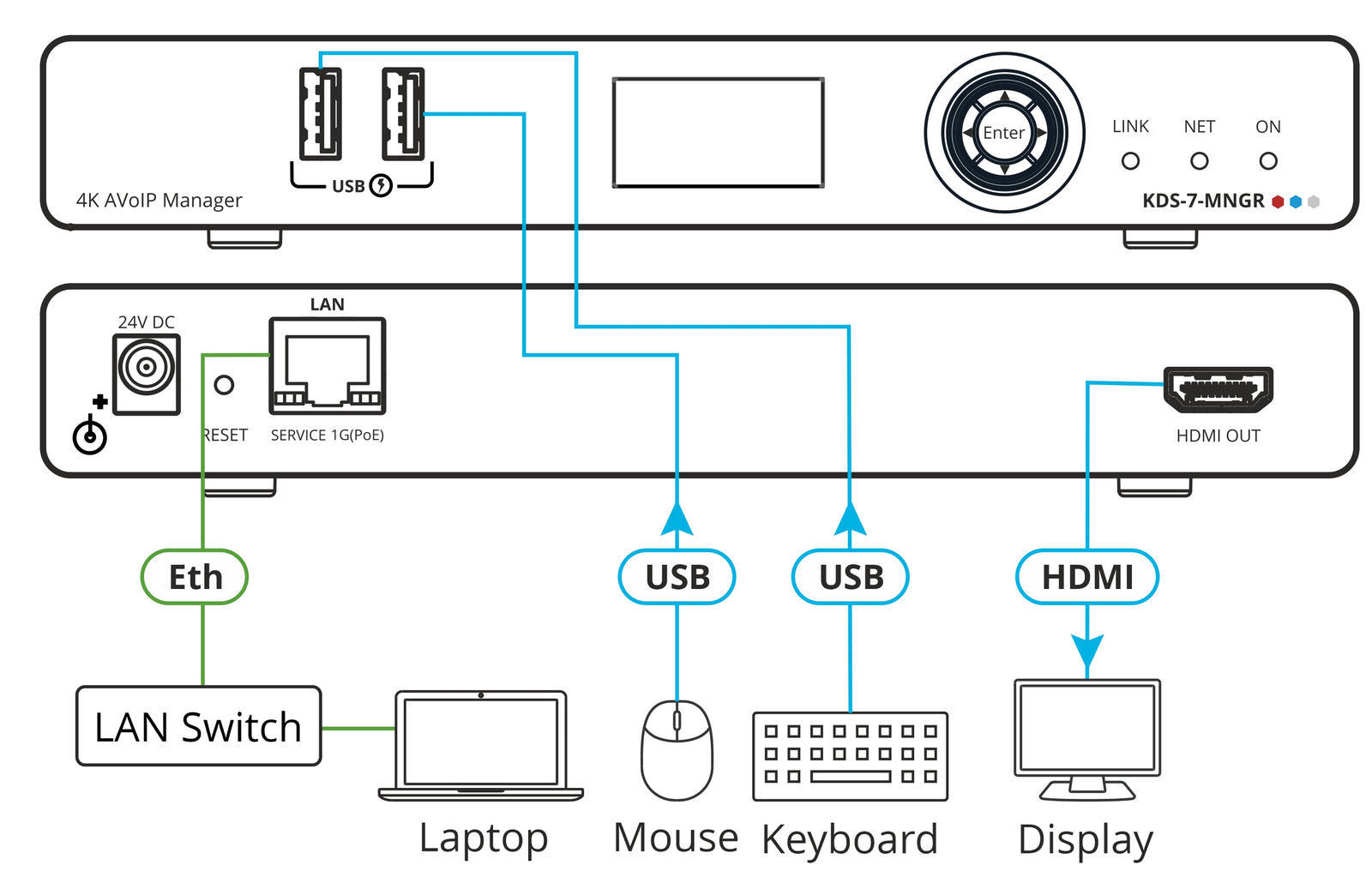

Access via Remote Web UI or using local monitor with a USB keyboard and mouse
Ideal for multiple device deployments
Manages 120 encoders and decoders
Configuration of Virtual Video Matrix, KVM, and Video Walls
Configuration of Device Grouping, Preset Definition, and Activation via UI or APIs
Configuration — FW for single or group of devices
Robust security
Enterprise IT–grade security — 802.1x and HTTPS/TLS
Security certification — OWASP Top 10 certificate
Can be deployed in the same LAN used for AV data streaming or in a separate LAN
Simple planning and rollout
Cost–effective from day one
Full product range for any site, any application
Plug–and–play with Netgear M4250 AVoIP switches, Kramer Control, KDS–USB2, etc.
| Category | Specification |
|---|---|
| Outputs | 1 HDMI: On a female HDMI connector |
| Ports | 1 Ethernet: On RJ45 connector 2 USB: On USB-A connectors |
| USB Features | Integrated USB Hubs: 1 |
| Video | Max Resolution: 1080P@60Hz |
| Video Streaming | Compression Standard: JPEG2K based, proprietary stream Max Input Resolution: 4K@60Hz (4:2:0) Max Output Resolution: 4K@30Hz (4:4:4) Max End-to-End Resolution: 4K@30Hz (4:4:4) + HDR 10bit Scaler: Yes End-to-End Latency: 33ms Switching Time: 1s |
| User Interface | Indicators: LINK, NET, and ON LEDs, front panel LCD Display Controls: Restart and factory reset rear panel button, embedded web pages, P3K API commands via Ethernet, front panel navigation buttons |
| Power | PoE (Power over Ethernet): 37V to 57V, max power 13W Optional power supply: 24V DC, 5A |
| Environmental Conditions | Operating Temperature: 0 to +45°C (32 to +113 °F), 10% to 90%, non-condensing Storage Temperature: –20 to +70°C (–4 to +158 °F), 10% to 90%, non-condensing Humidity: 10% to 90%, non-condensing |
| Product Dimensions | 18.90cm x 14.50cm x 2.76cm (7.44" x 5.71" x 1.09") W, D, H |
| Product Weight | 0.7kg (1.5lbs) approx. |
| Shipping Dimensions | 31.20cm x 17.90cm x 7.60cm (12.28" x 7.05" x 2.99") W, D, H |
| Shipping Weight | 0.9kg (2.1lbs) approx. |
