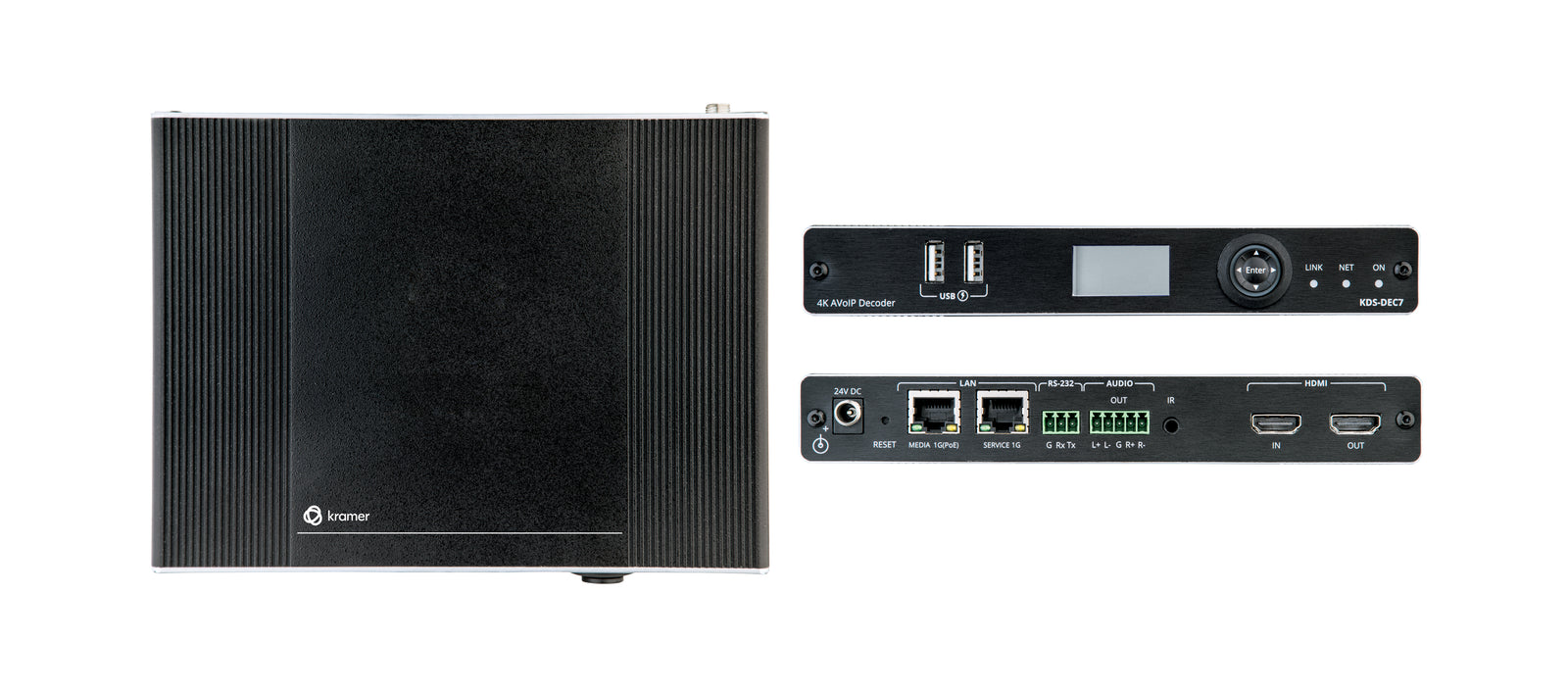

KDS−DEC7 decoder is an advanced receiver for streaming 4K video signals via Ethernet over copper cable. It decodes streams over an IP network to HDMI output, and transmit the USB, IR, RS−232, or CEC signal over IP network.
Outstanding end–user experience
Rich set of inputs and interfaces
Easy–to–use KM/KVM — Searchable OSD Menu for KM and fully configurable KVM roaming
Large scale video wall — up to 16x16
Instantaneous switching time — 1 second
Ideal for large–scale deployments —
Highly scalable — 999 channels build in support
State of the art management device
Rich set of management capabilities — Standard P3K Open API , LCD screen for configuration
Robust security
Enterprise IT–grade security — 802.1x and HTTPS/TLS
Security certification — OWASP Top 10 certificate
Separate ETH ports for optimal security and experience
New HW architecture that enables robust FW update
Simple planning and rollout:
Cost–effective from day one
Full product range for any site, any application
Plug–and–play with Netgear M4250 AVoIP switches, Kramer Control, etc.
PoE Support
Using PoE switch — up to 13W consumption
Alternative sources/destinations
HDMI Loop–Through on Encoder and HDMI Input on Decoder
Analog Audio
Embedding and De–embedding
Control gateway
Through P3K control/communicate with IR, RS232, or CEC to the connected devices

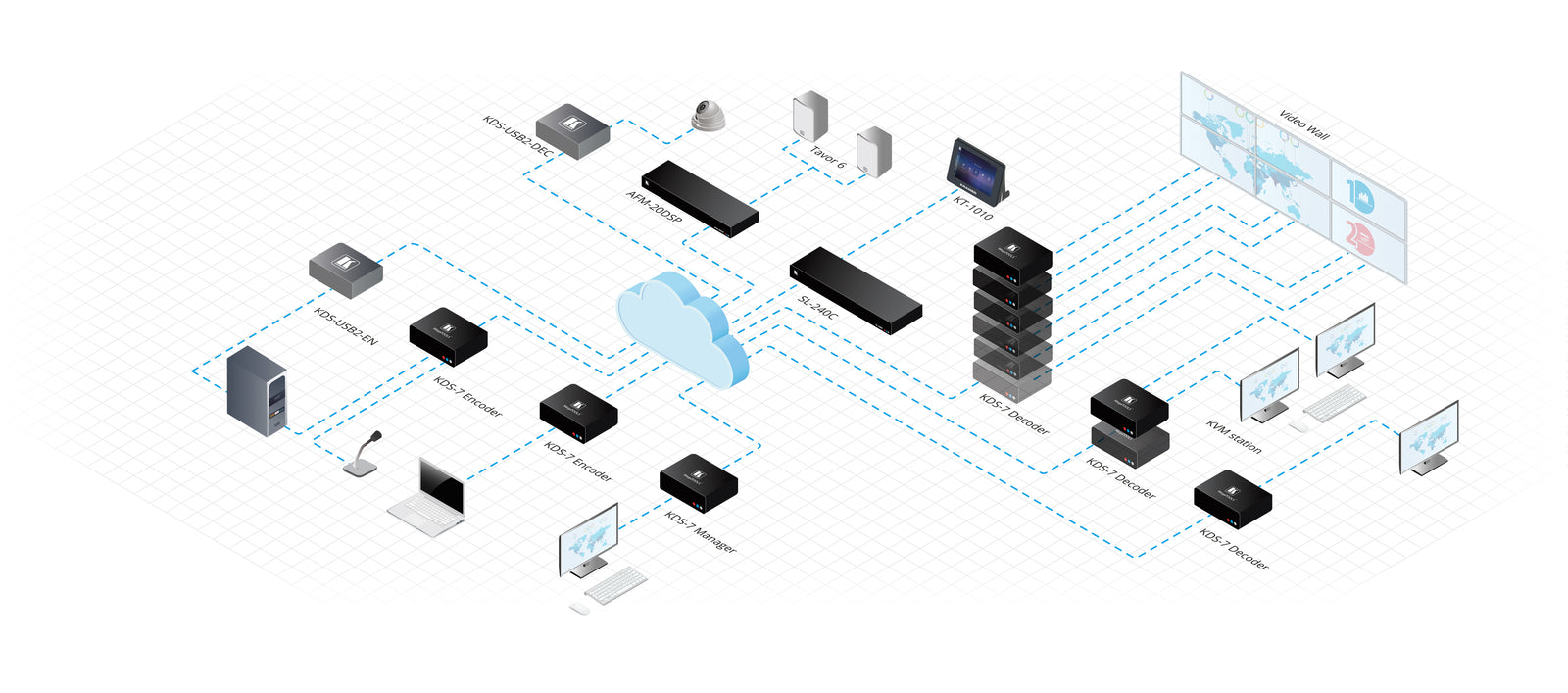

Applications
For real–time essential installations such as command and control rooms
For large scale AV content sharing installations using existing wires and infrastructure in corporate offices and government applications
AV distribution systems with one or more sources and many displays in schools, universities, and public venues
For AV installations where low latency KM/KVM capabilities are required
| Category | Specification |
|---|---|
| Inputs | 1 HDMI: On a female HDMI connector |
| Outputs | 1 HDMI: On a female HDMI connector |

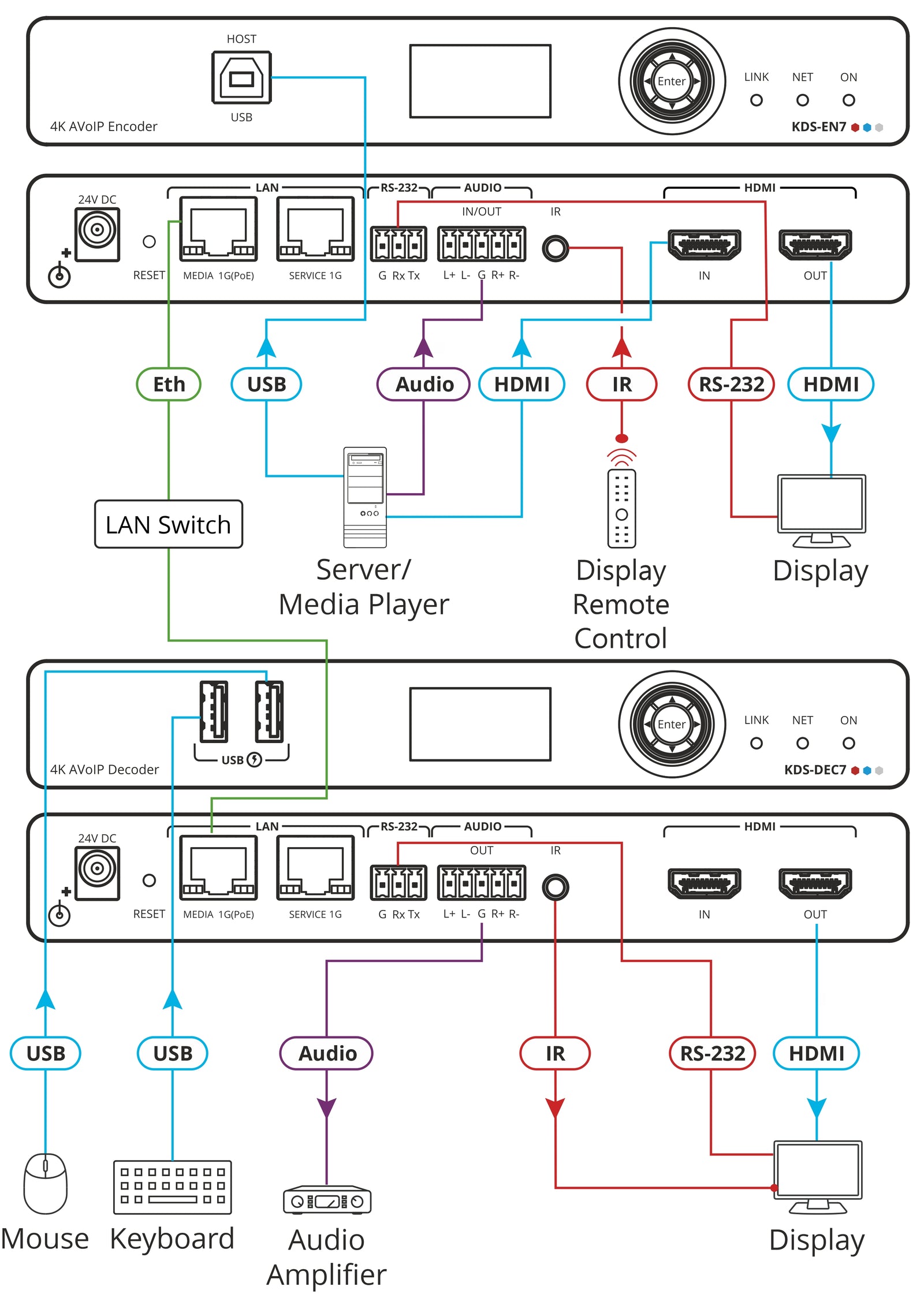

| Ports | 2 Ethernets: On RJ-45 connectors 1 Balanced Audio: On a 5-pin terminal block connector 1 RS-232: On a 3-pin terminal block connector 1 IR: On a 3.5mm TRS connector 2 USB: On USB-A connectors |
| USB Features | Integrated USB Hubs: 1-layer when connecting to KDS-EN7 |
| Network | Multicast: Through RTSP (Real Time Streaming Protocol): IGMP snooping non-blocking, Layer 2 Unicast: Through RTSP (Real Time Streaming Protocol) Bitrate: Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps |
| Video Compression | Compression Standard: JPEG based, private stream |
| Video Resolution | Max Resolution: 4K@30Hz 4:4:4 |
| Video Streaming | Compression Standard: JPEG2K based, proprietary stream Max Input Resolution: 4K@60Hz (4:2:0) Max Output Resolution: 4K@30Hz (4:4:4) Max End-to-End Resolution: 4K@30Hz (4:4:4) Scaler: Yes End-to-End Latency: 33ms Switching Time: 1s |
| Resolution Support | 4096x2160@60Hz, 3840x2160@60Hz, 1920x1080@60Hz, 1280x720@60Hz, 720x480@50Hz, 1600x1200@60Hz, 1280x960@60Hz, 848x480@60Hz, 1600x900@60Hz, 1280x800@60Hz, 800x600@60Hz, 1920x1200@50Hz, 1440x900@60Hz, 1280x768@60Hz, 720x576@60Hz, 1400x1050@60Hz, 1366x768@60Hz, 1224x768@70Hz, 640x480@60Hz, 1792x1344@60Hz, 1360x768@60Hz, 1152x864@70Hz, 640x400@85Hz, 1680x1050@60Hz, 1024x768@60Hz, 640x350@85Hz |
| Audio Supported Formats | LPCM, Dolby and DTS LPCM: Up to 7.1/24-bit/192kHz Dolby: Dolby Atmos™, Dolby TrueHD, Dolby Digital Plus™, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0 DTS: DTS-HD Master Audio™, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1 |
| Security | HTTPS, 802.1x, OWASP-10, AES-128 encryption of AV streaming with changeable key |
| User Interface | Indicators: LINK, NET, and ON LEDs, front panel LCD Display Controls: Restart and factory reset rear panel button, embedded web pages, P3K API commands via Ethernet, front panel navigation buttons |
| Power | PoE (Power over Ethernet): 37V to 57V, max power 13W Optional power supply: 24V DC, 5A |
| Environmental Conditions | Operating Temperature: 0 to +45°C (32 to +113 °F), 10% to 90%, non-condensing Storage Temperature: –20 to +70°C (–4 to +158 °F), 10% to 90%, non-condensing Humidity: 10% to 90%, non-condensing |
| Product Dimensions | 18.90cm x 14.50cm x 2.76cm (7.44" x 5.71" x 1.09") W, D, H |
| Product Weight | 0.7kg (1.5lbs) approx. |
| Shipping Dimensions | 31.20cm x 17.90cm x 7.60cm (12.28" x 7.05" x 2.99") W, D, H |
| Shipping Weight | 0.9kg (2.1lbs) approx. |
