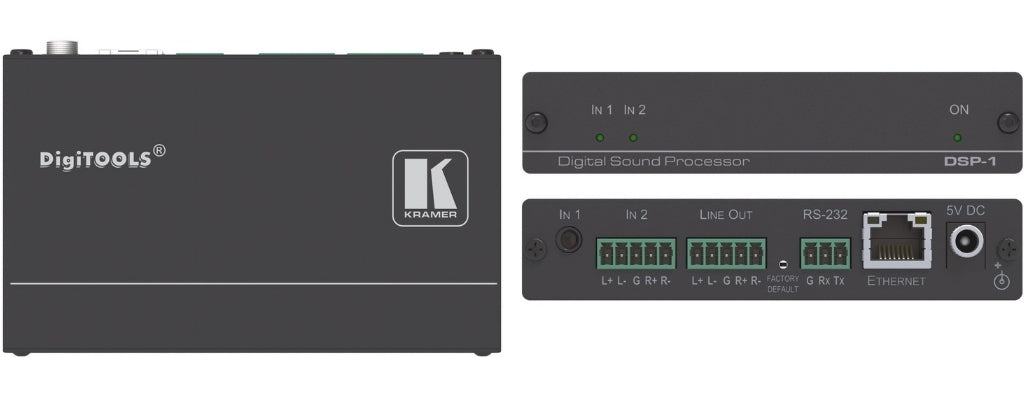

DSP−1 is a digital sound processor that enables the control of individual volume per input, 3−band parametric EQ, selectable HPF (high−pass filters) at 70Hz and master volume via IP. DSP−1 is a small form factor and cost−effective solution suitable for a range of audio applications.
2–Input Mixing with Master Volume.
3–Band Parametric Equalizer — Frequency, Q–factor & gain control per band.
Hi–Pass Filter — Selectable HPF at 70Hz.
Line–Level Amplifier for Audio Gain and Attenuation.
Control with Built–In Web Page & RS–232.
Creates & Saves Presets.
Highly Cost Effective.
Applications
Classrooms or educational facilities
Meeting rooms
Huddle spaces
Auditoriums
| Feature | Details |
|---|---|
| Inputs | 1 Balanced Stereo Audio (5-pin terminal block), 1 Unbalanced Stereo Audio (3.5mm Mini Jack) |
| Outputs | 1 Balanced Stereo Audio (5-pin terminal block) |
| Ports | 1 RS-232 (3-pin terminal block), 1 Ethernet (RJ-45 connector) |
| Power | 5V DC, 350mA |
| Accessories | Power supply, mounting bracket included |
| Product Dimensions | 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96") W, D, H |
| Product Weight | 0.2kg (0.4lbs) approx. |
| Shipping Dimensions | 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43") W, D, H |
| Shipping Weight | 0.6kg (1.3lbs) approx. |
