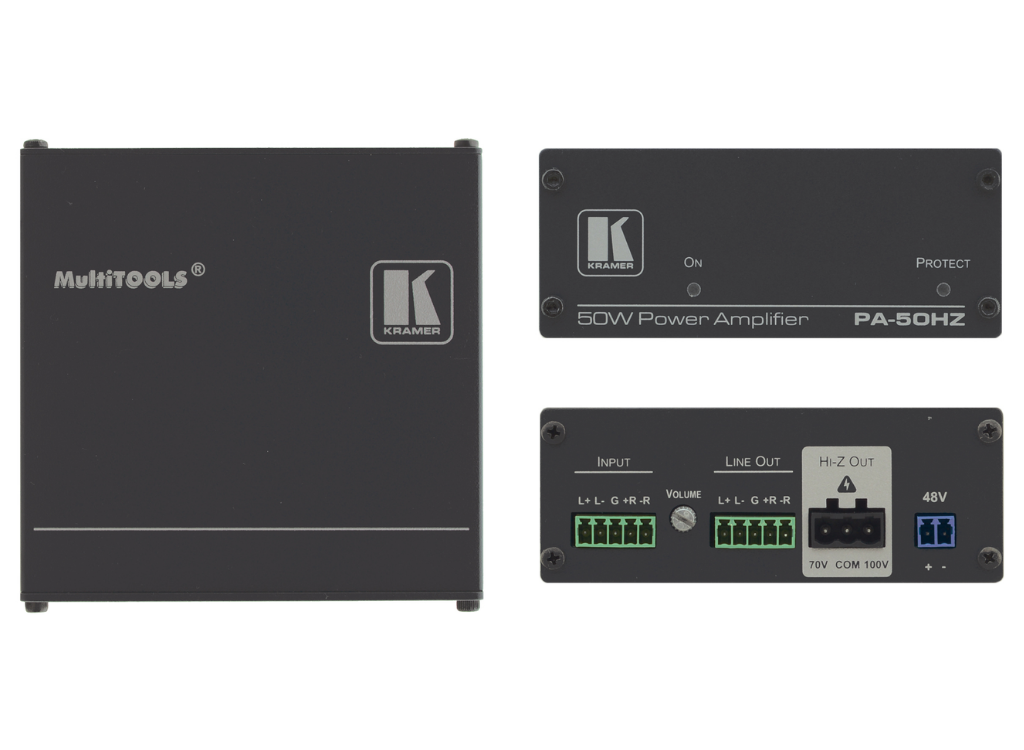

PA−50HZ (PA−50Z) is a compact Hi−Z (70V/100V) power amplifier with line−level output, ideal for small to medium−size meeting spaces and classrooms.

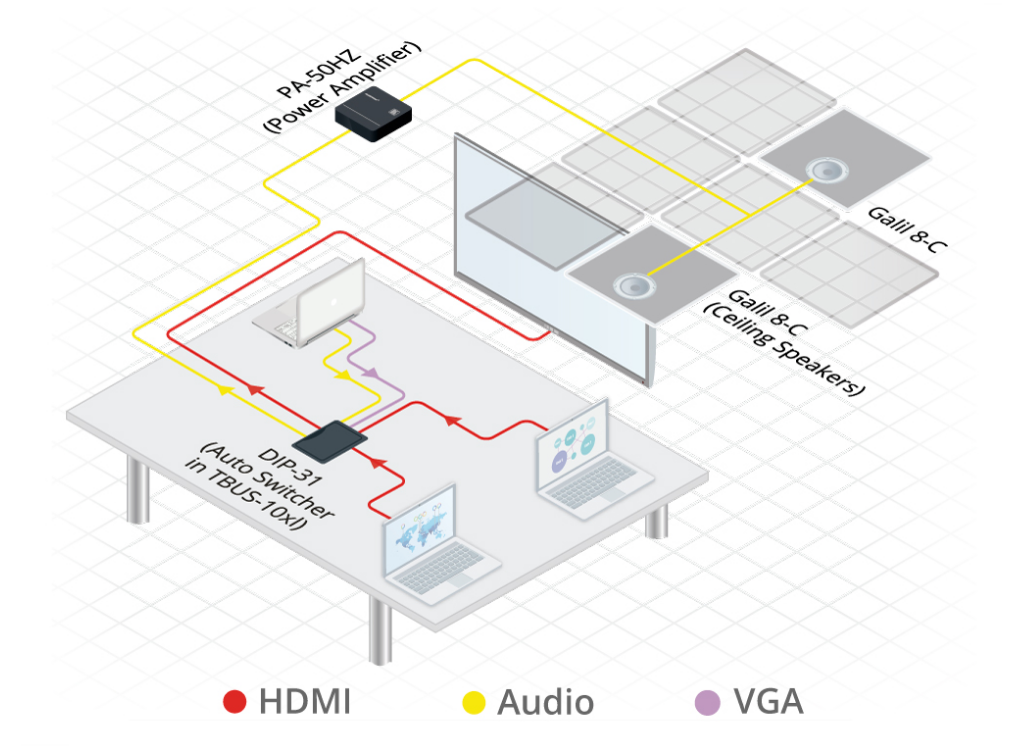

Simple and flexible speaker array installation.

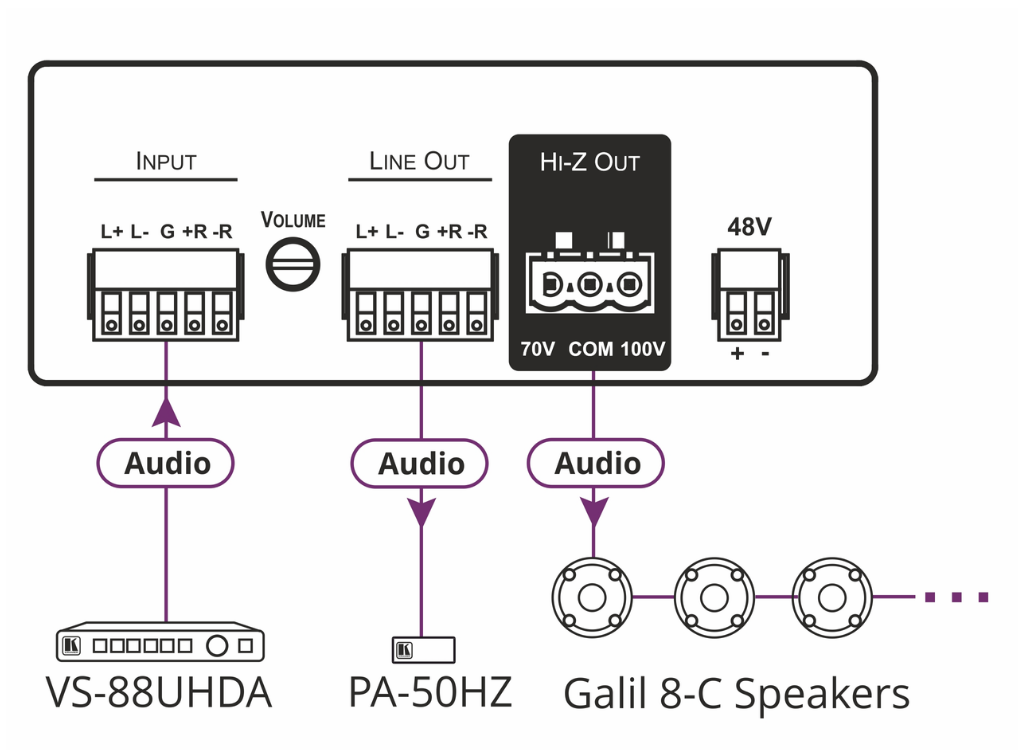

Line level output for cascading, recording or conferencing scenarios.
Small form factor and convection cooling for simple installation.
50W of power into a 70V or 100V line.
Applications
Small to medium–size meeting spaces
Classrooms and educational facilities
| Category | Specification |
|---|---|
| Inputs | 1 Stereo Balanced Audio: On a 5-pin terminal block (up to +4dBu/10kΩ) |
| Outputs | 1 Stereo Balanced Line Level: On a 5-pin terminal block (up to +4dBu/600Ω) |
| 1 Mono Speaker: On a 3-pin large terminal block | |
| Input Sensitivity | Full power @ 1.5V (+5dBV) |
| Amplifier | Class: D |
| Output Power | 1 x 50W @ 70V or 100V |
| Maximum Voltage Gain | 37dB BTL |
| Dynamic Range | >120dB |
| Frequency Response (Speaker Output) | 50Hz to 20kHz @ +/–3dB |
| Frequency Response (Line Level Output) | 20Hz to 20kHz @ +/–0.3dB |
| S/N Ratio | 90dB, 20 Hz — 20 kHz |
| Audio THD + Noise | Speaker output THD+N (1kHz @ 1W) 0.01 % |
| Audio 2nd Harmonic | 0.00006% |
| Controls | Screw trimmer input volume attenuator |
| Power | Consumption: 48V DC, 1.2A |
| Source: 48V DC, 1.36A | |
| Environmental Conditions | Operating Temperature: 0° to +40°C (32° to 104°F) |
| Storage Temperature: –40° to +70°C (–40° to 158°F) | |
| Humidity: 10% to 90%, RHL non-condensing | |
| Regulatory Compliance | Safety: CE, UL |
| Environmental: RoHS, WEEE | |
| Enclosure | Size: 1/4 19” 1U |
| Type: Aluminum | |
| Cooling: Convection Ventilation | |
| Accessories | Included: Power adapter, power cord |
| Product Dimensions | 10.68cm x 10.35cm x 4.36cm (4.20" x 4.07" x 1.72") W, D, H |
| Product Weight | 0.8kg (1.7lbs) approx. |
| Shipping Dimensions | 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94") W, D, H |
| Shipping Weight | 1.4kg (3.0lbs) approx. |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
