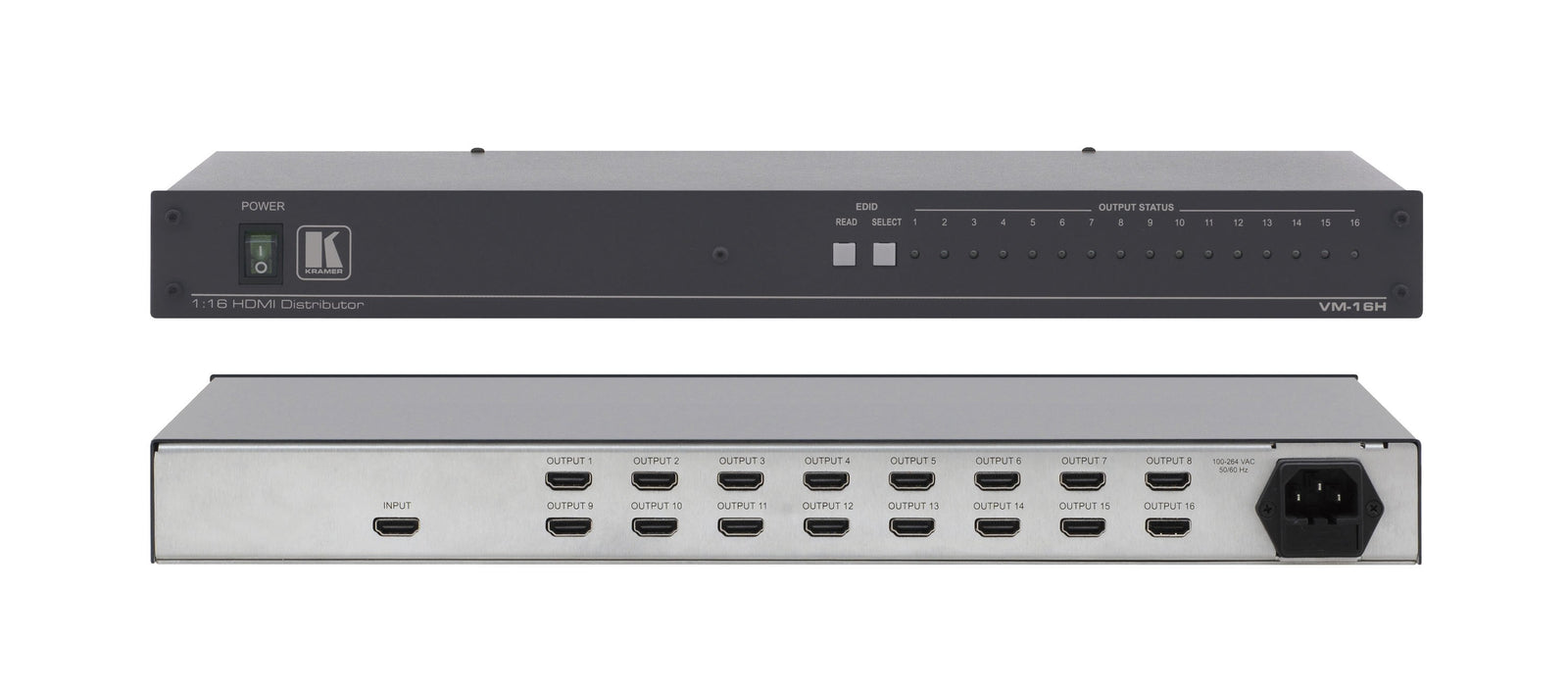

The VM−16H is a distribution amplifier for HDMI signals. It reclocks and equalizes the signal and distributes it to 16 identical outputs.
Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
HDTV Compatible.
HDCP Compliant.
HDMI Support — Deep Color, x.v.Color™, Lip Sync, CEC.
3D Pass–Through.
Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal integrity to travel longer distances.
EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
Active Output LED Indicators.
Worldwide Power Supply — 100–240V AC.
Standard 19” Rack Mount Size — 1U. Rack “ears” included.
Spec sheet
Print this page
Marketing Literature
Applications

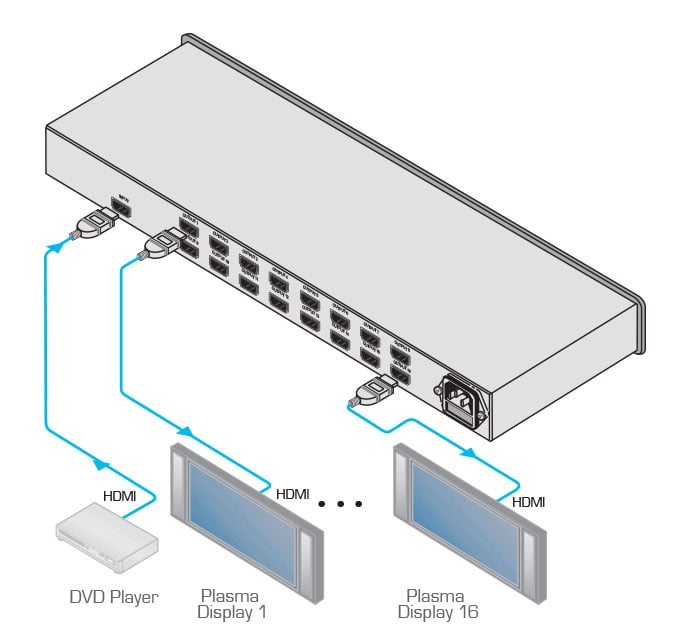

Home theater, presentation and multimedia applications.
Rental and staging.
Retail store displays.
| Feature | Details |
|---|---|
| Input | HDMI Connector |
| Output | 8/16 HDMI connectors |
| Bandwidth | 6.75Gbps (2.25Gbps per graphic channel) |
| Compliance with HDMI Standard | Supports HDMI and HDCP |
| Controls | SELECT and READ buttons for EDID information |
| Indicator LEDs | OUTPUT STATUS 1 to 8/16 |
| Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | –40° to +70°C (–40° to 158°F) |
| Humidity | 10% to 90%, RHL non–condensing |
| Power Consumption | 100–240V AC, 50/60Hz 48VA |
| Included Accessories | Power cord |
| Product Dimensions | 19" x 9.34 x 1U (43.6cm x 23.72cm x 4.36cm) W, D, H |
| Product Weight | 1.8kg (4.0lbs) approx. |
| Shipping Dimensions | 52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21") W, D, H |
| Shipping Weight | 3.2kg (7.1lbs) approx. |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
