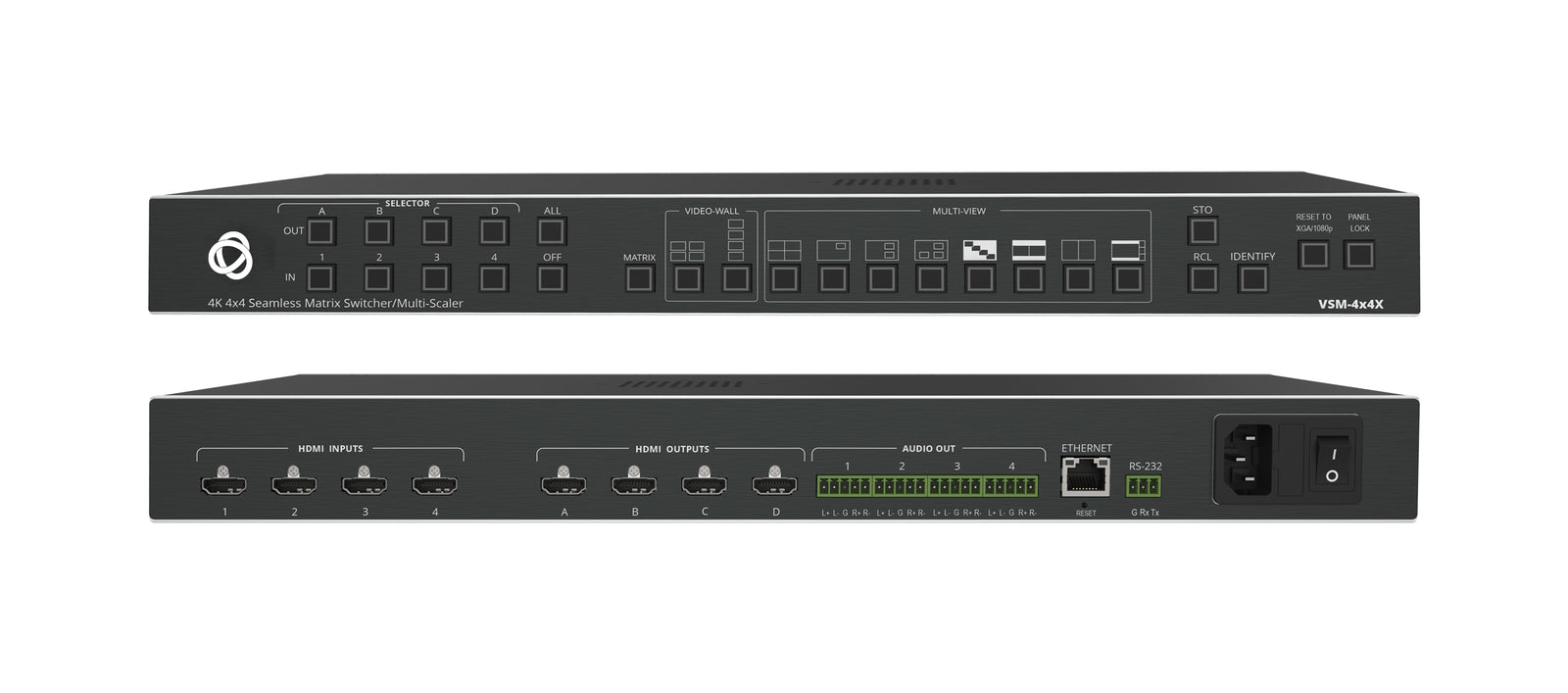

Kramer's VSM 4x4X is a 4X4 seamless matrix switcher that can also be used as a video wall driver (2X2 or 1X4), a quad−viewer, or a 4 picture multi−viewer.
The unit allows instantaneous switching between inputs (that is, with a clean, frame−to−frame video cut). The VSM 4x4X supports HDMI 2.0 and HDCP 2.2, with resolutions up to 4K60 4:4:4, per−port HDCP and EDID settings, passing of 4 channels of embedded audio, and analog stereo de−embedded audio for each of the 4 outputs.
PixPerfect™ Scaling Technology — Kramer’s precision pixel mapping and high quality scaling technology.
Matrix Switching Modes — Truly seamless switching mode (zero–time video cuts), or fade–through–black mode (enabling independent output resolutions).
Multiple Aspect Ratio Selections — Full and best fit.
4 Preset Memory Locations — For each operation mode for quick access to common IN OUT configurations.
Non–Volatile Memory — Saves final settings.
Built–in Noise Reduction and Picture Enhancement Features
HDMI Support — 4K@60Hz, Deep Color, x.v.Color™, 7.1 PCM, Dolby TrueHD, DTS–HD, as specified in VHDMI 2.0.
Selectable Operation Modes — 4x4 matrix switcher, video wall (2x2 or 1x4 configuration), multi–view display Split,
Side–by–Side, PIP, POP, Stacked or Quad display.
Bezel Correction Options — In video wall mode.
Constant Output Sync — For all modes of operation.
Built–in Video ProcAmp — Color, hue, sharpness, noise, contrast and brightness set individually for each input.
Firmware Upgrade — Ethernet based, via a user–friendly software upgrade tool.
Advanced EDID management per Input
Video inputs and Outputs — 4 HDMI Inputs and 4 Scaled HDMI Outputs.
Audio Outputs — 4 balanced audio outputs with independent volume settings per output, embedded audio on the HDMI inputs and outputs.
Applications
Presentation and multimedia
Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios, rental and staging.
Video wall: large signage applications in public places.
Any application where high quality conversion and switching of multiple and different video signals to graphical data signals is required for display or projection purposes.
| Category | Specification |
|---|---|
| Inputs | 4 HDMI: On female HDMI connectors |
| Outputs | 4 HDMI: On female HDMI connectors |
| Ports | 4 Balanced Stereo Line Level: On 5-pin terminal block connectors 1 RS-232: On a 3-pin terminal block 1 Ethernet: On an RJ-45 female connector |
| Video | Max Bandwidth: 18Gbps (6Gbps per graphic channel) Max Resolution: 4K @60Hz (4:4:4) 24bpp Compliance: HDMI 2.0 and HDCP 1.4 Latency: Up to 20ms |
| Controls | Front Panel: Output and input selector buttons, system setup buttons (matrix, video wall, multi-view), store and recall buttons, display identify button, reset button, and panel lock button |
| Analog Audio | Max Level: 4.1Vrms Impedance: 500Ω Bandwidth: 20Hz — 20kHz Crosstalk: –114dB THD + N: 0.005% @1kHz at nominal level S/N Ratio: –89dB, 20Hz — 20kHz Coupling: DC |
| Power | Consumption: 100–240V AC, 98VA max Heat Dissipation: 55W (188BTU/hr) |
| Environmental Conditions | Operating Temperature: 0° to +40°C (32° to 104°F) Storage Temperature: –40° to +70°C (–40° to 158°F) Humidity: 10% to 90%, RHL non-condensing |
| Regulatory Compliance | Safety: CE, FCC Environmental: RoHS, WEEE |
| Enclosure | Size: 19” 1U Type: Aluminum Cooling: Fan Ventilation |
| General | Net Dimensions (W, D, H): 43.6cm x 18.3cm x 4.4cm (17.2" x 7.2" x 1.7") Shipping Dimensions (W, D, H): 55cm x 27.6cm x 10.7cm (21.6" x 10.9" x 4.2") Net Weight: 1.8 kg (4lbs) Shipping Weight: 2.9 kg (6.4lbs) approx |
| Accessories | Included: Power adapter cord |
| Product Dimensions | 19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H |
| Product Weight | 1.9kg (4.1lbs) approx. |
| Shipping Dimensions | 55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21") W, D, H |
| Shipping Weight | 2.9kg (6.4lbs) approx. |
