LCD PANEL |
|
Panel Size |
14-inch |
Screen Dimensions |
309.31 mm x 173.09 mm |
Panel Type |
In-Plane Switching |
Backlight |
WLED |
Aspect Ratio |
16:9 |
Resolution |
1920 x 1080 |
Pixel Pitch |
0.1611 x 0.1611 mm |
DPI/PPI |
157 |
Viewing Angle (H x V @ CR 10:1) |
178° / 178° |
Response Time |
6ms with OD |
Refresh Rate |
60 Hz |
Brightness (typical) |
300 cd/m² |
Contrast Ratio (typical) |
700:1 |
Dynamic Contrast Ratio (typical) |
3M:1 |
Colour Gamut (NTSC - CIE 1931) |
72% |
Color Support (typical) |
16.7 Million |
Color Depth |
8-bit (6-bit + FRC) |
Anti-Glare |
Yes |
CONNECTIVITY |
|
Video Input Signals |
2 x USB 3.1 Type-C (DP1.2 Alt Mode) |
POWER |
|
Power Consumption (typ./max) |
6 W / 7.5 W (Without USB Type-C output) |
ENERGY STAR Power Consumption (Pon) |
4.88 W |
ENERGY STAR Power Consumption (ETEC) |
15.53 kWh |
Power Consumption Sleep/Off Mode |
< 0.3 W |
Power Consumption Switch-Off Mode |
< 0.3 W |
USB Type-C/Power Delivery |
Up to 65 W |
Power Supply |
External (no adapter bundle) |
Voltage Required |
DC 5 V to 20 V |
MECHANICAL |
|

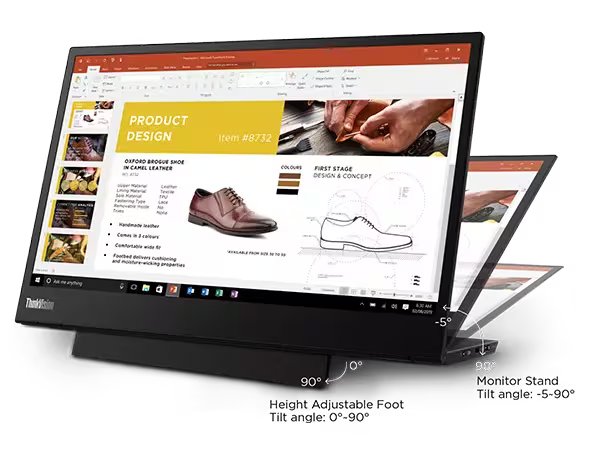

Tilt Angle (front/back) |
-5° / 90° |
Mounting Support |
Yes (100 mm) |
Kensington Lock Slot |
Yes |
Cable Management |
Yes |
Bezel Color |
Raven Black |
Bezel Width (Side) |
5.48mm |
Bezel Width (top / bottom) |
5.47 mm / 23.87 mm |
DIMENSIONS |
|
Size Packed (D x H x W, mm/inch) |
276 x 61 x 402 mm / 10.87 x 2.40 x 15.83 inches |
Size Unpacked w/ Stand (lowest position) |
96.54 x 209.03 x 323.37 mm / 3.8 x 8.23 x 12.73 inches |
Size Unpacked w/ Stand (highest position) |
96.54 x 220.03 x 323.37 mm / 3.8 x 8.66 x 12.73 inches |
Stand base footprint area (mm2) |
260.87 x 69.55 mm / 10.27 x 2.74 inches |
WEIGHT |
|
Weight Packed (kg / lbs.) |
1.67 kg / 3.67 lbs. |
Weight Unpacked (kg / lbs.) |
0.598 kg / 1.31 lbs.* |
ENVIRONMENTAL |
|
Temperature - Operating |
0°C to 40°C |
Temperature - Non-operating |
-20°C to 60°C |
Humidity - Operating |
30% to 80% |
Humidity - Non-operating |
30% to 90% |
Altitude - Operating |
0 to 5000 m |
Altitude - Non-operating |
0 to 40,000 ft |
Arsenic-free Glass |
Yes |
PVC free |
Yes |
Mercury free |
Yes |
PCC % of plastic resins |
85% |
WARRANTY |
|
Geography Availability |
WW |
Warranty |
3 Years |
CERTIFICATIONS |
|
ENERGY STAR Rating |
8.0 |
CCC |
Yes |
EPEAT |
Silver |
RoHS (EU 2002/95/EC) |
Yes (Arsenic free / Pb free / Mercury free) |
Windows Certification |
Windows 7 / 10 |
Image Quality Capability |
ISO 9241-307 |
China Energy Efficiency Standard |
Tier 2 |
Low Blue Light / Eye Comfort |
Yes (Low Bluelight) |
