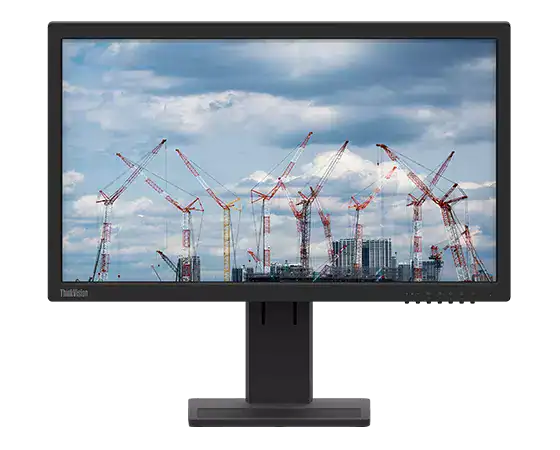

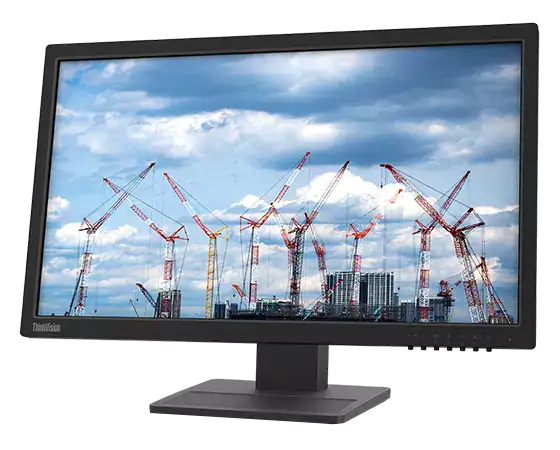

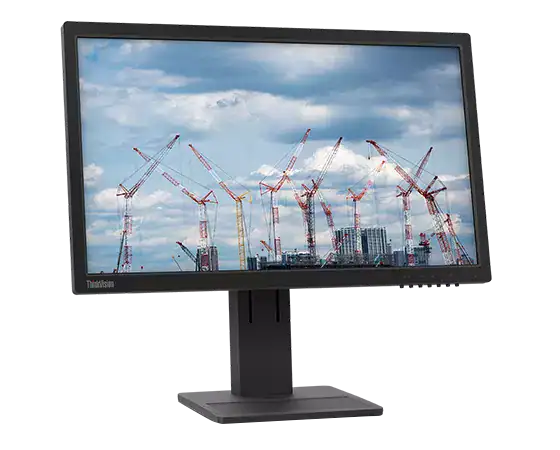

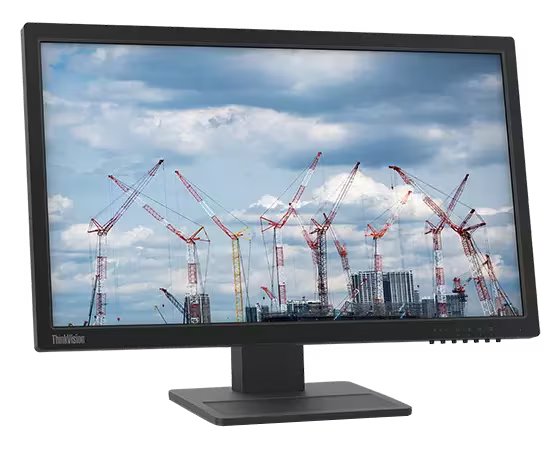

Lenovo 62B9MAT4UK/E22-28 ThinkVision 21.5" 60Hz Full HD Monitor
Overview
The ThinkVision E22-28 is a user-oriented device, designed with modern workforce requirements in mind. Boost productivity with this 21.5-inch Full-HD display with a 4 ms response time in extreme mode that delivers clear and accurate visuals, no matter the task. The ports on offer - HDMI, DP, and VGA - allow for versatile connectivity. Most of all, its ergonomically designed stand allows for complete customisation in terms of lift, tilt, pivot, and swivel which not only optimises office space, but also ensures you experience minimal fatigue while on the job.
Comfortable Viewing Experience
Get precise visuals in Full-HD resolution and wide viewing angles on the ThinkVision E22-28’s 21.5-inch In-Plane Switching Panel. The TÜV Rheinland Eye Comfort certification means that the monitor causes minimum eye fatigue. With 16.7 million color support and a 72% NTSC color gamut, enjoy vivid imagery.
Enhanced Connectivity
The ThinkVision E22-28 is not just stylish and ergonomic—it is functional as well. It is compatible with most devices through the HDMI, DP, and VGA ports, enhancing productivity and performance. Online meetings are more efficient and convenient with better quality calls thanks to built-in speakers that come with the monitor.
Efficient Use of Workspace
A lift range of 155 mm, tilt angles of -5° / 22°, swivel angles of -360° / 360°, and a pivot range of ± 90° powers users through the day by allowing them to customize the monitor as per their convenience, minimizing neck and back strains and aches. With the VESA Mount, the ThinkVision E22-28 can also be fixed on a wall, giving your office a neat, clean look.
-
DISPLAY |
|
Panel Size |
21.5-inch |
Screen Dimensions |
483.64 mm x 278.67 mm |
Panel Type |
In-Plane Switching |
Active Area |
476.06 mm x 267.79 mm |
Backlight |
WLED |
Aspect ratio |
16:9 |
Resolution |
1920 x 1080 |
Refresh Rate |
60 Hz |
Pixel Pitch |
0.2480 mm x 0.2480 mm |
Pixel Per Inch (DPI/PPI) |
102 |
Viewing Angle (H x V @ CR 10:1) |
178° / 178° |
Response Time |
4ms (Extreme Mode), 6ms (Normal mode) |
Brightness (typical) |
250 cd/m2 |
Contrast Ratio (typical) |
1000:1 |
Dynamic Contrast Ratio (typical) |
3M:1 |
Color Gamut |
72% NTSC (CIE 1931) |
Color Support (typical) |
16.7 Million |
Anti-glare |
Yes |
CONNECTIVITY |
|
Video Signals |
1 x HDMI 1.4, 1 x DP 1.2, 1 x VGA |
MULTI-MEDIA |
|
Integrated Speakers |
Yes (2 x 1.5W) |
POWER |
|
Power Consumption (typ./max) |
13W / 17W |
Power Consumption Sleep/Off Mode |
< 0.5W |
Power Consumption Switch-Off Mode |
< 0.5W |
Energystar Power Consumption (Pon/ETEC) |
13W / 41kWh |
Power Supply |
Internal |
Voltage Required |
AC 90 to 264 V (47-63 Hz) |
MECHANICAL |
|
Tilt Angle (front/back) |
-5° / 22° |
VESA Mount Capability |
Yes (100 x 100 mm) |
Swivel Angle (left/right) |
-360° / 360° |
Pivot |
-90° / 90° |
Lift (Max. Range) |
155 mm |
Kensington™ Lock Slot |
Yes |
ThinkCentre Tiny Support* |
Yes, by Sandwich Mounting Kit (PN: 4XH0N04098) |
Bezel Color |
Raven Black |
Bezel Width (side) |
15.0 mm |
Bezel Width (top/bottom) |
17.6 / 20.8 mm |
DIMENSION |
|
Size Packed |
131.0 x 405.0 x 610.0 mm (5.16 x 15.94 x 24.02 inches) |
Size Unpacked w/ Stand (lowest position) |
178.6 x 301.6 x 508.0 mm (7.03 x 11.87 x 20.00 inches) |
Size Unpacked w/stand (Highest Position) |
178.6 x 443.4 x 508.0 mm (7.03 x 17.46 x 20.00 inches) |
Size Unpacked w/o stand (Head Only) |
43.4 x 307.9 x 508.0 mm (1.71 x 12.12 x 20.00 inches) |
WEIGHT |
|
Weight Packed |
5.40 kg / 11.90 lbs. |
Weight Unpacked |
3.90 kg / 8.60 lbs. |
Weight (Monitor Head Only) |
2.20 kg / 4.85 lbs. |
CERTIFICATIONS |
|
ENERGY STAR Certification |
Yes |
CCC |
Yes |
TCO |
8.0 |
TCO Edge |
2.0 |
RoHS (EU 2002/95/EC) |
Yes |
EPEAT |
Silver |
Windows Certification |
Windows 7, Windows 10 |
China Energy Efficiency Standard |
Tier 1 |
TÜV Rheinland Eye Comfort |
Yes |
TÜV Rheinland Flicker Free |
Yes |
