Modular convenience

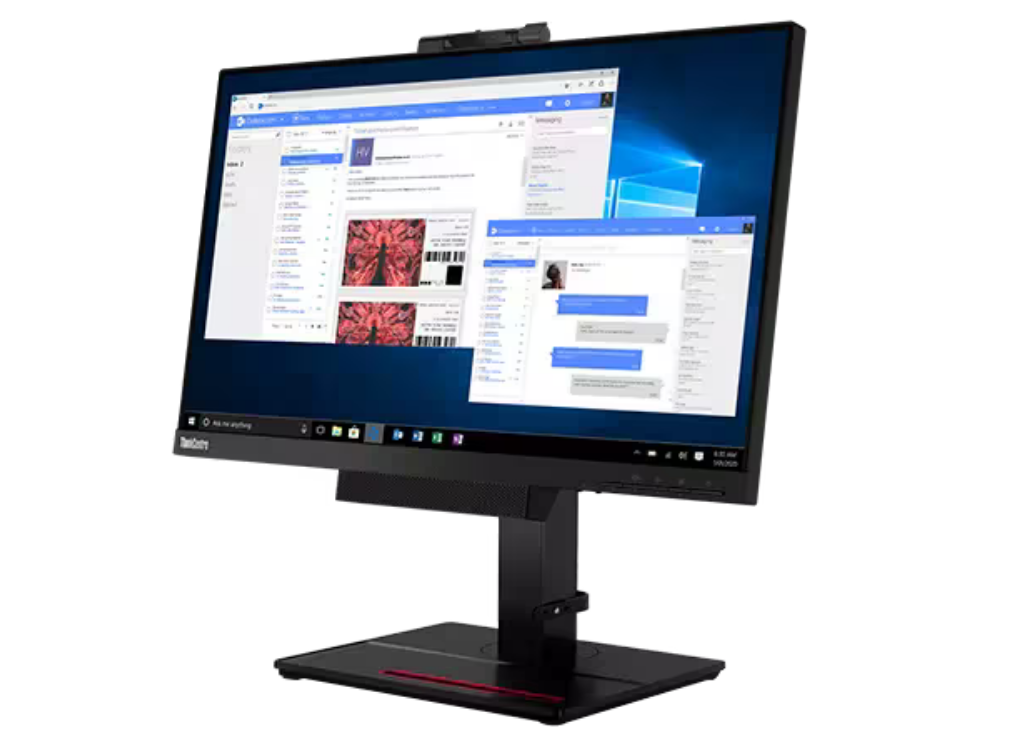

The ThinkCentre TIO22 Gen 4 makes it easy to create your own modular all-in-one (AIO)—simply plug a compatible ThinkCentre Tiny, Nano, or similar PC (not supplied) into the back of monitor. It instantly becomes a self-contained, fully functional AIO. But unlike other AIOs, the monitor and CPU refresh separately, making upgrades efficient and easy. The TIO is compatible with most ThinkCentre Tiny or Nano PCs*, so you can have the right all-in-one for your business now.
Purposeful design

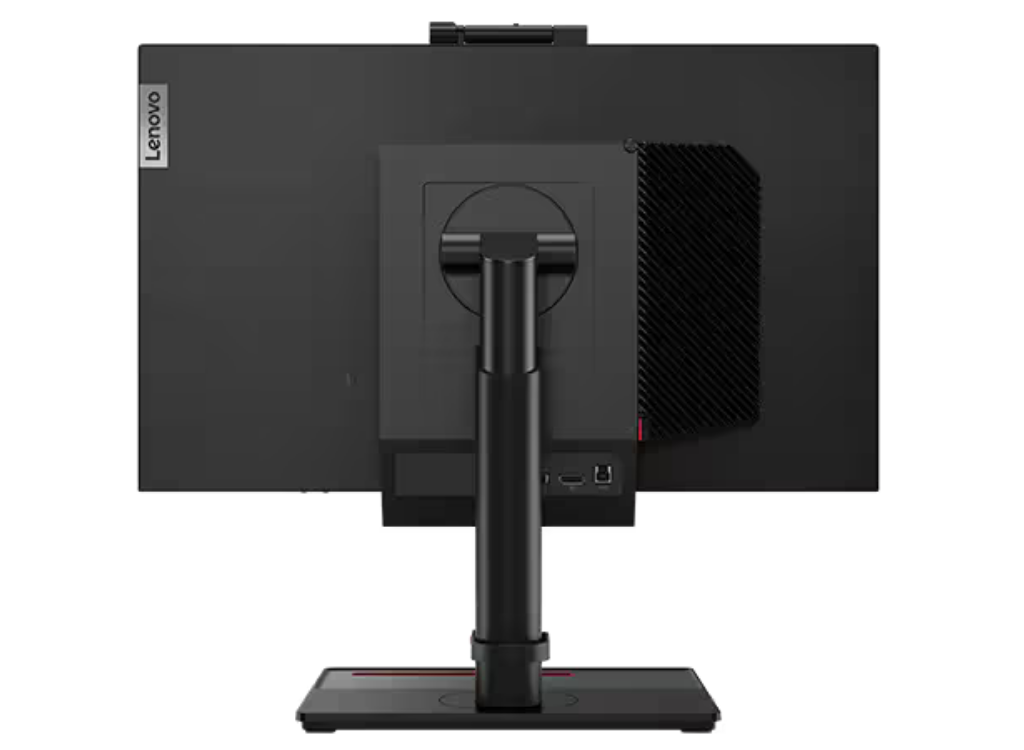

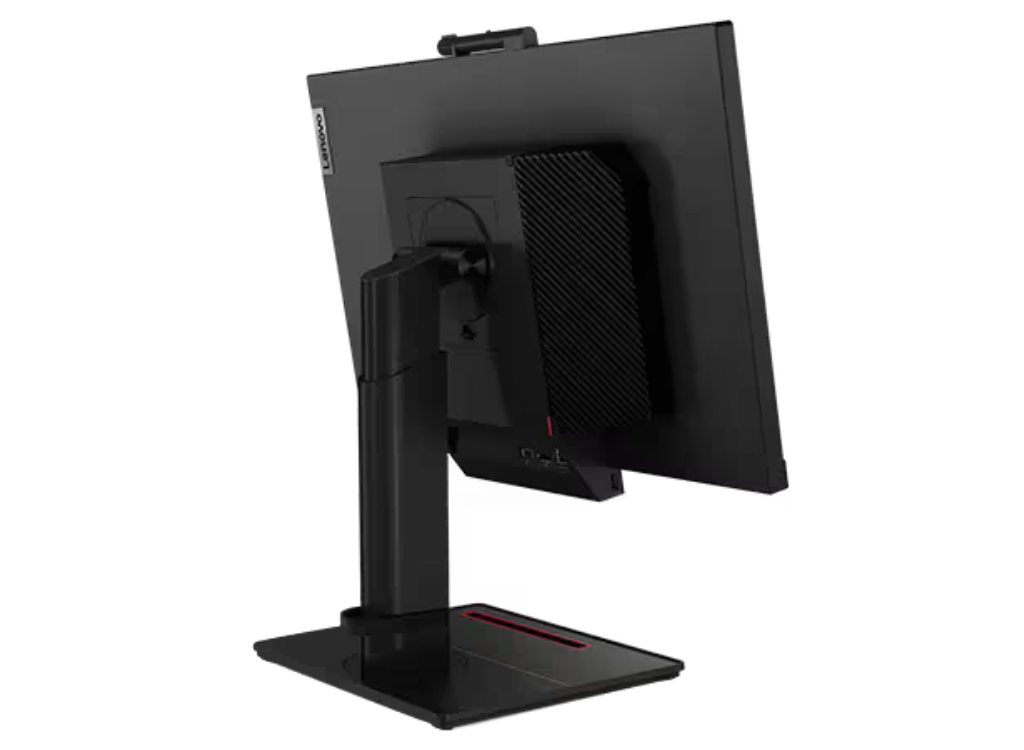

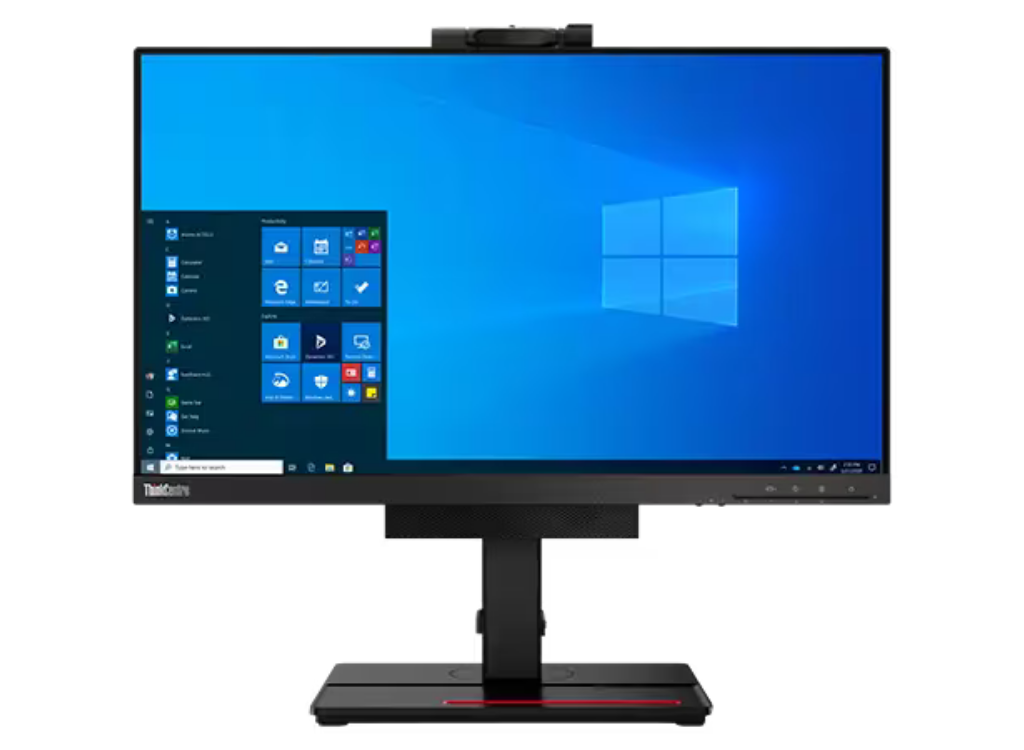

This TIO’s 21.5" FHD display is sleek and borderless and the unit takes up less space than previous generations. Its back cover has been redesigned for optimal heat dissipation and PC performance, and the stand includes a handy storage slot for your smartphone. The display also offers optional 10-point multitouch. It can also be used as a second display for your laptop, via DisplayPort.
Connect and collaborate

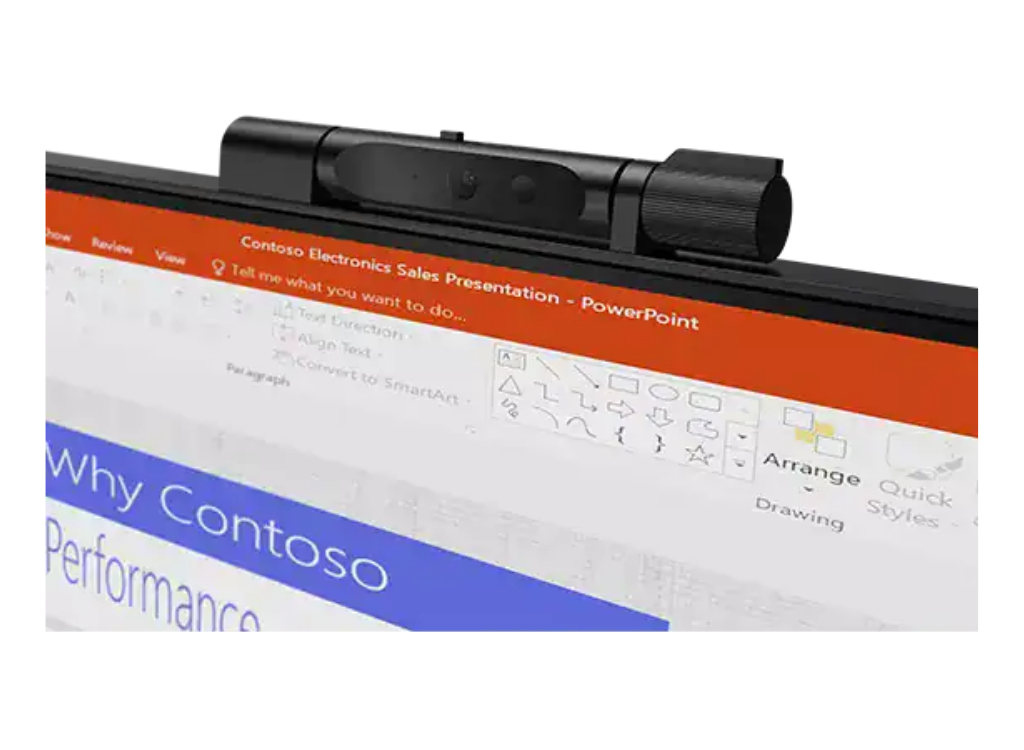

Thanks to the two 2W speakers and 720p rotatable camera and microphone, video calls are seamless and crystal-clear. The camera also features ThinkShutter, a privacy cover for when you’re not videoconferencing. Additionally, the TIO22 Gen 4 has plenty of ports, all conveniently situated for you to recharge and connect your other devices.
Ease & comfort of use

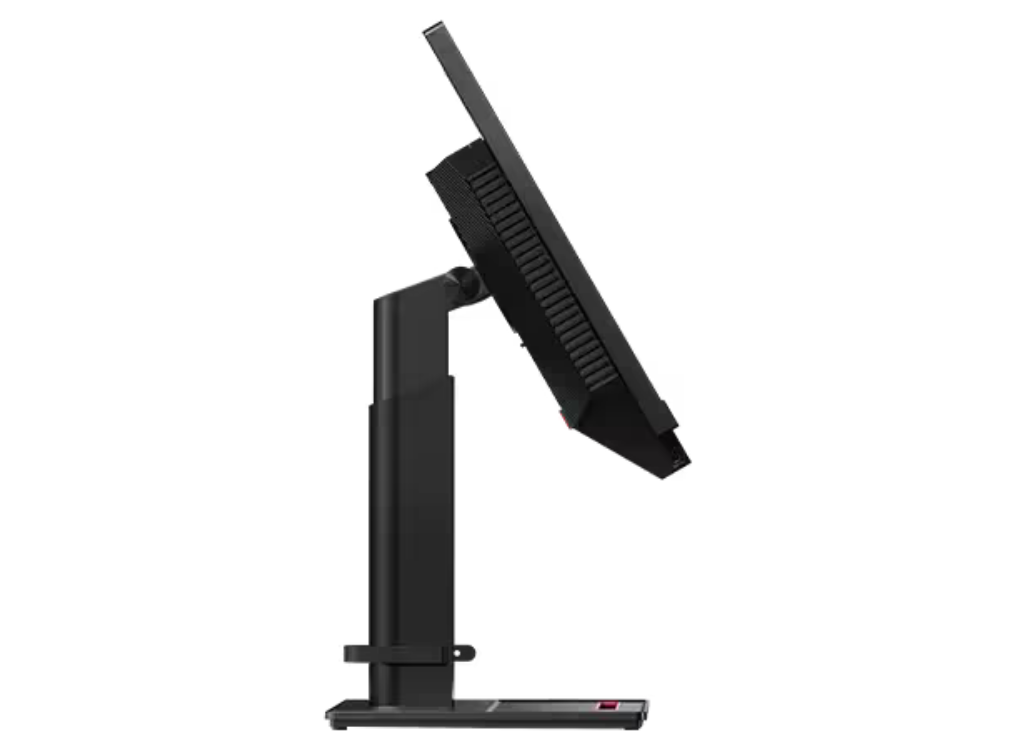

The TIO22 Gen 4 has been independently tested and certified by TÜV Rheinland to be eye-friendly. It also has an antiglare filter to help make your viewing more comfortable. Its redesigned stand has an additional 40mm of vertical lift, allowing for better ergonomics and more range in meeting your eye level. It also swivels 45 degrees in either direction, while the display tilts from -5 to 30 degrees and even rotates up to 90 degrees clockwise.
| Category | Details |
|---|---|
| Performance | |
| Panel Size | In-Plane Switching (IPS) |
| Display Size | 21.5 inches (546.1 mm) |
| Max View Area | W x H: 476.1 x 267.8 mm (18.74 x 10.54 inches) |
| Native Resolution | 1920x1080 |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 0.24795 x 0.24795 mm |
| DPI | 102.4 dpi |
| Brightness | 250 nits |
| Contrast Ratio | 1000:1 |
| Pixel Response Time | 4 ms (extreme mode) / 6 ms (typical mode) / 14 ms (off mode) |
| Color Gamut | 72% NTSC |
| Viewing Angle | Horizontal: +/- 89°, vertical: +/- 89° |
| Anti-glare | Anti-glare |
| Multi-Media | |
| Camera | 720p, with dual microphone and Think Shutter |
| Microphone | Dual array microphone |
| Speakers | Stereo speakers, 2W x2 |
| Power Supply | |
| Power | 90W |
| Type | Adapter |
| Efficiency | 88% |
| Power Consumption | 14 watts typical, 25 watts max |
| Design | |
| Presets and User Settings | Presets: 25, User settings: 25 |
| On Screen Display | On screen display with digital user controls (8 languages) |
| Display | |
| Touchscreen | (Optional) Advanced In-cell Touch (AIT), supports 10-point touch |
| Mechanical | |
| Compatible Tiny | P340 / P330 / P320 / M90q / M80q / M70q / M75q / M920(x) / M720 / M910(x) / M710 / M715 / M900(x) / M700 / M630e / M625 / M600 Tiny / M90n / M75n Nano (with TIO kit) |
| Bezel Width | Top / side: 2mm, Bottom: 22.1mm |
| Buttons | Power button, Exit button, Menu button, Mode-switching button, Brightness button |
| Cables | Undetachable 3-in-1 cable (power connector, USB [supports USB 3.1 Gen 1 / USB 2.0], DisplayPort™) |
| Case Color | Black |
| Mounting | Supports VESA mount 100mm |
| Stand | Full function monitor stand, supports -5° to +30° tilt, left & right 45° swivel, up to 150mm lift, -5° to +90° pivot |
| Dimension | |
| Models with full function monitor stand | 489 x 220.4 x 568.2 mm (19.26 x 8.68 x 22.37 inches) |
| Models without stand | 489 x 65.3 x 339 mm (19.26 x 2.57 x 13.35 inches) |
| Weight | |
| Models without stand | 3.41 kg (7.52 lbs) |
| Models with full function monitor stand | 6.58 kg (14.51 lbs) |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
