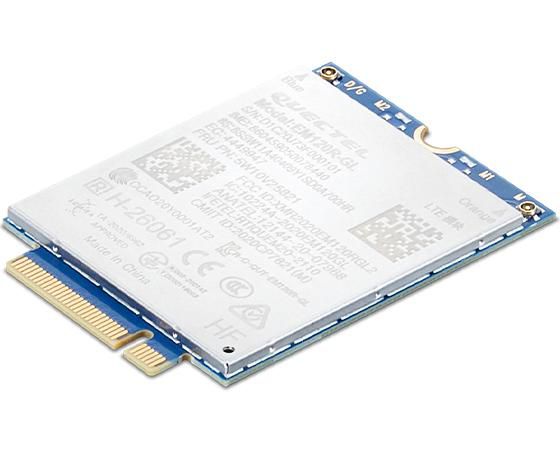

ThinkPad Quectel SDX24 EM120R-GL CAT12 PCIE WWAN Module
ThinkPad Quectel SDX24 EM120R-GL CAT12 WWAN Module I is a wireless communication module with receive diversity. It helps provide data connectivity and network with standard PCI Express M.2 interface. With downlink speed of up to 600 Mbps and uplink speed of up to 150 Mbps, the CAT12 WWAN module enhances the network reliability and availability of your ThinkPad, and provides a great cellular solution for travelers to sustain mobility while using PC devices.
| Attribute | Details |
|---|---|
| Certification | CE, FCC, ANATEL, TELEC & JATE, etc. |
| Component for | Laptop |
| Internal | Yes |
| UNSPSC Code | 43201404 |
| Harmonized System Code | 85176990 |
| Max Data Transfer Rate | 600 Mbit/s |
| Operating Humidity | 5 - 95% |
| Operating Temperature | -25 - 75°C |
| Package Dimensions (cm) | 14.4 x 17.7 x 5.3 |
| Gross Weight (kg) | 0.1 |
| Connectivity Technology | Wired |
| Host Interface | M.2 |
| Interface | WWAN |
| Net Weight (kg) | 0.09 |
| Product Dimensions (cm) | 3 x 0.23 x 4.2 |
| Brand Name | Lenovo |
| Warranty | 1 Year |
| Categories | Networking Cards, System Components |
