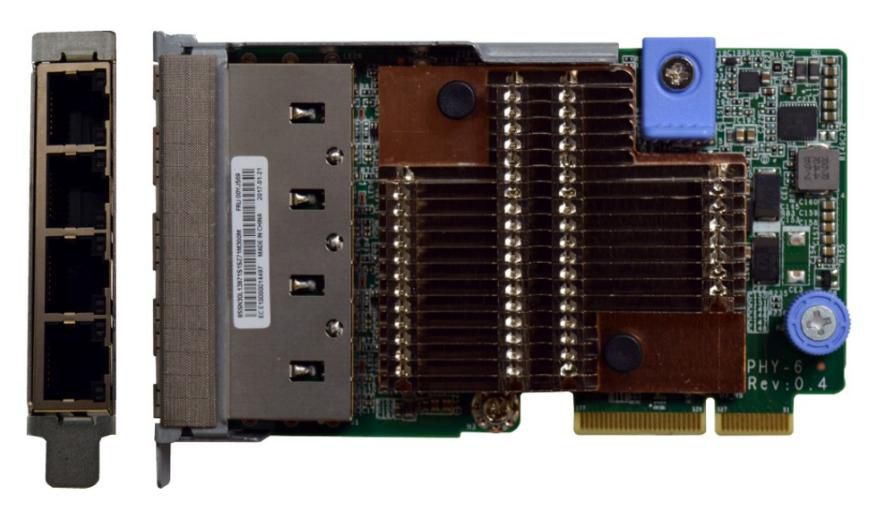

ThinkSystem 10Gb 4-port 10GBASE-T LOM
The Intel Ethernet Connection X722 is a network controller embedded into the Intel C624 "Lewisburg" PCH chipset of Lenovo ThinkSystem servers. The controller connects to available 10 GbE and 1 Gigabit Ethernet LAN-on-motherboard (LOM) adapter cards and onboard connectors to provide a comprehensive 1 GbE / 10 GbE networking solution for ThinkSystem customers.
ThinkSystem servers support either 10 Gb Ethernet copper or optical connections, or Gigabit Ethernet connections depending on the server model.
The following figure shows the ThinkSystem 10Gb 4-port SFP+ LOM adapter which provides four SFP+ cages for optical or direct-attach copper (DAC) connectivity.
| Category | Feature | Details |
|---|---|---|
| Design | Certification | Australian EMC Framework (RCM), CE Mark, FCC Rules Part 15 (Class A), Industry Canada ICES-003 (Class A), Japan VCCI (Class A), Korea KC-RRA (Class A), UL recognized UL60950-1 2nd Edition |
| Chipset | Intel® C624 | |
| Compatible Products | SR630, SR650, SR850, SR860, SR950 | |
| Internal | Yes | |
| Product Colour | Green | |
| RoHS Compliance | Yes | |
| Legal Information | EU ECCN Code | N/A |
| UNSPSC Code | 43201404 | |
| US ECCN Code | 5A991 | |
| Harmonized System (HS) Code | 85176990 | |
| Network | Cabling Technology | 10GBase-T |
| Ethernet LAN | Yes | |
| Ethernet LAN Data Rates | 10/100/1000/10000 Mbit/s | |
| Flow Control Support | Yes | |
| Jumbo Frames | 9728 | |
| Jumbo Frames Support | Yes | |
| Max Data Transfer Rate | 10000 Mbit/s | |
| Networking Standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qbg, IEEE 802.3ad, IEEE 802.3x | |
| Quality of Service (QoS) Support | Yes | |
| Security Algorithms | SNMP | |
| VLAN Tagging | Yes | |
| Other Features | Number of VLANs | 4096 |
| PCI-SIG SR-IOV Capable* | Yes | |
| Receive Side Scaling (RSS) | Yes | |
| Package Dimensions | Depth (Package, cm) | 24 cm |
| Gross Weight (Package, kg) | 0.29 kg | |
| Height (Package, cm) | 6 cm | |
| Width (Package, cm) | 15 cm | |
| Ports & Interfaces | Connectivity Technology | Wired |
| Ethernet LAN (RJ-45) Ports | 4 | |
| Host Interface | PCI Express | |
| Interface | Ethernet | |
| Product Dimensions | Net Weight (Product, kg) | 0.2 kg |
| Sustainability | Sustainability Certificates | RoHS |
| System Requirements | Linux OS Supported | openSUSE 11.3, openSUSE 11.4, openSUSE 12.1, openSUSE 12.2, Red Hat Enterprise Linux WS 6.0, Red Hat Enterprise Linux WS 7.0 |
| Other OS Supported | VMware vSphere ESXi | |
| Server OS Supported | Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2016 | |
| Technical Details | Compliance Certificates | RoHS |
| Vendor Information | Brand Name | Lenovo |
| Warranty | 1 Year | |
| Categories | Main Category | Server, Computer & Printer Parts |
| Subcategories | Servers & Computers, System Components, Networking Cards |
