Powerful 1U server for your evolving needs
The ideal single-socket 1U rack server for growing businesses offering power, reliability, and flexibility for space constrained installations.
High reliability and security

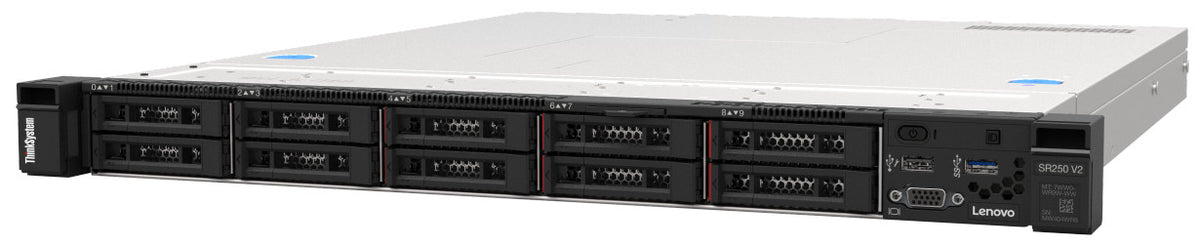

The Lenovo ThinkSystem SR250 V2 offers reliability, and security without sacrificing performance. This single-processor rack server, in a compact 1U form factor, is built for expanding businesses or edge deployment.
With an increase in performance of up to 17% above previous generations, the next-generation Intel® Xeon® E-2300 processors provide higher workload performance at an entry-level price point.
Flexible, scalable and manageable
Flexible, scalable and manageableThe ThinkSystem SR250 V2 offers flexibility via multiple configurations with TruDDR4 memory, GPU support, and an array of storage options. Ideal for IT infrastructure, web serving, virtualization, and edge applications.
The SR250 V2 includes the Lenovo XClarity Controller, that standardizes and automates server management tasks.
The XClarity Administrator virtualized application centrally manages your ThinkSystem servers, storage, and networking, lowering costs and speeding infrastructure provisioning.
Energy-efficient powerhouse
The ThinkSystem SR250 V2 provides enterprise-level, 8 core performance while using no more than 95W CPUs. It’s shorter-depth rack accommodates the space-constrained environments found in many SMB’s, remote/branch offices, and edge applications.
The ThinkSystem SR250 V2 is an ideal solution when your business needs a server to handle large workloads in a small footprint.
| Category | Feature | Details |
|---|---|---|
| General | Type | Server |
| Hot-Swap Bays Qty | 8 | |
| Built-in Devices | LED panel | |
| Server Scalability | 1-way | |
| Product Form Factor | Rack-mountable - 1U | |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip | |
| Localisation | Region: EMEA | |
| Manufacturer Warranty | Service & Support | Limited warranty - 3 years - on-site - response time: next business day |
| RAM | Features | Unbuffered |
| Effective Memory Speed | 3200 MHz | |
| Rated Memory Speed | 3200 MHz | |
| Installed Size | 16 GB (installed) / 128 GB (max) | |
| Form Factor | DIMM 288-pin | |
| Technology | DDR4 SDRAM - ECC | |
| Slots | 4 (Total) | |
| Miscellaneous | Compliant Standards | TUV GS, BSMI CNS 13438 Class A, EN 61000-3-2, GS, EN 61000-3-3, EN55024, CB, CCC, IEC 60950-1, FCC Part 15 A, UkrSEPRO, GREENGUARD, GB 17625.1, CECP, VCCI Class A, GB 4943.1, CNS 14336, BIS, INMETRO, NOM-019, EK1-ITB2000, KN35, UL 2819, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, EN 55035, CISPR 35, CM, TP TC 004/2011, TP TC 020/2011, CELP, HJ 2507-2011, Energy-Related Products (ErP) Lot 9, CNS 15663 section 5, TP EAC 037/2016, EN 50581-1, AS/NZS 62368.1, UKCA, ANSI/UL 62368-1, ICES-003 issue 7 Class A, NSF/ANSI 426, GB/T9254, CQC3135, CSA C22.2 No. 62368-1, CMIM, NRCS LOA |
| Power | Installed Qty | 1 |
| Max Supported Qty | 2 | |
| Power Redundancy | Optional | |
| Device Type | Power supply - hot-plug | |
| Power Provided | 450 Watt | |
| Power Redundancy Scheme | 1+1 (with optional power supply) | |
| 80 PLUS Certification | 80 PLUS Platinum | |
| Voltage Required | AC 100-240 V (50/60 Hz) | |
| Cache Memory | Installed Size | 8 MB |
| Cache Per Processor | 8 MB | |
| Optical Storage | Type | No optical drive |
| Monitor | Monitor Type | None. |
| Graphics Controller | Video Memory | 16 MB |
| Video Interfaces | VGA | |
| Graphics Processor | Matrox G200 | |
| Hard Drive | Type | No HDD |
| Dimensions & Weight | Width | 43.5 cm |
| Height | 4.3 cm | |
| Weight | 9.1 kg | |
| Depth | 54.5 cm | |
| Dimensions & Weight (Shipping) | Shipping Width | 61 cm |
| Shipping Height | 19.6 cm | |
| Shipping Depth | 86 cm | |
| Processor / Chipset | CPU Qty | 1 |
| Max CPU Qty | 1 | |
| Clock Speed | 3.4 GHz | |
| Number of Cores | Quad-Core | |
| Max Turbo Speed | 4.8 GHz | |
| Chipset Type | Intel C256 | |
| CPU | Intel Xeon E-2334 | |
| Sustainability Information | ENERGY STAR Version | 3.0 |
| ENERGY STAR Certified | Yes | |
| EPEAT Compliant | EPEAT Bronze |
| Description | Downloads |
|---|---|
| Lenovo ThinkSystem SR250 V2 Rack (1U) Intel Xeon E E-2334 3.4 GHz 16 GB DDR4-SDRAM 450 W Server | 7D7QA02NEA DataSheet | Downloads |
