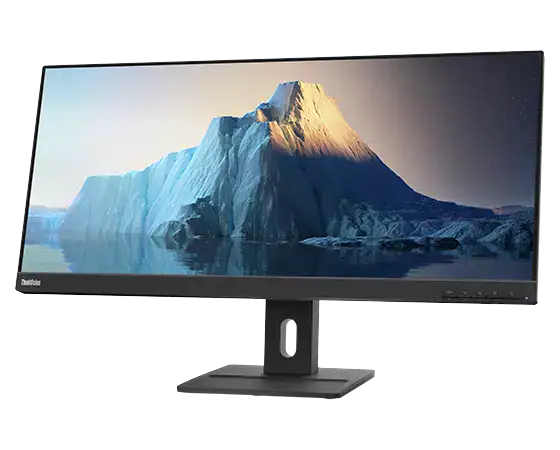

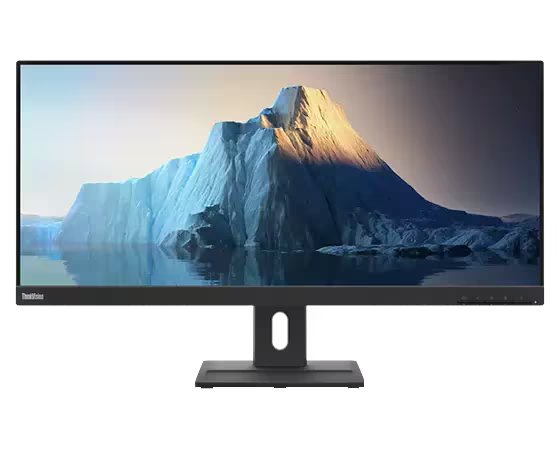

ThinkVision E29w-20 brings together brilliant technology and modern design in an immersive display like no other. Its ultrawide, 29-inch In-Plane Switching panel offers more screen space and a wide field of view, so content creators and multitaskers can see wider and do more.
Natural Low Blue Light technology built into the E29w-20 ensures eye protection without sacrificing colour accuracy. An ergonomic stand, offering tilt, swivel, and lift functions, makes it easy to adjust and comfortable to use. A comprehensive multimedia experience is assured with in-built 2 x 3W modular speakers that deliver crisp and clear sound to watch a video or jump onto a virtual conference.
29-inch WFHD Near-edgeless Panel
90Hz refresh rate
2 x 3W speakers
Captivating Ultrawide Panel
Featuring a 29-inch ultra-wide display with a 2560 x 1080 pixel resolution, the E29w-20 delivers an immersive viewing experience and outstanding image clarity that’s sure to keep content creators inspired and productive. Its 21:9 aspect ratio has +33% more pixels than 16:9 monitors, letting users see more information at any given moment. Adjust the aspect ratio of any application to facilitate smooth multitasking and gain easy access to more options on design tools without needing to scroll or minimize windows. Around the display, 3-side NearEdgless bezels look narrow and sleek, adding a modern feel to the office.
Uninhibited Display Performance
The ThinkVision E29w-20 doesn’t just look good; its In-Plane Switching panel ensures unrestricted viewing angles, up to 178°, and an impressive contrast ratio of 1000:1 for accurate color performance. An outlier in the 29-inch segment, it offers Natural Low Blue Light technology to reduce eye strain without distorting the color output. Covering 99% of the sRGB color gamut, the E29w-20 can display a wide range of colors that is more than sufficient for business tasks or light photo editing. AMD FreeSync™ technology1 and a 90 Hz refresh rate virtually eliminate screen tearing and stuttering, making fast-paced gaming and video streaming on the E29w-20 a silky smooth experience.
Captivating Ultrawide Panel
Taking the monitor experience beyond only video, 2 x 3W integrated modular speakers ensure loud and clear audio for virtual conferencing, watching videos, and more. Built on a supremely flexible stand, with lift, tilt, and swivel functions, the monitor can be adjusted to match any user’s requirements, no matter where they are working. Its DP 1.2 and HDMI 1.4 multimedia ports are compatible with most devices, transferring high-quality video and audio signals. For added convenience, a cable management clip reduces desk clutter and 100mm VESA mount compatibility enables easy deployment.
-
| DISPLAY |
|
| Panel Size |
29-inch |
| Screen Dimensions |
683.6 mm x 299.1 mm |
| Panel Type |
3-side NearEdgeless, In-Plane Switching |
| Active Area |
672.8 mm x 283.8 mm |
| Backlight |
WLED |
| Aspect Ratio |
21:9 |
| Resolution |
2560 x 1080 |
| Refresh Rate |
60 Hz |
| Pixel Pitch |
0.2628 mm x 0.2628 mm |
| Pixel Per Inch (DPI/PPI) |
96 |
| Viewing Angle (H x V @ CR 10:1) |
178° / 178° |
| Response Time |
4ms (Extreme Mode), 6ms (Normal Mode) |
| Brightness (typical) |
300 cd/m2 |
| Contrast Ratio (typical) |
1000:1 |
| Dynamic Contrast Ratio (typical) |
3M:1 |
| Color Gamut |
99% sRGB |
| Color Support (typical) |
16.7 Million |
| Color Depth |
8-bit (Hi-FRC) |
| Anti-glare |
Yes |
|
|
| CONNECTIVITY |
|
| Video Signals |
1 x HDMI 1.4 |
|
1 x DP 1.2 |
| Audio Signal |
1 x Audio Out (3.5mm) |
|
|
| MULTI-MEDIA |
|
| Integrated Speakers |
Yes (2 x 3W) |
| Optional Soundbar Support |
Yes (PN number: 0A36190) |
|
|
| SPECIAL FEATURES |
|
| Software |
Lenovo Artery4 (Lenovo Display Control Center) |
| Sync Technology |
AMD FreeSync™1 |
|
|
| POWER |
|
| Power Consumption (typ./max) |
36W / 45W |
| Power Consumption Sleep/Off Mode |
< 0.3W |
| Power Consumption Switch-Off Mode |
< 0.3W |
| Energystar Power Consumption (Pon/ETEC) |
13W / 40kWh |
| Power Supply |
Internal |
| Voltage Required |
AC 100 to 240 V (50-60 Hz) |
|
|
| MECHANICAL |
|
| Tilt Angle (front/back) |
-5° / 22° |
| VESA Mount Capability |
Yes (100 x 100 mm) |
| Swivel Angle (left/right) |
360° |
| Lift (Max. Range) |
155 mm |
| Kensington™ Lock Slot |
Yes |
| Cable Management |
Yes |
| Bezel Color |
Raven Black |
| Bezel Width (side) |
1.8 mm |
| Bezel Width (top/bottom) |
1.8 / 26.4 mm |
|
|
| DIMENSION |
|
| Size Packed (D x H x W, mm/inch) |
796.0 x 155.0 x 395.0 mm / 31.34 x 6.11 x 15.56 inches |
| Size Unpacked w/ Stand (D x H x W, mm/inch)(lowest position) |
220.0 x 331.1 x 688.4 mm / 8.66 x 13.04 x 27.10 inches |
| Size Unpacked w/stand (D x H x W) (mm/inch) (Highest Position) |
220.0 x 508.1 x 688.4 mm / 8.66 x 20.00 x 27.10 inches |
| Size Unpacked w/o stand (Head Only) (D x H x W)(mm/inch) |
47.5 × 320.0 × 688.4 mm / 1.87 x 12.60 x 27.10 inches |
| Weight Packed (kg/lbs.) |
8.5 kg / 18.7 lbs. |
| Weight Unpacked (kg/lbs.) |
6.6 kg / 14.6 lbs. |
| Weight (Monitor Head Only) (kg/lbs.) |
4.4 kg / 9.7 lbs. |
|
|
| CERTIFICATION |
|
| ENERGY STAR Certification |
Yes |
| CCC |
Yes |
| TCO |
8.0 |
| TCO Edge |
2.0 |
| RoHS (EU 2002/95/EC) |
Yes |
| EPEAT |
Gold |
| Windows Certification |
Windows 7, Windows 10 |
| China Energy Efficiency Standard |
Tier 1 |
| TÜV Rheinland Eye Comfort |
Yes |
| TÜV Low Blue Light (Hardware Solution) |
Yes |
| Eyesafe Display Certification |
Yes |
