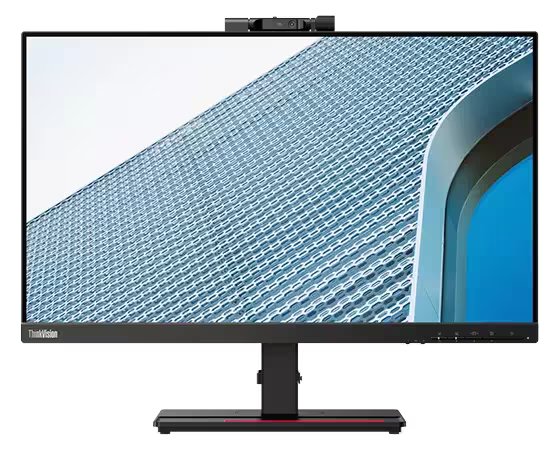

Built to empower the next-generation workforce, the ThinkVision T24v-20 redefines workplace collaboration with its smart, innovative features. This 23.8-inch monitor has an IR camera, which along with Windows Hello and enterprise-grade security, ensures instant and secure login. The camera is equipped with a physical shutter that works as added protection to user privacy. Dual microphones and speakers offer an enhanced VoIP meeting experience.
23.8inch FHD In-Plane Switching display with 3-Side NearEdgeless bezel design
Integrated 1080p IR RGB camera with dual microphone and 2x3W speaker
Facial Recognition camera with Windows Hello
Smarter and Personalized Security
Safety, security, and speed are the need of the hour and the IR camera, in conjunction with Windows Hello facial recognition, gives you exactly that. No need to remember passwords, or save credentials—just log in using your face. Additionally, the ThinkShutter allows you to cover your camera and the auto-alarm feature notifies you if the camera or microphone is in use, offering uncompromised privacy.
Effective Collaboration
Virtual meetings will now be a breeze. The T24v’s superior screen format, picture quality, and user functionality ensure that your video calls have top-notch clarity, crystal clear sound, and uninterrupted connectivity—thanks to the 2MP Full-HD camera, dual array microphones, and stereo speakers. A viewing angle of 178° makes it easy to collaborate as multiple users can view on-screen content from anywhere in the room.
Intuitive User Experience

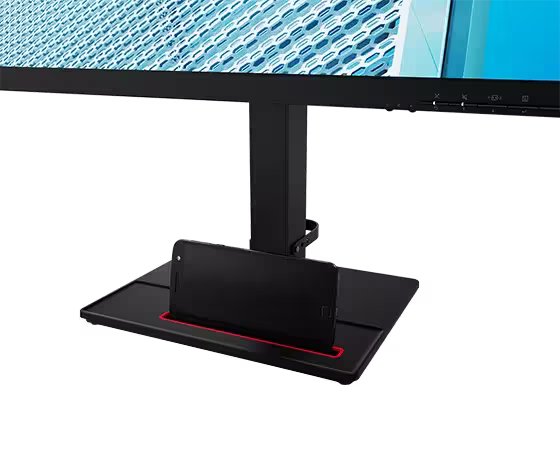

Make your meetings more comfortable and productive. An angle-adjustable camera and an ergonomic stand allow you to adjust the monitor to match your working style. Smart face-tracking technology automatically adjusts your face in the center of the screen, optimizing the display for a perfect VoIP meeting. With an ergonomic design and dedicated control keys, the T24v makes for a smart choice for any business.
| DISPLAY | |
|---|---|
| Panel Size | 23.8-inch |
| Screen Dimensions | 527.04 mm x 296.46 mm |
| Panel Type | 3-side NearEdgeless |
| In-Plane Switching | |
| Active Area | 672.8 mm x 283.8 mm |
| Backlight | WLED |
| Aspect ratio | 16:9 |
| Resolution | 1920 x 1080 |
| Refresh Rate | 60 Hz |
| Pixel Pitch | 0.2745 x 0.2745 mm |
| Pixel Per Inch (DPI/PPI) | 93 |
| Viewing Angle (H x V @ CR 10:1) | 178 ° / 178 ° |
| Response Time | 4ms (Extreme Mode) |
| 6ms (Normal Mode) | |
| Brightness (typical) | 250 cd/m2 |
| Brightness (peak) | 250 cd/m2 |
| Contrast Ratio (typical) | 1000:1 |
| Dynamic Contrast Ratio (typical) | 3M:1 |
| Color Gamut | 72% NTSC (CIE 1931) |
| Color Support (typical) | 16.7 Million |
| Anti-glare | Yes |

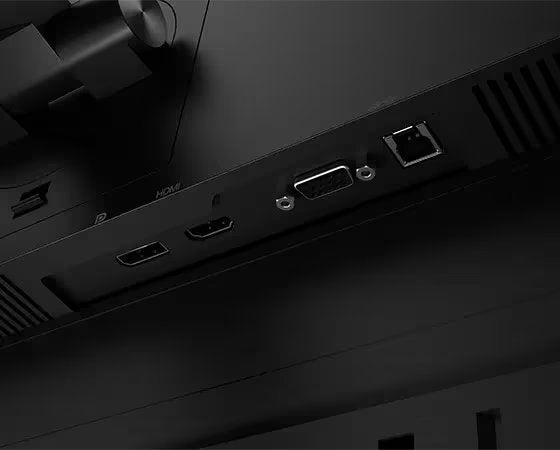

| CONNECTIVITY | |
|---|---|
| Video Signals | 1 x HDMI 1.4 |
| 1 x DP 1.2 | |
| 1 x VGA | |
| Audio Signal | 1 x VGA |
| USB Hub | Yes |
| USB Upstream | 1 X USB 3.2 Gen1 |
| USB Downstream | 2 x USB 3.2 Gen1 (1 x BC1.2) |
| MULTI-MEDIA | |
|---|---|
| Integrated Webcam | Yes (1080p, IRRGB camera) |
| Integrated Microphone | Yes |
| Integrated Speakers | Yes (2 x 3W) |
| SPECIAL FEATURES | |
|---|---|
| Software | Lenovo ThinkColour (Lenovo Display Control Center)1 |
| POWER | |
|---|---|
| Power Consumption (typ./max) | 13W / 44W |
| Power Consumption Sleep/Off Mode | < 0.5W |
| Power Consumption Switch-Off Mode | < 0.5W |
| Energystar Power Consumption (Pon/ETEC) | 11.36W / 35.68kWh |
| Power Supply | Internal |
| Voltage Required | AC 100 to 240 V (50-60 Hz) |

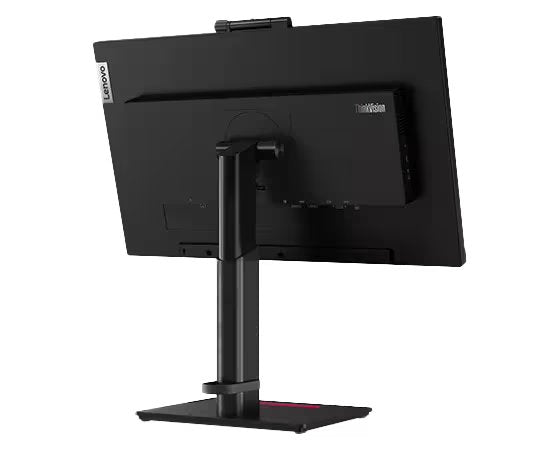

| MECHANICAL | |
|---|---|
| Tilt Angle (front/back) | -5 ° / 35 ° |
| VESA Mount Capability | Yes (100 x 100 mm) |
| Swivel Angle (left/right) | +45° / -45° |
| Pivot | -90° / 90° |
| Lift (Max. Range) | 150 mm |
| ThinkCentre M Series Tiny support | Yes (sold separately) |
| Kensington™ Lock Slot | Yes |
| Cable Management | Yes |
| Bezel Color | Raven Black |
| Bezel Width (side) | 1.8 mm |
| Bezel Width (top/bottom) | 1.8 / 22.0 mm |
| DIMENSION | |
|---|---|
| Size Packed (D x H x W, mm/inch) | 418.0 x 187.0 x 644.0 mm |
| Size Unpacked w/ Stand (D x H x W, mm/inch)(lowest position) | 205.0 x 434.0 x 539.8 mm |
| Size Unpacked w/stand (D x H x W) (mm/inch) (Highest Position) | 205.0 x 584.0 x 539.8 mm |
| Size Unpacked w/o stand (Head Only) (D x H x W)(mm/inch) | 48.35 x 344.3 x 539.8 mm |
| Weight Packed (kg/lbs.) | 7.86kg / 17.33 lbs. |
| Weight Unpacked (kg/lbs.) | 7.86kg / 17.33 lbs. |
| Weight (Monitor Head Only) (kg/lbs.) | 3.48kg / 7.67 lbs. |
| Min. Distance from Table to Panel (lowest pixel at bottom of screen, mm) | 114.1 mm |
| Max. Distance from Table to Panel (highest pixel at top of screen, mm) | 560.56 mm |
| Full Container Load (40' STD / 20' STD) | 1012/440 units |
| CERTIFICATIONS | |
|---|---|
| ENERGY STAR Certification | Yes |
| CCC | Yes |
| TCO | 8.0 |
| TCO Edge | 2.0 |
| RoHS (EU 2002/95/EC) | Yes |
| EPEAT | Gold |
| Windows Certification | Windows 7, Windows 10 |
| China Energy Efficiency Standard | Tier 1 |
| TÜV Rheinland Eye Comfort | Yes |
