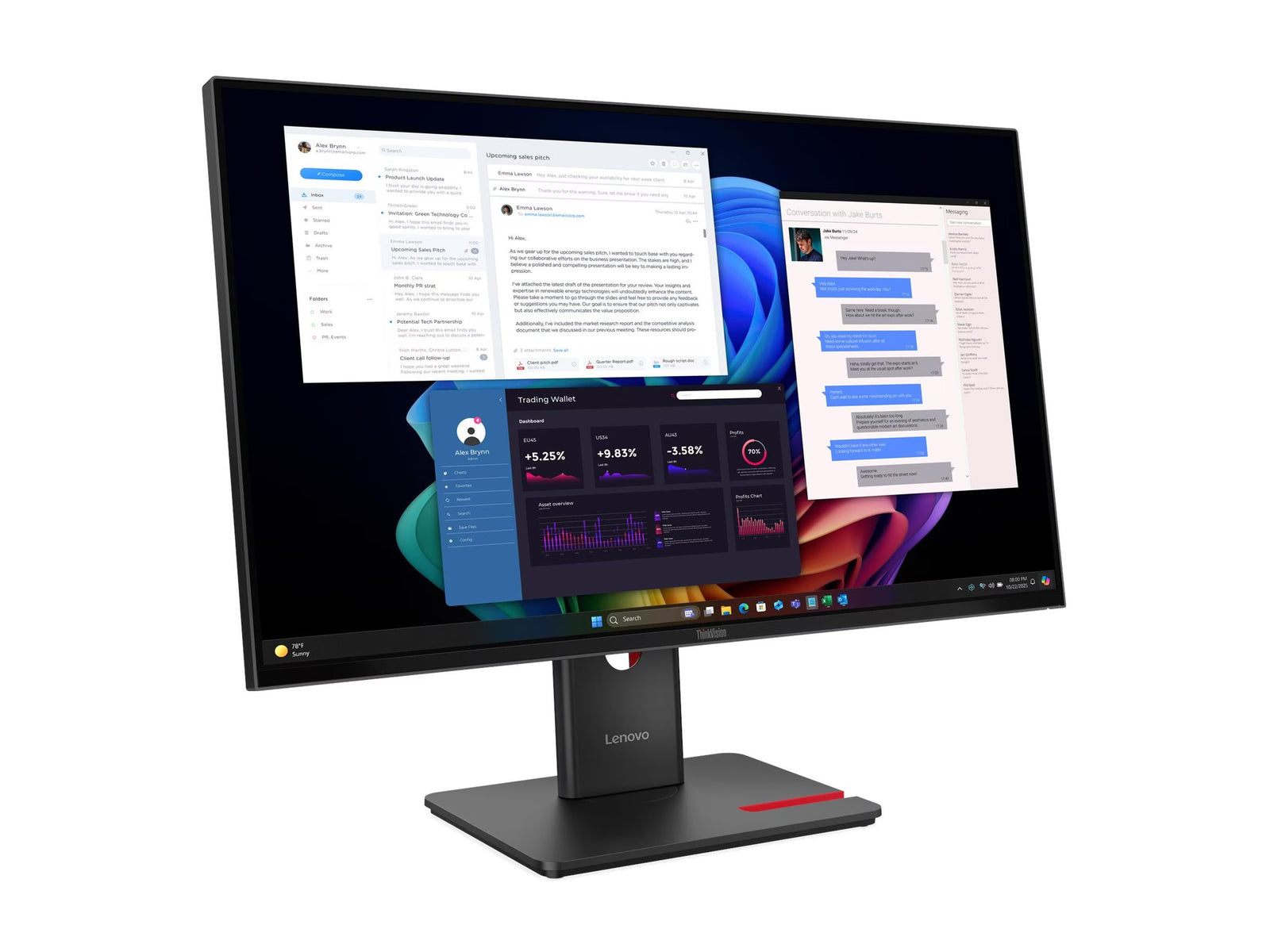

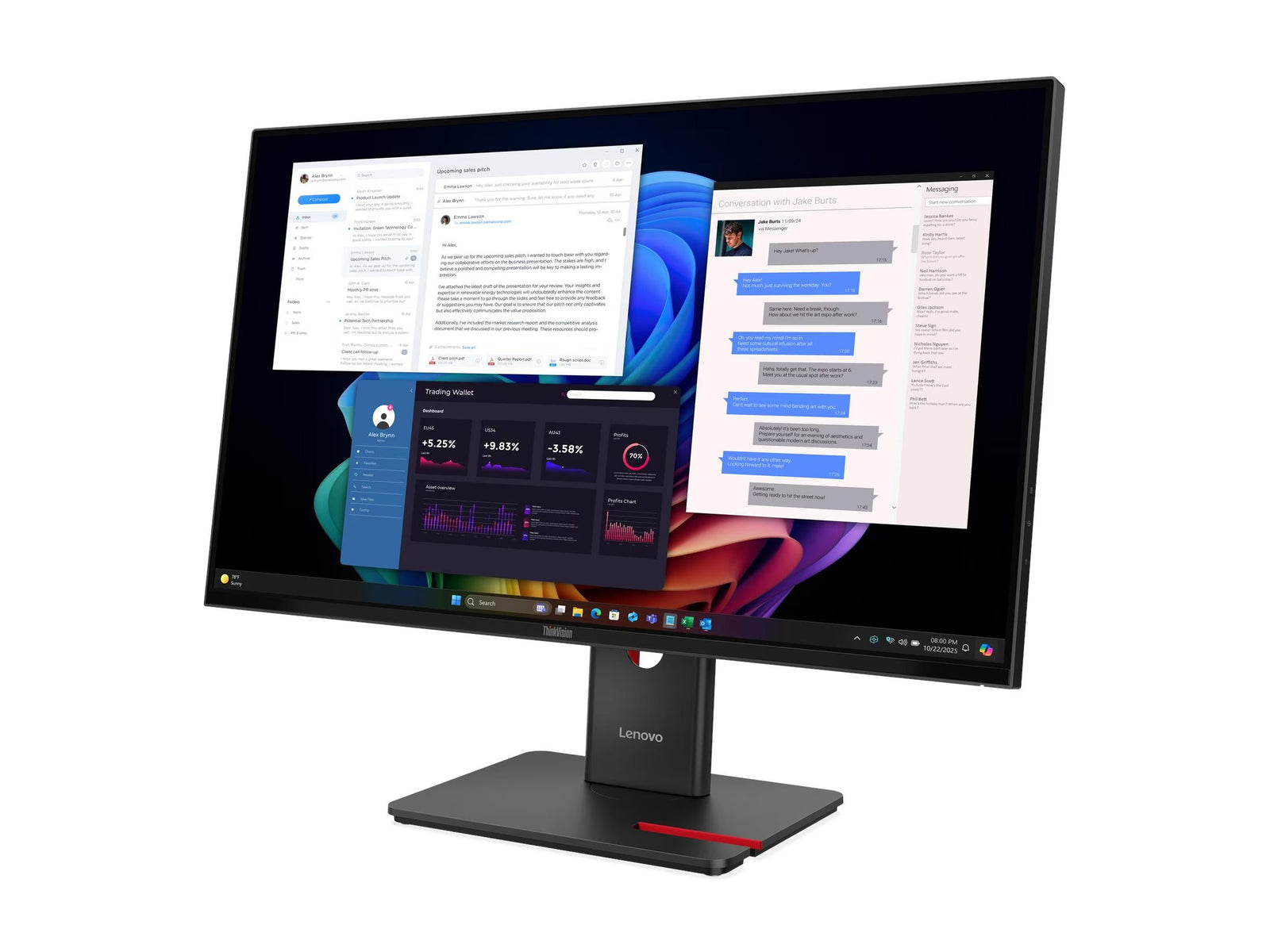

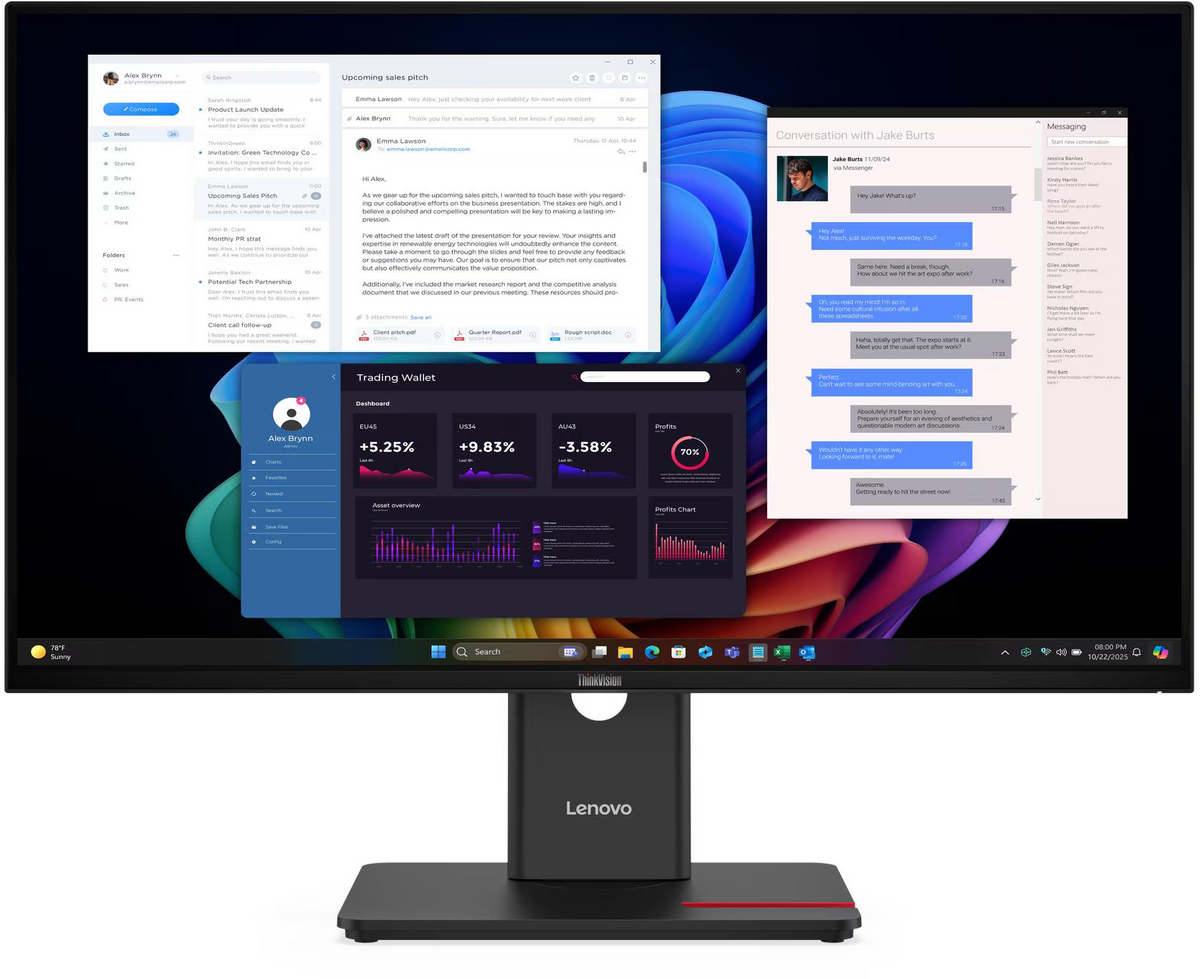

ThinkVision T27UD-40 27" UHD USB-C Docking Monitor
27-inch UHD display with IPS panel
99% sRGB and 99% BT.709 color gamut and 48-60Hz Variable Refresh Rate
One cable docking solution with up to 100W power delivery
USB Hub - Downstream 3 x USB-A 3.2 Gen 1, 1 x USB-C 3.2 Gen 1 (PD 15W data only)；Upstream 1 x USB-C 3.2 Gen 2 (PD up to 100W)
TÜV Rheinland EyeSafe Certification 2.0
Ergonomic stand with LTPS (lift, tilt, pivot, and swivel functions)
Enhanced Productivity and Image Clarity
Impressive Visual Fidelity
Relish distortion-free, ultra sharp visuals on the IPS panel with its UHD resolution and 48-60 Hz refresh rate.
Immersive and Vivid Images
Dive into work content that looks immersive and color accurate with the panel’s 99% sRGB, 99% BT.709 color space coverage and 4-sided ultra thin bezel design.
Comprehensive Eye-Care
Eliminate eye-strain from your work using the monitor’s TÜV Rheinland Certified Eye Comfort 4-Star and Eyesafe® Certification 2.0.
Smart and Convenient Connectivity
Intelligent Docking
ThinkVision docking monitors offer a USB hub and one cable docking solution that delivers power (up to 100W*), data, and display simultaneously, making it convenient for your digital workspace.
Ample Connectivity
Connect with a plethora of devices using the ThinkVision USB hub, unlocking greater productivity for your workflows, while utilizing the USB - C downstream port for up to 15W PD charging.
Efficient Controls
Use the Mirrored Power Button to conveniently turn on, shut down, or wake a docked Lenovo notebook directly from the monitor.
Modular Versatility
Connect to the ThinkVision Modular MC60 Webcam and MS30 Soundbar via the top-mounted USB-A port to elevate your audio and camera quality easily. Leverage the monitor’s support for mounting the Lenovo Tiny PC and enjoy a clean desk setup.
*The output rating (100W, 20V/5A) is based on Lenovo's proprietary VDM technology. It is required to connect to products that support Lenovo VDM to reach maximum power output. Actual power output may vary and may be lower.
Prioritizes Personal Ergonomics

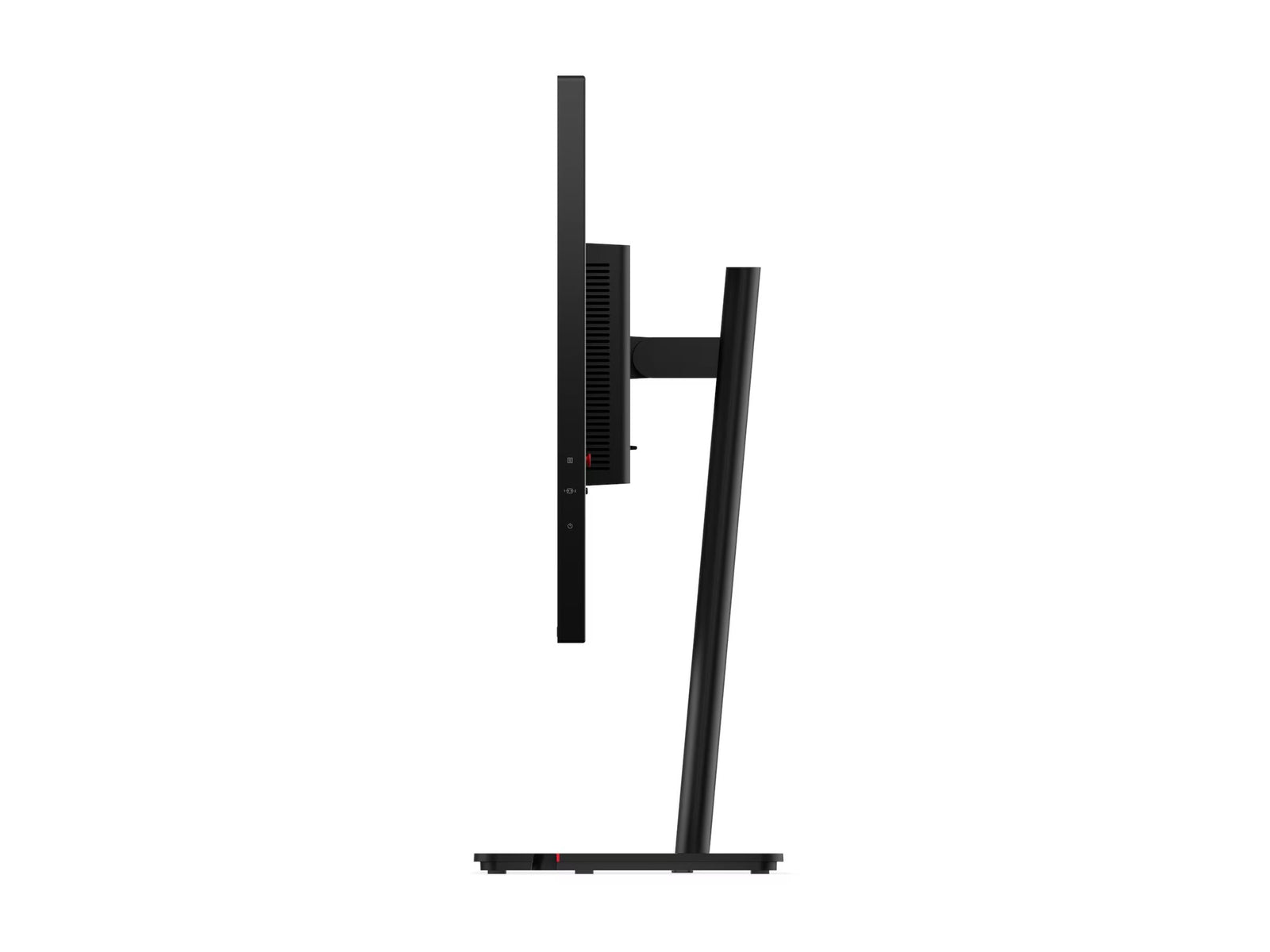

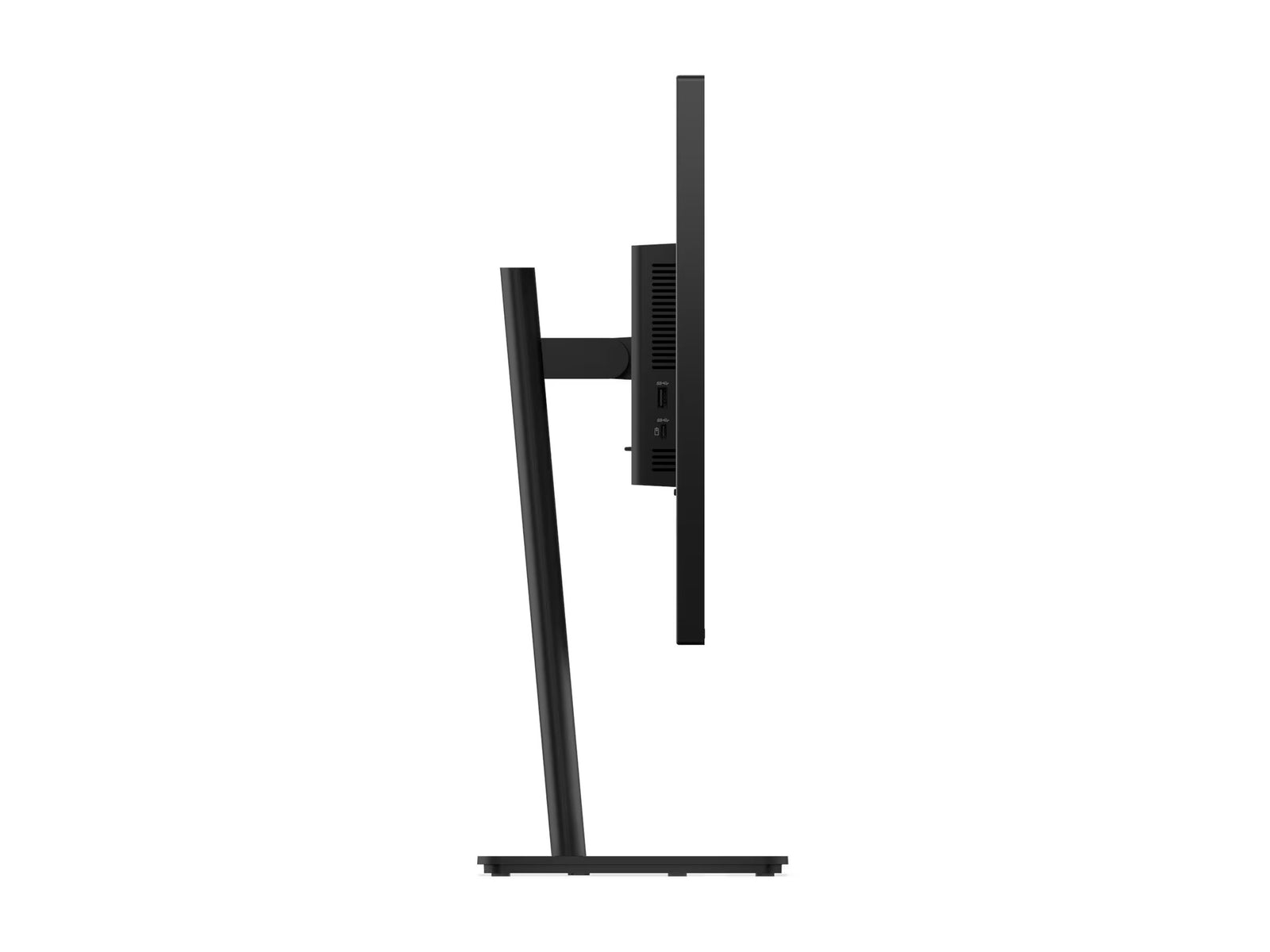

Achieve the perfect ergonomic position for yourself as you work, lifting, tilting, pivoting, and swiveling the monitor to your preference using its fully functional LTPS stand.
Remote Manageability for Easy Adjustability
Lenovo Display Fleet Manager
Empower IT administrators with remote asset management and full control of your monitors with LDFM.
Lenovo Accessory and Display Manager
Allow for remote optimization of your displays for work, entertainment, or any other use case with Lenovo ThinkColour (Lenovo Accessory and Display Manager).
*Formerly Lenovo Display Control Center. Supports Windows 10 & 11, Mac OS (functions vary across systems)
Made to Be Environmentally Sustainable
Choose an environmentally friendly monitor that comes with 95% PCC, TCO10, Energy Star 8.0 certifications.
The display comes in 100% paper box with pulp cushion packaging, protecting the environment from harmful waste.

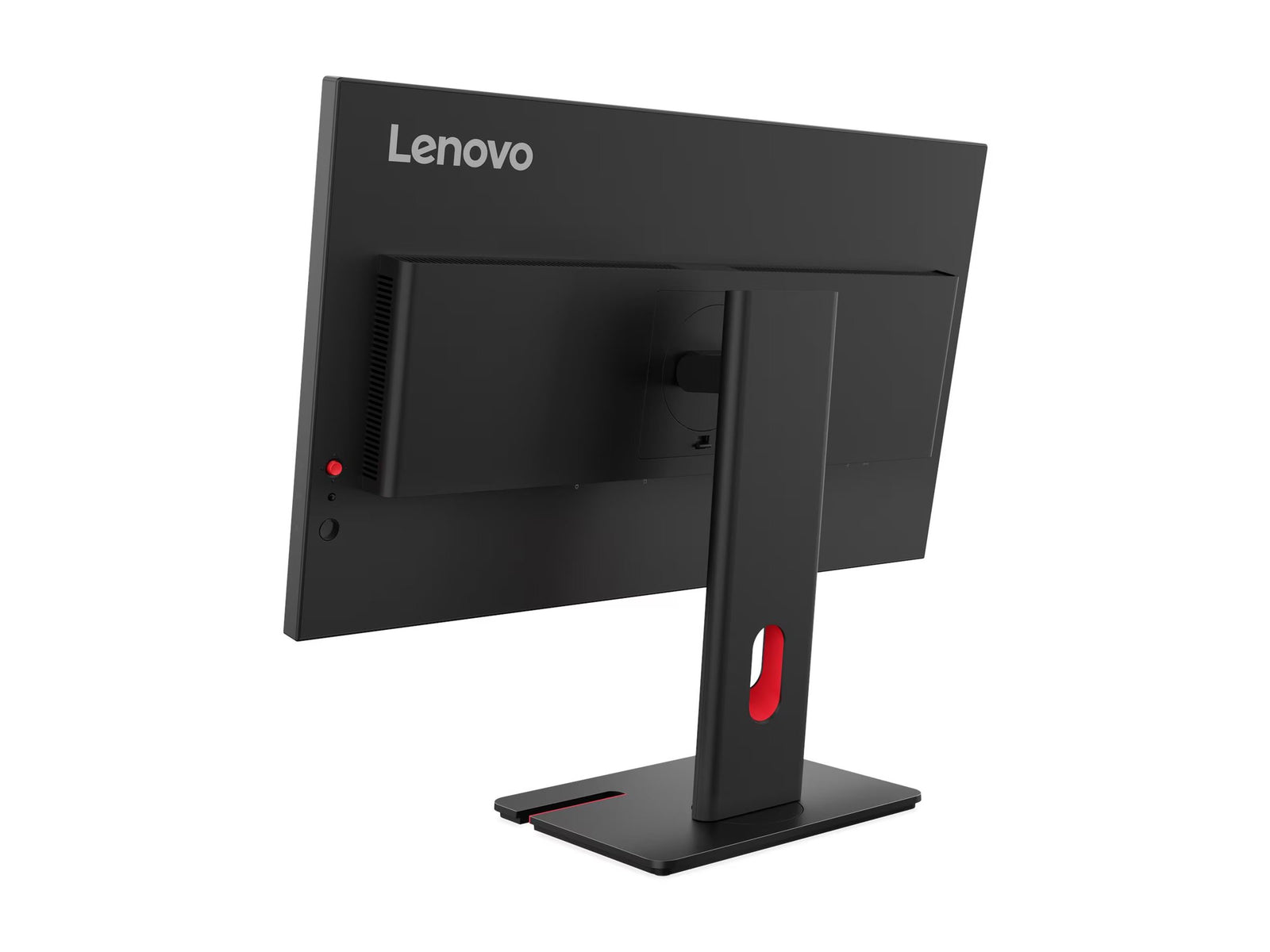

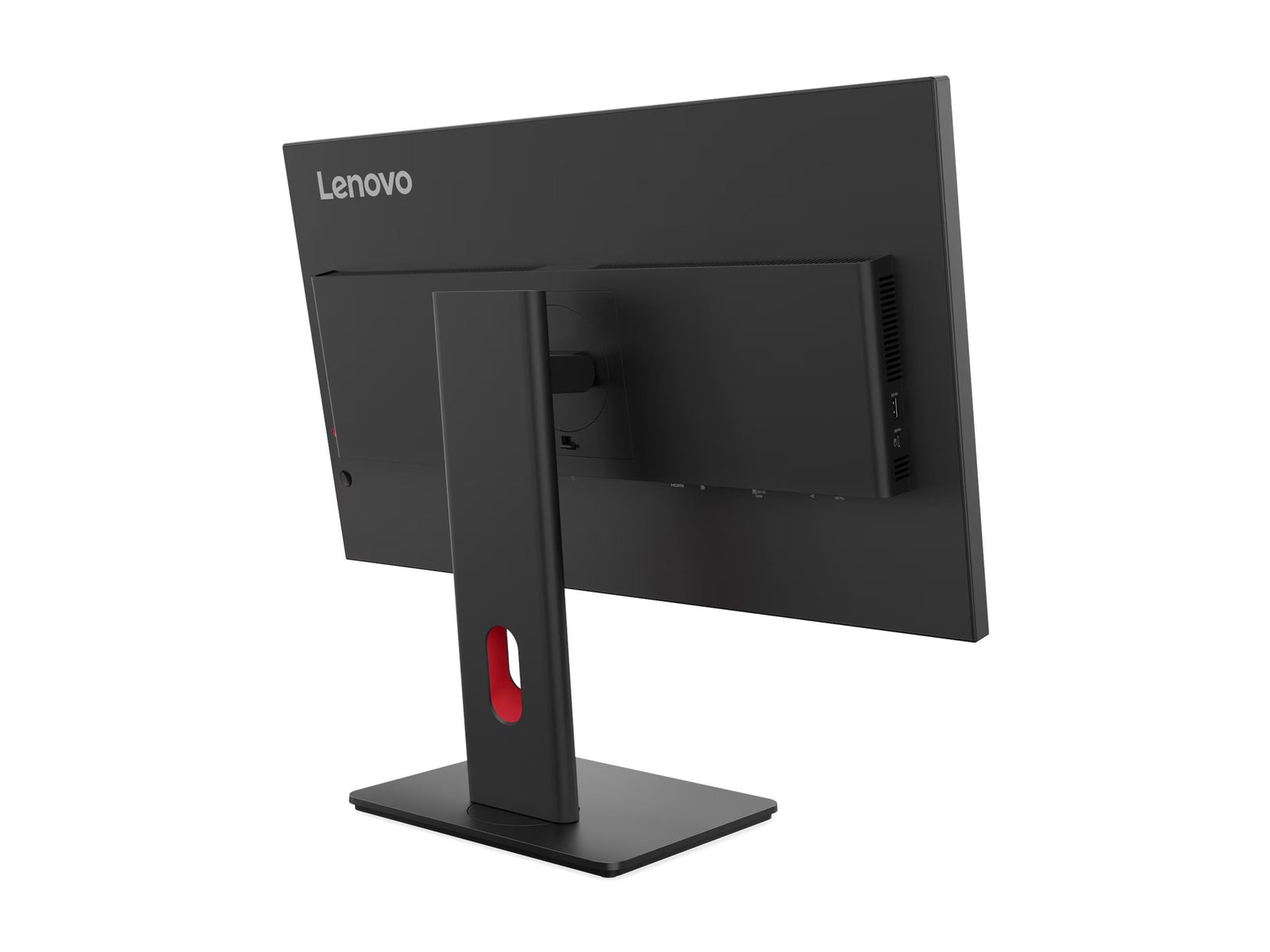

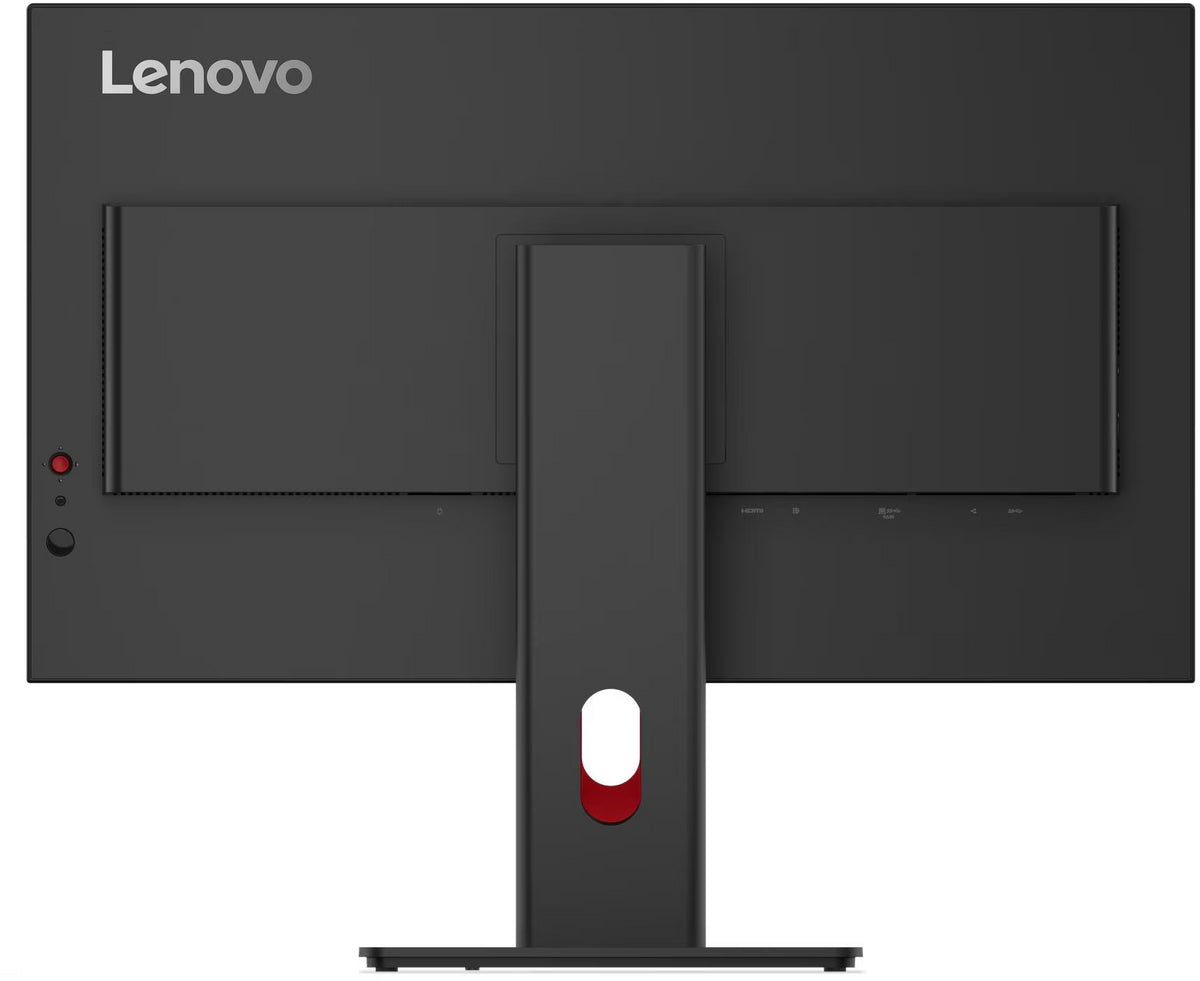

Ports & Slots
1. Power
2. Kensington® Security Slot™
3. HDMI® 2.1
4. DisplayPort™ 1.4
5. USB-C 3.2 Gen 2
6. Ethernet
7. USB-A 3.2 Gen 1
8. USB-A 3.2 Gen 1
9. USB-C 3.2 Gen 1, Up to 15W PD (data only)
10. USB-A 3.2 Gen 1 (BC1.2)
| Display diagonal | 68.6 cm (27") | Display resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD | Native aspect ratio | 16:9 |
| Display technology | LCD | Panel type | IPS |
| Backlight type | W-LED | Display brightness (typical) | 350 cd/m² |
| Response time | 6 ms | Anti-glare screen | Yes |
| Screen shape | Flat | Contrast ratio (typical) | 1500:1 |
| Contrast ratio (dynamic) | 3000000:1 | Maximum refresh rate | 60 Hz |
| Viewing angle (horizontal) | 178° | Viewing angle (vertical) | 178° |
| Display number of colours | 1.07 billion colours | Response time (fast) | 4 ms |
| Pixel pitch | 0.1554 x 0.1554 mm | Pixel density | 163 ppi |
| HDR supported | Yes | HDR technology | HDR10 |
| Colour depth | 10 bit | Colour gamut | 99% |
| sRGB coverage | 99% | NVIDIA G-SYNC | Yes |
| AMD FreeSync | Yes | Low Blue Light technology | Yes |
| Windows OS supported | Windows 10, Windows 11 | Built-in speakers | Yes |
| Built-in microphone | Yes | Built-in camera | Yes |
| Market positioning | Office | Product colour | Black |
| Colour name | Eclipse black | Front bezel colour | Black |
| Feet colour | Black | Built-in USB hub | Yes |
| Number of upstream ports | 1 | USB Type-C upstream ports | 1 |
| USB Type-A downstream ports | 3 | USB Type-C downstream ports | 1 |
| USB-C DP Alt Mode | Yes | USB PD | Yes, up to 100 W |
| HDMI ports | 1 | HDMI version | 2.1 |
| DisplayPort ports | 1 | DisplayPort version | 1.4 |
| Headphone out | Yes | Ethernet LAN | Yes |
| VESA mounting | Yes | Panel mounting interface | 100 x 100 mm |
| Cable management | Yes | Cable lock slot | Yes (Kensington) |
| Height adjustment | 15.5 cm | Pivot | -90° to 90° |
| Swivel angle | -45° to 45° | Tilt angle | -5° to 23.5° |
| Energy class (SDR) | E | Energy class (HDR) | G |
| Energy consumption (SDR) | 22 kWh | Energy consumption (HDR) | 30 kWh |
| Power consumption (typical) | 18 W | Power consumption (standby) | 0.5 W |
| Power consumption (max) | 175 W | Power consumption (off) | 0.5 W |
| AC input voltage | 100 - 240 V | AC input frequency | 50/60 Hz |
| Power supply type | Internal | Energy efficiency scale | A to G |
| Width (with stand) | 613.4 mm | Depth (with stand) | 195 mm |
| Height (with stand) | 539.1 mm | Weight (with stand) | 6.7 kg |
| Width (without stand) | 613.4 mm | Depth (without stand) | 46 mm |
| Height (without stand) | 357 mm | Weight (without stand) | 4.5 kg |
| Bezel width (side) | 2 mm | Bezel width (top) | 2 mm |
| Bezel width (bottom) | 1.15 cm | Package width | 693 mm |
| Package depth | 150 mm | Package height | 422 mm |
| Package weight | 9.3 kg | Stand included | Yes |
| Cables included | DisplayPort, USB-C to USB-C | Bundled software | EU Energy Label, TCO 10, TCO Edge 2.1, Eyesafe 2.0, TÜV 4-star |
| Sustainability certificates | ENERGY STAR, EPEAT Gold | Video colour modes | BT.709 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports | 1 |
| Certification | ENERGY STAR, TCO 10, TCO Edge 2.1, EPEAT Gold, Eyesafe 2.0, TÜV Rheinland |
| Description | Downloads |
|---|---|
| Lenovo ThinkVision T27UD-40 27" IPS Class 4K UHD LED Monitor | 64AFGAT2UK DataSheet | Download |
| Lenovo ThinkVision T27UD-40 27" IPS Class 4K UHD LED Monitor | 64AFGAT2UK User Guide | Download |
