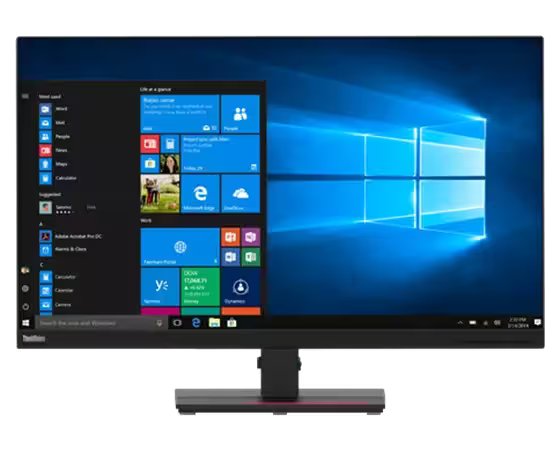

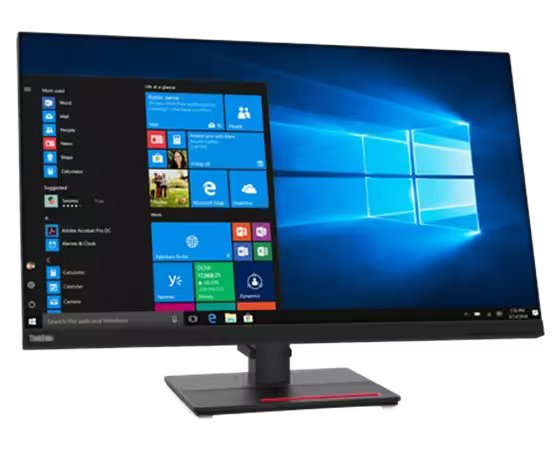

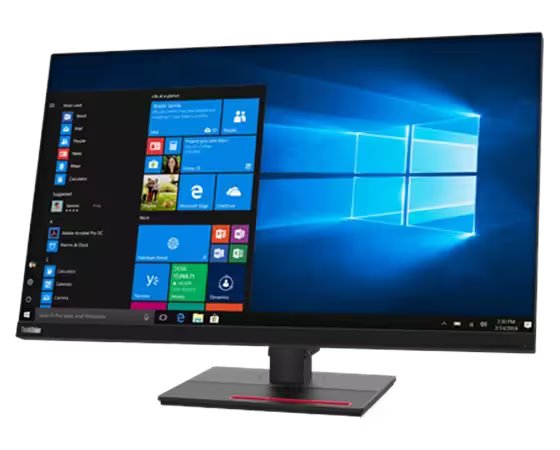

ThinkVision T32h-20 31.5" QHD USB-C Monitor
Do more than just optimise your productivity with the ThinkVision T32h-20 monitor. Get an enhanced view of, and easily navigate through, documents, spreadsheets, or designs on this sleek display that complements your modern workspace.
Its vast 31.5-inch screen with QHD resolution delivers more screen real estate with higher clarity than FHD, making data-intensive work, number crunching, and content editing a breeze. The one-cable solution USB Type-C, HDMI, and DP ports provide multiple interface options.Integrated with Smart Power, the USB Type-C also doubles up as a charger for dynamic consumption and intelligent power management
31.5", 2K QHD 2560 x 1440
IPS, 16:9, WLED
4ms (GtG), 60Hz

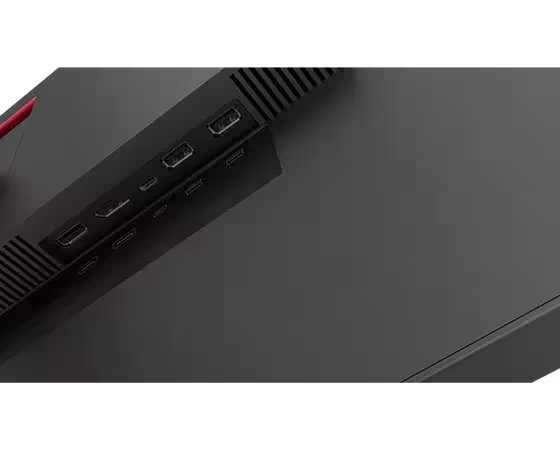

USB Type-C Gen1 + HDMI 1.4 + DP 1.2, USB Hub
More Ways to Multitask
Experience detailed view with 2560 x 1440 resolution on its 31.5-inch wide display. Working on text-heavy documents or large spreadsheets is a breeze, thanks to the monitor’s 3-side NearEdgeless bezels that also enable you to use a multi-screen setup. Content and video creators can experience more pixels and vivid images with the 99% sRGB color gamut. This monitor also has an anti-glare screen, making it perfect for open offices.
Powered to Drive Productivity
This extended USB-C Hub Monitor offers a one-cable solution for power, data, video, and audio transfers. HDMI ports and dedicated DisplayPort enables seamless multi-tasking so you can connect the monitor to your laptop, smartphone, or any other smart device and work efficiently. The Smart Power function detects overall power consumption and dynamically manages the power delivery to each device. It offers up to 75W of power delivery through the USB Type-C cable, reducing maximum power consumption.
Optimized Workspace
A smart choice for the modern workplace, the ThinkVision T32h-20 offers comfortable viewing for enhanced collaboration. Adjust the screen as per your convenience with a high lift range and tilt angle, along with swivel and pivot functionality. Organize your desk space and maximize productivity with flexible cable management, an integrated phone holder, a minimized square base, and VESA mount capability.
-
DISPLAY |
|
Panel Size |
31.5-inch |
Screen Dimensions |
698.11 mm x 392.69 mm |
Panel Type |
3-side NearEdgeless |
|
In-Plane Switching |
Backlight |
WLED |
Aspect Ratio |
16:9 |
Resolution |
2560 x 1440 |
Pixel Pitch |
0.2727 x 0.2727 mm |
Dot/Pixel Per Inch (DPI/PPI) |
94 |
Viewing Angle (H x V @ CR 10:1) |
178 ° / 178 ° |
Response Time |
4ms (extreme mode) |
|
6ms (normal mode) |
Refresh Rate |
60 Hz |
Brightness (typical) |
350 cd/m² |
Contrast Ratio (typical) |
1000:1 |
Dynamic Contrast Ratio (typical) |
3M:1 |
Color Gamut |
99% sRGB |
Color Support (typical) |
1.07 Billion |
Anti-glare |
Yes |
CONNECTIVITY |
|
Video Signal |
1 x USB Type-C Gen1 (DP 1.2 Alt Mode) |
|
1 x HDMI 1.4 |
|
1 x DP 1.2 |
Audio Signal |
1 x Audio Out (3.5 mm) |
USB Hub |
Yes |
USB Upstream |
1 x USB 3.1 Gen1 (by USB Type-C) |
USB Downstream |
4 x USB 3.1 Gen1 (1 BC) |
POWER |
|
Power Consumption (typ./max) |
28W / 138W |
Power Consumption Sleep/Off Mode |
< 0.5W |
Power Consumption Switch-off Mode |
< 0.3W |
ENERGY STAR Power Consumption (Pon/ETEC) |
21.6W / 69.2kWh |
Power Supply |
Internal |
USB Type-C Power Delivery (W) |
up to 75 W* |
Smart Power |
Yes |
Voltage Required |
AC 100 to 240 V (50-60 Hz) |
MECHANICAL |
|
Tilt Angle (front/back) |
-5 ° / 35 ° |
Swivel Angle (left/right) |
-45 ° / +45 ° |
Pivot |
-90 ° / 90 ° |
VESA Mount |
Yes (100 x 100 mm) |
Lift (Max range) |
135 mm |
Kensington Lock Slot |
Yes |
Cable Management |
Yes |
Bezel Color |
Raven Black |
Bezel Width (Side) |
2.0 mm |
Bezel Width (top/bottom) |
2.0 / 24.12 mm |
DIMENSION |
|
Size Packed (D x H x W, mm/inch) |
528.0 x 190.0 x 845.0 mm / 20.79 x 7.48 x 32.27 inches |
Size Unpacked w/ Stand (D x H x W, mm/inch)(lowest position) |
235.0 x 469.4 x 714.6 mm / 9.25 x 18.48 x 28.13 inches |
Size Unpacked w/ Stand(D x H x W, mm/inch)(highest position) |
235.0 x 604.4 x 714.6 mm / 9.25 x 23.79 x 28.13 inches |
Size Unpacked w/o Stand (head only) (D x H x W)(mm/inch) |
714.6 x 426.0 x 51.0 mm / 28.13 x 16.77 x 2.01 inches |
Min. Distance from Table to Panel (lowest pixel at bottom of screen, mm) |
69.2 mm |
Max. Distance from Table to Panel (highest pixel at top of screen, mm) |
461.8 mm |
Weight Packed (kg/lbs.) |
12.96 kg / 28.57 lbs. |
Weight Unpacked (kg/lbs.) |
9.85 kg / 21.72 lbs. |
Weight (Monitor Head Only) (kg/lb) |
6.78 kg / 14.95 lbs. |
Full Container Load (40’ STD / 20’ STD) |
672 / 320 units |
CERTIFICATION |
|
ENERGY STAR Rating |
8.0 |
CCC |
Yes |
TCO |
8.0 |
TCO Edge |
2.0 |
EPEAT |
Gold |
RoHS (EU 2002/95/EC) |
Yes |
Windows Certification |
Windows 7, Windows 10 |
China Energy Efficiency Standard |
Tier 1 |
TÜV Rheinland Eye Comfort |
Yes |
