LG 24BK55YP-I

24” Full HD IPS Monitor

Description
Specifications
Warranty
Download

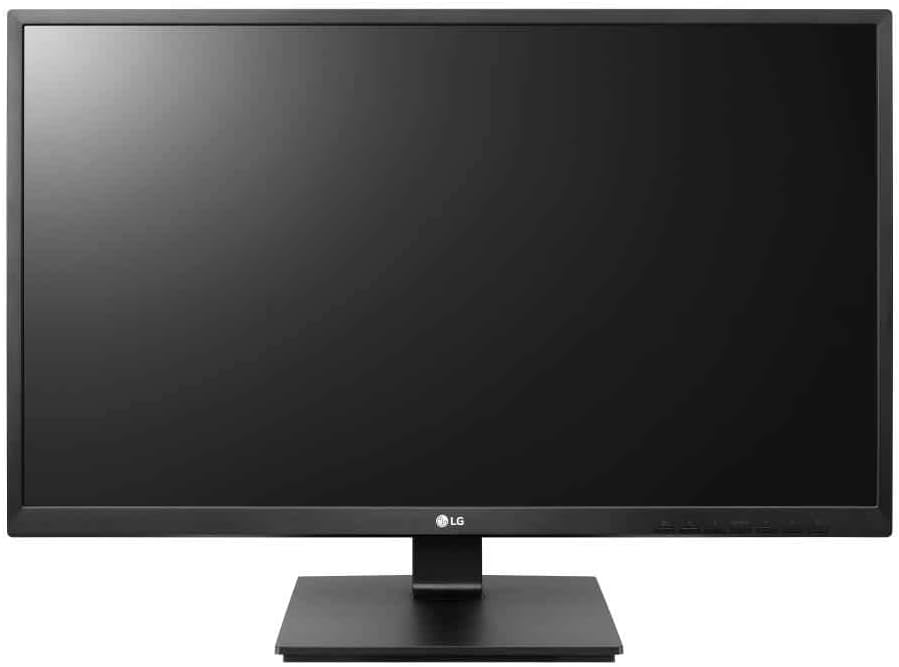

Full HD IPS Display
The IPS displays clear and accurate colors from all angles for advanced work, making the panel suitable for professionals. Also, IPS picture quality allows you to create outstanding output.

Ergonomic Design
The monitors provide comfortable viewing with versatile screen height/tilt/pivot/swivel adjustments. You can customize the display for a personal, comfortable workstation depending on various contents or office tools.

Advanced Tech Design
The Advanced Design can be installed quickly and easily without the need for any tools. Also, the Wall Mount gives you the freedom to take it off the desk and hang it on a wall.

Built-in Power for Orderly Workspaces
A power module is attached to the monitor from behind for built-in power, eliminating a mess of cables. Ultimately, an office using a number of PCs could be more pleasant by saving each desktop space.

Mini PC Connection Available
The LG BK55 allows you to attach an Intel NUC and wall mount mini PC that is 100x100 mm compliant behind the monitor with a bracket. This is ideal for an office that has already used the Mini PC.
*Bracket sold separately.

PVC-Free: No Noxious Materials
The PVC-free guarantee adds protection against noxious materials. The BK55 consists of PVC-Free, TUV-certified materials (excluding cables).

GENERAL
Size (Inch / cm)	23.8" / 60.47cm
Panel Type	IPS
Colour Gamut (CIE1976)	72%
Colour Depth (Num of Colours)	16.7M
Pixel Pitch (mm)	0.2745 x 0.2745 mm
Aspect Ratio	16:9
Resolution	1920 x 1080
Brightness (Typ.)	250 cd/m² (Typ), 200 cd/m² (Min)
Contrast Ratio (Original)	1000:1 (Typ)
(DFC)	5M:1
(GTG)	5ms (High)
Viewing Angle (CR≥10)	178°/178° (CR≥10)
Surface Treatment	Anti glare ,3H

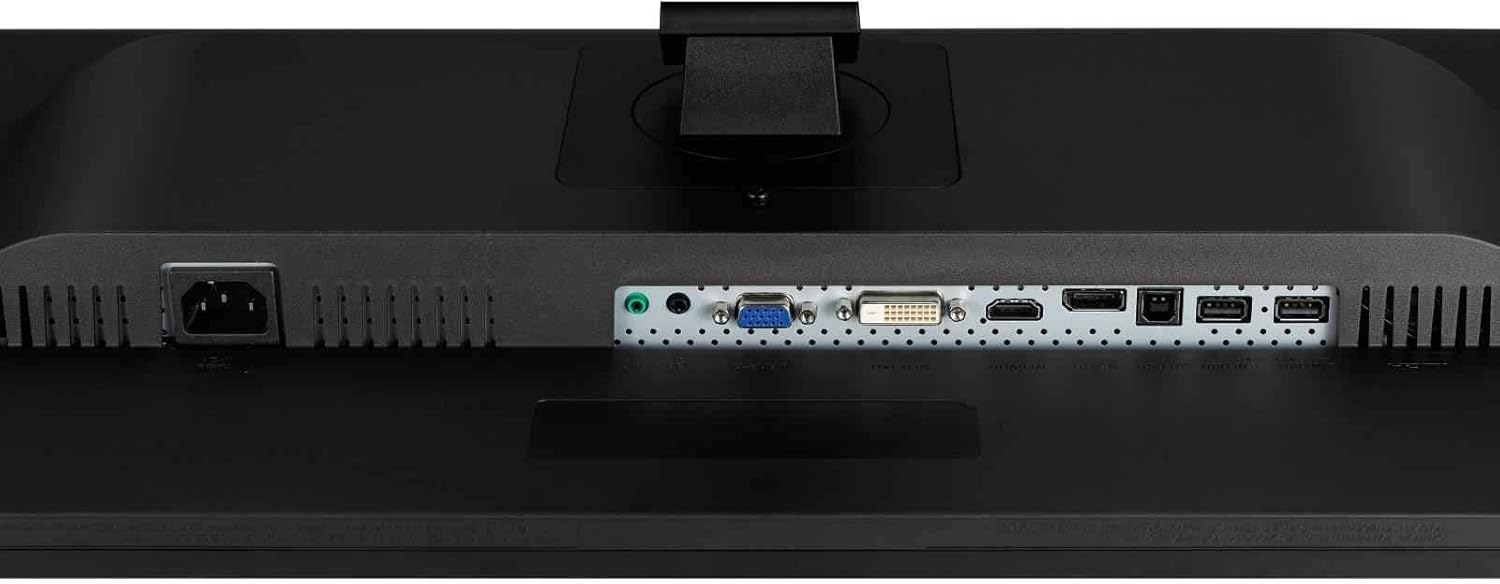

JACK INPUT/OUTPUT
D-Sub	Yes
DVI	Yes
DisplayPort	Yes (1.2)
HDMI	Yes (1.4)
Jack Location (Signal Input)	Vertical
PC Audio In	Yes
Jack Location (Audio Input)	Vertical
Headphone Out	Yes
Jack Location (Audio Output)	Vertical
USB	USB 2.0 (1 up 2 down)
SPEAKER
Type	2ch stereo
Audio output (watt)	1.2W x 2
POWER
Type	Built-in
Input	100~240V (50/60Hz)
Output	28W
Normal On (EPA)	17.1W
Normal On (typ.)	23.6W
Sleep Mode (Max)	0.5W
DC Off (Max)	0.3W
Energy Efficiency Class (A - G)	E
FREQUENCY
D-sub (H-Frequency)	30~83kHz
D-sub (V-Frequency)	56~75Hz
DVI-D (H-Frequency)	30~83kHz
DVI-D (V-Frequency)	56~75Hz
HDMI (H-Frequency)	30~83kHz
HDMI (V-Frequency)	PC: 56~~75Hz, AV: 50~~61Hz
DisplayPort (H-Frequency)	30~83kHz
DisplayPort (V-Frequency)	56~75Hz
RESOLUTION
D-Sub	1920 x 1080
DVI-D	1920 x 1080
DisplayPort	1920 x 1080
HDMI	1920 x 1080
CONTROL KEY
Key Number	7
Key Description	MENU, ◀, ▶, OK/INPUT, ▼, ▲, POWER
Key Type	Tact
LED Colour (On mode)	White
LED Colour (Power save mode)	LED off
[ Key Location ]	Front
OSD
Languange (Country)	English, German, French, Spanish, Italian, Swedish, Finnish, Portuguese, Polish, Russian, Greek, Chinese, Japanese, Korean, Ukrainian, Portuguese (Brazil), Hindi, Tranditional Chinese
Number of Language	18
SPECIAL FEATURE
Picture Mode	Yes
Ratio	Yes
Reader Mode	Yes
DDC/CI	Yes
HDCP	Yes (1.4)
Intelligent Auto (Auto Adjustment)	Yes
Key Lock	Yes
Plug & Play	Yes
Response Time	Yes
Colour Calibrated	Yes
Dual Control	Yes
Flicker Safe	Yes
Off Timer	Yes
Six Axis Control	Yes
Smart Energy saving	Yes
Super Resolution+	Yes
OSC (On Screen Control / Screen Split)	Yes
COLOUR
Front	Black (Texture)
B/Cover	Black (Texture)
Stand	Black (Texture)
Base	Black (Texture)
STAND
Base Detachable	Yes
Tilt (Angle)	-5º ~ 35º
Swivel (Angle)	Yes ('0°~355° (±5°))

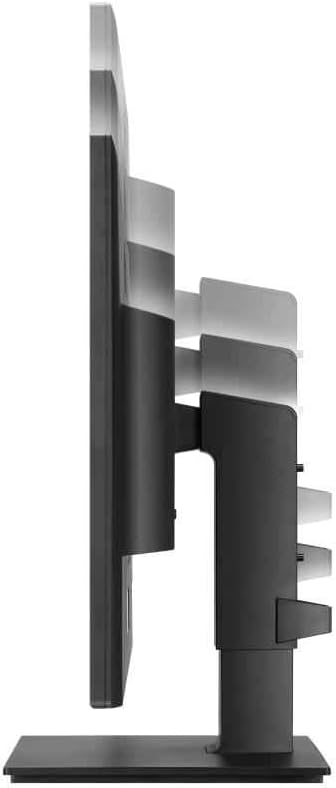

Height range (mm)	130mm
Down Height (mm)	70mm

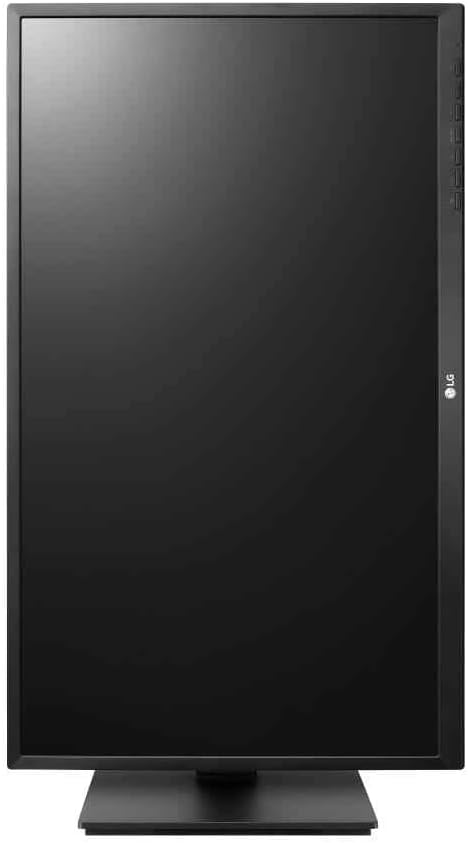

Pivot	Yes (Bi-directional, 90º)
Mini PC Bracket Ready	Yes

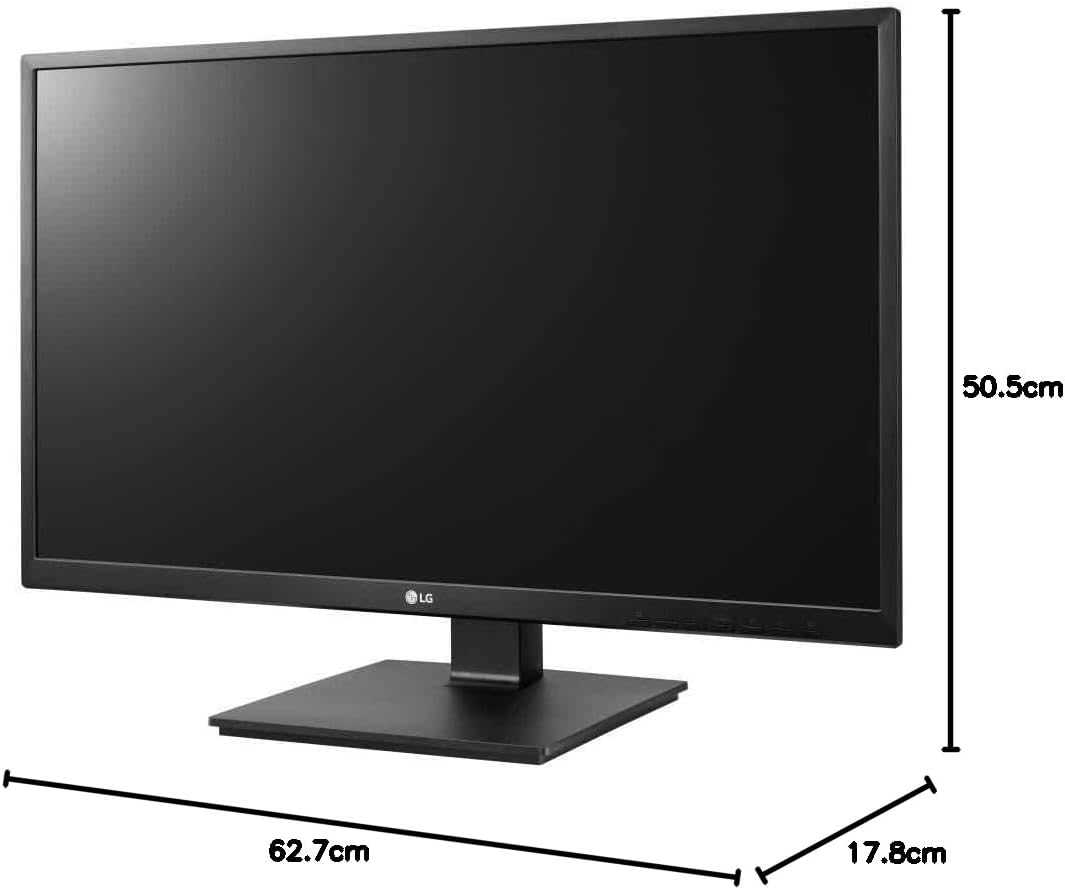

DIMENSION (WDH, MM)
Set (with Stand)	553.8 x 240 x 382.9
Set (without Stand)	553.8 x 58.4 x 333.1
Box	627 x 505 x 178
Wall Mount size (mm)	100 x 100 (Wall mount)
WEIGHT (KG)
Set (with Stand)	5.7
Set (without Stand)	3.6
Box	7.9
STANDARD
TCO (Ver.)	Yes (7.0)
UL(cUL)	Yes
TUV-GS	Yes
TUV-Ergo	Yes
CB	Yes
FCC-B	Yes
CE	Yes
EPA	Yes (7.0)
ISO 9241-307	Yes
EPEAT	Yes (Gold, US/DG)
Windows	Win 10
ROHS, REACH	Yes
PVC-Free	Yes
ACCESSORY
Power Cord	Yes
DVI-D	Yes
DisplayPort	Yes
USB	Yes
PC Audio	Yes
CD (Manual / Software)	Yes (Manual, Driver)

Standard Warranty for LG Products
The estimated standard warranty for LG products varies.
Please refer to the below guide, which references general warranty periods beginning from the original purchase date.
Please note: the below is intended as a guide only, and T&Cs may vary depending on your model and product use.

Warranty for LG Monitors

Labour : 24 Months
Parts : 24 Months
NOTE: The manufacturer warranty period is the same for consumer and commercial usage.

Warranty Terms and Conditions:
Replacement Unit or Parts may be new or remanufactured service exchanges that are equivalent to new in performance and reliability.
The LG warranty does not cover any of the following actions:
a) Periodic check ups, maintenance and repair or replacement of parts due to normal wear and tear.
b) Cost relating to transport, removal or installation of the product.
c) Misuse, including failure to use the product for its normal purposes or incorrect installation.
d) Damage caused by Lightning, Water, Fire, Acts of God, War, Public Disturbances, incorrect mains voltage, improper or insufficient ventilation, or any other cause beyond the reasonable control of LG.
The LG manufacturer warranty is only valid when accompanied by the original invoice, sales receipt, or confirmation from LGE UK of the warranty period.

If the serial number is defaced, missing, or illegible, the warranty with LGE UK is null and void. In this case, you should contact the dealer from whom the product was purchased.
During the repair process, any stored data may be lost so it is strongly recommended that you backup any important data and media files before requesting a service. LG will not be responsible for any data corruption or loss however so caused during the repair process or failure of the customer to ensure that all data is properly backed up.

Document Title	Download Link
Dismantling information (24BK55YP-I)	Download
EU Energy label 2019 (24BK55YP-I)	Download
UK DoC (24BK55YP-I)	Download
UK Energy label 2019 (24BK55YP-I)	Download
Product information sheet (24BK55YP-I)	Download
